Model Whirlpool RM278BXV3 – Common Parts & Diagrams

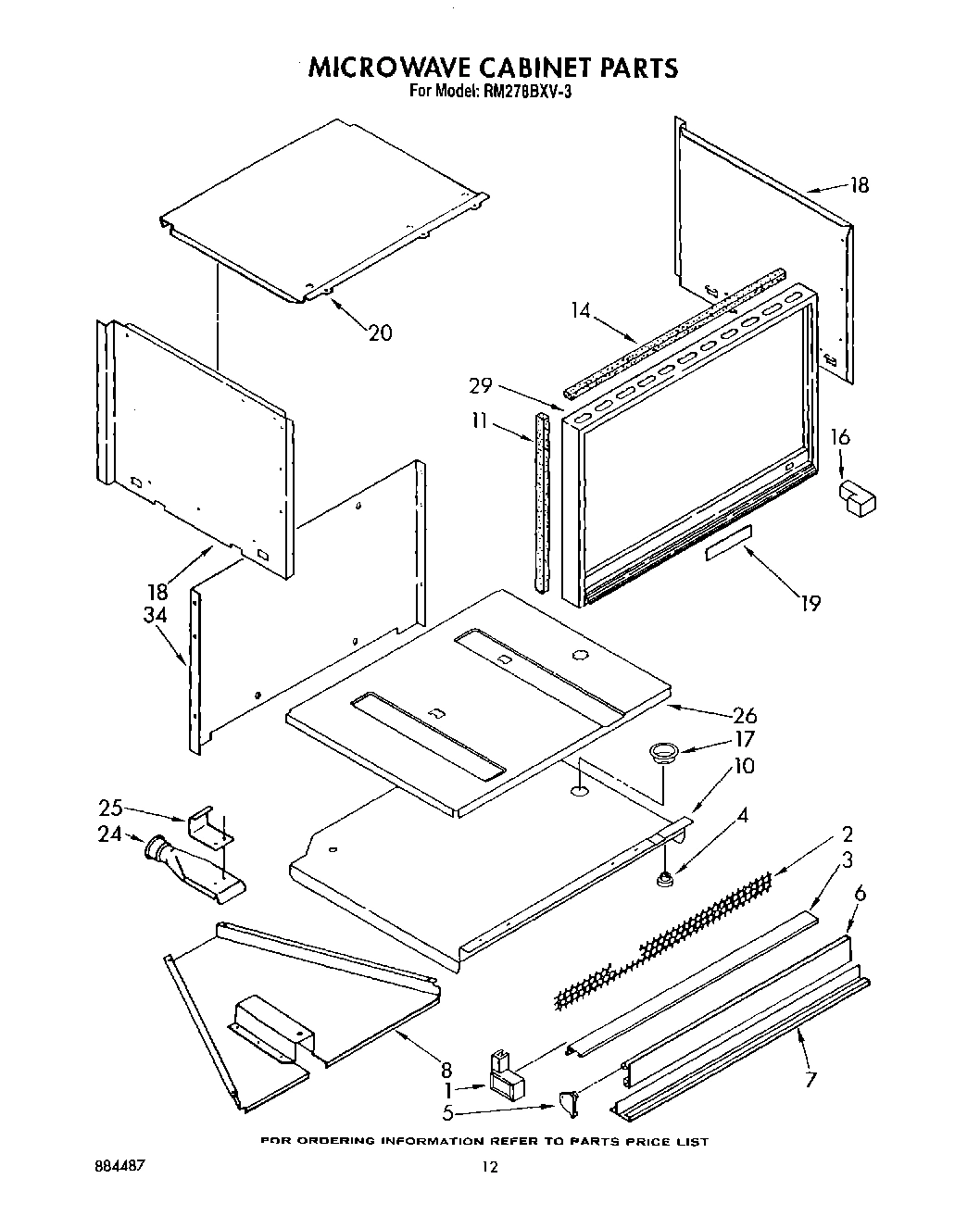

08 - MICROWAVE CABINET, OPTIONAL

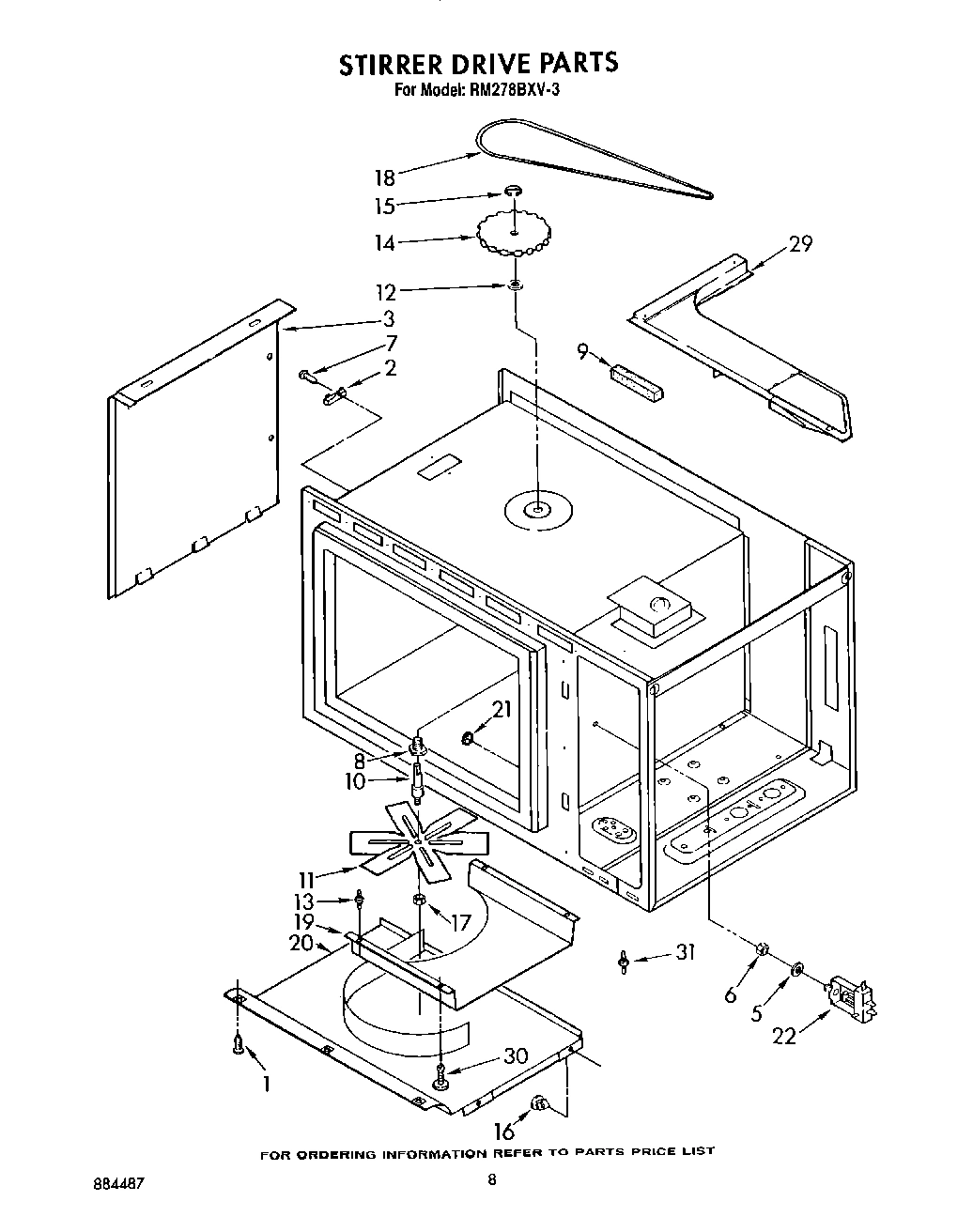

06 - STIRRER DRIVE
07 - MICROWAVE DOOR AND LATCH
09 - WIRING HARNESS
04 - CONTROL PANEL
05 - MAGNETRON AND AIR FLOW
02 - OVEN, LIT/OPTIONAL
03 - OVEN DOOR
Common parts from model Whirlpool RM278BXV3
WPL 3147571 WPL 3147571 Contact Us For Availability
WPL 3147573 WPL 3147573 Contact Us For Availability
WPL LIT311895 WPL LIT311895 Contact Us For Availability
WPL LIT312900 WPL LIT312900 Contact Us For Availability
WPL LIT312914 WPL LIT312914 Contact Us For Availability
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT3147287 WPL LIT3147287 Contact Us For Availability
WPL LIT3149025 WPL LIT3149025 Contact Us For Availability
WPL LIT884487 WPL LIT884487 Contact Us For Availability
1
Bracket, Catch Includes 3, No.19 WPL 311354 Contact Us For Availability
1
Wiring Harness (Main, Oven) WPL 3147939 Contact Us For Availability
1
Frame, Control Panel WPL 3150217 Contact Us For Availability
1
Transformer WPL 3147272 Contact Us For Availability
1
Frame, Front WPL 3172196 Contact Us For Availability
1
Liner, Door WPL 3172219 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
2
Wiring Harness (Sel./Therm.) WPL 3147916 Contact Us For Availability
2
Module, Control WPL 3147944 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Bumper, Door (4) WPL 3148182 Contact Us For Availability
3
Cover, Side WPL 3147004 Contact Us For Availability
3
Adapter, Terminal WPL 3147832 Contact Us For Availability
3
Bracket, Control (Mounting) WPL 3147282 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Retainer, Insulation WPL 3148160 Contact Us For Availability
3
Screw (4) WPL 3148443 Contact Us For Availability
4
Screw (4) WPL 254225 Contact Us For Availability
4
Screw, 10-32 x 1/2 Hex Washer W/Ground Ring ( WPL 312185 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Shield, Door WPL 3148680 Contact Us For Availability
5
Washer WPL 313105 Contact Us For Availability
5
Screw 4-40x3/4 (8) WPL 312717 Contact Us For Availability
5
Wiring Harness (Control) WPL 3147560 Contact Us For Availability
5
Thermostat WPL 3148931 Contact Us For Availability
5
Bracket, Capacitor WPL 312619 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
6
Nut WPL 313104 Contact Us For Availability
6
Shelf, Glass WPL 313639 Contact Us For Availability
6
Wiring Harness Main (Microwave) WPL 3147554 Contact Us For Availability
6
Screw, 8-32 x 3/16 (2) WPL 308119 Contact Us For Availability
6
Switch, Selector WPL 3147235 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
6
Panel, Door WPL 3148186 Contact Us For Availability
7
Insulator WPL 313126 Contact Us For Availability
7
Switch, Bake WPL 314210 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Top, Door WPL 3148223 Contact Us For Availability
8
Bushing, Stirrer WPL 312023 Contact Us For Availability
8
(Alt.) WPL 313075 Contact Us For Availability
8
(Alt.) WPL 313123 Contact Us For Availability
8
Switch, Monitor/ Oven light WPL 661144 Contact Us For Availability
8
Light, Indicator (4) WPL 3147517 Contact Us For Availability
8
(Alt.) WPL 312631 Contact Us For Availability
8
(Alt.) WPL 312632 Contact Us For Availability
8
Capacitor WPL 661004 Contact Us For Availability
8
Seal, Door WPL 3148284 Contact Us For Availability
8
Handle, Door WPL 3148228 Contact Us For Availability
9
Seal, Foam WPL 3147599 Contact Us For Availability
9
Trim, Shelf (Front) WPL 313614 Contact Us For Availability
9
Trim, Shelf (Rear) WPL 313615 Contact Us For Availability
9
Baffle, Top Insulation WPL 310693 Contact Us For Availability
9
Frame, Door WPL 3148235 Contact Us For Availability
10
Clip, Handle WPL 3148282 Contact Us For Availability
10
Screw (5) WPL 3149333 Contact Us For Availability
10
Shaft, Stirrer WPL 312026 Contact Us For Availability
10
(Alt.) WPL 313076 Contact Us For Availability
10
(Alt.) WPL 313124 Contact Us For Availability
10
Switch, Monitor/ Oven Light WPL 661145 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
11
Stirrer Blade WPL 313595 Contact Us For Availability
11
screw, 4-40 x 1 (2) WPL 310211 Contact Us For Availability
11
Screw, No.6 WPL 314215 Contact Us For Availability
11
Switch, Broil WPL 314209 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3172450 Contact Us For Availability
11
Insulation WPL 3147951 Contact Us For Availability
12
Washer, Nylon WPL 312025 Contact Us For Availability
12
grille, air WPL 3149297 Contact Us For Availability
12
screw (3) WPL 3150025 Contact Us For Availability
12
Relay, Power WPL 314125 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
13
Support (4) WPL 313738 Contact Us For Availability
13
Switch, Electronic WPL 313120 Contact Us For Availability
13
Escutcheon, Thermostat WPL 311073 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
14
Pulley, Stirrer Blade WPL 311923 Contact Us For Availability
15
Screw, 6-20 x 1/2 (3) WPL 3149443 Contact Us For Availability
15
Screw (4) WPL 313818 Contact Us For Availability
15
Screw (2) WPL 312006 Contact Us For Availability
15
Light, Indicator WPL 3149034 Contact Us For Availability
15
Rectifier, High Voltage WPL 313830 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
16
Fastener (6) WPL 313740 Contact Us For Availability
16
shield WPL 311360 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
19
Plate, Tuning WPL 313735 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
20
Screw, 8-32 x 1/2 WPL 313816 Contact Us For Availability
20
Stirrer Cover WPL 313563 Contact Us For Availability
20
Screw (2) WPL 313489 Contact Us For Availability
20
Switch, Lock WPL 3148669 Contact Us For Availability
21
Plug, Hole (4) WPL 312215 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Probe Jack WPL 661209 Contact Us For Availability
22
Door, Inner WPL 3171012 Contact Us For Availability
23
Frame, Door WPL 3170441 Contact Us For Availability
23
Air Duct (Horizontal) WPL 313578 Contact Us For Availability
23
Tube, Vent WPL 312697 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
25
Support, Vent Tube WPL 312698 Contact Us For Availability
25
Latch, Complete (Includes No.26) WPL 329066 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Panel, Support WPL 3147498 Contact Us For Availability
26
Spring, Torsion (2) WPL 311352 Contact Us For Availability
26
(Alt.) WPL 311992 Contact Us For Availability
26
(Alt.) WPL 311993 Contact Us For Availability
26
(Alt.) WPL 311994 Contact Us For Availability
26
(Alt.) WPL 311995 Contact Us For Availability
26
(Alt.) WPL 313034 Contact Us For Availability
26
Magnetron WPL 660595 Contact Us For Availability
27
Probe, Temperature WPL 313527 Contact Us For Availability
27
Screw (2) WPL 3150532 Contact Us For Availability
28
(Alt.) WPL 312800 Contact Us For Availability
28
(Alt.) WPL 313521 Contact Us For Availability
28
Thermal Protector WPL 661165 Contact Us For Availability
28
(Alt.) WPL 307856 Contact Us For Availability
28
(Alt.) WPL 310208 Contact Us For Availability
28
Socket, Oven Light WPL 660556 Contact Us For Availability
29
Screw (2) WPL 307748 Contact Us For Availability
29
Frame, Outer WPL 3149800 Contact Us For Availability
29
Baffle, Air WPL 3147002 Contact Us For Availability
29
Screw (2) WPL 313820 Contact Us For Availability
30
Fastener WPL 310423 Contact Us For Availability
30
Cover, Light WPL 308039 Contact Us For Availability
31
Support, Tuning Plate WPL 313739 Contact Us For Availability
31
End Cap WPL 3148297 Contact Us For Availability
31
Retainer, Light WPL 308038 Contact Us For Availability
32
Socket, Light WPL 330514 Contact Us For Availability
32
Coverplate WPL 311982 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3171148 Contact Us For Availability
34
WPL 799344 WPL 799344 Contact Us For Availability
34
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
34
Paint, Touch-Up 1 Oz. (Oven Liner) (Light Gra WPL 242757 Contact Us For Availability
34
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
34
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
34
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
34
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
34
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
34
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
34
18 Ga. 80~c Rating (White) WPL 242826 Contact Us For Availability
34
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
34
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
34
18 Ga. 80~c Rating (16 Ga. 80~c Rating) WPL 242829 Contact Us For Availability
34
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
34
18 Ga. 80~c Rating (Yellow 12 Ga. 150~c Ratin WPL 242832 Contact Us For Availability
34
Blue Gray WPL 242860 Contact Us For Availability
34
Grease WPL 261582 Contact Us For Availability
34
WPL 261881 WPL 261881 Contact Us For Availability
34
WPL 261890 WPL 261890 Contact Us For Availability
34
WPL 261891 WPL 261891 Contact Us For Availability
34
WPL 282831 WPL 282831 Contact Us For Availability
34
WPL 285365 WPL 285365 Contact Us For Availability
34
WPL 285366 WPL 285366 Contact Us For Availability
34
WPL 285367 WPL 285367 Contact Us For Availability
34
WPL 285368 WPL 285368 Contact Us For Availability
34
WPL 3147491 WPL 3147491 Contact Us For Availability
34
WPL 350806 WPL 350806 Contact Us For Availability
34
WPL 350941 WPL 350941 Contact Us For Availability
34
WPL 591014 WPL 591014 Contact Us For Availability
34
WPL 72112 WPL 72112 Contact Us For Availability
34
WPL 786020 WPL 786020 Contact Us For Availability
34
WPL 786032 WPL 786032 Contact Us For Availability
34
WPL 799832 WPL 799832 Contact Us For Availability
34
WPL 832985 WPL 832985 Contact Us For Availability
34
WPL 978849 WPL 978849 Contact Us For Availability
34
WPL 978883 WPL 978883 Contact Us For Availability
34
Safety Switch WPL 308185 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
35
Handle, Door WPL 314169 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
36
Motor, Fan WPL 313641 Contact Us For Availability
36
Sc WPL 309258 Contact Us For Availability
36
WPL 313035 WPL 313035 Contact Us For Availability
37
Pulley, Motor WPL 311922 Contact Us For Availability
37
WPL 308422 WPL 308422 Contact Us For Availability
37
WPL 310825 WPL 310825 Contact Us For Availability
38
Spring, Compression WPL 310197 Contact Us For Availability
38
WPL 246135 WPL 246135 Contact Us For Availability
38
WPL 311253 WPL 311253 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
39
``E`` Ring WPL 311999 Contact Us For Availability
40
Bracket, Motor WPL 313601 Contact Us For Availability
43
Wheel, Blower WPL 3147223 Contact Us For Availability
44
Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability
46
High Voltage Lead, Gray 7-11/16`` (2) WPL 3147863 Contact Us For Availability
47
Clip WPL 311311 Contact Us For Availability
47
WPL 3147864 WPL 3147864 Contact Us For Availability
48
Screw WPL 346893 Contact Us For Availability
48
Extension, Air Duct WPL 3147262 Contact Us For Availability
49
Fuse, Thermal WPL 313855 Contact Us For Availability
49
screw WPL 312713 Contact Us For Availability
50
Seal, Foam WPL 313752 Contact Us For Availability
50
WPL 309029 WPL 309029 Contact Us For Availability
50
WPL 310668 WPL 310668 Contact Us For Availability
51
Seal, Foam WPL 313753 Contact Us For Availability
52
WPL 3149542 WPL 3149542 Contact Us For Availability
53
WPL 308043 WPL 308043 Contact Us For Availability
53
WPL 3147001 WPL 3147001 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
55
WPL 311592 WPL 311592 Contact Us For Availability
56
WPL 311012 WPL 311012 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
63
WPL 309080 WPL 309080 Contact Us For Availability
63
WPL 310433 WPL 310433 Contact Us For Availability
63
WPL 310434 WPL 310434 Contact Us For Availability
63
WPL 3149142 WPL 3149142 Contact Us For Availability
63
WPL 3149328 WPL 3149328 Contact Us For Availability
× ![]()
