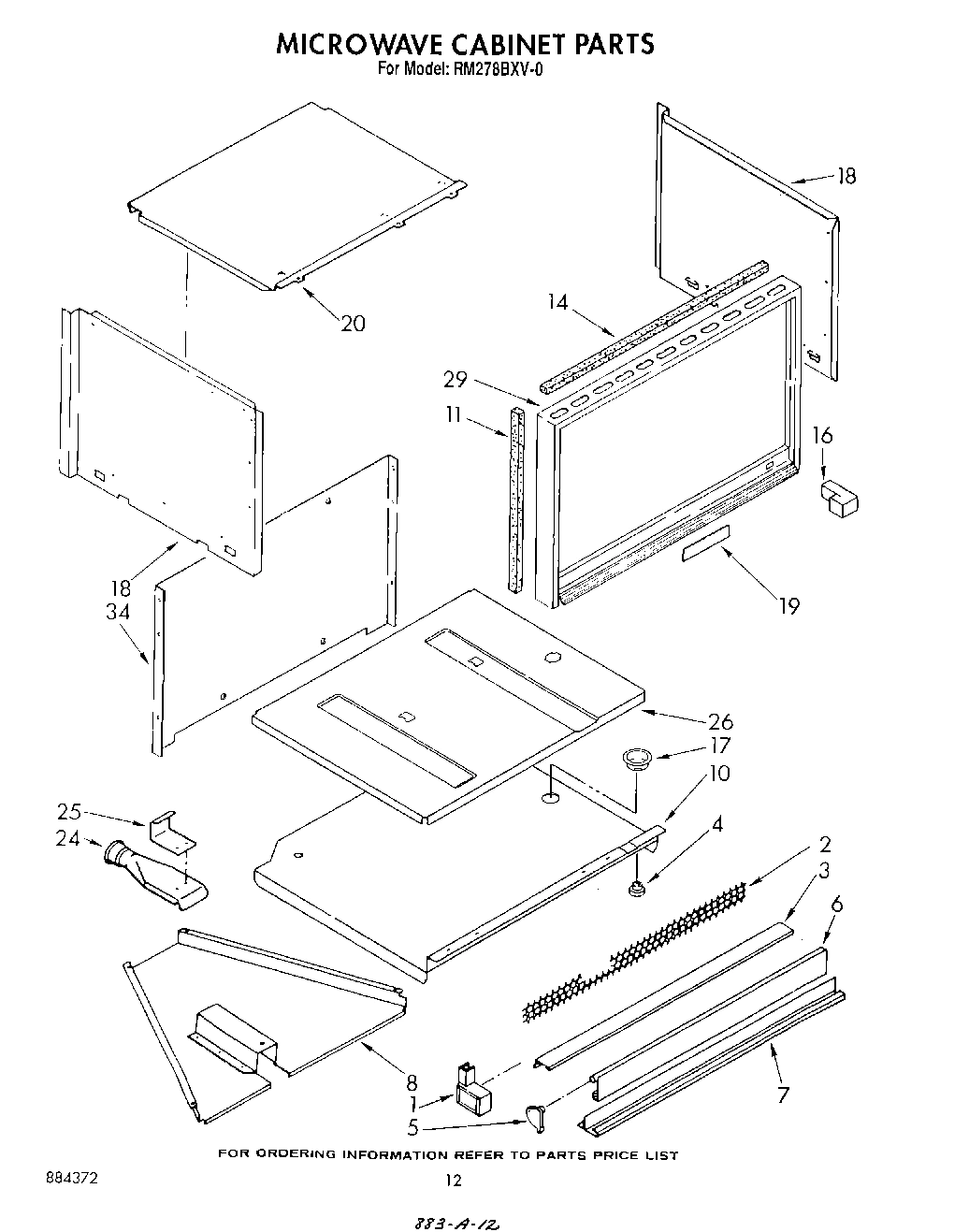

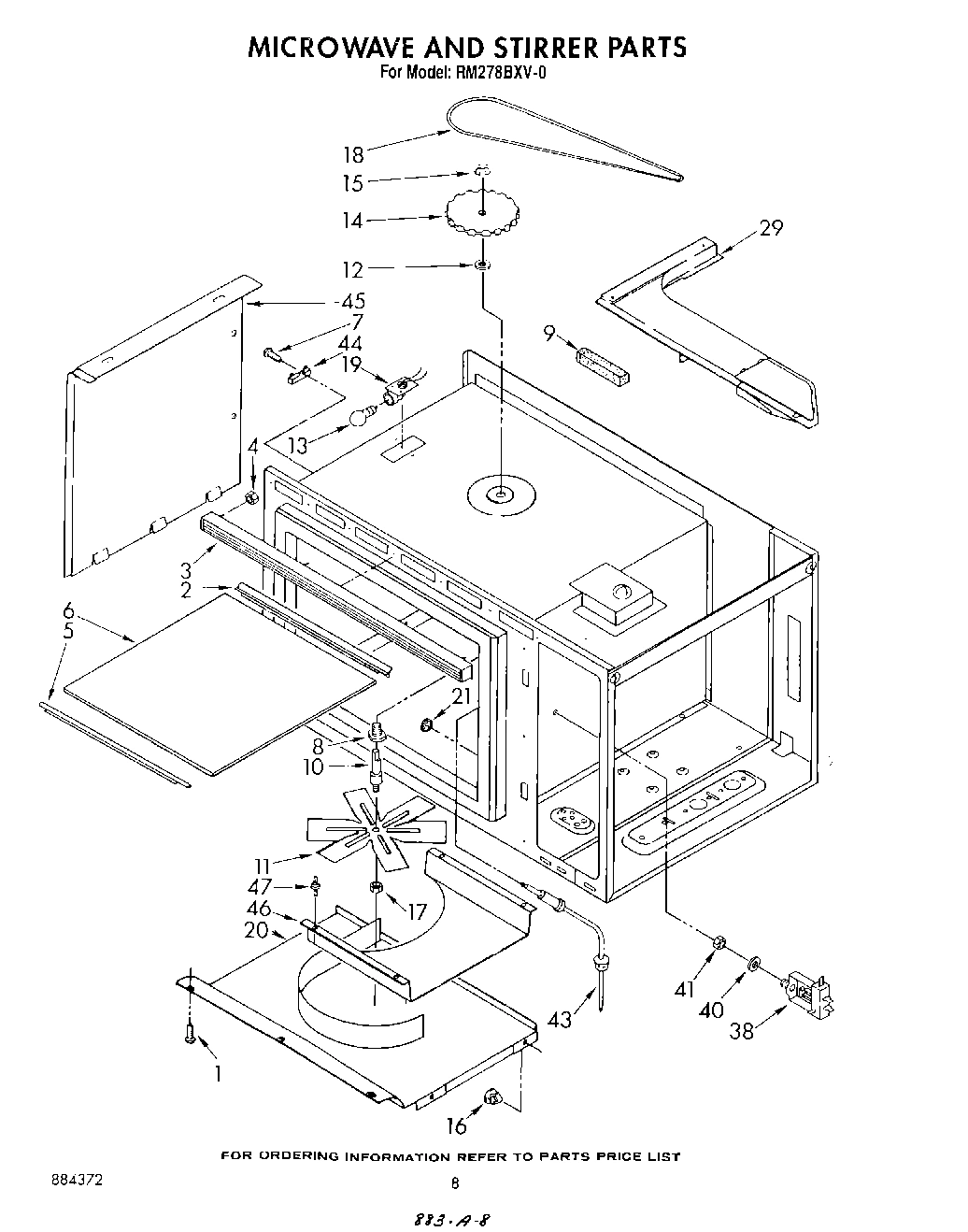

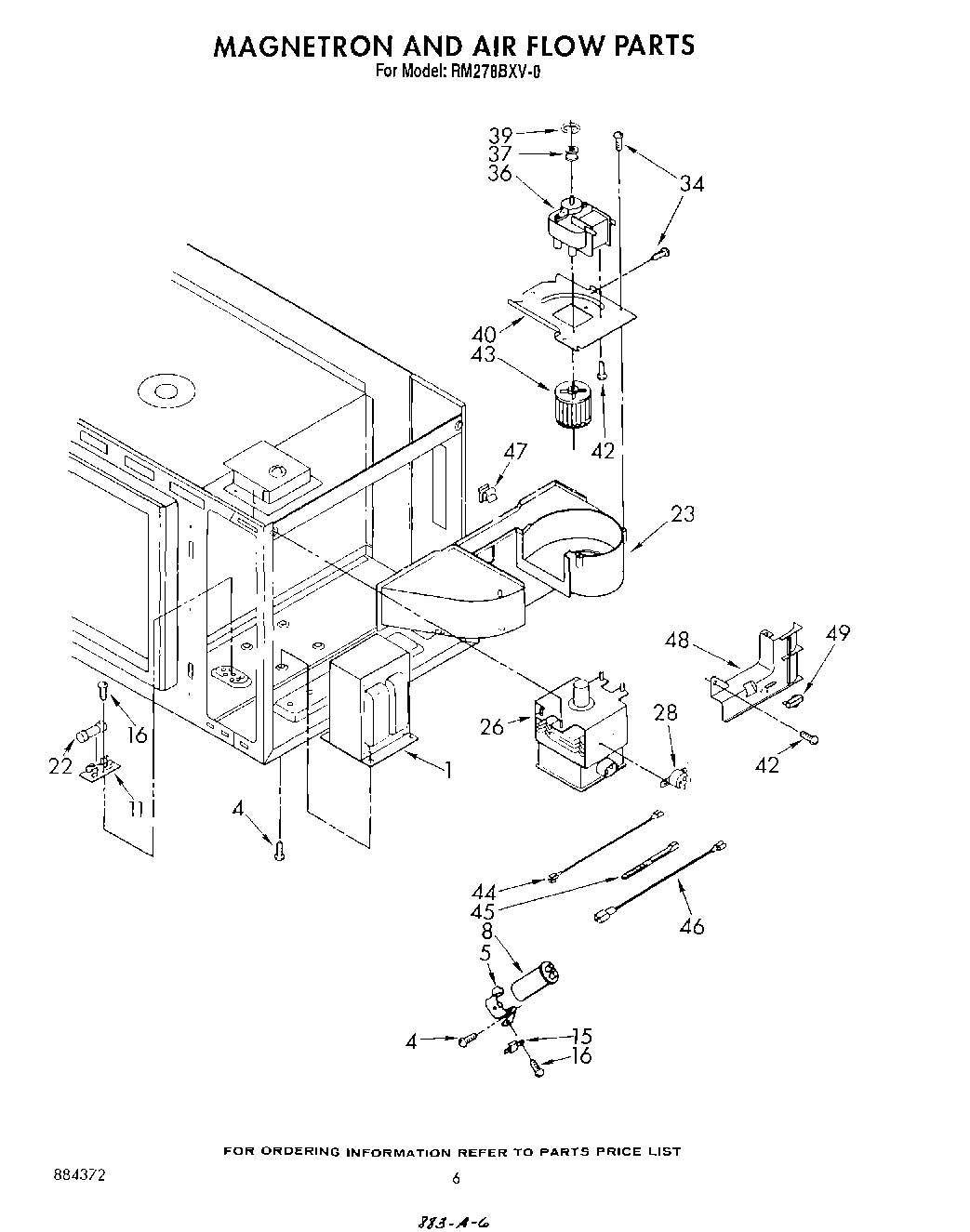

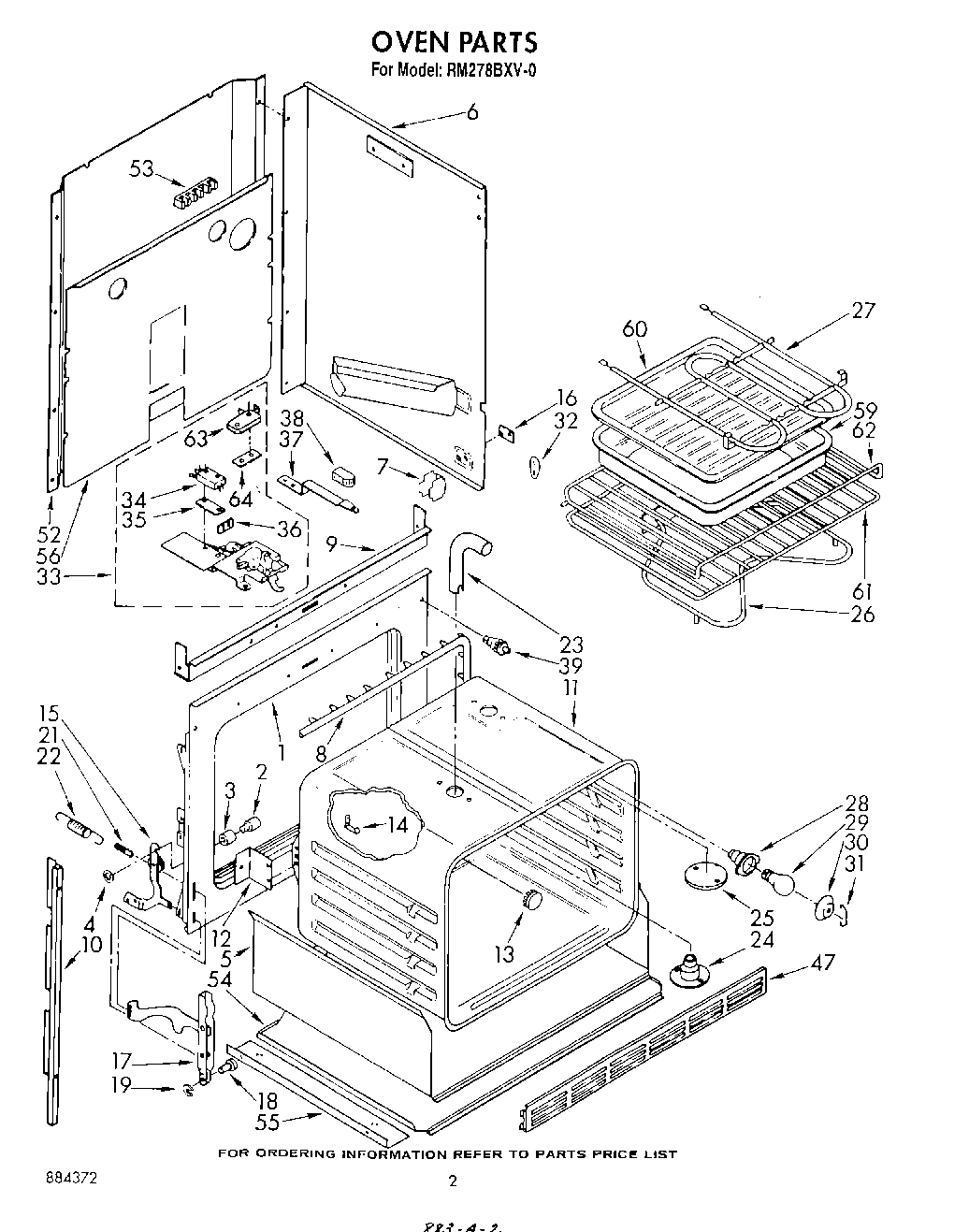

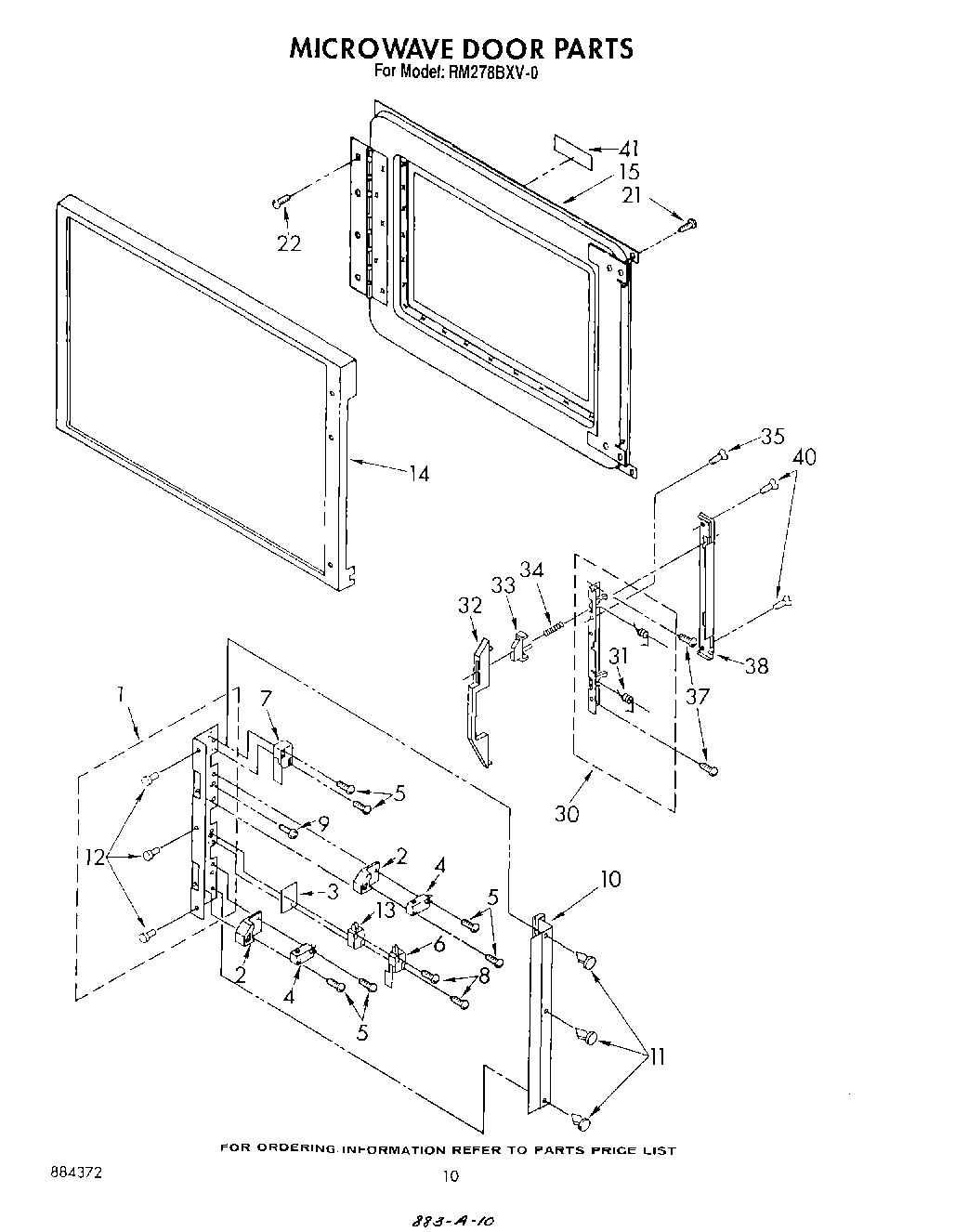

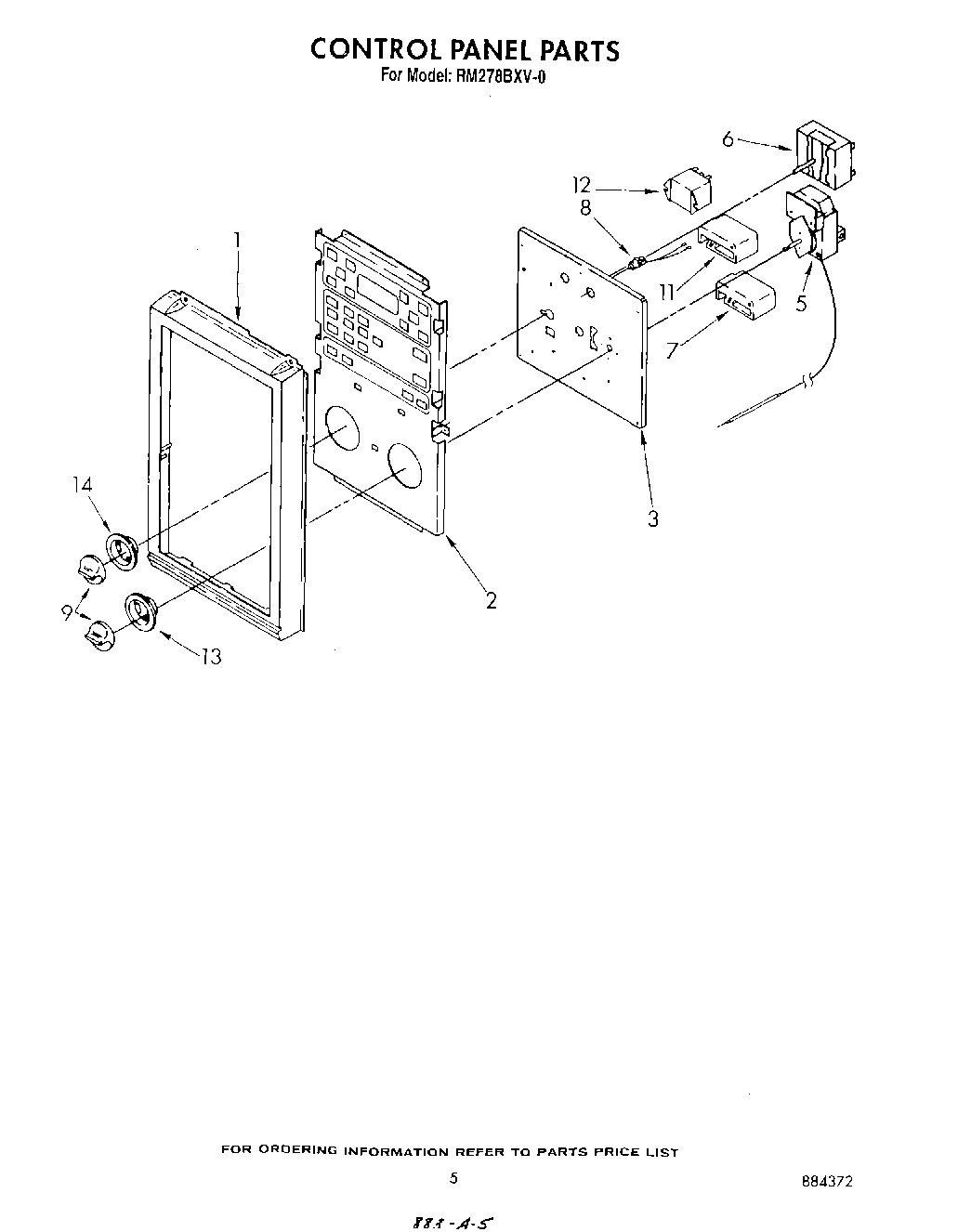

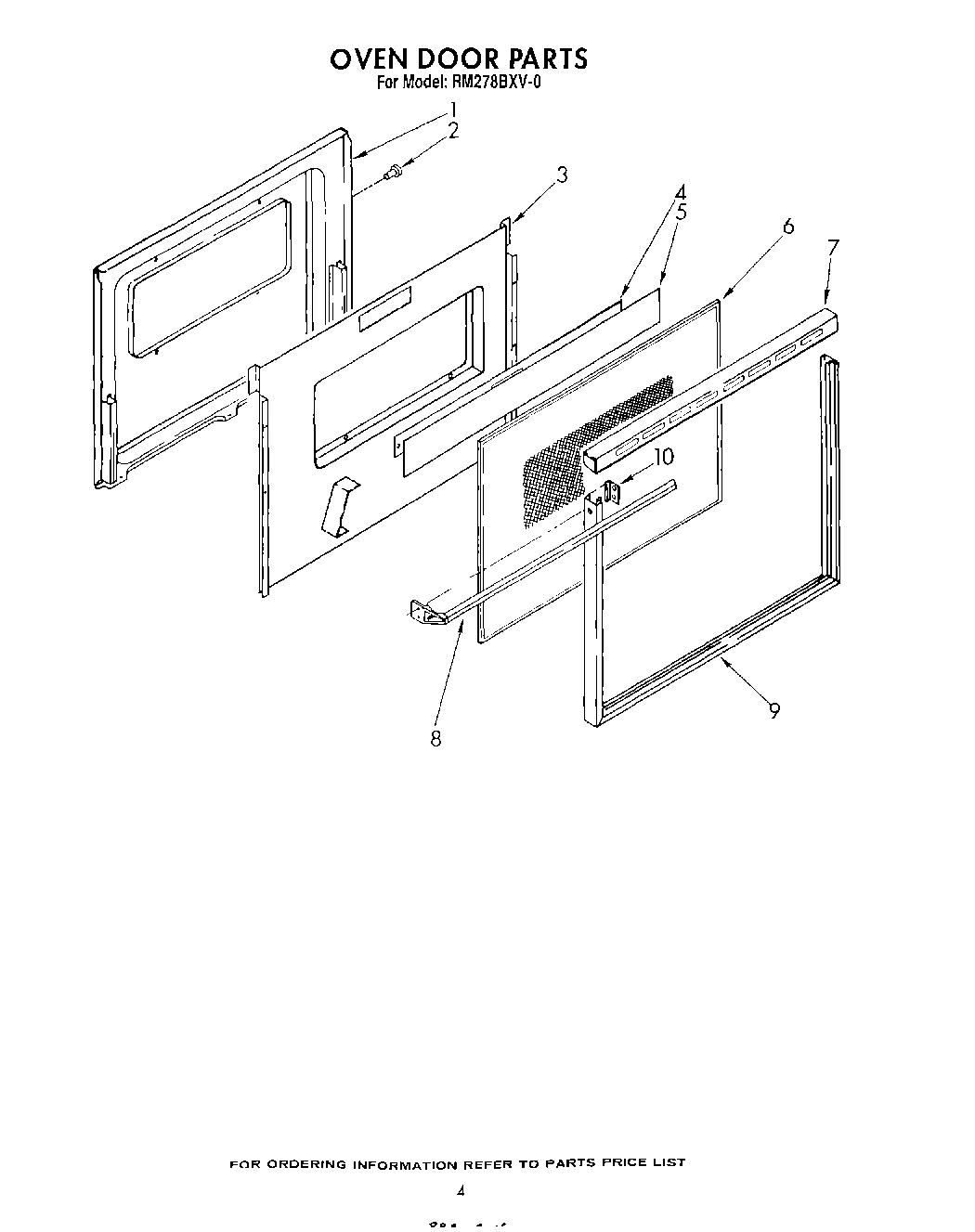

Model Whirlpool RM278BXV0 – Common Parts &amp; Diagrams

WPL 308043 WPL 308043 Contact Us For Availability

WPL 312308 WPL 312308 Contact Us For Availability

WPL ARI123487A WPL ARI123487A Contact Us For Availability

Screw, WPL 312782 Contact Us For Availability

WPL LIT311895 WPL LIT311895 Contact Us For Availability

WPL LIT312890 WPL LIT312890 Contact Us For Availability

WPL LIT312894 WPL LIT312894 Contact Us For Availability

WPL LIT313358 WPL LIT313358 Contact Us For Availability

WPL LIT3147287 WPL LIT3147287 Contact Us For Availability

WPL LIT3147965 WPL LIT3147965 Contact Us For Availability

WPL LIT884268 WPL LIT884268 Contact Us For Availability

1

Liner, Door WPL 3170707 Contact Us For Availability

1

Frame, Front WPL 3170855 Contact Us For Availability

1

Screw, 8D x 5/16 WPL 246135 Contact Us For Availability

1

Frame, Control Panel WPL 3148090 Contact Us For Availability

1

Transformer WPL 3148101 Contact Us For Availability

1

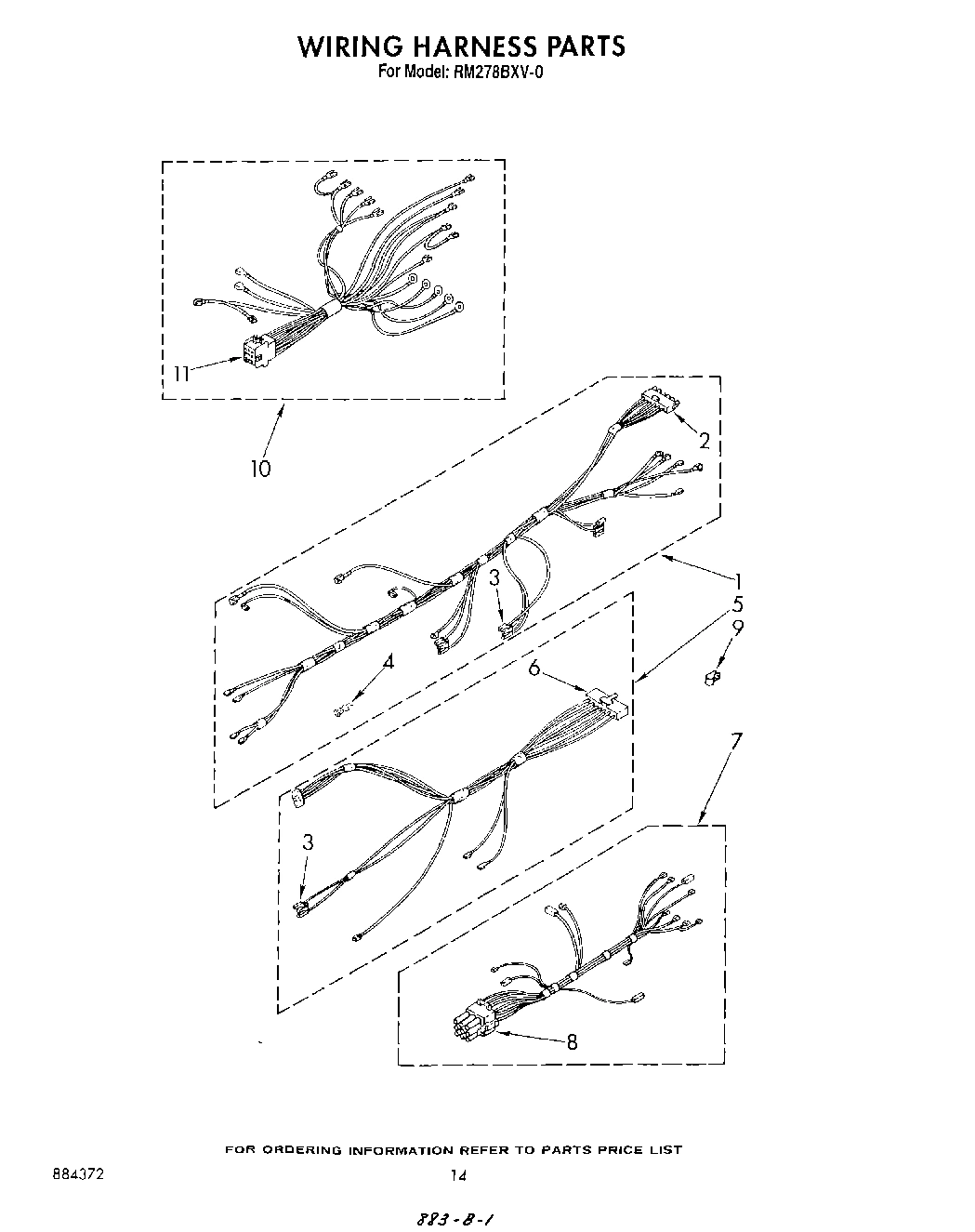

Harness, Wiring (Main) WPL 3147554 Contact Us For Availability

1

End Cap, L.H. WPL 311649 Contact Us For Availability

1

End Cap, R.H. WPL 311650 Contact Us For Availability

2

Bumper, Door (4) WPL 3148182 Contact Us For Availability

2

Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability

2

Module, Control (Alt.) WPL 3147944 Contact Us For Availability

2

Module, Control WPL 3148273 Contact Us For Availability

2

Connector, Housing WPL 311575 Contact Us For Availability

2

Trim, Shelf (Rear) WPL 313615 Contact Us For Availability

2

Trim, Oven Vent WPL 312432 Contact Us For Availability

3

SCREW Backorder WPL 246131 $8.20

3

Retainer, Insulation WPL 3148160 Contact Us For Availability

3

Screw (4) WPL 3148443 Contact Us For Availability

3

Snubber, Door (2) WPL 309111 Contact Us For Availability

3

Bracket, Control (Mounting) WPL 3147282 Contact Us For Availability

3

Housing WPL 310241 Contact Us For Availability

3

Deflector, Air WPL 3148435 Contact Us For Availability

3

Trim, Top WPL 312446 Contact Us For Availability

4

WP248562 Whirlpool Terminal Backorder WPL WP248562 $2.51

4

Shield, Door WPL 3148680 Contact Us For Availability

4

Pushnut (2) WPL 308306 Contact Us For Availability

4

Screw, 10-32 x 1/2 Hex Washer W/Ground Ring ( WPL 312185 Contact Us For Availability

4

Nut (3) WPL 3147378 Contact Us For Availability

4

Snap Bushing WPL 309552 Contact Us For Availability

5

WP313808 Whirlpool Screw Backorder WPL WP313808 $2.51

5

Foil, Door WPL 3148184 Contact Us For Availability

5

Insulation Tray WPL 310770 Contact Us For Availability

5

Thermostat WPL 313533 Contact Us For Availability

5

Bracket, Capacitor WPL 312619 Contact Us For Availability

5

Harness, Wiring (Control) WPL 3147560 Contact Us For Availability

5

Trim, Shelf (Front) WPL 313614 Contact Us For Availability

5

End Trim, Vent (Left Side) WPL 310832 Contact Us For Availability

5

End Trim, Vent (Right Side) WPL 310833 Contact Us For Availability

6

Panel, Door WPL 3148186 Contact Us For Availability

6

Side Wrapper (Right Side) WPL 311006 Contact Us For Availability

6

Side Wrapper (Left Side) WPL 311009 Contact Us For Availability

6

Screw, 8-32 x 3/16 (2) WPL 308119 Contact Us For Availability

6

Switch, Selector WPL 3147235 Contact Us For Availability

6

Connector, Housing WPL 308565 Contact Us For Availability

6

Shelf, Glass (Also Order No. 307576 silastic) WPL 313639 Contact Us For Availability

6

Door, Vent WPL 312447 Contact Us For Availability

7

Top, Door WPL 3148223 Contact Us For Availability

7

Support, Side Wrapper (4) WPL 311774 Contact Us For Availability

7

Switch, Bake (4) WPL 314211 Contact Us For Availability

7

Screw, 8-32 x 3/8 WPL 312713 Contact Us For Availability

7

Harness, Wiring (Thermostat/ Selector) WPL 3147296 Contact Us For Availability

7

screw (2) WPL 342043 Contact Us For Availability

7

Screw, 10A x 1/2 (2) WPL 309100 Contact Us For Availability

7

Trim, Bottom WPL 311190 Contact Us For Availability

8

Handle, Door WPL 3148228 Contact Us For Availability

8

Seal, Door WPL 3148284 Contact Us For Availability

8

Light, Indicator (4) WPL 3147517 Contact Us For Availability

8

capacitor (alt.) WPL 312631 Contact Us For Availability

8

Capacitor (Alt.) WPL 312632 Contact Us For Availability

8

Capacitor WPL 661004 Contact Us For Availability

8

Block, Disconnect (Male) WPL 309406 Contact Us For Availability

8

Bushing, Stirrer WPL 312023 Contact Us For Availability

8

Box Air WPL 3170178 Contact Us For Availability

9

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

9

WP3150371 Whirlpool Control Knob In Stock WPL WP3150371 $10.54

9

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

9

Frame, Door WPL 3148235 Contact Us For Availability

9

Baffle, Top Insulation WPL 310693 Contact Us For Availability

9

Seal, Foam WPL 3147599 Contact Us For Availability

Clip, Handle WPL 3148282 Contact Us For Availability

Screw (2) WPL 3149333 Contact Us For Availability

Side Trim L.H. WPL 3149139 Contact Us For Availability

Side Trim R.H. WPL 3149140 Contact Us For Availability

Harness, Wiring (Oven) WPL 3147587 Contact Us For Availability

Shaft, Stirrer WPL 312026 Contact Us For Availability

Support Plate WPL 3147494 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $30.25

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP75614 Whirlpool Connector Backorder WPL WP75614 $2.51

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

WPL 799344 WPL 799344 Contact Us For Availability

Oven (30`` Pyro) WPL 328756 Contact Us For Availability

Screw, No.6 WPL 314215 Contact Us For Availability

Switch, Broil WPL 314209 Contact Us For Availability

Leveler, Enamel WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Touch-Up, Oven WPL 254323 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Rotisserie Kit (RCK 79) WPL 261881 Contact Us For Availability

Harvest Gold WPL 261890 Contact Us For Availability

Harvest Gold WPL 261891 Contact Us For Availability

Disconnect, Female Block WPL 309409 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 832985 WPL 832985 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Stirrer Blade WPL 313595 Contact Us For Availability

Seal, Foam (2) WPL 3147595 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability

Relay, Power WPL 314125 Contact Us For Availability

Washer, Nylon WPL 312025 Contact Us For Availability

13

WP3395618 Whirlpool Light Bulb Backorder WPL WP3395618 $26.21

13

Plug Button WPL 257314 Contact Us For Availability

13

Escutcheon, Thermostat WPL 311073 Contact Us For Availability

98005642 Whirlpool Clip Backorder WPL 98005642 $30.25

WP311068 Whirlpool Dial Knob Black Backorder WPL WP311068 $27.80

Pulley, Stirrer Blade WPL 311923 Contact Us For Availability

Seal, Foam (2) WPL 3147596 Contact Us For Availability

Hinge Ear, R.H. WPL 328801 Contact Us For Availability

Hinge Ear, L.H. WPL 328802 Contact Us For Availability

Rectifier, High Voltage WPL 313830 Contact Us For Availability

``E`` Ring WPL 311999 Contact Us For Availability

WP308544 Whirlpool Screw In Stock WPL WP308544 $2.51

Plate, Side Panel (2) WPL 310659 Contact Us For Availability

Fastner (4) WPL 313740 Contact Us For Availability

Seal, Foam (2) WPL 3147750 Contact Us For Availability

17

WP487939 Whirlpool Refrigerator Nut In Stock WPL WP487939 $2.51

17

Channel Arm (2) WPL 329713 Contact Us For Availability

17

Bushing, Snap WPL 3147647 Contact Us For Availability

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

WP313646 Whirlpool Microwave Drive Belt Backorder WPL WP313646 $28.99

Side Panel, R.H. WPL 3147492 Contact Us For Availability

Side Panel, L.H. WPL 3147493 Contact Us For Availability

19

Ring, Retainer (2) WPL 307594 Contact Us For Availability

19

Socket, Light WPL 330514 Contact Us For Availability

19

Adhesive WPL 312330 Contact Us For Availability

20

Stirrer Cover WPL 313563 Contact Us For Availability

20

Screw, 8-18 x 1/2 (8) WPL 3147107 Contact Us For Availability

20

Panel, Top WPL 3147495 Contact Us For Availability

21

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

21

Plug, Hole (4) WPL 312215 Contact Us For Availability

22

WPW10017410 Whirlpool Fuse In Stock WPL WPW10017410 $6.79

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

23

Tube, Vent WPL 312697 Contact Us For Availability

23

Air Duct (Horizontal) WPL 313578 Contact Us For Availability

24

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

24

Eliminator, Smoke WPL 310839 Contact Us For Availability

24

Vent Tube WPL 312696 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability

Plate, Cover WPL 310662 Contact Us For Availability

Support, Vent Tube WPL 312698 Contact Us For Availability

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

Magnetron (Alt.) WPL 311992 Contact Us For Availability

Magnetron (Alt.) WPL 311993 Contact Us For Availability

Magnetron (Alt.) WPL 311994 Contact Us For Availability

Magnetron (Alt.) WPL 311995 Contact Us For Availability

Magnetron (Alt.) WPL 313034 Contact Us For Availability

Magnetron WPL 660595 Contact Us For Availability

Panel, Support WPL 3147496 Contact Us For Availability

27

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $66.17

27

Screw, 10-32 x 5/8 (4) WPL 246127 Contact Us For Availability

Socket, Oven Light (Alt.) WPL 307856 Contact Us For Availability

Socket, Oven Light (Alt.) WPL 310208 Contact Us For Availability

Socket, Oven Light WPL 660556 Contact Us For Availability

Thermal Protector (Alt.) WPL 312800 Contact Us For Availability

Thermal Protector (Alt.) WPL 313521 Contact Us For Availability

Thermal Protector WPL 661165 Contact Us For Availability

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

29

Baffle, Air WPL 3147002 Contact Us For Availability

29

Frame, Outer WPL 3148869 Contact Us For Availability

30

Cover, Light WPL 308039 Contact Us For Availability

31

Retainer, Light WPL 308038 Contact Us For Availability

32

Coverplate WPL 311982 Contact Us For Availability

33

Screw (2) WPL 311056 Contact Us For Availability

33

WPL 3171148 WPL 3171148 Contact Us For Availability

Spring, Compression WPL 310197 Contact Us For Availability

WPL 308185 WPL 308185 Contact Us For Availability

WPL 98106 WPL 98106 Contact Us For Availability

Screw, 11-16 x 1/2 Double Load Space Thread ( WPL 346893 Contact Us For Availability

Cover, Rear WPL 3147491 Contact Us For Availability

35

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

35

WPL 309245 WPL 309245 Contact Us For Availability

36

WPL 309258 WPL 309258 Contact Us For Availability

36

WPL 313035 WPL 313035 Contact Us For Availability

36

Motor, Fan WPL 313641 Contact Us For Availability

Screw, 8-32 x 7/16 Hex Washer Head Thread For WPL 313820 Contact Us For Availability

WPL 308422 WPL 308422 Contact Us For Availability

WPL 310825 WPL 310825 Contact Us For Availability

Pulley, Motor WPL 311922 Contact Us For Availability

38

End Cap WPL 3148297 Contact Us For Availability

38

WPL 311253 WPL 311253 Contact Us For Availability

38

Jack, Probe WPL 3147071 Contact Us For Availability

39

WPL 310345 WPL 310345 Contact Us For Availability

40

Screw, 8-22 Thread Form Truss Head (4) WPL 313823 Contact Us For Availability

40

Bracket, Motor WPL 313601 Contact Us For Availability

40

Washer Probe WPL 313105 Contact Us For Availability

41

Label, Guide (Defrost Guide) WPL 3147571 Contact Us For Availability

41

Label, Guide (Auto-Set Time & Temp) WPL 3147573 Contact Us For Availability

41

Nut WPL 313104 Contact Us For Availability

42

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

43

Wheel, Blower WPL 3147223 Contact Us For Availability

43

Probe, Temperature WPL 313527 Contact Us For Availability

44

Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability

44

Fuse, Thermal WPL 313855 Contact Us For Availability

45

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

45

Screw, 8-32 x 1/2 (4) WPL 313816 Contact Us For Availability

45

Cover, Side WPL 3147004 Contact Us For Availability

46

High Voltage Lead, Gray 7-11/16`` (2) WPL 3147863 Contact Us For Availability

46

Plate, Tuning WPL 313735 Contact Us For Availability

WPL 309029 WPL 309029 Contact Us For Availability

WPL 310668 WPL 310668 Contact Us For Availability

Clip WPL 311311 Contact Us For Availability

Support (4) WPL 313739 Contact Us For Availability

48

Extension, Air Duct WPL 3147262 Contact Us For Availability

49

screw (2) WPL 313818 Contact Us For Availability

49

Fuse, Thermal WPL 3147275 Contact Us For Availability

52

WPL 310459 WPL 310459 Contact Us For Availability

53

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

53

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

53

WPL 3147001 WPL 3147001 Contact Us For Availability

54

WPL 310458 WPL 310458 Contact Us For Availability

55

WPL 311592 WPL 311592 Contact Us For Availability

56

WPL 311012 WPL 311012 Contact Us For Availability

60

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $36.18

61

WPL 308173 WPL 308173 Contact Us For Availability

62

WPL 308172 WPL 308172 Contact Us For Availability

63

WPL 3148669 WPL 3148669 Contact Us For Availability

64

WPL 3147864 WPL 3147864 Contact Us For Availability
