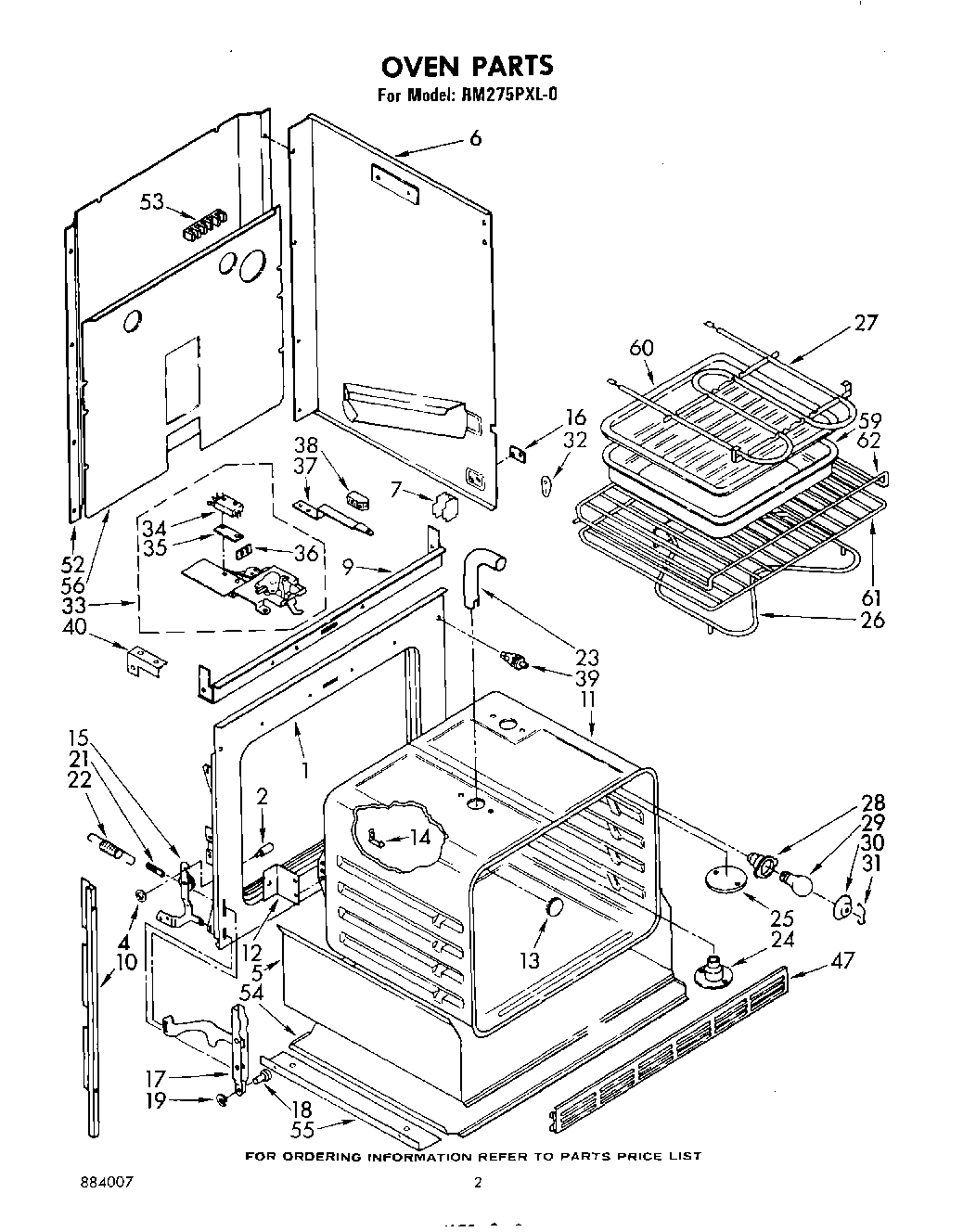

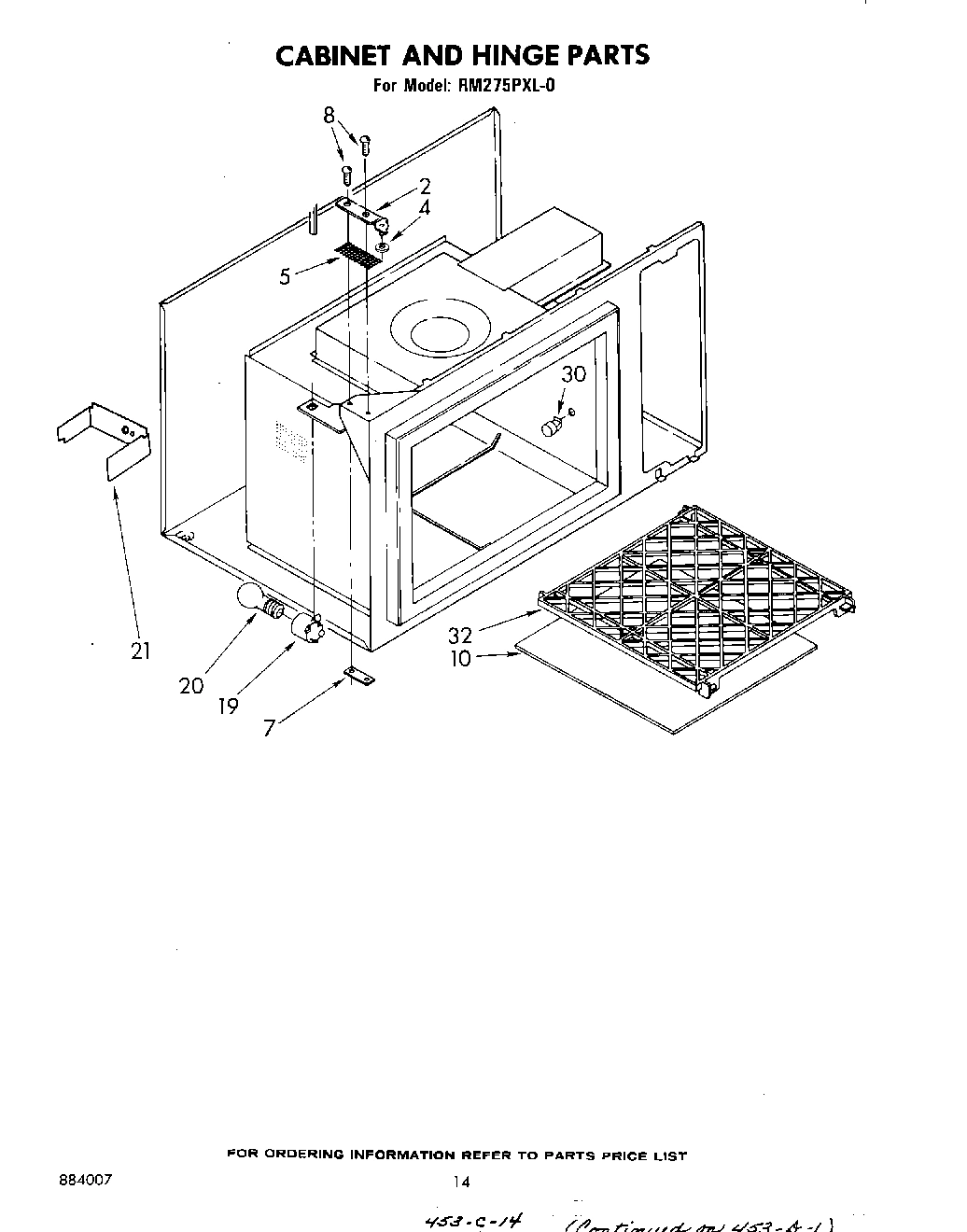

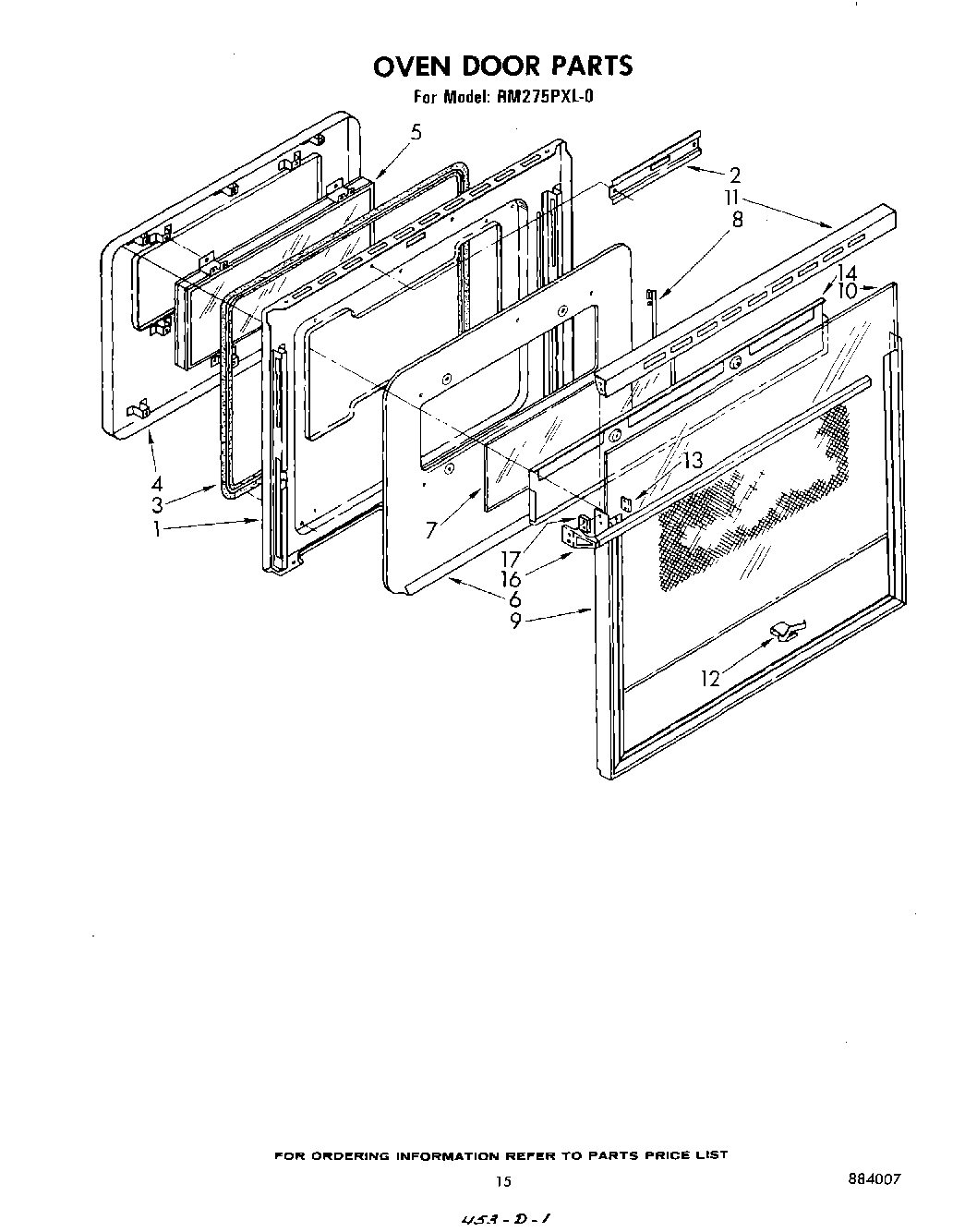

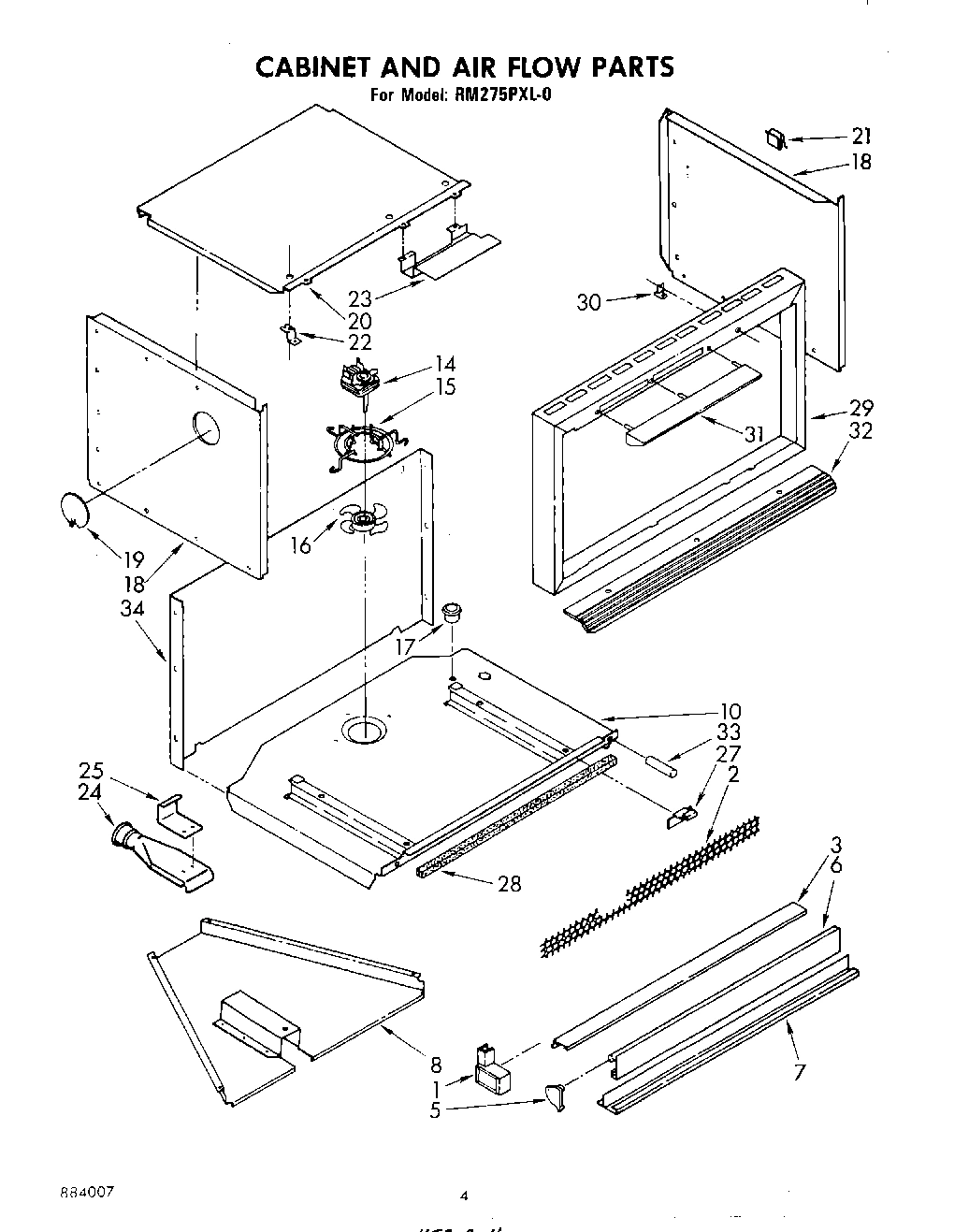

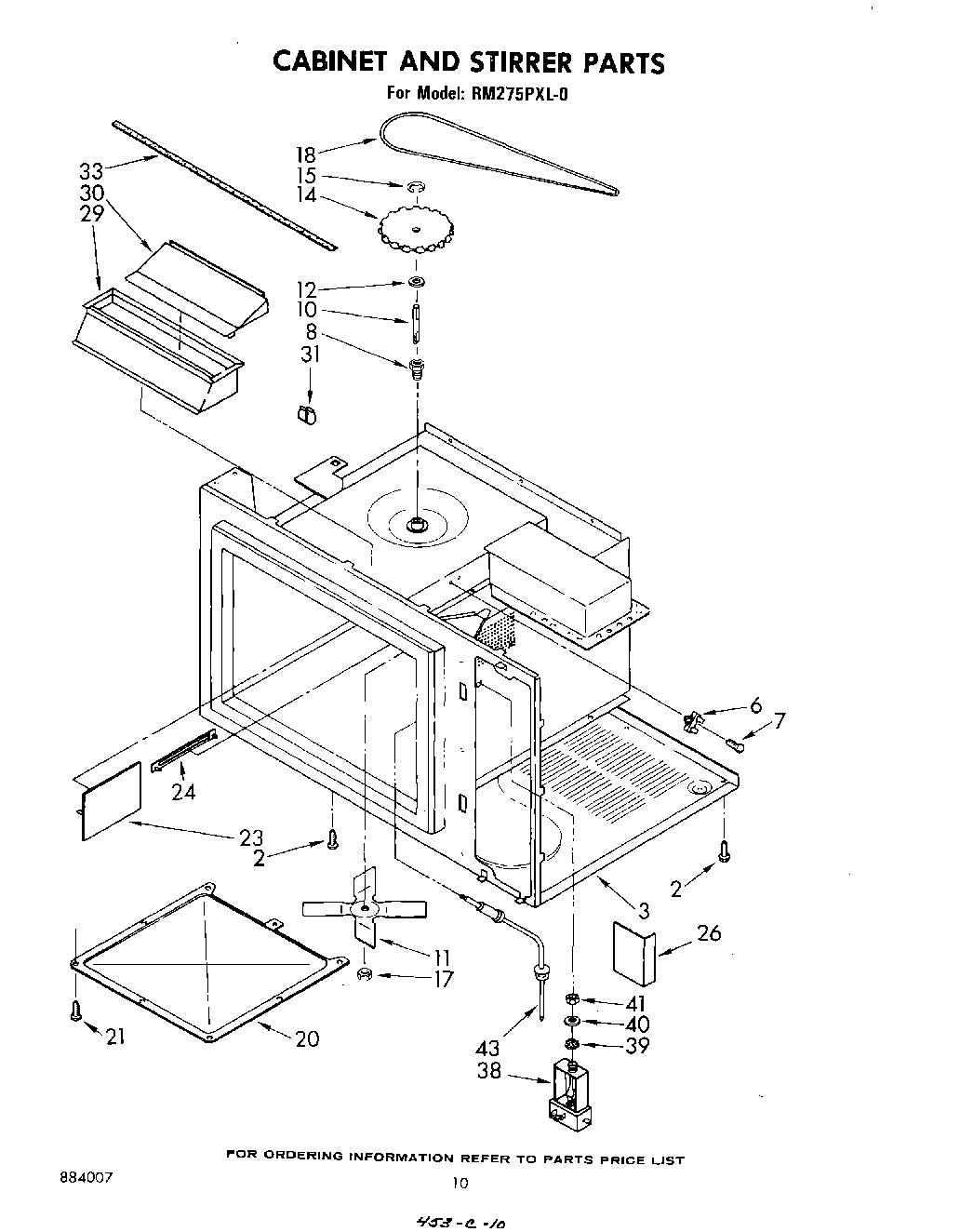

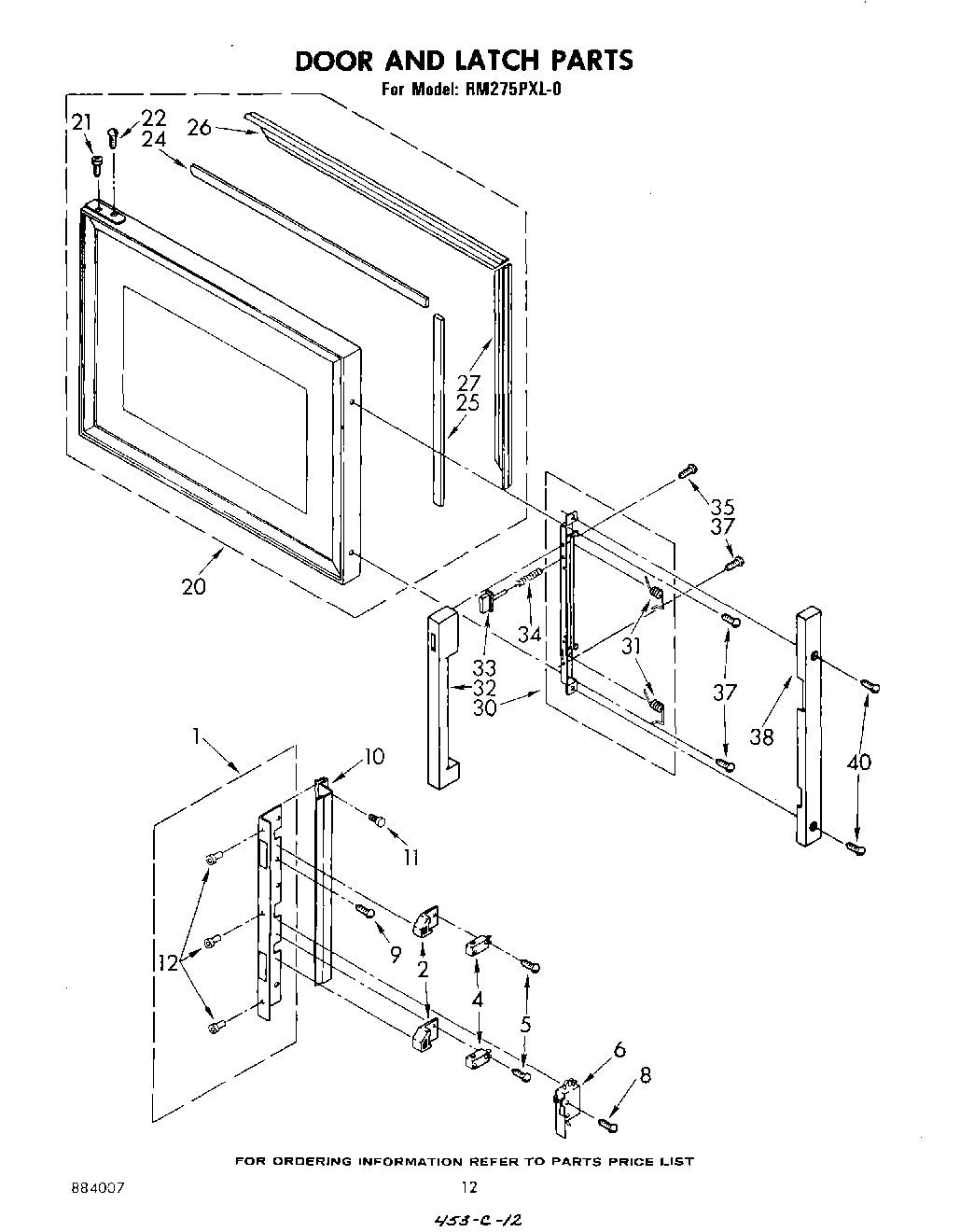

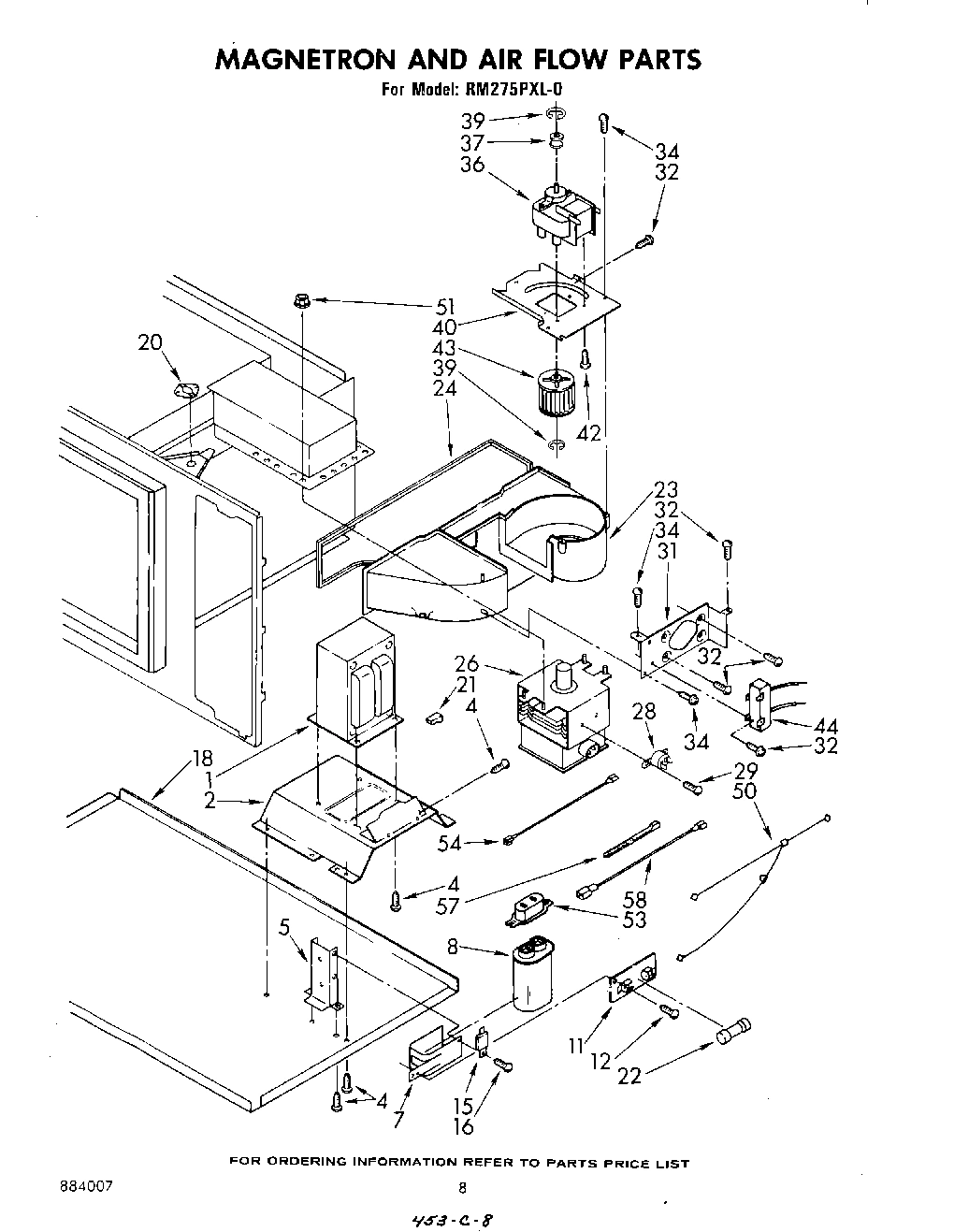

Model Whirlpool RM275PXL0 – Common Parts &amp; Diagrams

WPL 261891 WPL 261891 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

1

Frame, Front WPL 328747 Contact Us For Availability

1

Screw (2) WPL 311056 Contact Us For Availability

1

Bracket, Control Mounting WPL 329771 Contact Us For Availability

1

Screw (2) WPL 308504 Contact Us For Availability

1

End Cap, L.H. WPL 311649 Contact Us For Availability

1

End Cap, R.H. WPL 311650 Contact Us For Availability

1

Liner, Door WPL 329694 Contact Us For Availability

1

``j`` clip (2) WPL 338177 Contact Us For Availability

1

Bracket, Catch WPL 311354 Contact Us For Availability

2

Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability

2

Timer, Digital WPL 310127 Contact Us For Availability

2

Trim, Oven Vent WPL 312432 Contact Us For Availability

2

Hinge Assembly (Top) WPL 329070 Contact Us For Availability

2

Hinge Assembly (Bottom) WPL 329071 Contact Us For Availability

2

Channel, Latch WPL 308033 Contact Us For Availability

2

Screw (2) WPL 311054 Contact Us For Availability

2

Catch (2) WPL 311795 Contact Us For Availability

2

Harness, Wiring Control WPL 312434 Contact Us For Availability

3

Base, Cabinet (Not Serviceable) WPL ARI123480A Contact Us For Availability

3

Screw, 6A x 3/8 WPL 246131 Contact Us For Availability

3

Trim, Top WPL 312446 Contact Us For Availability

3

Seal, Fiberglass WPL 311904 Contact Us For Availability

3

Plug, Circuit (4 Terminal) WPL 310958 Contact Us For Availability

4

814037 Whirlpool Microwave Switch Backorder WPL 814037 $29.08

4

Pushnut (2) WPL 308306 Contact Us For Availability

4

Plate, Timer Mounting (2) WPL 311224 Contact Us For Availability

4

Washer, Flat WPL 312147 Contact Us For Availability

4

Panel, Inner WPL 327898 Contact Us For Availability

4

Plug, Circuit (2 Terminal) WPL 310957 Contact Us For Availability

5

Insulation Tray WPL 310770 Contact Us For Availability

5

End Trim, Vent (Left Side) WPL 310832 Contact Us For Availability

5

End Trim, Vent (Right Side) WPL 310833 Contact Us For Availability

5

Hinge, Shim Locking (2) WPL 311991 Contact Us For Availability

5

Window Package WPL 309844 Contact Us For Availability

5

Screw, 4-40 x 5/8 Pan Head Thread Form (4) WPL 311358 Contact Us For Availability

5

Cap, Circuit (2 Terminal) WPL 310959 Contact Us For Availability

6

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

6

Side Wrapper (Right Side) WPL 311006 Contact Us For Availability

6

Side Wrapper (Left Side) WPL 311009 Contact Us For Availability

6

Light, Indicator (125V) WPL 311547 Contact Us For Availability

6

Thermal Fuse (Includes Illus. 7) WPL 309279 Contact Us For Availability

6

Door, Vent WPL 312447 Contact Us For Availability

6

Retainer, Insulation WPL 308021 Contact Us For Availability

6

Switch, Light/ Monitor WPL 311355 Contact Us For Availability

6

Cap, Circuit (4 Terminal) WPL 310960 Contact Us For Availability

7

Support, Side Wrapper (4) WPL 311774 Contact Us For Availability

7

Switch, Broil Percentage WPL 310643 Contact Us For Availability

7

screw (2) WPL 342043 Contact Us For Availability

7

Screw, 10A x 1/2 (2) WPL 309100 Contact Us For Availability

7

Trim, Bottom WPL 311190 Contact Us For Availability

7

Plate, Nut (2) WPL 312092 Contact Us For Availability

7

Glass (6.81`` x 18.31``) WPL 309842 Contact Us For Availability

7

Pin, Male WPL 310222 Contact Us For Availability

8

Screw, 6-32 x 7/8 Hex Washer Head Unslotted T WPL 98106 Contact Us For Availability

8

Switch, Bake Percentable WPL 311585 Contact Us For Availability

8

Bushing, Stirrer WPL 312023 Contact Us For Availability

8

Box Air WPL 329829 Contact Us For Availability

8

Screw, No.10 x 32 Torx Recess W/Dri Lock (4) WPL 311912 Contact Us For Availability

8

Retainer, Glass WPL 309843 Contact Us For Availability

8

Pin, Female WPL 310223 Contact Us For Availability

9

Baffle, Top Insulation WPL 310693 Contact Us For Availability

9

Light, Indicator (250V) (3) WPL 311550 Contact Us For Availability

9

Screw, 8-32 x 3/8 Slot Hex Washer Head Self-T WPL 309080 Contact Us For Availability

9

Frame, Door WPL 310427 Contact Us For Availability

Side Trim L.H. WPL 310685 Contact Us For Availability

Side Trim (R.H.) WPL 310689 Contact Us For Availability

Push Switch WPL 311441 Contact Us For Availability

Shaft, Stirrer WPL 312026 Contact Us For Availability

Support Plate WPL 329828 Contact Us For Availability

Shelf, Microwave (Alternate) WPL 309145 Contact Us For Availability

Shelf, Microwave (Alternate) WPL 311058 Contact Us For Availability

Shelf, Microwave (Alternate (Install W/Silast WPL 312579 Contact Us For Availability

Glass, Outer WPL 309069 Contact Us For Availability

Shield WPL 311359 Contact Us For Availability

Oven (30`` Pyro) WPL 328756 Contact Us For Availability

Thermostat (Lower Oven) WPL 310020 Contact Us For Availability

Stirrer Blade WPL 309976 Contact Us For Availability

Fastener WPL 310423 Contact Us For Availability

Screw, 10A x 1/2 (2) (Black) WPL 307748 Contact Us For Availability

Top, Door Frame WPL 310428 Contact Us For Availability

Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability

Washer, Nylon WPL 312025 Contact Us For Availability

Clip, Glass (8) WPL 310706 Contact Us For Availability

Rivet, Pop (3) WPL 311928 Contact Us For Availability

13

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

13

Plug Button WPL 257314 Contact Us For Availability

13

Clip (2) WPL 311506 Contact Us For Availability

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability

Pulley, Stirrer Blade WPL 311923 Contact Us For Availability

Motor Fan (Alternate) WPL 310221 Contact Us For Availability

Motor, Fan (Alternate) WPL 310921 Contact Us For Availability

Baffle, Heat WPL 309056 Contact Us For Availability

``E`` Ring WPL 311999 Contact Us For Availability

Hinge Ear, R.H. WPL 328801 Contact Us For Availability

Hinge Ear, L.H. WPL 328802 Contact Us For Availability

Switch, Selector WPL 310006 Contact Us For Availability

Nut, 6-32 Hex (2) WPL 307602 Contact Us For Availability

Mount, Fan Motor WPL 310420 Contact Us For Availability

WP308544 Whirlpool Screw Backorder WPL WP308544 $2.51

WP912618 Whirlpool Dishwasher Screw Backorder WPL WP912618 $2.51

Plate, Side Panel (2) WPL 310659 Contact Us For Availability

Screw, 8-32 x 3/16 (2) WPL 308119 Contact Us For Availability

Blade, Fan WPL 307535 Contact Us For Availability

Handle, Oven Door WPL 311573 Contact Us For Availability

Harness, Interlock WPL 312391 Contact Us For Availability

WP487939 Whirlpool Refrigerator Nut Backorder WPL WP487939 $2.51

Channel Arm (2) WPL 329713 Contact Us For Availability

Timer, Digital (Includes Illus. 18) WPL 310325 Contact Us For Availability

Snap Bushing WPL 308410 Contact Us For Availability

Spacer, Door Handle (2) WPL 310707 Contact Us For Availability

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

Motor, Timer WPL 308594 Contact Us For Availability

Belt, Drive WPL 311958 Contact Us For Availability

Side Panel, L.H. WPL 311643 Contact Us For Availability

Side Panel, R.H. WPL 311644 Contact Us For Availability

Ring, Retainer (2) WPL 307594 Contact Us For Availability

Nut, Extension WPL 309645 Contact Us For Availability

Cover, Light WPL 311698 Contact Us For Availability

Socket, Snap-In WPL 307519 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP75614 Whirlpool Connector Backorder WPL WP75614 $2.51

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

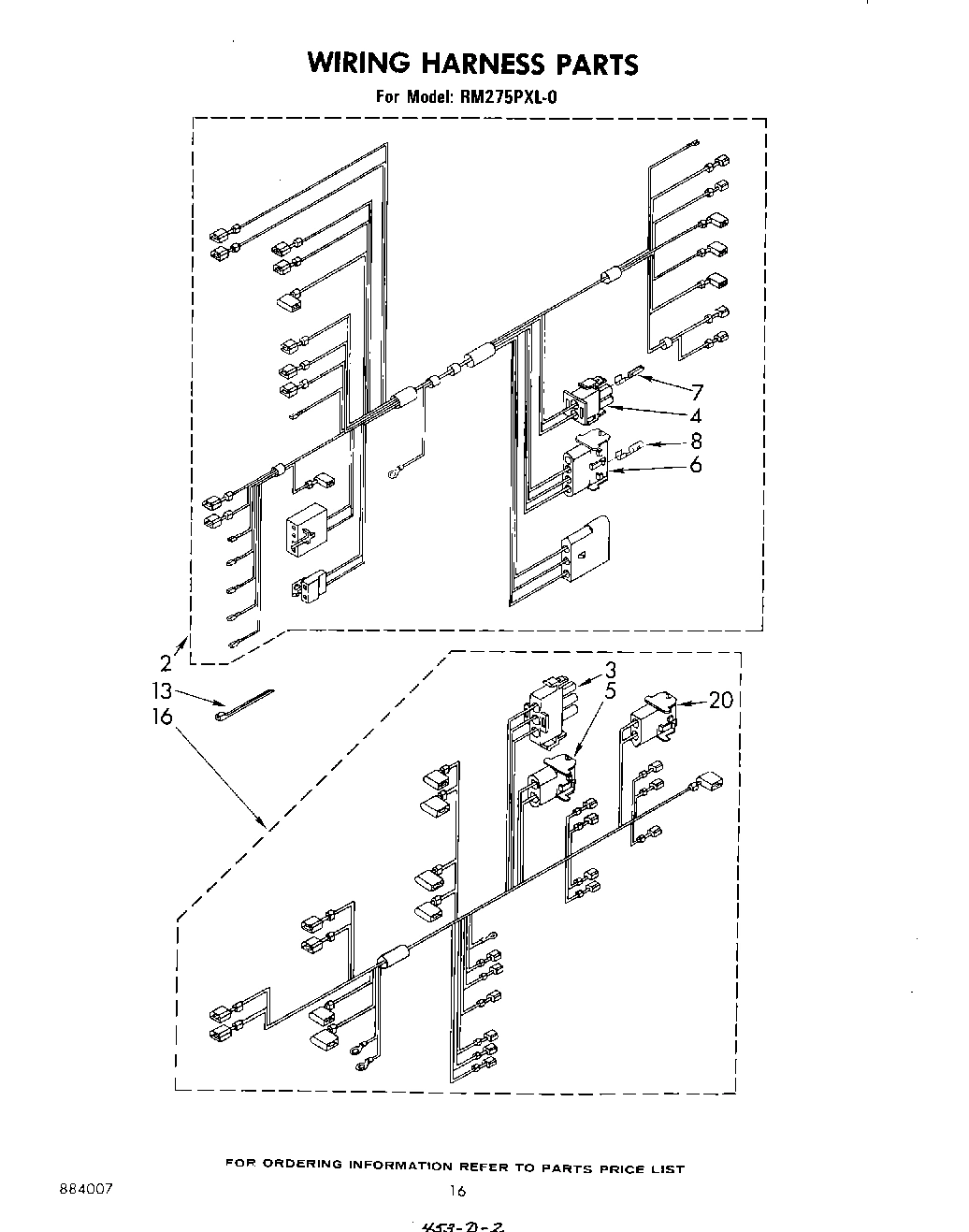

Indicator, Information Control WPL 309541 Contact Us For Availability

Cover, Stirrer WPL 309441 Contact Us For Availability

Panel, Top WPL 311641 Contact Us For Availability

Door WPL 329624 Contact Us For Availability

Leveler, Enamel WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Touch-Up, Oven WPL 254323 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Rotisserie Kit WPL 261881 Contact Us For Availability

Harvest Gold WPL 261890 Contact Us For Availability

Browning Tray (Micro) WPL 307677 Contact Us For Availability

Book, Cooking Guide WPL 308500 Contact Us For Availability

Booklet, Probe WPL 309600 Contact Us For Availability

Rack, Meat (Micro) WPL 310878 Contact Us For Availability

Guide, Bi-Level Cooking WPL 310929 Contact Us For Availability

Installation Instructions WPL 311436 Contact Us For Availability

Cookbook (Microwave) WPL 311892 Contact Us For Availability

Use & Care Guide WPL 312411 Contact Us For Availability

Tech Sheet WPL 312414 Contact Us For Availability

WPL 591014 WPL 591014 Contact Us For Availability

WPL 717252 WPL 717252 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 884007 WPL 884007 Contact Us For Availability

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.91

screw, 10a x 3/8 WPL 254217 Contact Us For Availability

Clip, Push-On (3) WPL 309983 Contact Us For Availability

Clip (2) WPL 311772 Contact Us For Availability

Shield, Lamp WPL 309554 Contact Us For Availability

22

WP308126 Whirlpool Door Spring In Stock WPL WP308126 $12.59

22

Bracket, Support WPL 311696 Contact Us For Availability

Tube, Vent WPL 312697 Contact Us For Availability

Indicator, Temperature WPL 309548 Contact Us For Availability

Cover WPL 307516 Contact Us For Availability

Probe, Shield WPL 311687 Contact Us For Availability

Eliminator, Smoke WPL 310839 Contact Us For Availability

Shield Assembly WPL 328431 Contact Us For Availability

Cover, Rivet WPL 309437 Contact Us For Availability

Vent Tube WPL 312696 Contact Us For Availability

Seal, Top & Bottom (2) (Alternate) WPL 311342 Contact Us For Availability

Seal, Top & Bottom (2) (Alternate) WPL 311634 Contact Us For Availability

Plate, Cover WPL 310662 Contact Us For Availability

Screw, 8BT x 1/4 WPL 254225 Contact Us For Availability

Support, Vent Tube WPL 312698 Contact Us For Availability

Seal, Sides (Alternate) WPL 311343 Contact Us For Availability

Seal, Sides (Alternate) WPL 311635 Contact Us For Availability

26

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

26

Shield, Exhaust WPL 312577 Contact Us For Availability

26

Retainer, Top & Bottom Seals (2) WPL 311340 Contact Us For Availability

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

Unit, Broil (Screw, 10-32 x 5/8 (4)) WPL 246127 Contact Us For Availability

Screw, 10-24 x 1/2 (4) WPL 247326 Contact Us For Availability

Bracket, Front Support WPL 311638 Contact Us For Availability

Retain, Side Seal (2) WPL 311341 Contact Us For Availability

Socket, Oven Light (Alternate) WPL 307856 Contact Us For Availability

Socket, Oven Light (Alternate) WPL 310208 Contact Us For Availability

Shaft, Potentiometer WPL 310279 Contact Us For Availability

Seal Foam WPL 309814 Contact Us For Availability

Screw, 6A x 3/8 (2) WPL 310410 Contact Us For Availability

Bracket, P.C. Board WPL 309484 Contact Us For Availability

Baffle, Air Exhaust WPL 309444 Contact Us For Availability

Frame, Outer WPL 311686 Contact Us For Availability

Cover, Light WPL 308039 Contact Us For Availability

P/C Board & Potentiometer WPL 329907 Contact Us For Availability

Air Deflector WPL 311702 Contact Us For Availability

Bracket, Control Panel Mounting WPL 311697 Contact Us For Availability

Support, Shelf WPL 311286 Contact Us For Availability

Latch Assembly WPL 329065 Contact Us For Availability

Mounting Brace, Duct WPL 311915 Contact Us For Availability

Retainer, Light WPL 308038 Contact Us For Availability

Clip, Air Cover (3) WPL 311149 Contact Us For Availability

Deflector, Air WPL 309499 Contact Us For Availability

Pushnut, Ziptwist (3) WPL 310953 Contact Us For Availability

Spring, Torsion (2) WPL 311352 Contact Us For Availability

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

Coverplate WPL 311982 Contact Us For Availability

Hood, Lower Vent WPL 311700 Contact Us For Availability

Shelf, Convenience WPL 311318 Contact Us For Availability

Handle, Door WPL 312351 Contact Us For Availability

Latch Assembly WPL 328585 Contact Us For Availability

Palnut WPL 307640 Contact Us For Availability

Seal, Foam WPL 309813 Contact Us For Availability

Grommet, Plastic (2) WPL 311692 Contact Us For Availability

Screw, 10A x 1-5/8 (2) WPL 311699 Contact Us For Availability

Button, Door Handle WPL 312349 Contact Us For Availability

Screw, 11-16 x 1/2 Double Load Space Thread ( WPL 346893 Contact Us For Availability

Safety Switch WPL 308185 Contact Us For Availability

Cover, Rear WPL 311651 Contact Us For Availability

Spring, Compression WPL 310197 Contact Us For Availability

35

WPL 309245 WPL 309245 Contact Us For Availability

35

Screw, 8-32 Fillister Head Thread Form WPL 311959 Contact Us For Availability

36

Transmotor (Alternate) WPL 312140 Contact Us For Availability

36

Transmotor (Alternate) WPL 312613 Contact Us For Availability

36

WPL 310100 WPL 310100 Contact Us For Availability

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Pulley, Motor WPL 311922 Contact Us For Availability

WPL 308422 WPL 308422 Contact Us For Availability

WPL 310825 WPL 310825 Contact Us For Availability

WPL 246135 WPL 246135 Contact Us For Availability

WPL 311253 WPL 311253 Contact Us For Availability

Jack, Probe WPL 309637 Contact Us For Availability

End Cap WPL 312350 Contact Us For Availability

39

WPL 310345 WPL 310345 Contact Us For Availability

39

Washer, Internal Lock WPL 311245 Contact Us For Availability

Bracket, Motor WPL 311916 Contact Us For Availability

WPL 312320 WPL 312320 Contact Us For Availability

Washer Probe WPL 309769 Contact Us For Availability

Screw, 8-32 x 5/16 Thread Form Truss Head (2) WPL 310210 Contact Us For Availability

41

Nut WPL 309768 Contact Us For Availability

42

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

42

Relay, Power WPL 311507 Contact Us For Availability

43

Wheel, Blower WPL 311920 Contact Us For Availability

43

Lockwasher WPL 138473 Contact Us For Availability

43

Probe, Temperature WPL 311438 Contact Us For Availability

44

Reed Relay (Alternate) WPL 312136 Contact Us For Availability

44

Reed Relay (Alternate) WPL 312137 Contact Us For Availability

45

Buzzer, End-of-Cycle WPL 310351 Contact Us For Availability

46

Screw, 6 x 3/8B WPL 309258 Contact Us For Availability

47

WPL 309029 WPL 309029 Contact Us For Availability

47

WPL 310668 WPL 310668 Contact Us For Availability

49

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

50

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

50

Cable, Support WPL 312385 Contact Us For Availability

51

Flange Nut (4) WPL 310300 Contact Us For Availability

51

Resistor & Terminal WPL 328923 Contact Us For Availability

52

WPL 310459 WPL 310459 Contact Us For Availability

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

Cover, Capacitor WPL 312294 Contact Us For Availability

WPL 308043 WPL 308043 Contact Us For Availability

54

Jumper, High Voltage Red 6-3/4`` (2) WPL 312009 Contact Us For Availability

54

WPL 310458 WPL 310458 Contact Us For Availability

54

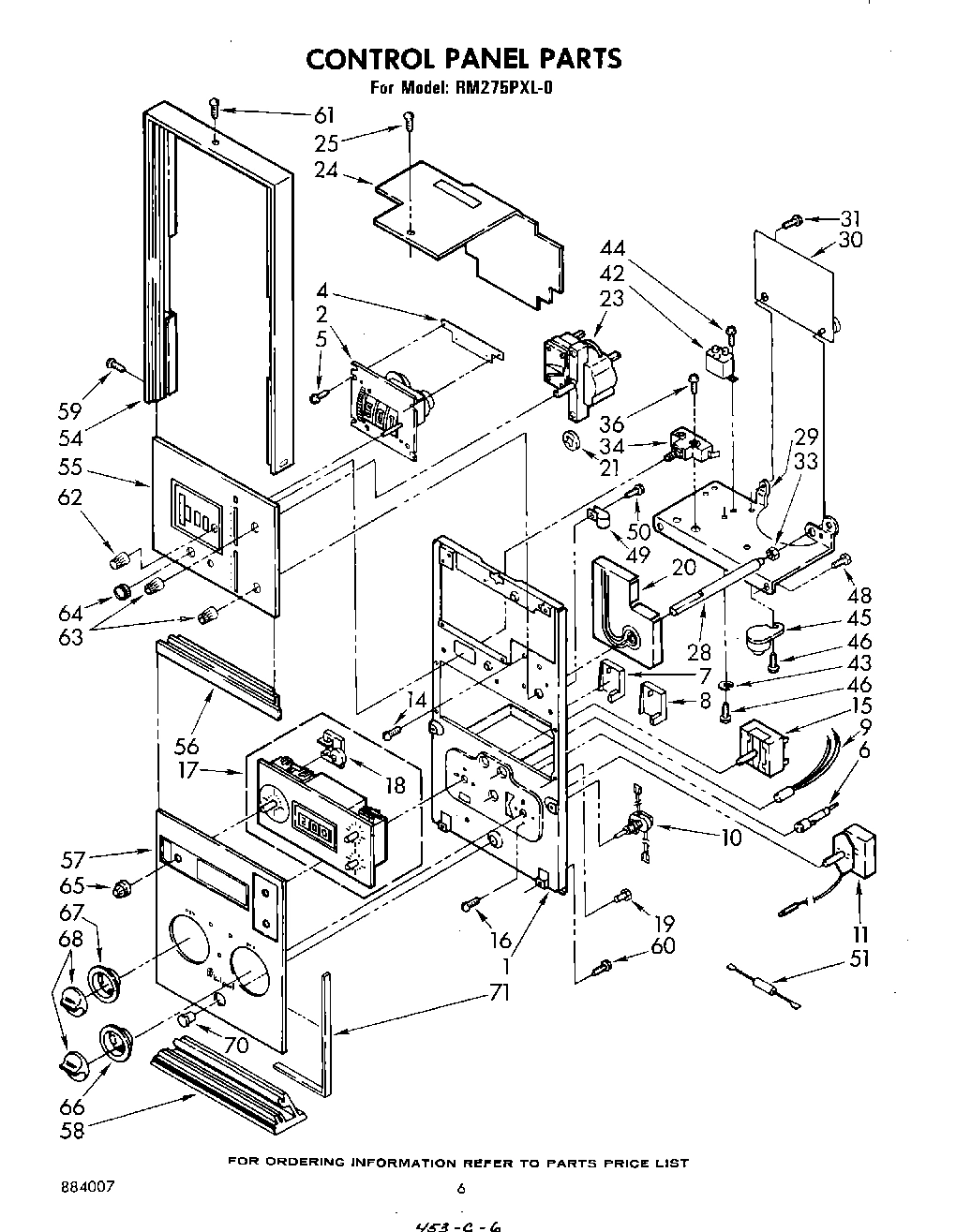

Frame, Control Panel WPL 309608 Contact Us For Availability

55

WPL 311592 WPL 311592 Contact Us For Availability

55

Panel, Control (Upper) WPL 312555 Contact Us For Availability

56

WPL 311012 WPL 311012 Contact Us For Availability

56

Splice, Panel WPL 309490 Contact Us For Availability

57

Control Panel, Glass WPL 312420 Contact Us For Availability

58

High Voltage Lead, Gray 6-3/4`` (2) WPL 312301 Contact Us For Availability

58

Bottom Cap, Control Panel WPL 309609 Contact Us For Availability

59

Screw (2) WPL 348689 Contact Us For Availability

60

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

60

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $2.51

61

WPL 308173 WPL 308173 Contact Us For Availability

61

Screw, 8-32 x 1/2 WPL 312248 Contact Us For Availability

62

WPL 308172 WPL 308172 Contact Us For Availability

62

Knob, Digital WPL 307615 Contact Us For Availability

63

Knob, Assembly (2) WPL 329423 Contact Us For Availability

64

SWITCH, PUSH-TO-START SWITCH, PUSH-TO-STAR WPL 832949 Contact Us For Availability

65

WPL 309553 WPL 309553 Contact Us For Availability

66

WPL 311073 WPL 311073 Contact Us For Availability

67

WP311068 Whirlpool Dial Knob Black Backorder WPL WP311068 $26.48

68

WP3150371 Whirlpool Control Knob In Stock WPL WP3150371 $10.05

70

WPL 308784 WPL 308784 Contact Us For Availability

71

WPL 308297 WPL 308297 Contact Us For Availability
