Model Whirlpool RM235PXL2 – Common Parts & Diagrams

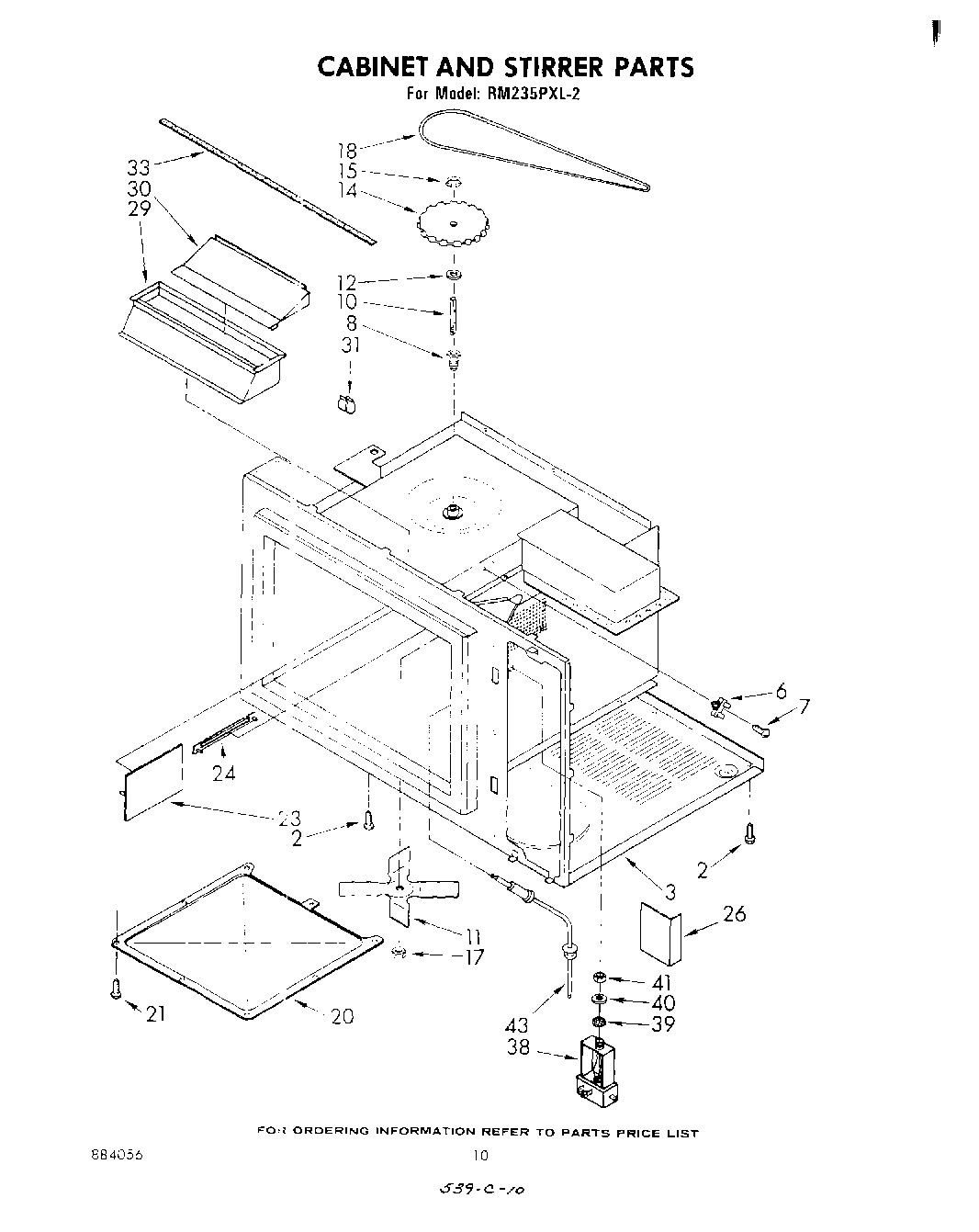

06 - CABINET AND STIRRER

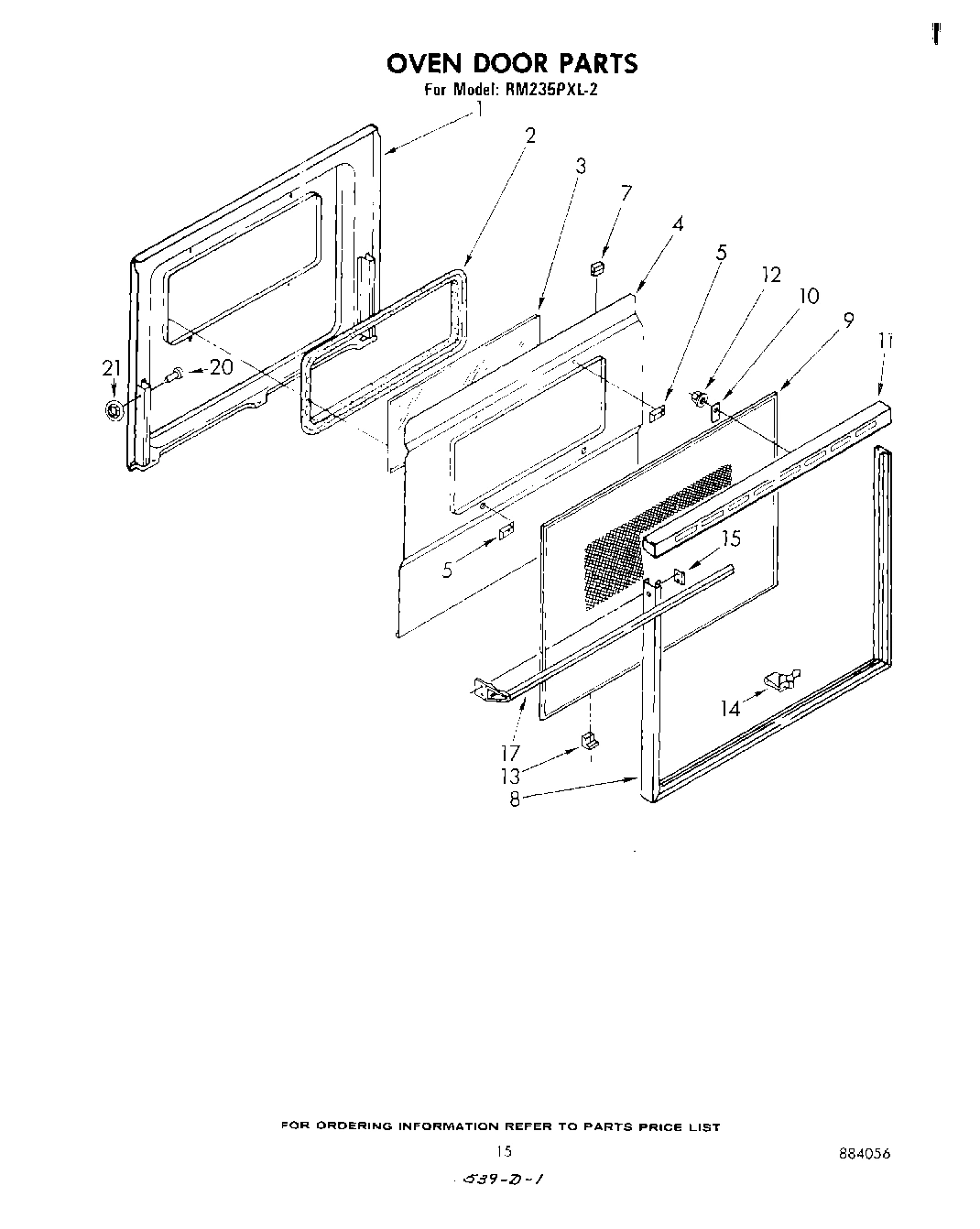

09 - OVEN DOOR

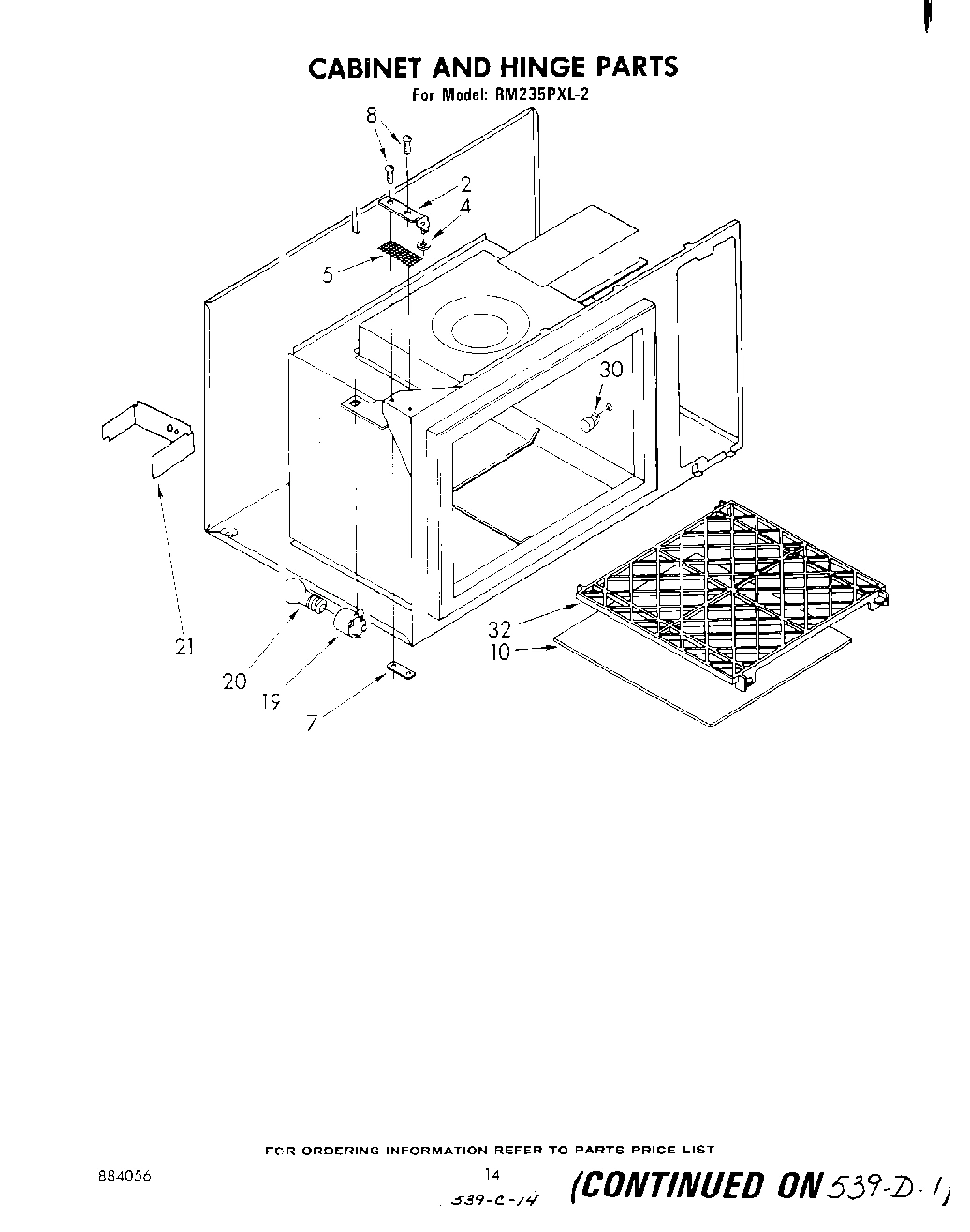

08 - CABINET AND HINGE

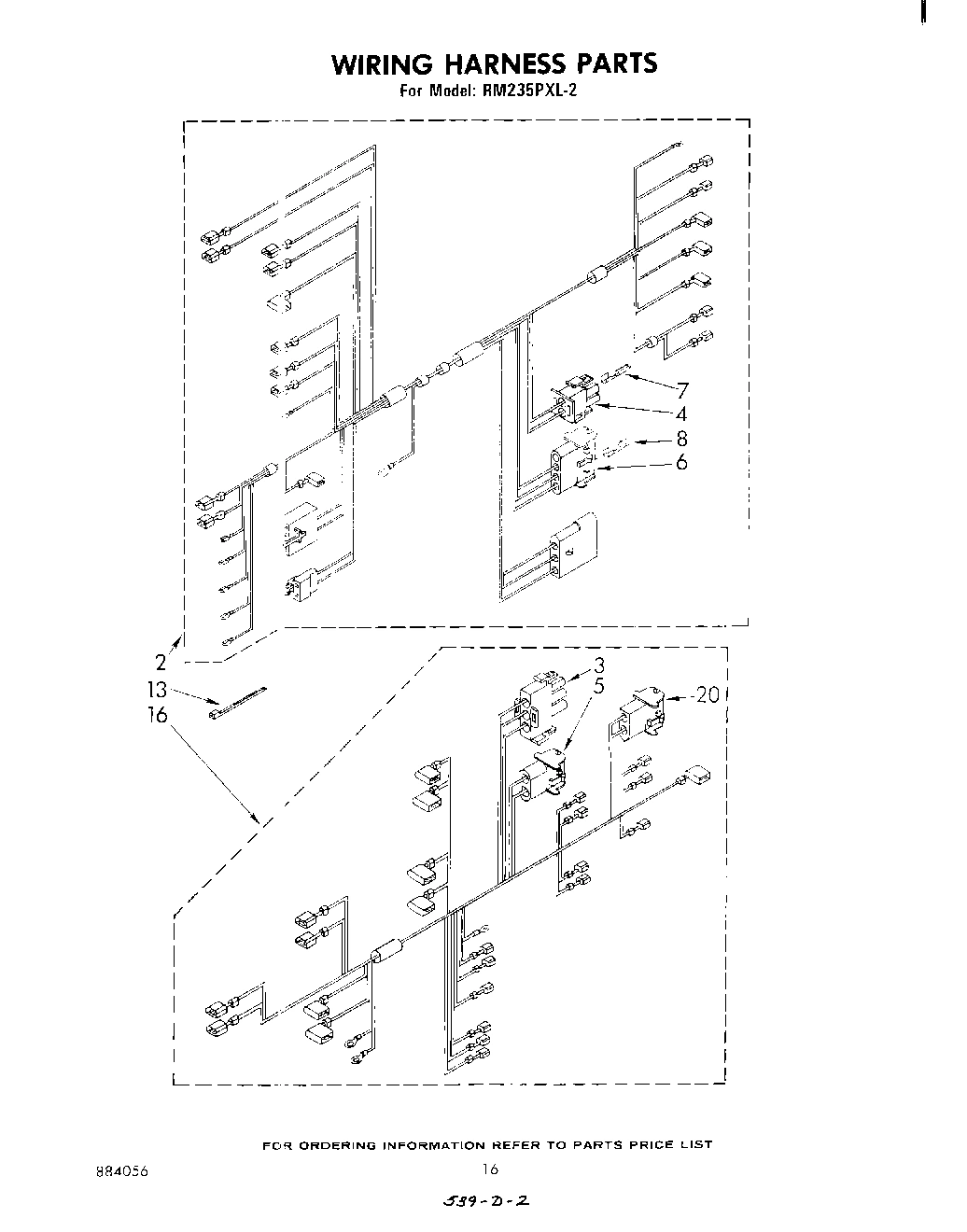

10 - WIRING HARNESS , LITERATURE AND OPTIONAL

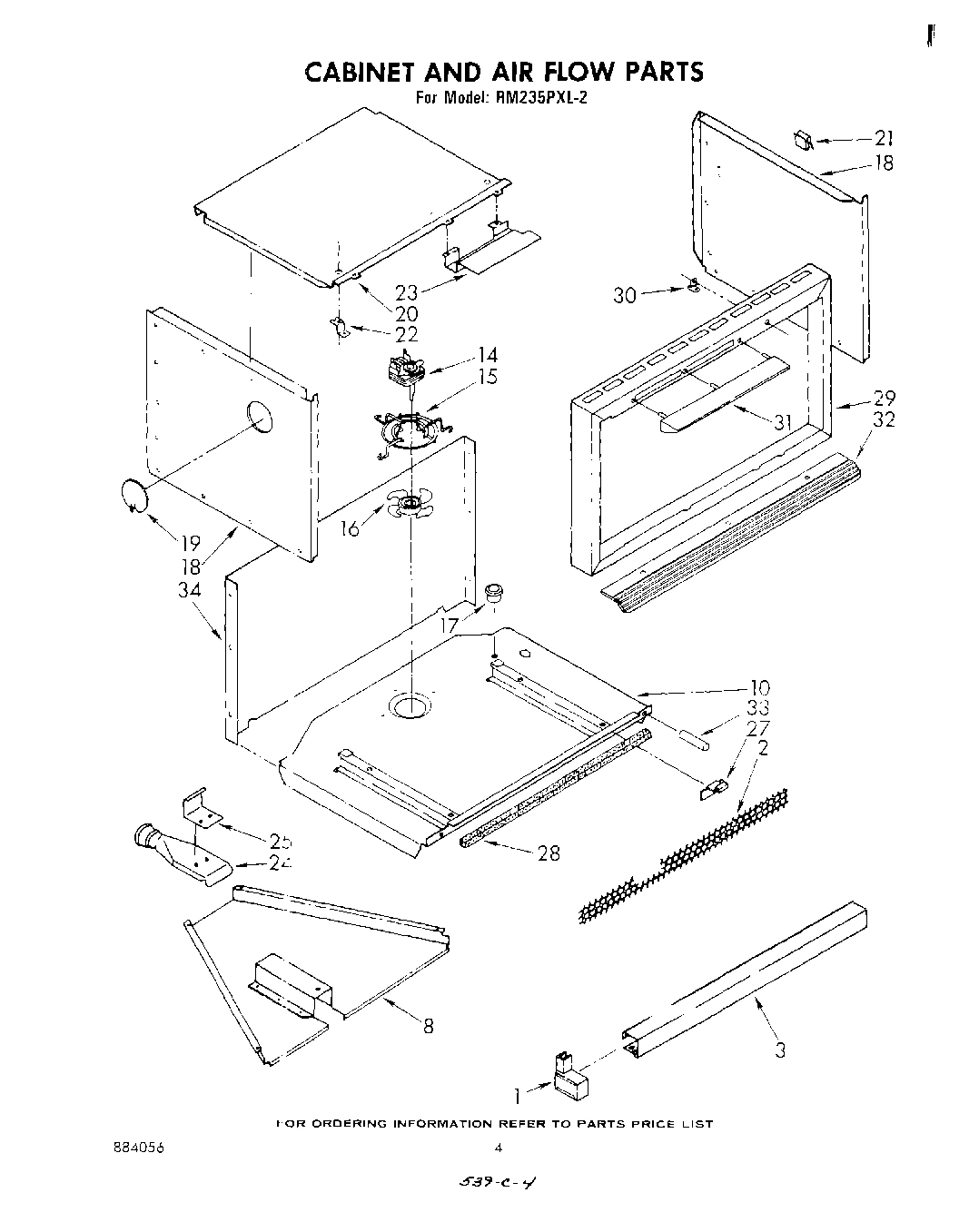

03 - CABINET AND AIR FLOW

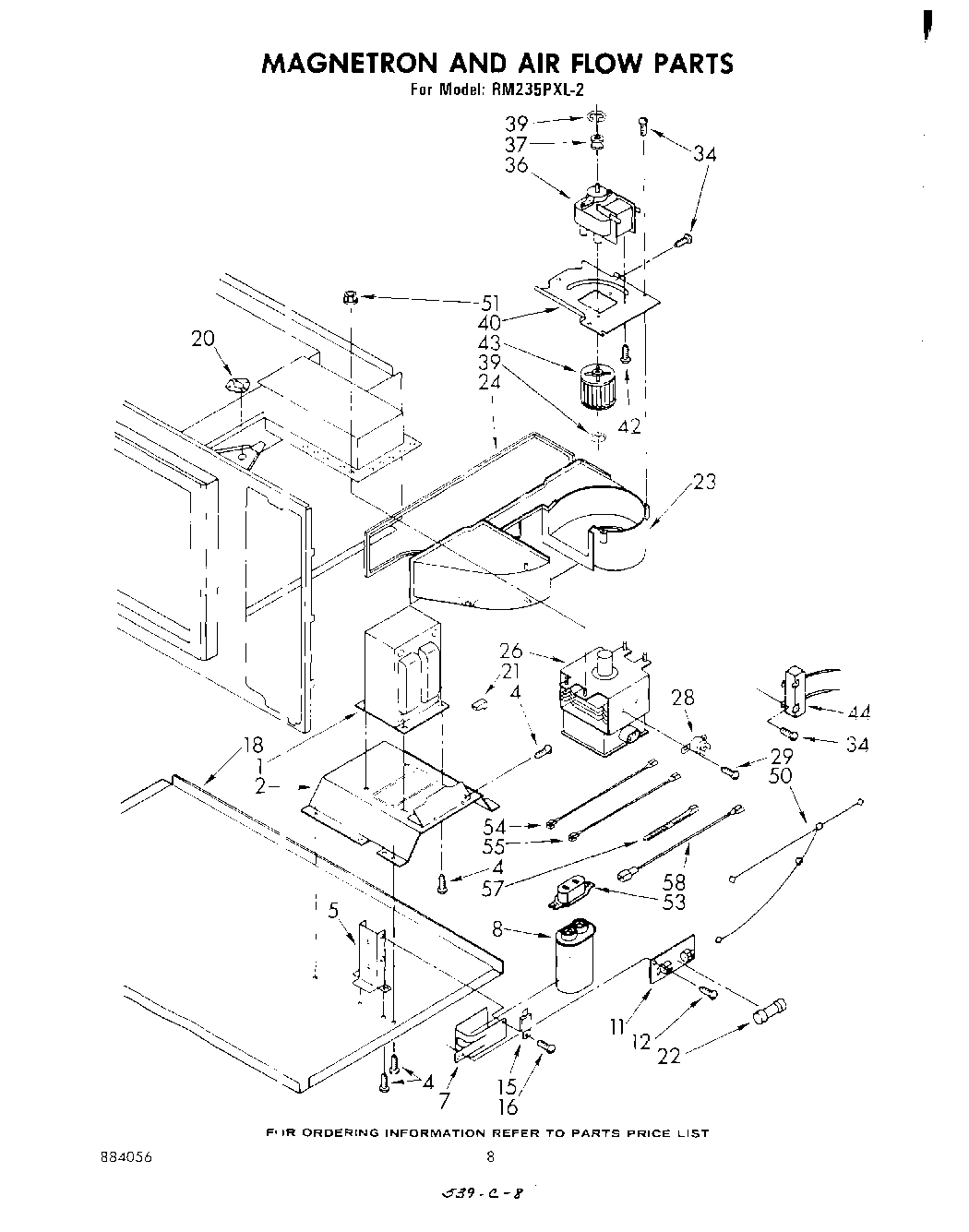

05 - MAGNETRON AND AIRFLOW

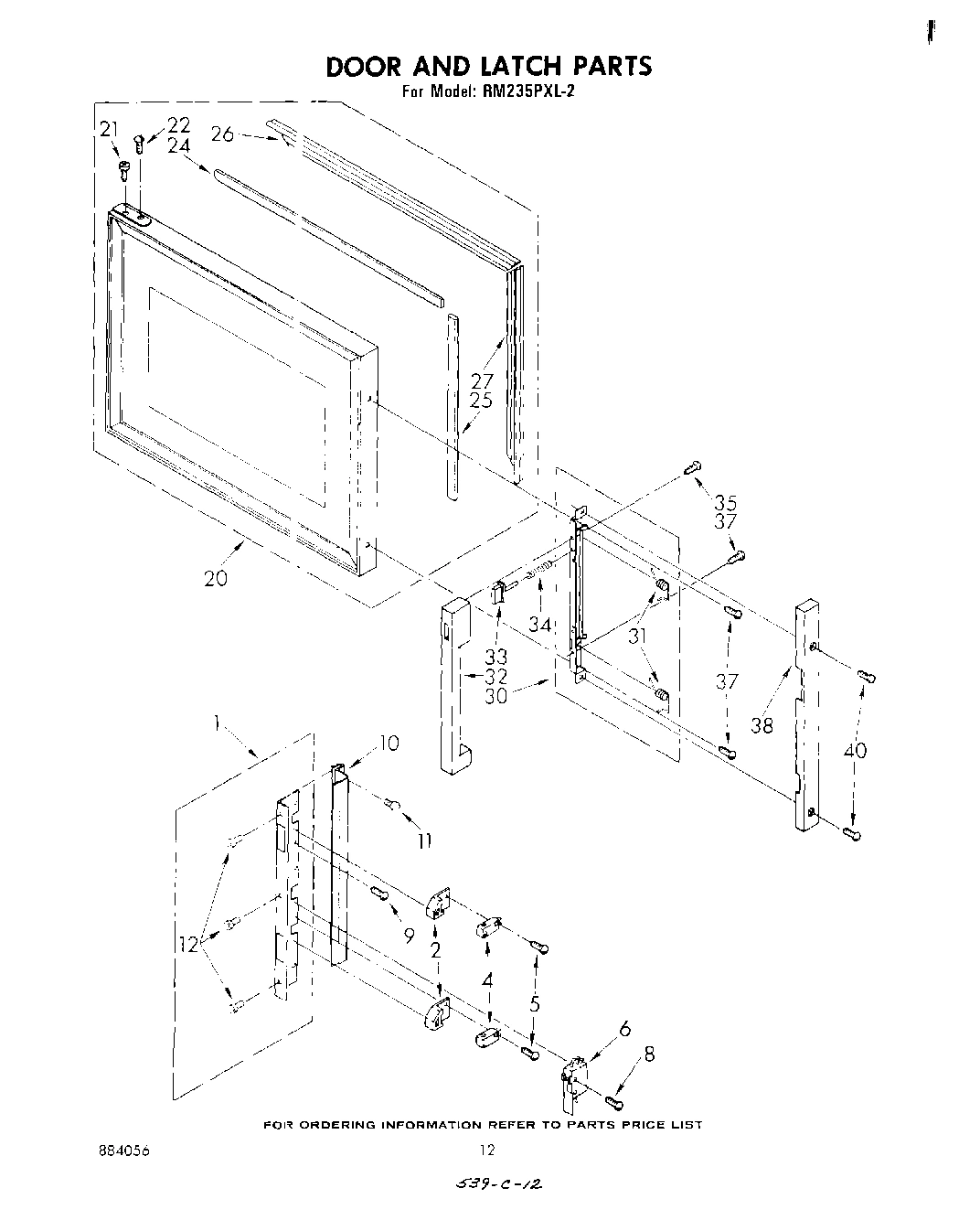

07 - DOOR AND LATCH

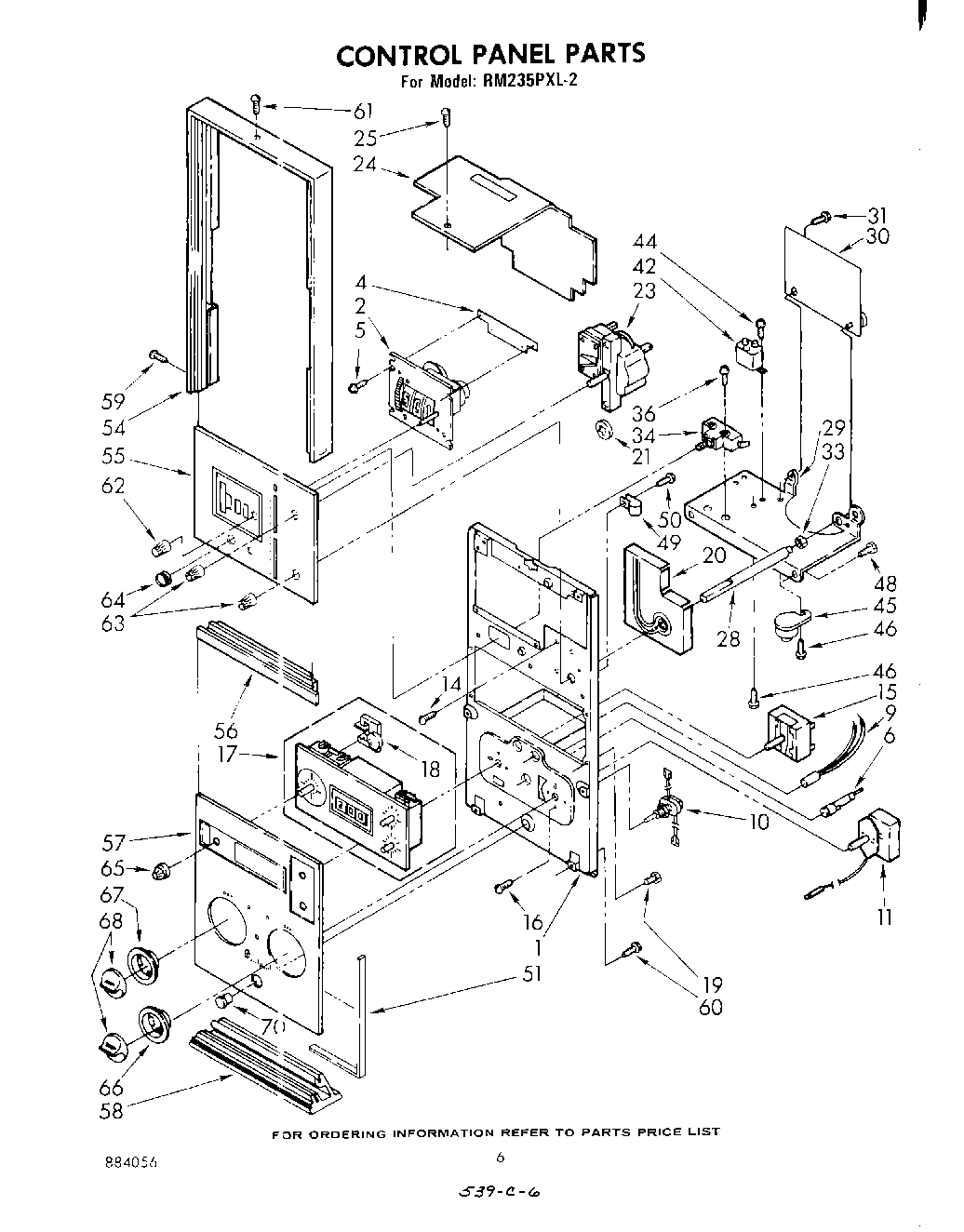

04 - CONTROL PANEL

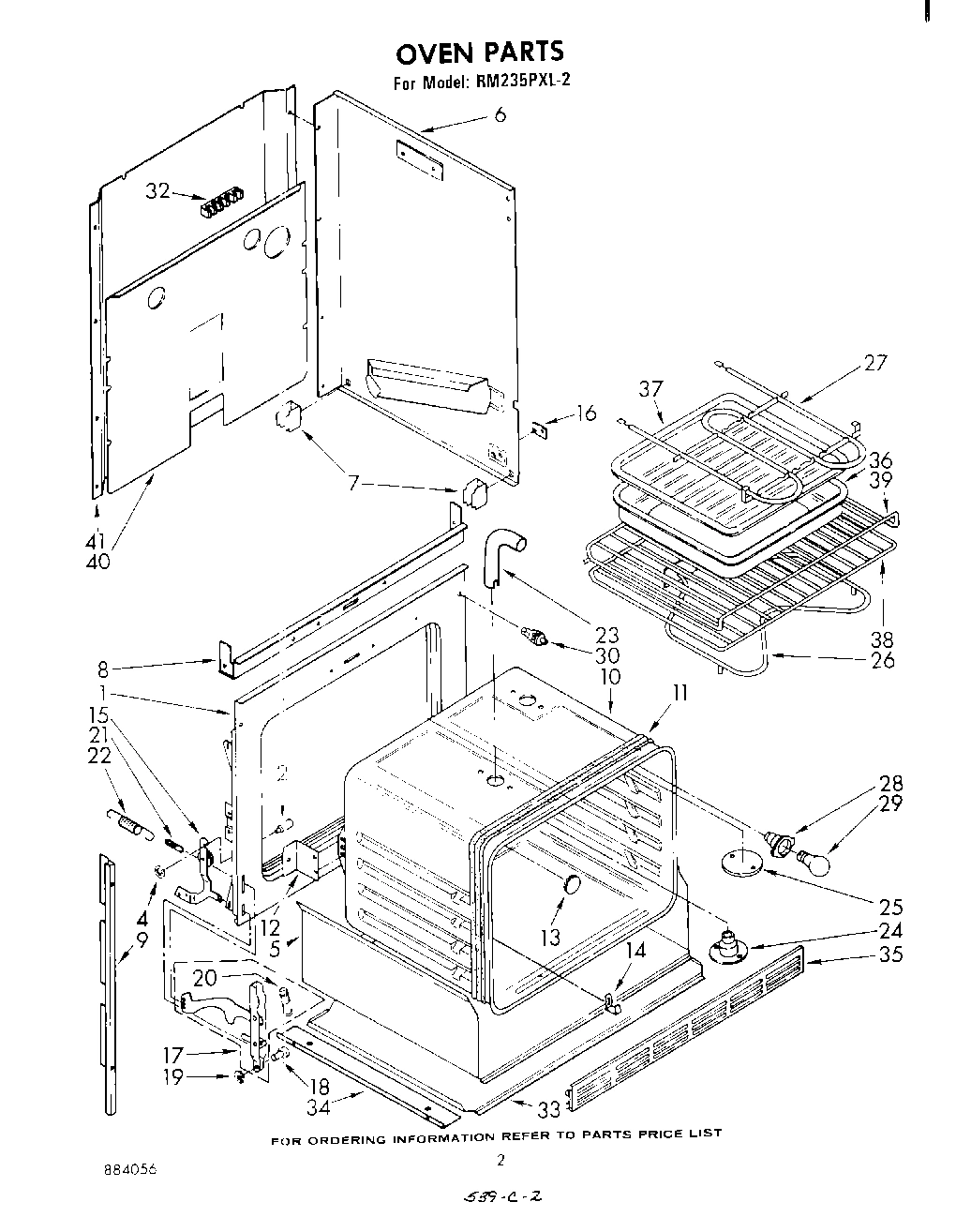

02 - OVEN
Common parts from model Whirlpool RM235PXL2
1
liner, door WPL 329685 Contact Us For Availability
1
Screw, 10A x 1/2 (2) WPL 309100 Contact Us For Availability
1
End Cap, L.H. WPL 311649 Contact Us For Availability
1
End Cap, R.H. WPL 311650 Contact Us For Availability
1
Transformer (Alternate) WPL 312848 Contact Us For Availability
1
Transformer (Alternate) WPL 312849 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Bracket, Control Mounting WPL 329771 Contact Us For Availability
1
Frame, Front WPL 328747 Contact Us For Availability
2
seal, pano glass WPL 258711 Contact Us For Availability
2
Hinge Assembly (Top) WPL 329070 Contact Us For Availability
2
Hinge Assembly (Bottom) WPL 329071 Contact Us For Availability
2
Harness, Wiring Control WPL 312434 Contact Us For Availability
2
Trim, Oven Vent WPL 312432 Contact Us For Availability
2
Bracket, Transformer WPL 312645 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
2
Timer, Digital WPL 310127 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
3
glass, inner 30`` WPL 258988 Contact Us For Availability
3
Plug, Circuit (4 Terminal) WPL 310958 Contact Us For Availability
3
screw (2) WPL 342043 Contact Us For Availability
3
Trim, Front WPL 312445 Contact Us For Availability
4
baffle, insulation WPL 307924 Contact Us For Availability
4
Washer, Flat WPL 312147 Contact Us For Availability
4
Plug, Circuit (2 Terminal) WPL 310957 Contact Us For Availability
4
Screw, 10-32 x 1/2 Hex Washer W/Ground Ring ( WPL 312185 Contact Us For Availability
4
screw, 10a X 3/8 (4) WPL 254217 Contact Us For Availability
4
Plate, Timer Mounting (2) WPL 311224 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
5
spacer, insulation baffle (4) WPL 258990 Contact Us For Availability
5
Hinge, Shim Locking (2) WPL 312744 Contact Us For Availability
5
Cap, Circuit (2 Terminal) WPL 310959 Contact Us For Availability
5
Bracket, Capacitor WPL 311917 Contact Us For Availability
5
Screw, 4-40 x 3/4 Pan Head Thread Form (4) WPL 312717 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
6
Cap, Circuit (4 Terminal) WPL 310960 Contact Us For Availability
6
Switch, Light/ Monitor WPL 311355 Contact Us For Availability
6
Light, Indicator (125V) WPL 311547 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
7
Channel, Rubber (4) WPL 312783 Contact Us For Availability
7
Plate, Nut (2) WPL 312741 Contact Us For Availability
7
Pin, Male WPL 310222 Contact Us For Availability
7
Strap, Capacitor WPL 311918 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
8
frame, door 30`` WPL 310427 Contact Us For Availability
8
Screw, 12-24 x 3/4 (2) WPL 312742 Contact Us For Availability
8
Pin, Female WPL 310223 Contact Us For Availability
8
Box Air WPL 329829 Contact Us For Availability
8
Capacitor (Alternate) WPL 312631 Contact Us For Availability
8
Capacitor (Alternate) WPL 312632 Contact Us For Availability
8
Baffle, Top Insulation WPL 310693 Contact Us For Availability
9
Glass, Outer WPL 309069 Contact Us For Availability
9
Light, Indicator (250V) (3) WPL 311550 Contact Us For Availability
9
Side Trim L.S. WPL 310685 Contact Us For Availability
9
Side Trim R.S. WPL 310689 Contact Us For Availability
10
Screw (3) WPL 311056 Contact Us For Availability
10
hold down, glass (2) WPL 310705 Contact Us For Availability
10
Shelf, Microwave (Alternate) WPL 309145 Contact Us For Availability
10
Shelf, Microwave (Alternate) WPL 311058 Contact Us For Availability
10
Shelf, Microwave (Alternate (Install W/Silast WPL 312579 Contact Us For Availability
10
Support Plate WPL 329828 Contact Us For Availability
10
Shield WPL 311359 Contact Us For Availability
10
Push Switch WPL 311441 Contact Us For Availability
10
Oven, 30`` Continuous Clean WPL 328757 Contact Us For Availability
11
Heat Seal WPL 309107 Contact Us For Availability
11
Top, Door Frame WPL 310428 Contact Us For Availability
11
Fuseblock WPL 311941 Contact Us For Availability
11
Fastener WPL 310423 Contact Us For Availability
11
Thermostat (Lower Oven) (Alternate) WPL 310863 Contact Us For Availability
11
Thermostat (Lower Oven) (Alternate) WPL 311497 Contact Us For Availability
12
Rivet, Pop (3) WPL 311928 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
13
Seal, Foam (2) WPL 308293 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
14
clip, glass (10) WPL 310706 Contact Us For Availability
14
Motor Fan (Alternate) WPL 310221 Contact Us For Availability
14
Motor, Fan (Alternate) WPL 310921 Contact Us For Availability
14
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
15
Clip (2) WPL 311506 Contact Us For Availability
15
Nut, 6-32 Hex (2) WPL 307602 Contact Us For Availability
15
Mount, Fan Motor WPL 310420 Contact Us For Availability
15
Rectifier, High Voltage WPL 312482 Contact Us For Availability
15
Switch, Selector WPL 310866 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
16
Screw, 8-32 x 3/8 WPL 312713 Contact Us For Availability
16
Harness, Interlock WPL 312391 Contact Us For Availability
16
Blade, Fan WPL 307535 Contact Us For Availability
16
Screw, 8-32 x 3/16 (2) WPL 308119 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Handle, Oven Door WPL 312721 Contact Us For Availability
17
Snap Bushing WPL 308410 Contact Us For Availability
17
Timer, Digital (Includes Illus. 18) WPL 310325 Contact Us For Availability
17
Channel Arm (2) WPL 329714 Contact Us For Availability
18
Side Panel, L.H. WPL 311643 Contact Us For Availability
18
Side Panel, R.H. WPL 311644 Contact Us For Availability
18
Base, Chassis (Not Serviceable) WPL ARI123472A Contact Us For Availability
18
Motor, Timer WPL 308594 Contact Us For Availability
19
Socket, Snap-In WPL 307519 Contact Us For Availability
19
Cover, Light WPL 311698 Contact Us For Availability
19
Nut, Extension (4) WPL 309645 Contact Us For Availability
19
Retainer Ring (2) WPL 307594 Contact Us For Availability
20
pin, wedge (2) WPL 312223 Contact Us For Availability
20
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
20
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
20
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
20
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
20
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
20
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
20
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
20
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
20
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
20
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
20
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
20
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
20
Grease WPL 261582 Contact Us For Availability
20
Rotisserie Kit WPL 261881 Contact Us For Availability
20
Browning Tray (Micro) WPL 307677 Contact Us For Availability
20
Book, Cooking Guide WPL 308500 Contact Us For Availability
20
Booklet, Probe WPL 309600 Contact Us For Availability
20
Cookbook WPL 310847 Contact Us For Availability
20
Bi-Level Cooking Guide WPL 310929 Contact Us For Availability
20
Installation Instructions WPL 311436 Contact Us For Availability
20
Use & Care Guide WPL 312410 Contact Us For Availability
20
Tech Sheet WPL 312756 Contact Us For Availability
20
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
20
Disconnect Block WPL 717252 Contact Us For Availability
20
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
20
List, Repair Parts WPL 884056 Contact Us For Availability
20
screw, 6a x 3/8 (2) WPL 246131 Contact Us For Availability
20
Panel, Top WPL 311641 Contact Us For Availability
20
Thermostat WPL 311719 Contact Us For Availability
20
Door WPL 329629 Contact Us For Availability
20
Indicator, Information Control WPL 312755 Contact Us For Availability
20
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
21
pushnut (2) WPL 311896 Contact Us For Availability
21
Shield, Lamp WPL 309554 Contact Us For Availability
21
Clip (2) WPL 311772 Contact Us For Availability
21
Housing Receptacle WPL 312813 Contact Us For Availability
21
Clip, Push-On (3) WPL 309983 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Bracket, Support WPL 311696 Contact Us For Availability
23
Probe, Shield WPL 311687 Contact Us For Availability
23
Air Duct (Horizontal) WPL 312614 Contact Us For Availability
23
Indicator, Temperature WPL 309548 Contact Us For Availability
23
Tube, Vent WPL 312697 Contact Us For Availability
24
Cover, Rivet WPL 309437 Contact Us For Availability
24
Vent Tube WPL 312696 Contact Us For Availability
24
Seal, Top & Bottom (2) (Alternate) WPL 311342 Contact Us For Availability
24
Seal, Top & Bottom (2) (Alternate) WPL 311634 Contact Us For Availability
24
Shield Assembly WPL 328431 Contact Us For Availability
24
Eliminator, Smoke WPL 310840 Contact Us For Availability
25
Support, Vent Tube WPL 312698 Contact Us For Availability
25
Seal, Sides (Alternate) WPL 311343 Contact Us For Availability
25
Seal, Sides (Alternate) WPL 311635 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Shield, Exhaust WPL 312577 Contact Us For Availability
26
Magnetron (Alternate) WPL 311992 Contact Us For Availability
26
Magnetron (Alternate) WPL 311993 Contact Us For Availability
26
Magnetron (Alternate) WPL 311994 Contact Us For Availability
26
Retainer, Top & Bottom Seals (2) WPL 311340 Contact Us For Availability
27
Screw, 10-24 x 1/2 (4) WPL 247326 Contact Us For Availability
27
Bracket, Front Support WPL 311638 Contact Us For Availability
27
Retain, Side Seal (2) WPL 311341 Contact Us For Availability
27
Unit, Broil (Screw, 10-32 x 5/8) WPL 246127 Contact Us For Availability
28
Seal Foam WPL 309814 Contact Us For Availability
28
Thermostat, Fixed WPL 307564 Contact Us For Availability
28
Shaft, Potentiometer WPL 310279 Contact Us For Availability
28
Socket, Oven Light (Alternate) WPL 307856 Contact Us For Availability
28
Socket, Oven Light (Alternate) WPL 310208 Contact Us For Availability
29
Baffle, Air Exhaust WPL 309444 Contact Us For Availability
29
Frame, Outer WPL 312600 Contact Us For Availability
29
Screw, 6A x 3/8 (2) WPL 310410 Contact Us For Availability
29
Bracket, P.C. Board WPL 309484 Contact Us For Availability
30
Switch, Door WPL 310345 Contact Us For Availability
30
Air Deflector WPL 311702 Contact Us For Availability
30
Screw, 10A x 1/2 WPL 307748 Contact Us For Availability
30
Support, Shelf WPL 311286 Contact Us For Availability
30
Bracket, Control Panel Mounting WPL 311697 Contact Us For Availability
30
Latch Assembly WPL 329065 Contact Us For Availability
30
P/C Board & Potentiometer WPL 329907 Contact Us For Availability
31
Clip, Air Cover (3) WPL 311149 Contact Us For Availability
31
Deflector, Air WPL 309499 Contact Us For Availability
31
Pushnut, Ziptwist (3) WPL 310953 Contact Us For Availability
31
Screw (2) WPL 309080 Contact Us For Availability
31
Spring, Torsion (2) WPL 311352 Contact Us For Availability
32
Shelf, Convenience WPL 311318 Contact Us For Availability
32
Hood, Lower Vent WPL 311700 Contact Us For Availability
32
Handle, Door WPL 312351 Contact Us For Availability
32
Screw, 10-1 WPL 308043 Contact Us For Availability
33
Seal, Foam WPL 309813 Contact Us For Availability
33
Grommet, Plastic (2) WPL 311692 Contact Us For Availability
33
Screw, 10A x 1-5/8 (2) WPL 311699 Contact Us For Availability
33
Button, Door Handle WPL 312349 Contact Us For Availability
33
Palnut WPL 307640 Contact Us For Availability
33
WPL 310458 WPL 310458 Contact Us For Availability
34
Cover, Rear WPL 311651 Contact Us For Availability
34
Spring, Compression WPL 310197 Contact Us For Availability
34
WPL 311592 WPL 311592 Contact Us For Availability
35
Screw, 8-32 Fillister Head Thread Form WPL 311959 Contact Us For Availability
35
WPL 309029 WPL 309029 Contact Us For Availability
35
WPL 310668 WPL 310668 Contact Us For Availability
36
Transformer (Alternate) WPL 312140 Contact Us For Availability
36
Transformer (Alternate) WPL 312613 Contact Us For Availability
36
Screw WPL 98106 Contact Us For Availability
37
Pulley, Motor WPL 311922 Contact Us For Availability
38
Jack, Probe WPL 309637 Contact Us For Availability
38
End Cap WPL 312350 Contact Us For Availability
38
WPL 308173 WPL 308173 Contact Us For Availability
39
Washer, Internal Lock WPL 312796 Contact Us For Availability
39
``E`` Ring (2) WPL 311999 Contact Us For Availability
39
WPL 308172 WPL 308172 Contact Us For Availability
40
Washer Probe WPL 309769 Contact Us For Availability
40
Bracket, Motor WPL 311916 Contact Us For Availability
40
Screw, 8-32 x 5/16 Thread Form Truss Head (2) WPL 310210 Contact Us For Availability
40
WPL 310459 WPL 310459 Contact Us For Availability
41
Nut WPL 309768 Contact Us For Availability
41
WPL 311012 WPL 311012 Contact Us For Availability
42
Relay, Power WPL 311507 Contact Us For Availability
43
Probe, Temperature WPL 311438 Contact Us For Availability
43
Wheel, Blower WPL 311920 Contact Us For Availability
44
Reed Relay (Alternate) WPL 312640 Contact Us For Availability
44
Reed Relay (Alternate) WPL 312784 Contact Us For Availability
45
Buzzer, End-of-Cycle WPL 310351 Contact Us For Availability
46
Screw, 6 x 3/8B WPL 309258 Contact Us For Availability
50
Screw 11-16 x 1/2 WPL 346893 Contact Us For Availability
50
Screw, 10-32 x 5/16 (2) WPL 166681 Contact Us For Availability
50
Clip WPL 312763 Contact Us For Availability
50
Cable, Support WPL 312764 Contact Us For Availability
51
Flange Nut (4) WPL 310300 Contact Us For Availability
51
Seal Foam (2) WPL 308297 Contact Us For Availability
53
Cover, Capacitor WPL 312294 Contact Us For Availability
54
Jumper, High Voltage (Black 5-1/2``) WPL 312792 Contact Us For Availability
54
Frame, Control Panel WPL 312602 Contact Us For Availability
55
Jumper, High Voltage, Red (7-7/8``) WPL 312794 Contact Us For Availability
55
Panel, Control (Upper) WPL 312788 Contact Us For Availability
56
Splice Panel WPL 312743 Contact Us For Availability
57
Control Panel, Glass WPL 312421 Contact Us For Availability
58
High Voltage Lead, Gray 6-3/4`` (2) WPL 312301 Contact Us For Availability
58
Bottom Cap, Control Panel WPL 312603 Contact Us For Availability
59
Screw (2) WPL 348689 Contact Us For Availability
61
Screw, 8-32 x 1/2 WPL 312248 Contact Us For Availability
62
Knob, Digital WPL 307615 Contact Us For Availability
63
Knob, Assembly (2) WPL 329423 Contact Us For Availability
64
SWITCH, PUSH-TO-START SWITCH, PUSH-TO-START WPL 832949 Contact Us For Availability
65
Kn WPL 312808 Contact Us For Availability
66
WPL 311071 WPL 311071 Contact Us For Availability
67
WPL 254225 WPL 254225 Contact Us For Availability
70
WPL 308784 WPL 308784 Contact Us For Availability
× ![]()
