Model Maytag RJDO3003A ELECTRIC WALL OVEN – Common Parts & Diagrams
01 - BODY
02 - CONTROL PANEL/INTERNAL CONTROLS

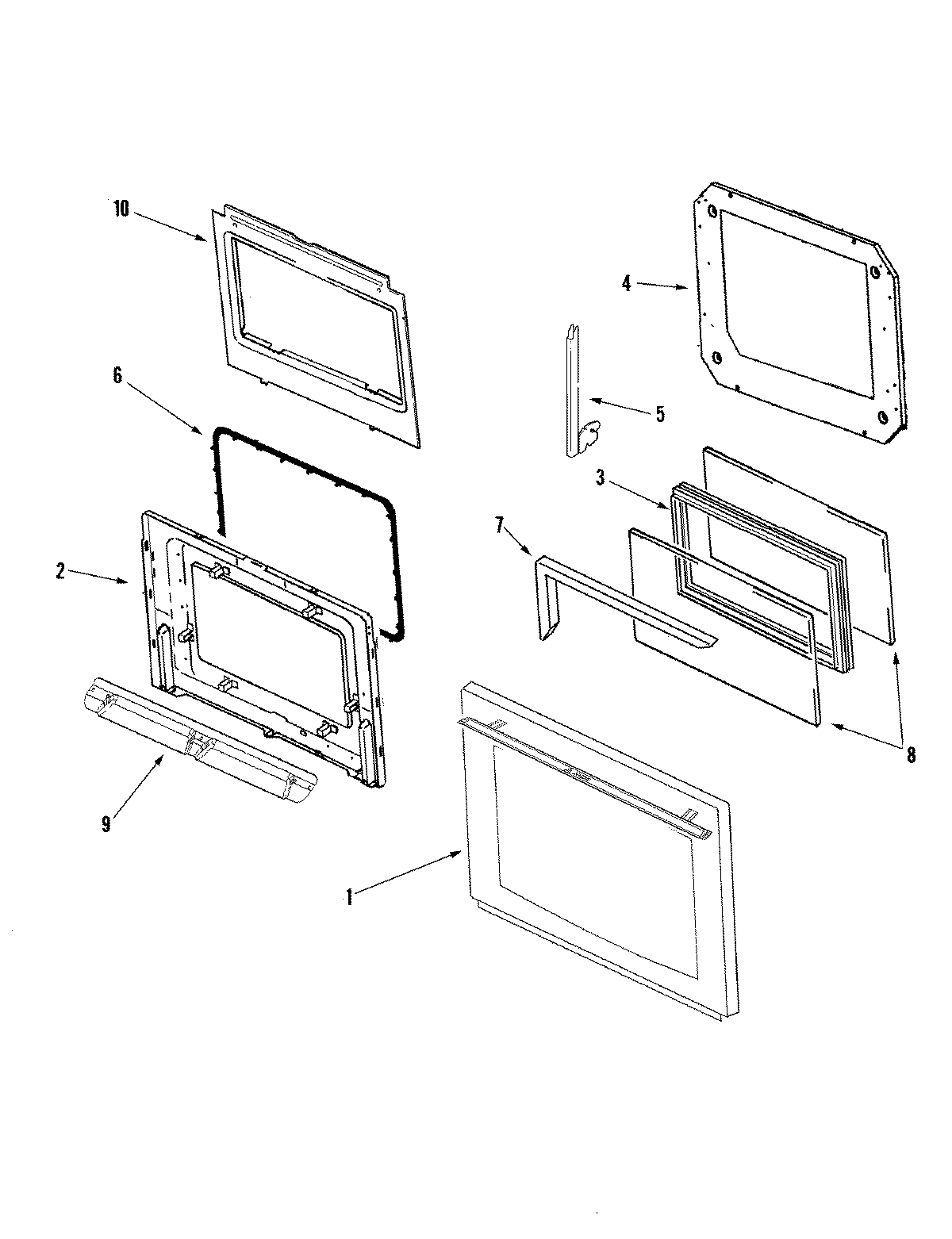

03 - DOOR

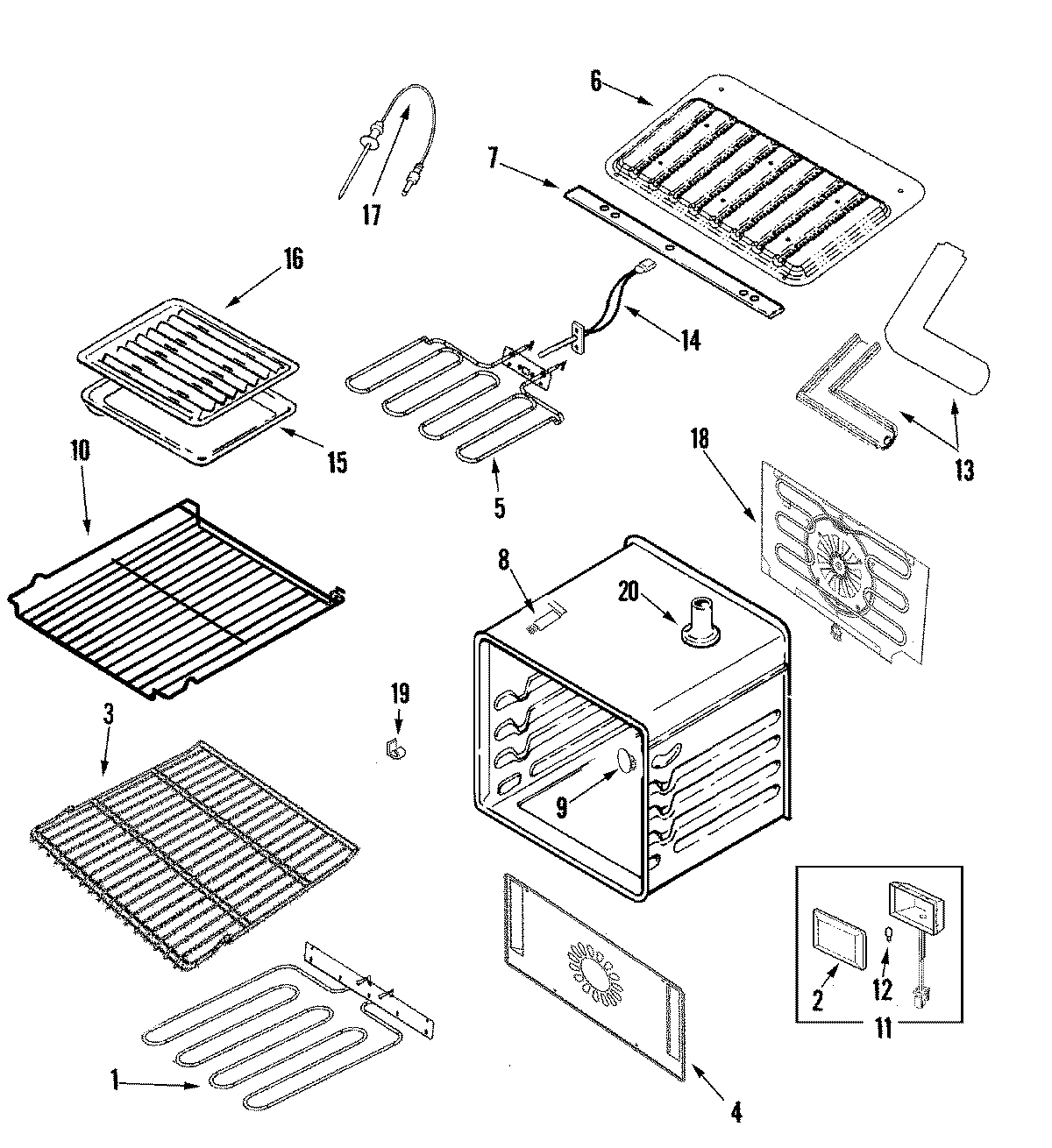

04 - OVEN
05 - SUPPLEMENTAL INFORMATION

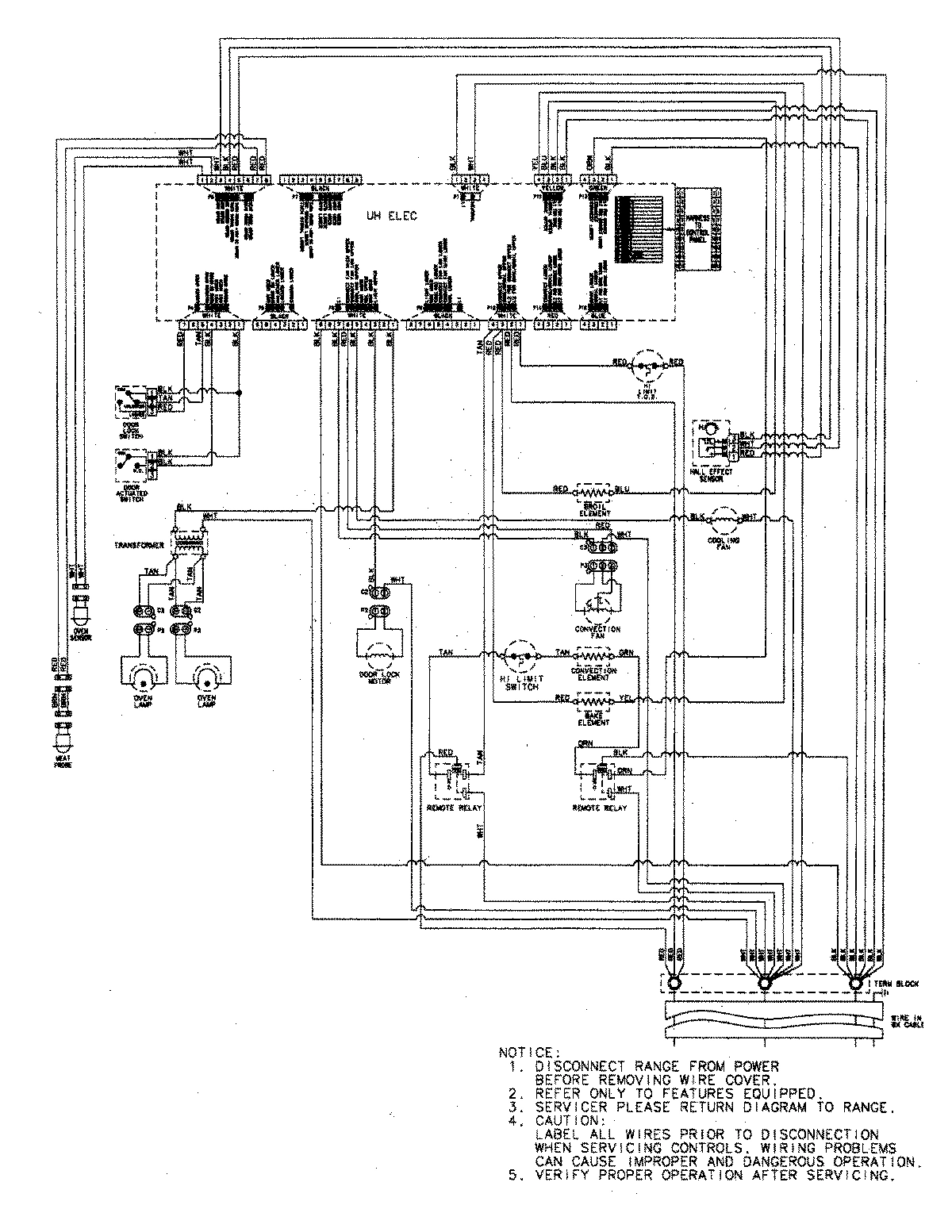

06 - WIRING INFORMATION

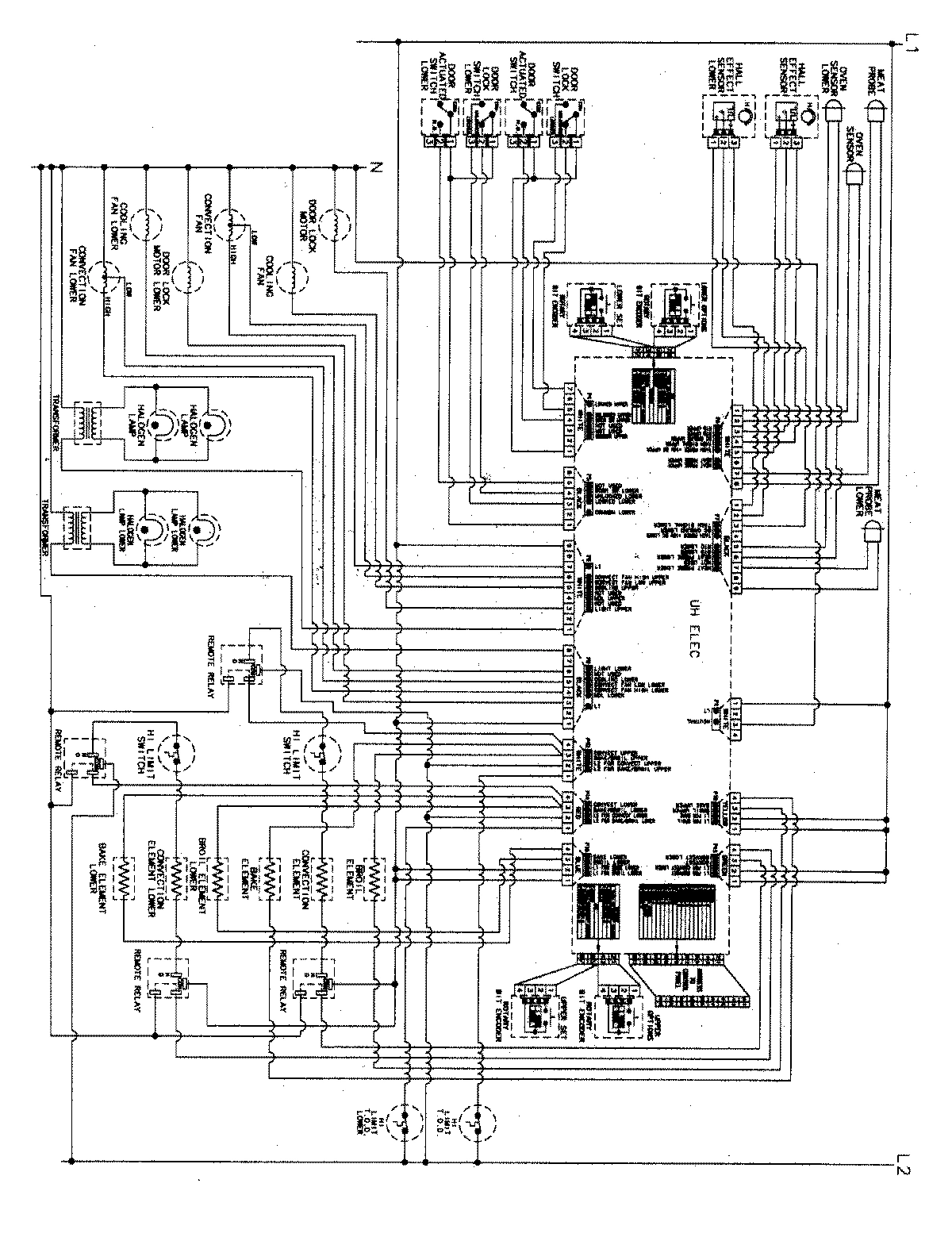

07 - WIRING INFORMATION (FRC)
Common parts from model Maytag RJDO3003A ELECTRIC WALL OVEN
1
MAY 74010526 MAY 74010526 Contact Us For Availability
1
MAY 74010515 MAY 74010515 Contact Us For Availability
2
MAY 74010528 MAY 74010528 Contact Us For Availability
2
MAY 74010483 MAY 74010483 Contact Us For Availability
2
MAY 74011319 MAY 74011319 Contact Us For Availability
3
MAY 74008491 MAY 74008491 Contact Us For Availability
3
FRAME, GLASS MAY 74003644 Contact Us For Availability
3
MAY 74010494 MAY 74010494 Contact Us For Availability
4
MAY 74010408 MAY 74010408 Contact Us For Availability
4
MAY 74008414 MAY 74008414 Contact Us For Availability
4
MAY 74011321 MAY 74011321 Contact Us For Availability
4
COVER, COVECTION MAY 74010501 Contact Us For Availability
5
MAY 74010507 MAY 74010507 Contact Us For Availability
6
MAY 74008359 MAY 74008359 Contact Us For Availability
6
MAY 74008360 MAY 74008360 Contact Us For Availability
6
MAY 74008408 MAY 74008408 Contact Us For Availability
7
INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability
7
MAY 74011320 MAY 74011320 Contact Us For Availability
7
MAY 74003563 MAY 74003563 Contact Us For Availability
7
MAY 74010505 MAY 74010505 Contact Us For Availability
8
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
9
MAY 74010409 MAY 74010409 Contact Us For Availability
9
MAY 74010410 MAY 74010410 Contact Us For Availability
9
MAY 74008392 MAY 74008392 Contact Us For Availability
9
MAY 74009408 MAY 74009408 Contact Us For Availability
10
MAY 74008405 MAY 74008405 Contact Us For Availability
10
MAY 74010407 MAY 74010407 Contact Us For Availability
10
MAY 74009502 MAY 74009502 Contact Us For Availability
10
MAY 74010495 MAY 74010495 Contact Us For Availability
11
MAY 74008406 MAY 74008406 Contact Us For Availability
11
MAY 74005456 MAY 74005456 Contact Us For Availability
11
MAY 74004521 MAY 74004521 Contact Us For Availability
12
MAY 74010414 MAY 74010414 Contact Us For Availability
12
MAY 74004726 MAY 74004726 Contact Us For Availability
13
MAY 74008372 MAY 74008372 Contact Us For Availability
13
KIT, HARDWARE ADAPTER MAY 74008298 Contact Us For Availability
13
MAY 74009844 MAY 74009844 Contact Us For Availability
14
MAY 74008446 MAY 74008446 Contact Us For Availability
14
MAY 74008450 MAY 74008450 Contact Us For Availability
14
MAY 74010514 MAY 74010514 Contact Us For Availability
14
MAY 71001394 MAY 71001394 Contact Us For Availability
15
MAY 74010499 MAY 74010499 Contact Us For Availability
15
MAY 74008343 MAY 74008343 Contact Us For Availability
15
MAY 74010485 MAY 74010485 Contact Us For Availability
16
MAY 74008356 MAY 74008356 Contact Us For Availability
16
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
16
MAY 74008264 MAY 74008264 Contact Us For Availability
16
MAY 74010486 MAY 74010486 Contact Us For Availability
17
MAY 74010489 MAY 74010489 Contact Us For Availability
17
BRACKET, SWITCH ACTUATOR MAY 74001632 Contact Us For Availability
17
MAY Y703356 MAY Y703356 Contact Us For Availability
18
MAY 74010496 MAY 74010496 Contact Us For Availability
18
ROD, DOOR LIGHT SWITCH MAY 74003562 Contact Us For Availability
18
MAY 74010502 MAY 74010502 Contact Us For Availability
19
MAY 74010503 MAY 74010503 Contact Us For Availability
19
MAY 74011317 MAY 74011317 Contact Us For Availability
19
MAY 71001170 MAY 71001170 Contact Us For Availability
20
MAY 74010504 MAY 74010504 Contact Us For Availability
20
MAY 74010510 MAY 74010510 Contact Us For Availability
20
MAY 74008447 MAY 74008447 Contact Us For Availability
20
MAY 74009838 MAY 74009838 Contact Us For Availability
21
MAY 74010506 MAY 74010506 Contact Us For Availability
21
MAY 74010511 MAY 74010511 Contact Us For Availability
22
MAY 74010518 MAY 74010518 Contact Us For Availability
22
MAY 74010491 MAY 74010491 Contact Us For Availability
23
MAY 74008430 MAY 74008430 Contact Us For Availability
23
MAY 74010492 MAY 74010492 Contact Us For Availability
24
MAY 74008488 MAY 74008488 Contact Us For Availability
24
MAY 74010519 MAY 74010519 Contact Us For Availability
24
MAY Y704977 MAY Y704977 Contact Us For Availability
25
MAY 74008431 MAY 74008431 Contact Us For Availability
25
MAY 74010500 MAY 74010500 Contact Us For Availability
26
MAY 74008433 MAY 74008433 Contact Us For Availability
26
MAY 74010517 MAY 74010517 Contact Us For Availability
27
MAY 74008432 MAY 74008432 Contact Us For Availability
28
MAY 74008444 MAY 74008444 Contact Us For Availability
29
MAY 74008451 MAY 74008451 Contact Us For Availability
29
MAY 74010527 MAY 74010527 Contact Us For Availability
30
MAY 74008445 MAY 74008445 Contact Us For Availability
31
MAY 74008437 MAY 74008437 Contact Us For Availability
NI
MAY 16025885 MAY 16025885 Contact Us For Availability
NI
MAY 74008345 MAY 74008345 Contact Us For Availability
NI
MAY 74008463 MAY 74008463 Contact Us For Availability
NI
MAY 74008490 MAY 74008490 Contact Us For Availability
NI
MAY 74010487 MAY 74010487 Contact Us For Availability
NI
MAY 74010521 MAY 74010521 Contact Us For Availability
NI
MAY 74010522 MAY 74010522 Contact Us For Availability
NI
MAY 74010524 MAY 74010524 Contact Us For Availability
NI
MAY 74010529 MAY 74010529 Contact Us For Availability
NI
MAY 8112P259-60 MAY 8112P259-60 Contact Us For Availability
NI
MAY 15003641 MAY 15003641 Contact Us For Availability
NI
MAY 15003642 MAY 15003642 Contact Us For Availability
× ![]()
