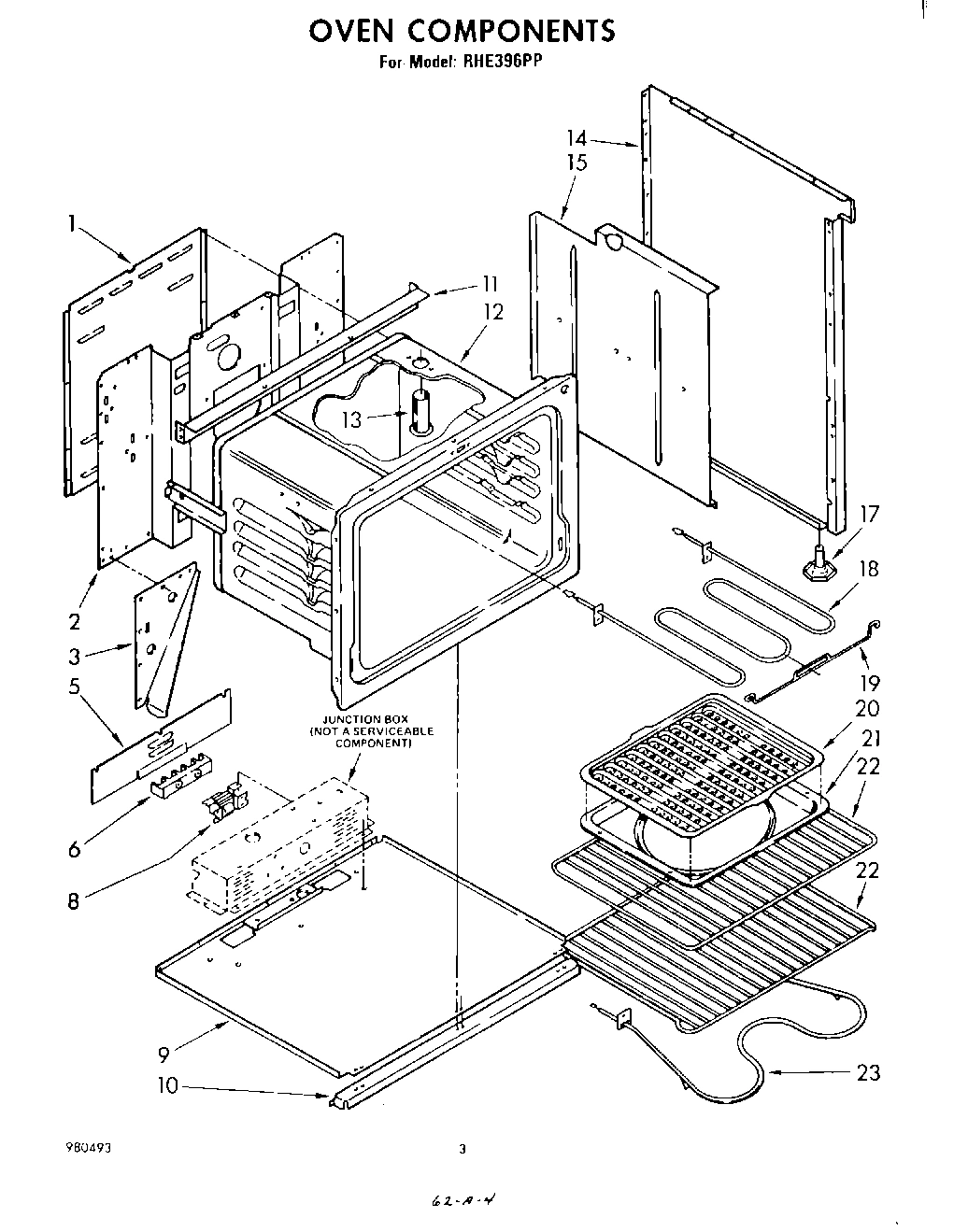

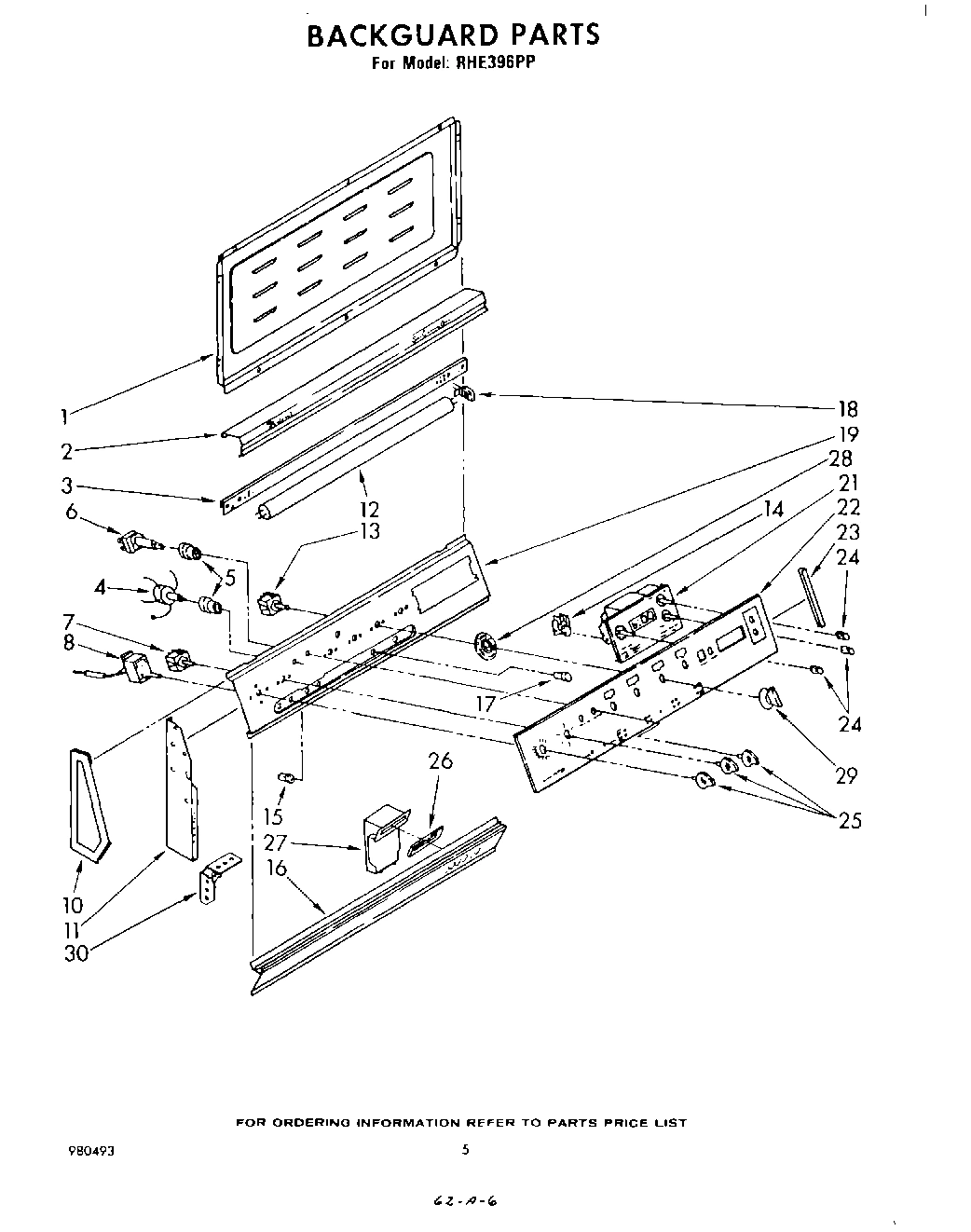

Model Whirlpool RHE396PP – Common Parts &amp; Diagrams

1

Shield, Wire WPL 868801 Contact Us For Availability

1

Kit, Cutting Board WPL 261948 Contact Us For Availability

1

Handle, Griddle Cover WPL 866222 Contact Us For Availability

1

Grate, Grille WPL 868452 Contact Us For Availability

1

Cover, Wiring WPL 868159 Contact Us For Availability

1

Cover, Wiring WPL 866234 Contact Us For Availability

1

Seal, Oven Door WPL 868177 Contact Us For Availability

2

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.75

2

Cover, Vent Duct WPL 868803 Contact Us For Availability

2

Cover, Griddle WPL 868435 Contact Us For Availability

2

Element, Grille (Includes Illus. 10) WPL 868453 Contact Us For Availability

2

Back WPL 868079 Contact Us For Availability

2

Nut, Speed (4) WPL 90910 Contact Us For Availability

2

Screw, 6-32 x 5/16 WPL 244604 Contact Us For Availability

2

Shade, Lamp WPL 868806 Contact Us For Availability

2

Liner, Oven Door WPL 868938 Contact Us For Availability

2

Unit, Surface (4``) (1) WPL 868448 Contact Us For Availability

3

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.18

3

Gasket, Duct WPL 868802 Contact Us For Availability

3

Pushnut (3/16``) (2) WPL 241547 Contact Us For Availability

3

screw, 10-24 x 7/8 WPL 834649 Contact Us For Availability

3

End Cap, Basket WPL 868458 Contact Us For Availability

3

Gusset, Rear (R.H.) WPL 868118 Contact Us For Availability

3

Gusset, Rear (L.H.) WPL 868119 Contact Us For Availability

3

Channel, Light Mounting WPL 865995 Contact Us For Availability

3

Guide, Drawer (Front) WPL 868127 Contact Us For Availability

4

Duct, Sub Top WPL 865960 Contact Us For Availability

4

Griddle WPL 868432 Contact Us For Availability

4

Screw, 10-24 x 1/2 WPL 868876 Contact Us For Availability

4

Basket, Rack WPL 868457 Contact Us For Availability

4

Bowl, Surface Unit (6``) (1) WPL 868444 Contact Us For Availability

4

Switch, Fluorescent Light WPL 866085 Contact Us For Availability

4

Drawer Assembly WPL 868151 Contact Us For Availability

4

Bowl, Surface Unit (4``) (1) WPL 868446 Contact Us For Availability

5

Handle, Pan WPL 248568 Contact Us For Availability

5

terminal, ground WPL 868434 Contact Us For Availability

5

Handle, Cooktop WPL 868866 Contact Us For Availability

5

Cover WPL 241549 Contact Us For Availability

5

Bezel Switch (2) WPL 866053 Contact Us For Availability

5

Rivet WPL 241423 Contact Us For Availability

5

Nut, Speed WPL 46363 Contact Us For Availability

5

Handle, Cooktop WPL 868450 Contact Us For Availability

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

6

Housing, Latch WPL 868281 Contact Us For Availability

6

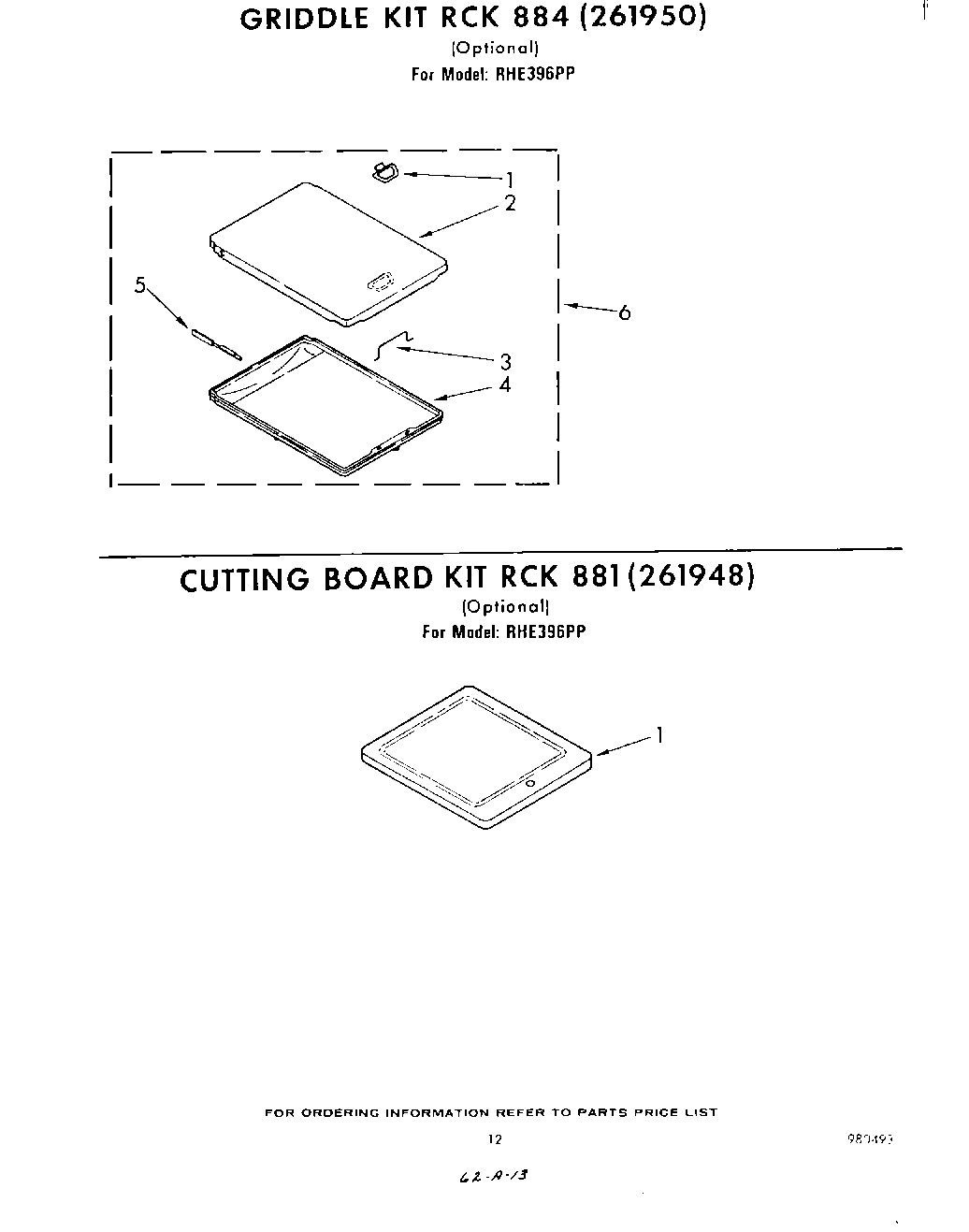

Kit, Griddle (Complete) WPL 261950 Contact Us For Availability

6

Pan, Grille WPL 868853 Contact Us For Availability

6

Cooktop (6``/8``) WPL 868865 Contact Us For Availability

6

Washer (Ground) (3) WPL 866213 Contact Us For Availability

6

Hex Nut, 3/8-27 WPL 98754 Contact Us For Availability

6

Switch, Oven Light WPL 866138 Contact Us For Availability

6

Pin, Hinge (2) WPL 241334 Contact Us For Availability

6

Nut, Speed WPL 595326 Contact Us For Availability

6

Screw, 8-32 x 3/8 WPL 486978 Contact Us For Availability

6

Cooktop (4/8) WPL 868463 Contact Us For Availability

7

Clamp, Wire WPL 868466 Contact Us For Availability

7

Panel, Sub Top WPL 868800 Contact Us For Availability

7

Handle, Rock Basket WPL 868459 Contact Us For Availability

7

Switch, Oven Selector WPL 868048 Contact Us For Availability

7

Window WPL 868797 Contact Us For Availability

8

Shield, Wire WPL 868686 Contact Us For Availability

8

Rocks, Lava (1 Lb.) WPL 868460 Contact Us For Availability

8

Ballast WPL 81613 Contact Us For Availability

8

Thermostat, Oven WPL 868808 Contact Us For Availability

8

Roller, Stop WPL 834471 Contact Us For Availability

9

Pan, Surface Unit WPL 868813 Contact Us For Availability

9

Cooktop (Chrome) WPL 868805 Contact Us For Availability

9

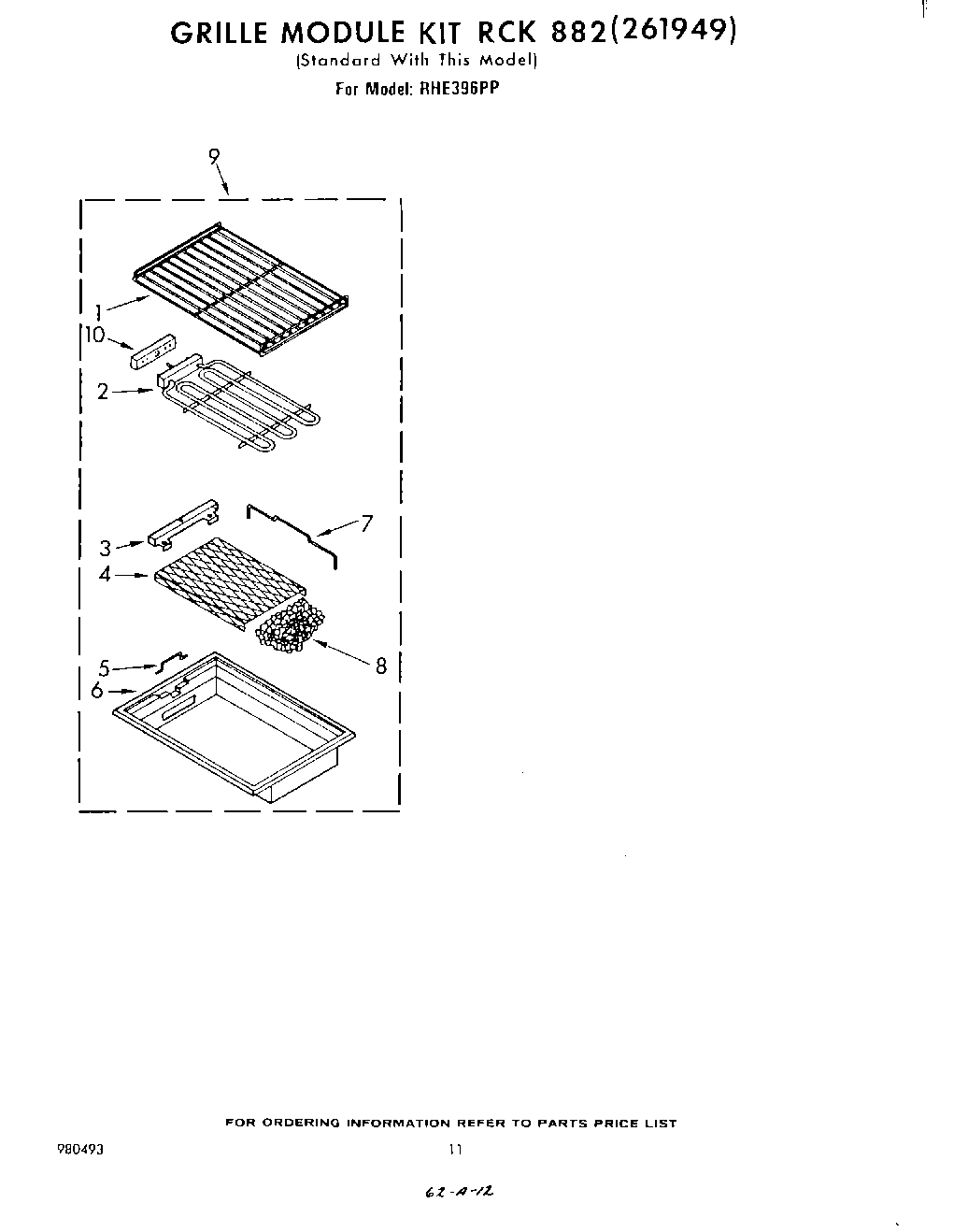

Kit, Grille Module (Complete) WPL 261949 Contact Us For Availability

9

Panel, Bottom WPL 868574 Contact Us For Availability

9

Stanchion, Handle (2) WPL 866047 Contact Us For Availability

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.66

Screw, 10-32 x 1/2 WPL 486146 Contact Us For Availability

Washer (2) WPL 241422 Contact Us For Availability

Pushnut WPL 868878 Contact Us For Availability

Channel, Support WPL 868120 Contact Us For Availability

End Cap (R.H.) WPL 865914 Contact Us For Availability

End Cap (L.H.) WPL 865915 Contact Us For Availability

Nut (4) WPL 98788 Contact Us For Availability

Screw, 10-24 x 1/2 (4) WPL 247326 Contact Us For Availability

Channel, Assembly (2) WPL 865972 Contact Us For Availability

Screw, 8-32 x 3/16 (4) WPL 486525 Contact Us For Availability

Receptacle, Male WPL 868437 Contact Us For Availability

Terminal, Female (10) WPL 868422 Contact Us For Availability

Bracket, Cooktop WPL 868485 Contact Us For Availability

Support, Backguard (L.H.) WPL 868858 Contact Us For Availability

Support, Backguard (R.H.) WPL 868859 Contact Us For Availability

Spring (2) WPL 241312 Contact Us For Availability

Insulator, Receptacle WPL 868814 Contact Us For Availability

Clip, Receptacle (4) WPL 868421 Contact Us For Availability

Oven, Self-Clean WPL 868484 Contact Us For Availability

Lamp, Fluorescent WPL 252670 Contact Us For Availability

Arm Assembly (2) WPL 865640 Contact Us For Availability

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $2.51

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Pushnut, 1/8 WPL 866272 Contact Us For Availability

Bracket, Ground WPL 868440 Contact Us For Availability

Kit, Surface Unit Module (6/6) (Complete) WPL 261951 Contact Us For Availability

Receptacle, Female (2) WPL 868420 Contact Us For Availability

Screw, 10-24 x 3/8 (2) WPL 241428 Contact Us For Availability

Tube, Oven Vent WPL 866019 Contact Us For Availability

Switch, Infinite (4) WPL 866012 Contact Us For Availability

Washer (2) WPL 487865 Contact Us For Availability

Glass, Outer (Black) WPL 868199 Contact Us For Availability

Tape Foam (Cooktop) WPL 868948 Contact Us For Availability

Terminal, Male (4) WPL 868438 Contact Us For Availability

End Panel, Almond (R.H.) WPL 868566 Contact Us For Availability

End Panel, Almond (L.H.) WPL 868571 Contact Us For Availability

Motor, Timer WPL 308594 Contact Us For Availability

Handle, Door (Includes Illus. 9) WPL 866046 Contact Us For Availability

Screw, 10-24 x 5/8 WPL 595119 Contact Us For Availability

Seal, Cooktop (1) WPL 866034 Contact Us For Availability

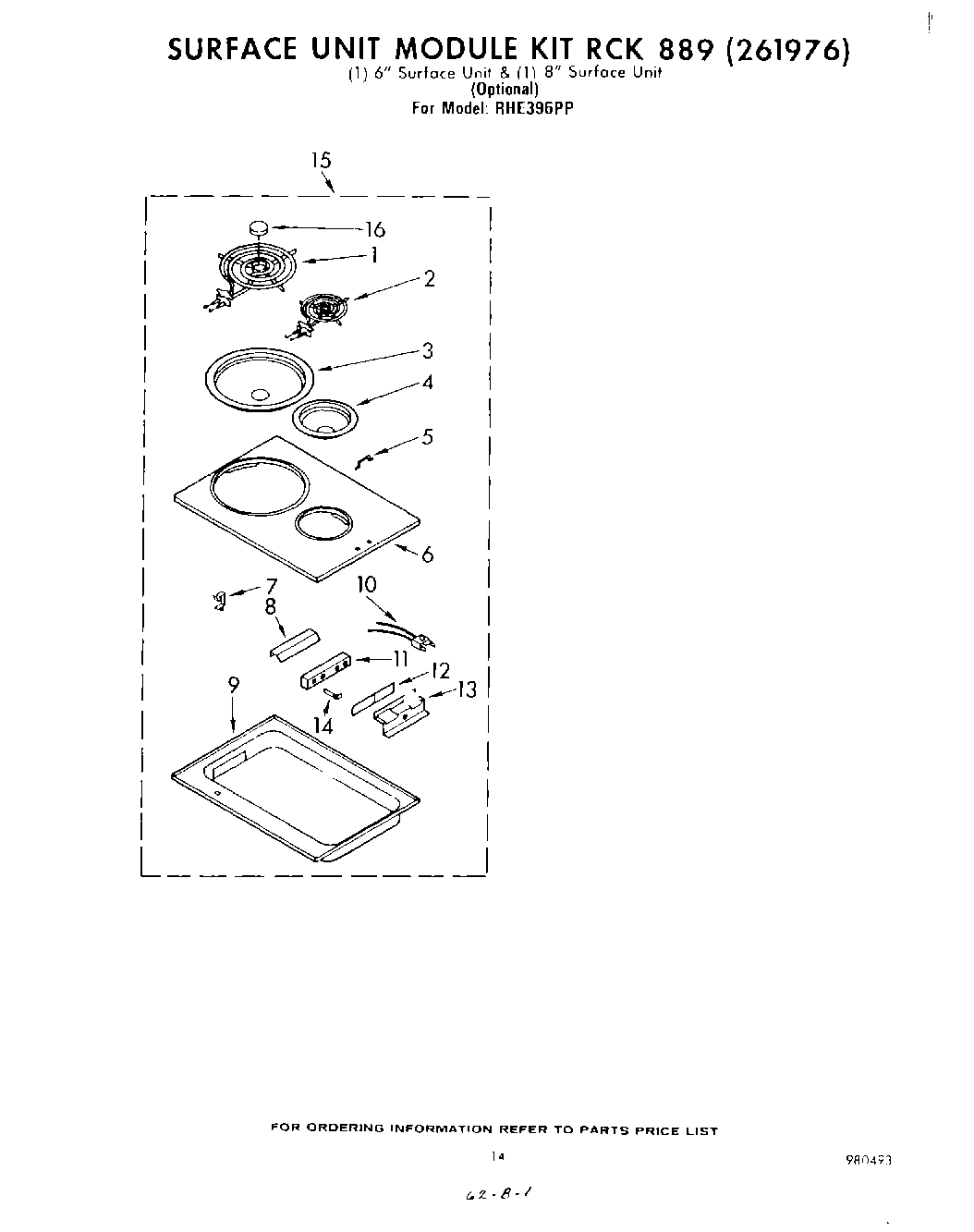

Kit, Surface Unit Module (6``/8``) WPL 261976 Contact Us For Availability

Retainer, Insulation (R.H.) WPL 834755 Contact Us For Availability

Retainer, Insulation (L.H.) WPL 834756 Contact Us For Availability

Light, Pilot (3) (Clean, Lock & Surface Unit) WPL 834409 Contact Us For Availability

Light, Pilot (Oven) WPL 868290 Contact Us For Availability

Frame, Oven Door WPL 868494 Contact Us For Availability

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

Medallion (For 8`` Unit) WPL 868522 Contact Us For Availability

Frame, Cooktop WPL 868804 Contact Us For Availability

Base, Backguard WPL 865992 Contact Us For Availability

Screw, 10-24 x 3/8 WPL 246625 Contact Us For Availability

Nut, 10-24 (2) WPL 441256 Contact Us For Availability

Panel, Drawer (Black) WPL 868811 Contact Us For Availability

Medallion (For 4`` Unit) WPL 868911 Contact Us For Availability

Screw, 8-32 x 5/16 (2) WPL 273225 Contact Us For Availability

Motor, Door Latch WPL 834849 Contact Us For Availability

Leveler (4) WPL 868880 Contact Us For Availability

Bumper (3) WPL 834956 Contact Us For Availability

Screw, 10-24 x 3/8 WPL 868585 Contact Us For Availability

Handle, Drawer WPL 868812 Contact Us For Availability

Screw, 10-24 x 1/4 (3) WPL 241425 Contact Us For Availability

Switch, Limit (Lower) WPL 834906 Contact Us For Availability

Unit, Broil WPL 865934 Contact Us For Availability

Screw, 6-32 x 3/16 WPL 487428 Contact Us For Availability

Lampholder (L.H.) WPL 866081 Contact Us For Availability

Lampholder (R.H.) WPL 866082 Contact Us For Availability

Plug Button (2) WPL 142001 Contact Us For Availability

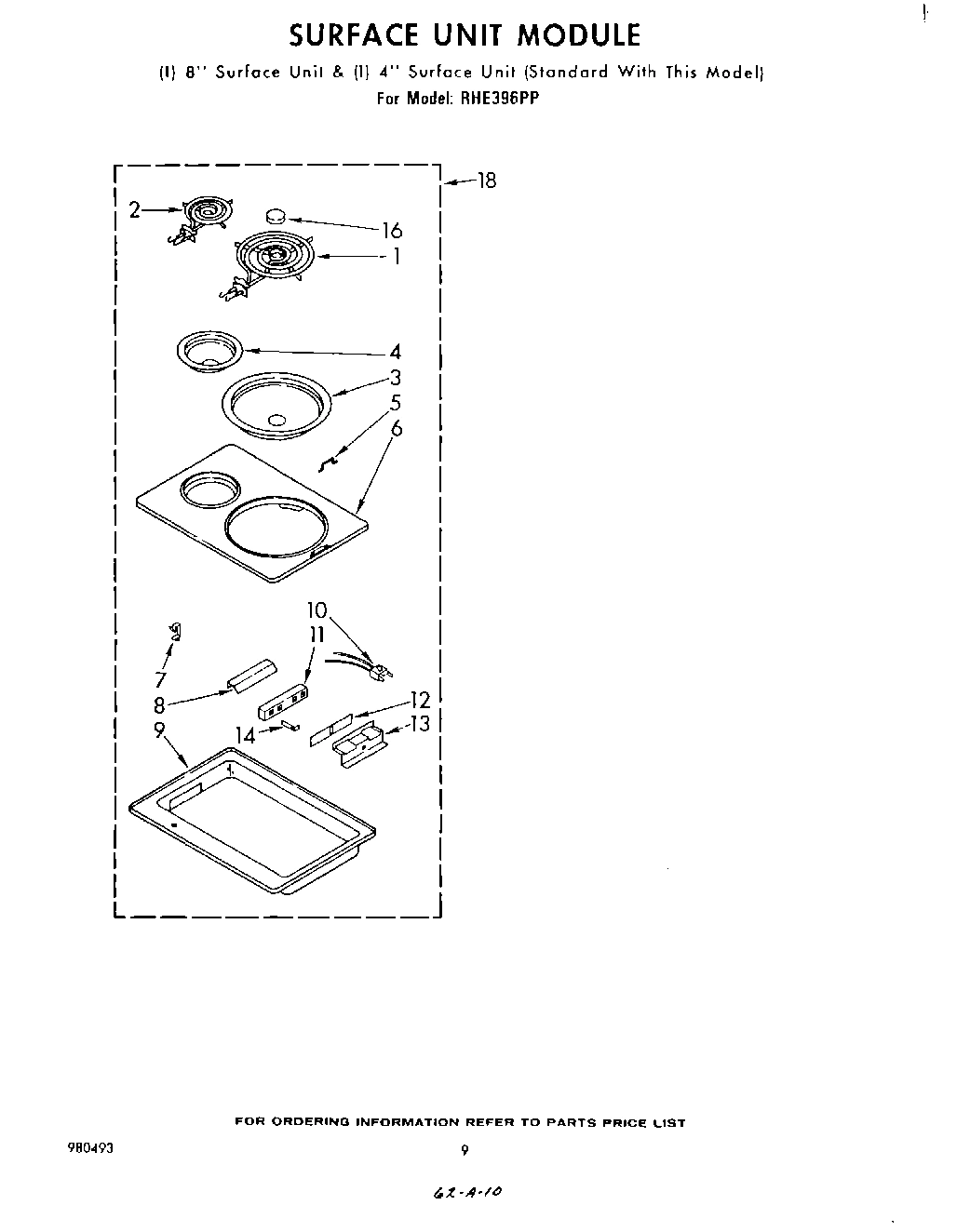

Surface Unit Module (Complete) WPL 261952 Contact Us For Availability

Screw, 4-40 x 1-1/4 WPL 834903 Contact Us For Availability

Switch, Limit (Upper) WPL 868280 Contact Us For Availability

Hanger, Broil Unit WPL 866429 Contact Us For Availability

Bracket, Control (Not Serviceable) WPL ARI123366A Contact Us For Availability

Hex Nut, 6-32 (4) WPL 271482 Contact Us For Availability

Screw, 6-32 x 3/8 WPL 866155 Contact Us For Availability

Trim, Frame (2) WPL 866259 Contact Us For Availability

20

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $19.40

20

Insulator, Limit Switch (2) WPL 834905 Contact Us For Availability

20

Panel, Heat Reflector WPL 868200 Contact Us For Availability

Nut, Hex (10-32) (2) WPL 487836 Contact Us For Availability

Pan, Broiler WPL 868505 Contact Us For Availability

Timer, Complete (Includes Illus. 14 & 24) WPL 868807 Contact Us For Availability

Baffle WPL 868886 Contact Us For Availability

Pin, Spring WPL 455105 Contact Us For Availability

Cam, Door Latch WPL 834483 Contact Us For Availability

Rack, Oven (Plain) WPL 865983 Contact Us For Availability

Rack, Oven Offset WPL 865984 Contact Us For Availability

Panel, Glass WPL 868809 Contact Us For Availability

``J`` Moulding WPL 868796 Contact Us For Availability

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP865940 Whirlpool Bake Element Backorder WPL WP865940 $62.19

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

Tie Bar WPL 868487 Contact Us For Availability

Kit, Roller (Rail Assembly & Drawer) WPL 241432 Contact Us For Availability

Paint, Touch-Up 1 Oz. (Oven Liner) (Light Gra WPL 242757 Contact Us For Availability

Wire, 18 Ga. (Red) (25 Ft.) WPL 253879 Contact Us For Availability

Wire, 14 Ga. (White) (25 Ft.) WPL 253881 Contact Us For Availability

WPL 253883 WPL 253883 Contact Us For Availability

WPL 253886 WPL 253886 Contact Us For Availability

WPL 253893 WPL 253893 Contact Us For Availability

WPL 253894 WPL 253894 Contact Us For Availability

WPL 253895 WPL 253895 Contact Us For Availability

WPL 253897 WPL 253897 Contact Us For Availability

WPL 253900 WPL 253900 Contact Us For Availability

WPL 253901 WPL 253901 Contact Us For Availability

WPL 253904 WPL 253904 Contact Us For Availability

WPL 253906 WPL 253906 Contact Us For Availability

WPL 308500 WPL 308500 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 834469 WPL 834469 Contact Us For Availability

WPL 834470 WPL 834470 Contact Us For Availability

WPL 865621 WPL 865621 Contact Us For Availability

WPL 868790 WPL 868790 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL 980493 WPL 980493 Contact Us For Availability

Trim, Glass (2) WPL 866086 Contact Us For Availability

24

WP8283288 Whirlpool Door Switch In Stock WPL WP8283288 $69.56

24

Knob, Timer (3) WPL 255853 Contact Us For Availability

24

Panel, Airwash WPL 868940 Contact Us For Availability

Rod, Switch WPL 866116 Contact Us For Availability

Retainer, Spring WPL 866224 Contact Us For Availability

Knob, Surface Units (4) WPL 868810 Contact Us For Availability

Glass, Inner WPL 868502 Contact Us For Availability

26

Plug Button WPL 834558 Contact Us For Availability

26

Gasket, Duct WPL 868877 Contact Us For Availability

26

Retainer, Glass WPL 868503 Contact Us For Availability

W10080180 Whirlpool Nut Backorder WPL W10080180 $9.59

Socket, Light WPL 866133 Contact Us For Availability

Duct, Oven Vent WPL 866014 Contact Us For Availability

Washer WPL 241421 Contact Us For Availability

Screw, 10-24 x 1/2 WPL 866265 Contact Us For Availability

Strike Assy (Door) WPL 834703 Contact Us For Availability

28

Gasket, Cover WPL 241609 Contact Us For Availability

28

Dial, Surface Unit (4) WPL 868294 Contact Us For Availability

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

29

Knob, Control (2) (Oven Selector & Thermostat WPL 868431 Contact Us For Availability

WPL 868430 WPL 868430 Contact Us For Availability

Cover, Oven Light WPL 241592 Contact Us For Availability

Gusset, Backguar WPL 868128 Contact Us For Availability

Guide, Drawer (Back) WPL 868152 Contact Us For Availability

31

Retainer, Oven Light Cover WPL 866134 Contact Us For Availability

Bracket, Thermostat Bulb WPL 865959 Contact Us For Availability

Rail, Drawer (Screw, 10-24 x 1/2) WPL 681151 Contact Us For Availability

rail, drawer (R.H.) WPL 868125 Contact Us For Availability

Rail, Drawer (L.H.) WPL 868126 Contact Us For Availability

33

Plug Button (1/2``) WPL 142017 Contact Us For Availability

34

Bracket, Door Switch WPL 865961 Contact Us For Availability

35

Latch, Door WPL 834484 Contact Us For Availability

36

Axle, Latch WPL 241564 Contact Us For Availability

36

Pushnut WPL 256158 Contact Us For Availability

37

Button, Plug (2) WPL 251379 Contact Us For Availability
