Model LG RH1393ESD.ASSEEUS – Common Parts & Diagrams
CONTROL PANEL AND PLATE ASSEMBLY

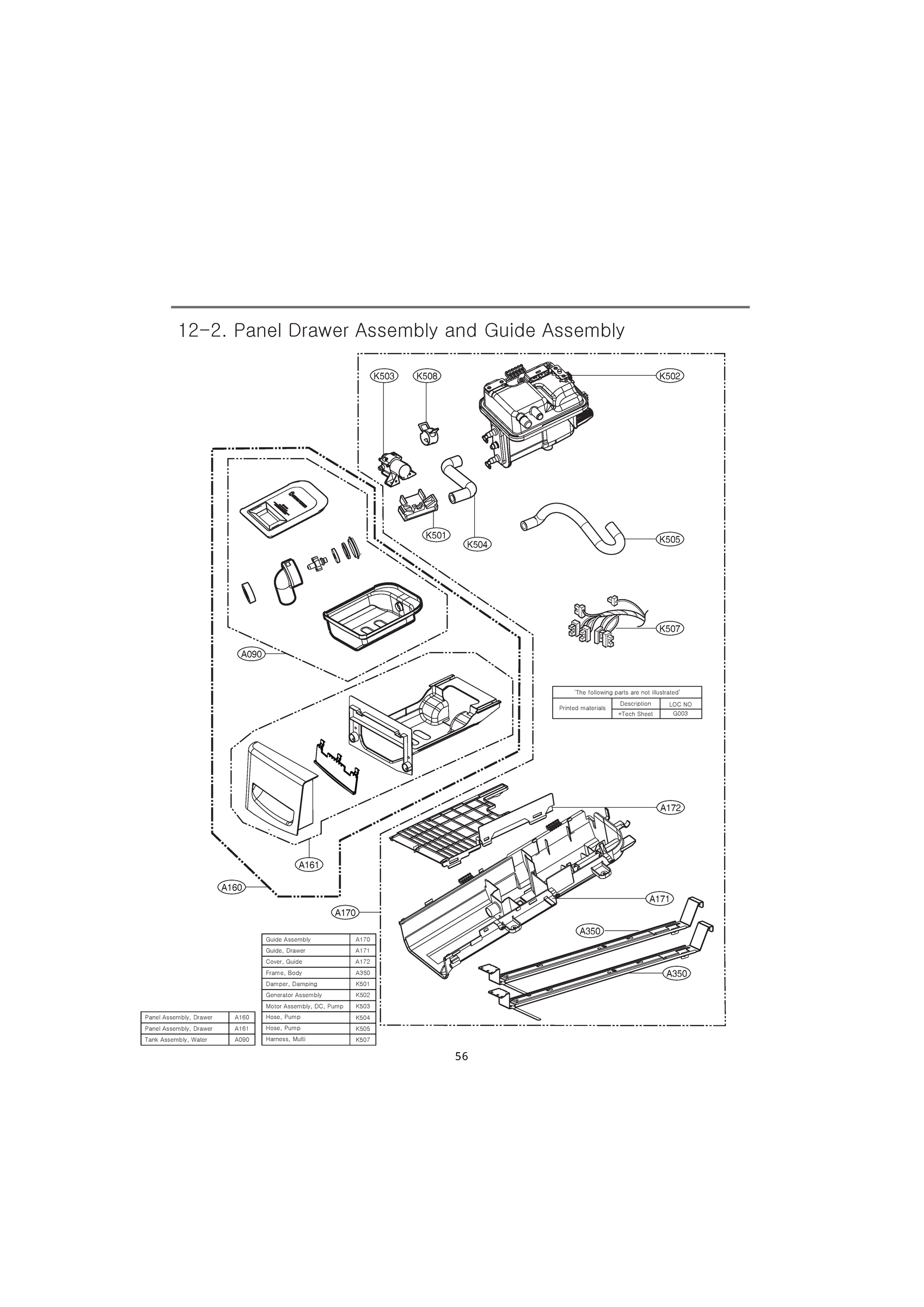

PANEL DRAWER ASSEMBLY AND GUIDE ASSEMBLY
CABINET AND DOOR ASSEMBLY CABINET ASSEMBLY
DRUM; MOTER AND HP MODULE ASSEMBLY
Common parts from model LG RH1393ESD.ASSEEUS
A090
Tank Assembly,Water LGE AJL34327901 Contact Us For Availability
A308
Screw,Taptite LGE 1APF0402608 Contact Us For Availability
A320
Locker Assembly LGE 4027EL1001B Contact Us For Availability
A325
Screw,Machine LGE 1MTC0402632 Contact Us For Availability
A400
Door Assembly LGE ADC74047201 Contact Us For Availability
A410
Locker,Hook LGE 4026EL3007B Contact Us For Availability
A520
Bracket,Base LGE 4810EL3001B Contact Us For Availability
A525
Bracket,Base LGE 4810EL3009A Contact Us For Availability
A530
Bracket,Base LGE 4810EL3009B Contact Us For Availability
A540
Leg LGE 4778EL3001B Contact Us For Availability
A570
Cover,Safety LGE 3550EL3002A Contact Us For Availability
F140
Thermostat Assembly LGE 6931EL3001D Contact Us For Availability
K120
Lifter LGE 4432EL1002A Contact Us For Availability
K130
Belt,Poly V LGE 4400EL2001F Contact Us For Availability
K140
Gasket LGE 4036EL3001A Contact Us For Availability
K210
Tub Assembly,Drum LGE AJQ73594004 Contact Us For Availability
K240
Duct Assembly LGE 5209EL1002C Contact Us For Availability
K250
Roller Assembly LGE 4581EL2002H Contact Us For Availability
K251
Roller Assembly LGE 4581EL3001M Contact Us For Availability
K310
Filter Assembly,Lint LGE ADQ56656403 Contact Us For Availability
K310
Filter LGE MDJ63224201 Contact Us For Availability
K320
Cover,Guide LGE MCK49049101 Contact Us For Availability
K340
Sensor,Humidity LGE 6500EL3001A Contact Us For Availability
K350
Single Harness LGE 6631EL3003B Contact Us For Availability
K501
Damper LGE MCQ38393001 Contact Us For Availability
K502
Generator Assembly LGE 3111ER1002R Contact Us For Availability
K503
Motor Assembly,DC,Pump LGE EAU37148701 Contact Us For Availability
K508
Clamp LGE 4861FR3068A Contact Us For Availability
K510
Casing Assembly LGE 5835EL1002A Contact Us For Availability
K515
Locker,Parts Assembly,SVC LGE 383EEL9001G Contact Us For Availability
K520
Housing,Blower LGE MEK37661701 Contact Us For Availability
K530
Duct Assembly LGE 5209EL1006G Contact Us For Availability
K540
Guide Assembly LGE 4975EL3001A Contact Us For Availability
K550
Thermistor,NTC LGE 6323EL2001B Contact Us For Availability
K560
Thermostat LGE 6931EL3002M Contact Us For Availability
K600
Bracket,Motor LGE MAZ66065301 Contact Us For Availability
K610
Motor Assembly,DC,Drum LGE 4681EL1008A Contact Us For Availability
K620
Clamp LGE 4860EL3001A Contact Us For Availability
K640
Switch,Micro LGE EBF61734701 Contact Us For Availability
K650
Pulley Assembly,Motor LGE 4561EL3002A Contact Us For Availability
K651
Pulley,Idle LGE 4560EL3001A Contact Us For Availability
K655
Screw,Customized LGE 1SZZEL3001A Contact Us For Availability
K660
Screw,Tapping LGE 1TPL0303218 Contact Us For Availability
K800
Duct,Inlet LGE MCZ62832801 Contact Us For Availability
K810
Bracket,Frame LGE MAZ63690701 Contact Us For Availability
K811
Cover,Base LGE MCK66808601 Contact Us For Availability
K812
Cover,Base LGE MCK66853901 Contact Us For Availability
K820
Cover Assembly,Base LGE ACQ86387801 Contact Us For Availability
K821
Connector,Nozzle LGE MCD62327401 Contact Us For Availability
K822
Cover,Sealing LGE MCK66832701 Contact Us For Availability
K823
Nozzle,Upper LGE MFV61964701 Contact Us For Availability
K824
Holder LGE MEG62880101 Contact Us For Availability
K825
Valve Assembly,Convert LGE AJU73292504 Contact Us For Availability
K826
Hose,Pump LGE MEJ62685301 Contact Us For Availability
K827
Hose,Pump LGE MEJ62685401 Contact Us For Availability
K828
Hose,Pump LGE MEJ62685501 Contact Us For Availability
K829
Hose,Pump LGE MEJ62685601 Contact Us For Availability
K830
Hose,Pump LGE MEJ62685701 Contact Us For Availability
K831
Bracket Assembly LGE ABA74033001 Contact Us For Availability
K840
Duct,Outlet LGE 5208EL1009D Contact Us For Availability
K850
Pipe Assembly LGE AGR73875501 Contact Us For Availability
K851
Pipe LGE MGE62832301 Contact Us For Availability
K852
Pipe LGE MGE62832401 Contact Us For Availability
K853
Pipe Assembly LGE AGR73915701 Contact Us For Availability
K854
Pipe Assembly LGE AGR73915801 Contact Us For Availability
K855
Holder,Sensor LGE 4930A20053A Contact Us For Availability
K860
Thermistor Assembly LGE EBG60806202 Contact Us For Availability
K870
Thermistor Assembly LGE EBG60806203 Contact Us For Availability
K880
Ring,O LGE MGZ63007401 Contact Us For Availability
K881
Ring,O LGE MGZ63007402 Contact Us For Availability
K882
Damper LGE MCQ66728801 Contact Us For Availability
K890
Hose,Pump LGE MEJ38393303 Contact Us For Availability
K891
Connector,Nozzle LGE MCD62587101 Contact Us For Availability
K895
Lamp,LED LGE EAQ61400801 Contact Us For Availability
M110
Valve Assembly,Gas LGE AJU72910202 Contact Us For Availability
× ![]()
