Model Electrolux RGS36BNL1 RANGE – Common Parts & Diagrams

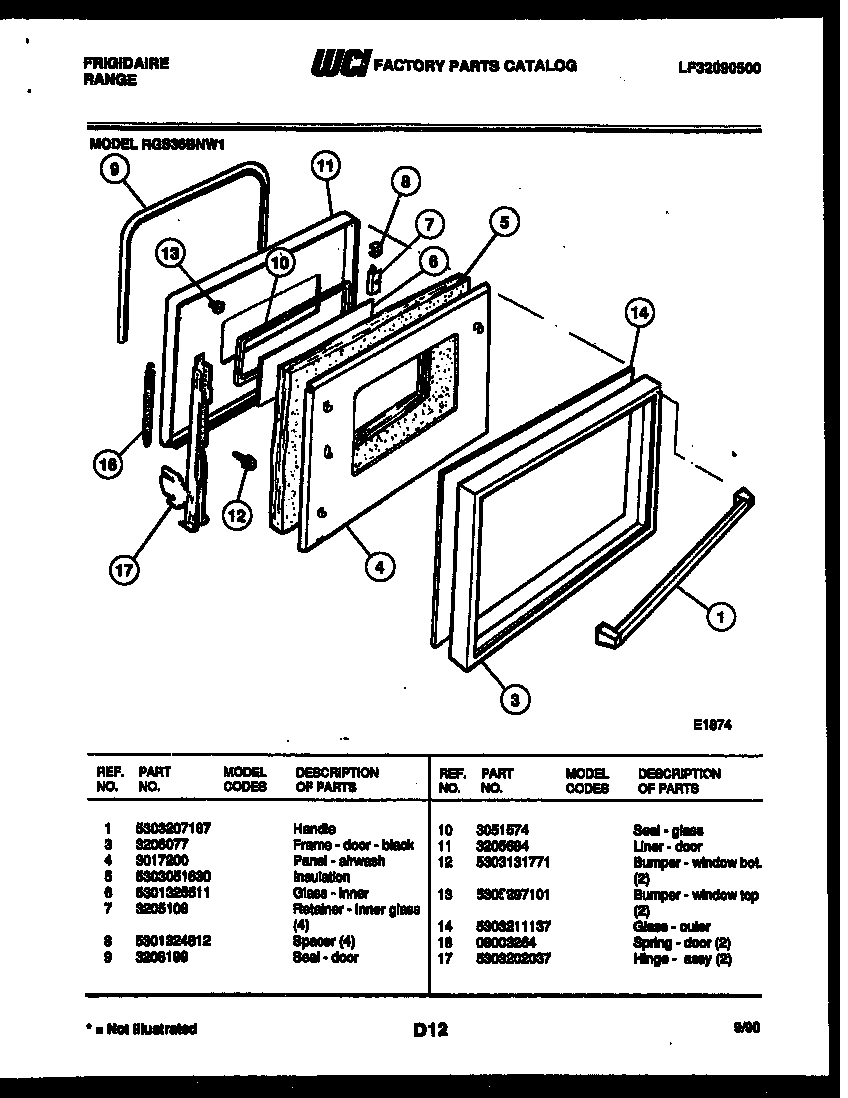

02 - DOOR PARTS
03 - BROILER PARTS
04 - BACKGUARD
05 - DRAWER PARTS
06 - BODY PARTS

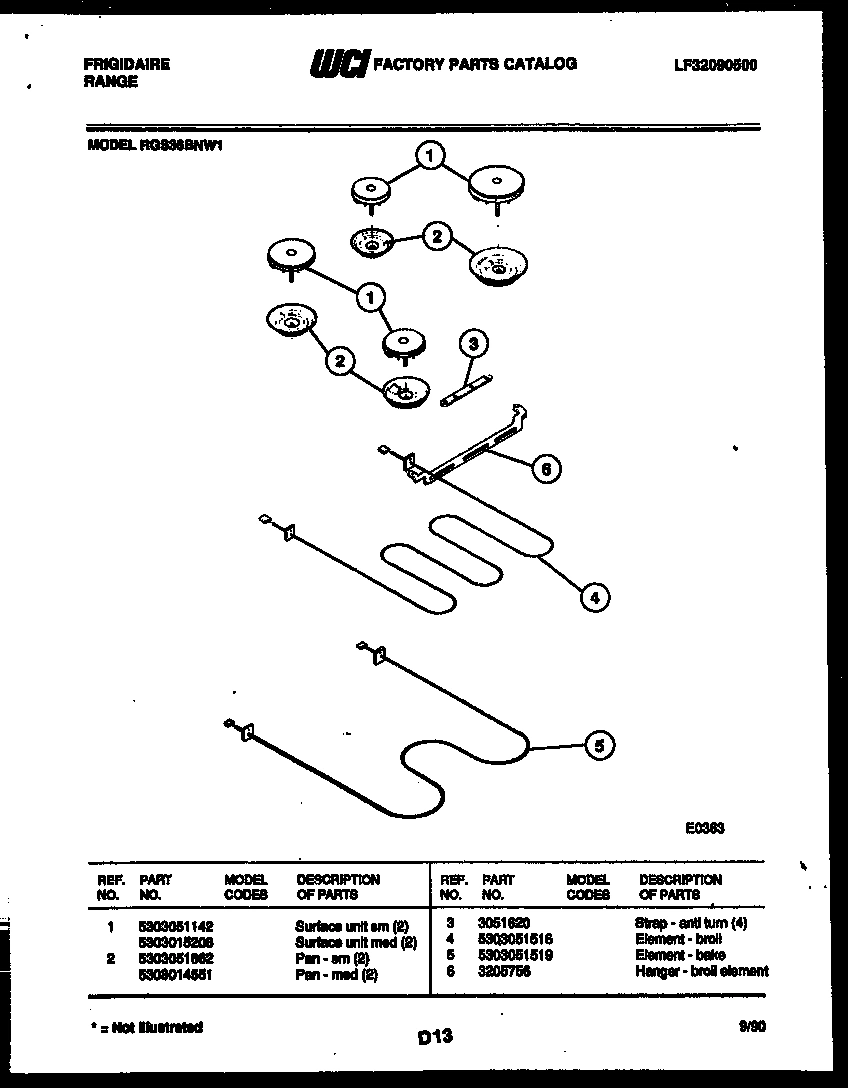

07 - COOKTOP PARTS
Common parts from model Electrolux RGS36BNL1 RANGE
*38017
SCREW - BLACK (2) WCI 5303211407 Contact Us For Availability
1
WCI 5301314211 WCI 5301314211 Contact Us For Availability
1
SURFACE UNIT SM (2) WCI 5303051142 Contact Us For Availability
1
COVER, WIRE. WCI 5303017470 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
1
WCI 3203163 WCI 3203163 Contact Us For Availability
1A
SURFACE UNIT MED (2) WCI 5303015206 Contact Us For Availability
2
PAN, SM (2) WCI 5303051662 Contact Us For Availability
2
WCI 5303211400 WCI 5303211400 Contact Us For Availability
2
TUB - OVEN VENT WCI 3051742 Contact Us For Availability
2
PIN - HINGE (2) WCI 08012527 Contact Us For Availability
2A
PAN-MED (2) WCI 5308014551 Contact Us For Availability
3
STRAP, ANTI TURN (4) WCI 3051620 Contact Us For Availability
3
WCI 5303211173 WCI 5303211173 Contact Us For Availability
3
HANDLE - CHROME WCI 5303051700 Contact Us For Availability
3
INSULATION - OVEN WRAP WCI 3051521 Contact Us For Availability
3
WCI 08014262 WCI 08014262 Contact Us For Availability
4
GUIDE - DRWR REAR (2) WCI 5303209487 Contact Us For Availability
4
LIGHT - IND S/U WCI 5303208186 Contact Us For Availability
4
INSULATION, OVEN BACK WCI 5303051630 Contact Us For Availability
4
WCI 5300009126 WCI 5300009126 Contact Us For Availability
4A
LIGHT, IND OVEN WCI 08012515 Contact Us For Availability
5
LENS - IND LIGHT (2) WCI 5303211122 Contact Us For Availability
5
PANEL-SIDE RH-ALMD WCI 5308012529 Contact Us For Availability
5A
PANEL-SIDE LH-ALMD WCI 5308012530 Contact Us For Availability
6
SWITCH - SELECT WCI 08015934 Contact Us For Availability
6
HANGER, BROIL ELEMENT WCI 3205756 Contact Us For Availability
6
WCI 3205757 WCI 3205757 Contact Us For Availability
7
WCI 5303211402 WCI 5303211402 Contact Us For Availability
7
WCI 3206275 WCI 3206275 Contact Us For Availability
8
BULB-FLUORESCENT WCI 5308012712 Contact Us For Availability
8
WCI 3017481 WCI 3017481 Contact Us For Availability
8A
WCI 3017482 WCI 3017482 Contact Us For Availability
9
WCI 5303211404 WCI 5303211404 Contact Us For Availability
9
WCI 5303207391 WCI 5303207391 Contact Us For Availability
10
SEAL-GLASS WCI 3051574 Contact Us For Availability
10
BRACKET, LAMP (2) WCI 08012748 Contact Us For Availability
10
SCREW-LEVELING (4) WCI 5303205540 Contact Us For Availability
11
WCI 5303211170 WCI 5303211170 Contact Us For Availability
11
WCI 3202082 WCI 3202082 Contact Us For Availability
12
BUMPER - WINDOW BOT. (2) WCI 5303131771 Contact Us For Availability
12
WCI 3204642 WCI 3204642 Contact Us For Availability
12
TUBE-VENT UPPER WCI 3051655 Contact Us For Availability
13
BUMPER-WINDOW TOP (2) WCI 5305297101 Contact Us For Availability
13
WCI 5303205397 WCI 5303205397 Contact Us For Availability
13
WCI 5308015746 WCI 5308015746 Contact Us For Availability
13A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
14
GLASS-OUTER WCI 5303211137 Contact Us For Availability
14
WCI 5303211405 WCI 5303211405 Contact Us For Availability
14
SPACER, DRAWER RAIL (2) WCI 3051653 Contact Us For Availability
14A
WCI 5303211406 WCI 5303211406 Contact Us For Availability
15
SUPT, BACKGUARD RH WCI 08015966 Contact Us For Availability
15
GUIDE, DRAWER FRONT (2) WCI 3051654 Contact Us For Availability
15A
SUPT - BACKGUARD LH WCI 5308015967 Contact Us For Availability
16
WCI 08003264 WCI 08003264 Contact Us For Availability
16
BRACKET, HINGE (2) WCI 5308012538 Contact Us For Availability
16
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
17
HINGE-ASSY (2) WCI 5303202037 Contact Us For Availability
17
NUT - SWITCH MTG (2) WCI 3051832 Contact Us For Availability
17
WCI 3019063 WCI 3019063 Contact Us For Availability
18
KNOB - S/U (6) WCI 5303210413 Contact Us For Availability
19
KNOB - CLOCK (3) WCI 5303210414 Contact Us For Availability
19
WCI K005025704 WCI K005025704 Contact Us For Availability
20
WCI 5303211385 WCI 5303211385 Contact Us For Availability
20
CHANNEL ASSY, HINGE (2) WCI 3201631 Contact Us For Availability
21
STARTER FLUR. LIGHT WCI 3201543 Contact Us For Availability
21
WCI 3206079 WCI 3206079 Contact Us For Availability
22
BASE - STARTER WCI 5303211403 Contact Us For Availability
22
WCI 3201632 WCI 3201632 Contact Us For Availability
24
WCI 3205539 WCI 3205539 Contact Us For Availability
25
GRILLE, BROILER WCI 3206091 Contact Us For Availability
26
WIRE, COVER WCI 5303051856 Contact Us For Availability
27
WCI 5301145190 WCI 5301145190 Contact Us For Availability
28
WCI 3051511 WCI 3051511 Contact Us For Availability
32
RETAINER WCI 5303205904 Contact Us For Availability
33
WCI 3016281 WCI 3016281 Contact Us For Availability
34
WCI 5303207446 WCI 5303207446 Contact Us For Availability
35
BRACKET, VENT TUBE WCI 3051656 Contact Us For Availability
36
WCI 5303207389 WCI 5303207389 Contact Us For Availability
37
WCI 3017556 WCI 3017556 Contact Us For Availability
37A
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
37C
BRACKET - THERMO BULB (NON-ILLUSTRATED) WCI 3051552 Contact Us For Availability
38
GASKET-VENT TUBE WCI 3051666 Contact Us For Availability
× ![]()
