Model Electrolux RGC434MDW1 RANGE – Common Parts & Diagrams

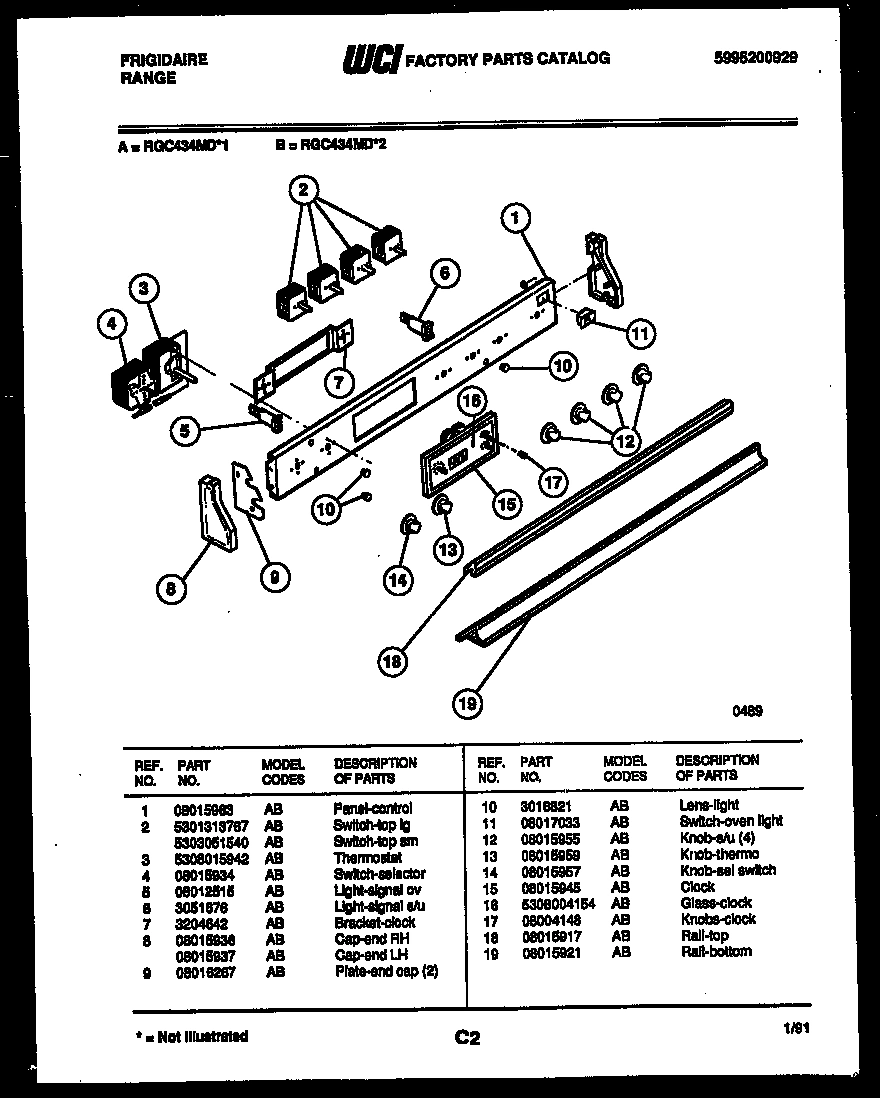

02 - CONTROL PANEL

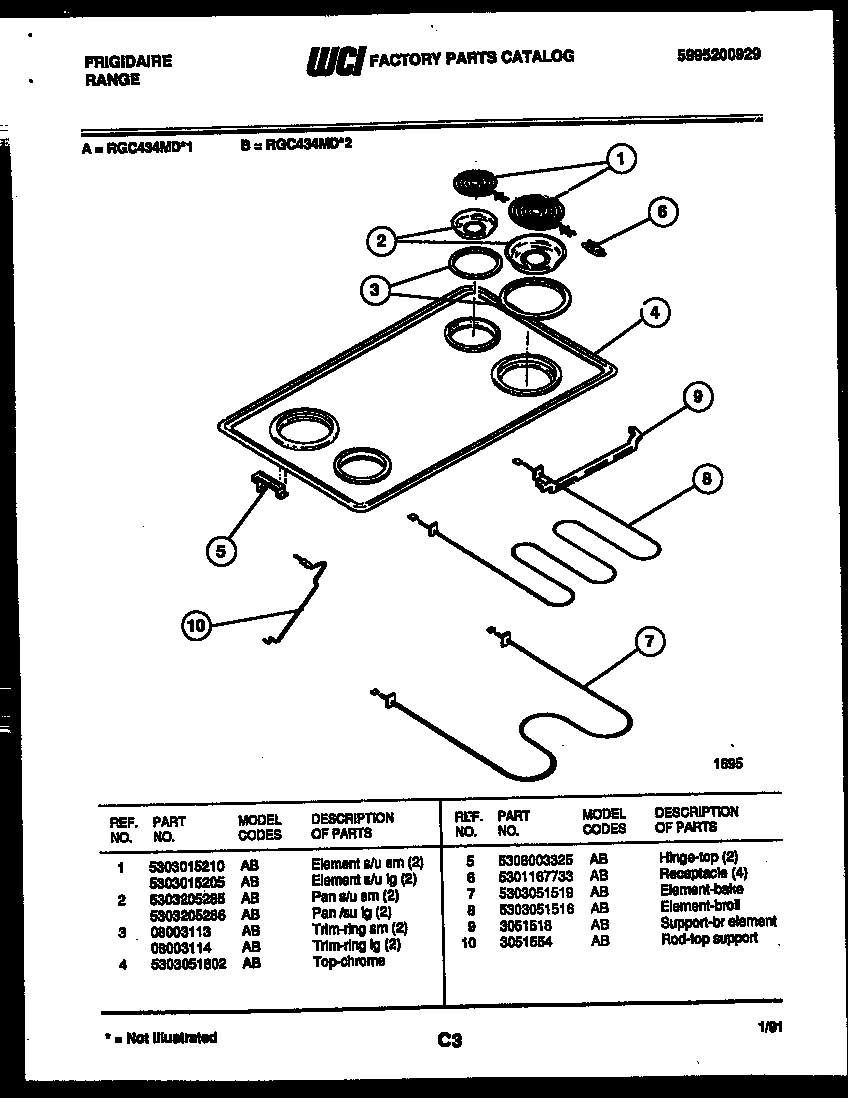

03 - COOKTOP AND BROILER PARTS

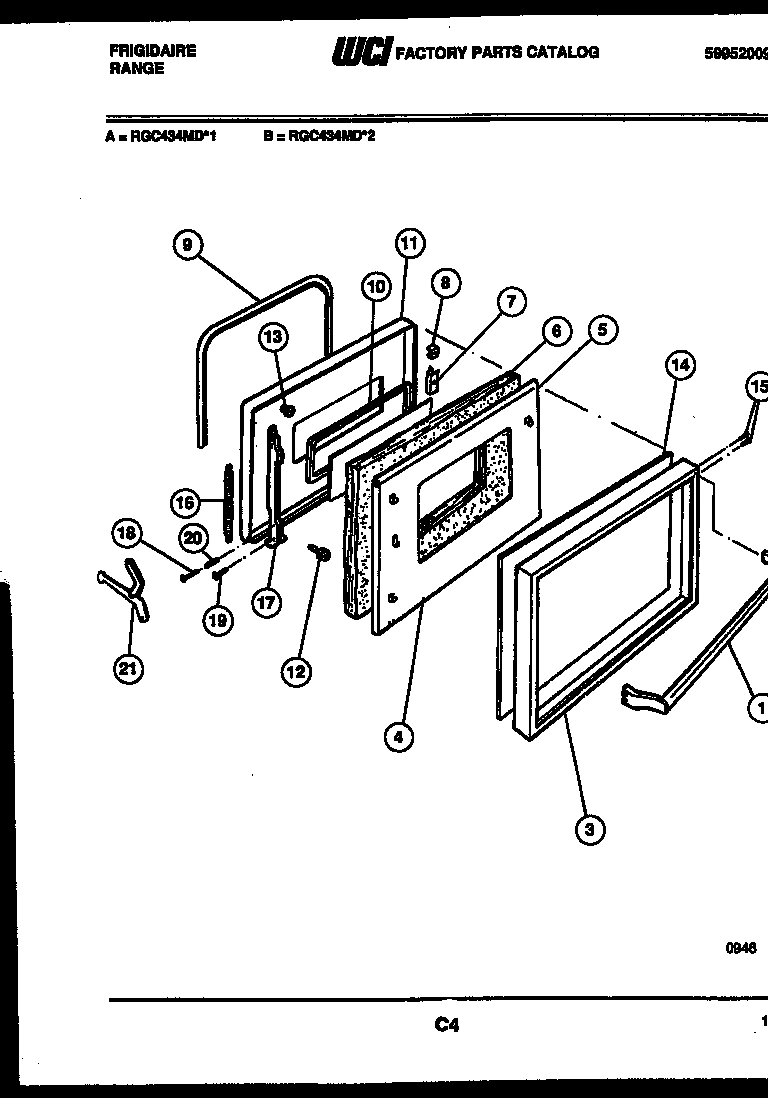

04 - DOOR PARTS

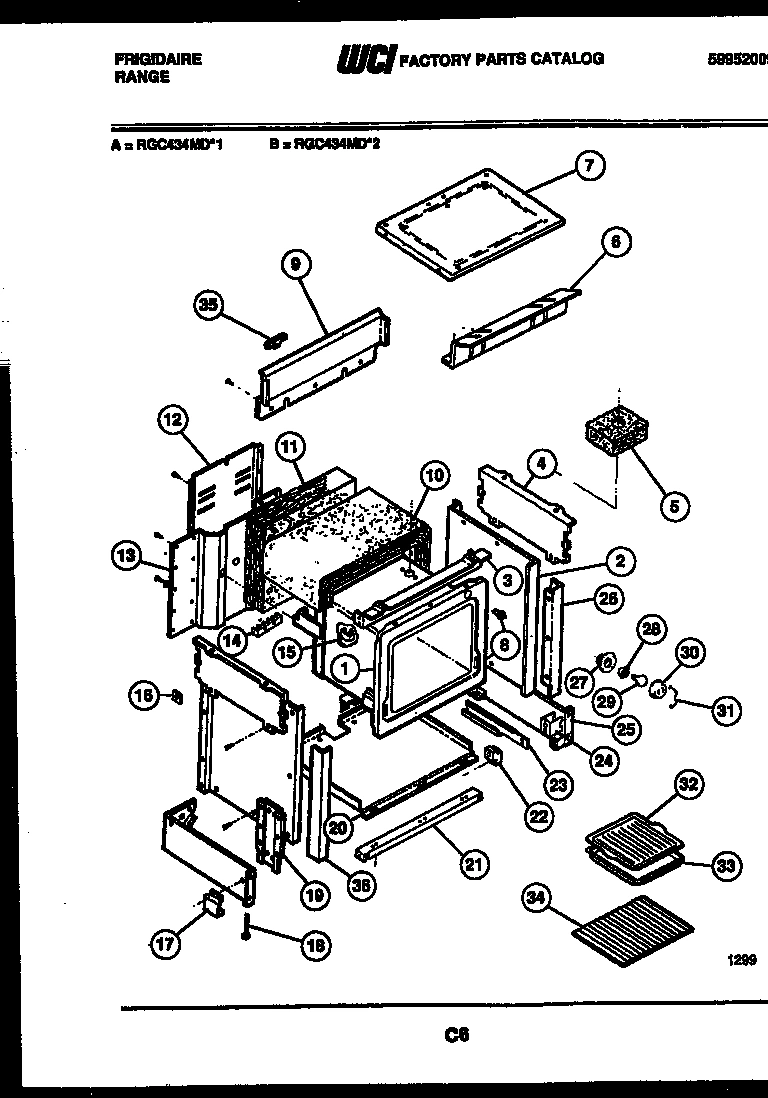

05 - BODY PARTS

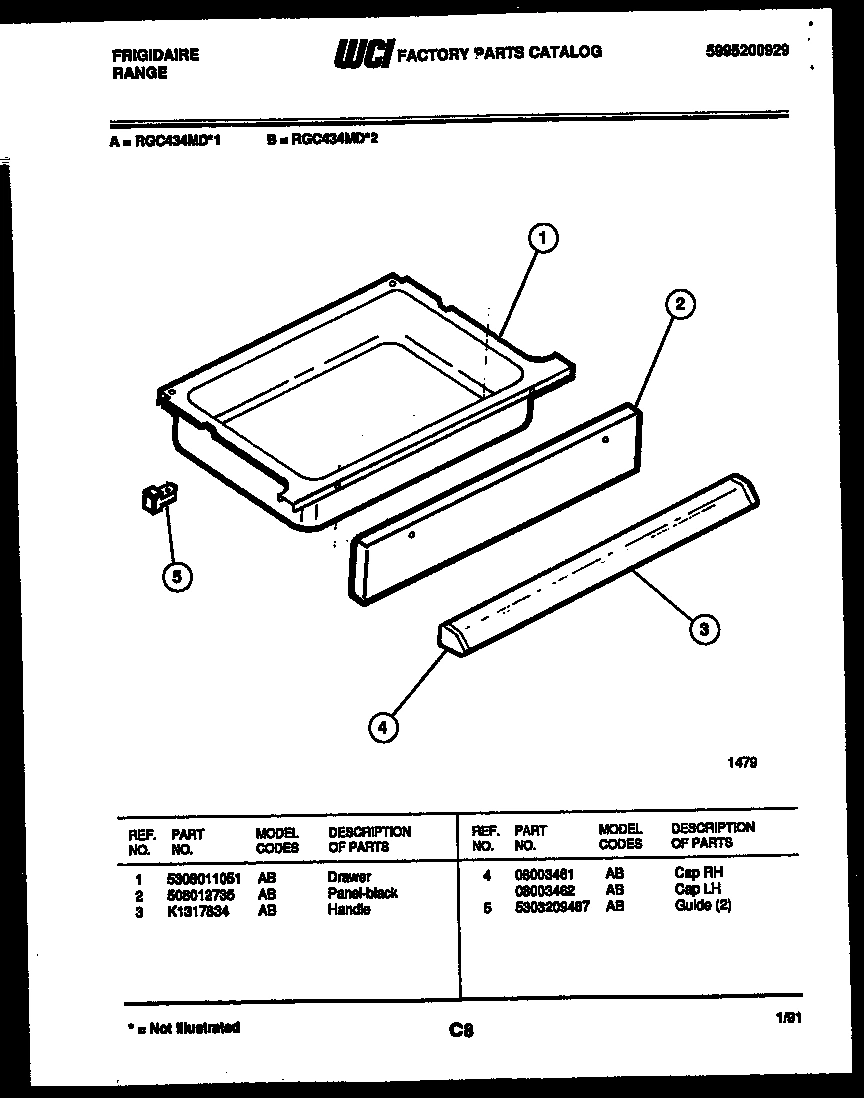

06 - DRAWER PARTS
Common parts from model Electrolux RGC434MDW1 RANGE
*39825
WCI 08003659 WCI 08003659 Contact Us For Availability
*39830
ANTI-TIP KIT WCI 3931015 Contact Us For Availability
1
HANDLE ASSY WCI 5303207187 Contact Us For Availability
1
WCI 5303206193 WCI 5303206193 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
2
SHIELD-INSULATION (2) WCI 08012226 Contact Us For Availability
2
WCI 508012735 WCI 508012735 Contact Us For Availability
3
TRIM-RING SM (2) WCI 08003113 Contact Us For Availability
3
FRAME - DOOR WCI 08015938 Contact Us For Availability
3
WCI 3206425 WCI 3206425 Contact Us For Availability
3
HANDLE WCI K1317834 Contact Us For Availability
3A
TRIM-RING LG (2) WCI 08003114 Contact Us For Availability
4
SWITCH, SELECTOR WCI 08015934 Contact Us For Availability
4
TOP-CHROME WCI 5303051802 Contact Us For Availability
4
WCI 3017200 WCI 3017200 Contact Us For Availability
4
WCI 5308015935 WCI 5308015935 Contact Us For Availability
4
CAP RH WCI 08003461 Contact Us For Availability
4A
CAP LH WCI 08003462 Contact Us For Availability
5
GUIDE (2) WCI 5303209487 Contact Us For Availability
5
HINGE-TOP (2) WCI 5308003325 Contact Us For Availability
5
INSULATION WCI K1325629 Contact Us For Availability
5
INSULATION-OVEN VENT WCI 3051523 Contact Us For Availability
6
WCI 5301325511 WCI 5301325511 Contact Us For Availability
6
WCI 5305113502 WCI 5305113502 Contact Us For Availability
7
RETAINER - INNER GLASS WCI 3205108 Contact Us For Availability
7
WCI 5303051553 WCI 5303051553 Contact Us For Availability
8
SWITCH-DOOR WCI 5301314211 Contact Us For Availability
8
WCI 5301324812 WCI 5301324812 Contact Us For Availability
9
SUPPORT-BR ELEMENT WCI 3051518 Contact Us For Availability
9
WCI 5308003268 WCI 5308003268 Contact Us For Availability
9
BACK-UPPER WCI 5308008689 Contact Us For Availability
10
SEAL-GLASS WCI 3051574 Contact Us For Availability
10
ROD-TOP SUPPORT WCI 3051554 Contact Us For Availability
10
INSULATION WRAP WCI 3051521 Contact Us For Availability
11
WCI 5303205457 WCI 5303205457 Contact Us For Availability
11
INSULATION-BACK WCI 3051630 Contact Us For Availability
12
BUMPER - WINDOW BOT. (2) WCI 5303131771 Contact Us For Availability
12
PANEL - WIRE COVER WCI 3204650 Contact Us For Availability
13
BUMPER - WINDOW TOP WCI 5305297101 Contact Us For Availability
13
BACK WCI 3204649 Contact Us For Availability
14
WCI 08015957 WCI 08015957 Contact Us For Availability
14
WCI 5308012546 WCI 5308012546 Contact Us For Availability
15
WCI 5303051860 WCI 5303051860 Contact Us For Availability
15
WCI 08015945 WCI 08015945 Contact Us For Availability
15
BRACKET - THERMO BULB WCI 3051552 Contact Us For Availability
16
WCI 5308004154 WCI 5308004154 Contact Us For Availability
16
WCI 08003264 WCI 08003264 Contact Us For Availability
16
PLATE-FILLER WCI 3051827 Contact Us For Availability
17
KNOBS-CLOCK WCI 08004148 Contact Us For Availability
17
CHANNEL - HINGE (2) WCI 3051822 Contact Us For Availability
17
SHIELD-TOE (2) WCI 08012736 Contact Us For Availability
18
WCI 08015917 WCI 08015917 Contact Us For Availability
18
RIVET (2) WCI 5303051567 Contact Us For Availability
18
SCREW-LEVELING (4) WCI 5303205540 Contact Us For Availability
19
WCI 08015921 WCI 08015921 Contact Us For Availability
19
PIN-HINGE (2) WCI 5308012004 Contact Us For Availability
19
WCI 5305080001 WCI 5305080001 Contact Us For Availability
20
ROLLER-KIT WCI 5301167752 Contact Us For Availability
20
SHIELD-BOTTOM WCI 3205112 Contact Us For Availability
21
HINGE ARM WCI 5308003183 Contact Us For Availability
21
WCI 08012722 WCI 08012722 Contact Us For Availability
22
GLIDE-FRONT WCI 3051654 Contact Us For Availability
23
WCI 3204818 WCI 3204818 Contact Us For Availability
23A
WCI 3204819 WCI 3204819 Contact Us For Availability
24
SPACER-DRWR GLIDE (2) WCI 3051653 Contact Us For Availability
25
WCI 5301324082 WCI 5301324082 Contact Us For Availability
25A
WCI 5301324083 WCI 5301324083 Contact Us For Availability
26
TRIM, OVEN FRONT (2) WCI 3051777 Contact Us For Availability
27
HOUSING-LIGHT WCI 3051511 Contact Us For Availability
31
RETAINER-LENS WCI 5303205904 Contact Us For Availability
32
WCI 5303131356 WCI 5303131356 Contact Us For Availability
33
WCI 5303207208 WCI 5303207208 Contact Us For Availability
35
BRKT, HNG SUPPORT WCI 3051800 Contact Us For Availability
× ![]()
