Model Electrolux RGC32BNL2 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - BODY PARTS

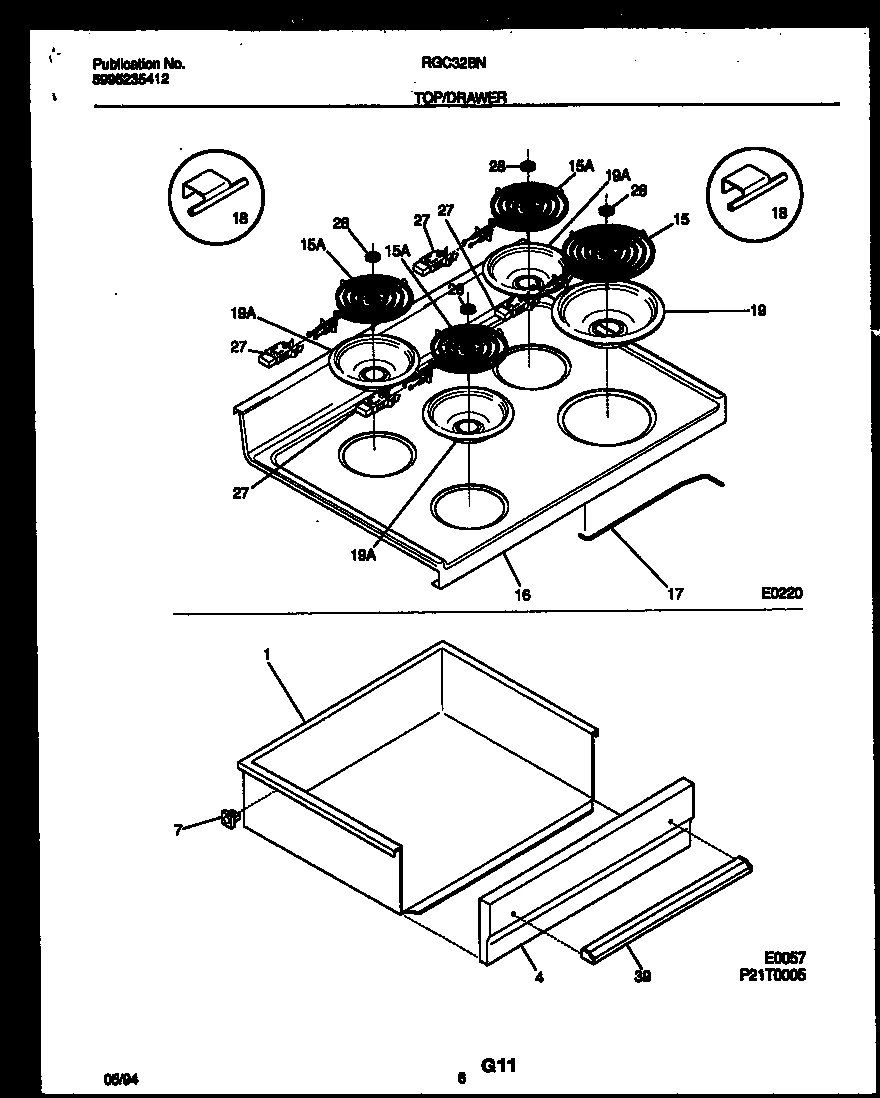

04 - COOKTOP AND DRAWER PARTS

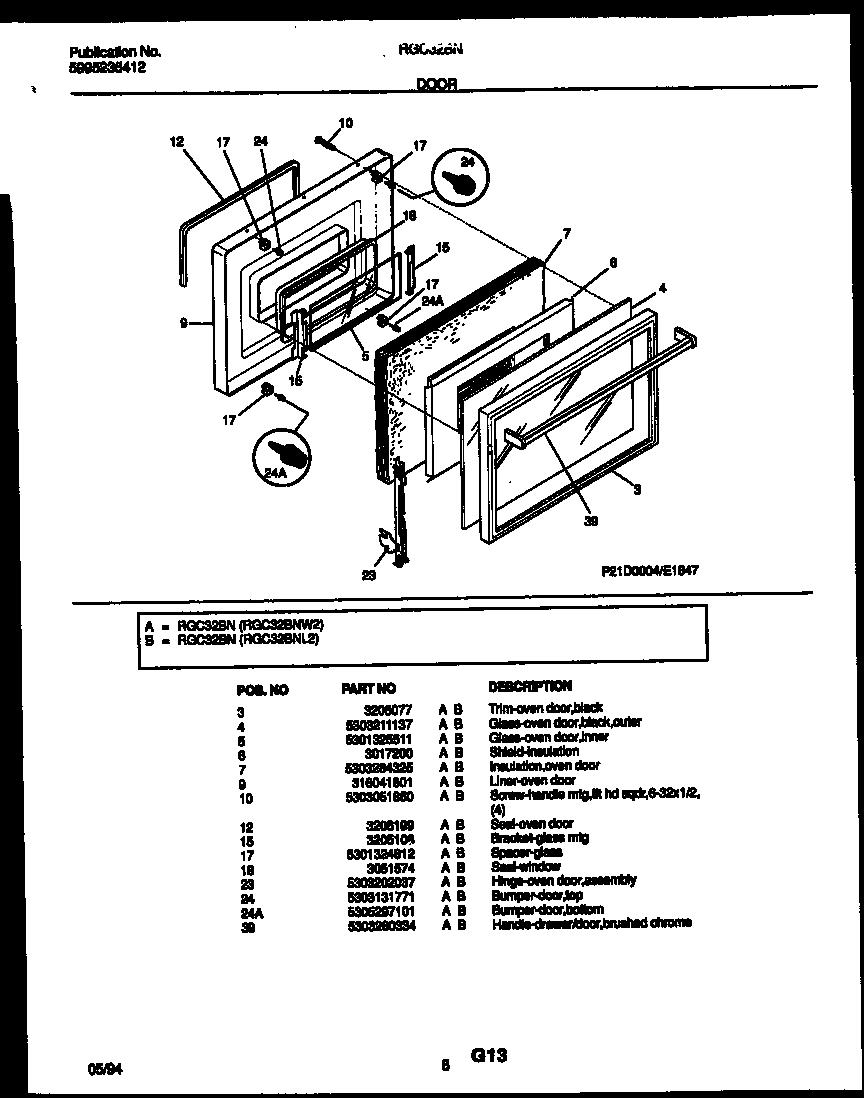

05 - DOOR PARTS
Common parts from model Electrolux RGC32BNL2 RANGE
1
BACK-MAIN WCI 3205757 Contact Us For Availability
1
DRAWER-UTILITY WCI 5308011051 Contact Us For Availability
3
PANEL-BODYSIDE, ALMOND, RH WCI 5308012529 Contact Us For Availability
3
TRIM-OVEN DOOR, BLACK WCI 3206077 Contact Us For Availability
3A
PANEL-BODYSIDE, ALMOND, LH, (NON-ILLUSTRATED) WCI 5308012530 Contact Us For Availability
4
WCI 5303292692 WCI 5303292692 Contact Us For Availability
4
PANEL-DRAWER, ALMOND WCI 5301325100 Contact Us For Availability
4
GLASS-OVEN DOOR, BLACK, OUTER WCI 5303211137 Contact Us For Availability
5
SCREW-LEVELING WCI 5303205540 Contact Us For Availability
5
GLASS-OVEN DOOR, INNER WCI 5301325511 Contact Us For Availability
5A
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
6
SHIELD-INSULATION WCI 3017200 Contact Us For Availability
7
GLIDE-DRAWER, REAR WCI 5303209487 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 5303284325 Contact Us For Availability
9
WCI 5303292688 WCI 5303292688 Contact Us For Availability
9
WCI 316041801 WCI 316041801 Contact Us For Availability
10
SCREW-HANDLE MTG, FLT HD SQDR, 6-32 X 1/2, (4 WCI 5303051860 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
12
SWITCH-OVEN LIGHT, DOOR FRAME WCI 5301314211 Contact Us For Availability
12
WCI 5308005306 WCI 5308005306 Contact Us For Availability
12
SEAL-OVEN DOOR WCI 3206199 Contact Us For Availability
13
SWITCH-SELECTOR WCI 5308016480 Contact Us For Availability
14
LIGHT / LAMP, INDICATOR, 250 V, (2) WCI 5303276663 Contact Us For Availability
15
BRACKET-GLASS MTG WCI 3205108 Contact Us For Availability
16
WCI 08012521 WCI 08012521 Contact Us For Availability
17
RETAINER-GLASS WCI 5303205904 Contact Us For Availability
17
WCI 5303211119 WCI 5303211119 Contact Us For Availability
17
SPACER-GLASS WCI 5301324812 Contact Us For Availability
17A
SCREW-SHOULDER, (NON-ILLUSTRATED) WCI 3051050 Contact Us For Availability
17B
WCI 5303211120 WCI 5303211120 Contact Us For Availability
18
SEAL WINDOW WCI 3051574 Contact Us For Availability
18
WCI 08012537 WCI 08012537 Contact Us For Availability
21
SPACER-BODYSIDE WCI 3051653 Contact Us For Availability
23
HINGE-OVEN DOOR, ASSEMBLY WCI 5303202037 Contact Us For Availability
24
BUMPER-DOOR, TOP WCI 5303131771 Contact Us For Availability
24A
WCI 5305297101 WCI 5305297101 Contact Us For Availability
29
GUIDE-DRAWER, FRONT WCI 3051654 Contact Us For Availability
32
WCI 5303207391 WCI 5303207391 Contact Us For Availability
39
HANDLE-DRAWER/DOOR, BRUSHED CHROME WCI 5303280334 Contact Us For Availability
41
RETAINER-DOOR WCI 3019063 Contact Us For Availability
53
WCI 3206095 WCI 3206095 Contact Us For Availability
54
WCI 5303271606 WCI 5303271606 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3051521 Contact Us For Availability
58B
WCI 5303274967 WCI 5303274967 Contact Us For Availability
59
WCI 5308012538 WCI 5308012538 Contact Us For Availability
59
WCI 08012541 WCI 08012541 Contact Us For Availability
63
PLATE=GROUND STRAP WCI 5301145190 Contact Us For Availability
68
SUPPORT-ELEMENT WCI 3205756 Contact Us For Availability
71
SHIELD-REAR WALL, LOWER WCI 5303051856 Contact Us For Availability
74
WCI 5308003107 WCI 5308003107 Contact Us For Availability
75
COVER-OVEN SEAM WCI 3202082 Contact Us For Availability
76
WCI 316042103 WCI 316042103 Contact Us For Availability
77
WCI 5308015746 WCI 5308015746 Contact Us For Availability
77A
RAIL-DRAWER LH, (NON-ILLUSTRATED) WCI 3051652 Contact Us For Availability
80
SPRING-OVEN REAR WCI 3016281 Contact Us For Availability
81
SPACER-OVEN WCI 3201632 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 3206275 Contact Us For Availability
83
LINER-OVEN ASSY WCI 3205759 Contact Us For Availability
83A
PLUG-BUTTON, LINER, (NON-ILLUSTRATED) WCI 3016334 Contact Us For Availability
84
WCI 3017482 WCI 3017482 Contact Us For Availability
84A
GUSSET-REAR, RH, (NON-ILLUSTRATED) WCI 3017481 Contact Us For Availability
86
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
87
BRACKET-CABLE MTG WCI 3203574 Contact Us For Availability
× ![]()
