Model Electrolux RG533MDW2 RANGE – Common Parts & Diagrams

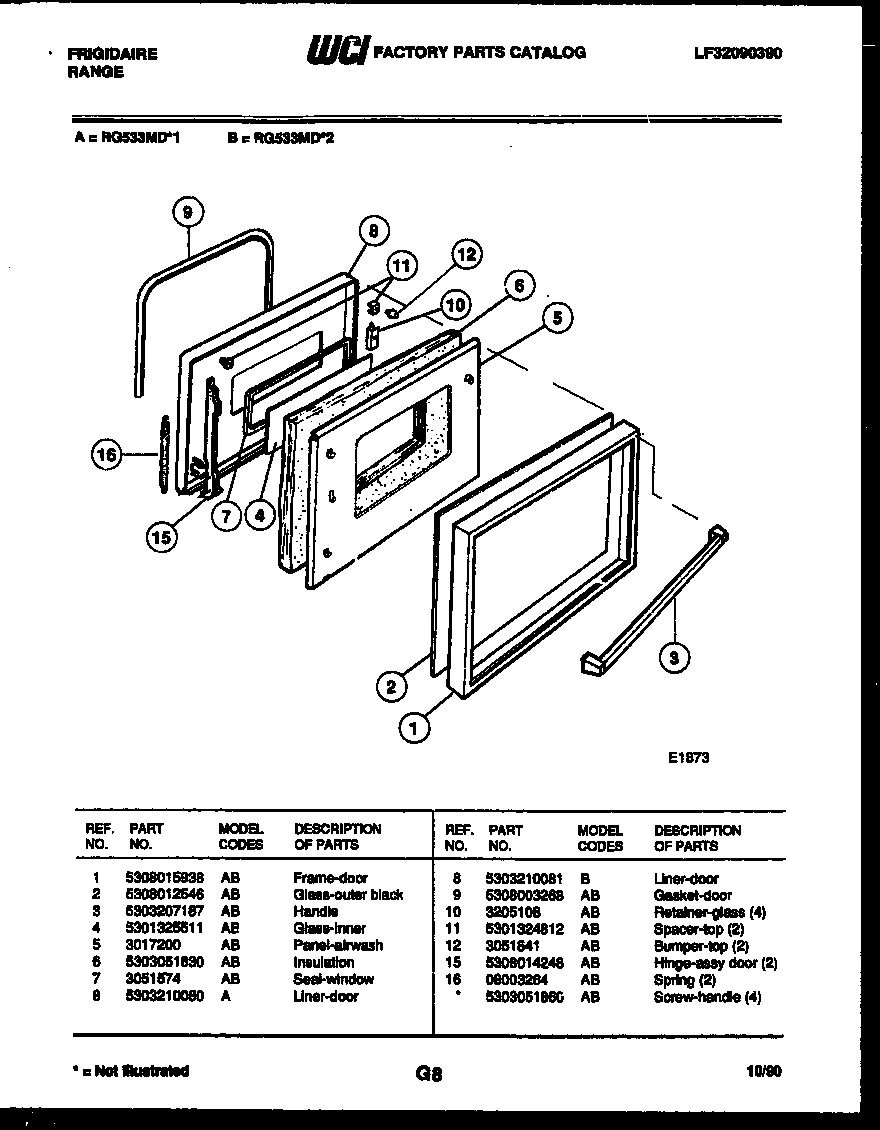

02 - DOOR PARTS

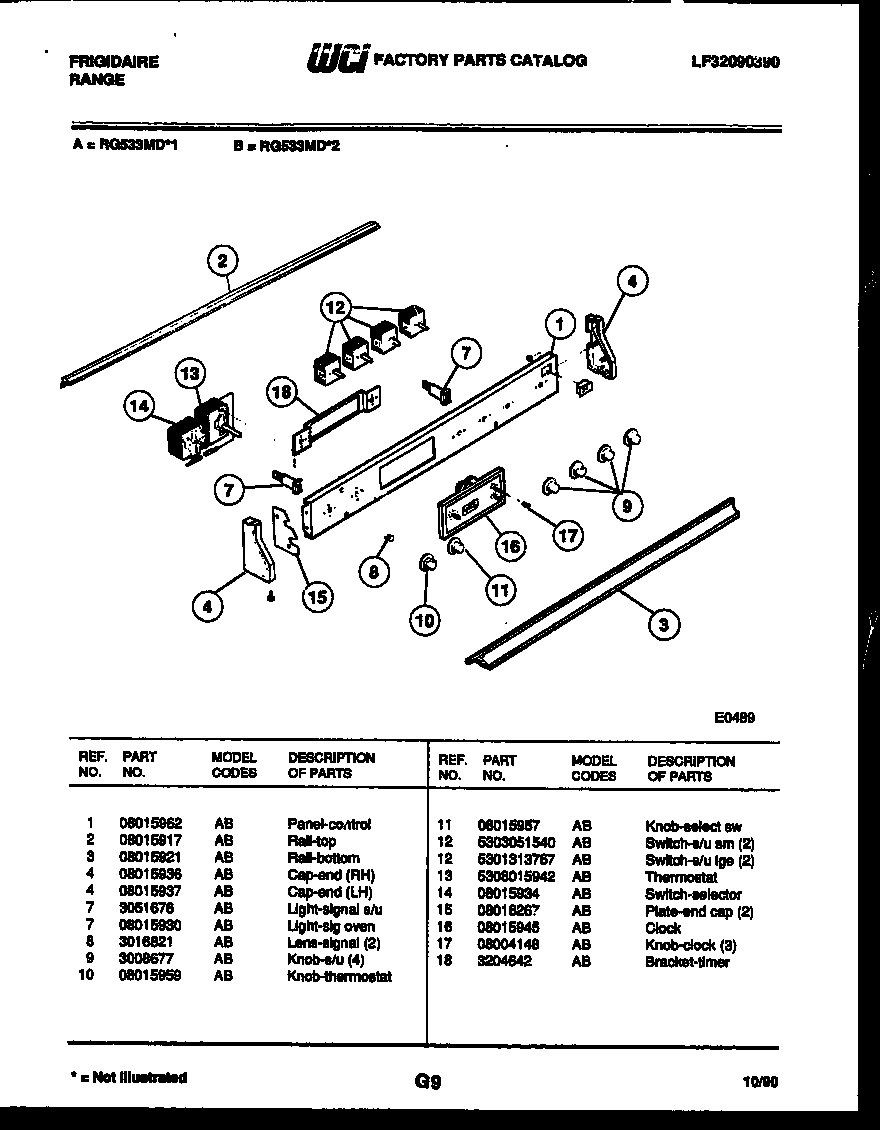

03 - CONTROL PANEL

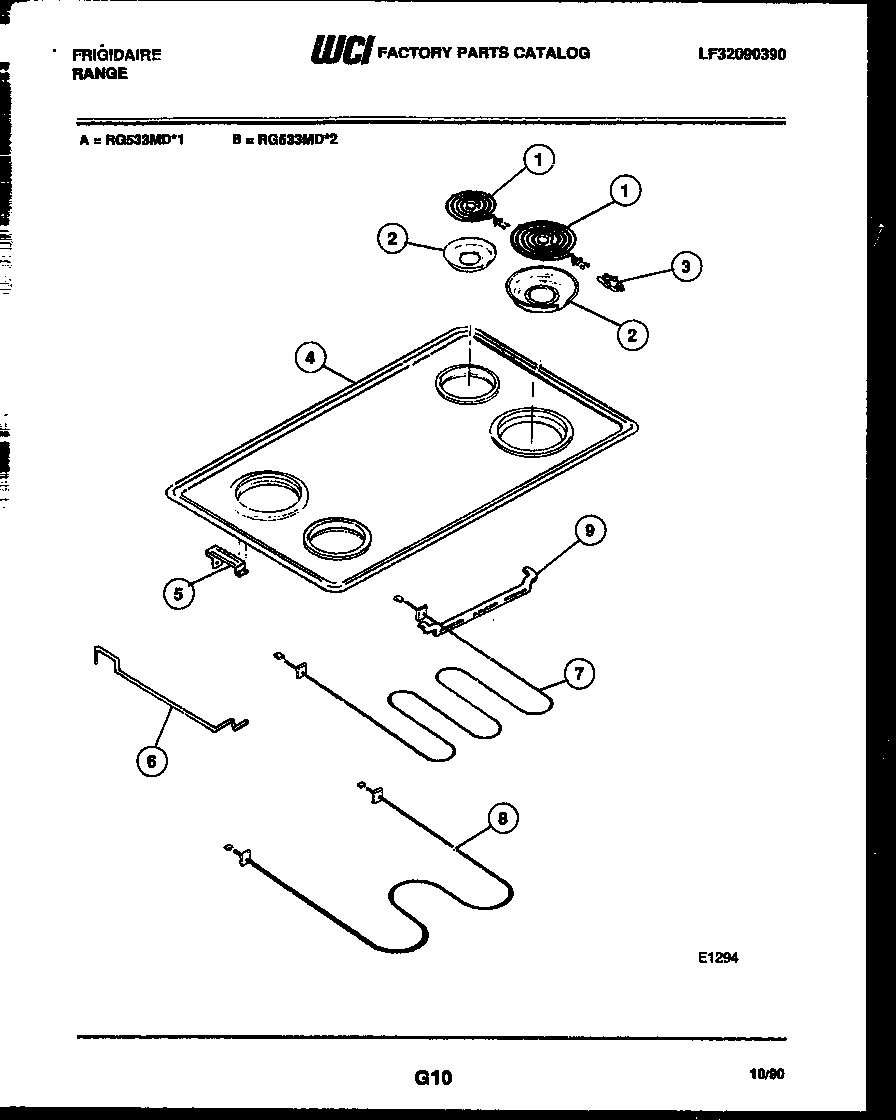

04 - COOKTOP AND BROILER PARTS

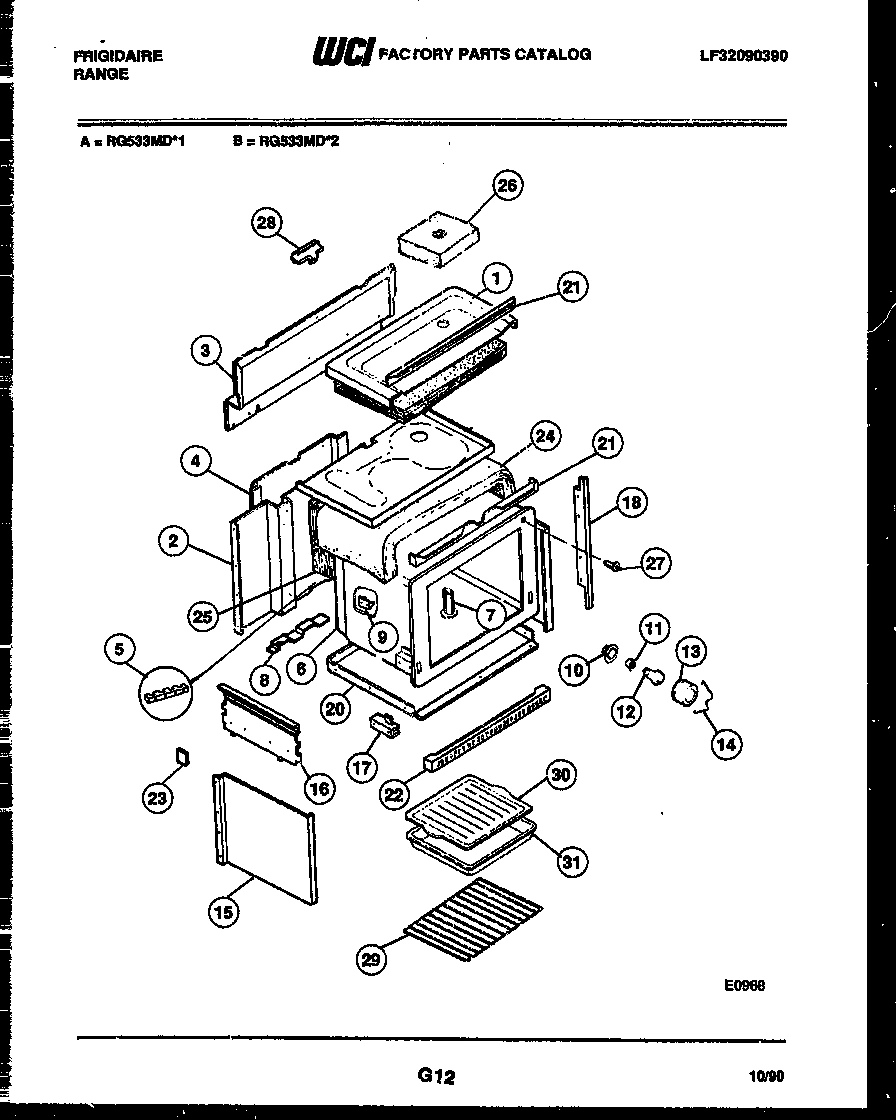

05 - BODY PARTS
Common parts from model Electrolux RG533MDW2 RANGE
*35388
WCI 5303051860 WCI 5303051860 Contact Us For Availability
*35394
RIVET, POP WCI 3203396 Contact Us For Availability
*35394
WCI 3203578 WCI 3203578 Contact Us For Availability
1
WCI 08015962 WCI 08015962 Contact Us For Availability
1
WCI 5303051553 WCI 5303051553 Contact Us For Availability
2
WCI 08015917 WCI 08015917 Contact Us For Availability
2
WCI 3204649 WCI 3204649 Contact Us For Availability
3
WCI 08015921 WCI 08015921 Contact Us For Availability
3
WCI 5308008689 WCI 5308008689 Contact Us For Availability
4
CAP, END RH WCI 08015936 Contact Us For Availability
4
PANEL-MAIN TOP WCI 5303051802 Contact Us For Availability
4
WCI 3204650 WCI 3204650 Contact Us For Availability
4A
CAP, END LH WCI 08015937 Contact Us For Availability
5
WCI 5308003325 WCI 5308003325 Contact Us For Availability
6
ROD, COOKTOP SUPPORT WCI 3051554 Contact Us For Availability
6
WCI 3204607 WCI 3204607 Contact Us For Availability
6
LINER, OVEN WCI 3205131 Contact Us For Availability
7
SEAL WINDOW WCI 3051574 Contact Us For Availability
7
LIGHT, SIGNAL, OVEN WCI 08015930 Contact Us For Availability
7
LIGHT-SIGNAL S/U WCI 3051676 Contact Us For Availability
7
WCI 08003333 WCI 08003333 Contact Us For Availability
8
LENS-SIGNAL (2) WCI 3016821 Contact Us For Availability
8
PLATE-MTG WCI 3203574 Contact Us For Availability
9
KNOB-S/U (4) WCI 3008677 Contact Us For Availability
9
SUPPORT BROIL ELEMENT WCI 3051518 Contact Us For Availability
9
BRACKET-THERM BULB WCI 3051552 Contact Us For Availability
10
RETAINER-GLASS (4) WCI 3205108 Contact Us For Availability
10
WCI 08015959 WCI 08015959 Contact Us For Availability
10
HOUSING-OV IT WCI 3204816 Contact Us For Availability
11
SPACER-TOP (2) WCI 5301324812 Contact Us For Availability
11
KNOB-SELECT SW WCI 08015957 Contact Us For Availability
12
BUMPER-TOP (2) WCI 3051841 Contact Us For Availability
13
WCI 5308015942 WCI 5308015942 Contact Us For Availability
14
SWITCH, SELECTOR WCI 08015934 Contact Us For Availability
14
RETAINER-LENS WCI 5303205904 Contact Us For Availability
15
WCI 5308014248 WCI 5308014248 Contact Us For Availability
15
PLATE, END CAP (2) WCI 08016267 Contact Us For Availability
15
RETAINER, INSUL (2) WCI 08012226 Contact Us For Availability
16
WCI 08003264 WCI 08003264 Contact Us For Availability
16
WCI 08015945 WCI 08015945 Contact Us For Availability
16
WCI 5308015935 WCI 5308015935 Contact Us For Availability
17
KNOB, CLOCK (3) WCI 08004148 Contact Us For Availability
17
TRIM-OVEN FRNT (2) WCI 08003334 Contact Us For Availability
17
WCI 3051527 WCI 3051527 Contact Us For Availability
17
WCI 3051528 WCI 3051528 Contact Us For Availability
18
BRACKET, TIMER WCI 3204642 Contact Us For Availability
20
RETAINR-INSUL. BTM WCI 3204634 Contact Us For Availability
21
WCI 5308008693 WCI 5308008693 Contact Us For Availability
22
GRILL-BOTTOM WCI 8012249 Contact Us For Availability
23
WCI 3051827 WCI 3051827 Contact Us For Availability
24
INSULATION WRAP WCI 3051521 Contact Us For Availability
25
WCI 5303051630 WCI 5303051630 Contact Us For Availability
26
WCI 3051523 WCI 3051523 Contact Us For Availability
27
SWITCH-OVN LIGHT WCI 08015948 Contact Us For Availability
28
BRACKET-HNG SUPT WCI 3051800 Contact Us For Availability
30
GRILL-BROILER WCI 5303019066 Contact Us For Availability
30
GRILL, BROILER WCI 5303131356 Contact Us For Availability
31
WCI 3200723 WCI 3200723 Contact Us For Availability
31
WCI 5303207208 WCI 5303207208 Contact Us For Availability
× ![]()
