Model Electrolux RG45CW2 RANGE – Common Parts & Diagrams

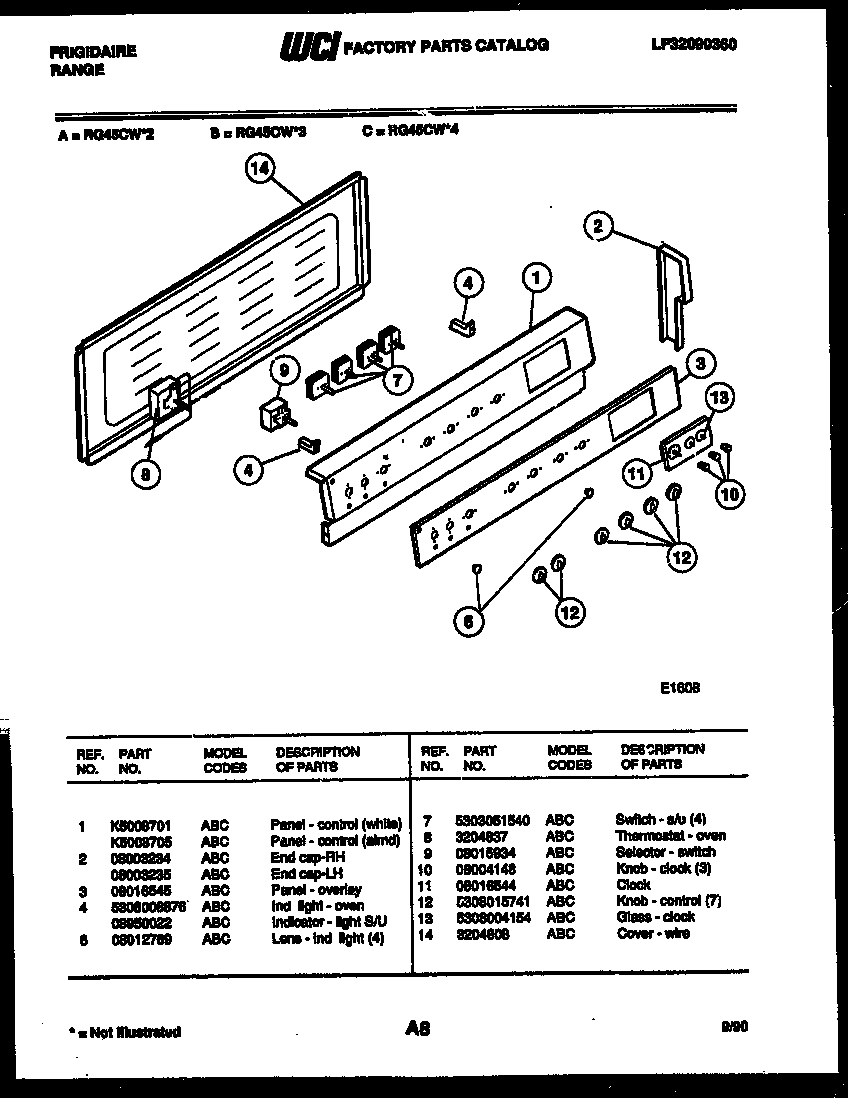

02 - CONTROL PANEL

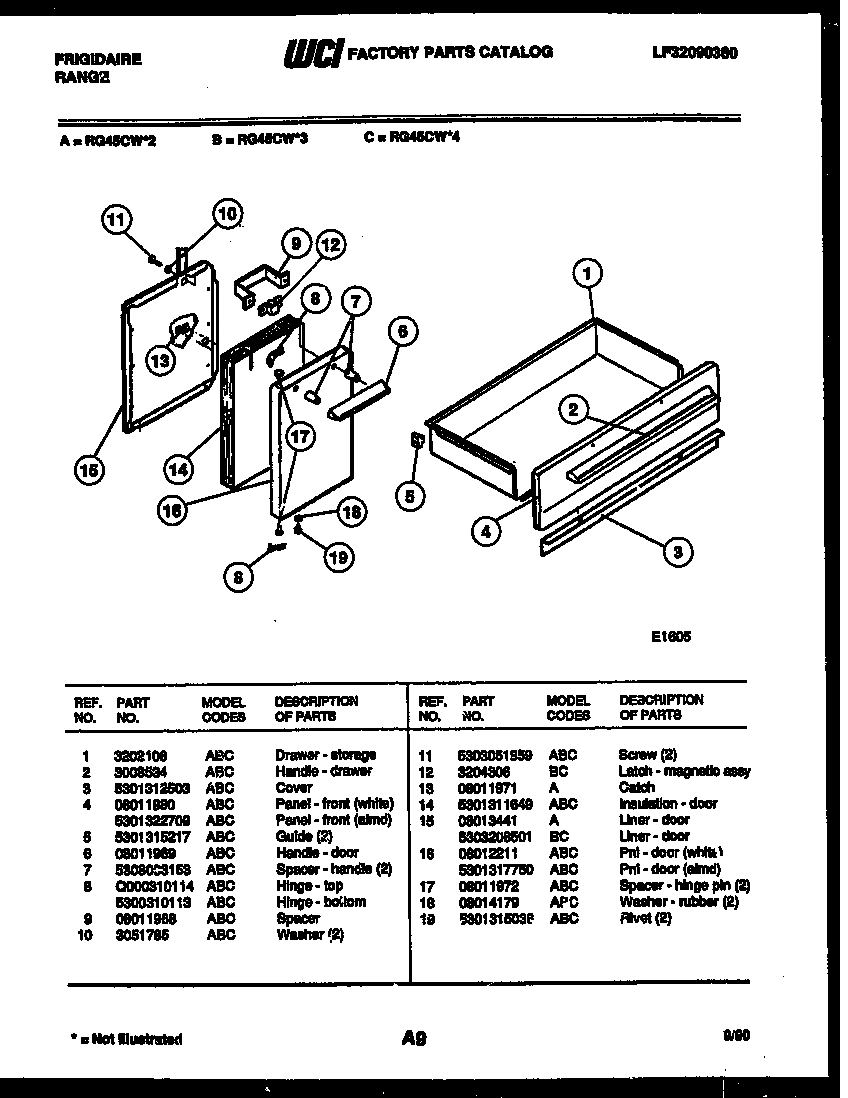

03 - DOOR AND DRAWER PARTS
04 - DOOR PARTS
05 - COOKTOP AND BROILER PARTS
06 - BODY PARTS
Common parts from model Electrolux RG45CW2 RANGE
*99015
ANTI-TIP KIT WCI 3934058 Contact Us For Availability
1
WCI 3202108 WCI 3202108 Contact Us For Availability
1
TOP - COOK (WHITE) WCI 08011961 Contact Us For Availability
1
WCI K001325733 WCI K001325733 Contact Us For Availability
1
WCI 5303203691 WCI 5303203691 Contact Us For Availability
2
HANDLE, DRAWER WCI 3008534 Contact Us For Availability
2
WCI 3201571 WCI 3201571 Contact Us For Availability
2
WCI 3204816 WCI 3204816 Contact Us For Availability
3
COVER WCI 5301312503 Contact Us For Availability
3
WCI 5308014202 WCI 5308014202 Contact Us For Availability
4
WCI 08011980 WCI 08011980 Contact Us For Availability
4
WCI 5308003153 WCI 5308003153 Contact Us For Availability
5
GUIDE (2) WCI 5301315217 Contact Us For Availability
5
COLLAR ACTUATOR WCI 5303051582 Contact Us For Availability
5
WCI 5303017810 WCI 5303017810 Contact Us For Availability
6
WCI 5303051583 WCI 5303051583 Contact Us For Availability
6
WCI 08011969 WCI 08011969 Contact Us For Availability
6
RETAINER HINGE (2) WCI 3051745 Contact Us For Availability
6
RTNR - LENS OVEN LT WCI 5303205904 Contact Us For Availability
7
SCREW, HANDLE (2) WCI K5104201 Contact Us For Availability
7
HINGE COOKTOP RH WCI 3051658 Contact Us For Availability
7
WCI 08003237 WCI 08003237 Contact Us For Availability
7A
HINGE - COOKTOP LH WCI 08003106 Contact Us For Availability
8
WCI Q000310114 WCI Q000310114 Contact Us For Availability
8
WCI 3051580 WCI 3051580 Contact Us For Availability
8
WCI 08003111 WCI 08003111 Contact Us For Availability
8
WCI 08015948 WCI 08015948 Contact Us For Availability
8A
WCI 5300310113 WCI 5300310113 Contact Us For Availability
9
SELECTOR - SWITCH WCI 08015934 Contact Us For Availability
9
WCI 08011968 WCI 08011968 Contact Us For Availability
9
WCI 3205109 WCI 3205109 Contact Us For Availability
9
WCI 08013442 WCI 08013442 Contact Us For Availability
10
WASHER (2) WCI 3051785 Contact Us For Availability
10
WCI 08011977 WCI 08011977 Contact Us For Availability
10
GUIDE, FRONT (2) WCI 3051654 Contact Us For Availability
11
WCI 5303051859 WCI 5303051859 Contact Us For Availability
11
WCI 5301325511 WCI 5301325511 Contact Us For Availability
11
PNL - END RH (WHITE) WCI 5308012527 Contact Us For Availability
11A
PNL - END LH (WHITE) WCI 5308012528 Contact Us For Availability
12
WCI 3205108 WCI 3205108 Contact Us For Availability
12
WCI 3204818 WCI 3204818 Contact Us For Availability
12A
WCI 3204819 WCI 3204819 Contact Us For Availability
13
WCI 3051574 WCI 3051574 Contact Us For Availability
13
WCI 5308004154 WCI 5308004154 Contact Us For Availability
13
WCI 08011971 WCI 08011971 Contact Us For Availability
13
SPRT - BROIL ELEMENT WCI 3051518 Contact Us For Availability
13
BUMPER, COOKTOP (2) WCI 5308003107 Contact Us For Availability
14
WCI 3204808 WCI 3204808 Contact Us For Availability
14
WCI 5301311649 WCI 5301311649 Contact Us For Availability
14
WCI 3204821 WCI 3204821 Contact Us For Availability
15
LINER - DOOR WCI 08013441 Contact Us For Availability
15
LINER - DOOR WCI K1325787 Contact Us For Availability
15
ROD COOKTOP WCI 3051554 Contact Us For Availability
16
WCI 08012211 WCI 08012211 Contact Us For Availability
16
WCI 5308003268 WCI 5308003268 Contact Us For Availability
16
SCREW-LEVELING (4) WCI 5303205540 Contact Us For Availability
17
WCI 08011972 WCI 08011972 Contact Us For Availability
17
WCI 08003264 WCI 08003264 Contact Us For Availability
17
WCI 08016546 WCI 08016546 Contact Us For Availability
18
WCI 08014179 WCI 08014179 Contact Us For Availability
18
CHANNEL - HINGE RH WCI 5303051822 Contact Us For Availability
18
WCI 08011947 WCI 08011947 Contact Us For Availability
18A
CHANNEL - HINGE LH WCI 5303931006 Contact Us For Availability
19
ARM - HINGE (2) WCI 5308003183 Contact Us For Availability
19
WCI 5301315036 WCI 5301315036 Contact Us For Availability
19
COVER WCI 3204650 Contact Us For Availability
20
WCI 08950070 WCI 08950070 Contact Us For Availability
20
WCI 3204827 WCI 3204827 Contact Us For Availability
21
SUPPORT WCI 08011953 Contact Us For Availability
22
PIN (2) WCI 5308012004 Contact Us For Availability
22
WCI 3204822 WCI 3204822 Contact Us For Availability
22A
WCI 3204823 WCI 3204823 Contact Us For Availability
23
BRKT-THERMO BULB WCI 08014653 Contact Us For Availability
24
WCI 5305138301 WCI 5305138301 Contact Us For Availability
25
WCI 08011945 WCI 08011945 Contact Us For Availability
26
WCI 5303051630 WCI 5303051630 Contact Us For Availability
27
WCI 08011951 WCI 08011951 Contact Us For Availability
28
CLIP WCI 08003146 Contact Us For Availability
30
PANEL - BOTTOM WCI 3203574 Contact Us For Availability
31
WCI 08011954 WCI 08011954 Contact Us For Availability
32
WCI 3051521 WCI 3051521 Contact Us For Availability
33
WCI 3205538 WCI 3205538 Contact Us For Availability
34
WCI 3205539 WCI 3205539 Contact Us For Availability
35
RACK-OVEN, OFFSET WCI 08014219 Contact Us For Availability
37
WCI 08011960 WCI 08011960 Contact Us For Availability
38
WCI 08016542 WCI 08016542 Contact Us For Availability
39
GLIDE - STORAGE RACK WCI 08011959 Contact Us For Availability
× ![]()
