Model Electrolux RG35CAW2 RANGE – Common Parts & Diagrams
02 - DRAWER PARTS
03 - BROILER PARTS

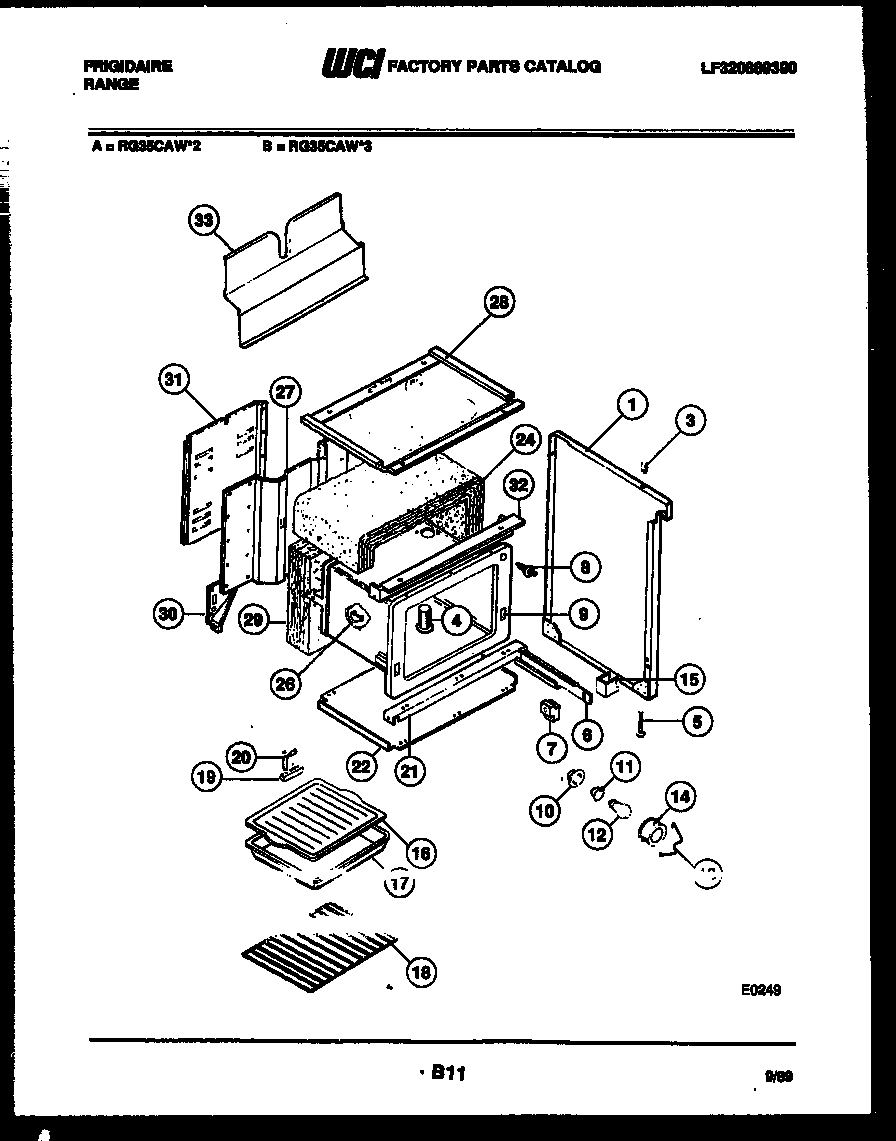

04 - BODY PARTS

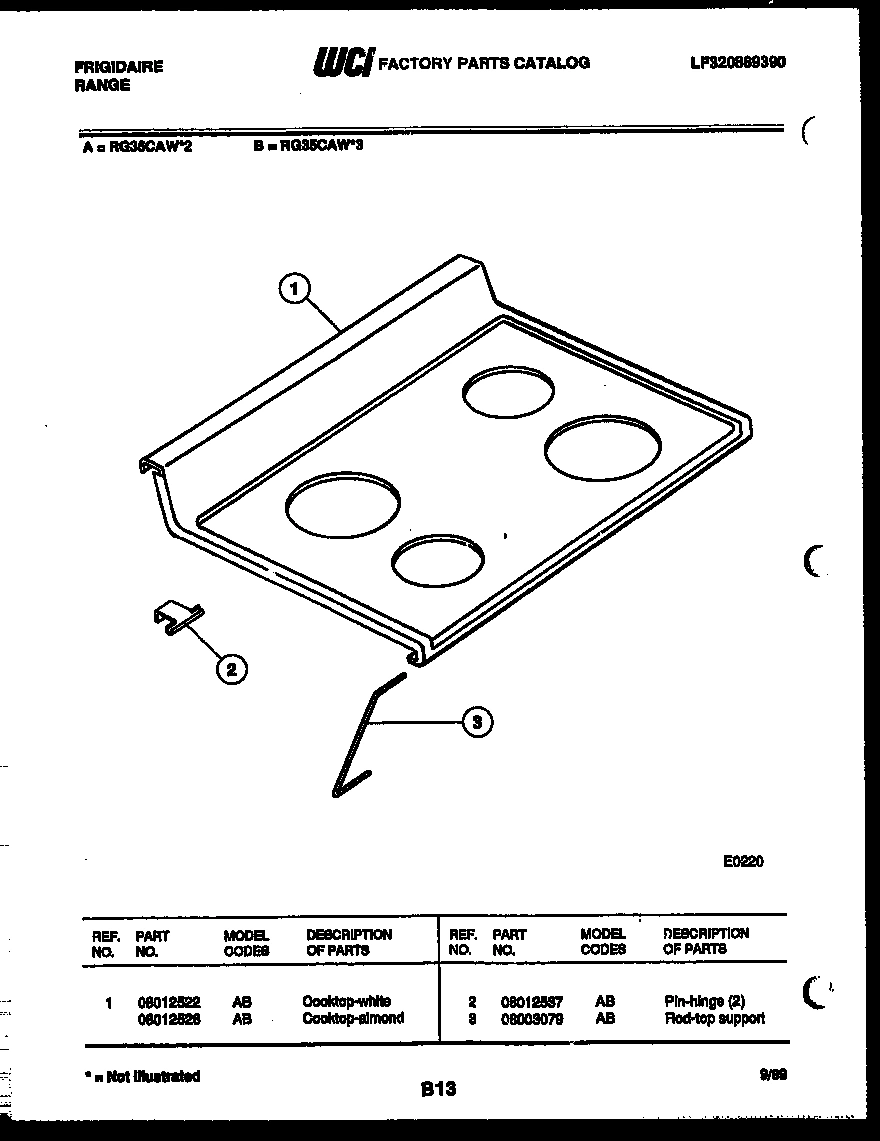

05 - COOKTOP PARTS

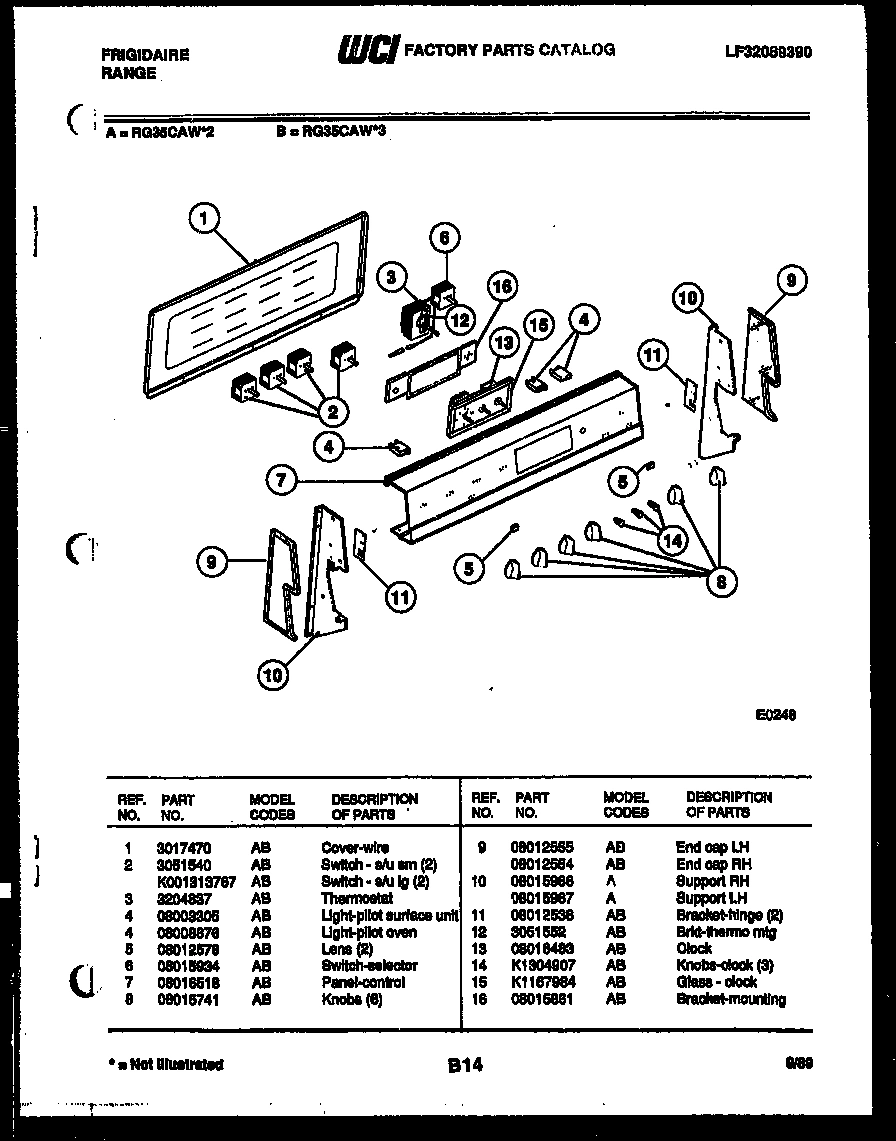

06 - CONTROL PANEL

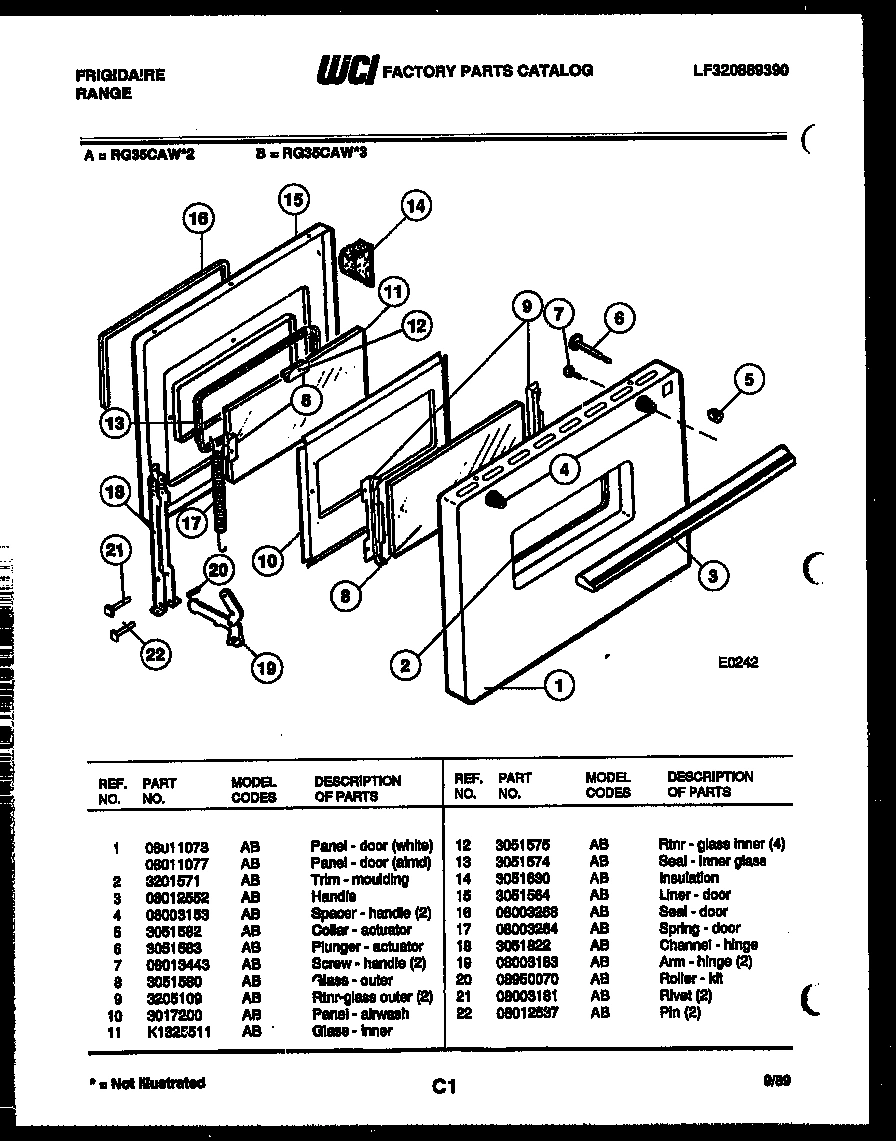

07 - DOOR PARTS
Common parts from model Electrolux RG35CAW2 RANGE
1
SIDE PNL - RH (WHITE) WCI 08012527 Contact Us For Availability
1
WCI 08012522 WCI 08012522 Contact Us For Availability
1
WCI 3017470 WCI 3017470 Contact Us For Availability
1
WCI 08011073 WCI 08011073 Contact Us For Availability
1A
SIDE PNL - LH (WHITE) WCI 08012528 Contact Us For Availability
2
WCI 3201571 WCI 3201571 Contact Us For Availability
3
WCI 08002857 WCI 08002857 Contact Us For Availability
3
BUMPER - COOKTOP (4) WCI 08003107 Contact Us For Availability
3
WCI 08003079 WCI 08003079 Contact Us For Availability
3
WCI 3204837 WCI 3204837 Contact Us For Availability
3
WCI 08012552 WCI 08012552 Contact Us For Availability
4
HANDLE WCI K1317834 Contact Us For Availability
4
VENT-TUBE WCI 08012541 Contact Us For Availability
4
LIGHT-PILOT SURFACE UNIT WCI 08003305 Contact Us For Availability
4
WCI 08008876 WCI 08008876 Contact Us For Availability
4
WCI 08003153 WCI 08003153 Contact Us For Availability
5
LEG, LEVELLER (4) WCI 3205294 Contact Us For Availability
5
LENS (2) WCI 08012578 Contact Us For Availability
5
COLLAR - ACTUATOR WCI 3051582 Contact Us For Availability
6
SWITCH, SELECTOR WCI 08015934 Contact Us For Availability
6
WCI 08015746 WCI 08015746 Contact Us For Availability
6
PLUNGER - ACTUATOR WCI 3051583 Contact Us For Availability
6A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
WCI 08003103 WCI 08003103 Contact Us For Availability
7
WCI 08016518 WCI 08016518 Contact Us For Availability
7
SCREW HANDLE (2) WCI 08013443 Contact Us For Availability
8
WCI 08015948 WCI 08015948 Contact Us For Availability
8
WCI 08015741 WCI 08015741 Contact Us For Availability
8
WCI 3051580 WCI 3051580 Contact Us For Availability
9
OVEN LINER WCI 3204603 Contact Us For Availability
9
WCI 08012555 WCI 08012555 Contact Us For Availability
9
WCI 3205109 WCI 3205109 Contact Us For Availability
9A
WCI 08012554 WCI 08012554 Contact Us For Availability
10
WCI 3051511 WCI 3051511 Contact Us For Availability
10
SUPPORT RH WCI 08015966 Contact Us For Availability
10
WCI 3017200 WCI 3017200 Contact Us For Availability
10A
SUPPORT LH WCI 08015967 Contact Us For Availability
11
WCI 08012538 WCI 08012538 Contact Us For Availability
11
WCI K1325511 WCI K1325511 Contact Us For Availability
12
BRKT-THERMO MTG WCI 3051552 Contact Us For Availability
12
RTNR - GLASS INNER (4) WCI 3051575 Contact Us For Availability
13
WCI 3051574 WCI 3051574 Contact Us For Availability
13
WCI 08011087 WCI 08011087 Contact Us For Availability
13
WCI 08016483 WCI 08016483 Contact Us For Availability
14
INSULATION WCI 3051630 Contact Us For Availability
14
KNOBS-CLOCK (3) WCI K1304907 Contact Us For Availability
15
SPACER, DRWR RAIL (2) WCI 3051653 Contact Us For Availability
15
GLASS - CLOCK WCI K1167984 Contact Us For Availability
15
LINER-DOOR WCI 3051564 Contact Us For Availability
16
GRILLE, BROILER WCI 3206091 Contact Us For Availability
16
BRACKET-MOUNTING WCI 08015861 Contact Us For Availability
16
WCI 08003268 WCI 08003268 Contact Us For Availability
17
WCI 3205232 WCI 3205232 Contact Us For Availability
17
WCI 08003264 WCI 08003264 Contact Us For Availability
18
CHANNEL - HINGE WCI 3051822 Contact Us For Availability
19
WCI 08003183 WCI 08003183 Contact Us For Availability
20
WCI 08003146 WCI 08003146 Contact Us For Availability
20
WCI 08950070 WCI 08950070 Contact Us For Availability
21
CHANNEL - OVEN SUPPORT LOWER WCI 3200927 Contact Us For Availability
21
WCI 08003181 WCI 08003181 Contact Us For Availability
22
WCI 3017394 WCI 3017394 Contact Us For Availability
22
PIN (2) WCI 08012537 Contact Us For Availability
24
WCI 3051521 WCI 3051521 Contact Us For Availability
27
WCI 3017575 WCI 3017575 Contact Us For Availability
28
WCI 08012542 WCI 08012542 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30A
WCI 3017482 WCI 3017482 Contact Us For Availability
31
WCI 3051856 WCI 3051856 Contact Us For Availability
32
WCI 3200926 WCI 3200926 Contact Us For Availability
33
WCI 3206095 WCI 3206095 Contact Us For Availability
× ![]()
