Model Electrolux RG34NW1 RANGE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - COOKTOP PARTS

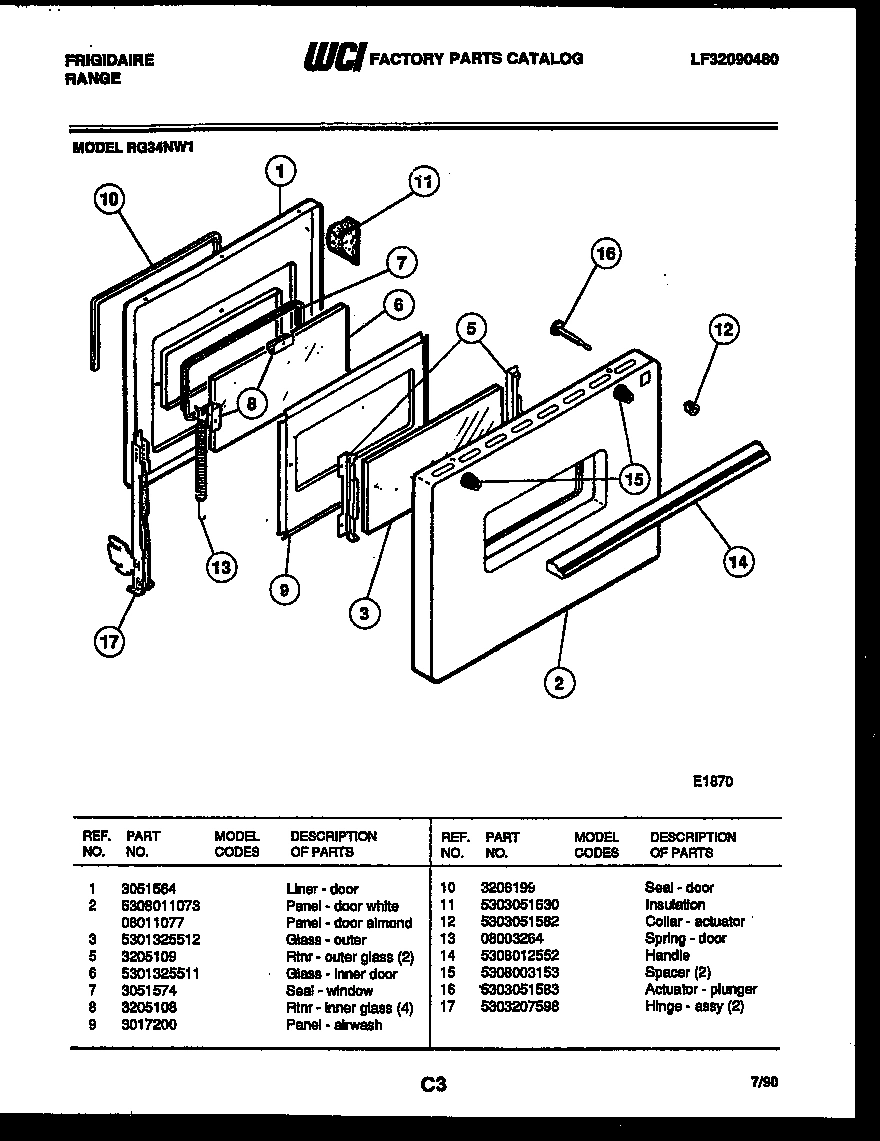

04 - DOOR PARTS

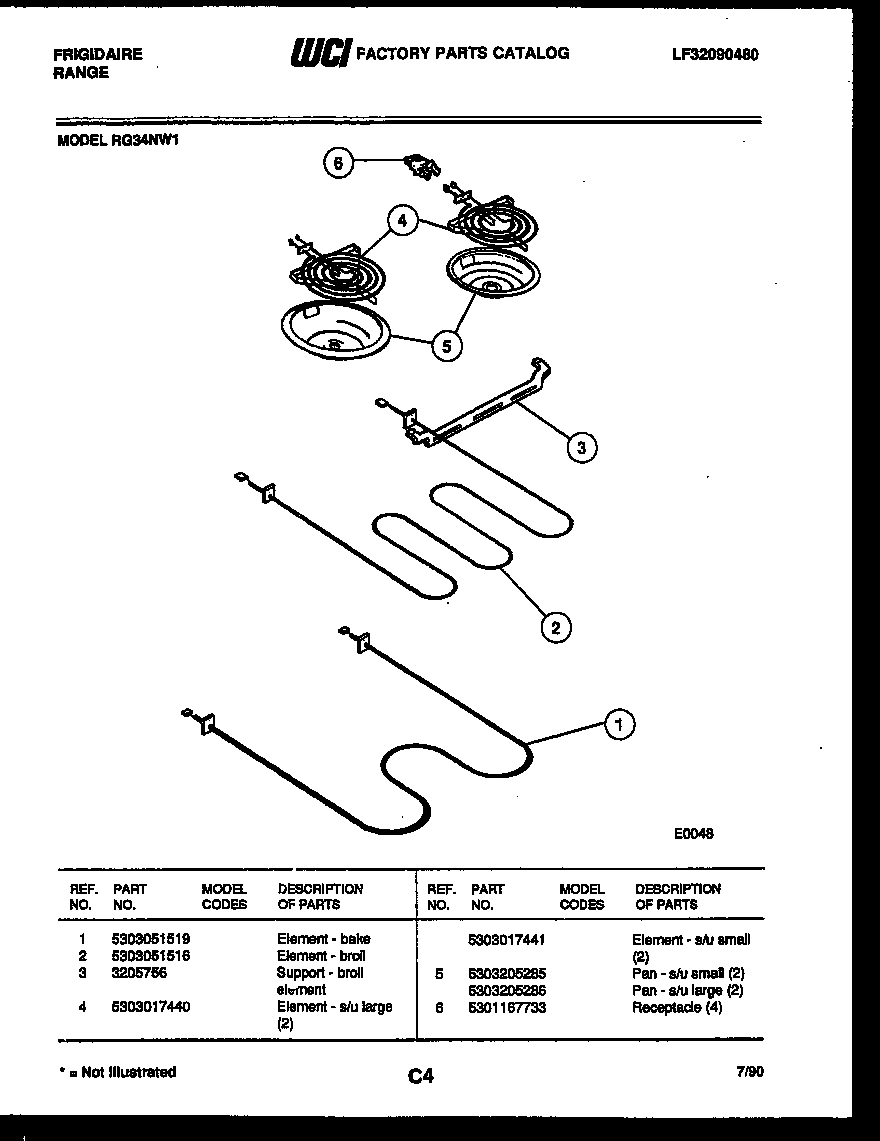

05 - BROILER PARTS

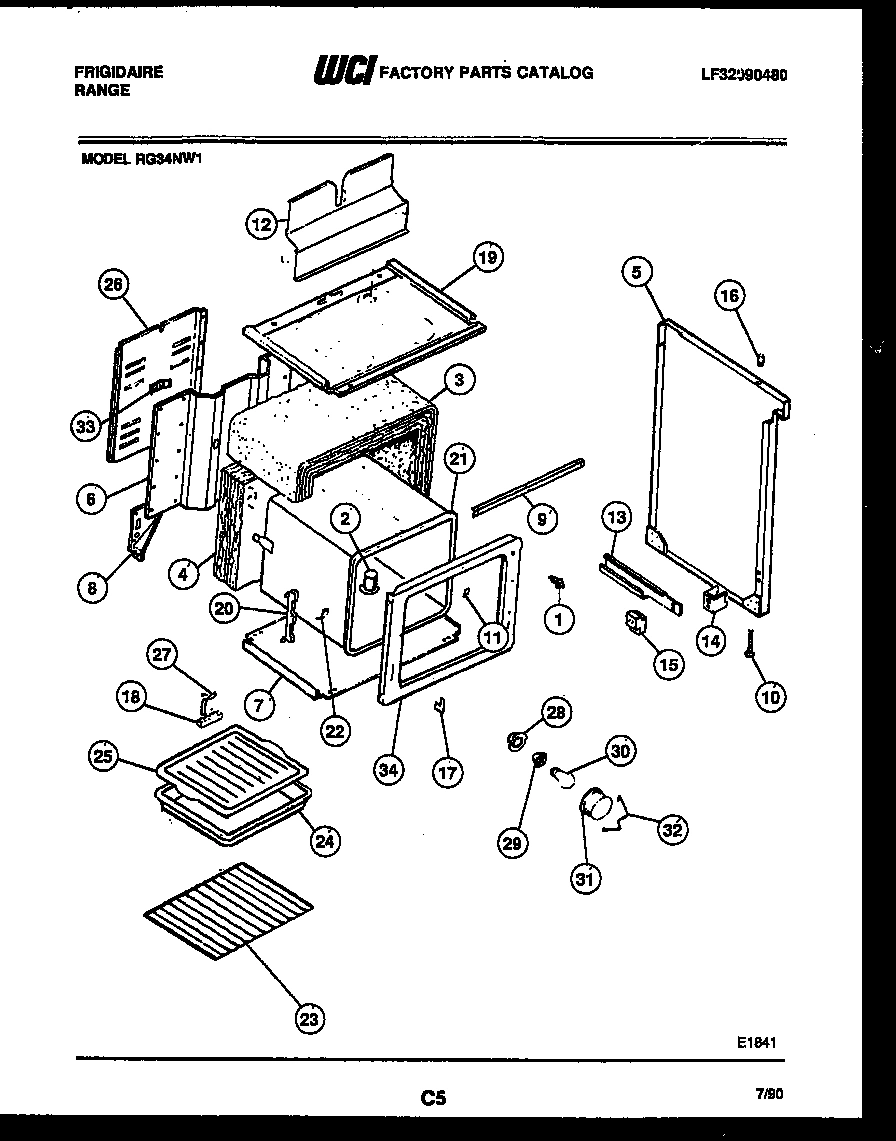

06 - BODY PARTS

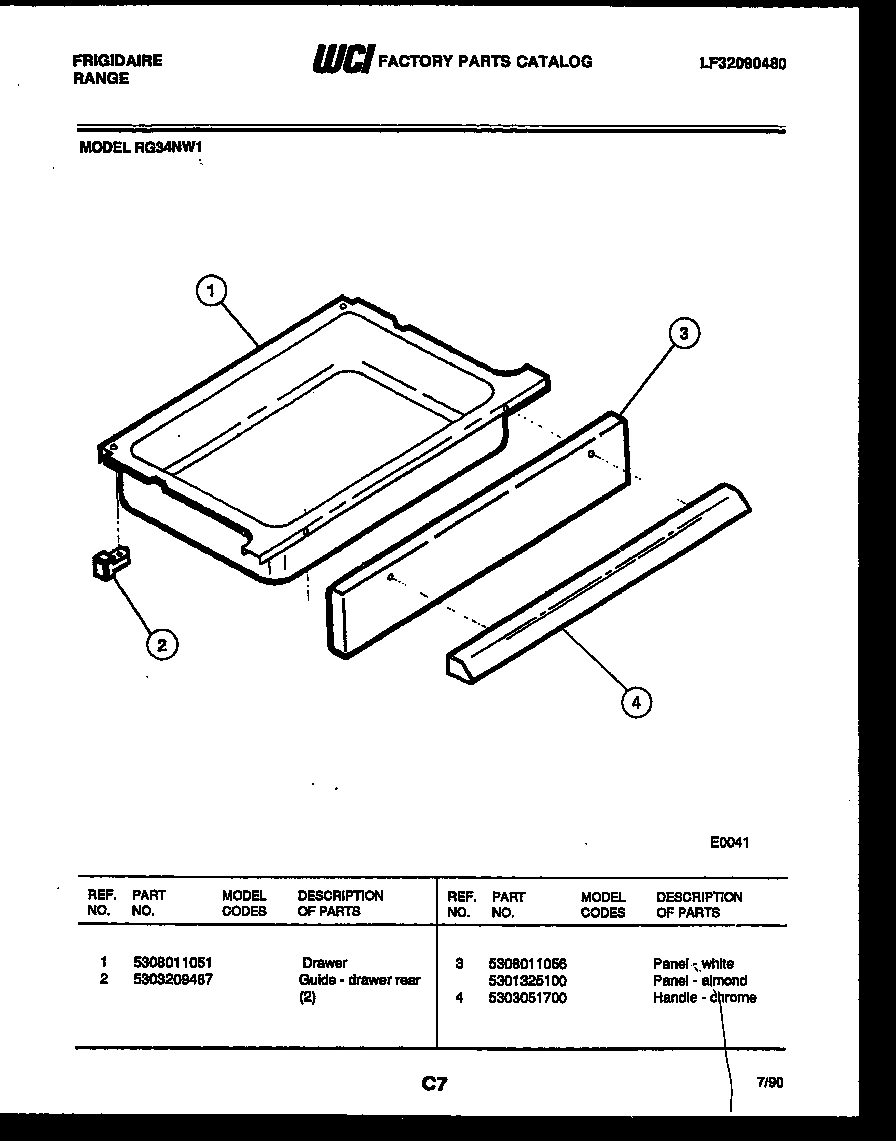

07 - DRAWER PARTS
Common parts from model Electrolux RG34NW1 RANGE
*35672
SCREW HEX SHOULDER WCI 3051050 Contact Us For Availability
*35676
PLATE-CONDUIT WCI 3203574 Contact Us For Availability
1
WCI 5301314211 WCI 5301314211 Contact Us For Availability
1
COOKTOP - WHITE WCI 5303211000 Contact Us For Availability
1
LINER-DOOR WCI 3051564 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
2
GUIDE - DRAWER REAR (2) WCI 5303209487 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
WCI 5308011073 WCI 5308011073 Contact Us For Availability
2
WCI 08012541 WCI 08012541 Contact Us For Availability
3
ROD - TOP SUPPORT LH WCI 5303211119 Contact Us For Availability
3
WCI 5301325512 WCI 5301325512 Contact Us For Availability
3
SUPPORT-BROIL ELEMENT WCI 3205756 Contact Us For Availability
3
INSULATION - OVEN WRAP WCI 3051521 Contact Us For Availability
3
PANEL, WHITE WCI 5308011056 Contact Us For Availability
3A
ROD - TOP SUPPORT RH WCI 5303211120 Contact Us For Availability
4
INSULATION, OVEN BACK WCI 5303051630 Contact Us For Availability
4
HANDLE - CHROME WCI 5303051700 Contact Us For Availability
5
RTNR - OUTER GLASS (2) WCI 3205109 Contact Us For Availability
5
PANEL-SIDE RH-WHITE WCI 5308012527 Contact Us For Availability
5A
PANEL-SIDE LH-WHITE WCI 5308012528 Contact Us For Availability
6
SWITCH, SELECTOR WCI 08015934 Contact Us For Availability
6
GLASS INNER DOOR WCI 5301325511 Contact Us For Availability
6
WCI 3205757 WCI 3205757 Contact Us For Availability
7
SEAL WINDOW WCI 3051574 Contact Us For Availability
7
WCI 3206275 WCI 3206275 Contact Us For Availability
8
RTNR - INNER GLASS (4) WCI 3205108 Contact Us For Availability
8
WCI 3017481 WCI 3017481 Contact Us For Availability
8A
WCI 3017482 WCI 3017482 Contact Us For Availability
9
WCI 3017200 WCI 3017200 Contact Us For Availability
9
WCI 5303207391 WCI 5303207391 Contact Us For Availability
9A
WCI 08012554 WCI 08012554 Contact Us For Availability
10
SUPPORT RH WCI 08015966 Contact Us For Availability
10
WCI 3206199 WCI 3206199 Contact Us For Availability
10
SCREW-LEVELING (4) WCI 5303205540 Contact Us For Availability
10A
SUPPORT - LH WCI 5308015967 Contact Us For Availability
11
BRACKET, HINGE (2) WCI 5308012538 Contact Us For Availability
11
WCI 3202082 WCI 3202082 Contact Us For Availability
12
WCI 5303211170 WCI 5303211170 Contact Us For Availability
12
COLLAR ACTUATOR WCI 5303051582 Contact Us For Availability
12
WCI 3206095 WCI 3206095 Contact Us For Availability
13
WCI 5303211385 WCI 5303211385 Contact Us For Availability
13
WCI 08003264 WCI 08003264 Contact Us For Availability
13
WCI 5308015746 WCI 5308015746 Contact Us For Availability
13A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
14
KNOBS - CLOCK (3) WCI 5303210414 Contact Us For Availability
14
HANDLE WCI 5308012552 Contact Us For Availability
14
SPACER, DRAWER RAIL (2) WCI 3051653 Contact Us For Availability
15
BRACKET - MOUNTING WCI 3204642 Contact Us For Availability
15
SPACER (2) WCI 5308003153 Contact Us For Availability
15
GUIDE, DRAWER FRONT (2) WCI 3051654 Contact Us For Availability
16
ACTUATOR-PLUNGER WCI 5303051583 Contact Us For Availability
16
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
17
HINGE - ASSY (2) WCI 5303207598 Contact Us For Availability
17
WCI 3019063 WCI 3019063 Contact Us For Availability
19
WCI 08012542 WCI 08012542 Contact Us For Availability
20
CHANNEL ASSY HINGES (2) WCI 3201631 Contact Us For Availability
21
WCI 3206079 WCI 3206079 Contact Us For Availability
22
WCI 3201632 WCI 3201632 Contact Us For Availability
24
WCI 3205539 WCI 3205539 Contact Us For Availability
25
GRILLE, BROILER WCI 3206091 Contact Us For Availability
26
WIRE, COVER WCI 5303051856 Contact Us For Availability
27
WCI 5301145190 WCI 5301145190 Contact Us For Availability
28
WCI 3051511 WCI 3051511 Contact Us For Availability
32
RETAINER WCI 5303205904 Contact Us For Availability
32A
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
32B
WCI 5300009126 WCI 5300009126 Contact Us For Availability
33
WCI 3016281 WCI 3016281 Contact Us For Availability
34
WCI 5303207446 WCI 5303207446 Contact Us For Availability
× ![]()
