Model Electrolux RG32BNW2 RANGE – Common Parts & Diagrams

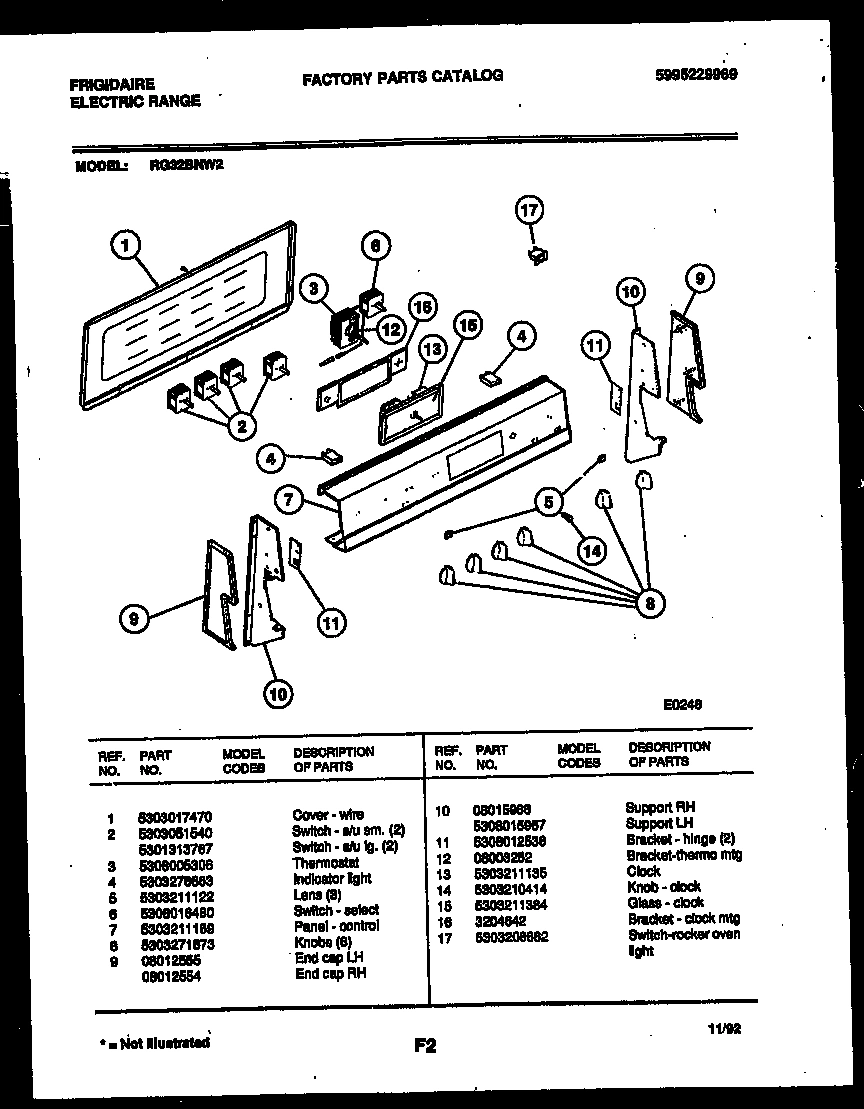

02 - CONTROL PANEL

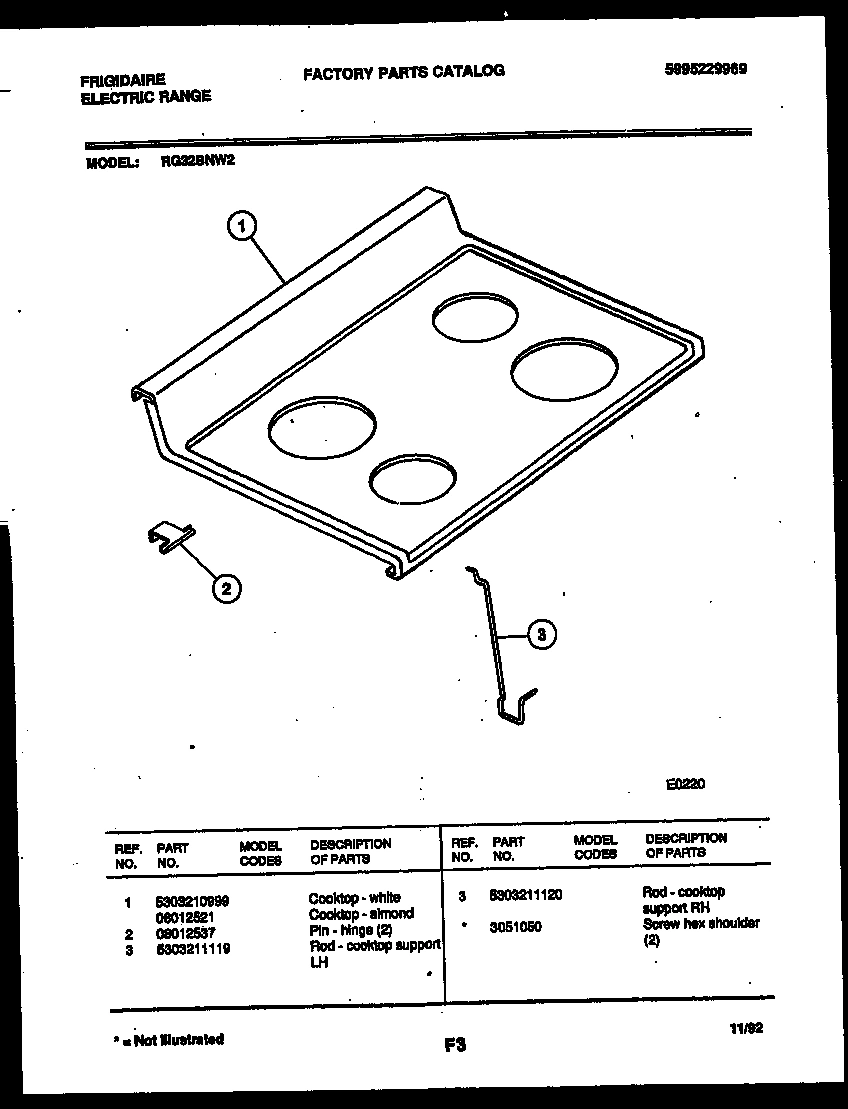

03 - COOKTOP PARTS

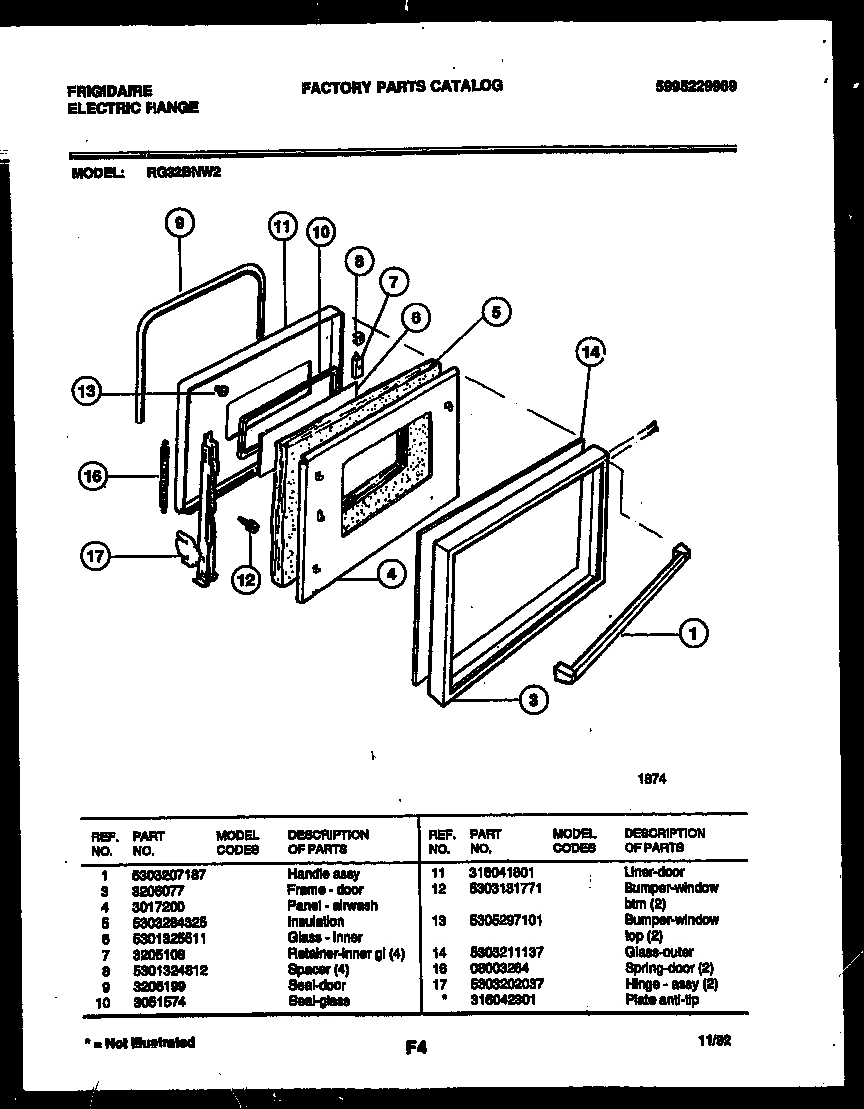

04 - DOOR PARTS

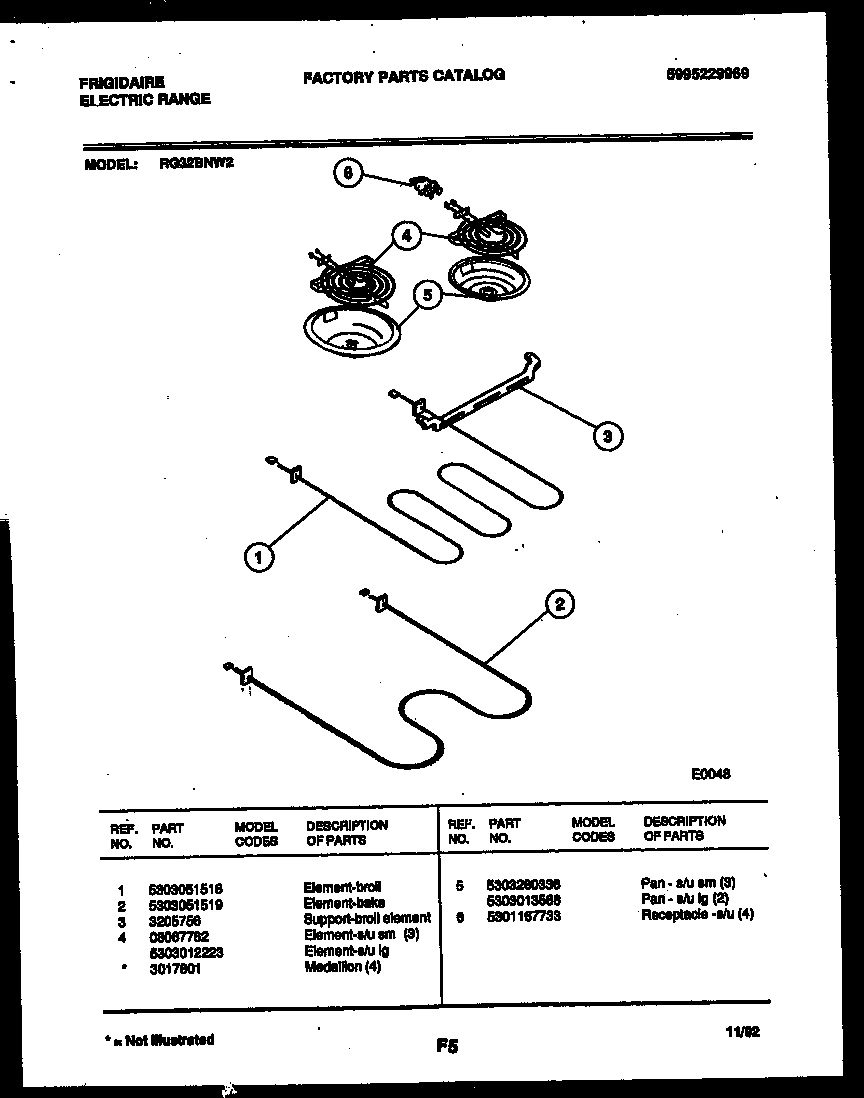

05 - BROILER PARTS

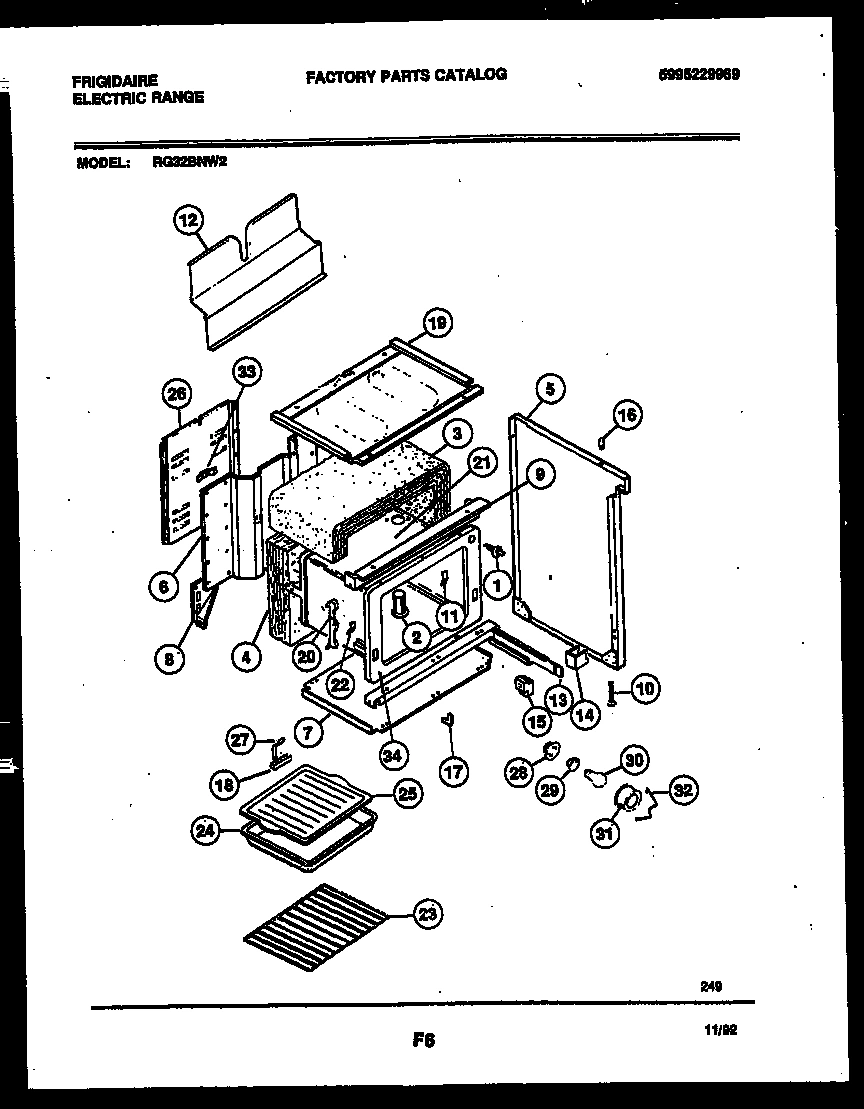

06 - BODY PARTS

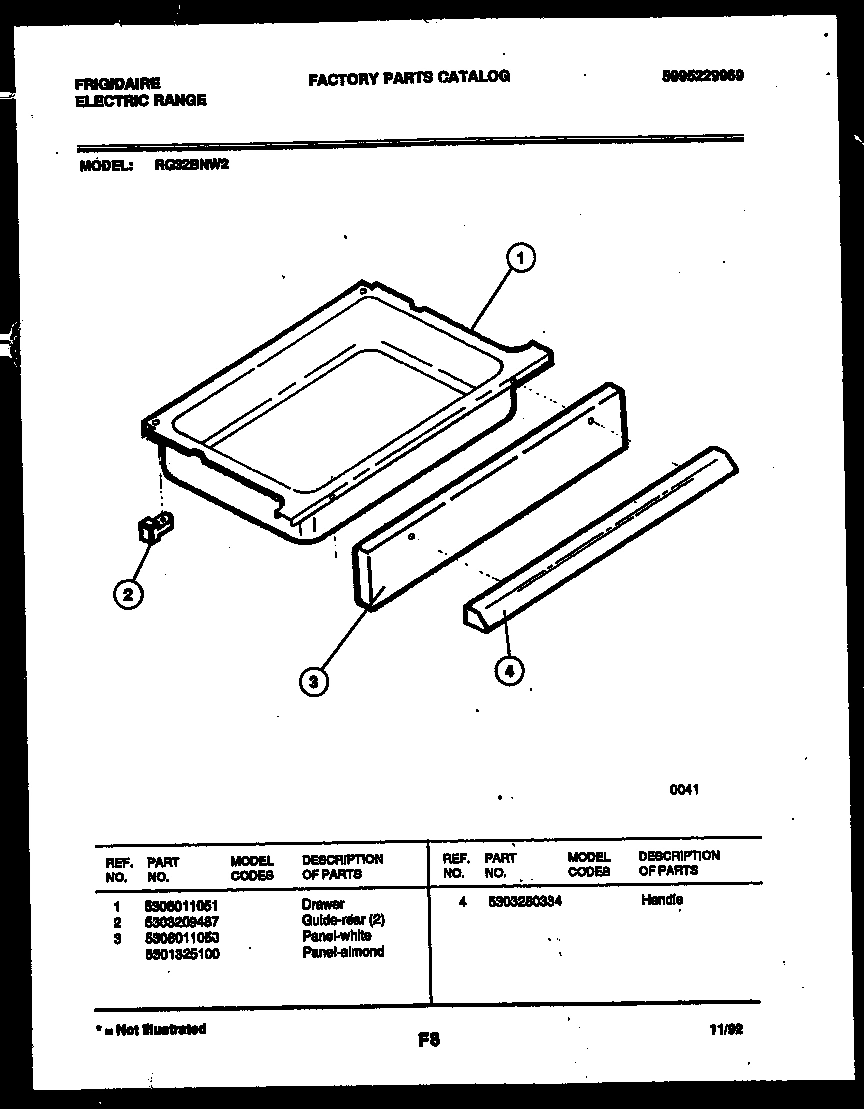

07 - DRAWER PARTS
Common parts from model Electrolux RG32BNW2 RANGE
*70801
SCREW HEX SHOULDER (2) WCI 3051050 Contact Us For Availability
*70803
PLATE ANTI-TIP WCI 316042301 Contact Us For Availability
*70812
WCI 19100210094 WCI 19100210094 Contact Us For Availability
*70812
PLATE-CONDUIT WCI 3203574 Contact Us For Availability
*70812
WCI 3934063 WCI 3934063 Contact Us For Availability
1
WCI 5301314211 WCI 5301314211 Contact Us For Availability
1
COOKTOP-WHITE WCI 5303210999 Contact Us For Availability
1
HANDLE ASSY WCI 5303207187 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
2
GUIDE-REAR (2) WCI 5303209487 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
WCI 08012541 WCI 08012541 Contact Us For Availability
3
THERMOSTAT WCI 5308005306 Contact Us For Availability
3
ROD - COOKTOP SUPPORT LH WCI 5303211119 Contact Us For Availability
3
ROD - COOKTOP SUPPORT RH WCI 5303211120 Contact Us For Availability
3
FRAME, DOOR WCI 3206077 Contact Us For Availability
3
SUPPORT-BROIL ELEMENT WCI 3205756 Contact Us For Availability
3
INSULATION-OV WRAP WCI 3051521 Contact Us For Availability
3
PANEL, WHITE WCI 5308011056 Contact Us For Availability
4
WCI 5303276663 WCI 5303276663 Contact Us For Availability
4
WCI 3017200 WCI 3017200 Contact Us For Availability
4
WCI 5303274967 WCI 5303274967 Contact Us For Availability
4
HANDLE WCI 5303280334 Contact Us For Availability
4B
MEDALLION (4) (NON-ILLUSTRATED) WCI 3017801 Contact Us For Availability
5
WCI 5303284325 WCI 5303284325 Contact Us For Availability
5
PANEL-SIDE RH-WHITE WCI 5308012527 Contact Us For Availability
5A
PANEL-SIDE LH-WHITE WCI 5308012528 Contact Us For Availability
6
SWITCH - SELECT WCI 5308016480 Contact Us For Availability
6
WCI 5301325511 WCI 5301325511 Contact Us For Availability
6
BACK WCI 3205757 Contact Us For Availability
7
RETAINER-INNER GL (4) WCI 3205108 Contact Us For Availability
7
WCI 3206275 WCI 3206275 Contact Us For Availability
8
WCI 5301324812 WCI 5301324812 Contact Us For Availability
8
WCI 3017481 WCI 3017481 Contact Us For Availability
8A
WCI 3017482 WCI 3017482 Contact Us For Availability
9
WCI 3206199 WCI 3206199 Contact Us For Availability
9
WCI 5303207391 WCI 5303207391 Contact Us For Availability
10
SEAL-GLASS WCI 3051574 Contact Us For Availability
10
SCREW-LEVELING WCI 5303205540 Contact Us For Availability
11
LINER - DOOR WCI 316041801 Contact Us For Availability
11
WCI 3202082 WCI 3202082 Contact Us For Availability
12
BUMPER-WINDOW BTM (2) WCI 5303131771 Contact Us For Availability
12
WCI 3206095 WCI 3206095 Contact Us For Availability
13
WCI 5303211135 WCI 5303211135 Contact Us For Availability
13
BUMPER-WINDOW TOP (2) WCI 5305297101 Contact Us For Availability
13
WCI 5308015746 WCI 5308015746 Contact Us For Availability
13A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
14
WCI 5303210414 WCI 5303210414 Contact Us For Availability
14
GLASS-OUTER WCI 5303211137 Contact Us For Availability
14
SPACER, DRAWER RAIL (2) WCI 3051653 Contact Us For Availability
15
WCI 5303211384 WCI 5303211384 Contact Us For Availability
15
GUIDE, DRAWER FRONT (2) WCI 3051654 Contact Us For Availability
16
BRACKET-CLOCK MTG WCI 3204642 Contact Us For Availability
16
WCI 08003264 WCI 08003264 Contact Us For Availability
16
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
17
HINGE-ASSY (2) WCI 5303202037 Contact Us For Availability
17
WCI 3019063 WCI 3019063 Contact Us For Availability
19
PANEL - SUBTOP WCI 5303292692 Contact Us For Availability
20
CHANNEL-ASSY. HINGES WCI 3201631 Contact Us For Availability
21
LINER-OVEN WCI 5303292686 Contact Us For Availability
22
WCI 3201632 WCI 3201632 Contact Us For Availability
24
WCI 5303292688 WCI 5303292688 Contact Us For Availability
25
GRILLE - BROILER WCI 5303293176 Contact Us For Availability
26
WIRE, COVER WCI 5303051856 Contact Us For Availability
27
WCI 5301145190 WCI 5301145190 Contact Us For Availability
28
CUP-OVEN LIGHT WCI 5303271606 Contact Us For Availability
32
RETAINER WCI 5303205904 Contact Us For Availability
33
WCI 3016281 WCI 3016281 Contact Us For Availability
34
FRONT - OVEN WCI 316042103 Contact Us For Availability
× ![]()
