Model Hotpoint RF725GL3 Electric Range – Common Parts & Diagrams
0
1
2
3
4

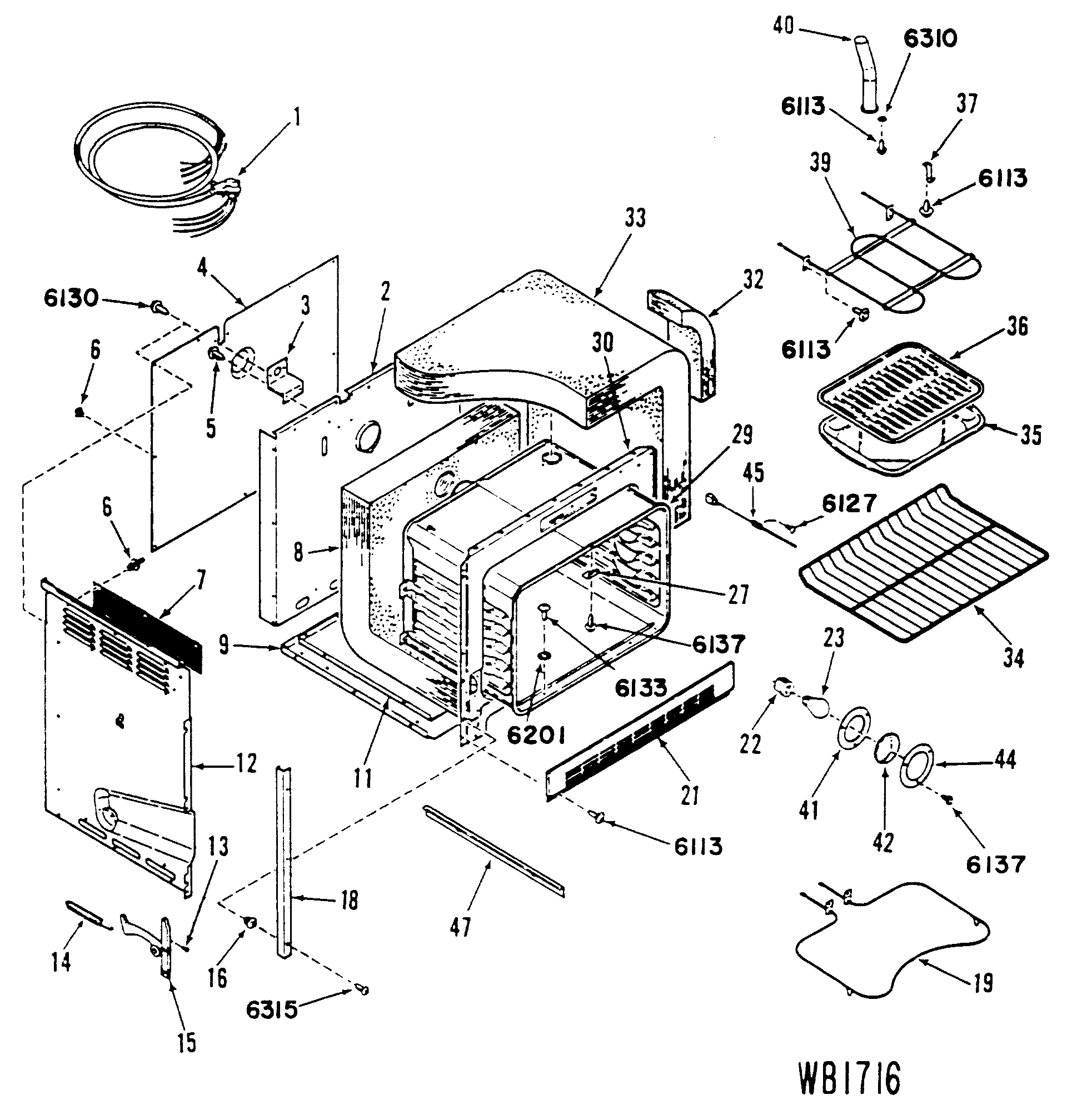

Common parts from model Hotpoint RF725GL3 Electric Range
1
UNKNOWN GEN WB18X0369 Contact Us For Availability
2
UNKNOWN GEN WB63X0370 Contact Us For Availability
3
UNKNOWN GEN WB02X9577 Contact Us For Availability
4
UNKNOWN GEN WB02X9572 Contact Us For Availability
6
GEN WB01X1414 GEN WB01X1414 Contact Us For Availability
7
UNKNOWN GEN WB02X9574 Contact Us For Availability
8
UNKNOWN GEN WB02X9144 Contact Us For Availability
9
UNKNOWN GEN WB63X0365 Contact Us For Availability
11
UNKNOWN GEN WB63X0366 Contact Us For Availability
12
UNKNOWN GEN WB63X0367 Contact Us For Availability
12
UNKNOWN GEN WB63X0368 Contact Us For Availability
14
GEN WB09X0278 GEN WB09X0278 Contact Us For Availability
15
UNKNOWN GEN WB14X0134 Contact Us For Availability
15
UNKNOWN GEN WB14X0135 Contact Us For Availability
16
UNKNOWN GEN WB02X9575 Contact Us For Availability
18
UNKNOWN GEN WB07X1678 Contact Us For Availability
18
UNKNOWN GEN WB07X1679 Contact Us For Availability
21
UNKNOWN GEN WB07X1680 Contact Us For Availability
23
UNKNOWN GEN BUY LOCAL Contact Us For Availability
27
UNKNOWN GEN WB02X9152 Contact Us For Availability
29
UNKNOWN GEN WB53X0279 Contact Us For Availability
30
UNKNOWN GEN WB63X0429 Contact Us For Availability
33
UNKNOWN GEN WB02X9776 Contact Us For Availability
34
UNKNOWN GEN WB48X0210 Contact Us For Availability
40
UNKNOWN GEN WB38X0124 Contact Us For Availability
41
UNKNOWN GEN WB02X9151 Contact Us For Availability
42
UNKNOWN GEN WB36X0754 Contact Us For Availability
44
UNKNOWN GEN WB02X9150 Contact Us For Availability
211
BRACKET-CP MOUNT-RIGHT GEN WB02X9566 Contact Us For Availability
212
RELAY CIRCUIT BOARD GEN WB27X0519 Contact Us For Availability
214
RELAY CIRCUIT BOARD GEN WB27X0544 Contact Us For Availability
215
SWITCH-OVEN LIGHT GEN WB24X0415 Contact Us For Availability
218
GEN WB07X1772 GEN WB07X1772 Contact Us For Availability
220
LENS-CLOCK GEN WB36X0800 Contact Us For Availability
222
LENS STIFFENER GEN WB02X9884 Contact Us For Availability
223
GEN WB19X0264 GEN WB19X0264 Contact Us For Availability
232
INSULATOR-RELAY GEN WB02X9890 Contact Us For Availability
236
BRACKET-FAN GEN WB02X9131 Contact Us For Availability
238
GEN WB02X9885 GEN WB02X9885 Contact Us For Availability
240
GEN WB02X9886 GEN WB02X9886 Contact Us For Availability
240
INSULATION-BURNER BOX EX GEN WB02X9888 Contact Us For Availability
251
INSUL-CONTROL COVER-L/R GEN WB06X0006 Contact Us For Availability
256
END CAP LT CHROME GEN WB07X1675 Contact Us For Availability
256
END CAP RT CHROME GEN WB07X1676 Contact Us For Availability
259
GEN WB27X0546 GEN WB27X0546 Contact Us For Availability
262
COVER-CONTROL GEN WB02X9887 Contact Us For Availability
264
GEN WB02X9158 GEN WB02X9158 Contact Us For Availability
267
GEN WB02X9891 GEN WB02X9891 Contact Us For Availability
269
GEN WB02X9892 GEN WB02X9892 Contact Us For Availability
271
GEN WB02X9893 GEN WB02X9893 Contact Us For Availability
276
KNOB-INFINITE HEAT SWTCH GEN WB03X0806 Contact Us For Availability
277
KNOB-CLOCK/OVEN CONTROL GEN WB03X0773 Contact Us For Availability
278
GEN WB06X0008 GEN WB06X0008 Contact Us For Availability
303
UNKNOWN GEN WB62X1699 Contact Us For Availability
305
UNKNOWN GEN WB14X0136 Contact Us For Availability
306
UNKNOWN GEN WB02X9568 Contact Us For Availability
342
UNKNOWN GEN WB02X9569 Contact Us For Availability
343
UNKNOWN GEN WB63X0373 Contact Us For Availability
344
GEN WB63X0428 GEN WB63X0428 Contact Us For Availability
345
UNKNOWN GEN WB02X9570 Contact Us For Availability
351
UNKNOWN GEN WB02X9895 Contact Us For Availability
370
UNKNOWN GEN WB04X0122 Contact Us For Availability
378
UNKNOWN GEN WB17X0213 Contact Us For Availability
392
UNKNOWN GEN WB02X9571 Contact Us For Availability
394
UNKNOWN GEN WB02X9894 Contact Us For Availability
396
UNKNOWN GEN WB02X9896 Contact Us For Availability

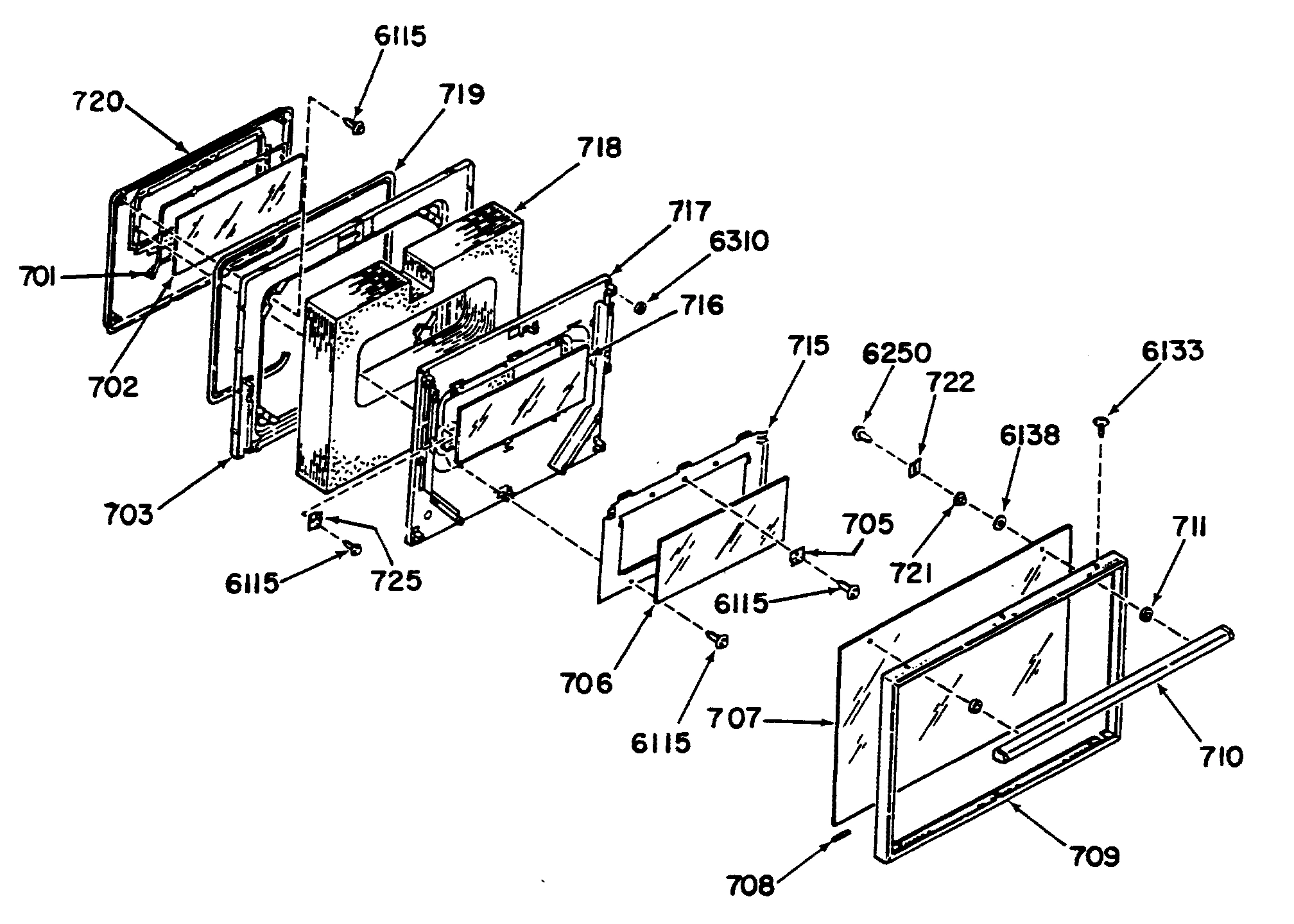

702
UNKNOWN GEN WB56X1905 Contact Us For Availability
703
UNKNOWN GEN WB56X1904 Contact Us For Availability
705
UNKNOWN GEN WB02X9382 Contact Us For Availability
706
UNKNOWN GEN WB56X1906 Contact Us For Availability
708
UNKNOWN GEN WB02X9036 Contact Us For Availability
709
UNKNOWN GEN WB07X1622 Contact Us For Availability
710
UNKNOWN GEN WB15X0272 Contact Us For Availability
711
UNKNOWN GEN WB02X9037 Contact Us For Availability
715
UNKNOWN GEN WB02X9178 Contact Us For Availability
716
UNKNOWN GEN WB56X1907 Contact Us For Availability
717
UNKNOWN GEN WB02X9372 Contact Us For Availability
718
UNKNOWN GEN WB02X9169 Contact Us For Availability
720
UNKNOWN GEN WB02X9171 Contact Us For Availability
721
UNKNOWN GEN WB02X9039 Contact Us For Availability
722
UNKNOWN GEN WB02X9384 Contact Us For Availability
725
UNKNOWN GEN WB02X9177 Contact Us For Availability

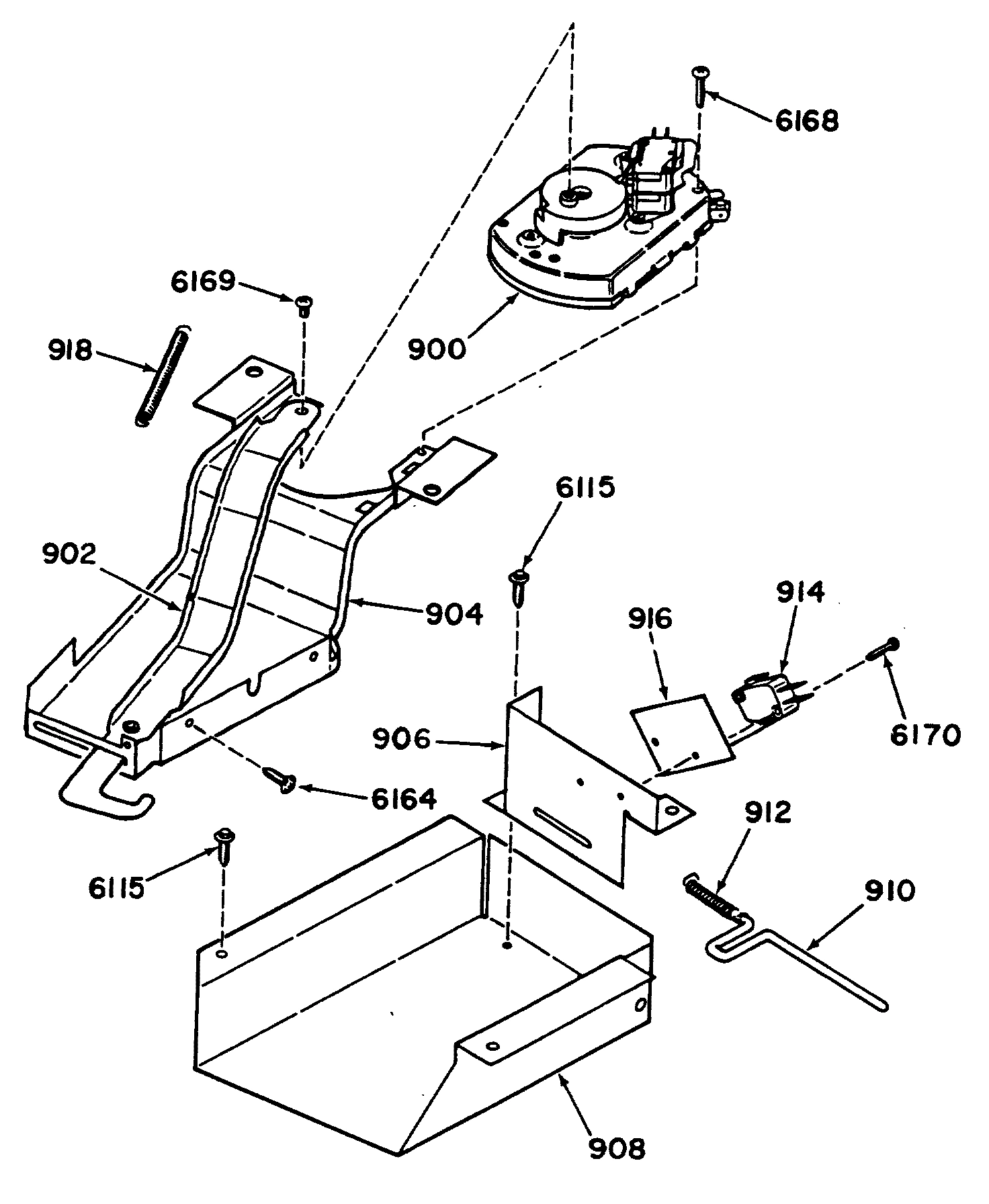

900
UNKNOWN GEN WB26X0127 Contact Us For Availability
902
UNKNOWN GEN WB02X9124 Contact Us For Availability
904
UNKNOWN GEN WB02X9125 Contact Us For Availability
906
UNKNOWN GEN WB06X0007 Contact Us For Availability
908
UNKNOWN GEN WB02X9126 Contact Us For Availability
910
UNKNOWN GEN WB02X9128 Contact Us For Availability
912
UNKNOWN GEN WB09X0242 Contact Us For Availability
914
UNKNOWN GEN WB24X0416 Contact Us For Availability
916
UNKNOWN GEN WB02X9129 Contact Us For Availability
918
UNKNOWN GEN WB09X0243 Contact Us For Availability
999
GEN WB24K5038 GEN WB24K5038 Contact Us For Availability
6113
UNKNOWN GEN WB01X1113 Contact Us For Availability
6138
UNKNOWN GEN WB01X1138 Contact Us For Availability
6164
UNKNOWN GEN WB01X1164 Contact Us For Availability
6168
UNKNOWN GEN WB01X1168 Contact Us For Availability
6169
UNKNOWN GEN WB01X1169 Contact Us For Availability
6170
UNKNOWN GEN WB01X1170 Contact Us For Availability
6171
SCREW 6-32X5/16" GEN WB01X1171 Contact Us For Availability
6178
UNKNOWN GEN WB01X1178 Contact Us For Availability
6201
UNKNOWN GEN WB01X1201 Contact Us For Availability
6250
UNKNOWN GEN WB01X1250 Contact Us For Availability
6265
SCREW 8-32X3/16" GEN WB01X1265 Contact Us For Availability
6310
UNKNOWN GEN WB01X1310 Contact Us For Availability
6311
GEN WB01X1311 GEN WB01X1311 Contact Us For Availability
6396
UNKNOWN GEN WB01X1396 Contact Us For Availability
32767
GEN 31-0833 GEN 31-0833 Contact Us For Availability
32767
GEN 39-4610 GEN 39-4610 Contact Us For Availability
× ![]()
