Model Whirlpool RF4700XEN3 – Common Parts & Diagrams

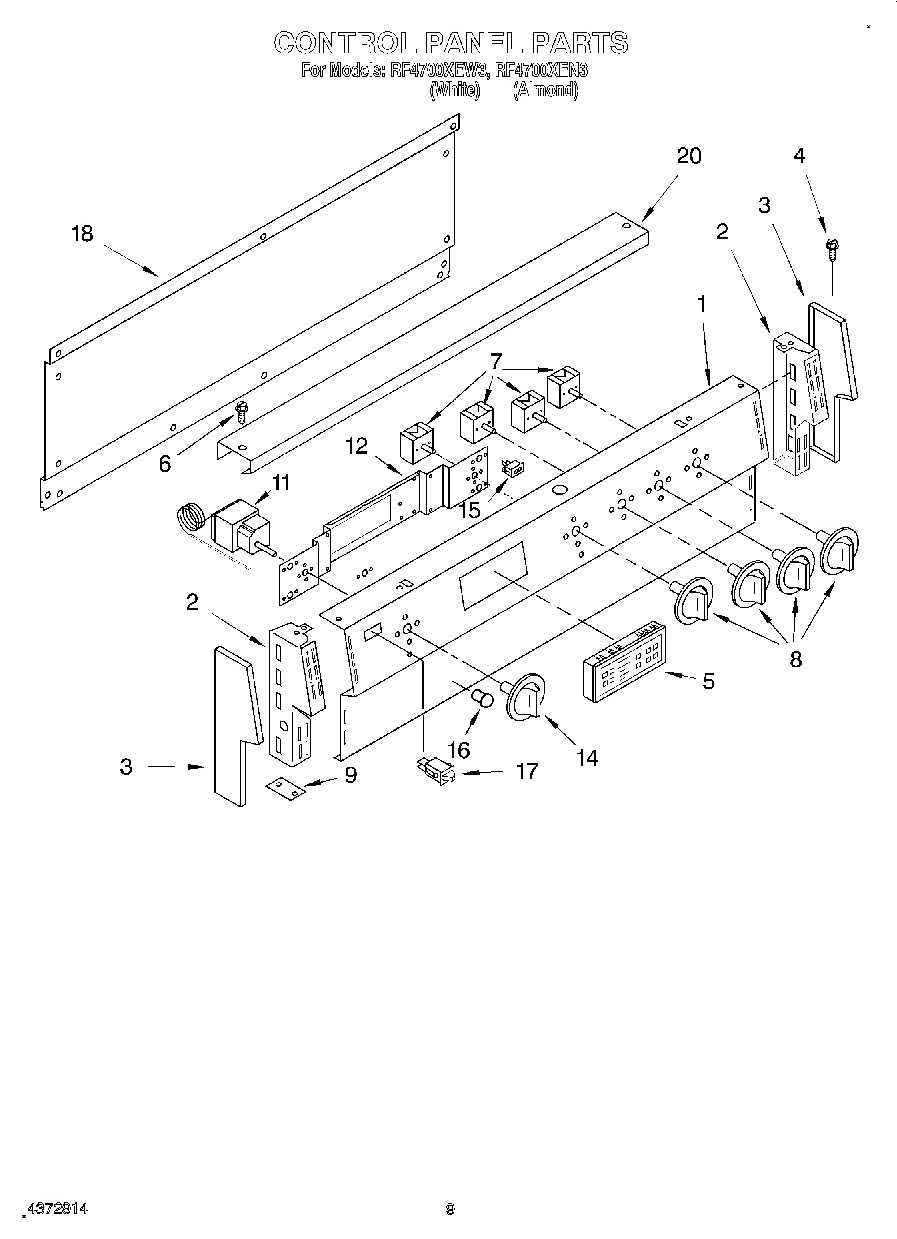

05 - CONTROL PANEL, LIT/OPTIONAL

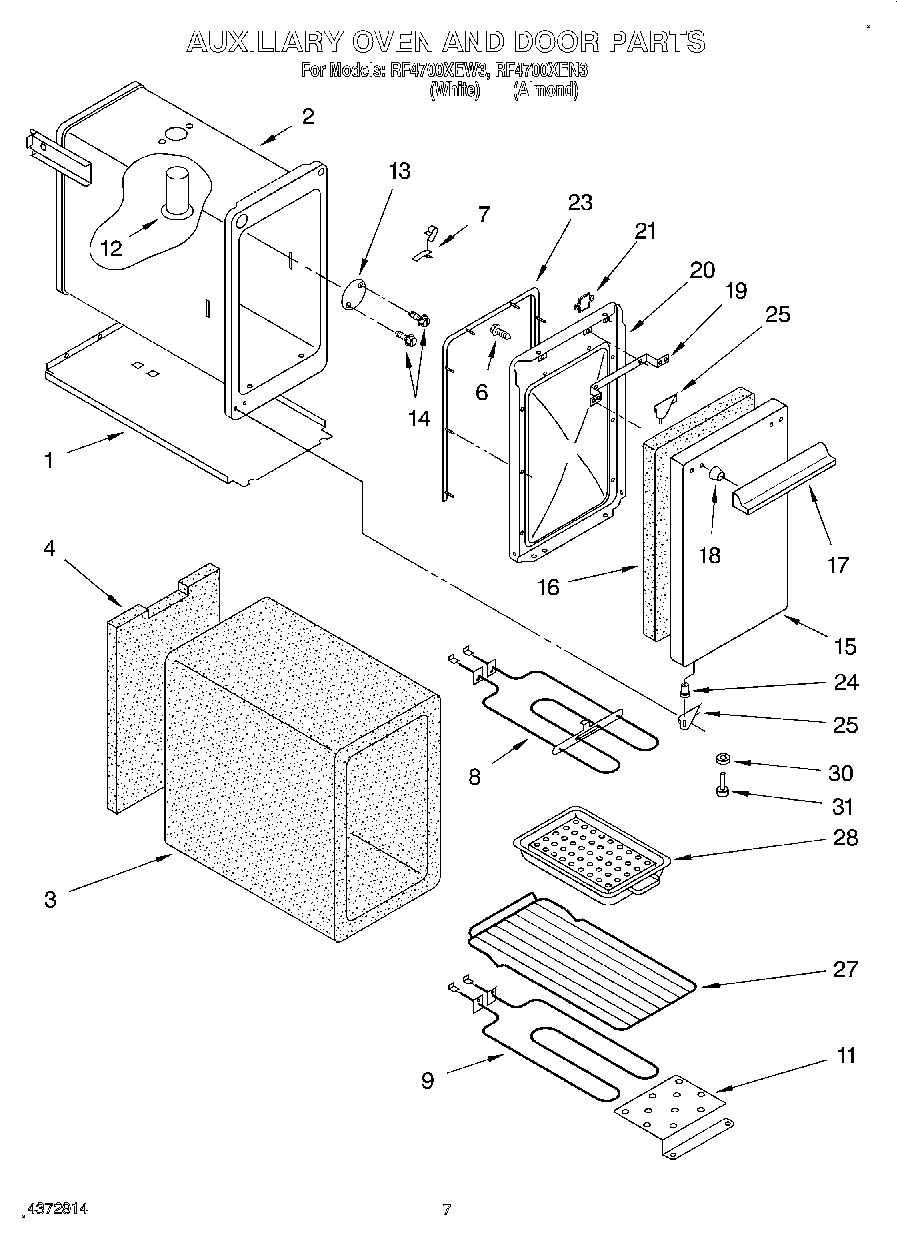

04 - AUXILIARY OVEN AND DOOR

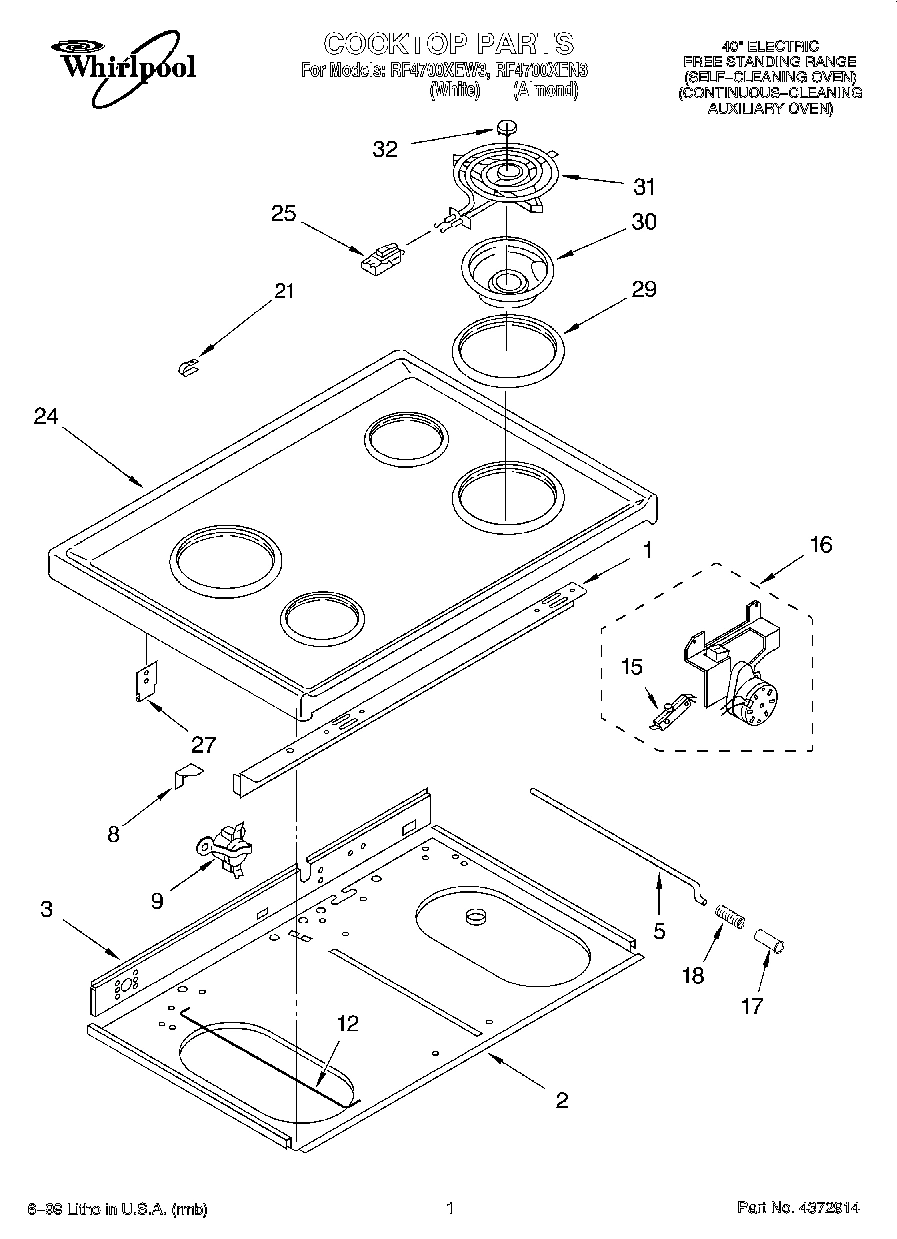

01 - COOKTOP

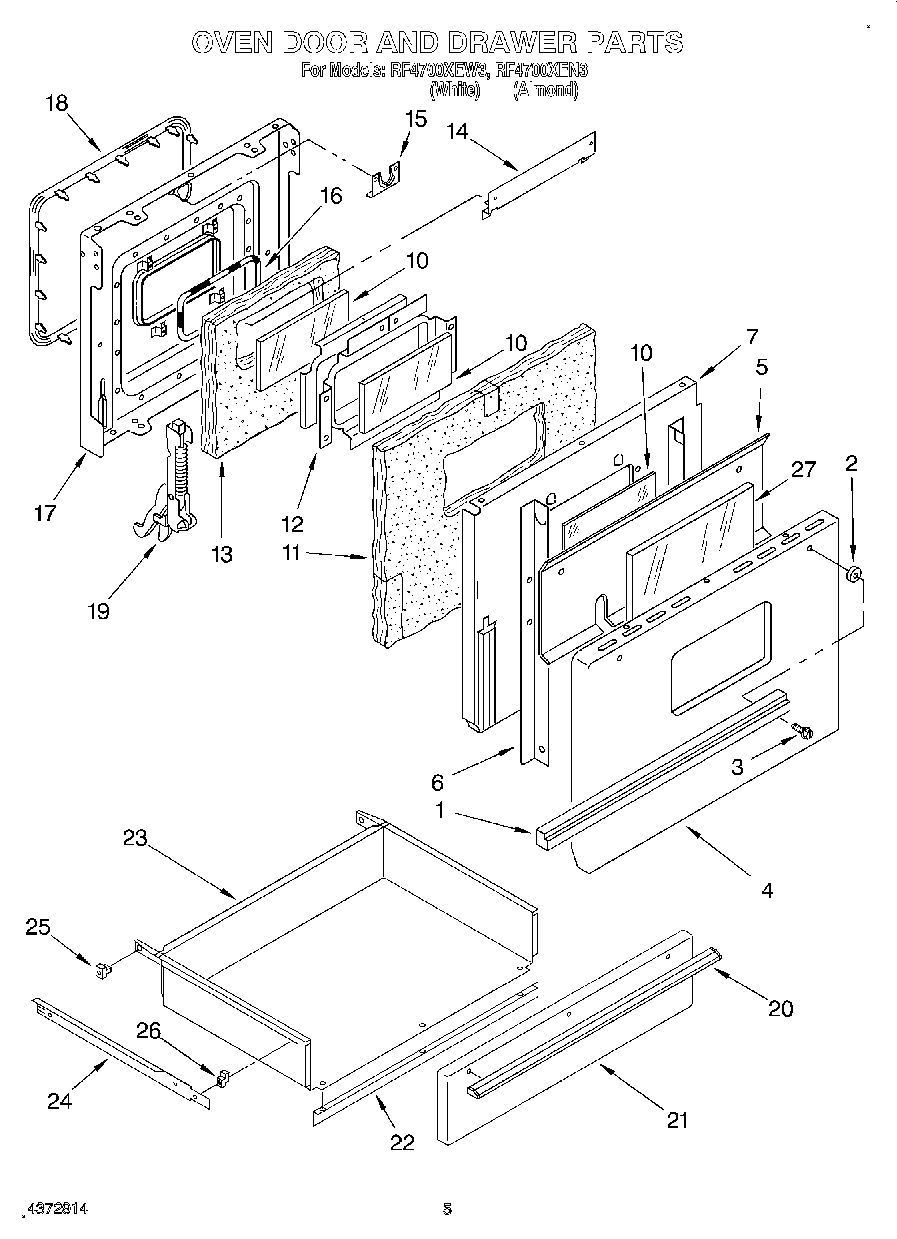

03 - OVEN DOOR AND DRAWER

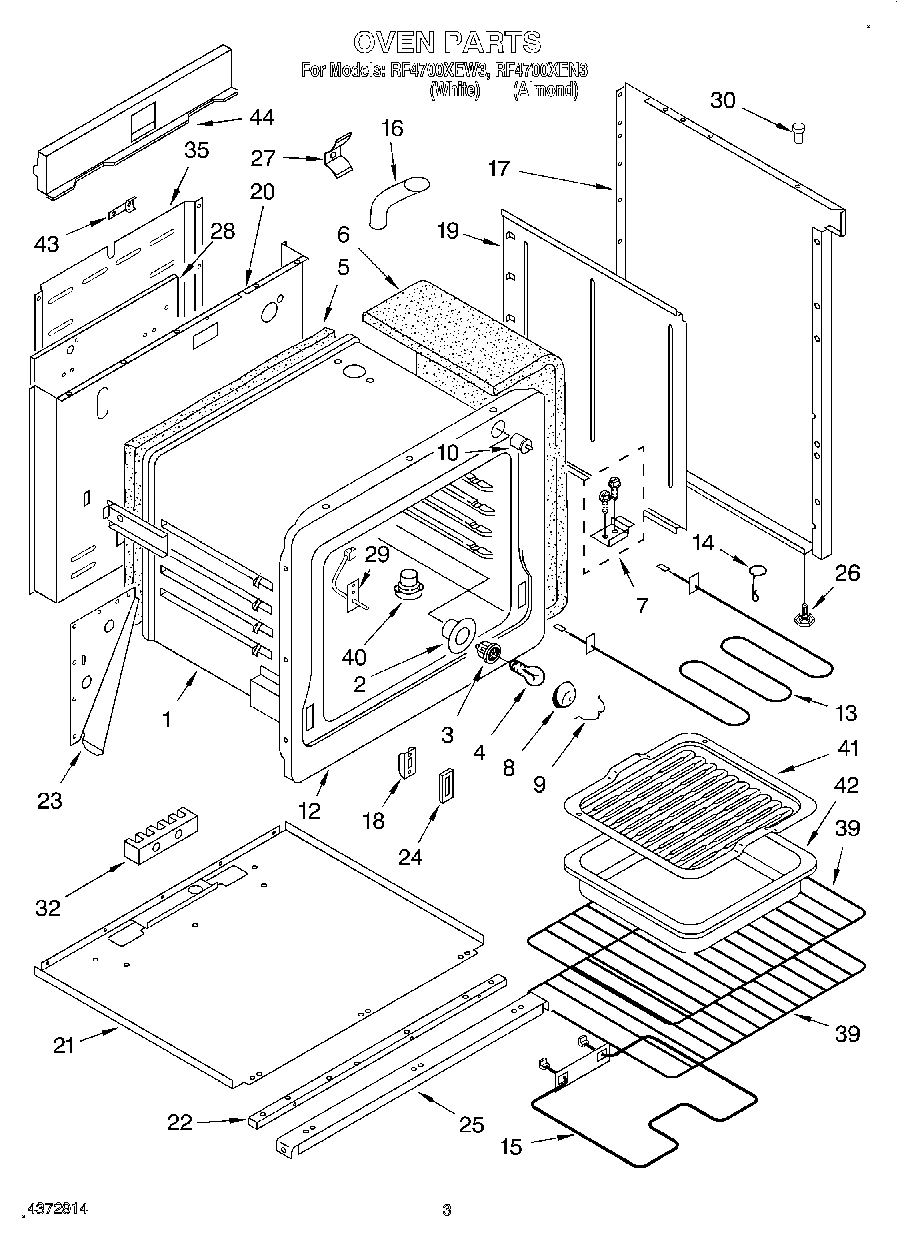

02 - OVEN
Common parts from model Whirlpool RF4700XEN3
1
Panel, Bottom WPL 4372626 Contact Us For Availability
1
Screw, 10-24 x 1/2 (2) WPL 868430 Contact Us For Availability
1
Bracket, Cooktop WPL 4372879 Contact Us For Availability
1
Handle, Oven Door WPL 4372370 Contact Us For Availability
1
Oven Body WPL 4372806 Contact Us For Availability
2
Liner, Auxiliary Oven WPL 4372803 Contact Us For Availability
2
Spacer, Handle (2) WPL 4372580 Contact Us For Availability
2
washer (5) WPL 241422 Contact Us For Availability
2
Panel, Sub Top WPL 4372802 Contact Us For Availability
2
Housing, Light WPL 4372613 Contact Us For Availability
3
End Cap (L.H. Almond) WPL 4372354 Contact Us For Availability
3
Insulation, Oven Wrap WPL 4372034 Contact Us For Availability
3
Shield, Wiring WPL 4372881 Contact Us For Availability
3
Screw, Handle (2) WPL 4372900 Contact Us For Availability
4
Screw, Endcap 8-18 x 1/2 (4) WPL 4372223 Contact Us For Availability
4
Insulation, Oven Back WPL 4372035 Contact Us For Availability
4
Panel, Door (White) WPL 4372595 Contact Us For Availability
4
Panel, Door (Almond) WPL 4372596 Contact Us For Availability
5
Clock, Timer WPL 4372867 Contact Us For Availability
5
Overlay, Clock WPL 4372868 Contact Us For Availability
5
Rod, Latch WPL 4372809 Contact Us For Availability
5
Deflector, Heat WPL 4372928 Contact Us For Availability
5
Insulation, Oven Back WPL 4372629 Contact Us For Availability
6
Screw WPL 4372875 Contact Us For Availability
6
Screw (2) WPL 4372893 Contact Us For Availability
6
Bracket, Door (R.H.) WPL 4372601 Contact Us For Availability
6
Bracket, Door (L.H.) WPL 4372602 Contact Us For Availability
6
Insulation, Oven Wrap WPL 4372628 Contact Us For Availability
7
Switch, Infin. (4) WPL 4372874 Contact Us For Availability
7
Clip, Thermo Bulb WPL 4371741 Contact Us For Availability
7
Baffle, Door WPL 4372588 Contact Us For Availability
7
Kit, Anti-Tip WPL 814121 Contact Us For Availability
8
Knob, Control (4) WPL 4372917 Contact Us For Availability
8
Element, Broil WPL 4372882 Contact Us For Availability
8
Bracket, Filler WPL 4372616 Contact Us For Availability
8
Lens, Light WPL 4372021 Contact Us For Availability
9
Spacer, Endcap WPL 4372918 Contact Us For Availability
9
Element, Bake WPL 4372883 Contact Us For Availability
9
Thermostat, Safety WPL 4372925 Contact Us For Availability
9
Retainer, Lens WPL 4372920 Contact Us For Availability
10
Glass, Door (3) WPL 4372591 Contact Us For Availability
10
Switch, Light WPL 4372841 Contact Us For Availability
11
Thermostat, Oven (Auxiliary Oven) WPL 4372915 Contact Us For Availability
11
Screw, 8-32 x 3/16 (2) WPL 877919 Contact Us For Availability
11
Shield, Bake Unit WPL 4372805 Contact Us For Availability
11
Insulation, Door WPL 4372590 Contact Us For Availability
12
Screw WPL 4372872 Contact Us For Availability
12
Bracket, Clock Mtg WPL 4372916 Contact Us For Availability
12
Vent Tube WPL 241978 Contact Us For Availability
12
Rod, Support WPL 4371397 Contact Us For Availability
12
Frame, Glass WPL 4372898 Contact Us For Availability
12
Frame, Front WPL 4372885 Contact Us For Availability
13
Plate, Cover WPL 4372884 Contact Us For Availability
13
Insulation, Window WPL 4372589 Contact Us For Availability
13
Element, Broil WPL 4372610 Contact Us For Availability
14
Screw Auxiliary Oven WPL 4372876 Contact Us For Availability
14
Knob, Thermostat WPL 816483 Contact Us For Availability
14
Screw, 10 - 24 x 1/2 (2) WPL 241428 Contact Us For Availability
14
Retainer, Glass WPL 4372604 Contact Us For Availability
14
Support, Broiler Element WPL 4372921 Contact Us For Availability
15
Light, Indicator (Indicator, Oven (2)) WPL 4371439 Contact Us For Availability
15
Panel, Oven Door (Auxiliary) (Almond) WPL 4372887 Contact Us For Availability
15
Panel, Oven Door (Auxiliary) (White) WPL 4372888 Contact Us For Availability
15
Switch, Latch WPL 4372923 Contact Us For Availability
15
Latch, Door WPL 4372605 Contact Us For Availability
15
Element, Bake WPL 4372609 Contact Us For Availability
16
Screw, 10-24 x1/2 (2) WPL 486146 Contact Us For Availability
16
Lens, Indicator WPL 4372578 Contact Us For Availability
16
Insulation, Aux. Oven Door WPL 4372033 Contact Us For Availability
16
Motor, Latch (Complete) WPL 4372922 Contact Us For Availability
16
Screw, 4-40 x 1-1/4 (2) WPL 834903 Contact Us For Availability
16
Gasket, Window WPL 4372603 Contact Us For Availability
16
Vent Tube WPL 4372614 Contact Us For Availability
17
Switch, Oven Light WPL 4372576 Contact Us For Availability
17
Handle, Door WPL 4372367 Contact Us For Availability
17
Screw WPL 4372793 Contact Us For Availability
17
Bushing, Latch WPL 4372807 Contact Us For Availability
17
Liner, Door WPL 4372795 Contact Us For Availability
17
Panel, Body-Side (Almond R.H.) WPL 4372382 Contact Us For Availability
17
Panel, Body-Side (Almond L.H.) WPL 4372383 Contact Us For Availability
17
Panel, Body-Side (White R.H.) WPL 816147 Contact Us For Availability
17
Panel, Body-Side (White L.H.) WPL 816149 Contact Us For Availability
18
Cover, Backguard WPL 4372356 Contact Us For Availability
18
Spring, Latch WPL 4372808 Contact Us For Availability
18
Gasket, Door WPL 4372927 Contact Us For Availability
18
Receptacle, Hinge WPL 4372634 Contact Us For Availability
19
Spacer, Door WPL 4372583 Contact Us For Availability
19
Hinge Assembly (2) WPL 4372599 Contact Us For Availability
19
Retainer, Insulation WPL 4372619 Contact Us For Availability
20
WPL 799344 WPL 799344 Contact Us For Availability
20
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
20
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
20
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
20
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
20
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
20
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
20
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
20
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
20
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
20
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
20
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
20
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
20
Grease WPL 261582 Contact Us For Availability
20
Coffee WPL 261886 Contact Us For Availability
20
New Avocado WPL 261888 Contact Us For Availability
20
Harvest Gold WPL 261890 Contact Us For Availability
20
Harvest WPL 261891 Contact Us For Availability
20
WPL 4372869 WPL 4372869 Contact Us For Availability
20
WPL 4372870 WPL 4372870 Contact Us For Availability
20
WPL 72108 WPL 72108 Contact Us For Availability
20
WPL 799832 WPL 799832 Contact Us For Availability
20
WPL 978883 WPL 978883 Contact Us For Availability
20
Liner, Door WPL 4372794 Contact Us For Availability
20
Handle, Drawer WPL 4372366 Contact Us For Availability
20
Back, Range WPL 4372640 Contact Us For Availability
21
Latch, Door Magnetic WPL 816461 Contact Us For Availability
21
Relief, Strain WPL 868136 Contact Us For Availability
21
Panel, Drawer (White) WPL 865865 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 868249 Contact Us For Availability
21
Panel, Bottom WPL 4372878 Contact Us For Availability
22
Cover, Toespace WPL 4372579 Contact Us For Availability
22
Support, Oven WPL 4372924 Contact Us For Availability
23
Gasket, Door WPL 4372584 Contact Us For Availability
23
Drawer WPL 868242 Contact Us For Availability
23
Gusset, Rear (R.H.) WPL 877826 Contact Us For Availability
23
Gusset, Rear (L.H.) WPL 877827 Contact Us For Availability
24
Spacer, Hinge (2) Pin WPL 4372892 Contact Us For Availability
24
Cooktop (White) WPL 868230 Contact Us For Availability
24
Cooktop (Almond) WPL 868233 Contact Us For Availability
24
Rail, Drawer (R.H.) WPL 4372617 Contact Us For Availability
24
Rail, Drawer (L.H.) WPL 4372618 Contact Us For Availability
24
Plate, Hinge WPL 4372639 Contact Us For Availability
25
Hinge, Oven Door (Auxiliary) (Bottom) WPL 4372894 Contact Us For Availability
25
Hinge, Oven Door (Auxiliary) (Top) WPL 4372895 Contact Us For Availability
25
Hinge, Oven Door (Auxiliary) (Screw, 8-32 x 3 WPL 868382 Contact Us For Availability
25
Support (4) WPL 4372890 Contact Us For Availability
25
Guide, Rear (2) WPL 868152 Contact Us For Availability
25
Channel, Support WPL 868226 Contact Us For Availability
26
Guide, Front (2) WPL 4371429 Contact Us For Availability
26
Screw, Leveling (4) WPL 4372919 Contact Us For Availability
27
Rack, Oven Regular WPL 4372877 Contact Us For Availability
27
Bracket, Hinge Pin ((LH)) WPL 868129 Contact Us For Availability
27
Bracket, Hinge Pin ((RH)) WPL 868130 Contact Us For Availability
27
Glass, Door WPL 4372797 Contact Us For Availability
27
Spacer, Oven WPL 4372501 Contact Us For Availability
28
Kit, Broiler Pan And Grid WPL 834616 Contact Us For Availability
28
Panel, Back WPL 4372624 Contact Us For Availability
29
Ring, Trim (8`` (2)) WPL 834729 Contact Us For Availability
29
Ring, Trim (6`` (2)) WPL 834730 Contact Us For Availability
29
Probe, Oven Temp WPL 4372910 Contact Us For Availability
30
Washer, Rubber WPL 4372047 Contact Us For Availability
30
Pan, Surface (8`` (2)) WPL 4372798 Contact Us For Availability
30
Pan, Surface (6`` (2)) WPL 4372799 Contact Us For Availability
30
Bumper, Cooktop (5) WPL 877947 Contact Us For Availability
31
Rivet (2) WPL 4372048 Contact Us For Availability
32
Screw, 10-24 x 7/8 (2) WPL 834649 Contact Us For Availability
32
Medallion WPL 4372891 Contact Us For Availability
32
Nut, 10-32 (6) WPL 487836 Contact Us For Availability
35
Screw, 10-24 x 1/2 (6) WPL 681151 Contact Us For Availability
35
Cover, Back WPL 4372623 Contact Us For Availability
39
Rack, Oven WPL 4372632 Contact Us For Availability
40
Offset WPL 4372400 Contact Us For Availability
40
Tube, Adaptor WPL 4372637 Contact Us For Availability
41
Grille, Broiler Pan WPL 4372787 Contact Us For Availability
42
Pan, Broiler WPL 4372786 Contact Us For Availability
43
Screw, 10-24 x 1/2 (2) WPL 680363 Contact Us For Availability
43
Strap, Ground WPL 816169 Contact Us For Availability
44
D WPL 4372926 Contact Us For Availability
× ![]()
