Model Whirlpool RF396PXYQ5 – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

Harvest Gold WPL 261890 Contact Us For Availability

Harvest Gold (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3150400 WPL LIT3150400 Contact Us For Availability

WPL LIT3187321 WPL LIT3187321 Contact Us For Availability

WPL LIT3187483 WPL LIT3187483 Contact Us For Availability

WPL LIT3187857 WPL LIT3187857 Contact Us For Availability

WPL LIT677973 WPL LIT677973 Contact Us For Availability

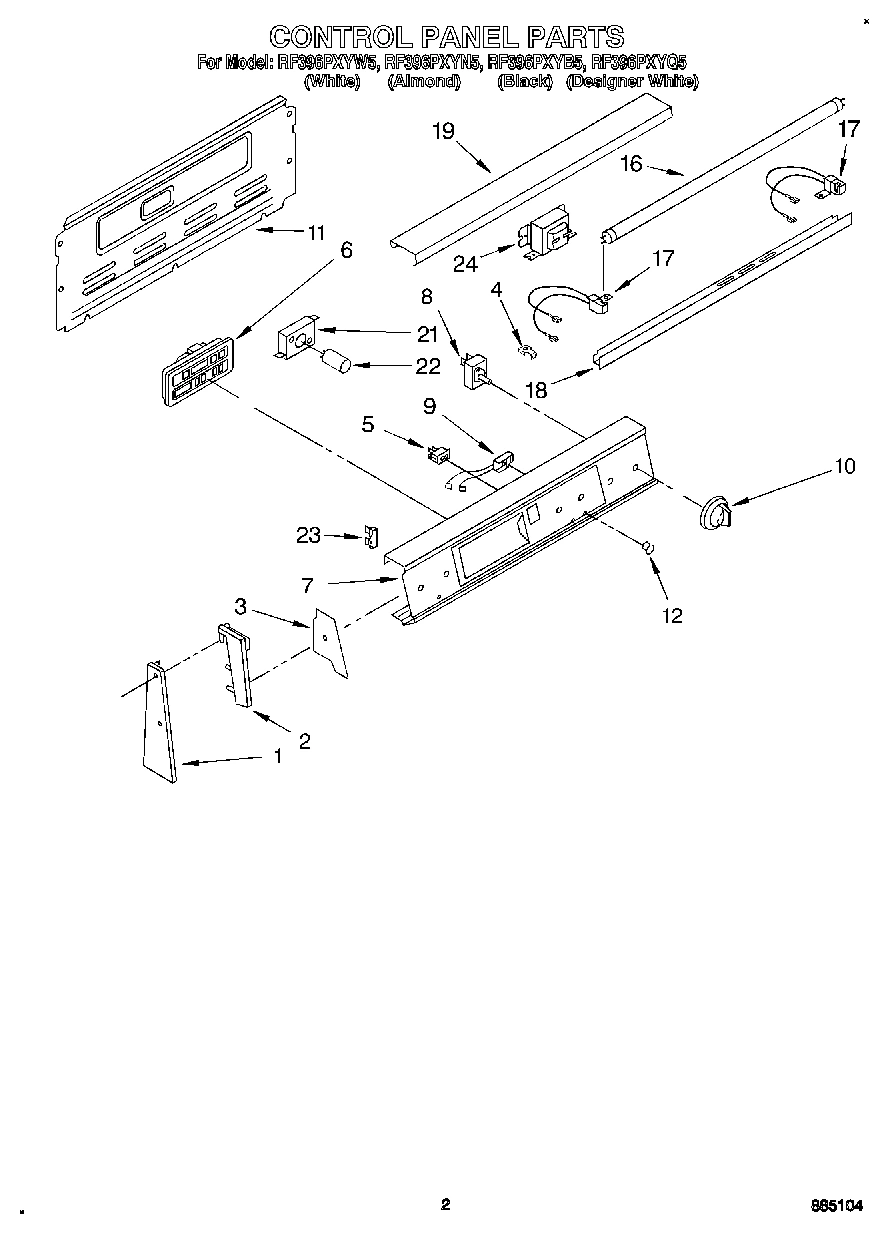

1

End Trim L.H. WPL 313190 Contact Us For Availability

1

End Trim R.H. WPL 313191 Contact Us For Availability

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

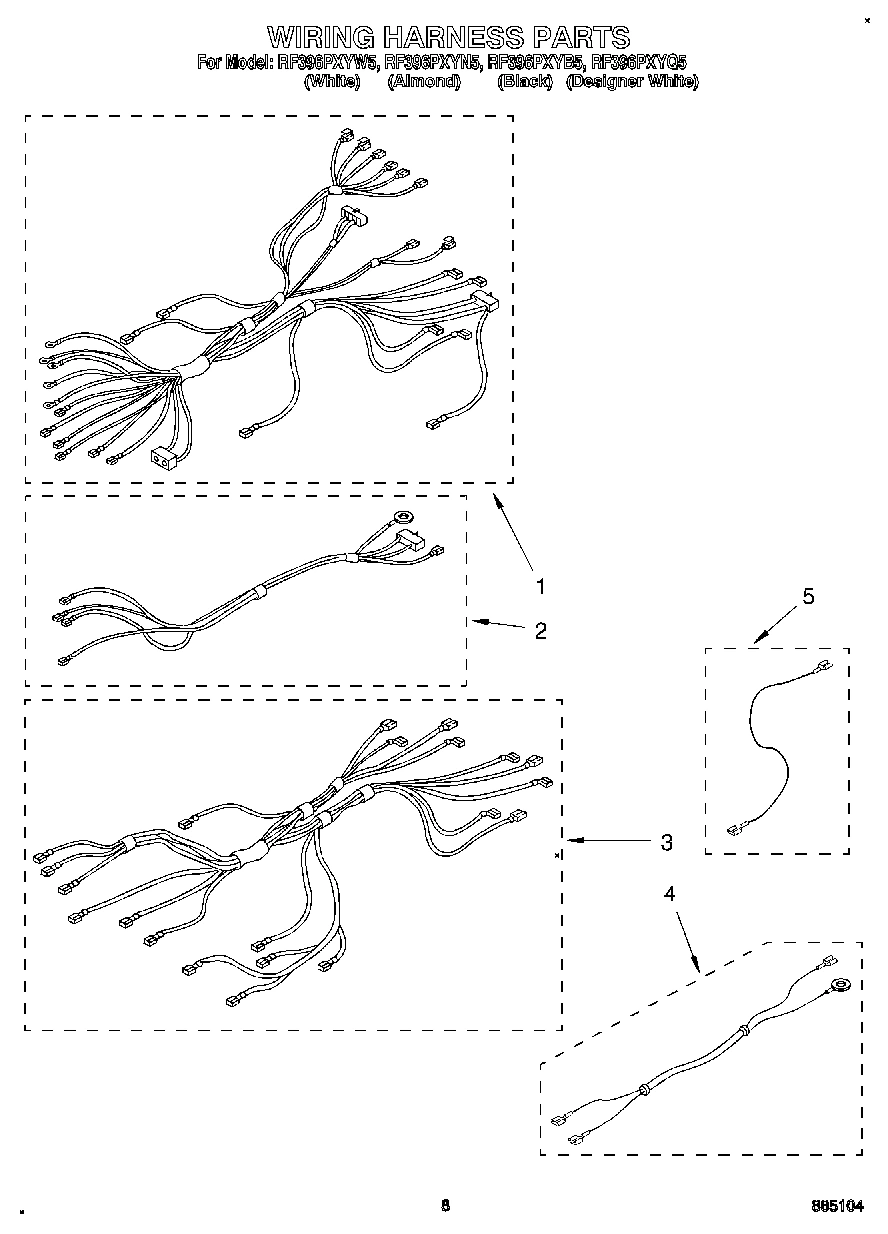

Harness, Wire (Oven) WPL 3169410 Contact Us For Availability

1

Designer White Mdl WPL 3183319 Contact Us For Availability

1

Latch Asm Complete (Includes wire harness) WPL 3183321 Contact Us For Availability

2

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

2

Screw, (4) 8-BT x 1/4 WPL 254225 Contact Us For Availability

2

End Cap L.H. WPL 313181 Contact Us For Availability

2

End Cap R.H. WPL 313182 Contact Us For Availability

2

Rail R.H. WPL 3149255 Contact Us For Availability

2

Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability

2

Harness, Wire (Lock Switch) WPL 3183323 Contact Us For Availability

2

Safety Switch WPL 3183096 Contact Us For Availability

2

Screw (2) WPL 98106 Contact Us For Availability

3

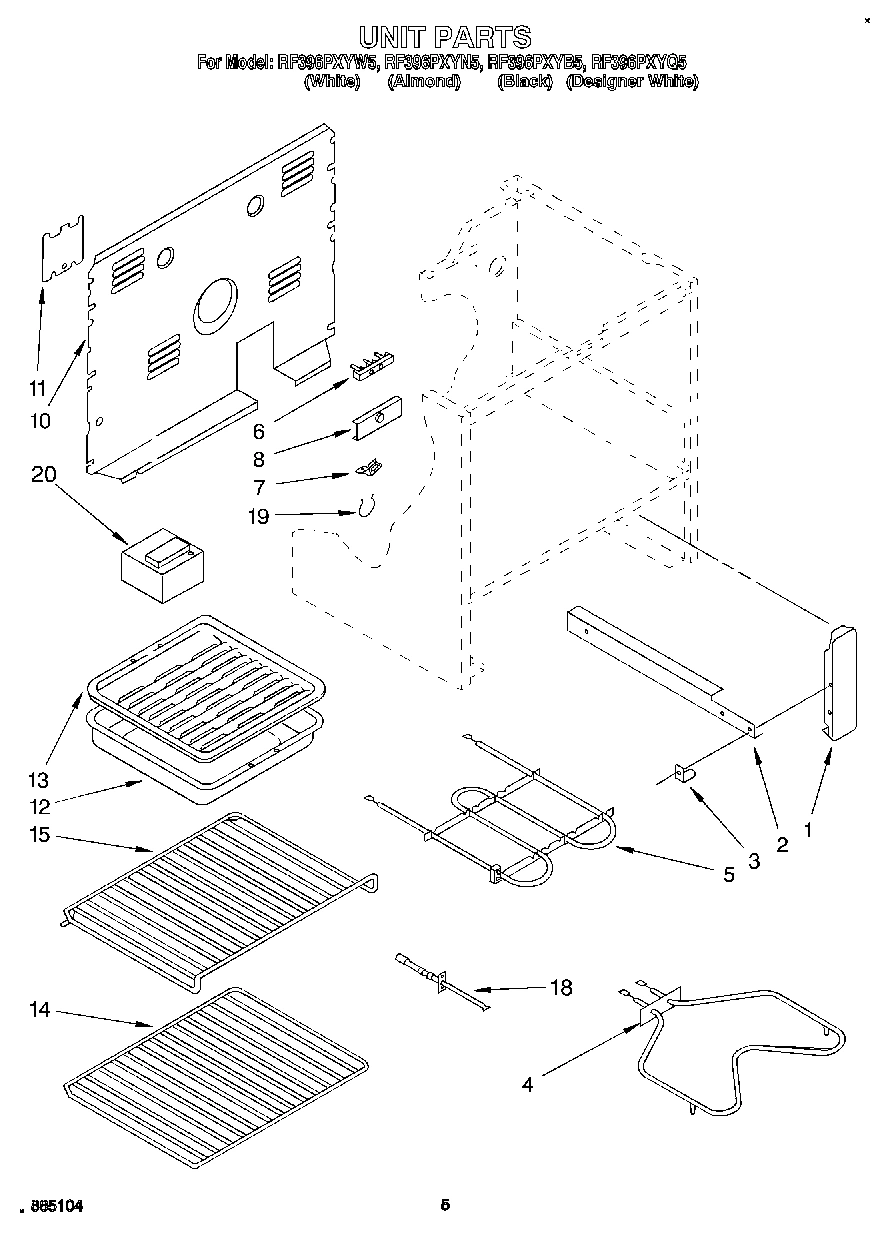

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

3

Shield, R or L WPL 313608 Contact Us For Availability

3

Glide, Front (2) WPL 3149257 Contact Us For Availability

3

Harness, Cooktop WPL 3169104 Contact Us For Availability

3

Insulator, Switch WPL 309245 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

Screw (1) WPL 3150537 Contact Us For Availability

4

Frame Front WPL 3176718 Contact Us For Availability

4

Adapter, Terminal WPL 3147832 Contact Us For Availability

4

Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability

4

Screw (2) WPL 309258 Contact Us For Availability

4

Shield, Terminal WPL 313035 Contact Us For Availability

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

5

Seal, Window WPL 3148183 Contact Us For Availability

5

Pin, Hinge (2) WPL 307985 Contact Us For Availability

5

Switch, Rocker WPL 3182717 Contact Us For Availability

5

Designer White Mdl WPL 3182718 Contact Us For Availability

5

Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability

5

Wire, Jumper 7.75`` WPL 3183325 Contact Us For Availability

5

Wire, Jumper 9.5`` WPL 3183326 Contact Us For Availability

5

Screw (2) WPL 308422 Contact Us For Availability

5

Designer White Mdl WPL 3150175 Contact Us For Availability

5

Handle, Latch WPL 3169081 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

6

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

6

Knob, Latch (Black) WPL 3148684 Contact Us For Availability

6

Seal, Door WPL 3169251 Contact Us For Availability

6

ERC Timer Control WPL 3169256 Contact Us For Availability

6

Designer White Mdl WPL 3169257 Contact Us For Availability

6

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

6

Knob, Latch (White) WPL 3150174 Contact Us For Availability

7

WP3169203 Whirlpool Door Glass Backorder WPL WP3169203 $58.10

7

Pushnut (2) WPL 308306 Contact Us For Availability

7

Panel, Control WPL 3169208 Contact Us For Availability

7

Designer White Mdl WPL 3169209 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

7

Latch Mechanism WPL 3148668 Contact Us For Availability

8

WP3148952 Whirlpool Oven Infinite Switch In Stock WPL WP3148952 $33.53

8

WP3148955 Whirlpool Infinite Switch Backorder WPL WP3148955 $69.02

8

Hinge, R.H. WPL 3176710 Contact Us For Availability

8

Hinge, L.H. WPL 3176711 Contact Us For Availability

8

Switch, Infinite (Screw, 8-32 x 1/4 (8)) WPL 308119 Contact Us For Availability

8

Bracket, Service WPL 3150190 Contact Us For Availability

8

Limiter, Temp. (1400W - LR) WPL 3149129 Contact Us For Availability

8

Limiter, Temp. (1700W - RF) WPL 3183972 Contact Us For Availability

8

Limiter, Temp. (2400W - LF) WPL 3183973 Contact Us For Availability

8

Limiter, Temp. (2100W - RR) WPL 3183974 Contact Us For Availability

9

WP8185663 Whirlpool Surface Element Backorder WPL WP8185663 $73.20

9

Indicator Light (2) WPL 313102 Contact Us For Availability

9

Screw (3) WPL 311056 Contact Us For Availability

9

Oven (30`` Pyro) WPL 3176611 Contact Us For Availability

9

Element, Surface (Includes No.8) (1400W - LR) WPL 3183646 Contact Us For Availability

9

Element, Surface (Includes No.8) (1700W - RF) WPL 3183647 Contact Us For Availability

9

Element, Surface (Includes No.8) (2100W - RR) WPL 3183648 Contact Us For Availability

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $2.51

Knob, Control (4) (Infinite Switch) WPL 3183118 Contact Us For Availability

Designer White Mdl WPL 3183117 Contact Us For Availability

Spring (8) WPL 3149191 Contact Us For Availability

Cover, Rear WPL 3148975 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

Rear Cover WPL 3187332 Contact Us For Availability

Cover, Service WPL 307972 Contact Us For Availability

Bracket, Support WPL 3148809 Contact Us For Availability

12

Lens, Amber (2) WPL 313101 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

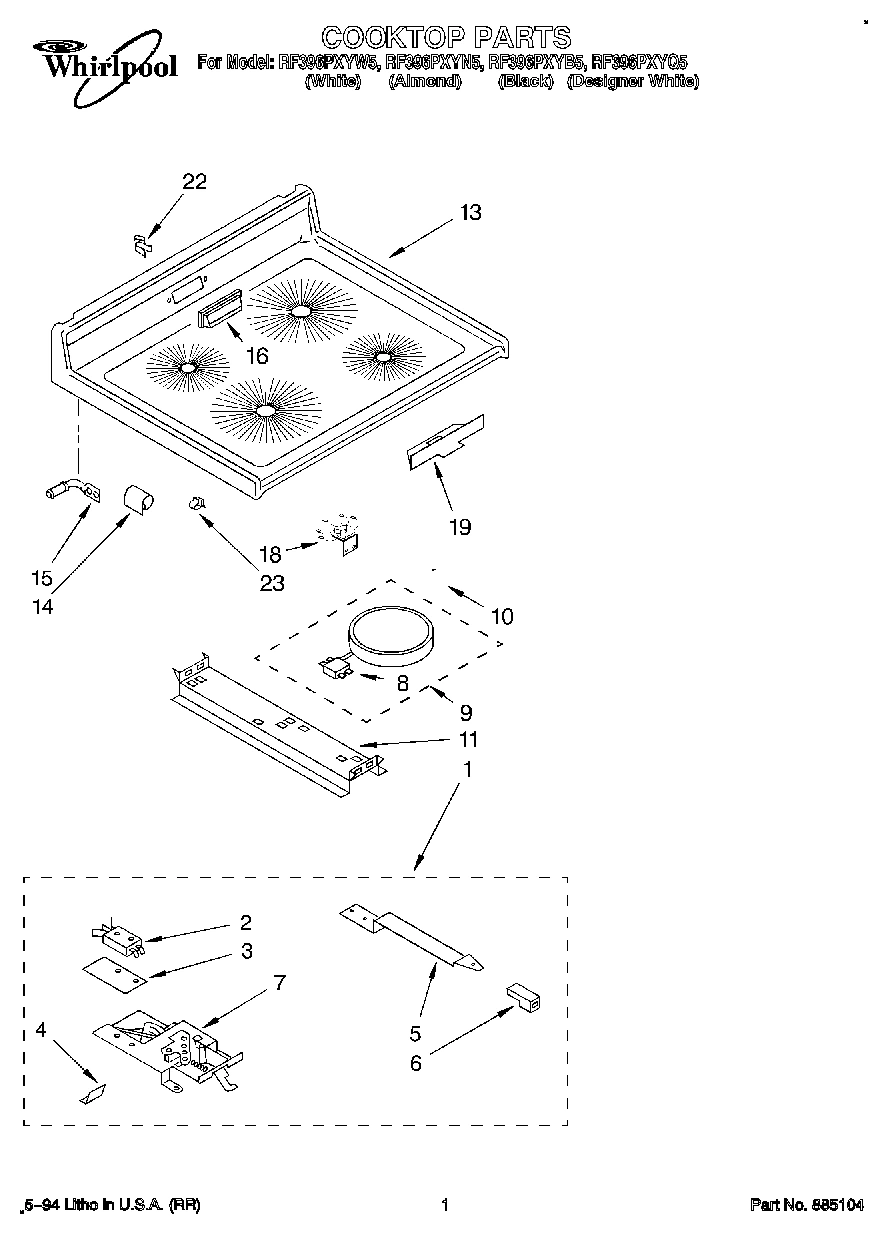

Cooktop (White) WPL 3176527 Contact Us For Availability

Cooktop (Almond) WPL 3176528 Contact Us For Availability

Cooktop (Black) WPL 3176529 Contact Us For Availability

Cooktop (Designer White) WPL 3176530 Contact Us For Availability

14

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

14

Bracket, Hinge (2) WPL 307965 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Clip, Mtg (2) WPL 3148282 Contact Us For Availability

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

Rack, Oven (Offset) WPL 308172 Contact Us For Availability

Pin, Hinge (2) WPL 307966 Contact Us For Availability

Vent, Oven WPL 3169365 Contact Us For Availability

Lamp, Fluorescent WPL 313110 Contact Us For Availability

Cover, Vent (White) WPL 3149011 Contact Us For Availability

cover, vent (almond) WPL 3149012 Contact Us For Availability

Cover, Vent (Black) WPL 3181829 Contact Us For Availability

17

Socket, Lamp (Light RH) WPL 3183281 Contact Us For Availability

17

Socket, Lamp (Light LH) WPL 3183282 Contact Us For Availability

17

Socket, Lamp (Screw, 6-32 x 1/4) WPL 3185059 Contact Us For Availability

Screw (2) WPL 98520 Contact Us For Availability

Backguard, Lamp WPL 3184112 Contact Us For Availability

Sensor, Temperature WPL 3148440 Contact Us For Availability

Light, Indicator WPL 3169371 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

Channel, Arm (2) WPL 3176709 Contact Us For Availability

Cover, Lamp (Black) WPL 3149831 Contact Us For Availability

Cover, Lamp (Designer White) WPL 3149832 Contact Us For Availability

Shield, Probe WPL 3169237 Contact Us For Availability

340184 Whirlpool Screw Backorder WPL 340184 $9.59

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.14

WA906B Whirlpool Cooktop Glass Scraper Backorder WPL WA906B $3.50

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

Block, Balance WPL 3149258 Contact Us For Availability

21

Ring, Retainer (2) WPL 307594 Contact Us For Availability

21

Socket, Starter WPL 3147224 Contact Us For Availability

WP308126 Whirlpool Door Spring In Stock WPL WP308126 $12.59

Starter, Lamp WPL 387695 Contact Us For Availability

Handle, Drawer WPL 3169105 Contact Us For Availability

Clip, Mounting (2) (Vent Cover) WPL 3149190 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

23

Fuse, Thermal WPL 3187848 Contact Us For Availability

23

Clip, Wire WPL 311311 Contact Us For Availability

24

Support, L.H. Post WPL 313196 Contact Us For Availability

24

Support, R.H. Post WPL 313197 Contact Us For Availability

24

Ballast WPL 660001 Contact Us For Availability

25

Switch, Door (2) WPL 310345 Contact Us For Availability

30

Snubber, Door (2) WPL 309111 Contact Us For Availability

32

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

32

Support, Chassis WPL 3147646 Contact Us For Availability

33

Shield, Box WPL 3149006 Contact Us For Availability

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

Insulation, Wrapper WPL 3169093 Contact Us For Availability

Insulation, Oven BAck WPL 3169094 Contact Us For Availability

Vent, Box WPL 3169278 Contact Us For Availability
