Model Whirlpool RF396PXYB2 – Common Parts & Diagrams

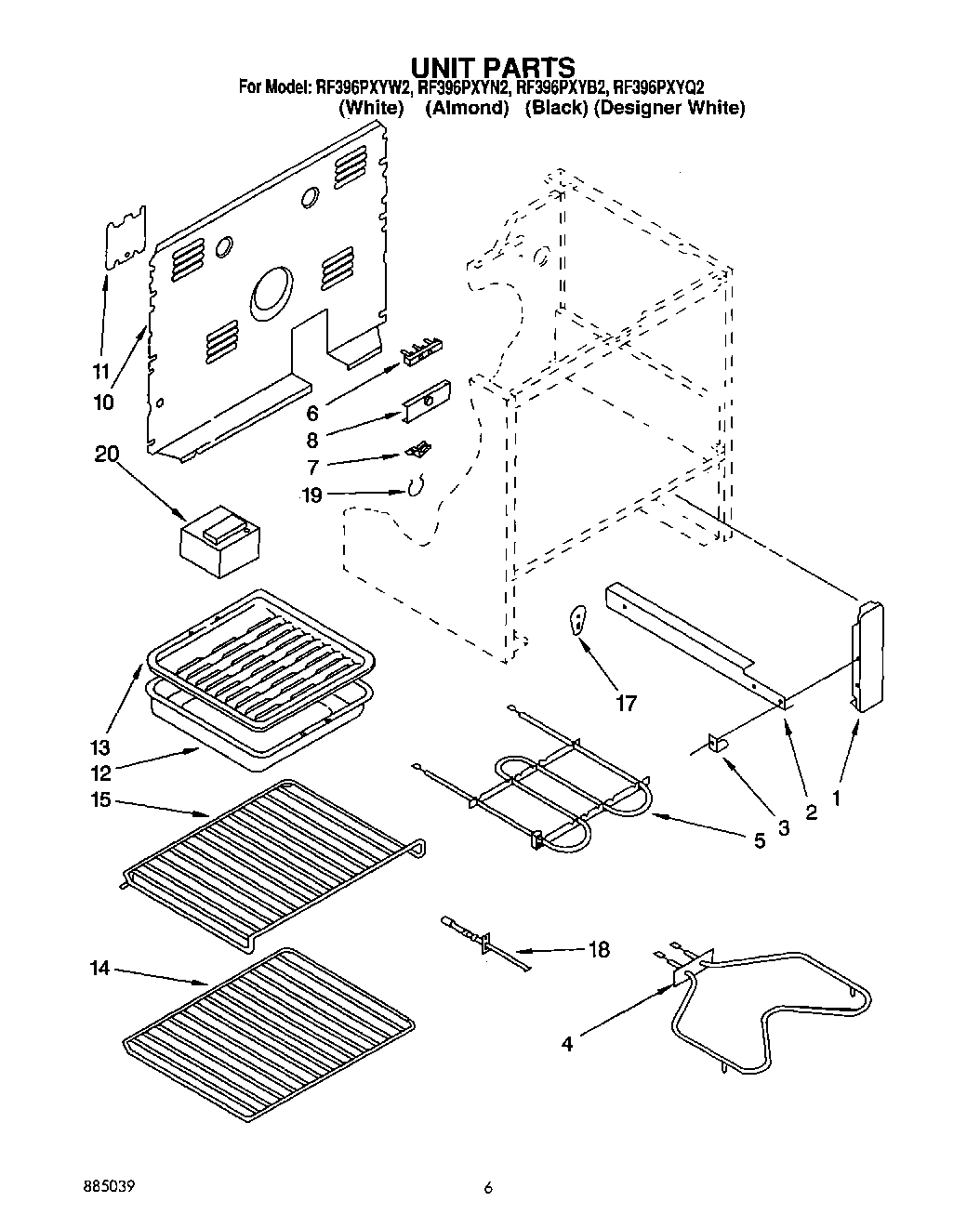

04 - UNIT

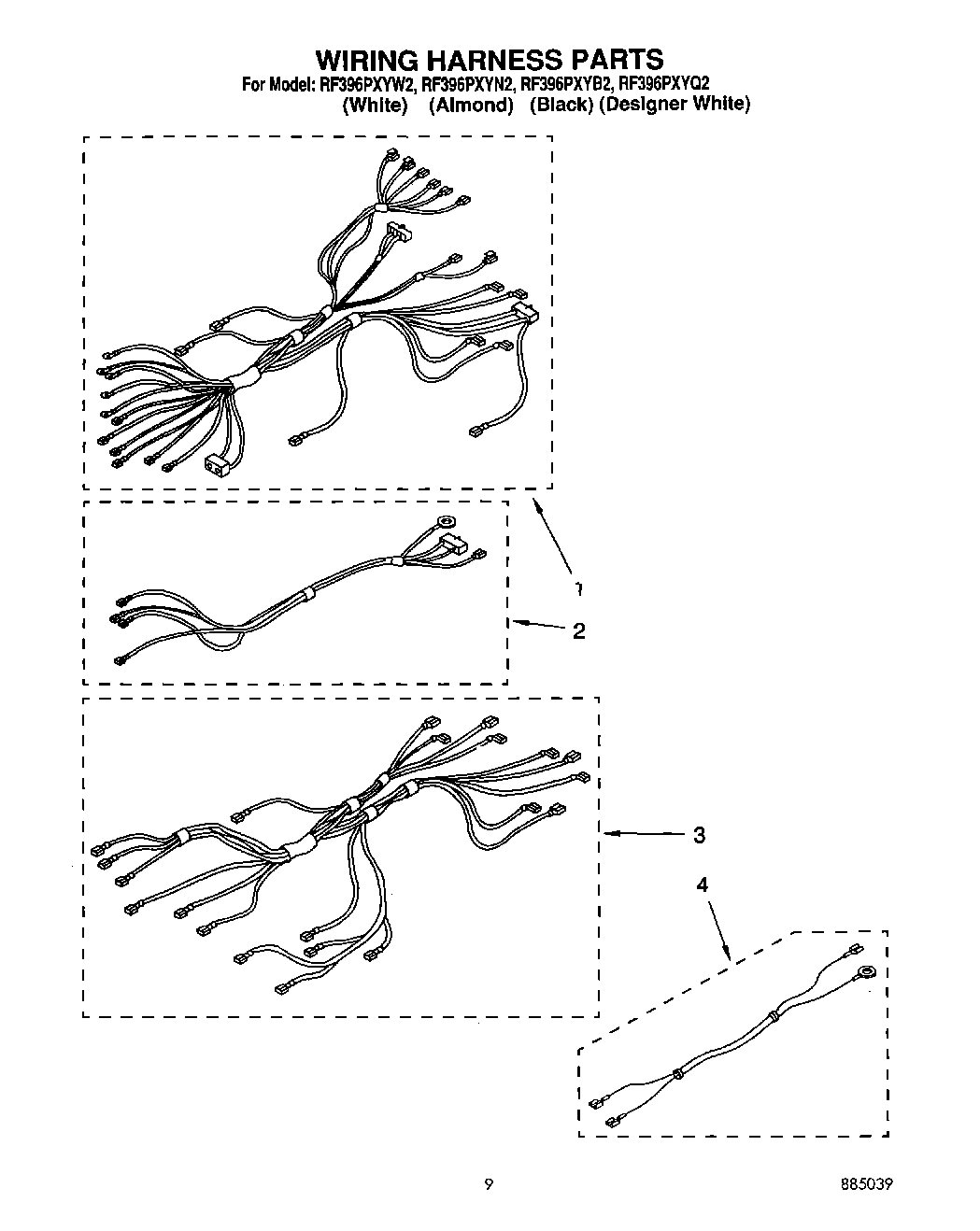

06 - WIRING HARNESS, LIT/OPTIONAL
02 - CONTROL PANEL
01 - COOKTOP
03 - DOOR AND DRAWER
05 - OVEN
Common parts from model Whirlpool RF396PXYB2
1
End Trim L.H. WPL 313190 Contact Us For Availability
1
End Trim R.H. WPL 313191 Contact Us For Availability
1
Latch Asm Complete (Includes wire harness) (D WPL 3183319 Contact Us For Availability
1
Latch Asm Complete (Includes wire harness) (W WPL 3183321 Contact Us For Availability
1
Screw, 10-24 x 1/2 (2) WPL 247326 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
1
Main Chassis (Black) WPL 3181515 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
2
Screw, (4) 8-BT x 1/4 WPL 254225 Contact Us For Availability
2
End Cap L.H. WPL 313181 Contact Us For Availability
2
End Cap R.H. WPL 313182 Contact Us For Availability
2
Safety Switch WPL 3183096 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
2
Cap, Door Top (Designer Mdl) WPL 3181363 Contact Us For Availability
2
Tube, Vent WPL 3169109 Contact Us For Availability
3
Harness, Cooktop WPL 3169104 Contact Us For Availability
3
Shield, R or L WPL 313608 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
3
Seal, Fiberglass (2) WPL 3148441 Contact Us For Availability
4
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
4
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
4
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
4
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
4
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
4
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
4
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
4
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
4
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
4
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
4
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
4
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
4
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
4
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
4
Grease WPL 261582 Contact Us For Availability
4
Coffee WPL 261886 Contact Us For Availability
4
New Avocado WPL 261888 Contact Us For Availability
4
Harvest Gold WPL 261890 Contact Us For Availability
4
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
4
Toast WPL 285365 Contact Us For Availability
4
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
4
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
4
Platinum (Uncut) WPL 285368 Contact Us For Availability
4
Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability
4
Paint, Touch-Up 1/2 Oz. ( WPL 72108 Contact Us For Availability
4
WPL 72112 WPL 72112 Contact Us For Availability
4
WPL 799832 WPL 799832 Contact Us For Availability
4
WPL 978883 WPL 978883 Contact Us For Availability
4
Adapter, Terminal WPL 3147832 Contact Us For Availability
4
Screw (2) WPL 309258 Contact Us For Availability
4
Shield, Terminal WPL 313035 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
4
Screw (1) WPL 3150537 Contact Us For Availability
4
Frame, Front WPL 3176698 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Switch, Rocker (White/Almond/Black) WPL 3182717 Contact Us For Availability
5
Switch, Rocker (Designer White) WPL 3182718 Contact Us For Availability
5
Handle, Latch (Screw (2)) WPL 308422 Contact Us For Availability
5
Handle, Latch (Designer White) WPL 3150175 Contact Us For Availability
5
Handle, Latch (White/Almond/Black) WPL 3169081 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
6
Knob, Latch (Black) WPL 3148684 Contact Us For Availability
6
ERC Timer Control (White/Almond/Black) WPL 3182391 Contact Us For Availability
6
ERC Timer Control (Designer White) WPL 3182392 Contact Us For Availability
6
Knob, Latch (White) WPL 3150174 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Seal, Door WPL 3169251 Contact Us For Availability
7
Panel, Control (White/Almond/Black) WPL 3169208 Contact Us For Availability
7
Panel, Control (Designer White) WPL 3169209 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
8
Limiter, Temp. (180 MM - LR) WPL 3149129 Contact Us For Availability
8
Limiter, Temp. (200 MM - RF) WPL 3183972 Contact Us For Availability
8
Limiter, Temp. (250 MM - LF) WPL 3183973 Contact Us For Availability
8
Limiter, Temp. (230 MM - RR) WPL 3183974 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
9
Indicator Light (2) WPL 313102 Contact Us For Availability
9
Element, Surface (Includes No.8) (180 MM - LR WPL 3183646 Contact Us For Availability
9
Element, Surface (Includes No.8) (200 MM - RF WPL 3183647 Contact Us For Availability
9
Element, Surface (Includes No.8) (230 MM - RR WPL 3183648 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Pyro) WPL 3176611 Contact Us For Availability
10
Knob, Control (4) (Infinite Switch) (White/Al WPL 3183118 Contact Us For Availability
10
Knob, Control (4) (Infinite Switch) (Designer WPL 3183117 Contact Us For Availability
10
Spring (8) WPL 3149191 Contact Us For Availability
10
Glass, Panel (Black) WPL 3148185 Contact Us For Availability
10
Glass, Panel (White) WPL 3149049 Contact Us For Availability
11
Rear Cover WPL 313195 Contact Us For Availability
11
Bracket, Top WPL 3148809 Contact Us For Availability
11
Foil, Door WPL 3169191 Contact Us For Availability
12
Lens, Amber (2) WPL 313101 Contact Us For Availability
12
Handle, Door (Black) WPL 3148228 Contact Us For Availability
12
Handle, Door (Platinum) WPL 3149354 Contact Us For Availability
13
Cooktop (White) WPL 3176527 Contact Us For Availability
13
Cooktop (Almond) WPL 3176528 Contact Us For Availability
13
Cooktop (Black) WPL 3176529 Contact Us For Availability
13
Cooktop (Designer White) WPL 3176530 Contact Us For Availability
14
Bracket, Hinge (2) WPL 307965 Contact Us For Availability
14
Top, Door (Black) WPL 3148223 Contact Us For Availability
14
Top, Door (Designer White) WPL 3149355 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Pin, Hinge (2) WPL 307966 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Lamp, Fluorescent WPL 313110 Contact Us For Availability
16
Cover, Vent (White) WPL 3149011 Contact Us For Availability
16
cover, vent (almond) WPL 3149012 Contact Us For Availability
16
Cover, Vent (Black) WPL 3181829 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
16
Vent, Oven WPL 3148906 Contact Us For Availability
17
Socket, Lamp (Light RH) WPL 3183281 Contact Us For Availability
17
Socket, Lamp (Light LH) WPL 3183282 Contact Us For Availability
18
Backguard, Lamp WPL 3184112 Contact Us For Availability
18
Light, Indicator WPL 3169188 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
19
Cover, Lamp (Black) WPL 3149831 Contact Us For Availability
19
Cover, Lamp (Designer White) WPL 3149832 Contact Us For Availability
19
Shield, Probe WPL 3169237 Contact Us For Availability
19
Protector, Drawer Side (2) WPL 309329 Contact Us For Availability
19
Channel, Arm (2) WPL 3176709 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
21
Socket, Starter WPL 3147224 Contact Us For Availability
21
Panel Drawer (White) WPL 307935 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
21
Panel Drawer (Black) WPL 309923 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Starter, Lamp WPL 387695 Contact Us For Availability
22
Handle, Drawer WPL 3169105 Contact Us For Availability
22
Clip, Mounting (2) (Vent Cover) WPL 3149190 Contact Us For Availability
23
Clip, Wire WPL 311311 Contact Us For Availability
23
Frame, Door WPL 3148235 Contact Us For Availability
23
Screw (3) WPL 3182345 Contact Us For Availability
24
Ballast WPL 660001 Contact Us For Availability
24
Support, L.H. Post WPL 313196 Contact Us For Availability
24
Support, R.H. Post WPL 313197 Contact Us For Availability
25
Switch, Door (2) WPL 310345 Contact Us For Availability
30
Snubber, Door (2) WPL 309111 Contact Us For Availability
31
Box Vent WPL 3169129 Contact Us For Availability
32
Support, Chassis WPL 3147646 Contact Us For Availability
33
Screw (3) WPL 98520 Contact Us For Availability
33
Shield, Box WPL 3149006 Contact Us For Availability
34
Insulation, Wrapper WPL 3169093 Contact Us For Availability
34
Insulation, Oven BAck WPL 3169094 Contact Us For Availability
34
Vent, Box WPL 3171381 Contact Us For Availability
× ![]()
