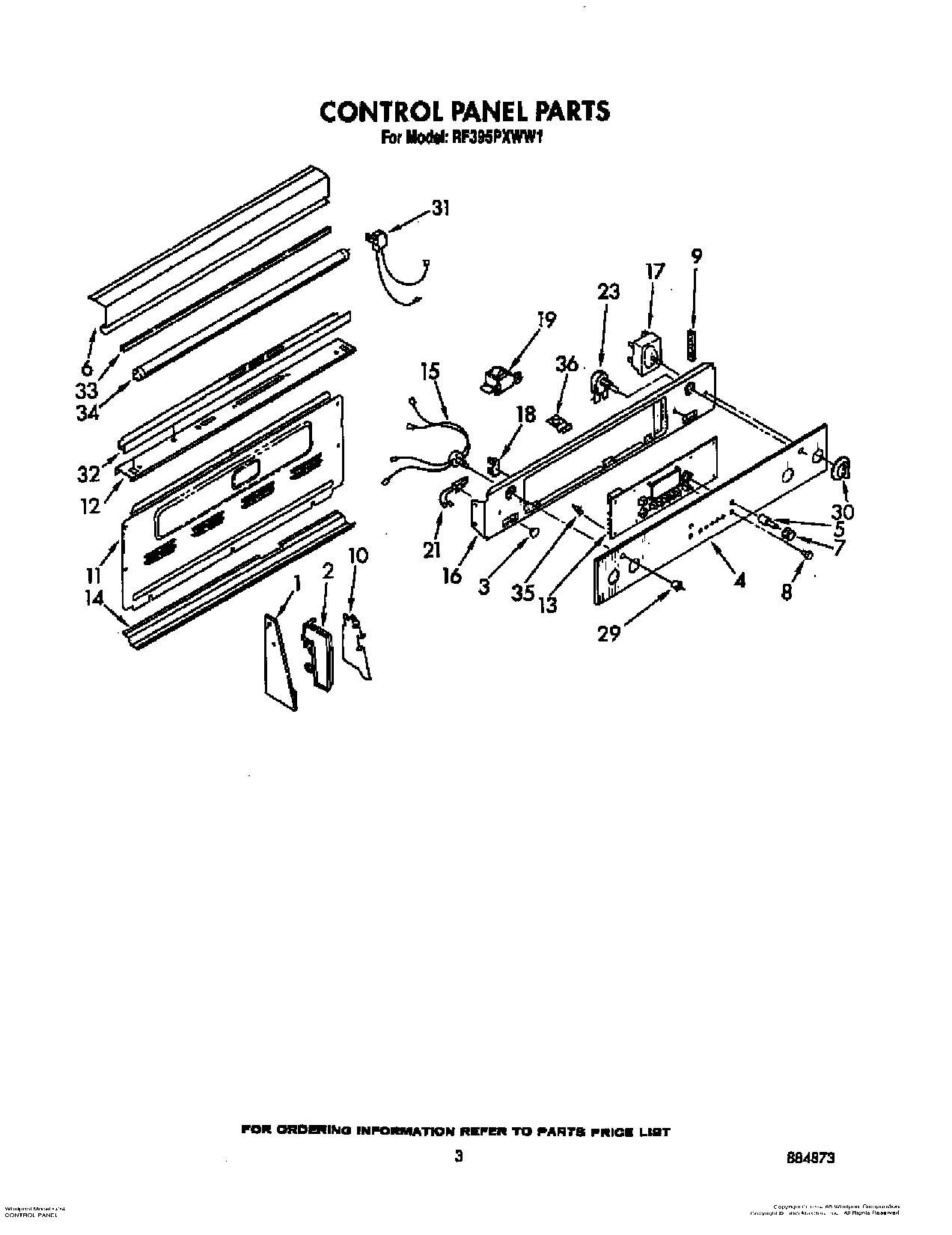

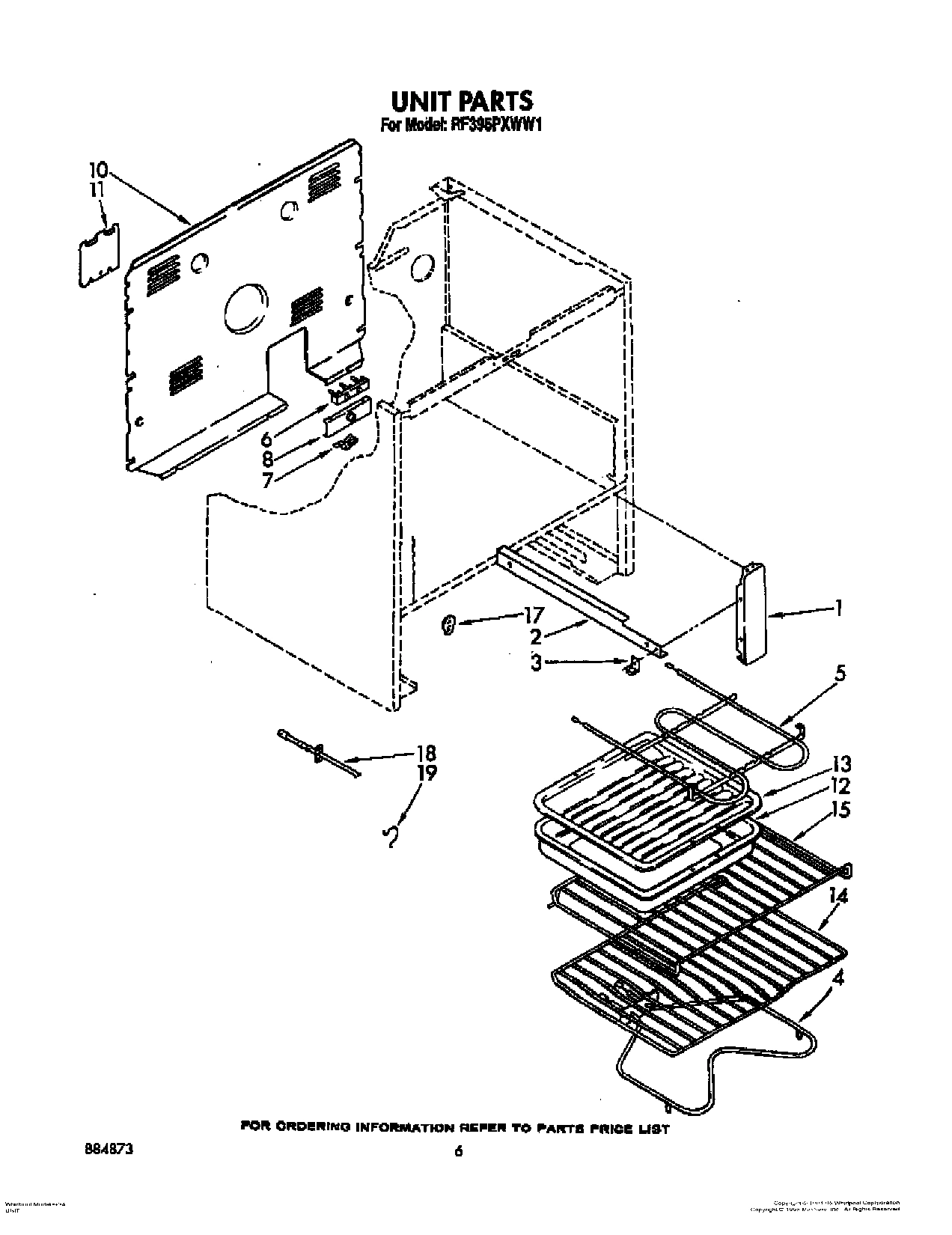

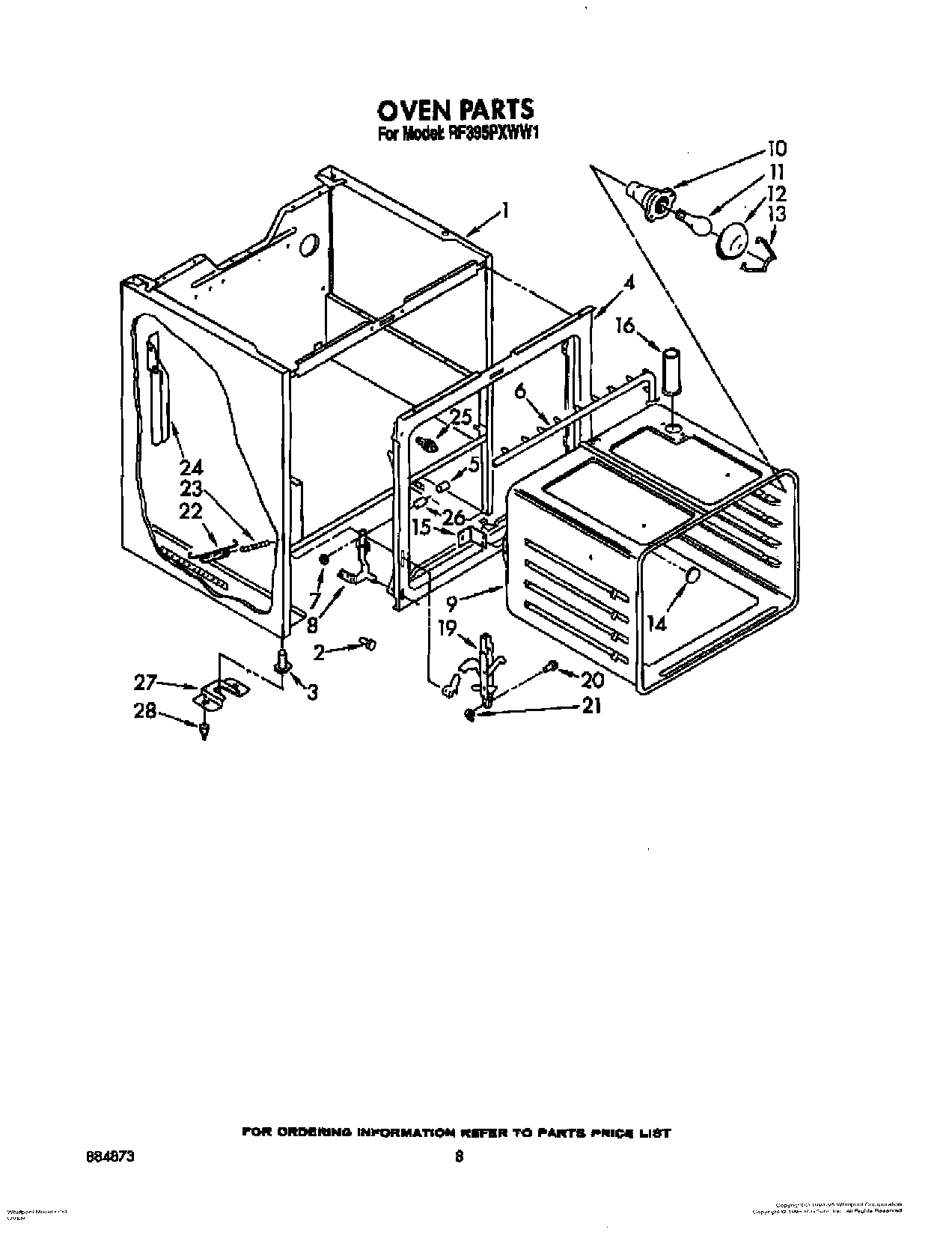

Model Whirlpool RF395PXWN1 – Common Parts &amp; Diagrams

Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability

WPL 3150532 WPL 3150532 Contact Us For Availability

WPL ARI123145A WPL ARI123145A Contact Us For Availability

WPL LIT3147389 WPL LIT3147389 Contact Us For Availability

WPL LIT3149507 WPL LIT3149507 Contact Us For Availability

WPL LIT3149778 WPL LIT3149778 Contact Us For Availability

WPL LIT3149919 WPL LIT3149919 Contact Us For Availability

WPL LIT3150400 WPL LIT3150400 Contact Us For Availability

WPL LIT884873 WPL LIT884873 Contact Us For Availability

1

Screw, 10-24 x 1/2 (2) WPL 247326 Contact Us For Availability

1

Liner, Door WPL 3172218 Contact Us For Availability

1

End Trim L.H. WPL 313188 Contact Us For Availability

1

End Trim R.H. WPL 313189 Contact Us For Availability

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

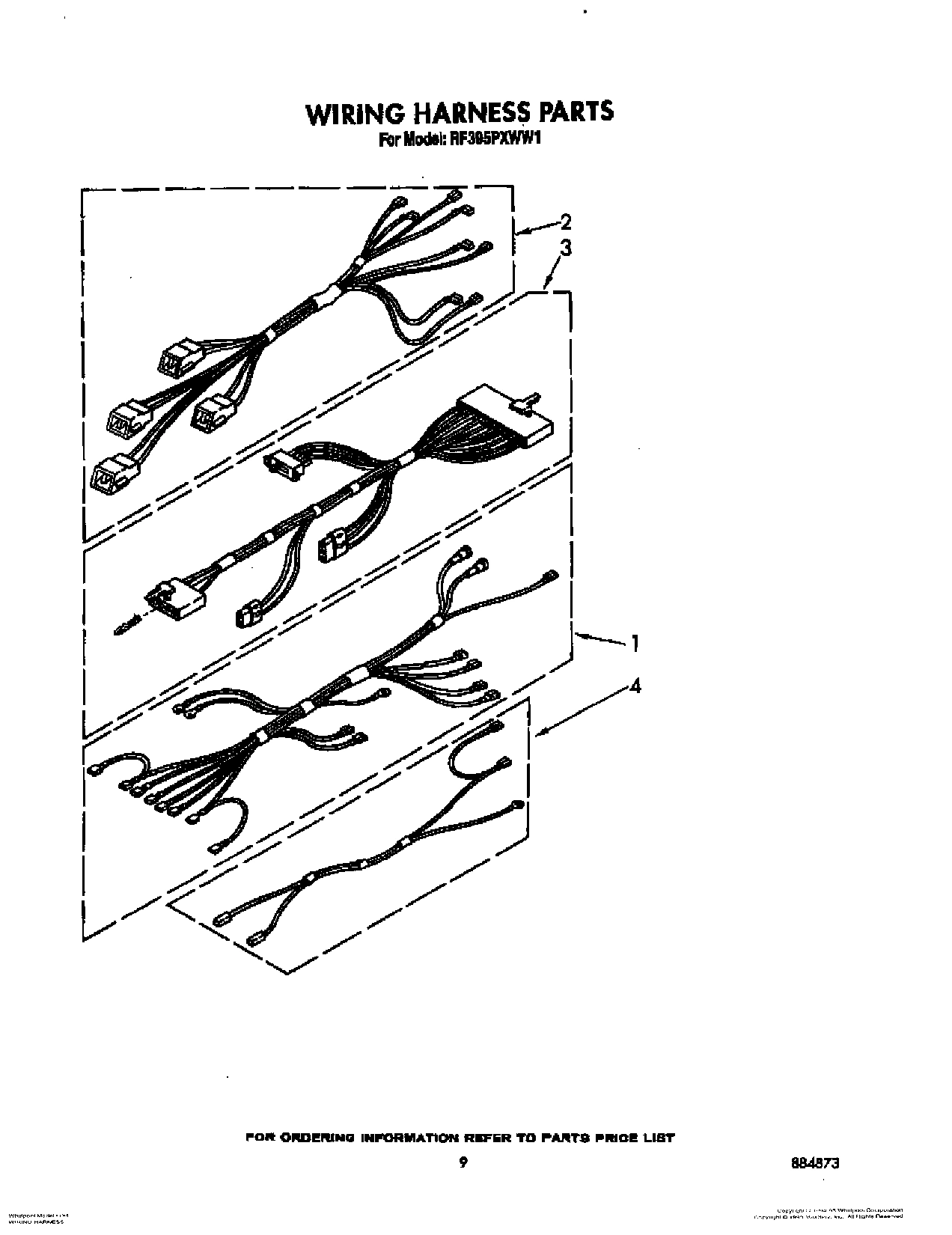

Harness, Wire (Lock Switch) WPL 3148700 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

2

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

2

End Cap L.H. WPL 313181 Contact Us For Availability

2

End Cap R.H. WPL 313182 Contact Us For Availability

2

Rail R.H. WPL 3149255 Contact Us For Availability

2

Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability

2

Harness, Surface Unit WPL 3149881 Contact Us For Availability

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

3

Seal, Fiberglass (2) WPL 3148441 Contact Us For Availability

3

Lens, Light (3) WPL 311688 Contact Us For Availability

3

Glide, Front (2) WPL 3149257 Contact Us For Availability

3

Harness Oven Electric WPL 3148722 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

Glass, Reflective WPL 3148178 Contact Us For Availability

4

Glass, Panel WPL 3149844 Contact Us For Availability

4

Frame, Front WPL 3172194 Contact Us For Availability

4

Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

5

Seal, Window WPL 3148183 Contact Us For Availability

5

Shaft, Bit Generator WPL 3149319 Contact Us For Availability

5

Pin, Hinge (2) WPL 307985 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

6

Knob, Latch WPL 3148684 Contact Us For Availability

6

Retainer, Insulation WPL 3148159 Contact Us For Availability

6

Cover, Lamp WPL 3149830 Contact Us For Availability

6

Seal, Door WPL 3148284 Contact Us For Availability

6

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

7

WP3169203 Whirlpool Door Glass Backorder WPL WP3169203 $58.10

7

Knob, Bit Generator WPL 313523 Contact Us For Availability

7

Pushnut (2) WPL 308306 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

8

Retainer, Glass (2) WPL 3148187 Contact Us For Availability

8

Button, Set (8) WPL 313958 Contact Us For Availability

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

8

Bracket, Service WPL 3150190 Contact Us For Availability

9

Bumper (4) WPL 3148182 Contact Us For Availability

9

Seal, Foam (2) WPL 3147603 Contact Us For Availability

9

Screw (3) WPL 311056 Contact Us For Availability

9

Oven (30`` Pyro) WPL 3172456 Contact Us For Availability

Glass, Panel WPL 3148185 Contact Us For Availability

Shield, Glass (2) WPL 313609 Contact Us For Availability

Socket, Lamp (Alt.) WPL 307856 Contact Us For Availability

Socket, Lamp (Alt.) WPL 310208 Contact Us For Availability

Socket, Lamp WPL 660556 Contact Us For Availability

Cover, Rear WPL 3148975 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

Foil, Door WPL 3148184 Contact Us For Availability

Cover, Rear WPL 313195 Contact Us For Availability

Cover, Service WPL 307972 Contact Us For Availability

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

Handle, Door WPL 3148228 Contact Us For Availability

Trim, Top WPL 313199 Contact Us For Availability

Cover, Light WPL 308039 Contact Us For Availability

13

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

13

Timer, Clock WPL 3148560 Contact Us For Availability

13

Retainer, Light WPL 308038 Contact Us For Availability

Trim, Panel WPL 3148223 Contact Us For Availability

screw (2) WPL 254225 Contact Us For Availability

Trim, Bottom WPL 313424 Contact Us For Availability

Plug Button WPL 257314 Contact Us For Availability

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

Clip, Mtg (2) WPL 3148282 Contact Us For Availability

Switch, Fluorescent Light WPL 313348 Contact Us For Availability

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

Rack, Oven (Offset) WPL 308172 Contact Us For Availability

screw (6) WPL 3148443 Contact Us For Availability

Frame, Inner Glass WPL 3148234 Contact Us For Availability

Bracket, Control WPL 3148430 Contact Us For Availability

Vent, Oven WPL 307961 Contact Us For Availability

W10854470 Whirlpool Trim Ring Backorder WPL W10854470 $29.99

W10858781 Whirlpool Trim Ring Backorder WPL W10858781 $31.11

W10900107 Whirlpool Oven Surface Element Swit In Stock WPL W10900107 $28.79

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

Coverplate (2) WPL 311982 Contact Us For Availability

WP3196548 Whirlpool Thermal Fuse In Stock WPL WP3196548 $16.20

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Reflector Pan (6``) WPL 3150198 Contact Us For Availability

Drawer, Utility WPL 327887 Contact Us For Availability

Sensor, Temperature WPL 3148440 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $15.88

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Protector, Drawer Side (2) WPL 309329 Contact Us For Availability

Ballast WPL 660001 Contact Us For Availability

Channel, Arm (2) WPL 329710 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

Coffee (Uncut) WPL 261887 Contact Us For Availability

New Av WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

20

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

20

Medallion (4) WPL 309195 Contact Us For Availability

20

Glide, Rear (2) WPL 307980 Contact Us For Availability

814103 Whirlpool Clip In Stock WPL 814103 $3.95

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

Nut (4) WPL 814102 Contact Us For Availability

Panel Drawer (White) WPL 307935 Contact Us For Availability

Panel, Drawer (Almond) WPL 307939 Contact Us For Availability

Light, Indicator (Surface Unit (2)) WPL 313106 Contact Us For Availability

Light, Indicator (Locked) WPL 3148718 Contact Us For Availability

Ring, Retainer (2) WPL 307594 Contact Us For Availability

22

WP308126 Whirlpool Door Spring In Stock WPL WP308126 $12.59

22

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

22

Handle, Drawer WPL 313337 Contact Us For Availability

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

Frame, Door WPL 3148235 Contact Us For Availability

Nut WPL 255912 Contact Us For Availability

Washer WPL 312796 Contact Us For Availability

Switch, Oven Light WPL 312581 Contact Us For Availability

24

Support, L.H. Post WPL 313196 Contact Us For Availability

24

Support, R.H. Post WPL 313197 Contact Us For Availability

25

Switch, Door (2) WPL 310345 Contact Us For Availability

26

Snubber, Door (2) WPL 309111 Contact Us For Availability

27

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.14

27

screw (2) WPL 3148604 Contact Us For Availability

28

Insulation WPL 310433 Contact Us For Availability

28

Anchor, Plastic WPL 3148605 Contact Us For Availability

29

Bezel Switch (1) WPL 313030 Contact Us For Availability

30

WP3149983 Whirlpool Knob Backorder WPL WP3149983 $12.19

31

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

31

Socket, Light L.H. WPL 313193 Contact Us For Availability

31

Socket, Light R.H. WPL 313194 Contact Us For Availability

32

Backguard, Lamp WPL 313398 Contact Us For Availability

33

Protector, Lamp WPL 313444 Contact Us For Availability

34

Lamp, Fluorescent WPL 313110 Contact Us For Availability

35

Spacer-Support (9) WPL 313087 Contact Us For Availability

36

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

36

Bottom, Support WPL 313482 Contact Us For Availability
