Model Whirlpool RF379LXKB0 COOKTOP – Common Parts &amp; Diagrams

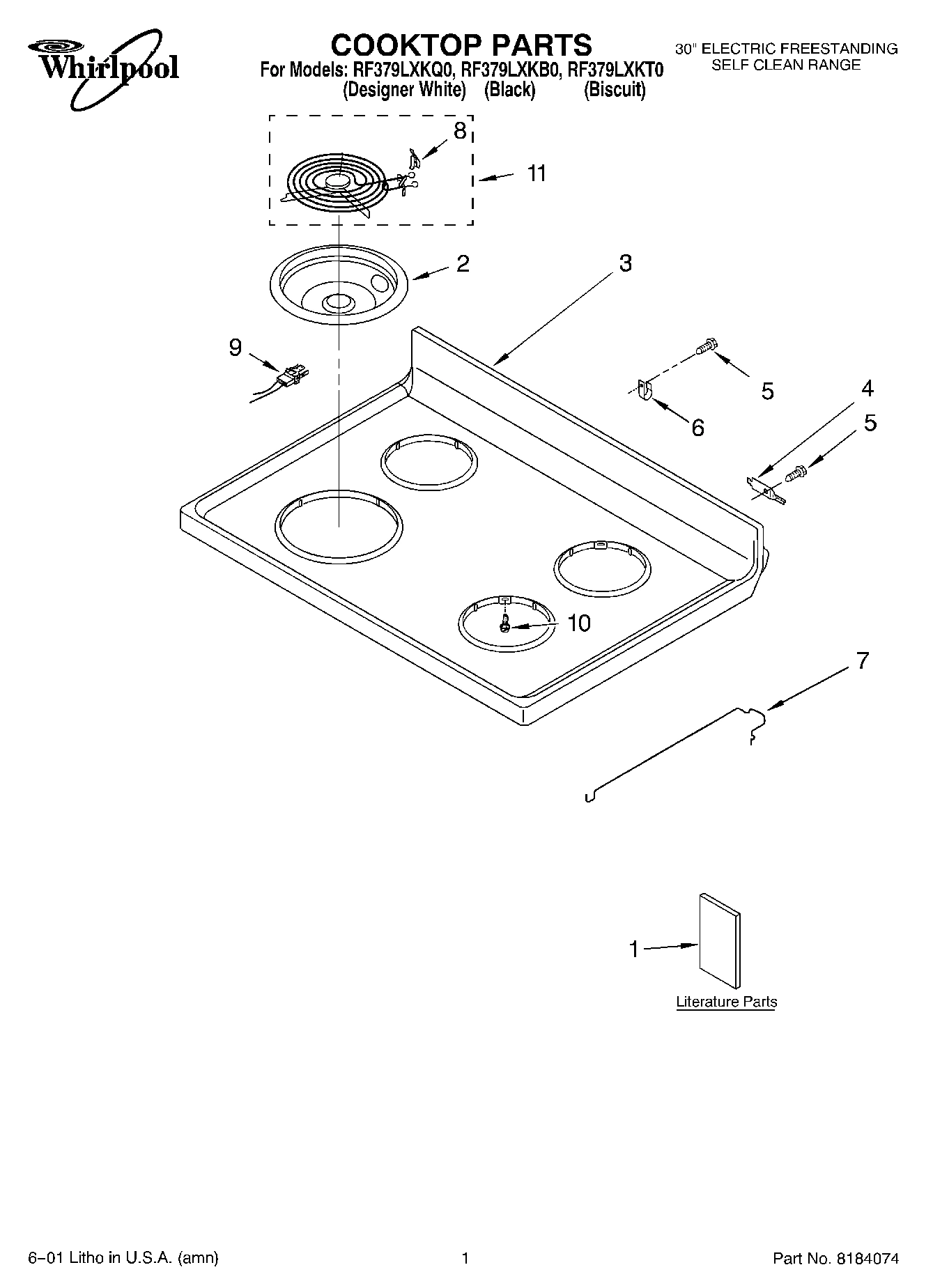

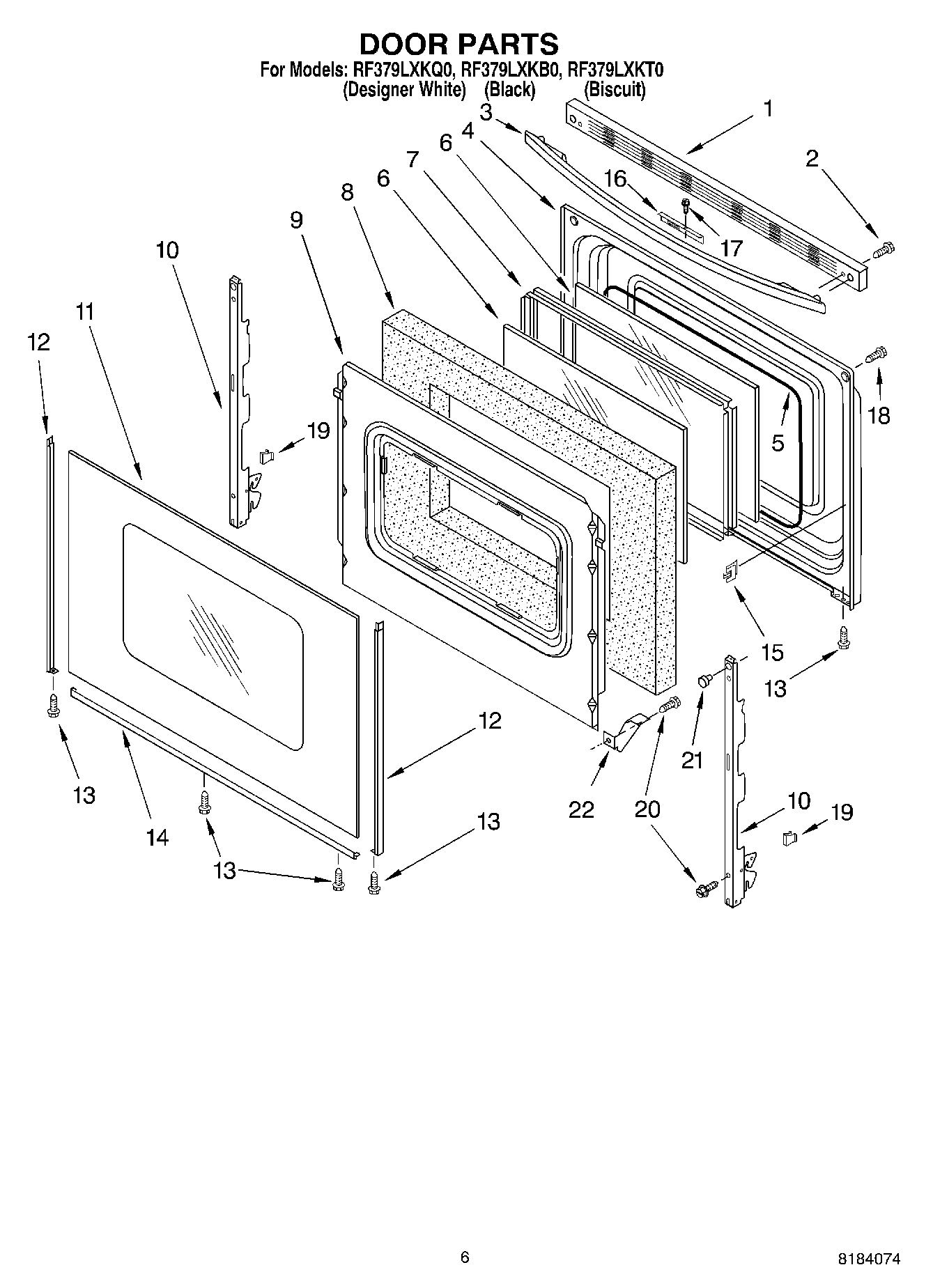

1

Trim, Door Top (Black) WPL 3196819 Contact Us For Availability

1

Trim, Door Top (Biscuit) WPL 8522434 Contact Us For Availability

2

8522881 Whirlpool Oven 8" Drip Pan Backorder WPL 8522881 $19.56

2

8522882 Whirlpool Oven 6" Drip Pan Backorder WPL 8522882 $19.56

2

W11699791 Whirlpool Burner Box In Stock WPL W11699791 $107.87

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $41.94

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.51

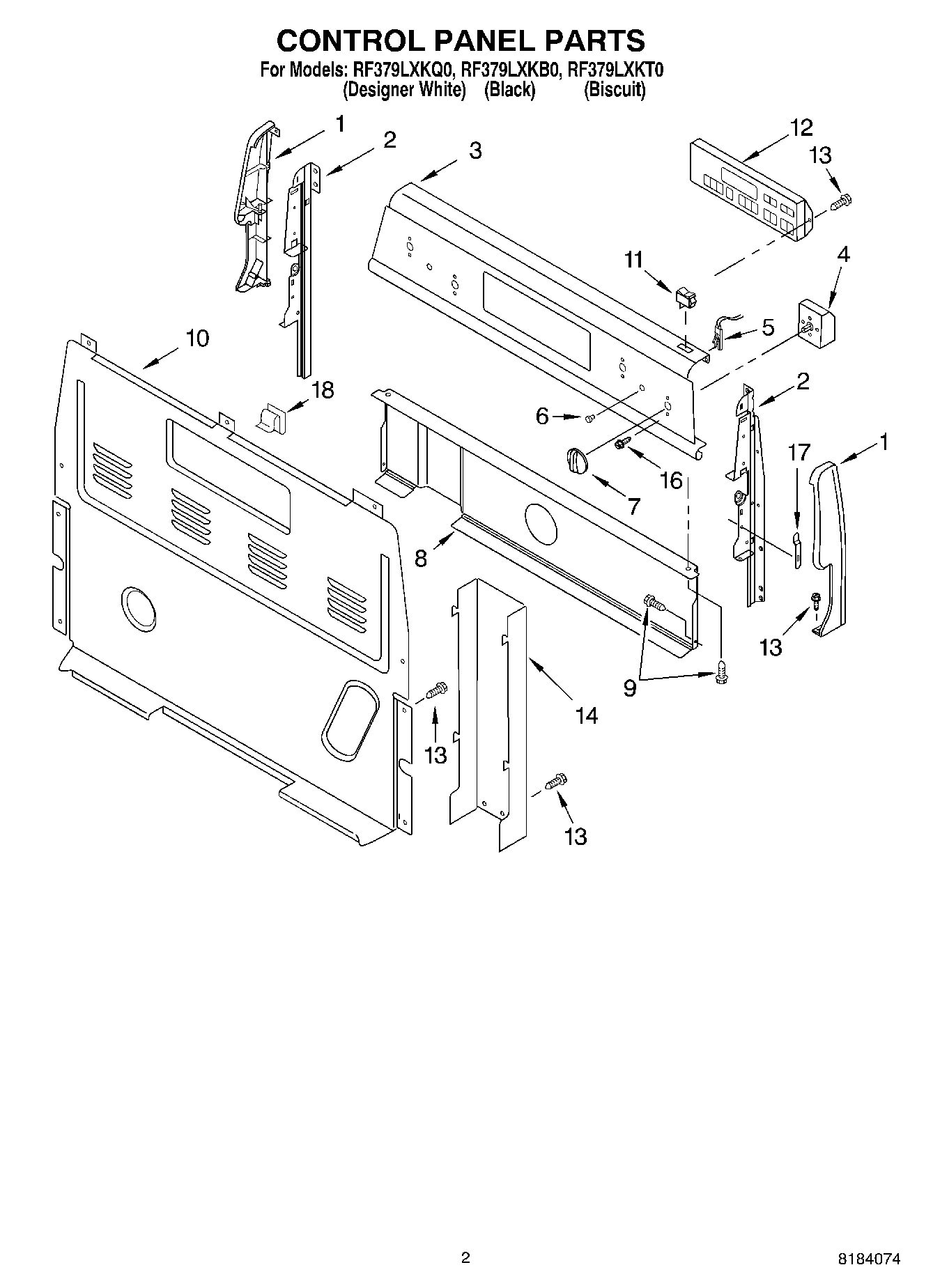

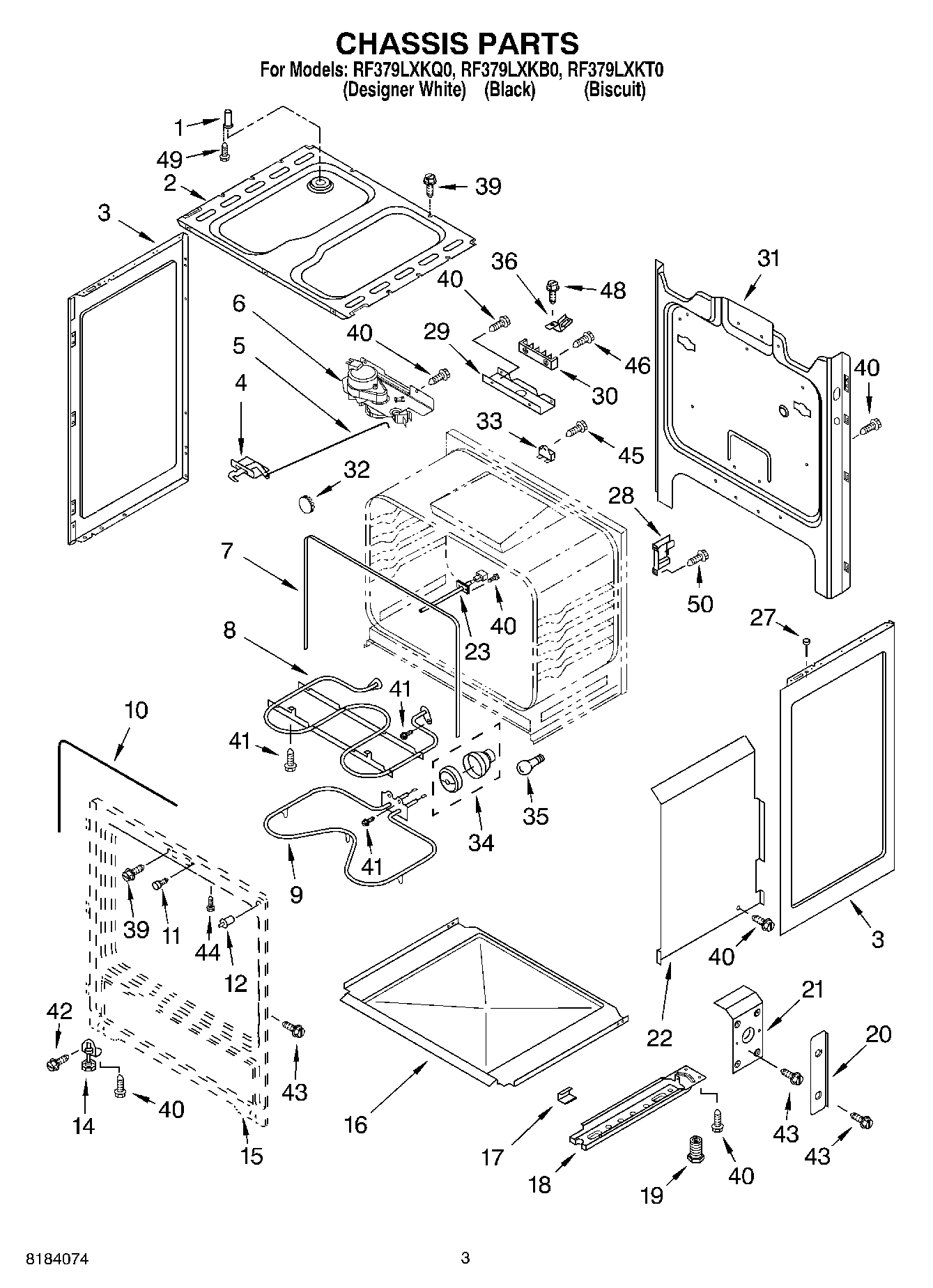

3

W10162246 Whirlpool Side Panel Backorder WPL W10162246 $81.54

3

W11730303 Whirlpool Side Panel In Stock WPL W11730303 $58.52

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $167.94

3

WPW10202216 Whirlpool Door Handle In Stock WPL WPW10202216 $130.22

3

WPW10202217 Whirlpool Door Handle In Stock WPL WPW10202217 $101.23

3

WPW10575396 Whirlpool Side Panel Backorder WPL WPW10575396 $75.80

3

Handle, Door (Biscuit) WPL 8522445 Contact Us For Availability

4

WP3148952 Whirlpool Oven Infinite Switch In Stock WPL WP3148952 $33.53

4

WP3195060 Whirlpool Cooktop Pin Backorder WPL WP3195060 $4.23

4

WP9761013 Whirlpool Door Latch Backorder WPL WP9761013 $86.66

4

Liner, Door WPL 3186292 Contact Us For Availability

5

Seal, Window WPL 8522414 Contact Us For Availability

5

Rod, Latch WPL 3196961 Contact Us For Availability

6

WP3196068 Whirlpool Light Lens In Stock WPL WP3196068 $2.85

6

WP3196813 Whirlpool Rivet Backorder WPL WP3196813 $4.43

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.43

6

WP8053948 Whirlpool Door Glass In Stock WPL WP8053948 $67.09

6

WPW10107820 Whirlpool Door Latch In Stock WPL WPW10107820 $111.45

7

W11219377 Whirlpool Drawer Panel Backorder WPL W11219377 $70.99

7

W11230488 Whirlpool Drawer Panel Backorder WPL W11230488 $70.99

7

WP3195812 Whirlpool Cooktop Rod In Stock WPL WP3195812 $2.51

7

WP8522565 Whirlpool Knob In Stock WPL WP8522565 $11.75

7

WP8522566 Whirlpool Knob Backorder WPL WP8522566 $11.14

7

WPW10316950 Whirlpool Window Frame Backorder WPL WPW10316950 $28.80

7

Seal, Oven Flange WPL 3195737 Contact Us For Availability

8

W10856603 Whirlpool Broil Element In Stock WPL W10856603 $87.56

8

WP3195917 Whirlpool Clip Assembly In Stock WPL WP3195917 $3.70

8

WPW10278991 Whirlpool Insulation Backorder WPL WPW10278991 $40.48

9

814399 Whirlpool Receptacle Kit In Stock WPL 814399 $15.52

9

W11539580 Whirlpool Retainer Backorder WPL W11539580 $80.49

9

WPW10308477 Whirlpool Bake Element In Stock WPL WPW10308477 $36.86

9

Screw WPL 4449746 Contact Us For Availability

10

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $21.59

10

WP8053807 Whirlpool Oven Door Hinge In Stock WPL WP8053807 $49.45

10

WP8272473 Whirlpool Rear Cover Backorder WPL WP8272473 $112.03

3149360 Whirlpool Light Switch Backorder WPL 3149360 $36.12

W10877054 Whirlpool Spacer Assembly Backorder WPL W10877054 $26.75

WP8053834 Whirlpool Door Glass Backorder WPL WP8053834 $128.85

WPW10118455 Whirlpool Door Glass Assembly In Stock WPL WPW10118455 $195.36

Glass, Outer Door (Biscuit) WPL 8272498 Contact Us For Availability

12

WP3196262 Whirlpool Light Switch Backorder WPL WP3196262 $58.66

12

WP487939 Whirlpool Refrigerator Nut Backorder WPL WP487939 $2.51

12

Control, Range (Black) WPL 6610316 Contact Us For Availability

13

W10491985 Whirlpool Screw In Stock WPL W10491985 $2.51

8184858 Whirlpool Door Trim Backorder WPL 8184858 $61.47

8184859 Whirlpool Range Oven Door Trim Kit (2 In Stock WPL 8184859 $48.50

8184860 Whirlpool Oven Door Trim Backorder WPL 8184860 $55.24

WP3196037 Whirlpool Leveling Foot Backorder WPL WP3196037 $26.50

15

Frame, Front (Not Serviceable) WPL ARI123081A Contact Us For Availability

15

Clip, Glass (6) WPL 3196025 Contact Us For Availability

16

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $2.51

16

WP8054068 Whirlpool Retainer Backorder WPL WP8054068 $28.80

16

Bracket, Latch WPL 3195914 Contact Us For Availability

17

3196200 Whirlpool Clip In Stock WPL 3196200 $5.05

17

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

17

Clip, Panel (6) WPL 3196576 Contact Us For Availability

18

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.51

18

WPW10306546 Whirlpool Base Rail Backorder WPL WPW10306546 $50.64

19

WP3196925 Whirlpool Clip Assembly Backorder WPL WP3196925 $5.16

19

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

20

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

20

Shield, Outer (2) WPL 3196091 Contact Us For Availability

21

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

21

Shield, Inner (2) WPL 3196092 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $28.80

3196696 Whirlpool Clip Backorder WPL 3196696 $6.61

3400964 Whirlpool Oven Clip Backorder WPL 3400964 $32.57

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

814381 Whirlpool Pin Backorder WPL 814381 $3.70

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.14

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

W11396691 Whirlpool Element Receptacle and Wi In Stock WPL W11396691 $66.70

WP3196154 Whirlpool Screw Assembly Backorder WPL WP3196154 $2.51

WP3196794 Whirlpool Glass Bracket Backorder WPL WP3196794 $11.53

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Retainer, Side (2) WPL 3195717 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wi WPL 242828 Contact Us For Availability

WPL 242829 WPL 242829 Contact Us For Availability

WPL 242830 WPL 242830 Contact Us For Availability

WPL 242832 WPL 242832 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 313660 WPL 313660 Contact Us For Availability

WPL 4392900 WPL 4392900 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 8273266 WPL 8273266 Contact Us For Availability

WPL 8274000 WPL 8274000 Contact Us For Availability

23

WPW10181986 Whirlpool Oven Sensor In Stock WPL WPW10181986 $50.55

28

W10404688 Whirlpool Bracket Support Backorder WPL W10404688 $7.69

29

W11728255 Whirlpool Service Bracket Backorder WPL W11728255 $28.68

30

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

30

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

31

Back, Main WPL 8274034 Contact Us For Availability

32

Button, Plug WPL 3196439 Contact Us For Availability

33

WP3196548 Whirlpool Thermal Fuse In Stock WPL WP3196548 $16.20

34

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

35

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

36

Strap, Ground WPL 3169573 Contact Us For Availability

41

WP3196174 Whirlpool Screw Backorder WPL WP3196174 $2.51

42

Screw WPL 3196179 Contact Us For Availability

43

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 $2.51

44

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

45

3196172 Whirlpool Oven Screw Backorder WPL 3196172 $9.59

46

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

48

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59

49

WP3196567 Whirlpool Screw Backorder WPL WP3196567 $2.51

50

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

50

WP8272612 Whirlpool Insulation Backorder WPL WP8272612 $77.67
