Model Whirlpool RF377PXYN0 – Common Parts & Diagrams

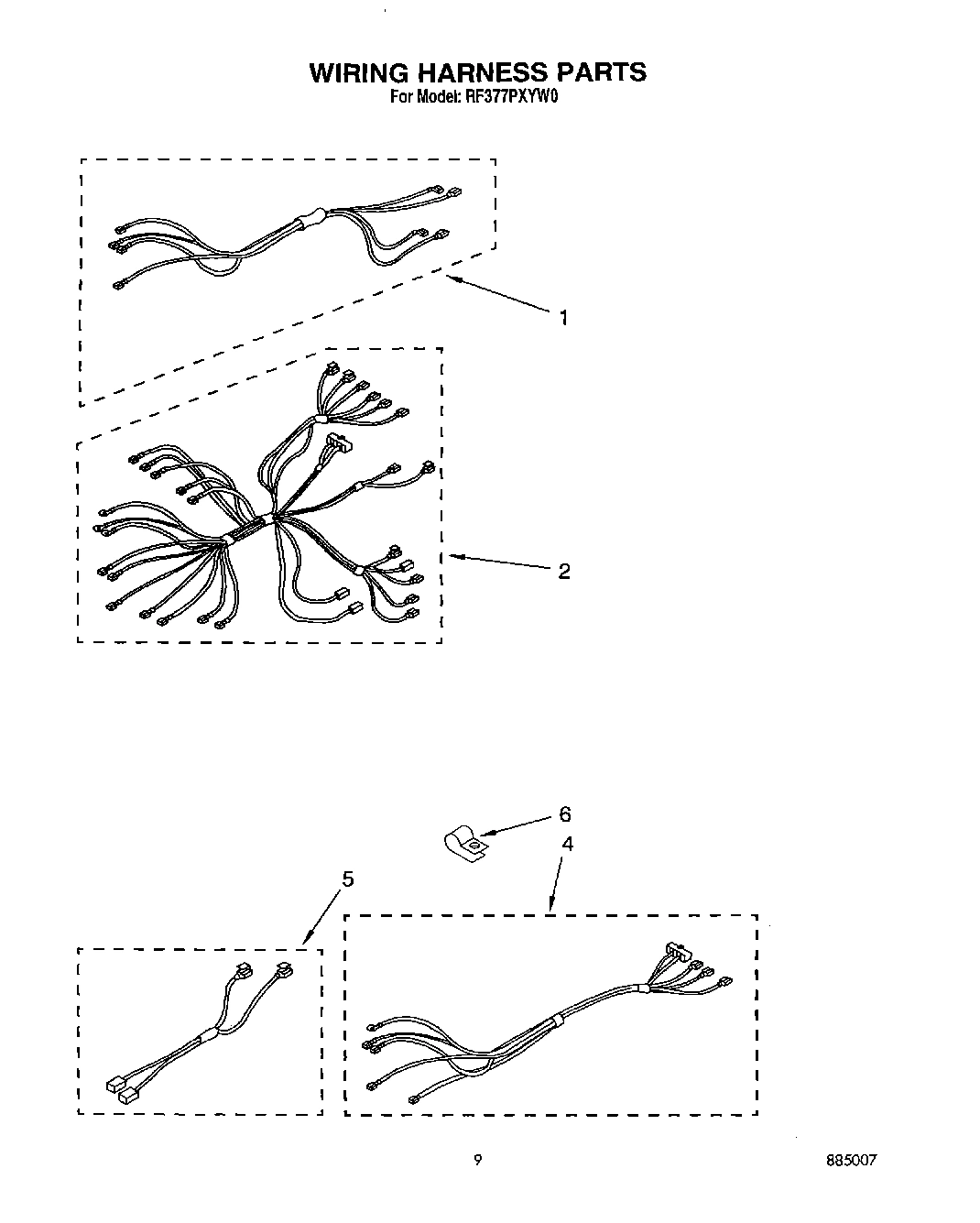

07 - WIRING HARNESS

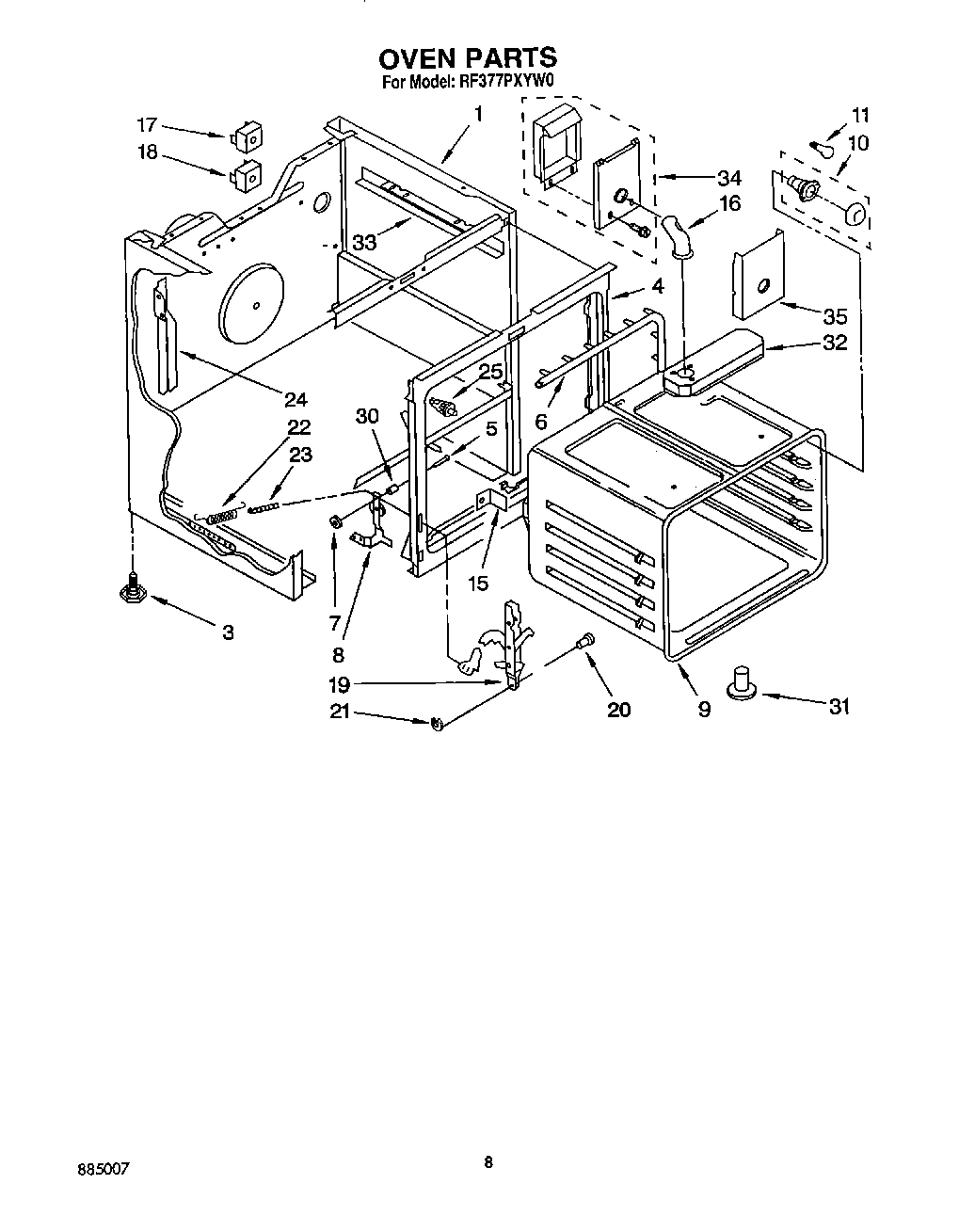

06 - OVEN

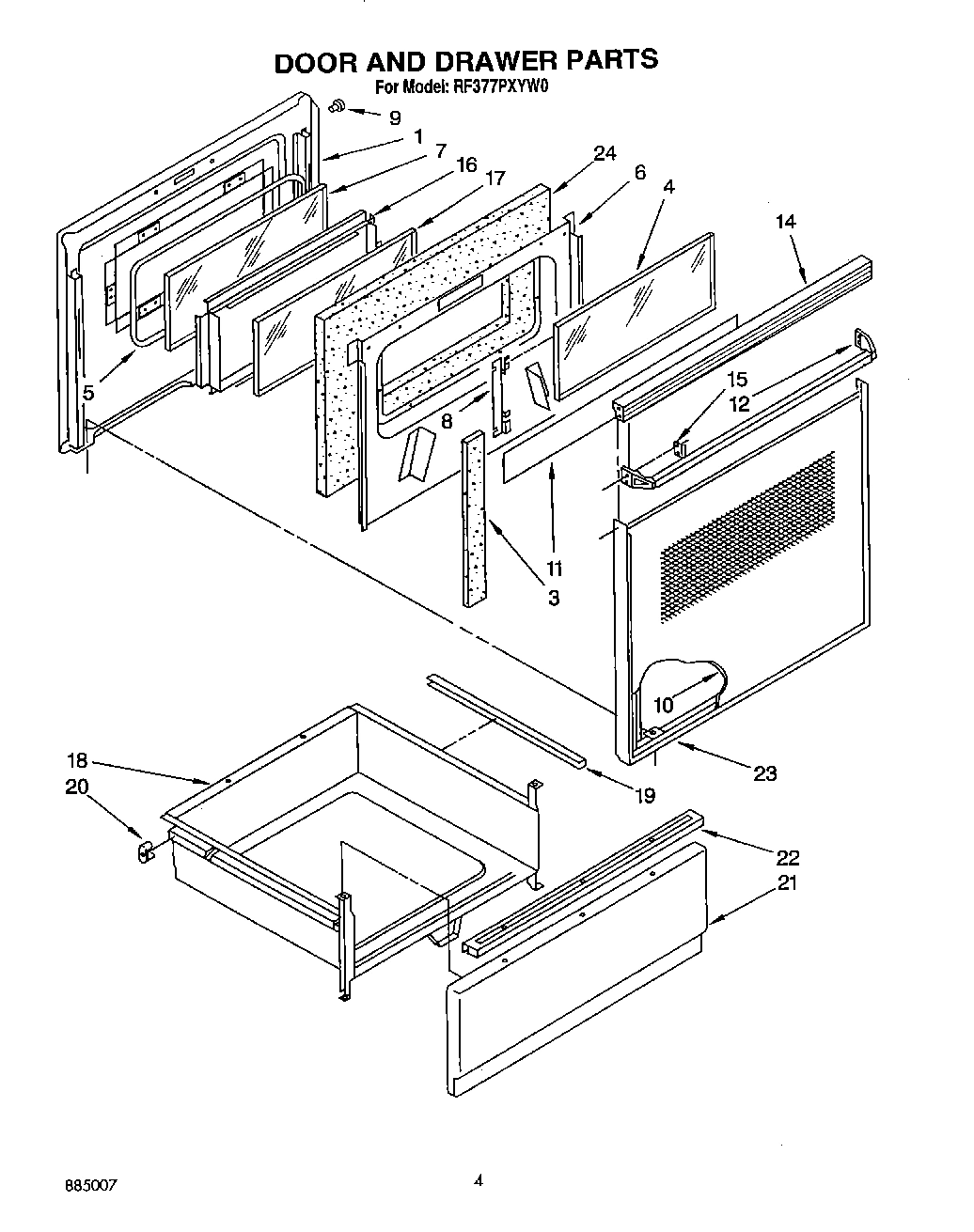

04 - DOOR AND DRAWER

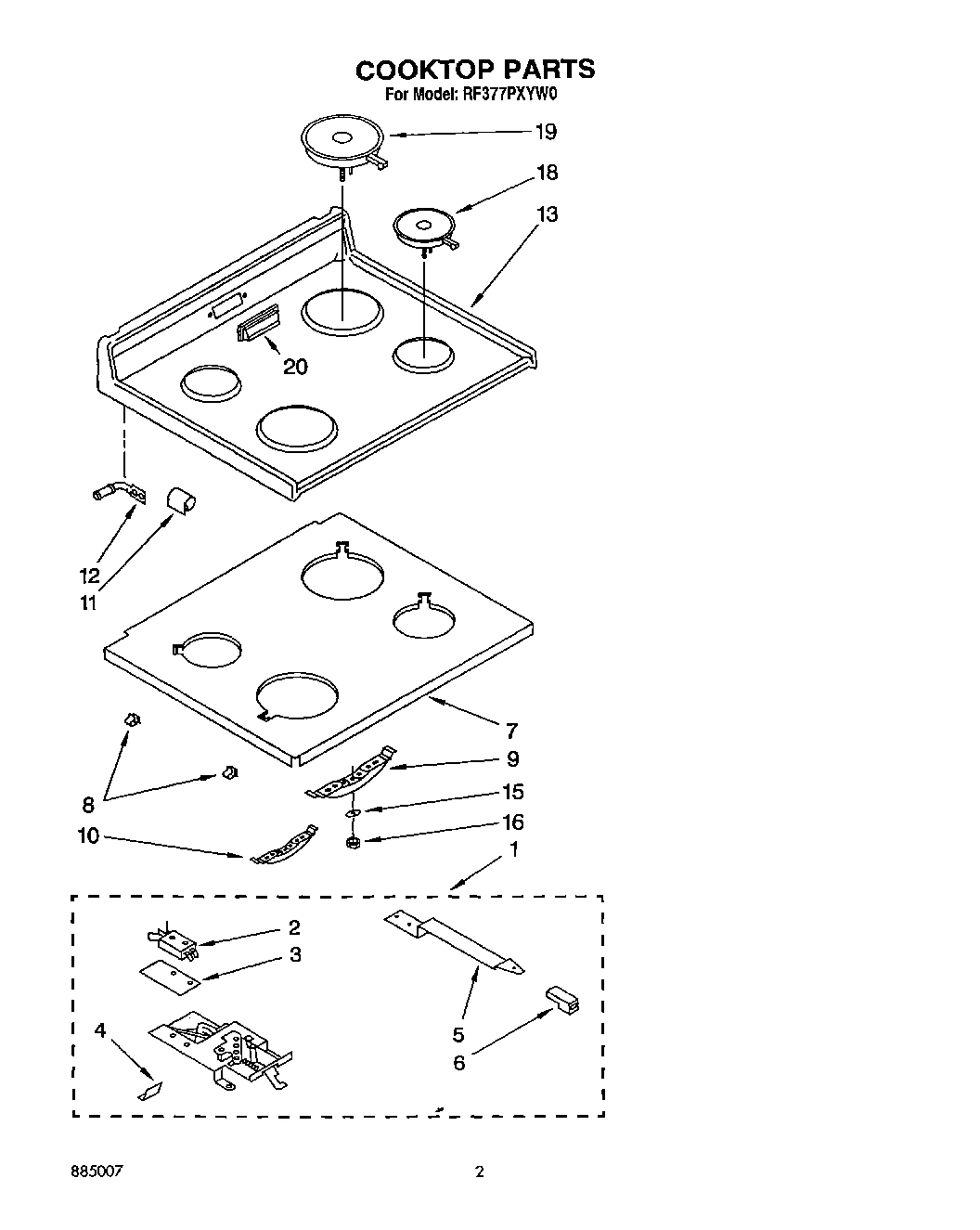

02 - COOKTOP

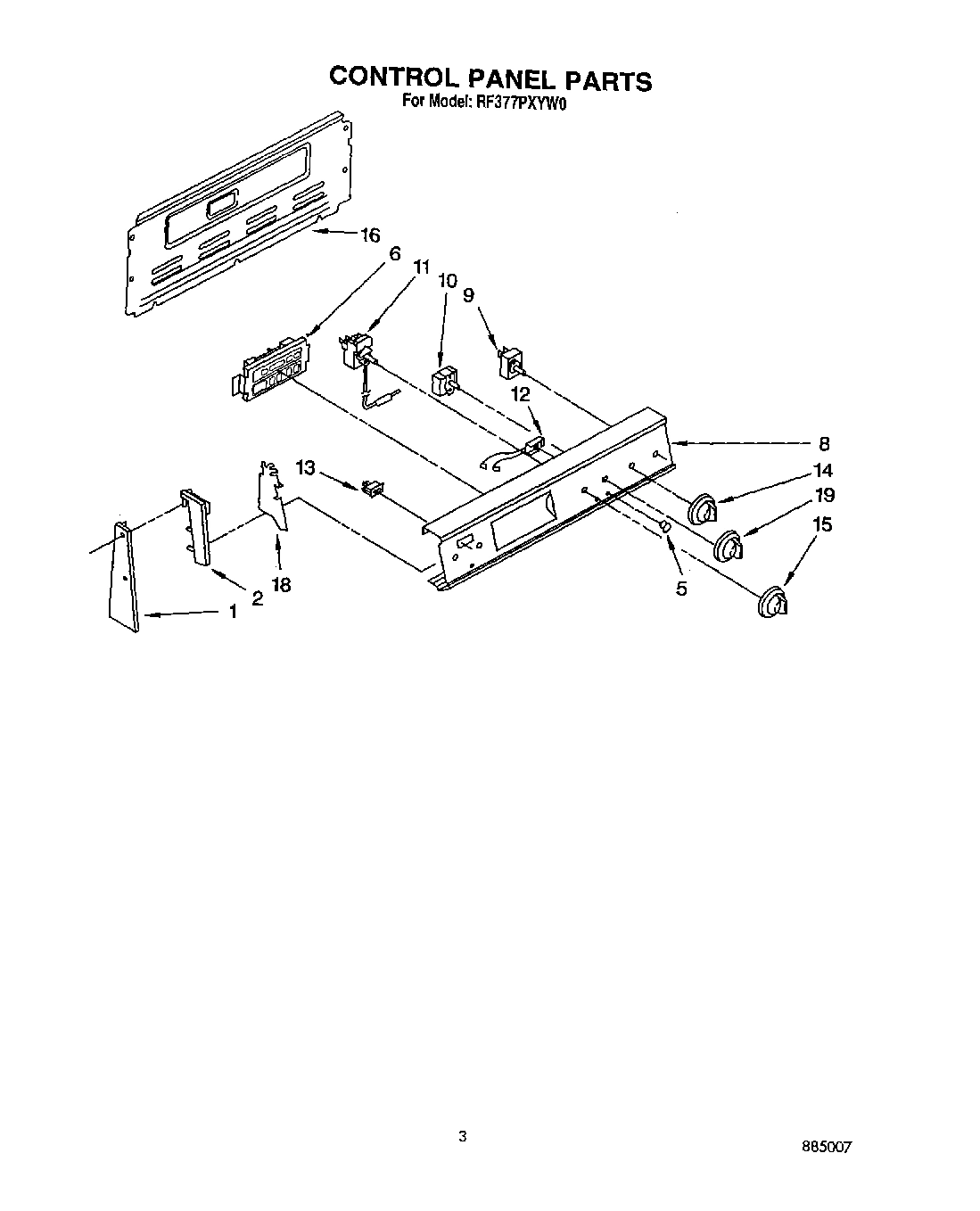

03 - CONTROL PANEL

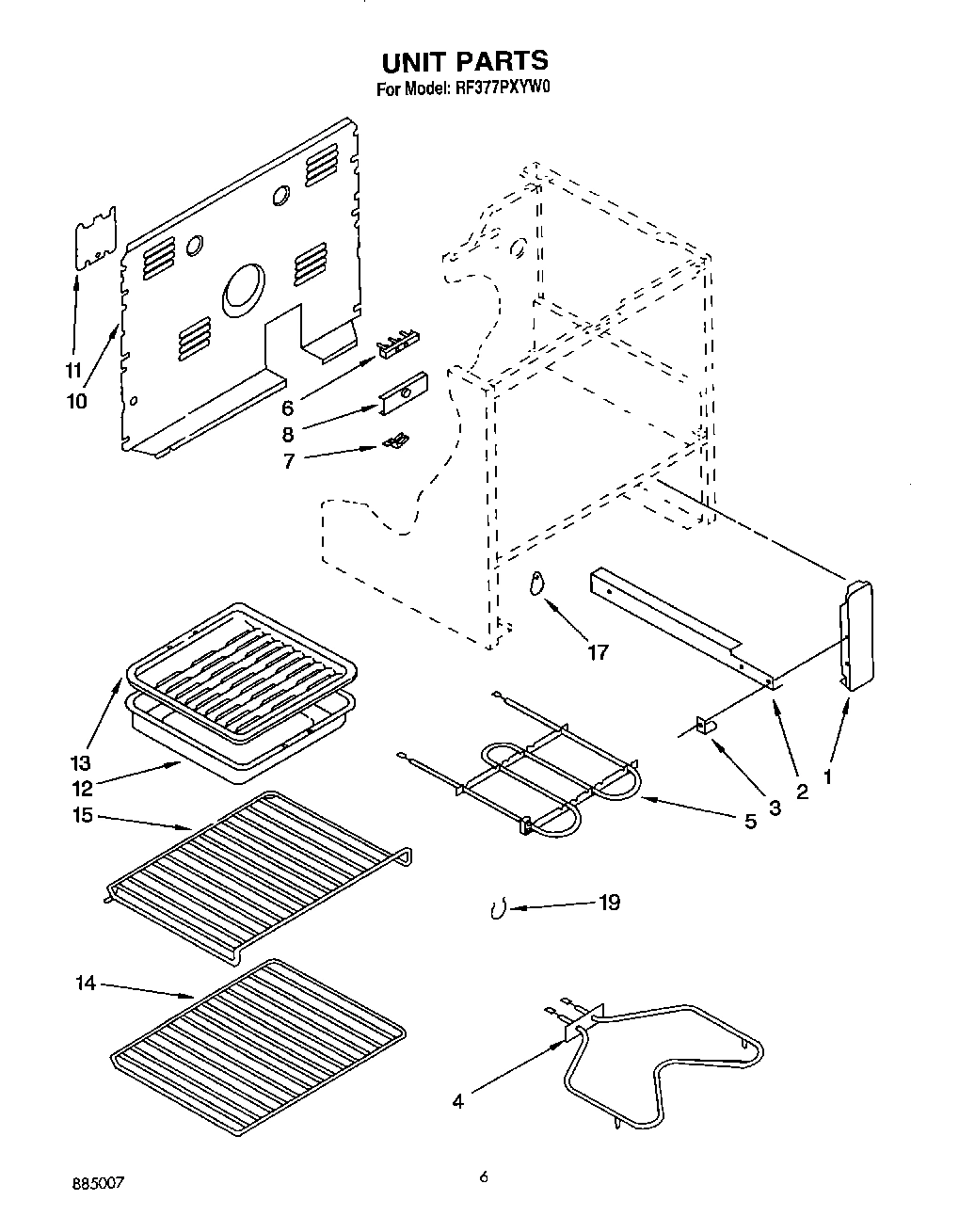

05 - UNIT, LIT/OPTIONAL
Common parts from model Whirlpool RF377PXYN0
WPL LIT3147395 WPL LIT3147395 Contact Us For Availability
WPL LIT3150280 WPL LIT3150280 Contact Us For Availability
WPL LIT3183556 WPL LIT3183556 Contact Us For Availability
WPL LIT885007 WPL LIT885007 Contact Us For Availability
1
Screw, 10-24 x 1/2 (2) WPL 247326 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
1
Latch Asm Complete (Includes Wire Harness) WPL 3183322 Contact Us For Availability
1
Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability
1
End Trim L.H. WPL 313190 Contact Us For Availability
1
End Trim R.H. WPL 313191 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
2
Safety Switch WPL 3182741 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
2
Screw (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 313230 Contact Us For Availability
2
End Cap L.H. WPL 313231 Contact Us For Availability
2
Rail R.H. WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
3
Screw (2) WPL 307748 Contact Us For Availability
3
Seal, Fiberglass (2) WPL 3148441 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
4
Glass, Reflective WPL 3148178 Contact Us For Availability
4
Screw,6-3/8 (2) WPL 309258 Contact Us For Availability
4
Shield, Latch WPL 313035 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Screw (2) WPL 308422 Contact Us For Availability
5
Handle, Latch WPL 3169081 Contact Us For Availability
5
Lens, Light (2) WPL 313101 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Timer, Clock WPL 3183186 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
7
Support, Cooktop WPL 3149261 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
8
Clip, Wire WPL 311311 Contact Us For Availability
8
Control, Panel WPL 3182987 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Bracket, Mounting WPL 3147703 Contact Us For Availability
10
Glass, Panel WPL 3148185 Contact Us For Availability
10
Bracket, Mounting WPL 3147704 Contact Us For Availability
10
Switch, Selector (5 Position) WPL 3148419 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
11
Thermostat, Oven WPL 3148933 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
11
Bracket, Cooktop (2) WPL 307965 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Indicator Light (Oven Unit) WPL 314031 Contact Us For Availability
12
Handle, Door WPL 3148228 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
12
Indicator Light (Surface Unit) WPL 3183695 Contact Us For Availability
13
Cooktop (White) WPL 3171372 Contact Us For Availability
13
Cooktop (Almond) WPL 3171373 Contact Us For Availability
13
Switch, Rocker WPL 3182717 Contact Us For Availability
14
Knob, (4) (Infinite Switch) WPL 3183118 Contact Us For Availability
14
Top, Door WPL 3148223 Contact Us For Availability
14
Screw (3) WPL 3182345 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Knob, Thermostat WPL 3183103 Contact Us For Availability
15
Spring, Leaf WPL 3147191 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
16
Nut, Metric WPL 3147189 Contact Us For Availability
16
Rear Cover Control Panel WPL 313195 Contact Us For Availability
17
Screw, (2) 10-32 x 7/16 WPL 3150532 Contact Us For Availability
17
Coverplate (2) WPL 311982 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
18
Element (6``) WPL 3183552 Contact Us For Availability
18
Shield, Control Panel (2) WPL 313608 Contact Us For Availability
19
Knob (Selector) WPL 3183115 Contact Us For Availability
19
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
19
Protector, Drawer Side (2) WPL 309329 Contact Us For Availability
19
Element (8``) WPL 3183553 Contact Us For Availability
19
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
19
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
19
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
19
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
19
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
19
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
19
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
19
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
19
Gre WPL 261582 Contact Us For Availability
19
WPL 261886 WPL 261886 Contact Us For Availability
19
WPL 261888 WPL 261888 Contact Us For Availability
19
WPL 261890 WPL 261890 Contact Us For Availability
19
WPL 261891 WPL 261891 Contact Us For Availability
19
WPL 285365 WPL 285365 Contact Us For Availability
19
WPL 285366 WPL 285366 Contact Us For Availability
19
WPL 285367 WPL 285367 Contact Us For Availability
19
WPL 285368 WPL 285368 Contact Us For Availability
19
WPL 310433 WPL 310433 Contact Us For Availability
19
WPL 3147861 WPL 3147861 Contact Us For Availability
19
WPL 3169093 WPL 3169093 Contact Us For Availability
19
WPL 3169094 WPL 3169094 Contact Us For Availability
19
WPL 72108 WPL 72108 Contact Us For Availability
19
WPL 72112 WPL 72112 Contact Us For Availability
19
WPL 799832 WPL 799832 Contact Us For Availability
19
WPL 978883 WPL 978883 Contact Us For Availability
20
Cover, Vent (Mounting Clip (2)) WPL 3149190 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
20
Cover, Vent (White) WPL 3149011 Contact Us For Availability
20
cover, vent (almond) WPL 3149012 Contact Us For Availability
21
Panel Drawer (White) WPL 307935 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
22
Handle, Drawer WPL 3169105 Contact Us For Availability
23
Frame, Door WPL 3148235 Contact Us For Availability
24
Support, L.H. Post WPL 313196 Contact Us For Availability
24
Support, R.H. Post WPL 313197 Contact Us For Availability
24
Insulation WPL 3147951 Contact Us For Availability
25
Switch, Door (2) WPL 310345 Contact Us For Availability
30
Snubber, Door (2) WPL 309111 Contact Us For Availability
31
Tube, Vent WPL 3169109 Contact Us For Availability
32
Box Vent WPL 3169129 Contact Us For Availability
33
Support, Chassis WPL 3147646 Contact Us For Availability
34
Box Vent (Rear) WPL 3171381 Contact Us For Availability
35
Shield, Vent Box WPL 3149006 Contact Us For Availability
35
Screw 8 x 3/16 (2) WPL 98520 Contact Us For Availability
× ![]()
