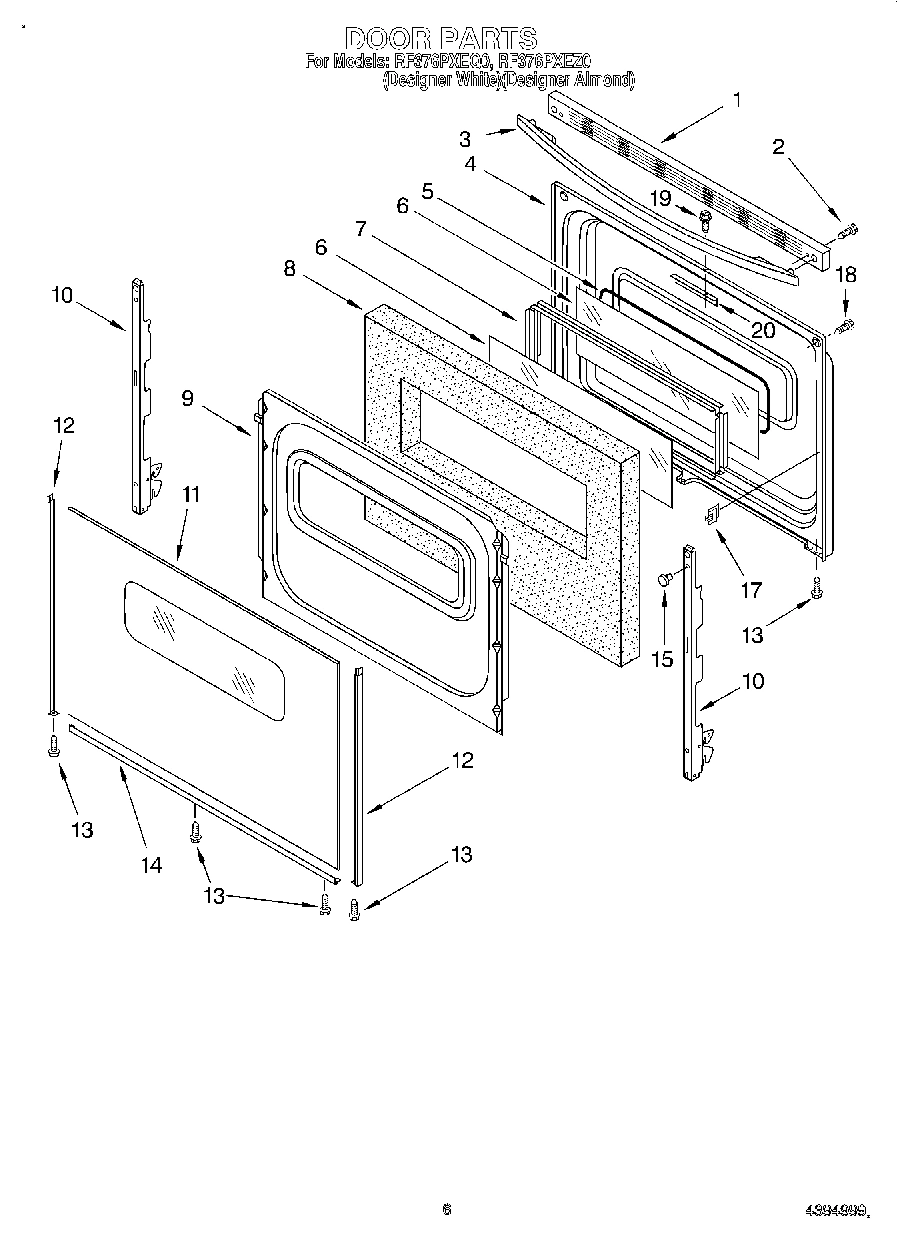

Model Whirlpool RF376PXEZ0 – Common Parts &amp; Diagrams

1

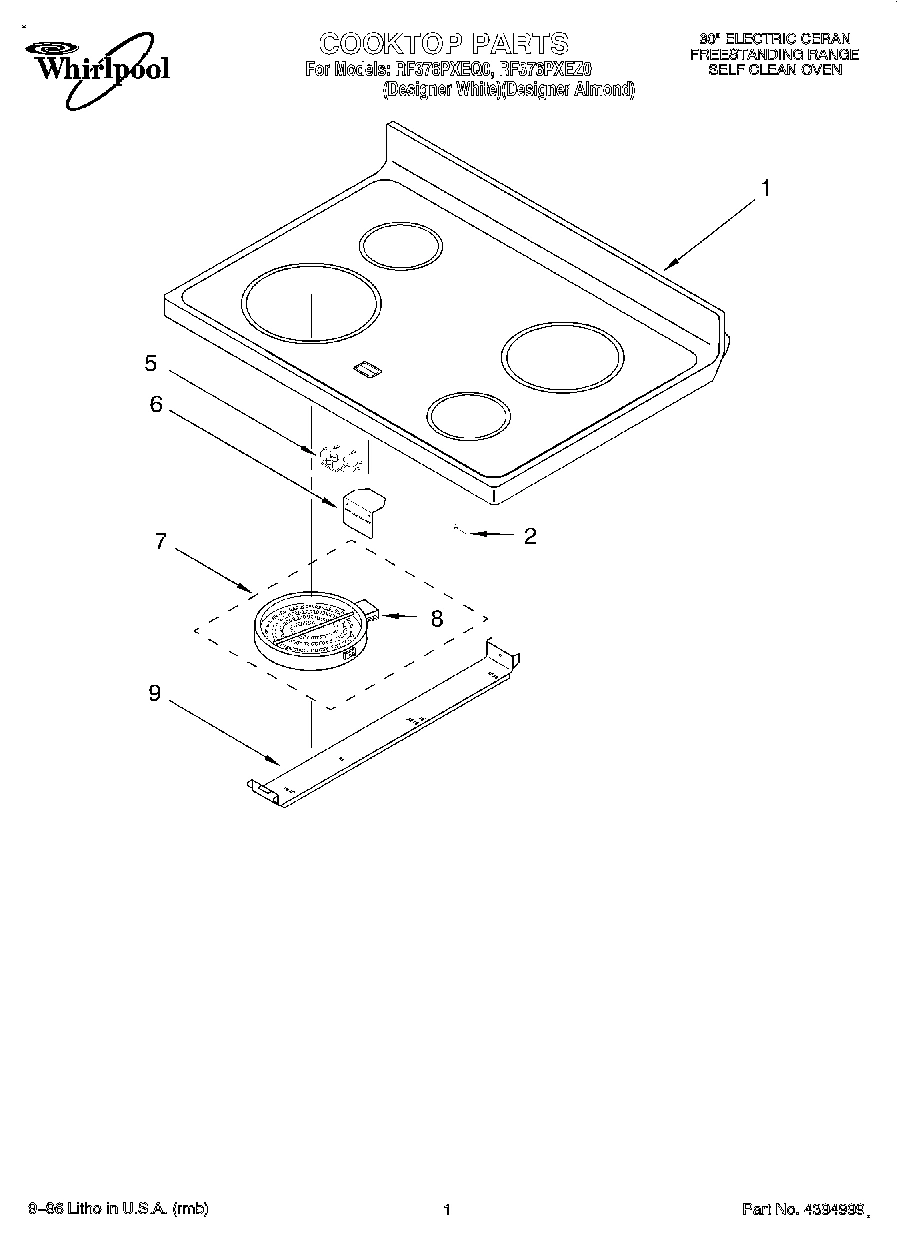

Cooktop (White) WPL 3196417 Contact Us For Availability

1

Cooktop (Almond) WPL 3196418 Contact Us For Availability

1

Endcap (White Left Hand) WPL 3186190 Contact Us For Availability

1

Endcap (White Right Hand) WPL 3186191 Contact Us For Availability

1

Endcap (Almond Left Hand) WPL 3186192 Contact Us For Availability

1

Endcap (Almond Right Hand) WPL 3186193 Contact Us For Availability

1

Tube, Oven Vent WPL 3169110 Contact Us For Availability

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $44.05

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.64

2

WP3196170 Whirlpool Screw Backorder WPL WP3196170 $2.51

2

Spring, Locator WPL 3149191 Contact Us For Availability

2

Support, Endcap (Left Hand) WPL 3186198 Contact Us For Availability

2

Support, Endcap (Right Hand) WPL 3186199 Contact Us For Availability

2

Support, Corner LR WPL 3196156 Contact Us For Availability

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $176.34

3

Panel, Backguard (Includes No. 11) (White) WPL 3186173 Contact Us For Availability

3

Panel, Backguard (Includes No. 11) (Almond) WPL 3186174 Contact Us For Availability

3

Panel, Side (2) (White) WPL 3186073 Contact Us For Availability

3

Panel, Side (2) (Almond) WPL 3186074 Contact Us For Availability

4

WP3148952 Whirlpool Range Infinite Switch In Stock WPL WP3148952 $33.53

4

WP3148955 Whirlpool Infinite Switch Backorder WPL WP3148955 $72.47

4

WP3149404 Whirlpool Range Surface Element Swi In Stock WPL WP3149404 $35.50

4

WP9761013 Whirlpool Door Latch Backorder WPL WP9761013 $90.99

4

Switch, Infinite (Screw (8)) WPL 3196171 Contact Us For Availability

4

Drawer, Storage WPL 3186096 Contact Us For Availability

5

W10838990 Whirlpool Mounting Bracket Backorder WPL W10838990 $33.25

5

Light, Ind. (2) WPL 313102 Contact Us For Availability

5

Light, Indicator (Hot Surface) WPL 3169397 Contact Us For Availability

5

Rod, Latch WPL 3196128 Contact Us For Availability

6

3196558 Whirlpool Range Screw Backorder WPL 3196558 $9.59

6

WP3196068 Whirlpool Light Lens In Stock WPL WP3196068 $3.00

6

Screw, Panel (2) (Almond) WPL 3196559 Contact Us For Availability

6

Bracket, Ind Light WPL 3195810 Contact Us For Availability

6

Solenoid Assy. WPL 3196126 Contact Us For Availability

7

W10823704 Whirlpool Range Cooktop Radiant Sur In Stock WPL W10823704 $104.98

7

W11219377 Whirlpool Drawer Panel Backorder WPL W11219377 $74.54

7

Knob, Infinite (4) (White) WPL 3196232 Contact Us For Availability

7

Knob, Infinite (4) (Almond) WPL 3196233 Contact Us For Availability

7

Element, Surface (Includes No. 8) (1700 W - R WPL 3189895 Contact Us For Availability

7

Element, Surface (Includes No. 8) (2400 W - L WPL 3189897 Contact Us For Availability

7

Seal, Oven Flange WPL 3195737 Contact Us For Availability

7

Panel, Drawer Front (Almond) WPL 3195094 Contact Us For Availability

8

W10856603 Whirlpool Broil Element In Stock WPL W10856603 $88.31

8

Limiter, Temp. (1200 W - RF) WPL 3190248 Contact Us For Availability

8

Limiter, Temp. (1700 W - RR) WPL 3190250 Contact Us For Availability

8

Limiter, Temp. (2400 W - LF) WPL 3190251 Contact Us For Availability

8

Shield, Heat WPL 3195212 Contact Us For Availability

9

WP3196174 Whirlpool Screw Backorder WPL WP3196174 $2.51

9

WP8053334 Whirlpool Drawer Glide In Stock WPL WP8053334 $3.88

9

WPW10308477 Whirlpool Bake Element In Stock WPL WPW10308477 $38.70

9

Screw (4) WPL 4449746 Contact Us For Availability

9

Bracket, Element WPL 3196455 Contact Us For Availability

10

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $21.59

10

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.93

10

WP8272473 Whirlpool Rear Cover Backorder WPL WP8272473 $117.64

11

3149360 Whirlpool Light Switch Backorder WPL 3149360 $37.94

11

W10877054 Whirlpool Spacer Assembly Backorder WPL W10877054 $28.09

11

Switch, Rocker (Almond) WPL 3169466 Contact Us For Availability

12

Switch, Door WPL 3195993 Contact Us For Availability

12

Control, Range (White) WPL 3196245 Contact Us For Availability

12

Control, Range (Almond) WPL 3196246 Contact Us For Availability

13

WP3195546 Whirlpool Drawer Glide In Stock WPL WP3195546 $3.70

14

WP3196037 Whirlpool Leveling Foot In Stock WPL WP3196037 $27.82

14

WPW10326122 Whirlpool Black Cover Backorder WPL WPW10326122 $49.19

14

Screw (4) WPL 3196179 Contact Us For Availability

15

Frame, Front WPL 3186156 Contact Us For Availability

16

WP8054068 Whirlpool Retainer Backorder WPL WP8054068 $30.25

17

Clip, Panel (6) WPL 3196576 Contact Us For Availability

18

WPW10306546 Whirlpool Base Rail Backorder WPL WPW10306546 $53.16

19

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

New WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 3195914 WPL 3195914 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Shield, Outer (2) WPL 3196091 Contact Us For Availability

21

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 $2.51

21

Shield, Inner (2) WPL 3196092 Contact Us For Availability

22

Retainer, Side (2) WPL 3195717 Contact Us For Availability

23

Sensor, Oven WPL 3148440 Contact Us For Availability

24

Support, Front (2) WPL 3195736 Contact Us For Availability

25

3196172 Whirlpool Oven Screw Backorder WPL 3196172 $9.59

25

Support, Corner RR WPL 3195987 Contact Us For Availability

27

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

28

W10404688 Whirlpool Bracket Support Backorder WPL W10404688 $7.69

29

W11728255 Whirlpool Service Bracket Backorder WPL W11728255 $30.10

30

WP3196163 Whirlpool Screw In Stock WPL WP3196163 $2.51

30

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

31

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

31

Back, Main WPL 3195707 Contact Us For Availability

32

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

32

Bracket, Flue WPL 3196437 Contact Us For Availability

33

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

33

WPW10134285 Whirlpool Vent Tube Backorder WPL WPW10134285 $177.61

34

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.67

35

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

36

Button, Plug WPL 3196439 Contact Us For Availability

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59

W11311894 Whirlpool Insulation Backorder WPL W11311894 $39.03

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

Clip WPL 313660 Contact Us For Availability

Strap, Ground WPL 3169573 Contact Us For Availability

Insulation, Vent WPL 3196436 Contact Us For Availability
