Model Whirlpool RF372BXEZ0 – Common Parts & Diagrams

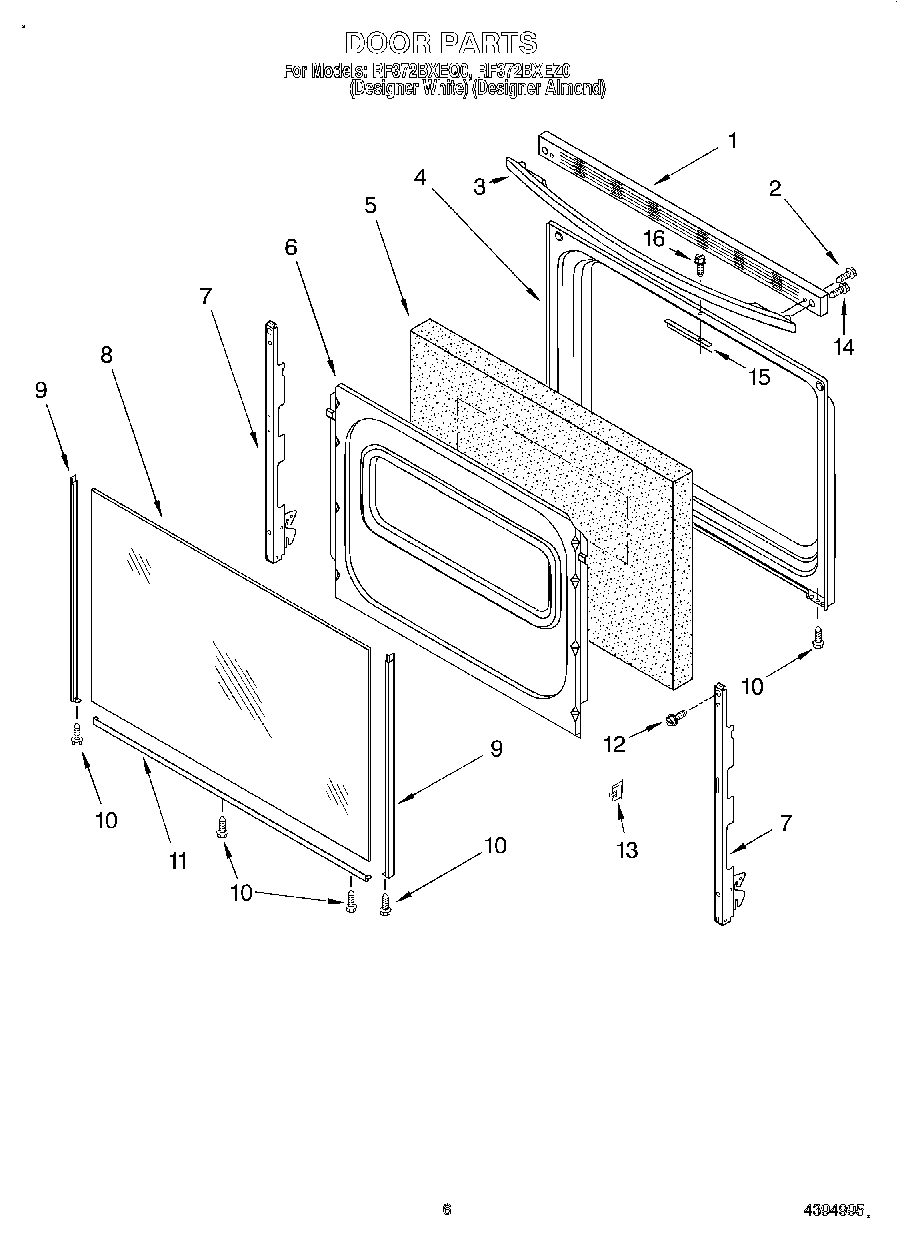

05 - DOOR, LIT/OPTIONAL

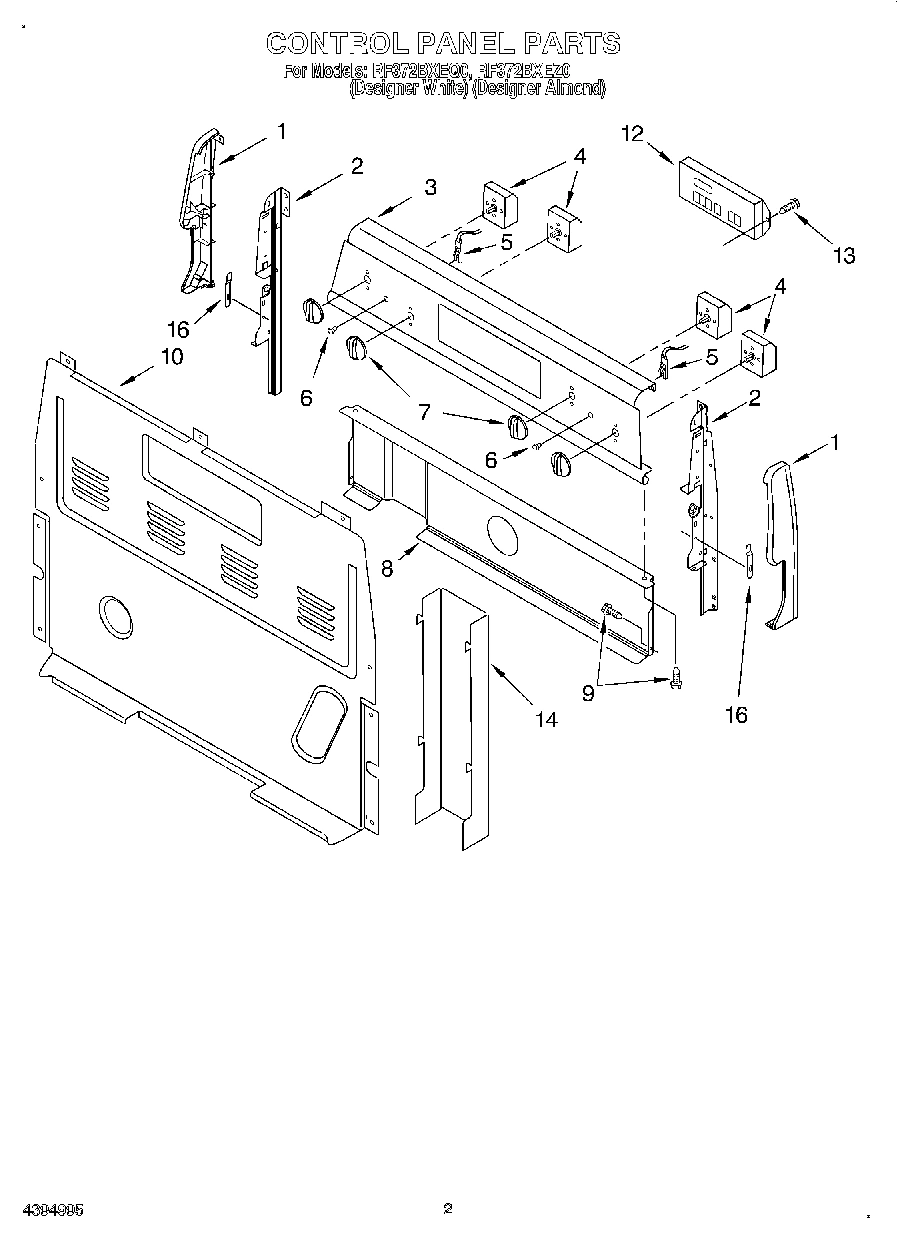

02 - CONTROL PANEL
03 - CHASSIS
01 - COOKTOP
04 - DRAWER AND BROILER
Common parts from model Whirlpool RF372BXEZ0
1
Endcap (Left Hand White) WPL 3186190 Contact Us For Availability
1
Endcap (Right Hand White) WPL 3186191 Contact Us For Availability
1
Endcap, Left Hand (Almond) WPL 3186192 Contact Us For Availability
1
Endcap (Right Hand Almond) WPL 3186193 Contact Us For Availability
2
Support, Endcap (Left Hand) WPL 3186198 Contact Us For Availability
2
Support, Endcap (Right Hand) WPL 3186199 Contact Us For Availability
3
Panel, Backguard (White) WPL 3186165 Contact Us For Availability
3
Panel, Backguard (Almond) WPL 3186166 Contact Us For Availability
3
Panel, Side (2) (White) WPL 3186073 Contact Us For Availability
3
Panel, Side (2) (Almond) WPL 3186074 Contact Us For Availability
3
Cooktop (Almond) WPL 3186232 Contact Us For Availability
4
Switch, Infinite (Screw (8)) WPL 3196171 Contact Us For Availability
4
Drawer, Storage WPL 3186096 Contact Us For Availability
5
Light, Ind. (2) WPL 313102 Contact Us For Availability
5
Rod, Latch WPL 3196128 Contact Us For Availability
6
Solenoid Assy. WPL 3196125 Contact Us For Availability
6
Screw, Panel (2) (Almond) WPL 3196559 Contact Us For Availability
7
Knob, Infinite (4) (Almond) WPL 3196233 Contact Us For Availability
7
Seal, Oven Flange WPL 3195737 Contact Us For Availability
7
Panel, Drawer Front (Almond) WPL 3195094 Contact Us For Availability
8
Shield, Heat WPL 3196083 Contact Us For Availability
9
Screw (4) WPL 4449746 Contact Us For Availability
12
Control, Range (White) WPL 3196245 Contact Us For Availability
12
Control, Range (Almond) WPL 3196246 Contact Us For Availability
14
Screw (4) WPL 3196179 Contact Us For Availability
15
Frame, Front WPL 3186156 Contact Us For Availability
16
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
16
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
16
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
16
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
16
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
16
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
16
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
16
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
16
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
16
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
16
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
16
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
16
Grease WPL 261582 Contact Us For Availability
16
Coffee WPL 261886 Contact Us For Availability
16
New Avocado WPL 261888 Contact Us For Availability
16
Harvest Gold WPL 261890 Contact Us For Availability
16
Harvest Gold (Uncu WPL 261891 Contact Us For Availability
16
WPL 285365 WPL 285365 Contact Us For Availability
16
WPL 285366 WPL 285366 Contact Us For Availability
16
WPL 285367 WPL 285367 Contact Us For Availability
16
WPL 285368 WPL 285368 Contact Us For Availability
16
WPL 72108 WPL 72108 Contact Us For Availability
16
WPL 72112 WPL 72112 Contact Us For Availability
16
WPL 799832 WPL 799832 Contact Us For Availability
16
WPL 978883 WPL 978883 Contact Us For Availability
17
Clip, Panel (6) WPL 3196576 Contact Us For Availability
20
Shield, Outer (2) WPL 3196091 Contact Us For Availability
21
Shield, Inner (2) WPL 3196092 Contact Us For Availability
22
Retainer, Side (2) WPL 3195717 Contact Us For Availability
23
Sensor, Oven WPL 3148440 Contact Us For Availability
31
Back, Main WPL 3195707 Contact Us For Availability
36
Strap, Ground WPL 3169573 Contact Us For Availability
37
Button, Plug (2) WPL 3196439 Contact Us For Availability
× ![]()
