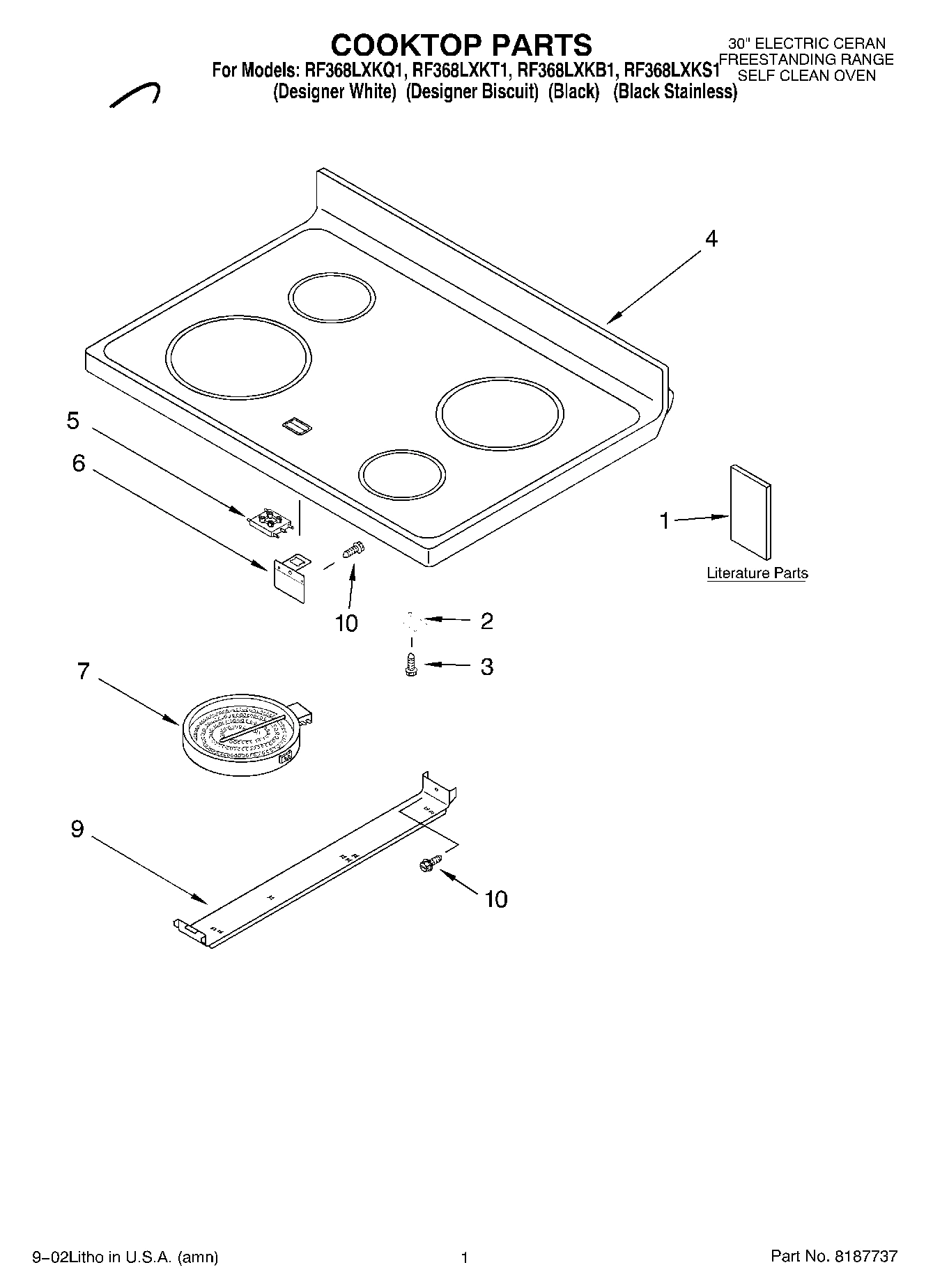

Model Whirlpool RF368LXKQ1 COOKTOP – Common Parts &amp; Diagrams

1

Trim, Top (Black) WPL 3196819 Contact Us For Availability

1

Trim, Top (Biscuit) WPL 8522434 Contact Us For Availability

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $44.05

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.64

2

Spring, Locator WPL 3149191 Contact Us For Availability

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $176.34

3

WP3196170 Whirlpool Screw Backorder WPL WP3196170 $2.51

3

WPW10202216 Whirlpool Door Handle In Stock WPL WPW10202216 $130.22

3

WPW10202217 Whirlpool Door Handle In Stock WPL WPW10202217 $106.30

3

Handle, Door (Biscuit) WPL 8522445 Contact Us For Availability

4

WP3148952 Whirlpool Range Infinite Switch In Stock WPL WP3148952 $33.53

4

Liner, Door WPL 3186292 Contact Us For Availability

5

WP8523265 Whirlpool Indicator Light In Stock WPL WP8523265 $24.55

5

Seal, Window WPL 8522414 Contact Us For Availability

5

Light, Indicator (Hot Surface) WPL 8523739 Contact Us For Availability

6

WP3196068 Whirlpool Light Lens In Stock WPL WP3196068 $3.00

6

WP3196813 Whirlpool Rivet Backorder WPL WP3196813 $4.43

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.43

6

WP8053948 Whirlpool Door Glass In Stock WPL WP8053948 $68.30

7

W11047722 Whirlpool Radiant Surface Element In Stock WPL W11047722 $81.73

7

W11171119 Whirlpool Radiant Surface Element In Stock WPL W11171119 $89.69

7

W11219377 Whirlpool Drawer Panel Backorder WPL W11219377 $74.54

7

W11230488 Whirlpool Drawer Panel Backorder WPL W11230488 $74.54

7

WP8273993 Whirlpool Surface Element In Stock WPL WP8273993 $118.83

7

WP8522565 Whirlpool Knob In Stock WPL WP8522565 $11.75

7

WP8522566 Whirlpool Knob Backorder WPL WP8522566 $11.14

7

WPW10316950 Whirlpool Window Frame Backorder WPL WPW10316950 $30.25

8

WPW10278991 Whirlpool Insulation Backorder WPL WPW10278991 $42.51

9

W11539580 Whirlpool Retainer Backorder WPL W11539580 $84.51

9

WP8053334 Whirlpool Drawer Glide In Stock WPL WP8053334 $3.88

9

Screw WPL 4449746 Contact Us For Availability

10

WP8053807 Whirlpool Range Door Hinge In Stock WPL WP8053807 $49.45

10

WP8272473 Whirlpool Rear Cover Backorder WPL WP8272473 $117.64

3149360 Whirlpool Light Switch Backorder WPL 3149360 $37.94

WP8053834 Whirlpool Door Glass Backorder WPL WP8053834 $135.30

WPW10118455 Whirlpool Door Glass Assembly In Stock WPL WPW10118455 $205.13

WPW10330077 Whirlpool Door Glass Backorder WPL WPW10330077 $198.55

Glass, Outer Door (Biscuit) WPL 8272498 Contact Us For Availability

W10761014 Whirlpool Right Door Trim In Stock WPL W10761014 $27.91

W10761018 Whirlpool Dishwasher Left Door Trim In Stock WPL W10761018 $37.20

WP8523166 Whirlpool Door Trim In Stock WPL WP8523166 $48.93

WP8523167 Whirlpool Door Trim Assembly Backorder WPL WP8523167 $37.19

WP8523172 Whirlpool Left Door Trim In Stock WPL WP8523172 $40.98

WP8523173 Whirlpool Door Trim Backorder WPL WP8523173 $37.24

Switch, Door WPL 3195993 Contact Us For Availability

13

W10491985 Whirlpool Screw Backorder WPL W10491985 $2.51

13

WP3195546 Whirlpool Drawer Glide In Stock WPL WP3195546 $3.70

WP3196037 Whirlpool Leveling Foot In Stock WPL WP3196037 $27.82

WP8523175 Whirlpool Door Trim Assembly In Stock WPL WP8523175 $52.13

WP8523177 Whirlpool Door Trim Assembly In Stock WPL WP8523177 $54.86

WP8523178 Whirlpool Door Trim Backorder WPL WP8523178 $54.73

16

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $2.64

16

WP8054068 Whirlpool Retainer Backorder WPL WP8054068 $30.25

17

Clip, Panel (6) WPL 3196576 Contact Us For Availability

17

Clip, Door Glass WPL 3196025 Contact Us For Availability

18

WPW10306546 Whirlpool Base Rail Backorder WPL WPW10306546 $53.16

18

Bracket, Window (2) WPL 3196794 Contact Us For Availability

19

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

20

Shield, Outer (2) WPL 3196091 Contact Us For Availability

21

WP3196925 Whirlpool Clip Assembly Backorder WPL WP3196925 $5.16

21

Shield, Inner (2) WPL 3196092 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

285006 Whirlpool Spray In Stock WPL 285006 $28.82

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $30.25

3196696 Whirlpool Clip In Stock WPL 3196696 $6.61

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

814381 Whirlpool Pin In Stock WPL 814381 $3.70

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $35.69

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.69

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

WPL W10355051 No Longer Available

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.64

WP3196154 Whirlpool Screw Assembly Backorder WPL WP3196154 $2.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Retainer, Side (2) WPL 8523803 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c WPL 242830 Contact Us For Availability

WPL 242832 WPL 242832 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 313660 WPL 313660 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 8523717 WPL 8523717 Contact Us For Availability

WPL 8523718 WPL 8523718 Contact Us For Availability

WPL 8523723 WPL 8523723 Contact Us For Availability

WPL 8524074 WPL 8524074 Contact Us For Availability

WPL 8524075 WPL 8524075 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

23

WPW10181986 Whirlpool Range Sensor In Stock WPL WPW10181986 $66.20

24

Support, Front (2) WPL 3195736 Contact Us For Availability

25

Support, Corner RR WPL 3195987 Contact Us For Availability

28

W10404688 Whirlpool Bracket Support Backorder WPL W10404688 $7.69

29

W11728255 Whirlpool Service Bracket Backorder WPL W11728255 $30.10

30

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

30

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

31

Back, Main WPL 8274034 Contact Us For Availability

33

WPW10134285 Whirlpool Vent Tube Backorder WPL WPW10134285 $177.61

34

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.67

35

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

36

Plug-Button WPL 3196439 Contact Us For Availability

37

Ground Strap WPL 3169573 Contact Us For Availability

38

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

39

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.93

41

WP3196174 Whirlpool Screw Backorder WPL WP3196174 $2.51

42

Screw WPL 3196179 Contact Us For Availability

43

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 $2.51

44

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

46

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

47

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

8053915 Whirlpool Range Insulation Backorder WPL 8053915 $7.59

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59

W11311894 Whirlpool Insulation Backorder WPL W11311894 $39.03

Insulation WPL ARI161284A Contact Us For Availability
