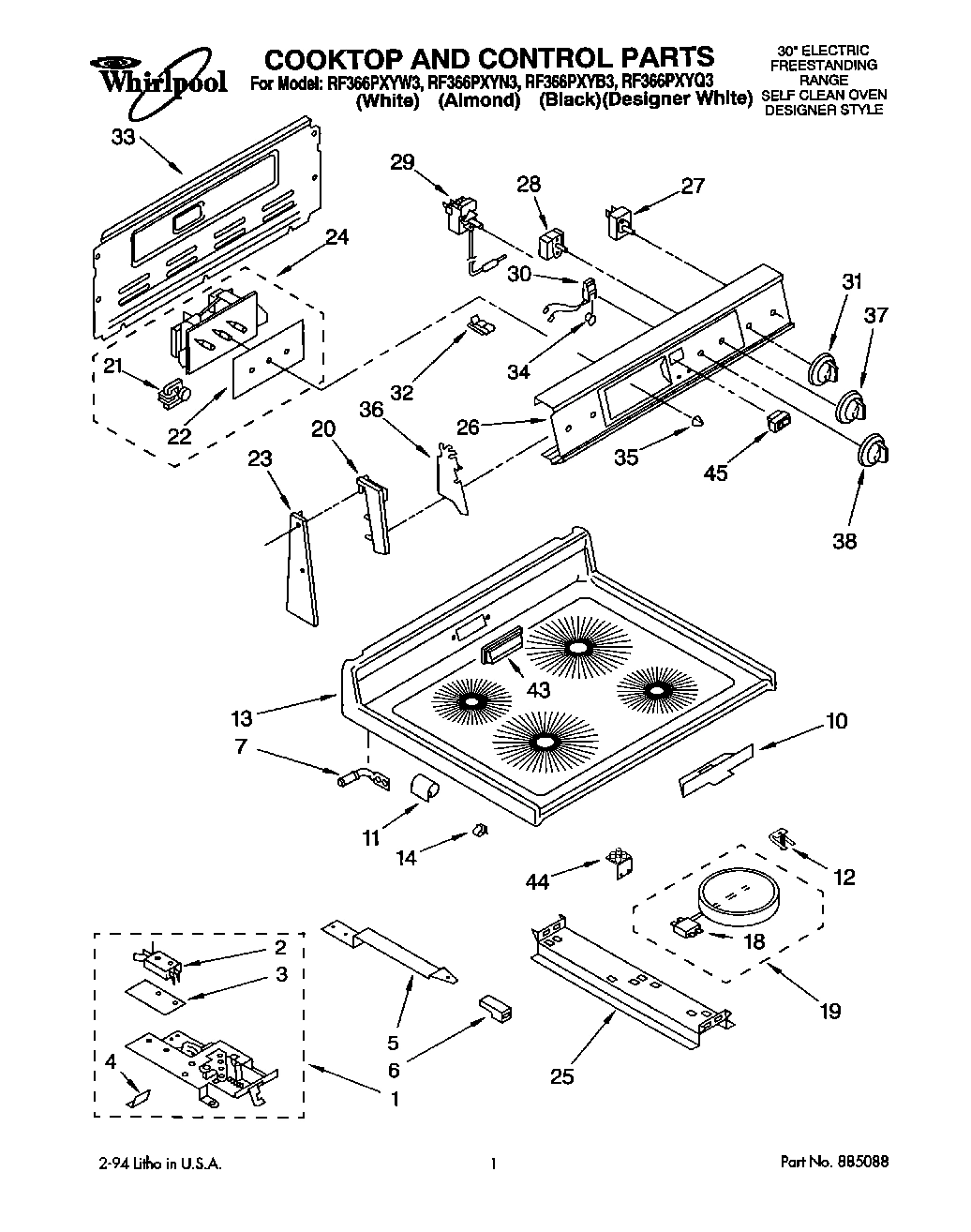

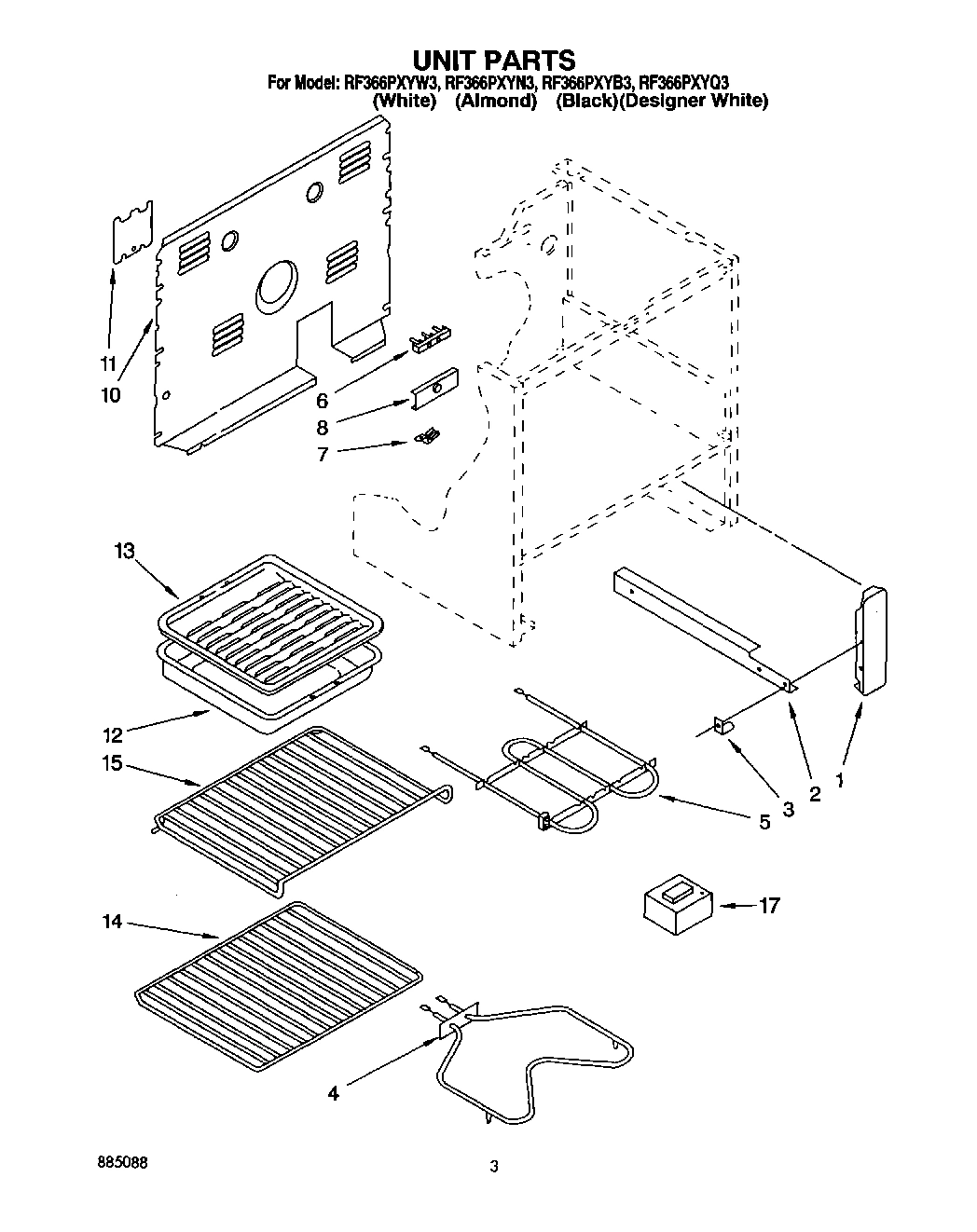

Model Whirlpool RF366PXYQ3 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

Coffee (Uncut) WPL 261887 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

Harvest Gold WPL 261890 Contact Us For Availability

Harvest Gold (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3150400 WPL LIT3150400 Contact Us For Availability

WPL LIT3169367 WPL LIT3169367 Contact Us For Availability

WPL LIT3187321 WPL LIT3187321 Contact Us For Availability

WPL LIT3187477 WPL LIT3187477 Contact Us For Availability

WPL LIT677973 WPL LIT677973 Contact Us For Availability

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

Harness, Wire (Surface Unit) WPL 3169104 Contact Us For Availability

1

Liner, Door WPL 3172218 Contact Us For Availability

1

Main Chassis (Black) WPL 3181515 Contact Us For Availability

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

2

Rail R.H. WPL 3149255 Contact Us For Availability

2

Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability

2

Harness, Wire (Oven) WPL 3169335 Contact Us For Availability

2

Frame, Glass WPL 3148234 Contact Us For Availability

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

3

Glide, Front (2) WPL 3149257 Contact Us For Availability

3

Seal, Foam WPL 3148441 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

Harness, Wire (Oven Light) WPL 3169280 Contact Us For Availability

4

Glass, Clear WPL 3169202 Contact Us For Availability

4

Screw (1) WPL 3150537 Contact Us For Availability

4

Frame Front WPL 3176718 Contact Us For Availability

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

5

Seal, Window WPL 3148183 Contact Us For Availability

5

Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability

5

Harness, Wire (Lock Switch) WPL 3169012 Contact Us For Availability

5

Pin, Hinge WPL 307985 Contact Us For Availability

6

16515 Whirlpool Clip Backorder WPL 16515 $11.62

6

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

6

Latch Knob (Black) WPL 3148684 Contact Us For Availability

6

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

6

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

6

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

6

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

6

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

6

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

6

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

6

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

6

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

6

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

6

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

6

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

6

Retainer, Insulation WPL 3148159 Contact Us For Availability

6

Seal, Door WPL 3169251 Contact Us For Availability

7

WP3169203 Whirlpool Door Glass Backorder WPL WP3169203 $58.10

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

7

Pushnut WPL 308306 Contact Us For Availability

8

Bracket, Service WPL 3150190 Contact Us For Availability

8

Screw, 8-18x3/8 (4) WPL 3185647 Contact Us For Availability

8

Retainer, Glass (2) WPL 3148187 Contact Us For Availability

8

Hinge, R.H. WPL 3176710 Contact Us For Availability

8

Hinge, L.H. WPL 3176711 Contact Us For Availability

9

Bumper (4) WPL 3148182 Contact Us For Availability

9

Screw (3) WPL 311056 Contact Us For Availability

9

Oven (30`` Pyro) WPL 3176611 Contact Us For Availability

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

Cover, Rear WPL 3148975 Contact Us For Availability

Glass, Door (Black) WPL 3148185 Contact Us For Availability

Glass, Door (White) WPL 3149049 Contact Us For Availability

11

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

11

Cover, Service WPL 307972 Contact Us For Availability

11

Foil WPL 3169191 Contact Us For Availability

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

Spring, Element (8) WPL 3149191 Contact Us For Availability

Handle, Door (Black) WPL 3148228 Contact Us For Availability

Handle, Door (Platinum) WPL 3149354 Contact Us For Availability

13

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

13

Insulation, Door WPL 3147951 Contact Us For Availability

14

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

14

Top, Door (Black) WPL 3148223 Contact Us For Availability

14

Top, Door (Panoramic Grey) WPL 3149355 Contact Us For Availability

15

Clip (2) WPL 3148282 Contact Us For Availability

15

Rack, Oven (Offset) WPL 308172 Contact Us For Availability

15

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

16

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

16

Vent, Oven WPL 3148906 Contact Us For Availability

340184 Whirlpool Screw Backorder WPL 340184 $9.59

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.14

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

WA906B Whirlpool Cooktop Glass Scraper Backorder WPL WA906B $3.50

Block, Balance WPL 3149258 Contact Us For Availability

Insulation, Wrapper WPL 3169093 Contact Us For Availability

Insulation, Oven BAck WPL 3169094 Contact Us For Availability

Switch, Broil WPL 314209 Contact Us For Availability

18

Frame, Glass WPL 3148235 Contact Us For Availability

18

Screw, No.6 WPL 314215 Contact Us For Availability

18

Switch, Bake WPL 314210 Contact Us For Availability

19

Glide, Rear WPL 307980 Contact Us For Availability

19

Channel, Arm (2) WPL 3176709 Contact Us For Availability

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

Panel Drawer (White) WPL 307935 Contact Us For Availability

Panel, Drawer (Almond) WPL 307939 Contact Us For Availability

Panel Drawer (Black) WPL 309923 Contact Us For Availability

21

Handle, Drawer WPL 3169105 Contact Us For Availability

21

Ring, Retainer (2) WPL 307594 Contact Us For Availability

22

WP308126 Whirlpool Door Spring In Stock WPL WP308126 $12.59

22

Drawer, Utility WPL 327887 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

Timer, Clock (Black with Chrome) WPL 661458 Contact Us For Availability

Protector, Drawer (2) WPL 309329 Contact Us For Availability

Support, L.H. Channel WPL 313196 Contact Us For Availability

Support, R.H. Channel WPL 313197 Contact Us For Availability

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

Switch, Door WPL 310345 Contact Us For Availability

Bracket, Mou WPL 3148809 Contact Us For Availability

Cap, Top Designer White Mdl WPL 3181363 Contact Us For Availability

26

WPL 312604 WPL 312604 Contact Us For Availability

26

WPL 3184400 WPL 3184400 Contact Us For Availability

26

WPL 3184401 WPL 3184401 Contact Us For Availability

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

WP3148952 Whirlpool Oven Infinite Switch In Stock WPL WP3148952 $33.53

WP3148955 Whirlpool Infinite Switch Backorder WPL WP3148955 $69.02

WPL 308119 WPL 308119 Contact Us For Availability

28

WPL 3148419 WPL 3148419 Contact Us For Availability

29

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

29

WPL 3185625 WPL 3185625 Contact Us For Availability

29

Snubber, Door (2) WPL 309111 Contact Us For Availability

30

WPL 314031 WPL 314031 Contact Us For Availability

30

WPL 3150662 WPL 3150662 Contact Us For Availability

30

Tube, Vent WPL 3169109 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WPL 3183118 WPL 3183118 Contact Us For Availability

WPL 3183117 WPL 3183117 Contact Us For Availability

Box Vent WPL 3169129 Contact Us For Availability

32

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

32

WPL 313570 WPL 313570 Contact Us For Availability

32

Support, Chassis (2) WPL 3147646 Contact Us For Availability

33

Screw (2) WPL 98520 Contact Us For Availability

33

WPL 3187332 WPL 3187332 Contact Us For Availability

33

Shield, Box WPL 3149006 Contact Us For Availability

34

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

34

WPL 313101 WPL 313101 Contact Us For Availability

34

Box, Vent WPL 3171381 Contact Us For Availability

35

WP3169181 Whirlpool Knob In Stock WPL WP3169181 $9.28

36

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

36

WPL 313608 WPL 313608 Contact Us For Availability

37

WPL 3183115 WPL 3183115 Contact Us For Availability

37

WPL 3183116 WPL 3183116 Contact Us For Availability

38

WPL 3183104 WPL 3183104 Contact Us For Availability

38

WPL 3183103 WPL 3183103 Contact Us For Availability

WPL 3149190 WPL 3149190 Contact Us For Availability

WPL 3149011 WPL 3149011 Contact Us For Availability

WPL 3149012 WPL 3149012 Contact Us For Availability

WPL 3181829 WPL 3181829 Contact Us For Availability

44

WPL 3169371 WPL 3169371 Contact Us For Availability

45

3149360 Whirlpool Light Switch Backorder WPL 3149360 $36.12

45

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $30.38
