Model Whirlpool RF366PXDQ0 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

Coffee (Uncut) WPL 261887 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

Harvest Gold WPL 261890 Contact Us For Availability

Harvest Gold (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Pain WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3150400 WPL LIT3150400 Contact Us For Availability

WPL LIT3169513 WPL LIT3169513 Contact Us For Availability

WPL LIT3187321 WPL LIT3187321 Contact Us For Availability

WPL LIT3189071 WPL LIT3189071 Contact Us For Availability

WPL LIT677973 WPL LIT677973 Contact Us For Availability

1

Bracket, Mounting (2) WPL 3169420 Contact Us For Availability

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

1

Latch Mechanism WPL 3148668 Contact Us For Availability

1

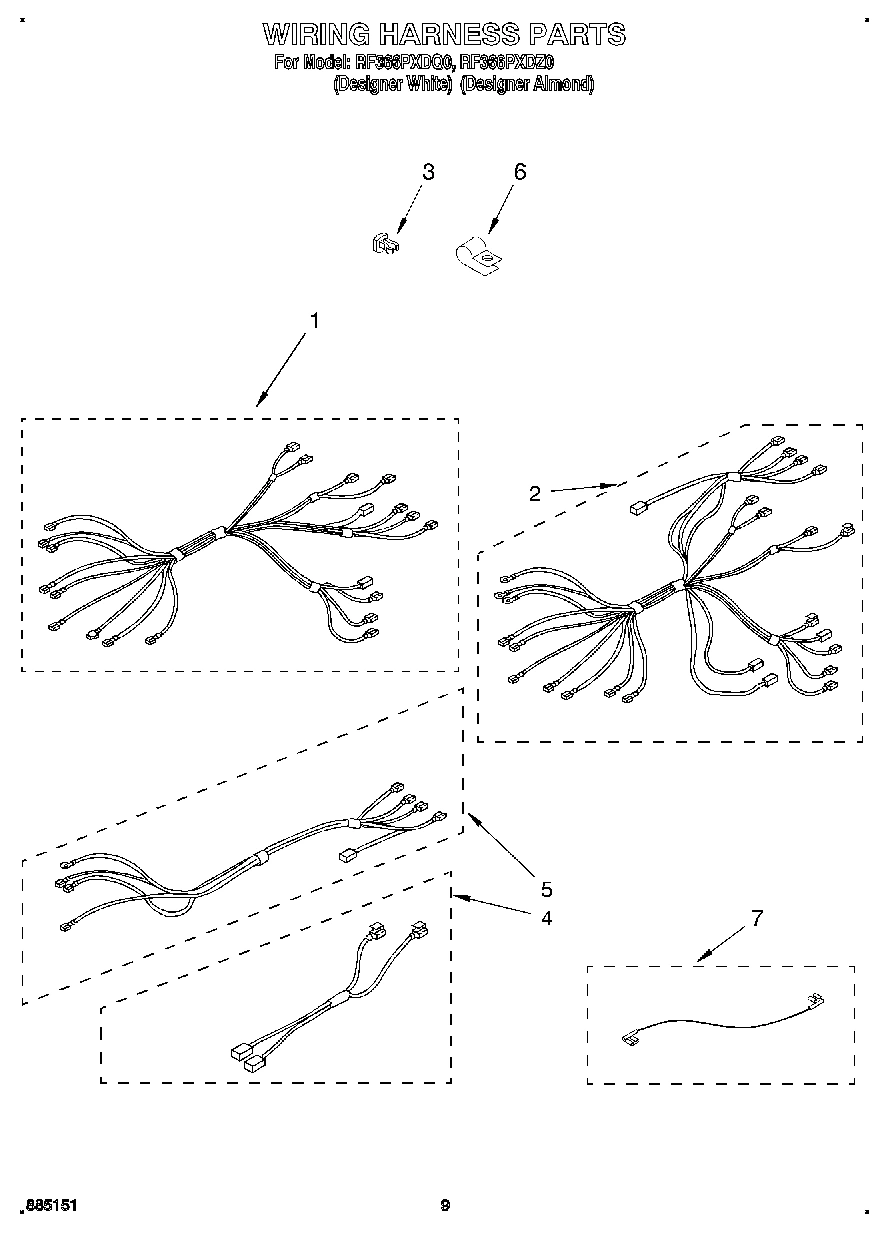

Harness, Wire (Surface Unit) WPL 3169551 Contact Us For Availability

2

Rail R.H. WPL 3149255 Contact Us For Availability

2

Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability

2

Safety Switch WPL 3169497 Contact Us For Availability

2

Screw (2) WPL 3169547 Contact Us For Availability

2

Harness, Wire (Oven) WPL 3169505 Contact Us For Availability

3

Glide, Front (2) WPL 3149257 Contact Us For Availability

3

Leg Leveling (4) WPL 3169499 Contact Us For Availability

3

Insulator, Switch WPL 3169498 Contact Us For Availability

3

Clip, Snap-In WPL 3169449 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

Screw (1) WPL 3150537 Contact Us For Availability

4

Frame Front WPL 3176718 Contact Us For Availability

4

Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

5

Seal, Window WPL 3148183 Contact Us For Availability

5

Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability

5

Pin, Hinge WPL 307985 Contact Us For Availability

5

Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability

5

Handle, Latch WPL 3150175 Contact Us For Availability

5

Harness, Wire (Lock Switch) WPL 3169450 Contact Us For Availability

6

16515 Whirlpool Clip Backorder WPL 16515 $11.62

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

6

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

6

Seal, Door WPL 3169251 Contact Us For Availability

6

Latch Knob (White) WPL 3150174 Contact Us For Availability

6

Latch Knob (Almond) WPL 3169459 Contact Us For Availability

7

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

7

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $28.80

7

WP3169203 Whirlpool Door Glass Backorder WPL WP3169203 $58.10

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

7

Pushnut WPL 308306 Contact Us For Availability

7

Pin, Top (2) WPL 3169384 Contact Us For Availability

7

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

7

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

7

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

7

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

7

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

7

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

7

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

7

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

7

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

7

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

7

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

8

Bracket, Service WPL 3150190 Contact Us For Availability

8

Hinge, R.H. WPL 3176710 Contact Us For Availability

8

Hinge, L.H. WPL 3176711 Contact Us For Availability

9

Screw (3) WPL 311056 Contact Us For Availability

9

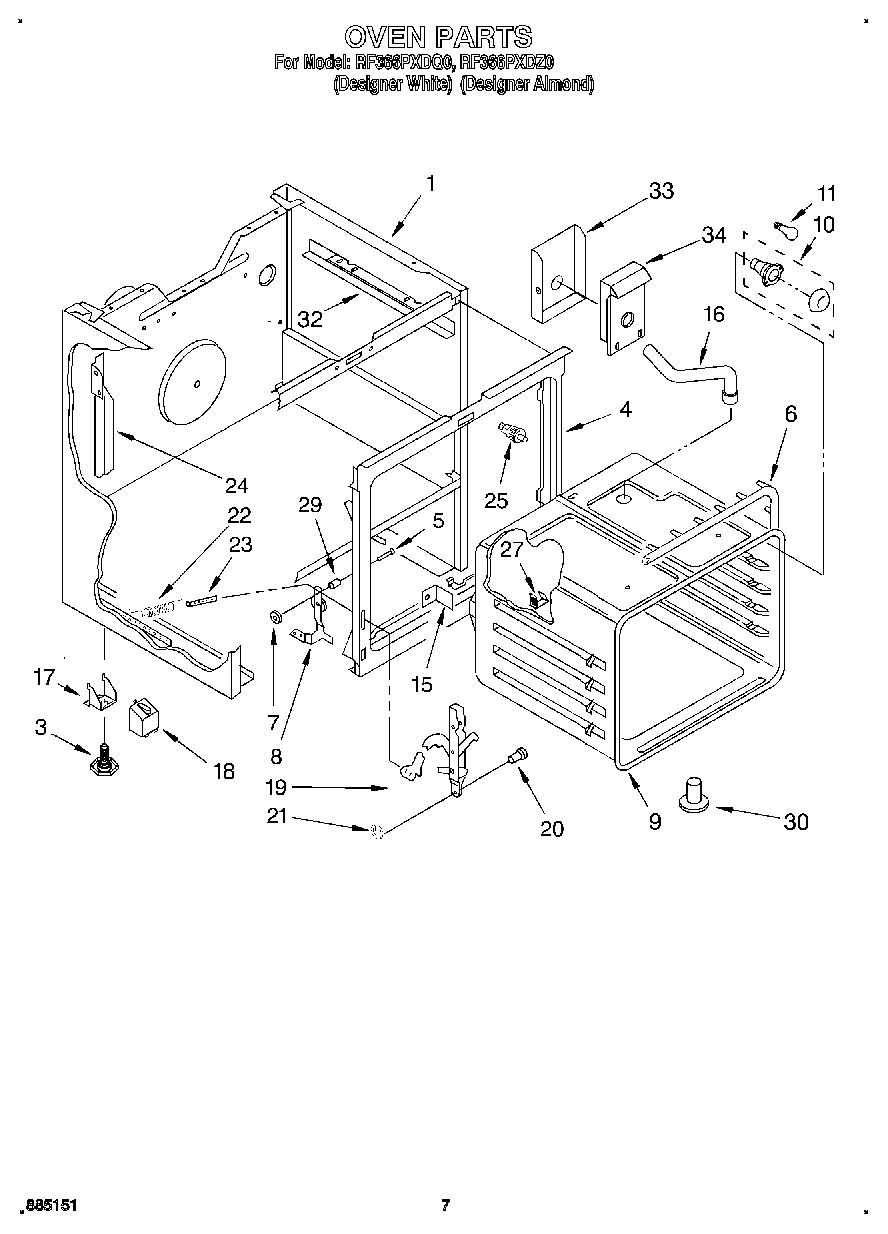

Oven (30`` Pyro) WPL 3176611 Contact Us For Availability

10

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

10

Cover, Rear WPL 3148975 Contact Us For Availability

11

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

11

Cover, Service WPL 307972 Contact Us For Availability

11

Bracket, Indicator Light Mounting WPL 3149032 Contact Us For Availability

12

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $2.51

12

Spring, Element (8) WPL 3149191 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

Cooktop (White) WPL 3176530 Contact Us For Availability

Cooktop (Almond) WPL 3176531 Contact Us For Availability

14

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

14

Clip, Wire WPL 311311 Contact Us For Availability

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.14

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

WA906B Whirlpool Cooktop Glass Scraper Backorder WPL WA906B $3.50

Clip (2) WPL 3148282 Contact Us For Availability

Rack, Oven (Offset) WPL 308172 Contact Us For Availability

Insulation, Wrapper WPL 3169093 Contact Us For Availability

Insulation, Oven BAck WPL 3169094 Contact Us For Availability

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

16

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

16

Vent, Oven WPL 3169365 Contact Us For Availability

17

Support, Foot (2) WPL 3169418 Contact Us For Availability

Cover, Foot (2) WPL 3169448 Contact Us For Availability

Limiter, Temp. (1400W - LR) WPL 3169552 Contact Us For Availability

Limiter, Temp. (1700W - RF) WPL 3169553 Contact Us For Availability

Limiter, Temp. (2100W - RR) WPL 3169554 Contact Us For Availability

Limiter, Temp. (2400W - LF) WPL 3169555 Contact Us For Availability

Glide, Rear WPL 307980 Contact Us For Availability

Channel, Arm (2) WPL 3176709 Contact Us For Availability

Element, Surface (Includes No. 18) (1400W - L WPL 3169543 Contact Us For Availability

Element, Surface (Includes No. 18) (1700W - R WPL 3169544 Contact Us For Availability

Element, Surface (Includes No. 18) (2100W - R WPL 3169545 Contact Us For Availability

Element, Surface (Includes No. 18) (2400W - L WPL 3169546 Contact Us For Availability

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

Panel, Drawer (White) WPL 3169430 Contact Us For Availability

Panel, Drawer (Almond) WPL 3169431 Contact Us For Availability

End Cap (White, RH) WPL 3187793 Contact Us For Availability

End Cap (White, LH) WPL 3187794 Contact Us For Availability

End Cap (Almond, RH) WPL 3187795 Contact Us For Availability

End Cap (Almond, LH) WPL 3187796 Contact Us For Availability

Handle, Snap-In (White) WPL 3150612 Contact Us For Availability

Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability

Ring, Retainer (2) WPL 307594 Contact Us For Availability

Motor, Timer WPL 309822 Contact Us For Availability

Screw (2) WPL 3185647 Contact Us For Availability

22

WP308126 Whirlpool Door Spring In Stock WPL WP308126 $12.59

22

Drawer, Utility WPL 327887 Contact Us For Availability

22

Glass, Timer WPL 3169549 Contact Us For Availability

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

End Trim (Almond, RH) WPL 3169468 Contact Us For Availability

End Trim (Almond, LH) WPL 3169469 Contact Us For Availability

End Trim (White, RH) WPL 3188992 Contact Us For Availability

End Trim (White, LH) WPL 3188993 Contact Us For Availability

End Trim (Screw (4)) WPL 3188996 Contact Us For Availability

Protector, Drawer (2) WPL 309329 Contact Us For Availability

Support, L.H. Channel WPL 313196 Contact Us For Availability

Support, R.H. Channel WPL 313197 Contact Us For Availability

Timer, Clock (White) WPL 3169272 Contact Us For Availability

Timer, Clock (Almond) WPL 3169470 Contact Us For Availability

25

Switch, Door WPL 310345 Contact Us For Availability

25

Screw (6) WPL 98520 Contact Us For Availability

25

Bracket, Mounting WPL 3148809 Contact Us For Availability

26

Control Panel (White) WPL 3188682 Contact Us For Availability

26

Control WPL 3188957 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

27

WP3148952 Whirlpool Oven Infinite Switch In Stock WPL WP3148952 $33.53

27

WP3148955 Whirlpool Infinite Switch Backorder WPL WP3148955 $69.02

28

WPL 308119 WPL 308119 Contact Us For Availability

28

WPL 3169311 WPL 3169311 Contact Us For Availability

29

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

29

Snubber, Door (2) WPL 309111 Contact Us For Availability

29

WPL 3169526 WPL 3169526 Contact Us For Availability

30

WPL 314031 WPL 314031 Contact Us For Availability

30

Tube, Vent WPL 3169109 Contact Us For Availability

30

WPL 3169457 WPL 3169457 Contact Us For Availability

31

WP3196232 Whirlpool Knob In Stock WPL WP3196232 $10.76

31

WPL 3188723 WPL 3188723 Contact Us For Availability

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

Support, Chassis (2) WPL 3147646 Contact Us For Availability

WPL 3182718 WPL 3182718 Contact Us For Availability

WPL 3182719 WPL 3182719 Contact Us For Availability

33

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

33

Shield, Box WPL 3149006 Contact Us For Availability

33

WPL 3187332 WPL 3187332 Contact Us For Availability

34

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

34

Box, Vent WPL 3169278 Contact Us For Availability

34

WPL 313101 WPL 313101 Contact Us For Availability

35

WP3169181 Whirlpool Knob In Stock WPL WP3169181 $9.28

35

WPL 3169467 WPL 3169467 Contact Us For Availability

36

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

36

WPL 313608 WPL 313608 Contact Us For Availability

38

WPL 3188725 WPL 3188725 Contact Us For Availability

38

WPL 3188726 WPL 3188726 Contact Us For Availability

43

WPL 3149190 WPL 3149190 Contact Us For Availability

43

WPL 3149011 WPL 3149011 Contact Us For Availability

43

WPL 3149012 WPL 3149012 Contact Us For Availability

44

WPL 3169395 WPL 3169395 Contact Us For Availability
