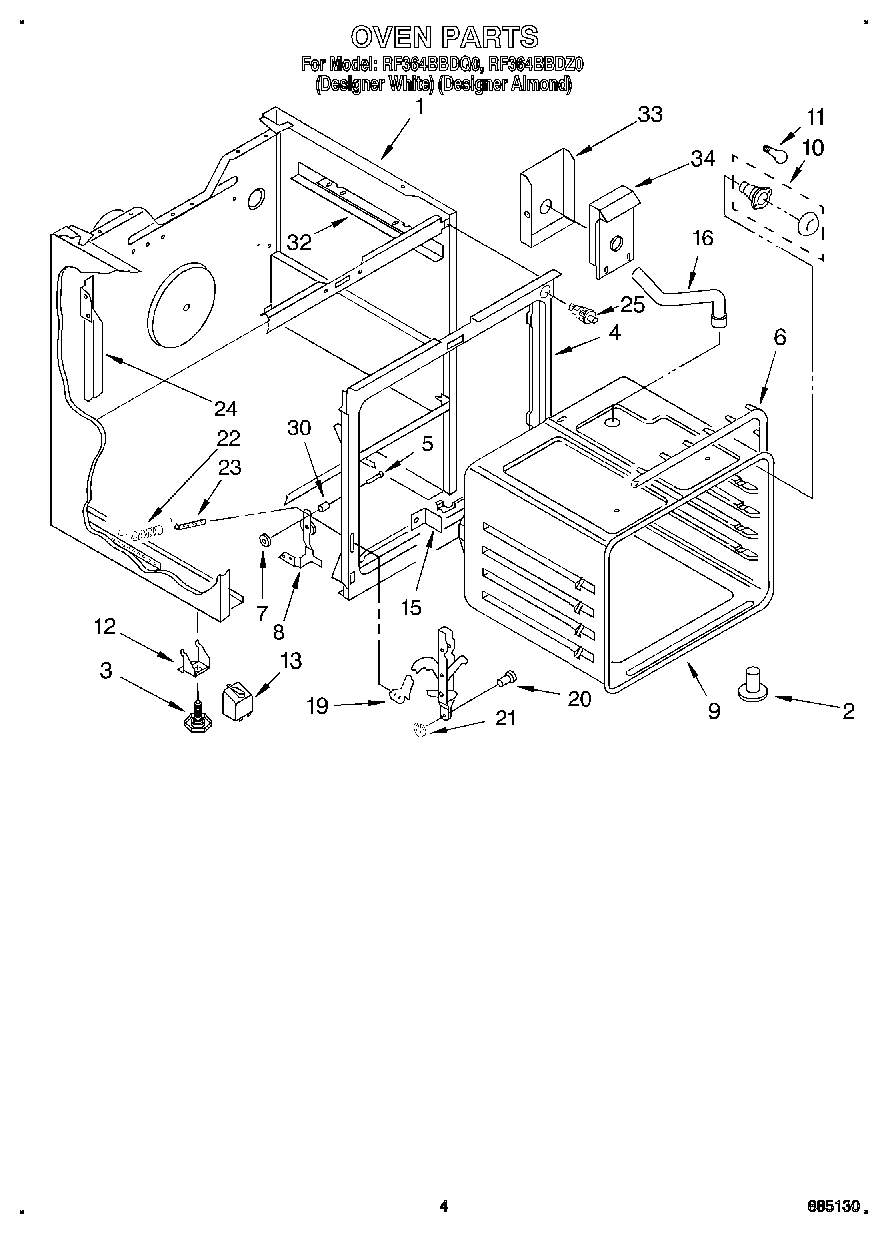

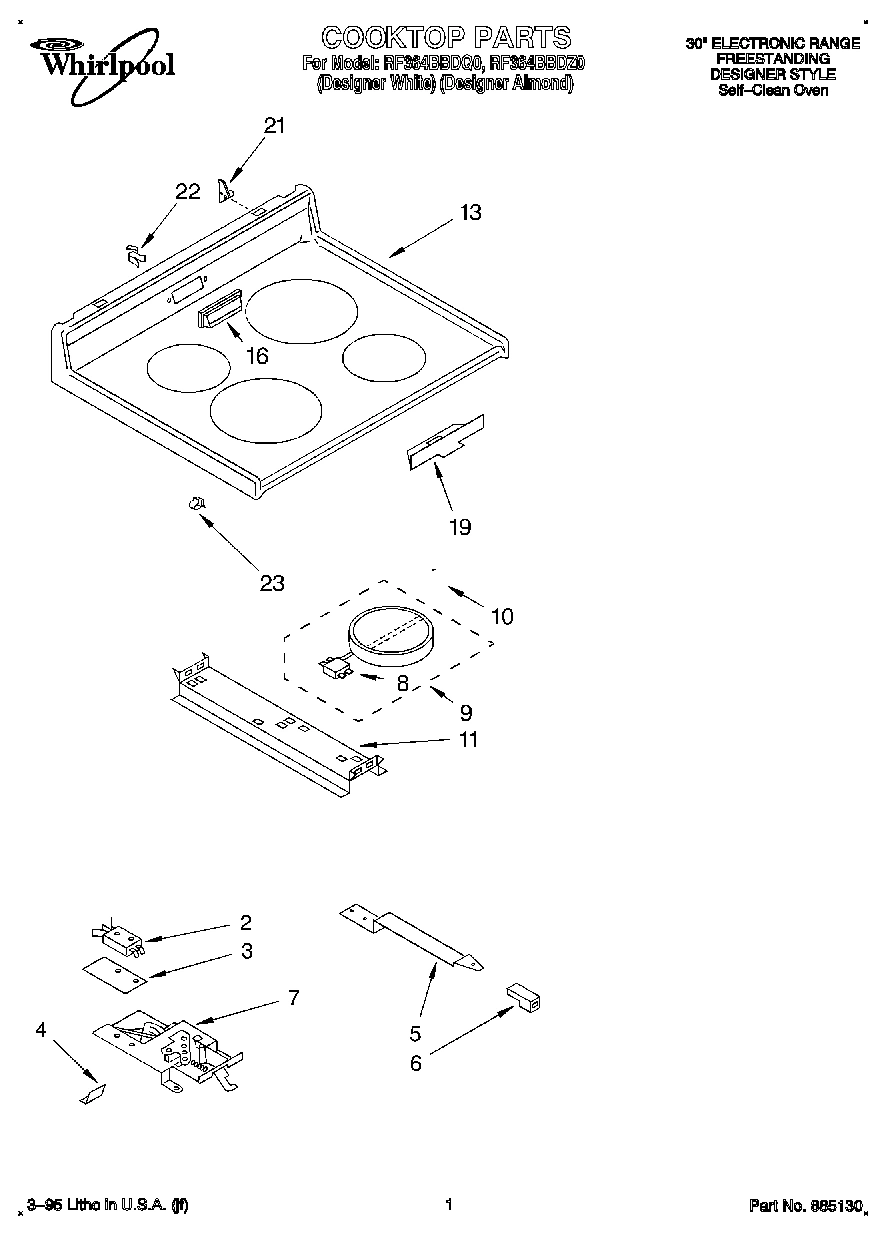

Model Whirlpool RF364BBDZ0 – Common Parts &amp; Diagrams

WPL 241430 WPL 241430 Contact Us For Availability

WPL LIT677973 WPL LIT677973 Contact Us For Availability

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

1

Bracket, Mounting (2) WPL 3169420 Contact Us For Availability

1

End Trim R.H. (Designer White) WPL 3183094 Contact Us For Availability

1

(End Trim L.H.) (Designer White) WPL 3183095 Contact Us For Availability

1

End Trim R.H. (Designer Almond) WPL 3188994 Contact Us For Availability

1

(End Trim L.H.) (Designer Almond) WPL 3188995 Contact Us For Availability

1

Liner, Oven Door WPL 3172219 Contact Us For Availability

1

Harness, (Oven) WPL 3169539 Contact Us For Availability

2

Tube, Vent WPL 3169109 Contact Us For Availability

2

Rail R.H. WPL 3149255 Contact Us For Availability

2

Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability

2

(End Cap L.H.) (Screw,) WPL 254225 Contact Us For Availability

2

End Cap R.H. (Designer White) WPL 3187793 Contact Us For Availability

2

End Cap L.H. (Designer White) WPL 3187794 Contact Us For Availability

2

End Cap R.H. (Designer Almond) WPL 3187795 Contact Us For Availability

2

End Cap L.H. (Designer Almond) WPL 3187796 Contact Us For Availability

2

Retainer, Insulation WPL 3148160 Contact Us For Availability

2

Screw (4) 8-18 x 3/8 WPL 3185647 Contact Us For Availability

2

Harness, Wire (Lock Switch) WPL 3169476 Contact Us For Availability

3

Leg Leveling (4) WPL 3169499 Contact Us For Availability

3

Glide, Front (2) WPL 3149257 Contact Us For Availability

3

Bumper, Door (4) WPL 3148182 Contact Us For Availability

3

Harness, (Cooktop) WPL 3183408 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

Screw (1) WPL 3150537 Contact Us For Availability

4

Frame Front WPL 3176718 Contact Us For Availability

4

Terminal, Adapter WPL 3147832 Contact Us For Availability

4

Panel, Glass (Designer White) WPL 3149051 Contact Us For Availability

4

Panel, Glass (Designer Almond) WPL 3149052 Contact Us For Availability

5

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $28.80

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

5

Pin, Hinge (2) WPL 307985 Contact Us For Availability

5

Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability

5

Handle, Door (Designer White) WPL 3188696 Contact Us For Availability

5

Handle, Door (Designer Almond) WPL 3188697 Contact Us For Availability

6

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

6

285006 Whirlpool Spray In Stock WPL 285006 $27.45

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

6

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

6

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

6

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

6

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

6

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

6

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

6

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

6

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

6

Clip, Wire WPL 311311 Contact Us For Availability

6

Seal, Door WPL 3169251 Contact Us For Availability

6

Door Top (Screw (2)) WPL 307748 Contact Us For Availability

6

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

6

Door Top (Designer White) WPL 3188693 Contact Us For Availability

6

Door Top (Designer Almond) WPL 3188694 Contact Us For Availability

6

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

6

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

6

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

6

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

6

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

6

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

6

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

6

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

6

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

6

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

6

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

6

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

6

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

6

Grease WPL 261582 Contact Us For Availability

6

Coffee WPL 261886 Contact Us For Availability

6

New Avocado WPL 261888 Contact Us For Availability

6

Harvest Gold WPL 261890 Contact Us For Availability

6

Harvest Gold (Uncut) WPL 261891 Contact Us For Availability

6

Toast WPL 285365 Contact Us For Availability

6

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

6

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

6

Platinum (Uncut) WPL 285368 Contact Us For Availability

6

Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability

6

Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability

6

WPL 799832 WPL 799832 Contact Us For Availability

6

WPL 978883 WPL 978883 Contact Us For Availability

7

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

7

Clip, Handle (2) WPL 3148282 Contact Us For Availability

7

Pushnut (2) WPL 308306 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

7

Timer, ERC Control (Designer White) WPL 3195183 Contact Us For Availability

7

Timer, ERC Control (Designer Almond) WPL 3195184 Contact Us For Availability

8

Hinge, R.H. WPL 3176710 Contact Us For Availability

8

Hinge, L.H. WPL 3176711 Contact Us For Availability

8

Bracket, Service WPL 3150190 Contact Us For Availability

8

Frame, Door (Screw (3)) WPL 3185918 Contact Us For Availability

8

Frame, Door (Screw (4)) WPL 3188403 Contact Us For Availability

8

Frame, Door (Screw (4)) WPL 3188404 Contact Us For Availability

8

Frame, Door (Designer White) WPL 3188998 Contact Us For Availability

8

Frame, Door (Designer Almond) WPL 3188999 Contact Us For Availability

9

Screw (3) WPL 311056 Contact Us For Availability

9

Oven (30`` Pyro) WPL 3176611 Contact Us For Availability

9

Panel, Control (Designer White) WPL 3188688 Contact Us For Availability

9

Panel, Control (Designer Almond) WPL 3188689 Contact Us For Availability

9

Glide, Rear (2) WPL 307980 Contact Us For Availability

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

WP3148952 Whirlpool Oven Infinite Switch In Stock WPL WP3148952 $33.53

WP3148953 Whirlpool Oven Infinite Switch In Stock WPL WP3148953 $34.61

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

Spring (8) WPL 3149191 Contact Us For Availability

Cover, Rear WPL 3148975 Contact Us For Availability

Switch, Infinite (Screw, 8-32 x 1/4 (8)) WPL 308119 Contact Us For Availability

Panel, Drawer (Designer White) WPL 3169422 Contact Us For Availability

Panel, Drawer (Designer Almond) WPL 3169423 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

Screw (4) WPL 3149333 Contact Us For Availability

Cover, Service WPL 307972 Contact Us For Availability

Handle, Drawer (Designer Almond) WPL 3169472 Contact Us For Availability

Handle, Drawer (Designer White) WPL 3169473 Contact Us For Availability

12

Support, Foot (2) WPL 3169418 Contact Us For Availability

12

Drawer, Utility WPL 327887 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

Cover, Foot (2) WPL 3169448 Contact Us For Availability

Indicator Light (Hot Surface (1)) WPL 3169439 Contact Us For Availability

Indicator Light (Surf. Elmnt. (2)) WPL 3169457 Contact Us For Availability

Protector (2) WPL 309329 Contact Us For Availability

WP3196232 Whirlpool Knob In Stock WPL WP3196232 $10.76

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

Knob, Control (4) (Infinite Switch) (Designer WPL 3188723 Contact Us For Availability

Insulation WPL 3147951 Contact Us For Availability

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

Rack, Oven (Offset) WPL 308172 Contact Us For Availability

Cap, Top (Screw (2)) WPL 3188399 Contact Us For Availability

Cap, Top (Screw (2)) WPL 3188400 Contact Us For Availability

Cap, Top (Designer White) WPL 3189001 Contact Us For Availability

Cap, Top (Designer Almond) WPL 3189002 Contact Us For Availability

16

Vent, Tube (Extension) WPL 3169365 Contact Us For Availability

16

Fuse, Thermal WPL 3187848 Contact Us For Availability

17

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

17

Rear Cover Control Panel WPL 3187332 Contact Us For Availability

18

Lens, Amber (3) WPL 313101 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Shield, Probe WPL 3183510 Contact Us For Availability

Channel, Arm (2) WPL 3176709 Contact Us For Availability

Shield, Glass (2) WPL 313608 Contact Us For Availability

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.14

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

WA906B Whirlpool Cooktop Glass Scraper Backorder WPL WA906B $3.50

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

Screw (2) WPL 98520 Contact Us For Availability

Sensor, Temp. WPL 3148440 Contact Us For Availability

21

Bracket, Cooktop (Right) WPL 3169294 Contact Us For Availability

21

Bracket, Cooktop (Left) WPL 3169295 Contact Us For Availability

21

Ring, Retainer (2) WPL 307594 Contact Us For Availability

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

22

Clip, Mounting (2) (Vent Cover) WPL 3149190 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

24

Support, L.H. Post WPL 313196 Contact Us For Availability

24

Support, R.H. Post WPL 313197 Contact Us For Availability

25

Switch, Door WPL 310345 Contact Us For Availability

30

Snubber, Door (2) WPL 309111 Contact Us For Availability

32

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

32

Support, Chassis WPL 3147646 Contact Us For Availability

33

Shield, Box WPL 3149006 Contact Us For Availability

34

Insulation, Wrapper WPL 3169093 Contact Us For Availability

34

Insulation, Oven BAck WPL 3169094 Contact Us For Availability

34

Vent, Box WPL 3169278 Contact Us For Availability
