Model Whirlpool RF360BXWN0 – Common Parts & Diagrams

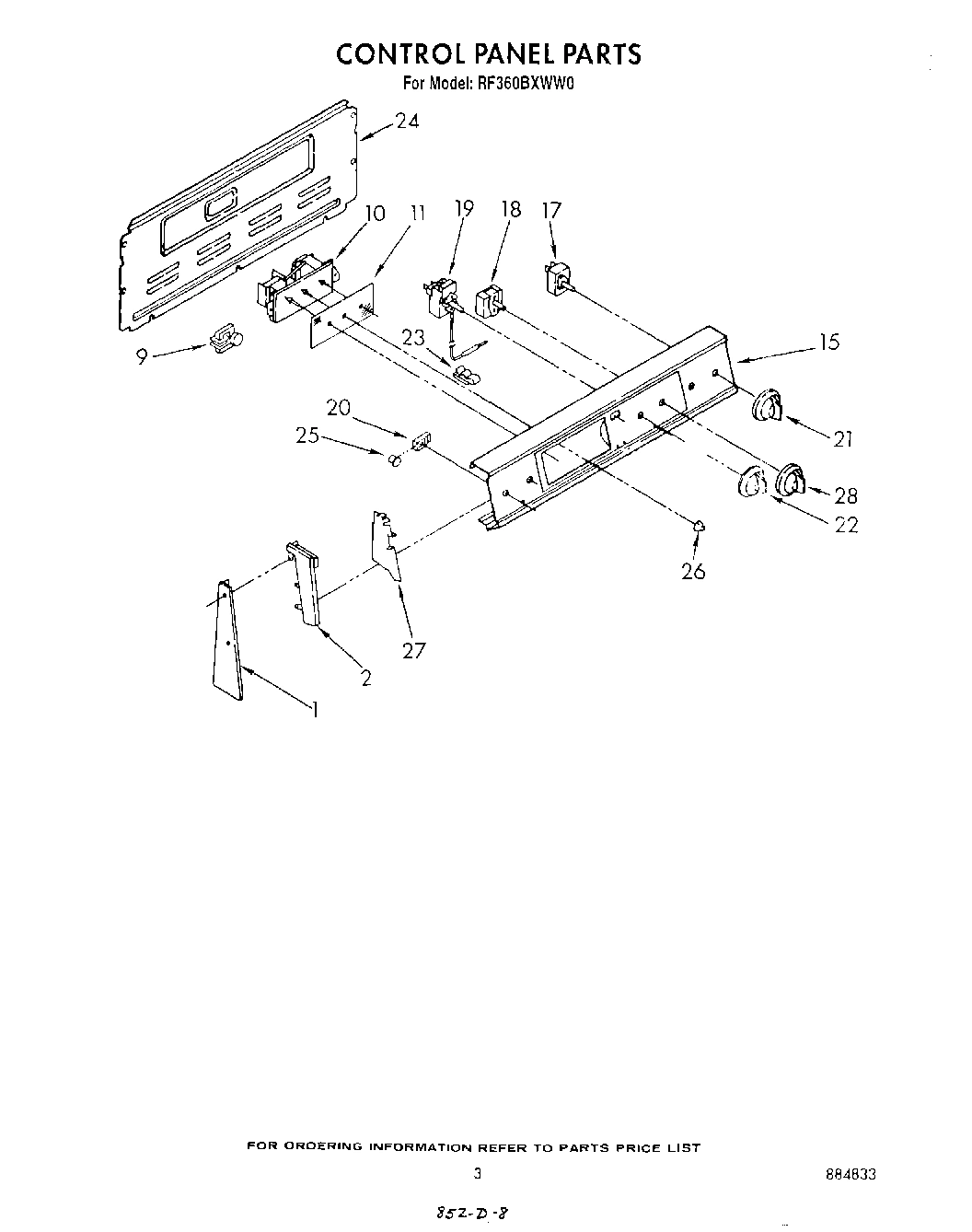

03 - CONTROL PANEL

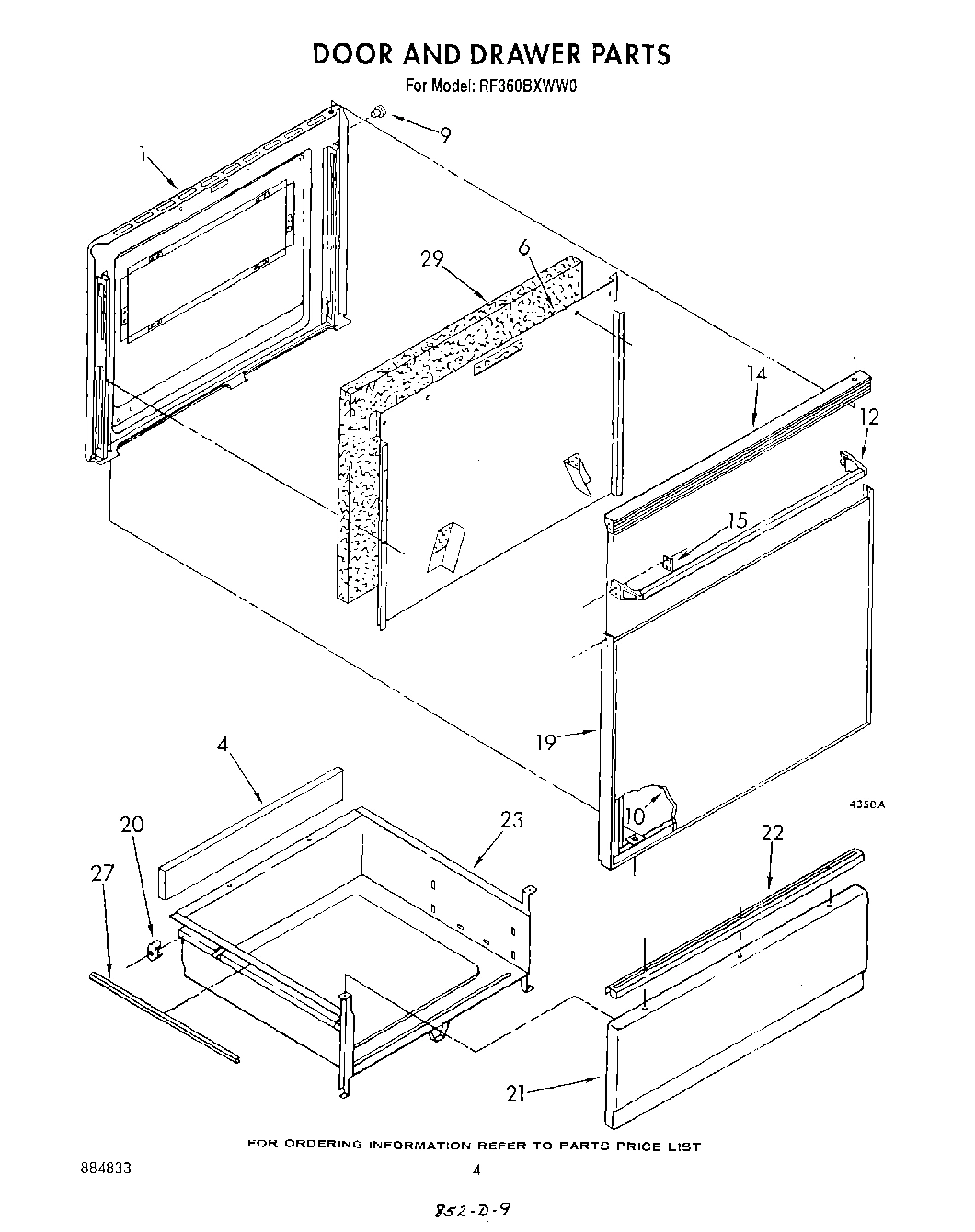

04 - DOOR AND DRAWER
07 - HARNESS
05 - UNIT , LIT/OPTIONAL
06 - OVEN
02 - COOKTOP
Common parts from model Whirlpool RF360BXWN0
Installation Instructions WPL LIT3148614 Contact Us For Availability
Book, Cooking Guide WPL LIT3149507 Contact Us For Availability
Guide, Use & Care WPL LIT3149907 Contact Us For Availability
Wiring Diagram WPL LIT3150045 Contact Us For Availability
List, Repair Parts WPL LIT884833 Contact Us For Availability
1
Liner, Door WPL 3170707 Contact Us For Availability
1
Harness, Wire (Surface unit) WPL 3149881 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Latch & Switch Assembly WPL 3171148 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3148778 Contact Us For Availability
2
Rail, Slide (R.H.) WPL 3149255 Contact Us For Availability
2
Rail, Slide (L.H. (Includes Illus. 3)) WPL 3149256 Contact Us For Availability
2
Safety Switch WPL 308185 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
3
Harness, Wire (Supply) WPL 313147 Contact Us For Availability
3
Latch, Pyro WPL 3171162 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
4
Pad, Sound WPL 302340 Contact Us For Availability
4
Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability
4
Frame, Front WPL 3170856 Contact Us For Availability
4
Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability
4
Shield, Latch Terminal WPL 313035 Contact Us For Availability
5
Screw, 10-32 x 1/2 (2) WPL 312318 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
5
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
5
Handle, Latch WPL 3147065 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
Screw (4) WPL 3148443 Contact Us For Availability
6
Retainer, Insulation WPL 3148160 Contact Us For Availability
6
Harness, Wire (Lock Switch) WPL 3148699 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Seal, Door WPL 3148284 Contact Us For Availability
7
Adapter, Terminal WPL 3147832 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
7
Box, Burner WPL 3149194 Contact Us For Availability
8
Bracket, Service WPL 307970 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
9
Bumper, Door (4) WPL 3148182 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Pyro) WPL 329002 Contact Us For Availability
9
Rod, Cooktop WPL 3148659 Contact Us For Availability
10
Panel, Glass WPL 3148186 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability
10
Socket, Lamp WPL 660556 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Bracket (2) WPL 307965 Contact Us For Availability
12
Handle, Door WPL 3148228 Contact Us For Availability
12
Cover, Light WPL 308039 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
13
Retainer, Light WPL 308038 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Cooktop (Almond) WPL 3170982 Contact Us For Availability
14
Screw (8) WPL 3149333 Contact Us For Availability
14
Frame, Door Top WPL 3148223 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
Plug Button WPL 257314 Contact Us For Availability
15
Clip, Handle (2) WPL 3148282 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
16
Plate, Cover (2) WPL 311982 Contact Us For Availability
16
Vent, Oven WPL 307961 Contact Us For Availability
17
Switch, Broil WPL 314209 Contact Us For Availability
18
screw WPL 314215 Contact Us For Availability
18
Switch, Bake WPL 314210 Contact Us For Availability
19
Thermostat, Oven WPL 3148933 Contact Us For Availability
19
Frame, Door WPL 3148235 Contact Us For Availability
19
Channel, Arm (2) WPL 329710 Contact Us For Availability
20
Light, Indicator (Oven On) WPL 314031 Contact Us For Availability
20
Light, Indicator (Surface Unit (2) (Includes WPL 313102 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
21
Panel Drawer (White) WPL 307935 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
21
Nut (4) WPL 814102 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Handle, Drawer WPL 313337 Contact Us For Availability
22
Switch, Lock WPL 3148669 Contact Us For Availability
23
Drawer, Utility WPL 327887 Contact Us For Availability
23
Insulator, Switch WPL 3147864 Contact Us For Availability
24
Rear Cover Control Panel WPL 313195 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
Lens, Amber (5) WPL 313101 Contact Us For Availability
26
Spring, Knob WPL 313311 Contact Us For Availability
27
Shield, Glass (2) WPL 313608 Contact Us For Availability
27
Protector, Drawer (2) WPL 309329 Contact Us For Availability
28
Knob, Selector WPL 3149986 Contact Us For Availability
28
Balance Block WPL 312804 Contact Us For Availability
29
Insulation WPL 3147951 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
Screw (4) WPL 3148604 Contact Us For Availability
30
Anchor (4) WPL 3148605 Contact Us For Availability
× ![]()
