Model Whirlpool RF350PXHN0 COOKTOP – Common Parts & Diagrams

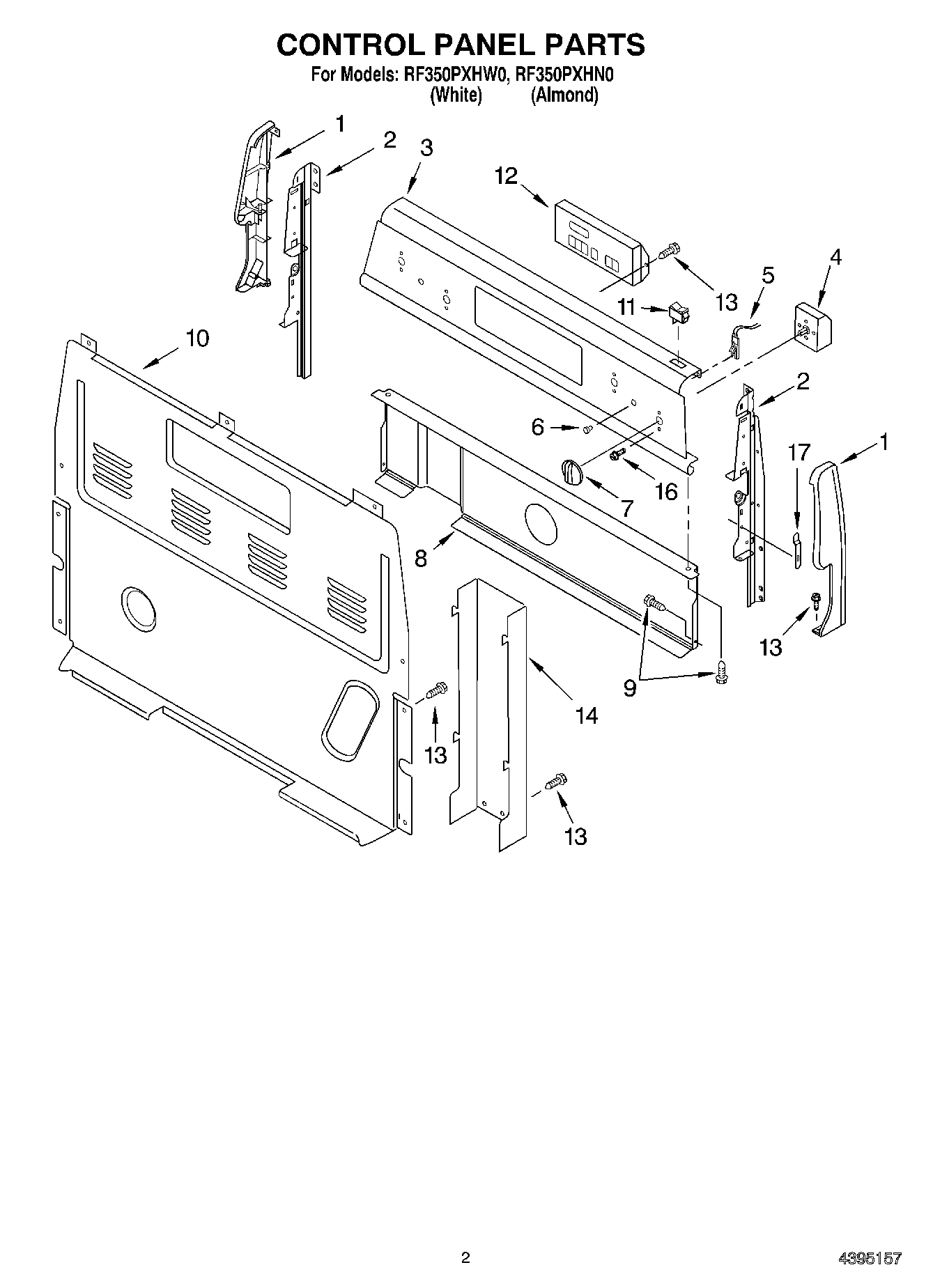

02 - CONTROL PANEL

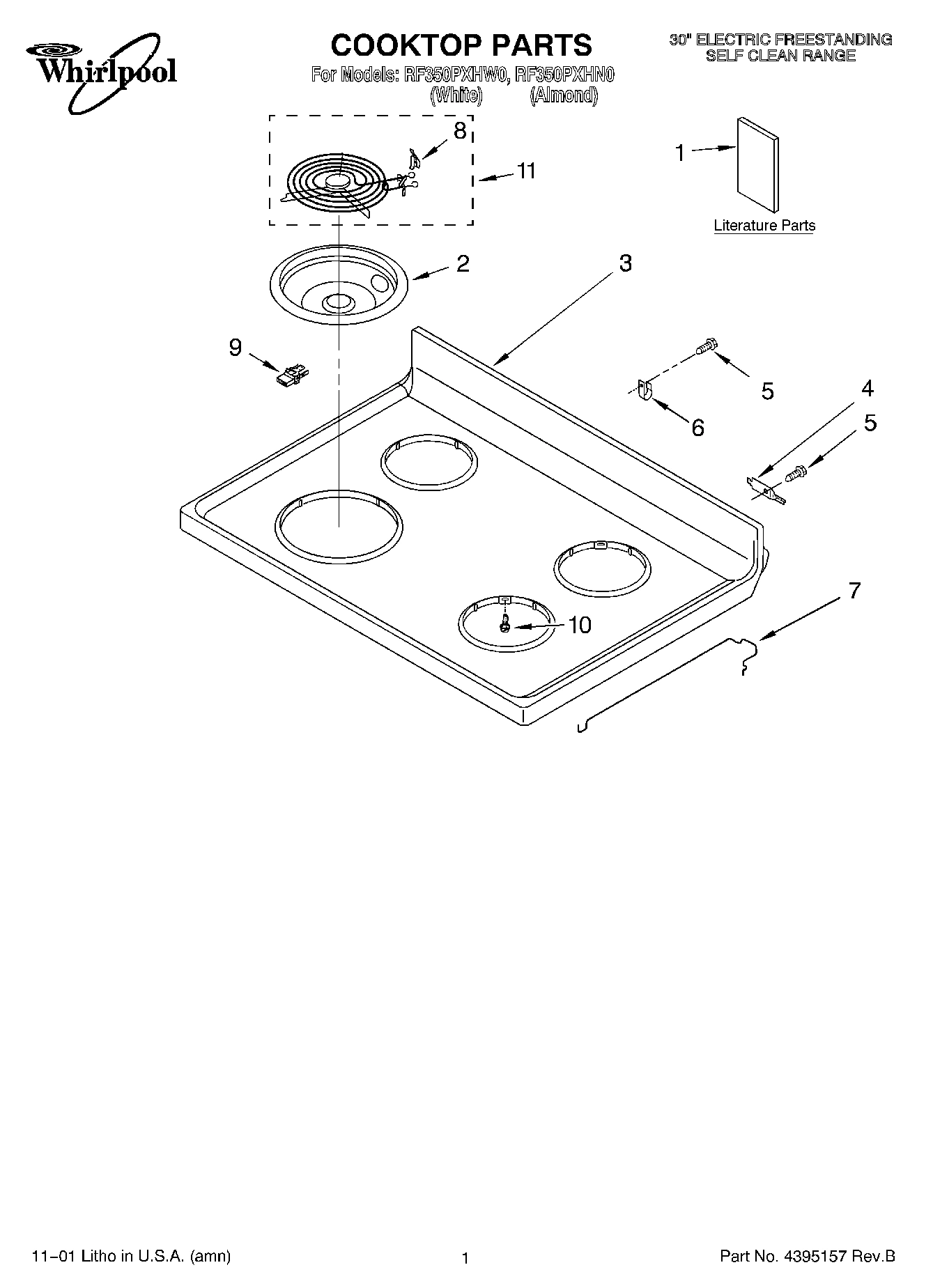

01 - COOKTOP, LITERATURE
04 - DRAWER AND BROILER
03 - CHASSIS
05 - DOOR
Common parts from model Whirlpool RF350PXHN0 COOKTOP
1
Trim, Top (Black) WPL 3196819 Contact Us For Availability
3
Cooktop (White) WPL 3186235 Contact Us For Availability
3
Cooktop (Almond) WPL 3186236 Contact Us For Availability
3
Panel, Side (2) (Almond-Textured) WPL 8053831 Contact Us For Availability
4
Drawer, Storage WPL 8272605 Contact Us For Availability
4
Seal, Oven Flange WPL 3195737 Contact Us For Availability
4
Liner, Door WPL 3186296 Contact Us For Availability
5
Light, Indicator (Surface Unit (2)) WPL 313102 Contact Us For Availability
6
Rivet, Push (2) (Almond) WPL 3196815 Contact Us For Availability
6
Frame, Glass WPL 3186290 Contact Us For Availability
7
Panel, Drawer Front (Almond) WPL 8053340 Contact Us For Availability
9
RECEPTACLE, ELMNT WPL 814399 Contact Us For Availability
9
Screw WPL 4449746 Contact Us For Availability
12
Frame, Front WPL 8273013 Contact Us For Availability
14
Seal, Window WPL 8522415 Contact Us For Availability
14
Clip, Panel (6) WPL 3196576 Contact Us For Availability
17
Clip, Spring (2) WPL 3196200 Contact Us For Availability
17
Clip, Glass (6) WPL 3196025 Contact Us For Availability
22
PA WPL 350930 Contact Us For Availability
22
paint, spray 13 oz. (black) WPL 285006 Contact Us For Availability
22
WPL 350956 WPL 350956 Contact Us For Availability
22
WPL 511873 WPL 511873 Contact Us For Availability
22
WPL 814381 WPL 814381 Contact Us For Availability
22
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
22
WPL 799344 WPL 799344 Contact Us For Availability
22
Back, Main WPL 8272922 Contact Us For Availability
22
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
22
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
22
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
22
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
22
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
22
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
22
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
22
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
22
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
22
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
22
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
22
Wire (14 Ga. 200 c Red) WPL 242831 Contact Us For Availability
22
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
22
Grease WPL 261582 Contact Us For Availability
22
Clip, Wire Ground WPL 313660 Contact Us For Availability
22
Harness, Wire (Door Switch) WPL 3196108 Contact Us For Availability
22
Clip, Harness WPL 3196696 Contact Us For Availability
22
WPL 799832 WPL 799832 Contact Us For Availability
22
WPL 8053623 WPL 8053623 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
26
Strap, Ground WPL 3169573 Contact Us For Availability
27
Sensor, Oven WPL 3196966 Contact Us For Availability
29
Screw WPL 3196179 Contact Us For Availability
38
Retainer, Side (2) WPL 3195717 Contact Us For Availability
39
Shield, Outer (2) WPL 3196091 Contact Us For Availability
40
Shield, Inner (2) WPL 3196092 Contact Us For Availability
42
Rod, Latch WPL 3196961 Contact Us For Availability
× ![]()
