Model Whirlpool RF330PXAW0 – Common Parts & Diagrams

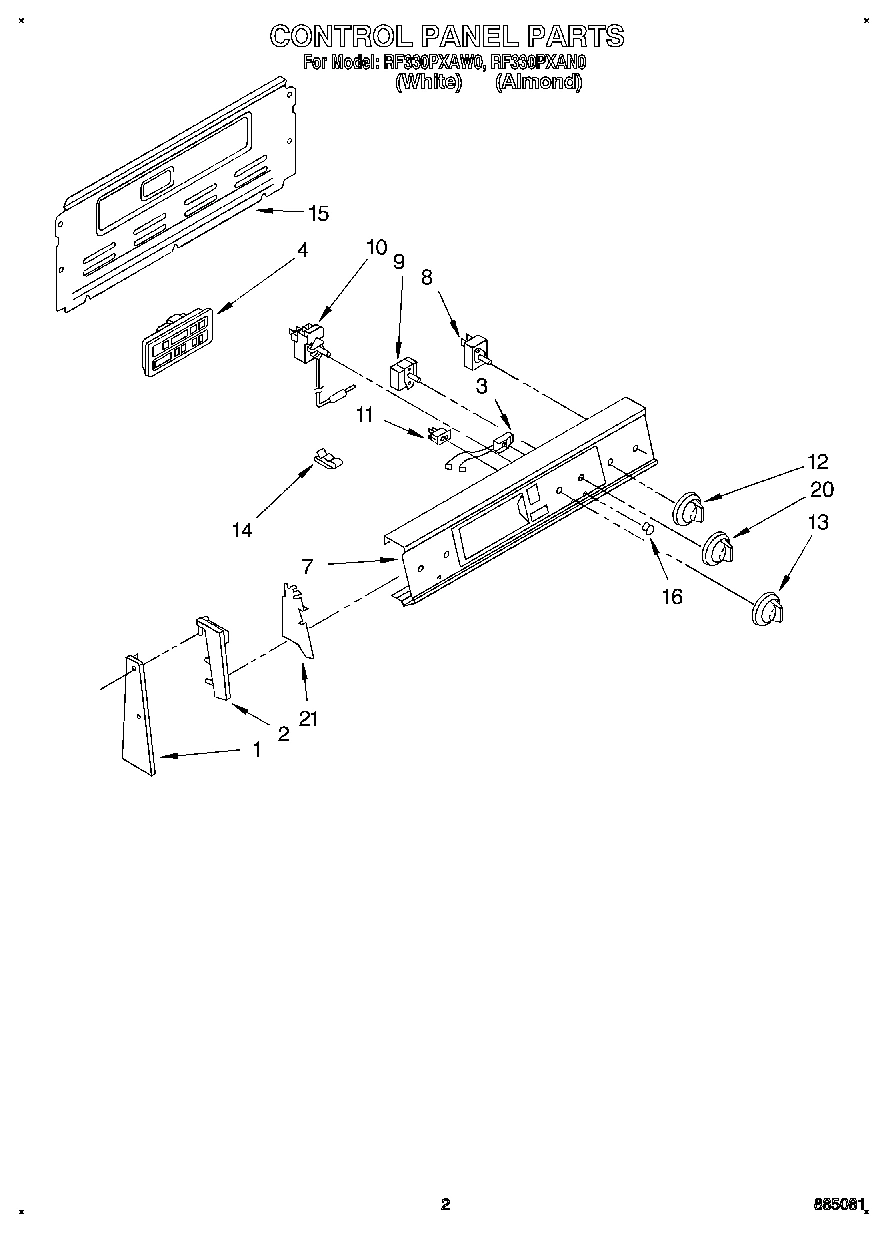

02 - CONTROL PANEL

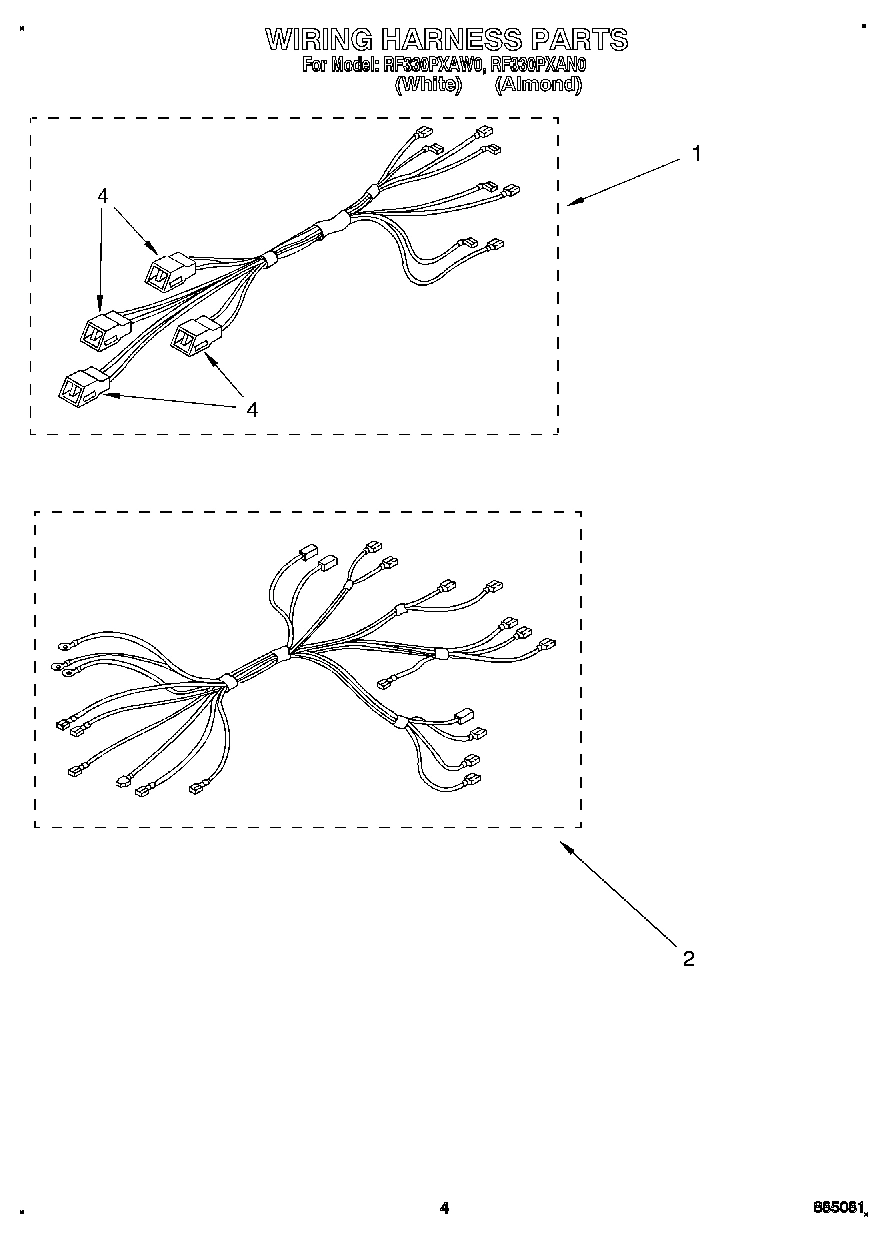

04 - WIRING HARNESS

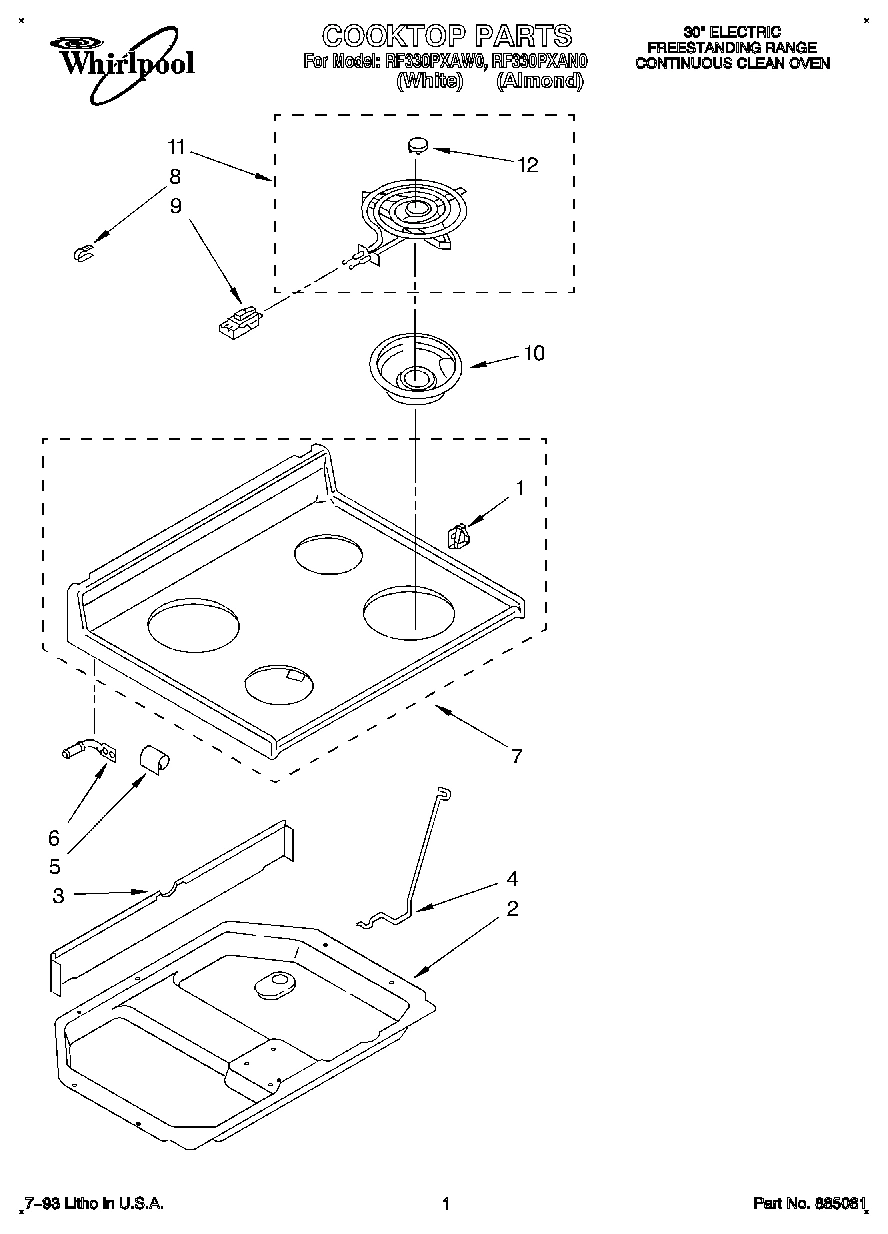

01 - COOKTOP

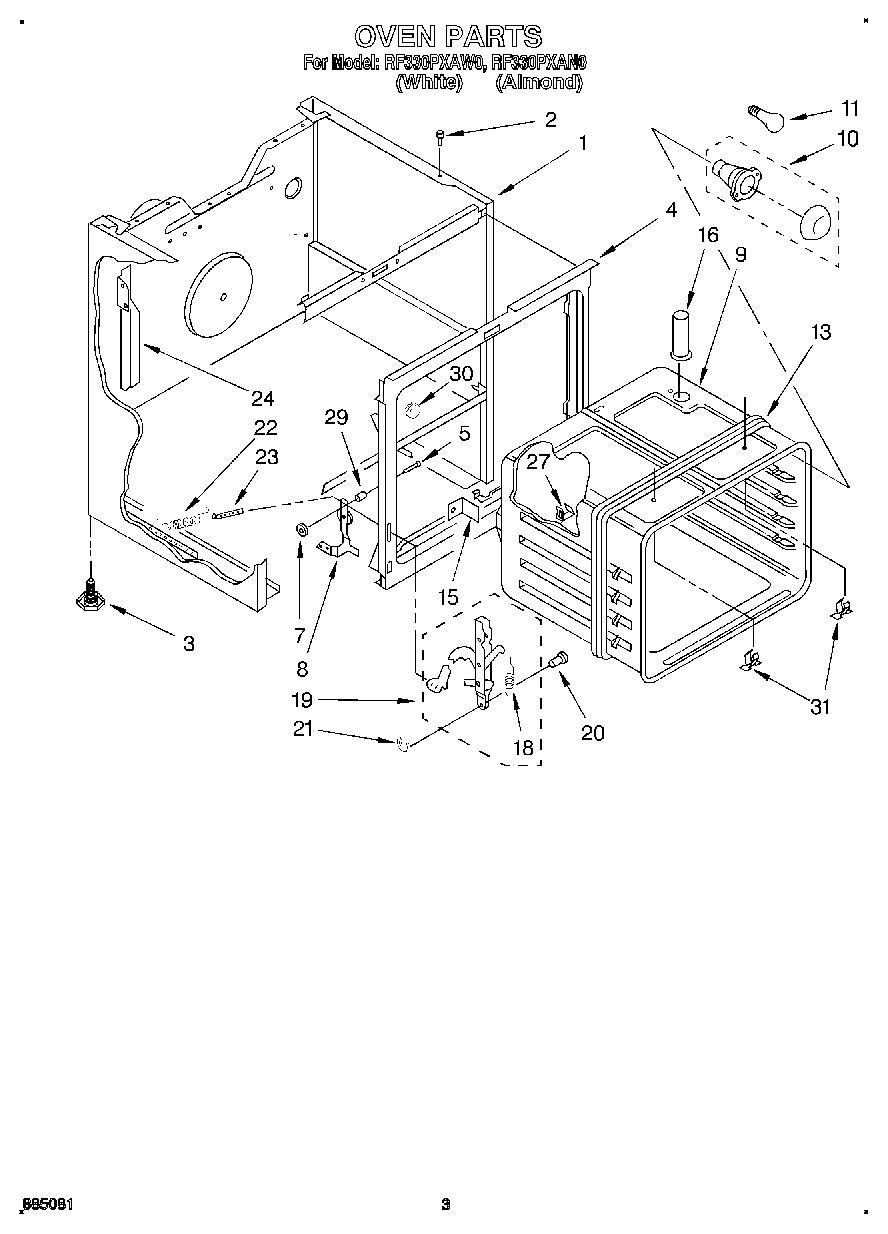

03 - OVEN

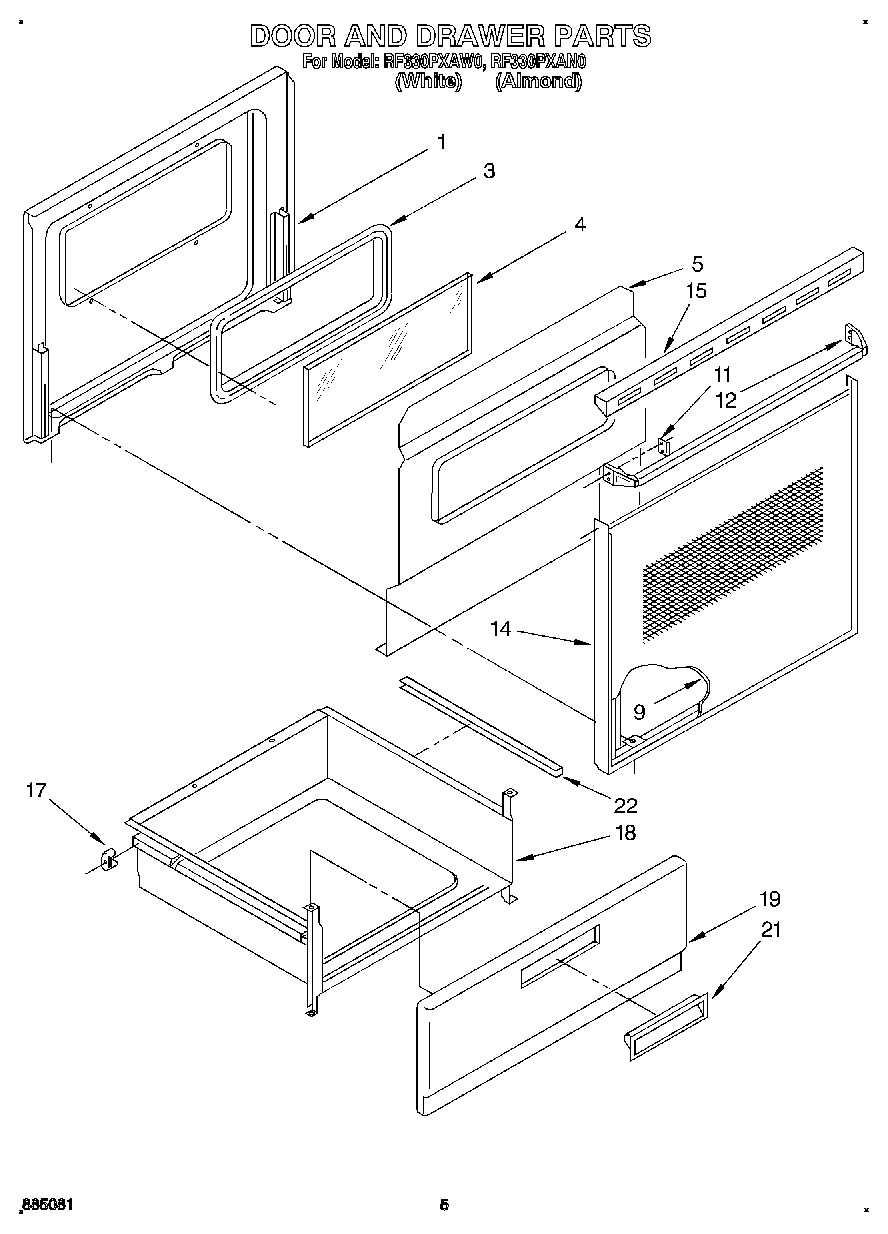

05 - DOOR AND DRAWER, LITERATURE

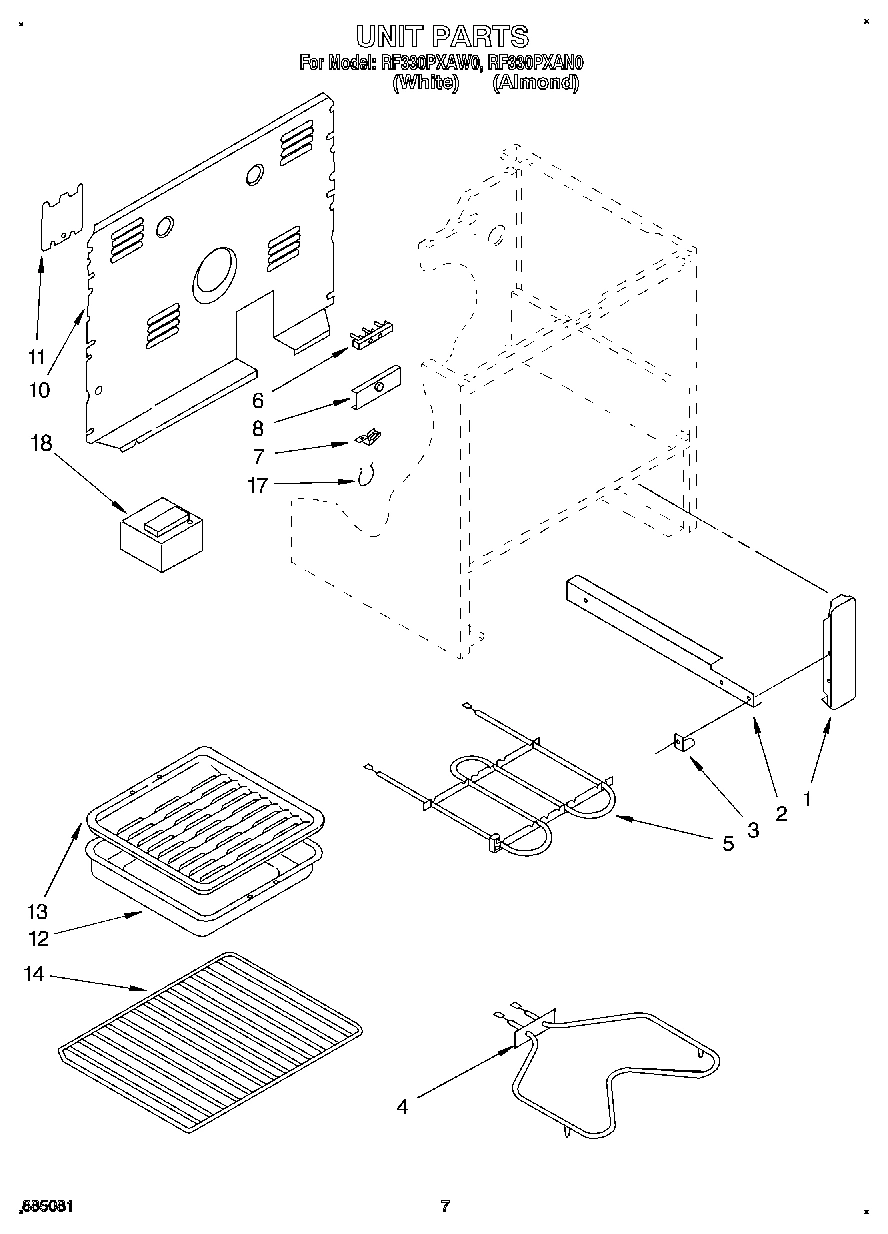

06 - UNIT, OPTIONAL
Common parts from model Whirlpool RF330PXAW0
Installation Instr (Templet) WPL LIT3150400 Contact Us For Availability
Wiring Diagram WPL LIT3150656 Contact Us For Availability
Guide, Use & Care WPL LIT3187320 Contact Us For Availability
Instructions, Installation WPL LIT3187321 Contact Us For Availability
WPL LIT677973 WPL LIT677973 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Screw, 10A x 1/2 (4) WPL 311056 Contact Us For Availability
1
Liner, Door WPL 3170710 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
2
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
3
Light, Indicator (Oven) WPL 314031 Contact Us For Availability
3
Seal, Glass WPL 3148183 Contact Us For Availability
3
Shield, Wiring WPL 307973 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
4
Rod, Cooktop WPL 3148659 Contact Us For Availability
4
Frame, Front WPL 3176681 Contact Us For Availability
4
Glass, Inner WPL 3169202 Contact Us For Availability
5
Bracket (2) WPL 307965 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
5
Retainer, WPL 3148287 Contact Us For Availability
5
Screw, 8-18 x 5/16 (6) WPL 3148443 Contact Us For Availability
5
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
6
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
7
Cooktop (White) WPL 3170981 Contact Us For Availability
7
Cooktop (Almond) WPL 3170982 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
9
Switch, Selector (3 Position) WPL 3150430 Contact Us For Availability
9
Oven 30`` (Continuous Clean) WPL 3176609 Contact Us For Availability
9
Panel, Outer (Black Glass) WPL 3148185 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
11
Clip (2) WPL 3148282 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Knob, Infinite (4) (Surface Unit) WPL 3183118 Contact Us For Availability
12
Medallion (4) WPL 309195 Contact Us For Availability
12
Handle, Oven Door WPL 3148228 Contact Us For Availability
13
Seal, Heat WPL 309107 Contact Us For Availability
14
Frame, Door WPL 3148235 Contact Us For Availability
14
Rack, Oven (2) WPL 308173 Contact Us For Availability
15
Screw (2) WPL 3149333 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
15
Top, Door Frame WPL 3148223 Contact Us For Availability
17
Glide, Rear WPL 307980 Contact Us For Availability
18
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
18
Spring, Door Stop WPL 308207 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
18
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
White 14 Ga 150~c WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Red 14 Ga. 150~c WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
18
Grease WPL 261582 Contact Us For Availability
18
Coffee WPL 261886 Contact Us For Availability
18
New Avocado WPL 261888 Contact Us For Availability
18
Harvest Gold WPL 261890 Contact Us For Availability
18
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
18
WPL 285365 WPL 285365 Contact Us For Availability
18
WPL 285366 WPL 285366 Contact Us For Availability
18
WPL 285367 WPL 285367 Contact Us For Availability
18
WPL 285368 WPL 285368 Contact Us For Availability
18
WPL 309961 WPL 309961 Contact Us For Availability
18
WPL 3149258 WPL 3149258 Contact Us For Availability
18
WPL 72108 WPL 72108 Contact Us For Availability
18
WPL 72112 WPL 72112 Contact Us For Availability
18
WPL 799832 WPL 799832 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
19
Channel, Arm (2) WPL 3176708 Contact Us For Availability
19
Panel, Drawer (White) WPL 3150676 Contact Us For Availability
19
Panel, Drawer (Almond) WPL 3150677 Contact Us For Availability
20
Knob, Selector WPL 3183109 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
21
Handle, Snap-In (White) WPL 3150612 Contact Us For Availability
21
Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Protector, Drawer WPL 309329 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
Plug Button WPL 308535 Contact Us For Availability
31
Plug, Button (2) WPL 3169107 Contact Us For Availability
× ![]()
