Model Whirlpool RF316PXYN4 – Common Parts & Diagrams

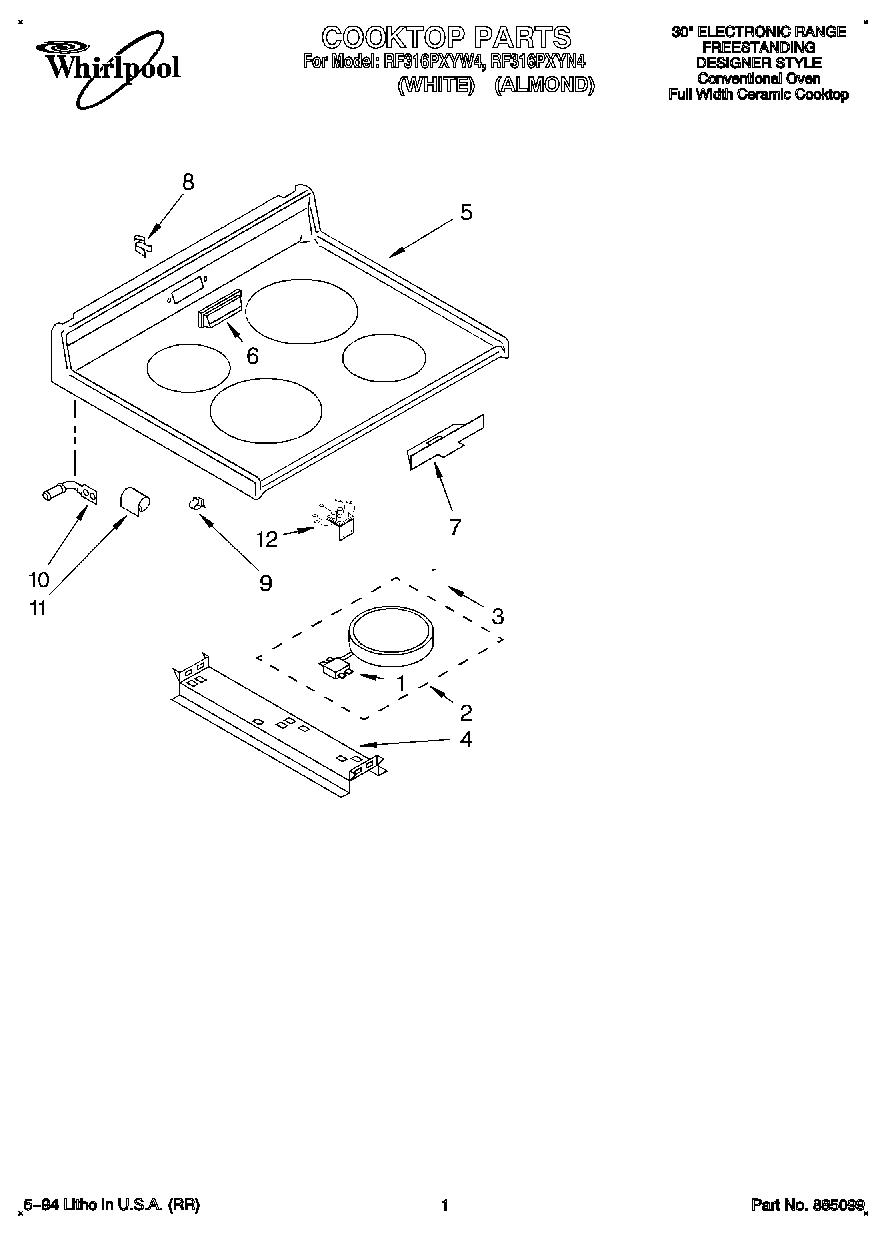

01 - COOKTOP, LITERATURE
04 - UNIT

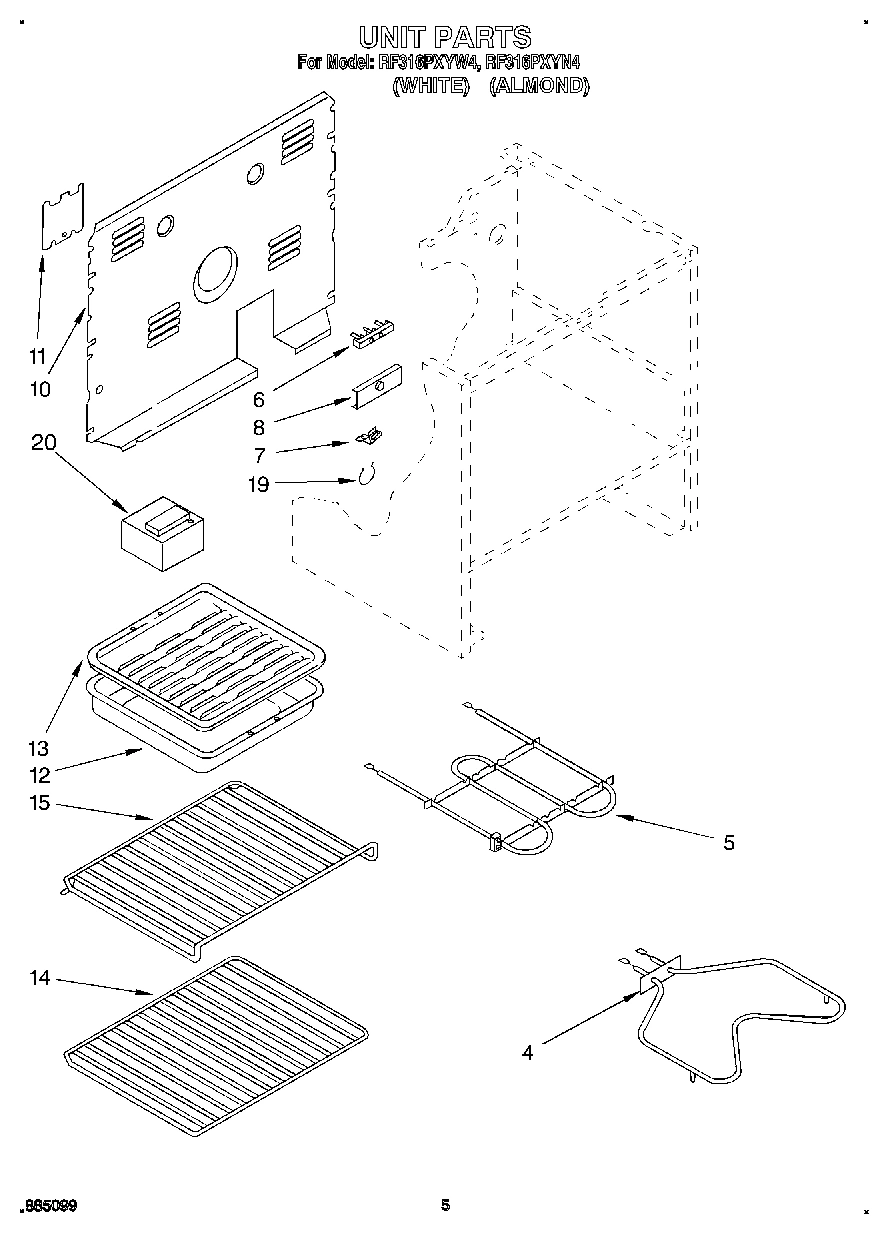

05 - OVEN
02 - CONTROL PANEL
03 - DOOR AND DRAWER
06 - WIRING HARNESS, OPTIONAL
Common parts from model Whirlpool RF316PXYN4
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
End Trim L.H. WPL 313190 Contact Us For Availability
1
End Trim R.H. WPL 313191 Contact Us For Availability
1
Screw, 8-18 x 5/16 WPL 3148443 Contact Us For Availability
1
Liner, Door WPL 3172220 Contact Us For Availability
1
Harness, (Oven) WPL 3169149 Contact Us For Availability
2
Tube, Vent WPL 3169144 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 3150441 Contact Us For Availability
2
End Cap L.H. WPL 3150442 Contact Us For Availability
2
Insulation, Door WPL 3147954 Contact Us For Availability
3
Seal, Glass WPL 3148183 Contact Us For Availability
3
Spring (8) WPL 3149191 Contact Us For Availability
3
Clip, Wire WPL 311311 Contact Us For Availability
3
Harness, Cooktop WPL 3169104 Contact Us For Availability
4
Screw (1) WPL 3150537 Contact Us For Availability
4
Frame, Front WPL 3176714 Contact Us For Availability
4
Glass, Inner WPL 3169202 Contact Us For Availability
4
Harness, Wire (Oven Light) WPL 3169280 Contact Us For Availability
5
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
5
Retainer, WPL 3148287 Contact Us For Availability
5
Screw (4) 8-18 x 3/8 WPL 3185647 Contact Us For Availability
5
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
5
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
5
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
5
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
5
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
5
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
5
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
5
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
5
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
5
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
5
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
5
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
5
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
5
Grease WPL 261582 Contact Us For Availability
5
Coffee WPL 261886 Contact Us For Availability
5
New Avocado WPL 261888 Contact Us For Availability
5
Harvest Gold WPL 261890 Contact Us For Availability
5
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
5
Toast WPL 285365 Contact Us For Availability
5
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
5
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
5
Platinum (Uncut) WPL 285368 Contact Us For Availability
5
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
5
WPL 72112 WPL 72112 Contact Us For Availability
5
WPL 799832 WPL 799832 Contact Us For Availability
5
WPL 978883 WPL 978883 Contact Us For Availability
6
Seal, Door WPL 3169283 Contact Us For Availability
6
Motor, Timer WPL 309822 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
7
Timer, Control WPL 661458 Contact Us For Availability
8
Clip, Mounting (2) (Vent Cover) WPL 3149190 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
8
Glass, Timer WPL 313513 Contact Us For Availability
9
Oven (30`` Pyro) WPL 3176611 Contact Us For Availability
9
Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability
9
Panel, Control WPL 3183819 Contact Us For Availability
9
Outer Glass WPL 3148185 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
Switch, Infinite (Screw, 8-32 x 1/4 (8)) WPL 308119 Contact Us For Availability
11
Clip (2) WPL 3148282 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Switch, Selector (4 Position) WPL 3149886 Contact Us For Availability
12
Thermostat, 0ven WPL 3169302 Contact Us For Availability
12
Spring, Door Stop WPL 308207 Contact Us For Availability
12
Handle, Oven Door WPL 3148228 Contact Us For Availability
13
Indicator Light (2) WPL 314031 Contact Us For Availability
13
Indicator Light (1) WPL 3150662 Contact Us For Availability
14
Knob, Control (4) (Infinite Switch) WPL 3183118 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
Frame, Door WPL 3148235 Contact Us For Availability
15
Rack, Oven (Offset) 10-32 x .437 (2) WPL 308172 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
15
Knob, Control (Thermostat) WPL 3183106 Contact Us For Availability
15
Top, Door Frame WPL 3148223 Contact Us For Availability
16
Vent, Oven WPL 3169365 Contact Us For Availability
16
Tube Clip WPL 313570 Contact Us For Availability
17
Rear Cover Control Panel WPL 3187332 Contact Us For Availability
17
Glide, Rear WPL 307980 Contact Us For Availability
18
Lens, Amber (3) WPL 313101 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
19
Channel, Arm (2) WPL 3176708 Contact Us For Availability
19
Shield, Glass (2) WPL 313608 Contact Us For Availability
19
Panel, Drawer (White) WPL 3150676 Contact Us For Availability
19
Panel, Drawer (Almond) WPL 3150677 Contact Us For Availability
20
Knob, Control (Selector) WPL 3183112 Contact Us For Availability
20
Block, Balance WPL 3149258 Contact Us For Availability
20
Glide, Front (2) WPL 3149257 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
21
Handle, Snap-In (White) WPL 3150612 Contact Us For Availability
21
Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Protector, Drawer (2) WPL 309329 Contact Us For Availability
24
Support, L.H. Post WPL 313196 Contact Us For Availability
24
Support, R.H. Post WPL 313197 Contact Us For Availability
25
Switch, Door (2) WPL 310345 Contact Us For Availability
26
Plug, Button (2) WPL 3169107 Contact Us For Availability
26
Bracket, Rail (2) WPL 307981 Contact Us For Availability
28
Rail, Slide (Screw) WPL 307748 Contact Us For Availability
28
Rail, Slide (R.H.) WPL 3149255 Contact Us For Availability
28
Rail, Slide (L.H. (Includes No. 20)) WPL 3149256 Contact Us For Availability
30
Snubber, Door (2) WPL 309111 Contact Us For Availability
32
Support, Chassis WPL 3147646 Contact Us For Availability
34
Vent, Box WPL 3169278 Contact Us For Availability
35
Insulation, Wrapper WPL 309961 Contact Us For Availability
× ![]()
