Model Whirlpool RF314PXYW2 – Common Parts & Diagrams

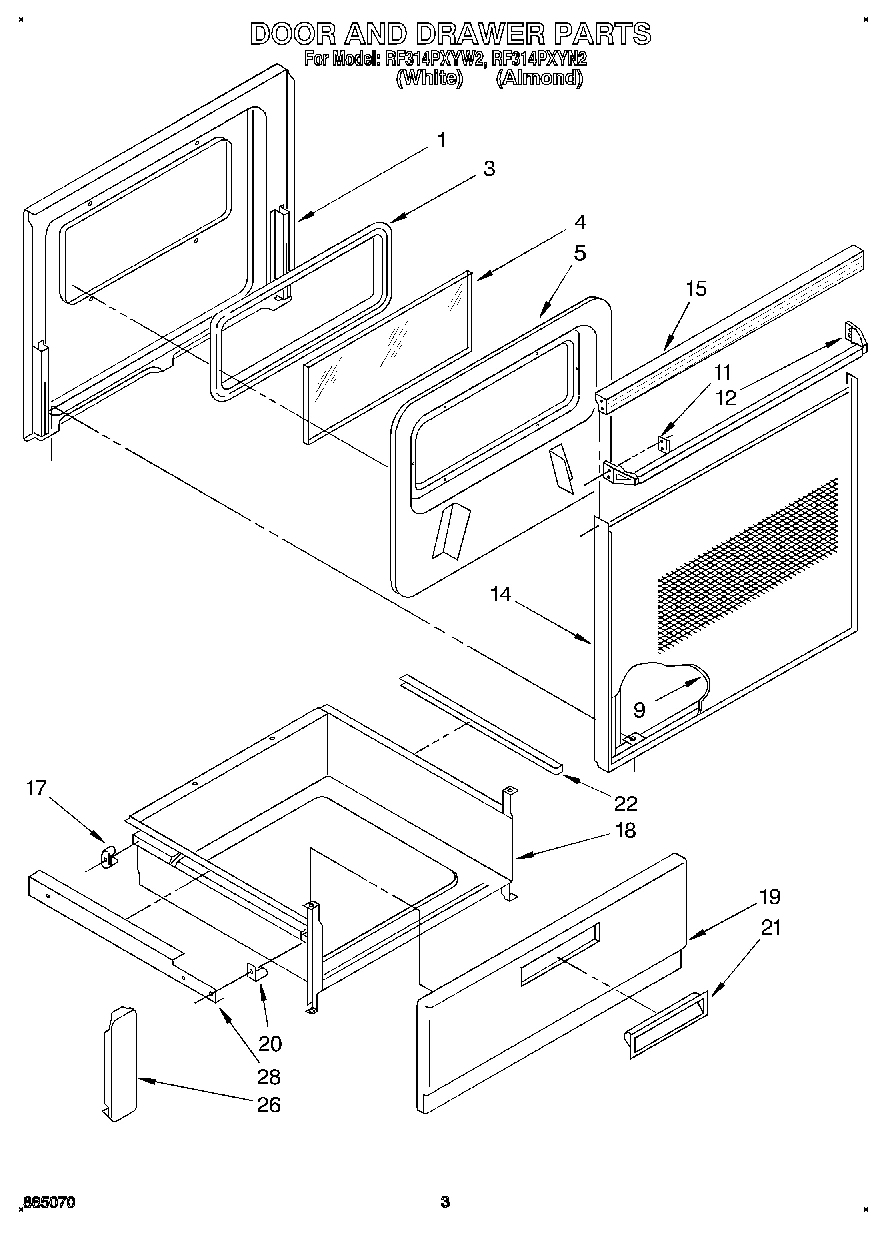

03 - DOOR AND DRAWER

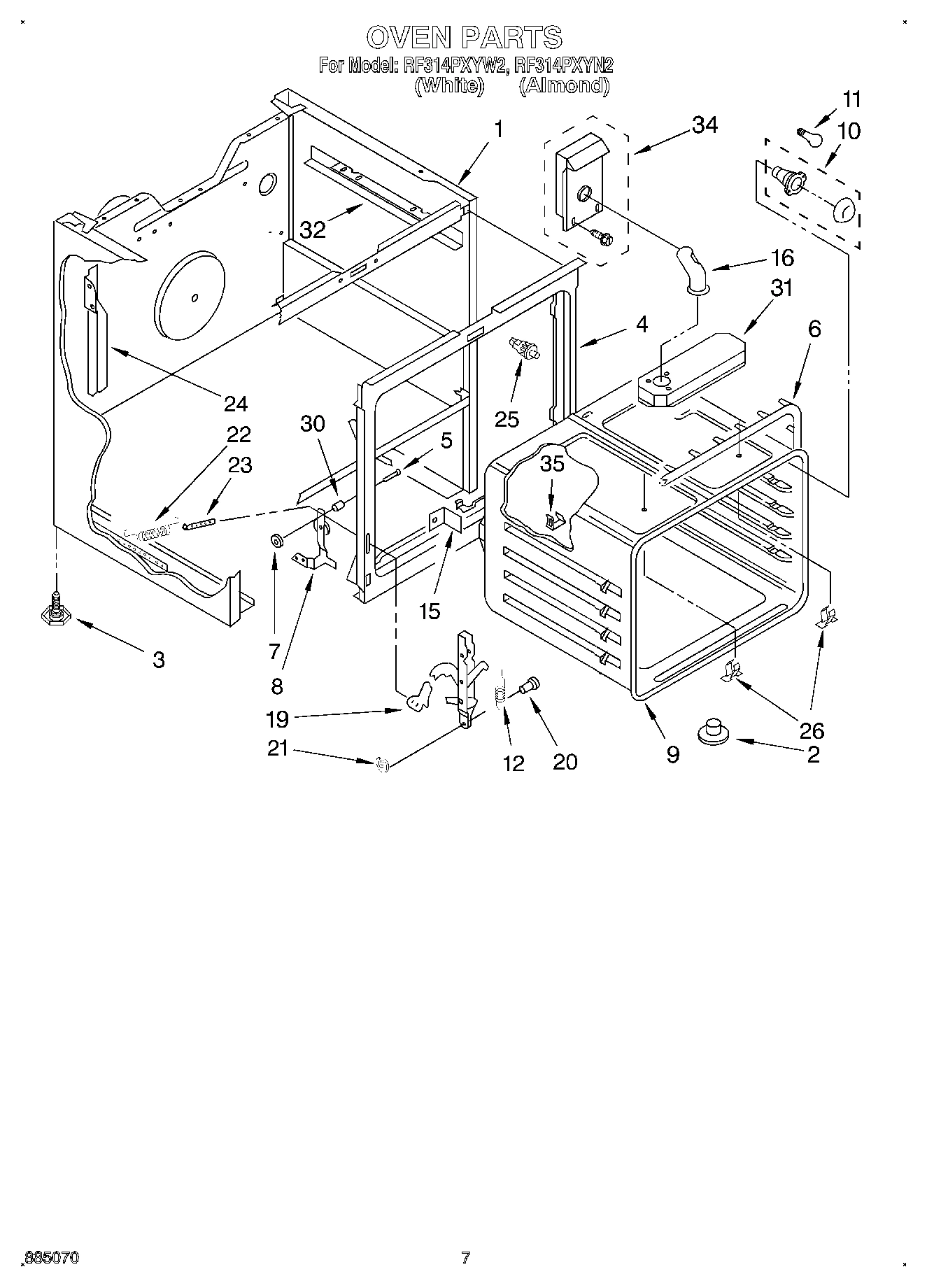

05 - OVEN
06 - WIRING HARNESS, OPTIONAL
01 - COOKTOP, LITERATURE
02 - CONTROL PANEL
04 - UNIT
Common parts from model Whirlpool RF314PXYW2
WPL LIT677973 WPL LIT677973 Contact Us For Availability
Installation Instr (Templet) WPL LIT3150400 Contact Us For Availability
Wiring Diagram WPL LIT3182486 Contact Us For Availability
Instructions, Installation WPL LIT3187321 Contact Us For Availability
Use and Care Guide WPL LIT3187469 Contact Us For Availability
1
Harness, (Oven) WPL 3169149 Contact Us For Availability
1
Limiter, Temp. (200 MM - (2)) WPL 3183972 Contact Us For Availability
1
Limiter, Temp. (230 MM - (2)) WPL 3183974 Contact Us For Availability
1
End Trim R.H. WPL 3183090 Contact Us For Availability
1
End Trim L.H. WPL 3183091 Contact Us For Availability
2
Element, Surface (Includes No.1) (200 MM, 170 WPL 3183647 Contact Us For Availability
2
Element, Surface (Includes No.1) (230 MM, 210 WPL 3183648 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 3150441 Contact Us For Availability
2
End Cap L.H. WPL 3150442 Contact Us For Availability
3
Seal, Glass WPL 3148183 Contact Us For Availability
3
Spring (8) WPL 3149191 Contact Us For Availability
3
Harness, (Cooktop) WPL 3183408 Contact Us For Availability
4
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
4
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
4
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
4
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
4
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
4
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
4
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
4
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
4
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
4
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
4
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
4
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
4
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
4
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
4
Grease WPL 261582 Contact Us For Availability
4
Coffee WPL 261886 Contact Us For Availability
4
New Avocado WPL 261888 Contact Us For Availability
4
Harvest Gold WPL 261890 Contact Us For Availability
4
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
4
Toast WPL 285365 Contact Us For Availability
4
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
4
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
4
Platinum (Uncut) WPL 285368 Contact Us For Availability
4
Harness, Wiring (Oven Light) WPL 313152 Contact Us For Availability
4
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
4
WPL 72112 WPL 72112 Contact Us For Availability
4
WPL 799832 WPL 799832 Contact Us For Availability
4
WPL 978883 WPL 978883 Contact Us For Availability
4
Bracket, (2) Element Support WPL 3183087 Contact Us For Availability
4
Screw (4) WPL 98520 Contact Us For Availability
5
Cooktop (White) WPL 3184122 Contact Us For Availability
5
Cooktop (Almond Mdl.) WPL 3184123 Contact Us For Availability
5
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
6
Cover, Vent (White) WPL 3149011 Contact Us For Availability
6
cover, vent (almond) WPL 3149012 Contact Us For Availability
6
Motor, Timer WPL 309822 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
7
Shield, Probe WPL 3183510 Contact Us For Availability
7
Timer, Control WPL 3183063 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
8
Clip, Mounting (2) (Vent Cover) WPL 3149190 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
8
Glass, Timer WPL 313513 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Pyro) WPL 3176611 Contact Us For Availability
9
Clip, Wire WPL 311311 Contact Us For Availability
9
Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability
9
Panel, Control WPL 3183816 Contact Us For Availability
10
Switch, Infinite (Screw, 8-32 x 1/4 (8)) WPL 308119 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
11
Clip (2) WPL 3148282 Contact Us For Availability
11
Switch, Selector (4 Position) WPL 3149886 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Spring, Door Stop WPL 308207 Contact Us For Availability
12
Thermostat, 0ven WPL 661150 Contact Us For Availability
13
Indicator Light (1) WPL 314031 Contact Us For Availability
13
Indicator Light (1) WPL 3148719 Contact Us For Availability
13
Indicator Light (1) WPL 3150662 Contact Us For Availability
14
Knob, Control (4) (Infinite Switch) WPL 3183118 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
15
Screw WPL 3149333 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
15
Knob, Control (Thermostat) WPL 3183106 Contact Us For Availability
15
Rack, Oven (Offset) 10-32 x .437 (2) WPL 308172 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
16
Vent, Oven WPL 3148906 Contact Us For Availability
16
Tube Clip WPL 313570 Contact Us For Availability
17
Rear Cover Control Panel WPL 3187332 Contact Us For Availability
18
Lens, Amber (3) WPL 313101 Contact Us For Availability
19
Channel, Arm (2) WPL 3176708 Contact Us For Availability
19
Shield, Glass (2) WPL 313608 Contact Us For Availability
20
Knob, Control (Selector) WPL 3183112 Contact Us For Availability
20
Block, Balance WPL 3149258 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
24
Support, L.H. Post WPL 313196 Contact Us For Availability
24
Support, R.H. Post WPL 313197 Contact Us For Availability
25
Switch, Door (2) WPL 310345 Contact Us For Availability
26
Plug, Button (2) WPL 3169107 Contact Us For Availability
30
Snubber, Door (2) WPL 309111 Contact Us For Availability
31
Box Vent WPL 3169129 Contact Us For Availability
32
Support, Chassis WPL 3147646 Contact Us For Availability
34
Vent, Box WPL 3171381 Contact Us For Availability
35
Insulation, Wrapper WPL 309961 Contact Us For Availability
× ![]()
