Model Whirlpool RF314BXBQ1 – Common Parts & Diagrams

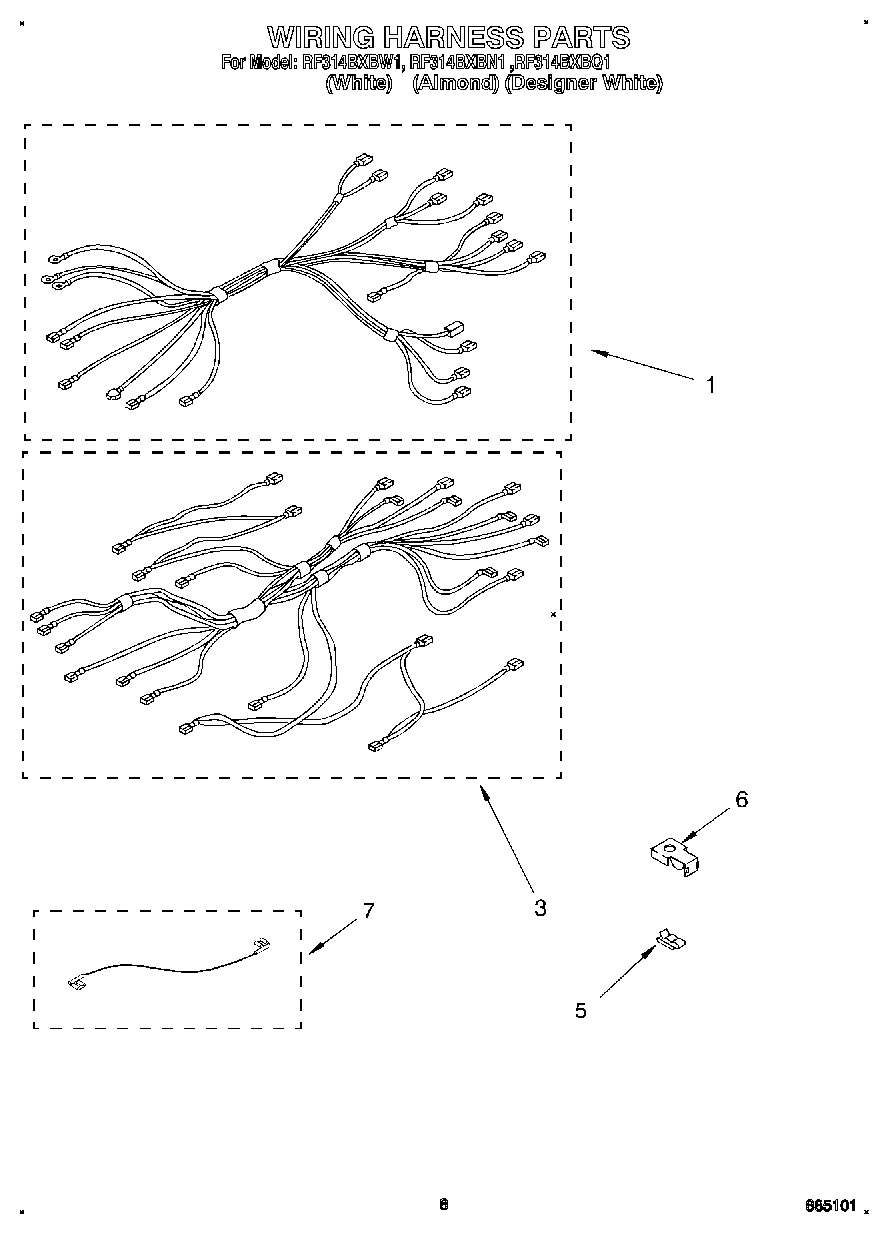

06 - WIRING HARNESS, OPTIONAL

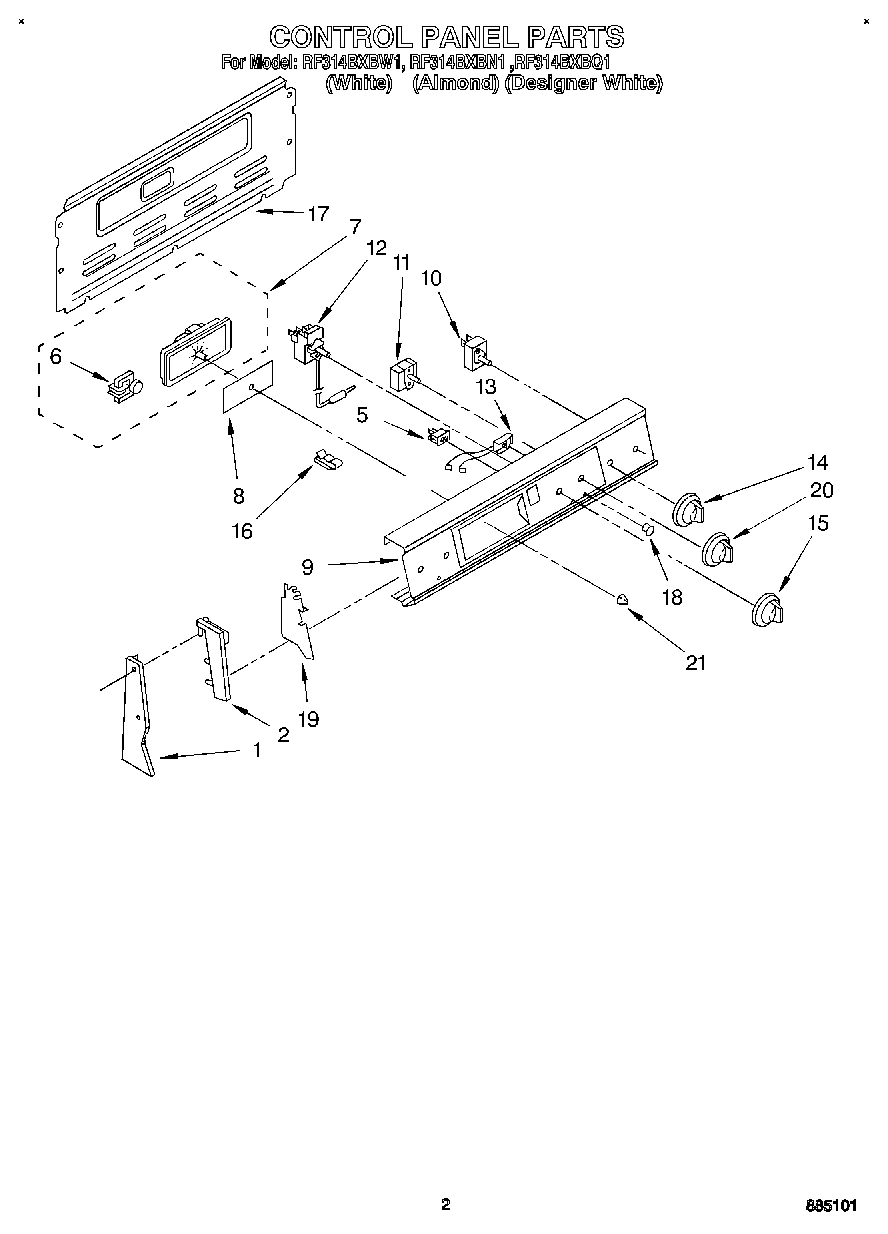

02 - CONTROL PANEL
03 - DOOR AND DRAWER
04 - UNIT
01 - COOKTOP, LITERATURE
05 - OVEN
Common parts from model Whirlpool RF314BXBQ1
Installation Instr (Templet) WPL LIT3150400 Contact Us For Availability
Wiring Diagram WPL LIT3169350 Contact Us For Availability
Instructions, Installation WPL LIT3187321 Contact Us For Availability
Use and Care Guide WPL LIT3187487 Contact Us For Availability
1
End Trim R.H. WPL 3183090 Contact Us For Availability
1
End Trim L.H. WPL 3183091 Contact Us For Availability
1
Screw, 8-18 x 5/16 WPL 3148443 Contact Us For Availability
1
Liner, Door WPL 3172221 Contact Us For Availability
1
Limiter, Temp. (1700W, RF-LR) WPL 3169339 Contact Us For Availability
1
Limiter, Temp. (2100W, LF-RR) WPL 3169340 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
2
End Cap, R.H. (Screw 8BT X 1/4 (4)) WPL 254225 Contact Us For Availability
2
End Cap R.H. (Designer White Mdl End Cap L.H. WPL 313230 Contact Us For Availability
2
End Cap R.H. (Designer White Mdl) WPL 313231 Contact Us For Availability
2
End Cap R.H. (White/Almond Mdl.) WPL 3150441 Contact Us For Availability
2
End Cap R.H. (White/Almond Mdl.) WPL 3150442 Contact Us For Availability
2
Element, Surface (Includes No.1) (1700W, RF-L WPL 3183647 Contact Us For Availability
2
Element, Surface (Includes No.1) (2100W, LF-R WPL 3183648 Contact Us For Availability
2
Tube, Vent WPL 3169144 Contact Us For Availability
3
Spring (8) WPL 3149191 Contact Us For Availability
4
Bracket, (2) Element Support WPL 3183087 Contact Us For Availability
4
Screw (4) WPL 98520 Contact Us For Availability
4
Screw (1) WPL 3150537 Contact Us For Availability
4
Frame, Front WPL 3176714 Contact Us For Availability
5
Screw, 10-16 x 7/16 (2) WPL 3150532 Contact Us For Availability
5
Cooktop (White Mdl.) WPL 3184122 Contact Us For Availability
5
Cooktop (Almond Mdl.) WPL 3184123 Contact Us For Availability
5
Cooktop (Designer White Mdl) WPL 3184124 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
6
Motor, Timer WPL 308443 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Cover, Vent (White) WPL 3149011 Contact Us For Availability
6
cover, vent (almond) WPL 3149012 Contact Us For Availability
6
Seal, Door WPL 3169283 Contact Us For Availability
7
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
7
WPL 799832 WPL 799832 Contact Us For Availability
7
WPL 978883 WPL 978883 Contact Us For Availability
7
Timer, Control (White/Almond Mdl.) WPL 3169298 Contact Us For Availability
7
Timer, Control (Designer White Mdl) WPL 3169299 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Shield, Probe WPL 3183510 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
8
Clip, Mounting (2) (Vent Cover) WPL 3149190 Contact Us For Availability
8
Glass, Timer WPL 3148852 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
9
Panel, Control (Screw, 8-18 x 5/8 (4)) WPL 312604 Contact Us For Availability
9
Panel, Control (White/Almond Mdl.) WPL 3183816 Contact Us For Availability
9
Panel, Control (Designer White Mdl) WPL 3183820 Contact Us For Availability
9
Outer Glass WPL 3148186 Contact Us For Availability
9
Designer White Mdl WPL 3149051 Contact Us For Availability
9
Clip, Wire WPL 311311 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Pyro) WPL 3176611 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
Bracket, Cooktop (Right) WPL 3169294 Contact Us For Availability
10
Bracket, Cooktop (Left) WPL 3169295 Contact Us For Availability
11
Switch, Selector (3 Position) WPL 3150430 Contact Us For Availability
11
Clip (2) WPL 3148282 Contact Us For Availability
11
Screw (2) WPL 308119 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Screw, 10-16 x 1/2 (2) WPL 342641 Contact Us For Availability
12
Thermostat, 0ven WPL 3169302 Contact Us For Availability
12
Handle, Oven Door WPL 3148228 Contact Us For Availability
12
Designer White Mdl WPL 3149354 Contact Us For Availability
12
Spring, Door Stop WPL 308207 Contact Us For Availability
13
Indicator Light (1) WPL 314031 Contact Us For Availability
13
Indicator Light (1) WPL 3148719 Contact Us For Availability
13
Indicator Light (1) WPL 3150662 Contact Us For Availability
13
Cap-Top (Designer White) (Only) WPL 3181363 Contact Us For Availability
14
Knob, Control (4) WPL 3183118 Contact Us For Availability
14
Designer White Mdl (Infinite Switch) WPL 3183117 Contact Us For Availability
14
Frame, Door WPL 3148235 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
15
Screw WPL 3149333 Contact Us For Availability
15
Knob, Control WPL 3183106 Contact Us For Availability
15
Designer White Mdl (Thermostat) WPL 3183107 Contact Us For Availability
15
Top, Door Frame WPL 3148223 Contact Us For Availability
15
Designer White Mdl WPL 3149355 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Tube Clip WPL 313570 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
16
Vent, Oven WPL 3169365 Contact Us For Availability
17
Rear Cover Control Panel WPL 3187332 Contact Us For Availability
17
Glide, Rear WPL 307980 Contact Us For Availability
18
Lens, Amber (3) WPL 313101 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
19
Shield, Glass (2) WPL 313608 Contact Us For Availability
19
Panel, Drawer (White) WPL 3150676 Contact Us For Availability
19
Panel, Drawer (Almond) WPL 3150677 Contact Us For Availability
19
Channel, Arm (2) WPL 3176708 Contact Us For Availability
20
Knob, Control WPL 3183109 Contact Us For Availability
20
Designer White Mdl (Selector) WPL 3183110 Contact Us For Availability
20
Glide, Front (2) WPL 3149257 Contact Us For Availability
20
Block, Balance WPL 3149258 Contact Us For Availability
21
Handle, Snap-In (White) WPL 3150612 Contact Us For Availability
21
Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Protector, Drawer (2) WPL 309329 Contact Us For Availability
24
Support, L.H. Post WPL 313196 Contact Us For Availability
24
Support, R.H. Post WPL 313197 Contact Us For Availability
25
Plug Button WPL 308535 Contact Us For Availability
26
Bracket, Rail (2) WPL 307981 Contact Us For Availability
26
Plug, Button (2) WPL 3169107 Contact Us For Availability
28
Rail, Slide (R.H.) WPL 3149255 Contact Us For Availability
28
Rail, Slide (L.H. (Includes No. 20)) WPL 3149256 Contact Us For Availability
30
Snubber, Door (2) WPL 309111 Contact Us For Availability
32
Support, Chassis WPL 3147646 Contact Us For Availability
34
Vent, Box WPL 3169278 Contact Us For Availability
35
Insulation, Wrapper WPL 309961 Contact Us For Availability
× ![]()
