Model Whirlpool RF3010XEW2 30`` ELECTRIC FREESTANDING RANGE STANDARD CLEAN OV – Common Parts & Diagrams

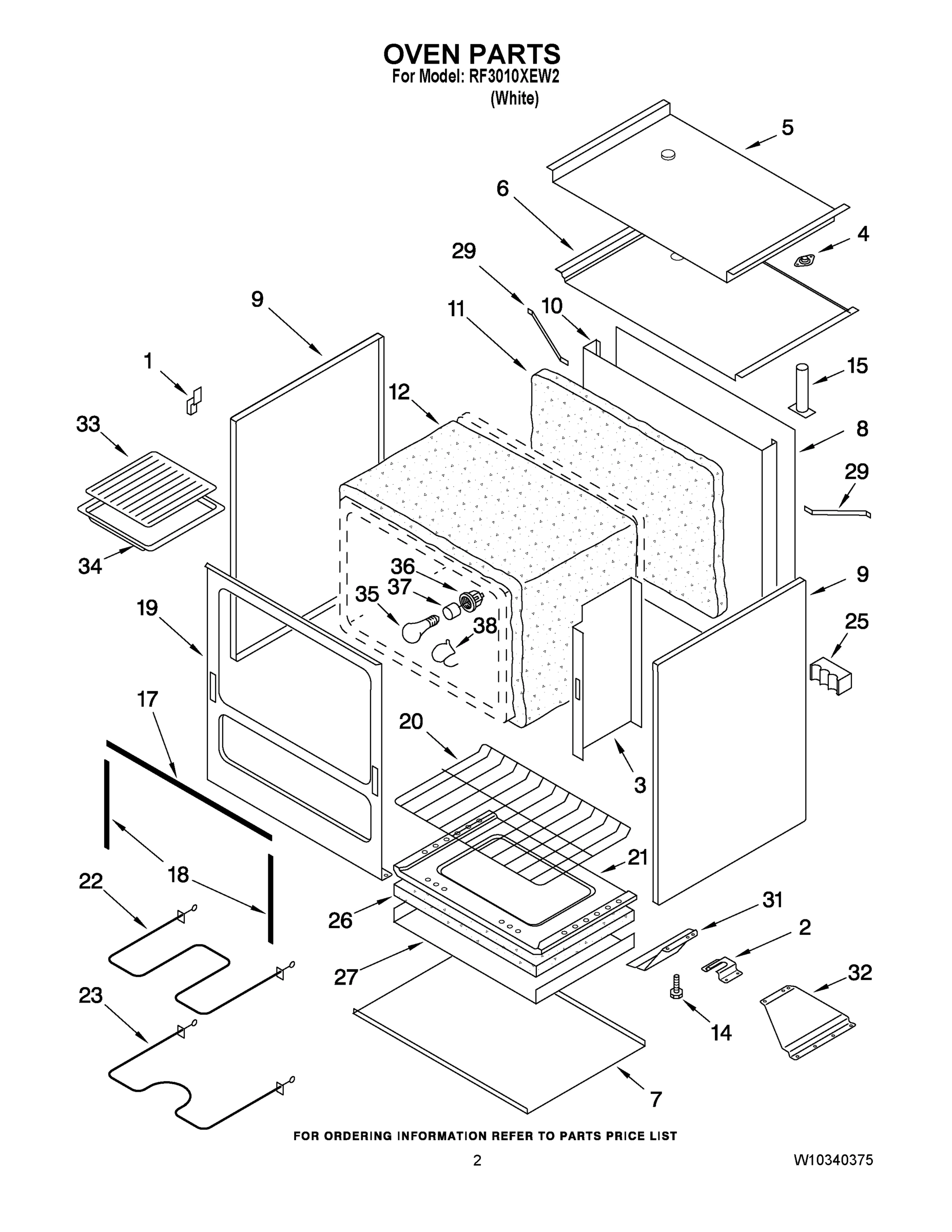

02 - OVEN PARTS

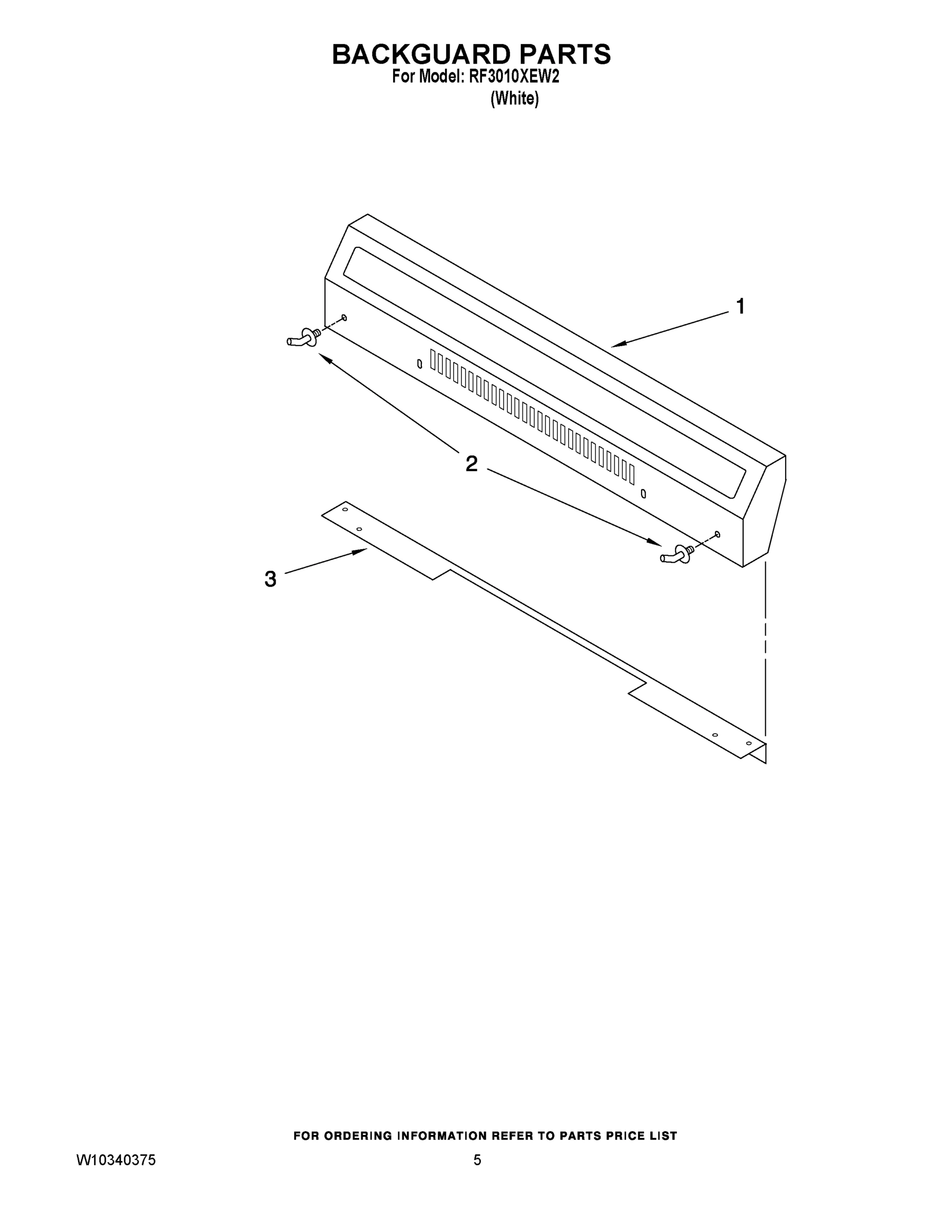

04 - BACKGUARD PARTS

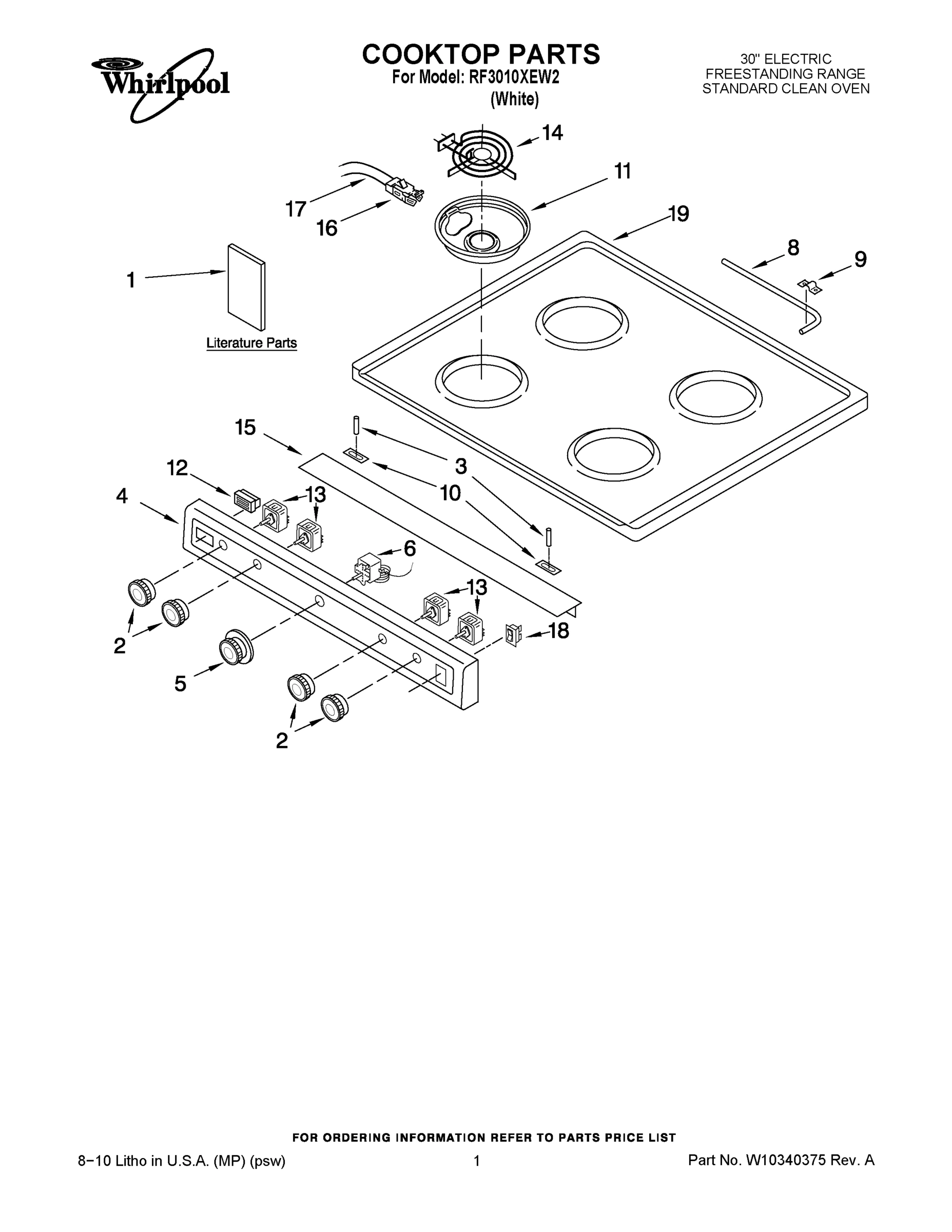

01 - COOKTOP PARTS

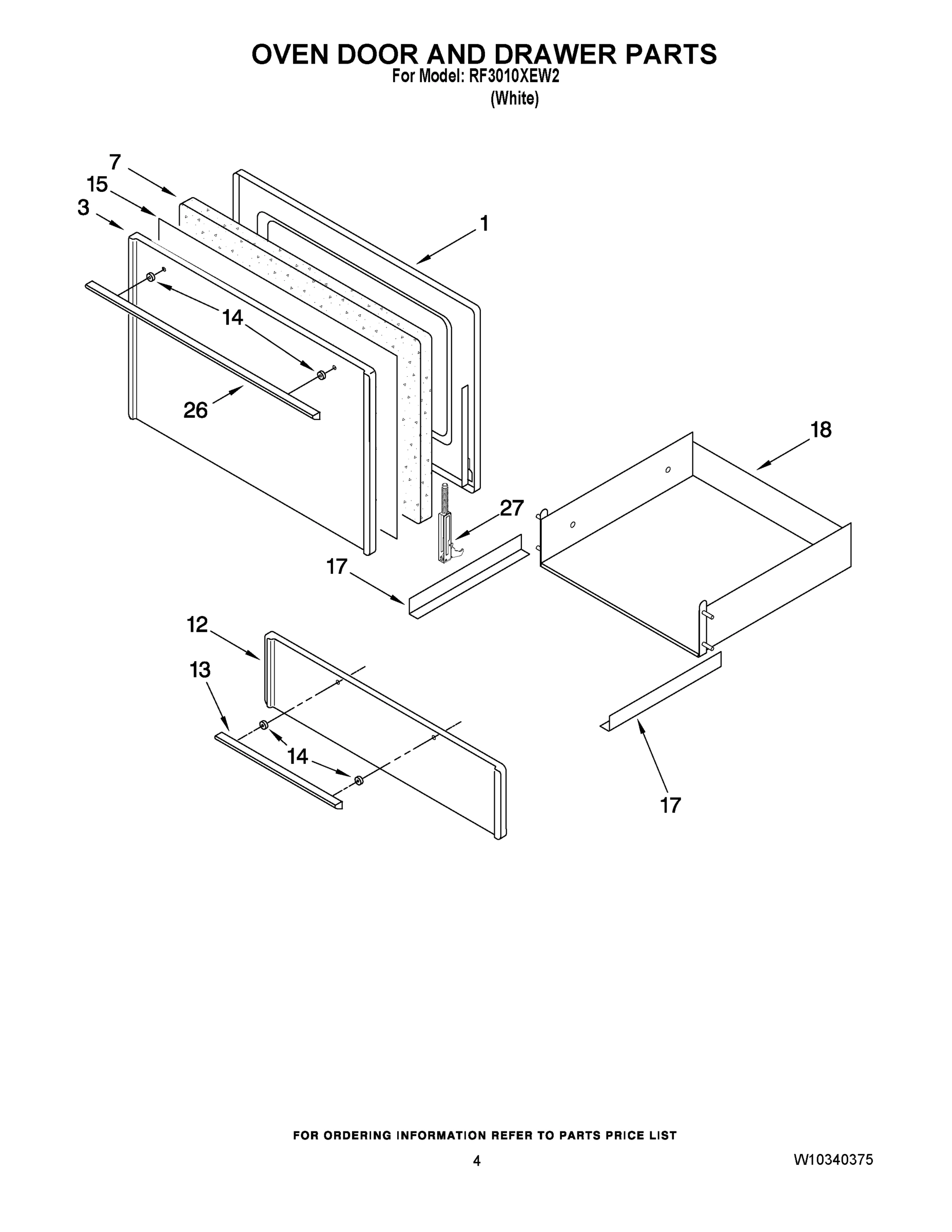

03 - OVEN DOOR AND DRAWER PARTS
Common parts from model Whirlpool RF3010XEW2 30`` ELECTRIC FREESTANDING RANGE STANDARD CLEAN OV
1
BACKGUARD,COMPLETE (WHITE) WPL W10341838 Contact Us For Availability
1
Use & Care Guide WPL 4364040 Contact Us For Availability
1
Wiring Diagram WPL 4364408 Contact Us For Availability
1
LINER, DOOR WPL W10161146 Contact Us For Availability
2
HINGE PIN WPL 4364102 Contact Us For Availability
3
Support, Backguard WPL 4364103 Contact Us For Availability
3
Strikepin, Cooktop (Includes Nut) WPL 4364157 Contact Us For Availability
3
PANEL, OVEN DOOR (WHITE) WPL W10161145 Contact Us For Availability
4
PANEL, MANIFOLD (INCLUDES DECAL) WPL 4364431 Contact Us For Availability
5
KNOB, THERMOSTAT WPL W10347848 Contact Us For Availability
6
Thermostat WPL 8190613 Contact Us For Availability
7
Insulation, Door WPL 4364470 Contact Us For Availability
8
Rod, Support WPL 4364217 Contact Us For Availability
9
Clip, Rod Support WPL 4364218 Contact Us For Availability
10
CATCH, STRIKEPIN WPL 4364158 Contact Us For Availability
12
Panel, Drawer (White) WPL 4364361 Contact Us For Availability
12
Indicator, Surf/Ov WPL 4364345 Contact Us For Availability
13

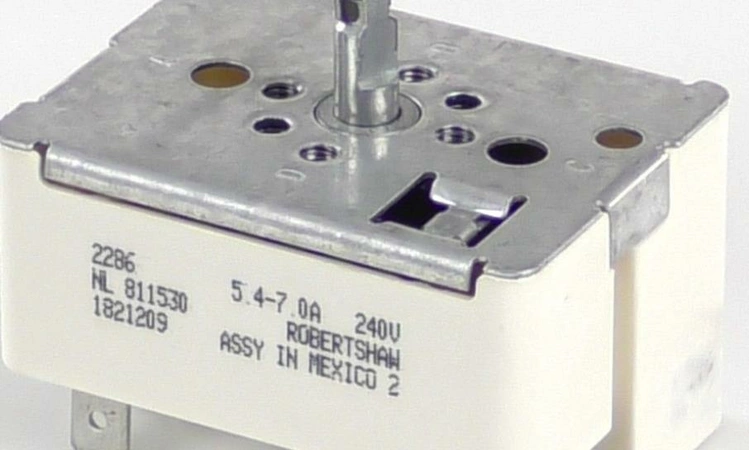

SWITCH, INFINITE (SCREW) WPL W10197682 Contact Us For Availability
13
Handle, Drawer WPL 4364054 Contact Us For Availability
14
ELEMENT, SURFACE (8``) WPL 4364175 Contact Us For Availability
14
Spacer, Handle WPL 4364055 Contact Us For Availability
14
Screw, 10-24 x 3/8 WPL 4364057 Contact Us For Availability
15
Vent, Oven Tube WPL 4364207 Contact Us For Availability
15
Screw, 8-18 x 3/8 WPL 4364151 Contact Us For Availability
15
Cover, Switch WPL 4364354 Contact Us For Availability
15
INNER DOOR PANEL WPL W10161147 Contact Us For Availability
16
Screw, 6-32 x 1/4 WPL 4364043 Contact Us For Availability
16
Brkt, Receptacle WPL 4364177 Contact Us For Availability
17
Gasket, Oven Top WPL 4364083 Contact Us For Availability
17
Wire, Element (Red (Left Front)) WPL 4364188 Contact Us For Availability
17
Wire, Element (Yellow (Rt. Front)) WPL 4364189 Contact Us For Availability
17
Wire, Element (Blue (Left Rear)) WPL 4364190 Contact Us For Availability
17
Wire, Element (Black (Rt. Rear)) WPL 4364191 Contact Us For Availability
17
Broiler Drawer (Right) WPL 4364364 Contact Us For Availability
18
Gasket, Oven Side WPL 4364084 Contact Us For Availability
18
Switch, Oven Light WPL 4364351 Contact Us For Availability
18
Body, Drawer WPL 4364365 Contact Us For Availability
19
Frame, Front WPL 4364136 Contact Us For Availability
19
Cooktop (White) WPL 4364352 Contact Us For Availability
20
Rack, Oven WPL 4364085 Contact Us For Availability
21
Bottom, Oven WPL 4364359 Contact Us For Availability
22
Element, Broil WPL 4364348 Contact Us For Availability
23
Element, Bake WPL 4364349 Contact Us For Availability
25
Hex Nut, 10-32 WPL 4364257 Contact Us For Availability
26
Insulation, Bottom WPL 4364078 Contact Us For Availability
26
Handle, Oven Door WPL 4364070 Contact Us For Availability
26
SCREW WPL 4364171 Contact Us For Availability
27
HINGE, OVEN DOOR (RIGHT) WPL W10137326 Contact Us For Availability
27
Retainer, Bottom WPL 4364360 Contact Us For Availability
27
HINGE, OVEN DOOR (LEFT) WPL W10137325 Contact Us For Availability
29
Screw, 10-12 x 1/2 WPL 4364153 Contact Us For Availability
29
Brace, Back WPL 4364133 Contact Us For Availability
31
Support, Rt. Rear WPL 4364090 Contact Us For Availability
32
Support, Lt. Rear WPL 4364089 Contact Us For Availability
33
Grill, Broiler WPL 4364065 Contact Us For Availability
34
Pan, Broiler WPL 4364216 Contact Us For Availability
36
Receptacle, Light WPL 4364091 Contact Us For Availability
37
Ring, Oven Light WPL 4364093 Contact Us For Availability
38
Guard, Oven Light WPL 4364350 Contact Us For Availability
× ![]()
