Model Whirlpool RF3010XEW0 – Common Parts & Diagrams

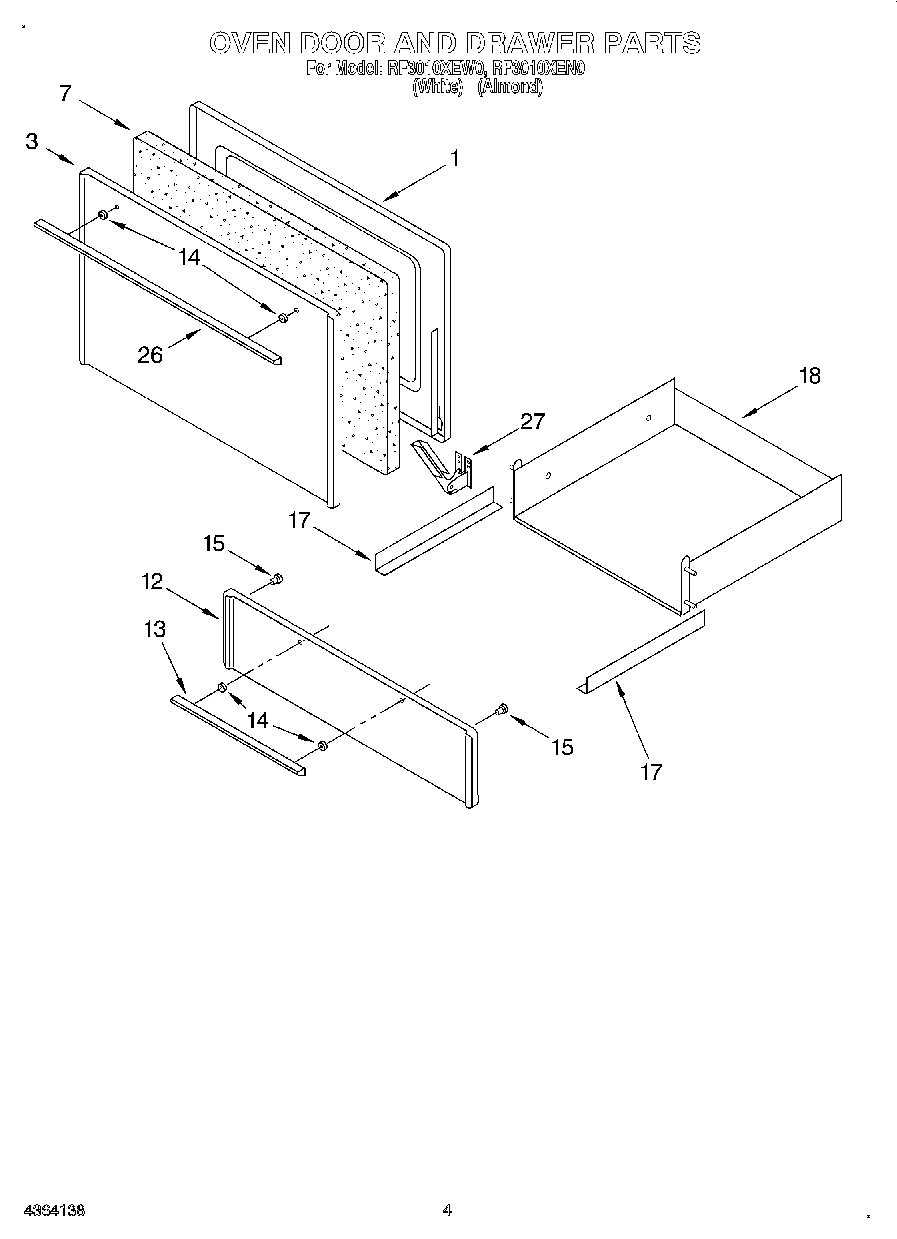

03 - OVEN DOOR AND DRAWER

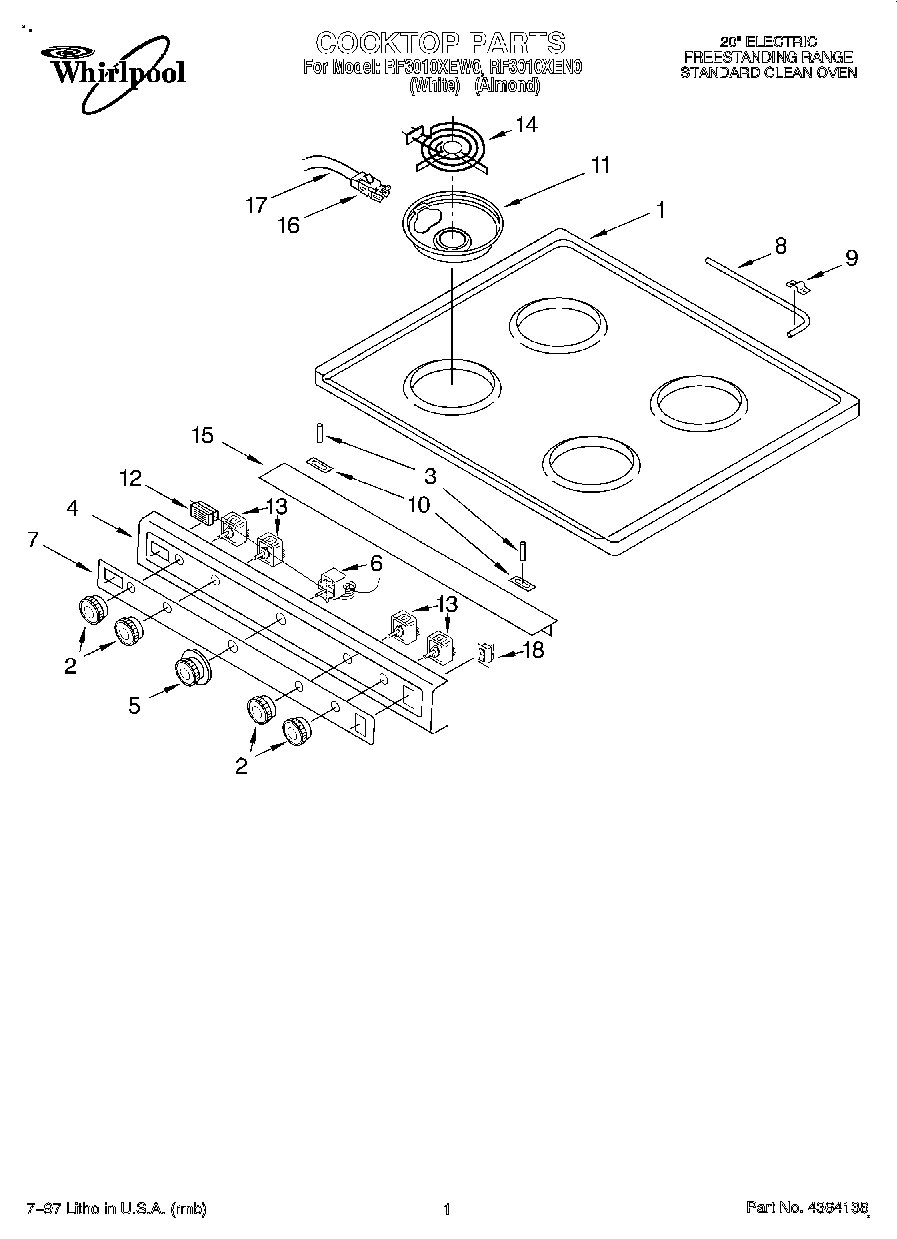

01 - COOKTOP
02 - OVEN
04 - BACKGUARD, LITERATURE
Common parts from model Whirlpool RF3010XEW0
Use & Care Guide WPL LIT4364040 Contact Us For Availability
1
Cooktop (White) WPL 4364352 Contact Us For Availability
1
Cooktop (Almond) WPL 4364353 Contact Us For Availability
1
CLIP, THERMOBULB WPL 4364130 Contact Us For Availability
1
Backguard (Includes No.5) (White) WPL 4364370 Contact Us For Availability
1
Backguard (Includes No.5) (Almond) WPL 4364377 Contact Us For Availability
2
Knob, Burner (4) WPL 4364346 Contact Us For Availability
3
Strikepin, Cooktop (Includes Nut) WPL 4364157 Contact Us For Availability
3
Hinge Pin (2) WPL 4364102 Contact Us For Availability
4
Panel, Manifold (Includes No.7) WPL 4364366 Contact Us For Availability
4
Support, Backguard WPL 4364369 Contact Us For Availability
5
Knob, Thermostat WPL 4364347 Contact Us For Availability
5
Bottom, Upper Box WPL 4364355 Contact Us For Availability
5
Overlay, Backguard WPL 4364106 Contact Us For Availability
6
Thermostat WPL 4364181 Contact Us For Availability
6
Screw, No.10 x 1/2 WPL 4364255 Contact Us For Availability
6
Bottom, Lower Box WPL 4364356 Contact Us For Availability
6
Backguard, Complete (Wing Nut, 10 x 24) WPL 4364046 Contact Us For Availability
6
Wire Bushing WPL 4364095 Contact Us For Availability
6
Backguard, Complete (White) WPL 4364119 Contact Us For Availability
6
Harness, Wire (14 Ga. Blk Jumpr) WPL 4364222 Contact Us For Availability
6
Harness, Wire (14 Ga Red Jumper) WPL 4364224 Contact Us For Availability
6
Wire, Black Bake WPL 4364225 Contact Us For Availability
6
Wire, Yellow Brlr WPL 4364226 Contact Us For Availability
6
Wire, Blue Switch WPL 4364227 Contact Us For Availability
6
Wire, Orange Ind. WPL 4364367 Contact Us For Availability
6
Wire, Red Ind. WPL 4364368 Contact Us For Availability
6
Backguard, Complete (Almond) WPL 4364378 Contact Us For Availability
7
Decal, Manifold WPL 4364111 Contact Us For Availability
7
Screw, No.8 x 1/2 WPL 4364246 Contact Us For Availability
7
Bottom, Main WPL 4364076 Contact Us For Availability
8
Rod, Support WPL 4364217 Contact Us For Availability
8
Cover, Rear WPL 4364357 Contact Us For Availability
9
Clip, Rod Support WPL 4364218 Contact Us For Availability
9
Panel, Side (White) WPL 4364081 Contact Us For Availability
9
Panel, Side (Almond) WPL 4364082 Contact Us For Availability
10
CATCH, STRIKEPIN WPL 4364158 Contact Us For Availability
10
Back, Main WPL 4364358 Contact Us For Availability
12
Panel, Drawer (White) WPL 4364361 Contact Us For Availability
12
Indicator, Surf/Ov WPL 4364345 Contact Us For Availability
12
Insulation, Wrap WPL 4364079 Contact Us For Availability
13
Switch, Infinite (Use W/6`` Element) WPL 4364179 Contact Us For Availability
14
Element, Surface (8`` (1)) WPL 4364175 Contact Us For Availability
14
Leg, Leveler WPL 4364080 Contact Us For Availability
15
Cover, Switch WPL 4364354 Contact Us For Availability
15
Vent, Oven Tube WPL 4364207 Contact Us For Availability
16
Screw, 6-32 x 1/4 WPL 4364043 Contact Us For Availability
16
Brkt, Receptacle WPL 4364177 Contact Us For Availability
17
Gasket, Oven Top WPL 4364083 Contact Us For Availability
17
Broiler Drawer (Right) WPL 4364364 Contact Us For Availability
17
Wire, Element (Red (Left Front)) WPL 4364188 Contact Us For Availability
17
Wire, Element (Yellow (Rt. Front)) WPL 4364189 Contact Us For Availability
17
Wire, Element (Blue (Left Rear)) WPL 4364190 Contact Us For Availability
17
Wire, Element (Black (Rt. Rear)) WPL 4364191 Contact Us For Availability
18
Gasket, Oven Side WPL 4364084 Contact Us For Availability
18
Body, Drawer WPL 4364365 Contact Us For Availability
18
Switch, Oven Light WPL 4364351 Contact Us For Availability
19
Frame, Front WPL 4364136 Contact Us For Availability
20
Rack, Oven WPL 4364085 Contact Us For Availability
21
Bottom, Oven WPL 4364359 Contact Us For Availability
22
Element, Broil WPL 4364348 Contact Us For Availability
23
Element, Bake WPL 4364349 Contact Us For Availability
23
Screw, 8-18 x 3/8 WPL 4364151 Contact Us For Availability
25
Screw, 8A x 1 WPL 4364256 Contact Us For Availability
25
Hex Nut, 10-32 WPL 4364257 Contact Us For Availability
26
Handle, Oven Door WPL 4364070 Contact Us For Availability
26
Insulation, Bottom WPL 4364078 Contact Us For Availability
27
Hinge, Oven Door WPL 4364072 Contact Us For Availability
27
Retainer, Bottom WPL 4364360 Contact Us For Availability
29
Screw, 10-12 x 1/2 WPL 4364153 Contact Us For Availability
29
Brace, Back WPL 4364133 Contact Us For Availability
31
Support, Rt. Rear WPL 4364090 Contact Us For Availability
32
Support, Lt. Rear WPL 4364089 Contact Us For Availability
33
Grill, Broiler WPL 4364065 Contact Us For Availability
34
Pan, Broiler WPL 4364216 Contact Us For Availability
36
Receptacle, Light WPL 4364091 Contact Us For Availability
37
Ring, Oven Light WPL 4364093 Contact Us For Availability
38
Guard, Oven Light WPL 4364350 Contact Us For Availability
× ![]()
