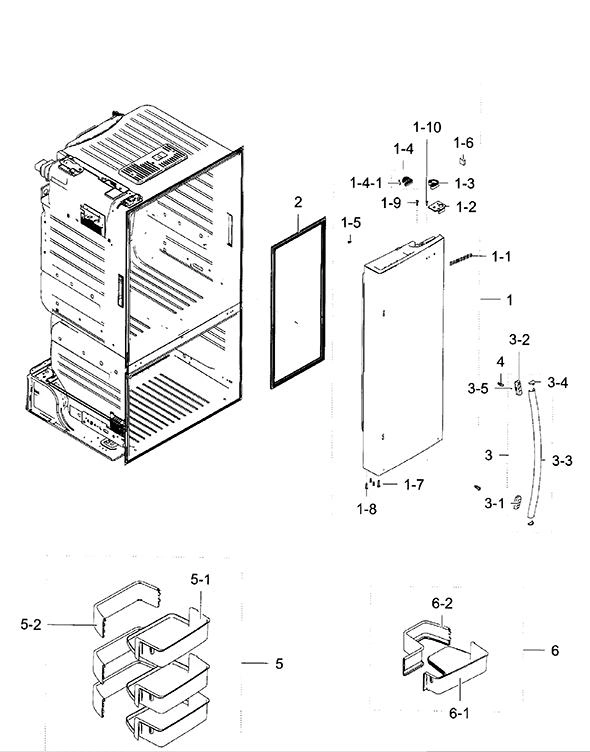

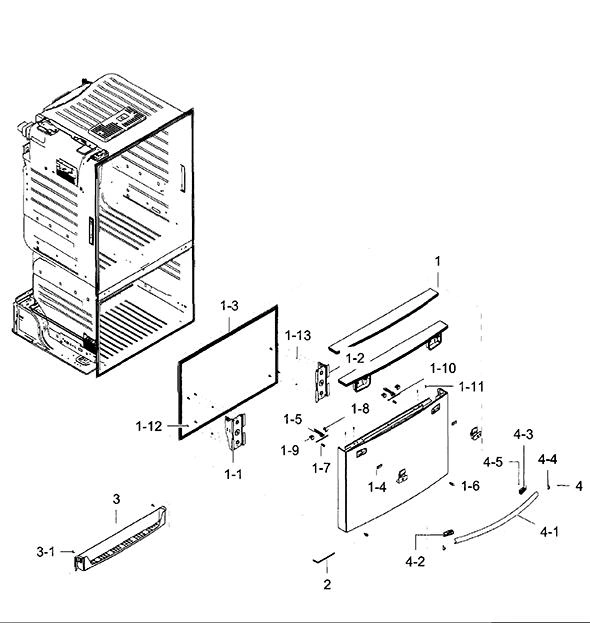

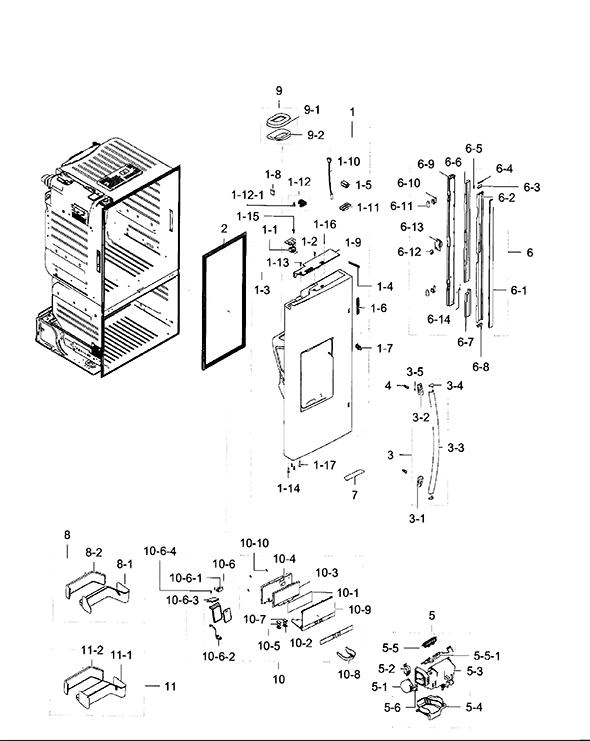

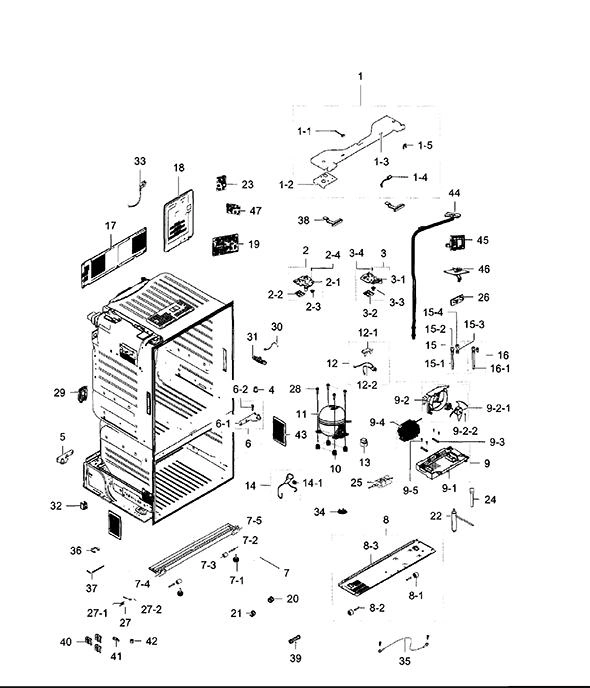

Model Samsung RF28HFEDBBC-AA-04 – Common Parts &amp; Diagrams

1

DA91-03809E Samsung Refrigerator Left Door Fo Backorder SMG DA91-03809E $248.16

1

DA96-00632C Samsung Refrigerator Evaporator A Backorder SMG DA96-00632C $226.71

1

DA97-12606B Samsung Refrigerator Lamp Case As In Stock SMG DA97-12606B $86.23

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $17.37

DA34-00043J Samsung Refrigerator Door Reed Sw Backorder SMG DA34-00043J $18.21

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $70.99

DA61-15273A Samsung Refrigerator Door Close S In Stock SMG DA61-15273A $7.36

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $21.70

DA41-00676G Samsung Refrigerator LED Lamp PBA In Stock SMG DA41-00676G $39.00

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $79.02

DA61-08196A Samsung Refrigerator Door Stopper Backorder SMG DA61-08196A $25.16

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $13.56

1-3

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $1.94

1-3

DA64-04477D Samsung Refrigerator Table Top Backorder SMG DA64-04477D $67.49

1-3

DA97-12522K Samsung Refrigerator Black Door G Backorder SMG DA97-12522K $99.28

1-4

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $7.36

1-4

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $2.71

1-4

DA96-00962A Samsung Refrigerator Reed Switch Backorder SMG DA96-00962A $14.73

1-5

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $8.14

1-6

DA47-00318M Samsung Refrigerator Metal Sheath Backorder SMG DA47-00318M $109.58

1-6

DA61-03734A Samsung Refrigerator Door Handle In Stock SMG DA61-03734A $2.65

1-6

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $42.91

1-7

DA34-00066B Samsung Refrigerator Interlock Do In Stock SMG DA34-00066B $18.28

1-7

DA61-04335B Samsung E Assembly Handle Spring Backorder SMG DA61-04335B $1.94

1-8

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.17

1-8

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.92

1-9

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $1.56

1-10

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $53.75

1-10

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $6.59

1-11

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $2.32

1-12

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $15.50

1-13

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $0.92

1-13

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.92

1-17

6001-001377 Samsung Refrigerator Machine Scre Backorder SMG 6001-001377 $0.92

2

DA63-07816A Samsung Refrigerator Lamp Cover O Backorder SMG DA63-07816A $25.49

2

DA97-08541A Samsung Refrigerator Evaporator C In Stock SMG DA97-08541A $276.28

2

DA97-12573A Samsung Refrigerator Upper Left H Backorder SMG DA97-12573A $56.56

2-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $46.37

2-1

Refrigerator Seal Cover SMG DA31-00124A Contact Us For Availability

2-2

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $109.58

2-2

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.17

2-3

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $4.26

2-5

DA61-20128C Samsung Refrigerator Fan Spring A Backorder SMG DA61-20128C $0.92

2-6

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.09

2-10

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $15.50

3

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $5.42

3

DA63-06894A Samsung Refrigerator Ice Maker Wi Backorder SMG DA63-06894A $10.47

3

DA97-12574A Samsung Refrigerator Upper Right Backorder SMG DA97-12574A $52.30

3

DA97-12963A Samsung Refrigerator Freezer Guar Backorder SMG DA97-12963A $61.40

3-1

DA61-08228A Samsung Refrigerator Handle Suppo Backorder SMG DA61-08228A $8.53

3-1

DA63-02750A Samsung Refrigerator Cover Slide Backorder SMG DA63-02750A $1.56

3-2

DA61-08246A Samsung Refrigerator Upper Handle Backorder SMG DA61-08246A $20.92

3-3

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $3.88

4

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.56

4

DA97-07638T Samsung Refrigerator Freezer Tray Backorder SMG DA97-07638T $158.78

4

DA97-12712B Samsung Refrigerator Bar Handle A Backorder SMG DA97-12712B $121.98

4-1

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $6.97

4-1

DA64-03945D Samsung Refrigerator Handle Bar Backorder SMG DA64-03945D $111.34

4-2

DA61-08229A Samsung Refrigerator Freezer Hand In Stock SMG DA61-08229A $8.91

4-3

DA61-08247A Samsung Refrigerator Freezer Door In Stock SMG DA61-08247A $22.09

4-5

Refrigerator Freezer Shelf Roller Wheel SMG 6009-001526 Contact Us For Availability

4-6

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $4.26

4-7

DA97-13386A Samsung Refrigerator Roller Assem Backorder SMG DA97-13386A $10.07

4-8

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.17

4-9

DA61-05186A Samsung Refrigerator Upper Tray G Backorder SMG DA61-05186A $13.94

5

DA81-06155A Samsung Refrigerator Left Middle Backorder SMG DA81-06155A $57.99

5

DA97-13805B Samsung Refrigerator Bin Assembly Backorder SMG DA97-13805B $124.26

5

DA97-13829C Samsung Refrigerator Ice Route Gu In Stock SMG DA97-13829C $126.49

5

DA97-14383A Samsung Refrigerator Lower Hanger Backorder SMG DA97-14383A $248.16

5-1

DA31-00079D Samsung Refrigerator Geared Dispe Backorder SMG DA31-00079D $74.19

5-2

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $8.91

5-2

DA66-00437B Samsung Refrigerator Gear Shaft Backorder SMG DA66-00437B $27.91

5-3

DA97-13661C Samsung Refrigerator Left Rail As In Stock SMG DA97-13661C $141.44

5-4

DA97-13662A Samsung Refrigerator Lower Slide Backorder SMG DA97-13662A $128.05

5-5

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $0.92

5-5

DA97-05368A Samsung Refrigerator Ice Route Co Backorder SMG DA97-05368A $38.39

5-31

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $3.33

5-32

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.17

5-34

Refrigerator Door Hi SMG DA66-00751A Contact Us For Availability

5-43

SMG DA66-00750A SMG DA66-00750A Contact Us For Availability

5-51

DA63-04647A Samsung Refrigerator Ice Route Co Backorder SMG DA63-04647A $14.73

6

DA97-12612A Samsung Refrigerator Mid Right Hi Backorder SMG DA97-12612A $70.45

6

DA97-12624B Samsung Refrigerator Flipper Asse In Stock SMG DA97-12624B $136.22

6

DA97-13804B Samsung Refrigerator Assembly Gua Backorder SMG DA97-13804B $78.14

6-2

6011-001442 Samsung Refrigerator Socket Bolt Backorder SMG 6011-001442 $1.17

6-10

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.65

6-11

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $3.88

6-12

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $3.88

6-13

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $5.82

6-14

DA61-01914A Samsung Refrigerator Ice Route Co Backorder SMG DA61-01914A $2.71

7

DA97-06276E Samsung Refrigerator Drawer Tray Backorder SMG DA97-06276E $123.67

7

DA97-14318A Samsung Refrigerator Shelf Assemb Backorder SMG DA97-14318A $131.72

7-1

DA61-00805F Samsung Refrigerator Black Front Backorder SMG DA61-00805F $5.42

7-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.09

7-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $6.59

8

DA97-15217D Samsung Refrigerator Ice Maker As Backorder SMG DA97-15217D $99.55

8-1

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $0.92

8-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.42

8-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.26

9

DA63-03414A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03414A $32.04

9

DA97-10634A Samsung Refrigerator Slide Shelf Backorder SMG DA97-10634A $114.28

9

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $48.82

9-1

DA63-06897A Samsung Refrigerator Drain Water Backorder SMG DA63-06897A $25.16

9-1

DA63-06945A Samsung Refrigerator Ice Chute Ca In Stock SMG DA63-06945A $54.04

9-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $9.30

9-2

DA97-15765A Samsung Refrigerator Motor Circui Backorder SMG DA97-15765A $97.23

9-4

Refrigerator Auger Motor Assembly SMG DA97-08464F Contact Us For Availability

9-21

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $18.98

10

Fitng-Lckr SMG DA97-08511B No Longer Available

10

DA97-13809F Samsung Refrigerator Assembly Dis In Stock SMG DA97-13809F $165.75

10-3

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $0.92

10-3

DA92-00596A Samsung Refrigerator Module Assem Backorder SMG DA92-00596A $193.90

10-4

DA63-06377A Samsung Refrigerator Rear PCB Cov Backorder SMG DA63-06377A $8.53

10-5

DA41-00217A Samsung Refrigerator Printed Circ In Stock SMG DA41-00217A $33.76

10-5

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $118.03

10-6

SMG DA97-12628H SMG DA97-12628H Contact Us For Availability

10-9

DA97-13808F Samsung Refrigerator Dispenser Co Backorder SMG DA97-13808F $131.28

11

DA63-03415A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03415A $39.97

11

DA97-14302A Samsung Refrigerator Guard Assemb Backorder SMG DA97-14302A $77.41

11

MKV190CL2B/ASH Samsung Refrigerator Compresso Backorder SMG MKV190CL2B/ASH $270.76

12

DA72-60040W Samsung Refrigerator Seal-Cutt Ru Backorder SMG DA72-60040W $1.17

12

DA97-08438D Samsung Refrigerator Vegetable Cr Backorder SMG DA97-08438D $148.77

12

DA97-10848N Samsung Refrigerator All Wire Com In Stock SMG DA97-10848N $54.68

12-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $22.05

12-2

DA39-00154M Samsung Refrigerator Compressor W Backorder SMG DA39-00154M $18.65

12-2

DA97-14447A Samsung Refrigerator Roller Assem Backorder SMG DA97-14447A $14.73

13

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $10.85

13

DA81-05999A Samsung Refrigerator Case Filter Backorder SMG DA81-05999A $224.65

13-1

DA97-08006D Samsung Refrigerator White Case F Backorder SMG DA97-08006D $91.31

13-3

DA63-05406B Samsung Refrigerator Cover Filter Backorder SMG DA63-05406B $15.88

13-4

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $46.37

13-6

DA61-07497A Samsung Refrigerator Case Filter Backorder SMG DA61-07497A $31.02

13-7

DA67-02505B Samsung Refrigerator Tank Filter Backorder SMG DA67-02505B $7.36

13-8

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $17.44

13-9

DA62-04027A Samsung Refrigerator 2-Way Water Backorder SMG DA62-04027A $138.16

14

DA97-08437D Samsung Refrigerator Vegetable Dr Backorder SMG DA97-08437D $109.58

14

DA97-08458G Samsung Refrigerator Pipe Connect Backorder SMG DA97-08458G $68.56

15

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $22.40

15

DA97-11291A Samsung Refrigerator Right Vegeta In Stock SMG DA97-11291A $31.02

15-3

DA97-04049D Samsung Refrigerator Drain Tube C In Stock SMG DA97-04049D $17.82

16

DA97-08417A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-08417A $174.44

16-1

DA62-01266E Samsung Refrigerator PVC Tube Backorder SMG DA62-01266E $3.09

16-1

DA64-02235A Samsung Refrigerator Pantry Shelf In Stock SMG DA64-02235A $35.15

16-2

DA67-02519A Samsung Refrigerator Pantry Shelf Backorder SMG DA67-02519A $106.80

17

DA97-11541B Samsung Refrigerator Left Pantry Backorder SMG DA97-11541B $43.30

17-2

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $11.62

18

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $38.94

18

DA97-11542D Samsung Refrigerator Right Pantry Backorder SMG DA97-11542D $92.74

18-1

DA63-06520A Samsung Refrigerator Right Pantry Backorder SMG DA63-06520A $54.30

18-6

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $0.92

19

DA94-02679B Samsung Refrigerator EEPROM Circu In Stock SMG DA94-02679B $72.40

19

SMG DA97-06327A SMG DA97-06327A Contact Us For Availability

20

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $5.03

20

DA97-06324C Samsung Refrigerator Motor Damper Backorder SMG DA97-06324C $99.28

20-2

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $140.64

20-3

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $18.21

21

DA96-00660G Samsung Refrigerator Evaporator A In Stock SMG DA96-00660G $210.21

21-1

DA61-06186B Samsung Refrigerator Drain Plate Backorder SMG DA61-06186B $36.87

21-2

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $4.65

21-5

DA47-00244U Samsung Refrigerator Defrost Heat Backorder SMG DA47-00244U $87.48

21-6

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $7.36

21-7

DA61-03683A Samsung Refrigerator Sensor Fixer In Stock SMG DA61-03683A $1.17

22

DA81-06007A Samsung Refrigerator Filter Dryer In Stock SMG DA81-06007A $76.07

23

DA92-00486A Samsung Refrigerator Module Assem In Stock SMG DA92-00486A $112.32

25

DA27-00043D Samsung Refrigerator Coil Filter Backorder SMG DA27-00043D $76.11

29

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $16.27

30

DA32-00033C Samsung Refrigerator Temperature In Stock SMG DA32-00033C $17.82

31

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $3.09

33

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $52.52

36

DA60-00143B Samsung Refrigerator Housing Reta In Stock SMG DA60-00143B $0.92

38

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $6.59

39

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $32.04

41

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $17.06

42

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.20

47

DA92-00483B Samsung Refrigerator Inverter PCB In Stock SMG DA92-00483B $162.58

1061

3405-001119 Samsung Refrigerator Micro Switch Backorder SMG 3405-001119 $5.03

1062

DA96-00106G Samsung Refrigerator Dispenser Wi Backorder SMG DA96-00106G $39.29

1121

DA66-00440A Samsung Refrigerator Auto Close R Backorder SMG DA66-00440A $1.17

1312

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $0.92
