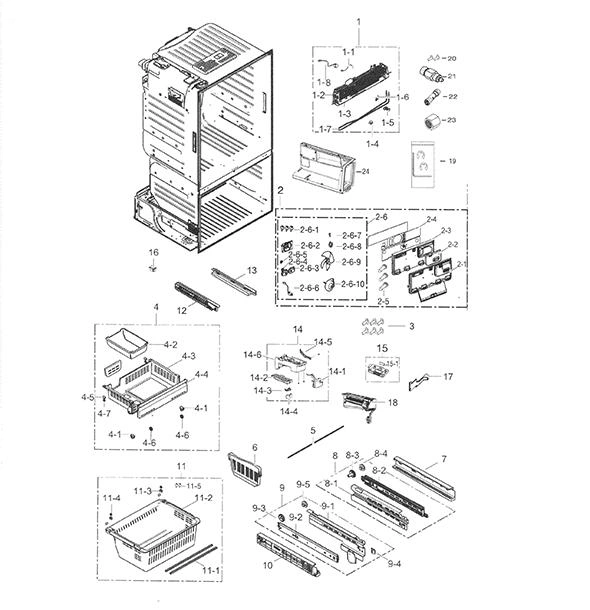

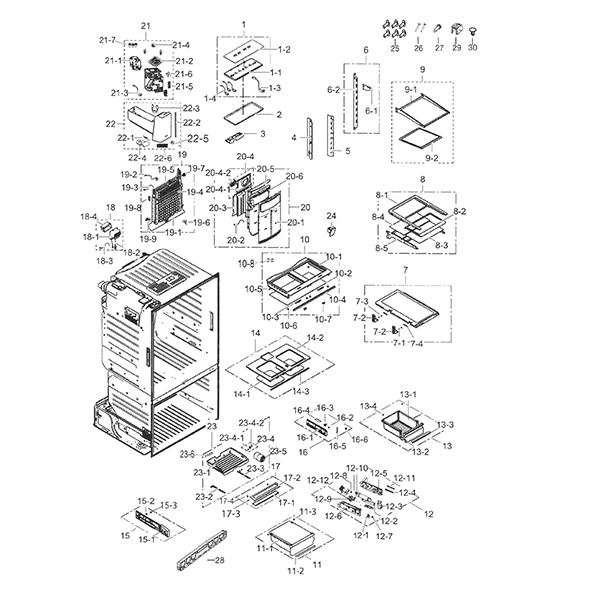

Model Samsung RF263TEAEBC-AA-04 – Common Parts & Diagrams
1
2
3
4
5
6
Common parts from model Samsung RF263TEAEBC-AA-04
1
Refrigerator Trim Tray SMG DA96-00460L Contact Us For Availability
1
Refrigerator Support SMG DA91-03910C Contact Us For Availability
1
Refrigerator Deli Drawer SMG DA97-12607A Contact Us For Availability
1
Refrigerator Folding Shelf Assembly SMG DA91-03909C Contact Us For Availability
1
Refrigerator Ice Bin SMG DA91-03908C Contact Us For Availability
1-1
Refrigerator Water Filter Cover, Left SMG DA32-10104N Contact Us For Availability
1-1
Refrigerator Spring SMG DA34-00043J Contact Us For Availability
1-2
Refrigerator Lamp Case SMG DA41-00676G Contact Us For Availability
1-2
Refrigerator Screw SMG DA61-08227A Contact Us For Availability
1-4
Refrigerator Water Filter Housing SMG DA61-03644A Contact Us For Availability
1-4
Refrigerator Shaft SMG DA96-00962A Contact Us For Availability
1-5
Refrigerator Water Filter Housing SMG DA61-05689A Contact Us For Availability
1-6
Refrigerator Water Filter SMG DA61-06182A Contact Us For Availability
1-7
Refrigerator Water Filter Housing Cover SMG DA47-00424M Contact Us For Availability
1-8
Refrigerator Led Light SMG DA47-00243K Contact Us For Availability
2
Refrigerator Water Filter Cover, Right SMG DA97-12617A Contact Us For Availability
2
Refrigerator Freezer Drawer Roller Wheel SMG DA61-03769A Contact Us For Availability
2
Stopper SMG DA63-06541E Contact Us For Availability
2
Refrigerator Freezer Door Handle Reinforcemen SMG DA97-12573A Contact Us For Availability
2
Refrigerator Screw SMG DA63-07816A Contact Us For Availability
2-1
Refrigerator Flexzone Door Handle Shaft SMG DA61-08309A Contact Us For Availability
2-2
Refrigerator Freezer Door Handle Assembly SMG DA66-00950A Contact Us For Availability
2-6
Refrigerator Tube Fitting SMG DA96-00959D Contact Us For Availability
2-61
Refrigerator Door Handle SMG 6002-000213 Contact Us For Availability
2-62
Refrigerator Crisper Drawer SMG DA61-04850B Contact Us For Availability
2-64
Handle Support SMG DA63-01808A Contact Us For Availability
2-66
Refrigerator Pantry Shelf Glass SMG DA96-00042D Contact Us For Availability
2-68
Refrigerator Cover Assembly SMG DA61-20128C Contact Us For Availability
2-69
Refrigerator Dispenser Ice Chute Cap Gasket SMG DA96-00504A Contact Us For Availability
3
Refrigerator Nameplate SMG DA61-03734A Contact Us For Availability
3
Refrigerator Door Handle Assembly SMG DA97-12574A Contact Us For Availability
3
Refrigerator Cap SMG DA61-04795A Contact Us For Availability
3-2
Refrigerator Door Handle Assembly SMG DA66-00951A Contact Us For Availability
4
Refrigerator Water Filter SMG DA63-06410A Contact Us For Availability
4
Refrigerator Freezer Drawer Slide Shaft SMG DA63-06542B Contact Us For Availability
4
Refrigerator Door Hinge Grommet SMG DA64-03945D Contact Us For Availability
4
Refrigerator Cover SMG DA97-12641D Contact Us For Availability
4-1
Refrigerator Pantry Drawer Guide, Right SMG DA61-04813A Contact Us For Availability
4-2
Refrigerator Support SMG DA61-05358A Contact Us For Availability
4-6
Refrigerator Freezer Shelf Roller Wheel SMG DA66-00554A Contact Us For Availability
4-7
Refrigerator Fixer Sensor SMG DA61-04804A Contact Us For Availability
5
Refrigerator Inlay Control SMG DA66-00437A Contact Us For Availability
6
Refrigerator Freezer Drawer Slide Rail Cover SMG DA97-12683B Contact Us For Availability
6
Refrigerator Door Reed Switch Magnet SMG DA82-01243A Contact Us For Availability
6
Nut-Hexago SMG DA61-04796A Contact Us For Availability
6
Refrigerator Water Filter SMG DA61-04841A Contact Us For Availability
6-2
Refrigerator Cabinet Cap SMG DA61-08274A Contact Us For Availability
6-10
Refrigerator Freezer Drawer Slide Rail, Righ SMG DA61-08305A Contact Us For Availability
6-11
Refrigerator Freezer Drawer Slide Rail SMG DA67-02146A Contact Us For Availability
6-12
Refrigerator Gear Rail SMG DA67-02154A Contact Us For Availability
6-13
Refrigerator Freezer Drawer Slide Rail, Left SMG DA63-04645A Contact Us For Availability
7
Refrigerator Crisper Drawer Cover Assembly SMG DA97-12650A Contact Us For Availability
7
Refrigerator Hinge Cap SMG DA97-12728A Contact Us For Availability
7
Refrigerator Pantry Drawer Door SMG DA63-04605A Contact Us For Availability
7-1
Refrigerator Freezer Basket SMG DA61-08228A Contact Us For Availability
7-1
Refrigerator Tapping Screw SMG DA61-04721D Contact Us For Availability
7-2
Refrigerator Door Gasket SMG DA61-01920A Contact Us For Availability
7-2
Drawer Reinforcement SMG DA61-08246A Contact Us For Availability
7-2
Refrigerator Evaporator SMG DA61-06014B Contact Us For Availability
7-3
Refrigerator Door Handle Assembly SMG DA61-04702A Contact Us For Availability
7-3
Refrigerator Evaporator Cover SMG DA61-04335B Contact Us For Availability
7-4
Refrigerator Drawer Shelf Roller Wheel SMG DA67-02788A Contact Us For Availability
7-6
Fixer Heater SMG DA61-05899A Contact Us For Availability
7-7
Refrigerator Fixer Sensor SMG DA61-05930A Contact Us For Availability
7-8
Refrigerator Defrost Heater SMG DA61-06658A Contact Us For Availability
7-9
Refrigerator Defrost Bi-Metal Thermostat SMG DA66-00579B Contact Us For Availability
8
Refrigerator Screw SMG DA97-12652A Contact Us For Availability
8
Refrigerator Door Reed Switch SMG DA97-12730A Contact Us For Availability
8-1
SMG DA61-04703A SMG DA61-04703A Contact Us For Availability
8-2
SMG DA66-00649B SMG DA66-00649B Contact Us For Availability
8-2
Refrigerator Drawer Shelf Roller Whe SMG DA61-09088A Contact Us For Availability
8-3
SMG DA66-00767A SMG DA66-00767A Contact Us For Availability
9
Freezer Rail SMG DA97-12594A Contact Us For Availability
9
SMG DA97-10594B SMG DA97-10594B Contact Us For Availability
9
Refrigerator Grommet Motor SMG DA99-03914B Contact Us For Availability
9-1
Freezer Rail SMG DA63-06945A Contact Us For Availability
9-2
Refrigerator Ice Maker Assembly SMG DA67-03312A Contact Us For Availability
9-2
Refrigerator Grommet Motor SMG DA97-12712B Contact Us For Availability
9-2
SMG DA61-09087A SMG DA61-09087A Contact Us For Availability
9-3
SMG DA66-00771A SMG DA66-00771A Contact Us For Availability
9-23
SMG DA96-00042A SMG DA96-00042A Contact Us For Availability
9-24
SMG DA31-00146B SMG DA31-00146B Contact Us For Availability
9-25
SMG 6002-000217 SMG 6002-000217 Contact Us For Availability
9-41
SMG 6002-000239 SMG 6002-000239 Contact Us For Availability
10
Refrigerator Door Hinge, Left SMG DA97-12727A Contact Us For Availability
10
Refrigerator Ice Maker Module SMG DA97-12675L Contact Us For Availability
10
SMG DA63-04604A SMG DA63-04604A Contact Us For Availability
10-1
Refrigerator Ice Maker Cube Tray SMG DA92-00368A Contact Us For Availability
10-3
R SMG DA66-00718A Contact Us For Availability
10-5
SMG DA61-04809A SMG DA61-04809A Contact Us For Availability
10-6
Refrigerator Lock SMG 3405-001119 Contact Us For Availability
10-8
Refrigerator Magnet SMG DA61-06033B Contact Us For Availability
11
Refrigerator Door Switch SMG DA97-08680G Contact Us For Availability
11
SMG MKV190CL2J/SM1 SMG MKV190CL2J/SM1 Contact Us For Availability
11
SMG DA97-12725A SMG DA97-12725A Contact Us For Availability
11
SMG DA97-07024C SMG DA97-07024C Contact Us For Availability
11
Refrigerator Drawer Shelf Roller Wheel SMG DA61-03212A Contact Us For Availability
11-1
Refrigerator Ice Maker Wire SMG DA31-00079D Contact Us For Availability
11-2
SMG 3405-001117 SMG 3405-001117 Contact Us For Availability
11-6
SMG 6002-001122 SMG 6002-001122 Contact Us For Availability
12
SMG DA97-12662A SMG DA97-12662A Contact Us For Availability
12
SMG DA97-12653A SMG DA97-12653A Contact Us For Availability
12
SMG DA61-07328A SMG DA61-07328A Contact Us For Availability
12
Refrigerator Humidity Knob SMG DA64-04021A Contact Us For Availability
12-1
SMG DA97-08006D SMG DA97-08006D Contact Us For Availability
12-4
SMG DA41-00519S SMG DA41-00519S Contact Us For Availability
12-6
SMG DA61-07497A SMG DA61-07497A Contact Us For Availability
12-7
SMG DA60-00258C SMG DA60-00258C Contact Us For Availability
12-8
SMG DA62-03103A SMG DA62-03103A Contact Us For Availability
13
SMG DA97-12726A SMG DA97-12726A Contact Us For Availability
13
SMG DA61-07329A SMG DA61-07329A Contact Us For Availability
14
SMG DA97-07603B SMG DA97-07603B Contact Us For Availability
14
SMG DA97-07015A SMG DA97-07015A Contact Us For Availability
14
SMG DA61-03211A SMG DA61-03211A Contact Us For Availability
14-1
SMG DA59-00294B SMG DA59-00294B Contact Us For Availability
14-1
SMG DA64-02235A SMG DA64-02235A Contact Us For Availability
14-2
SMG DA63-02284B SMG DA63-02284B Contact Us For Availability
14-3
SMG DA63-02183A SMG DA63-02183A Contact Us For Availability
14-4
SMG DA61-01800A SMG DA61-01800A Contact Us For Availability
15
SMG DA61-02383C SMG DA61-02383C Contact Us For Availability
15
SMG DA97-14471A SMG DA97-14471A Contact Us For Availability
15
SMG DA97-07016A SMG DA97-07016A Contact Us For Availability
15
SMG DA97-15162B SMG DA97-15162B Contact Us For Availability
15-2
SMG DA97-05932A SMG DA97-05932A Contact Us For Availability
16
SMG DA34-10120E SMG DA34-10120E Contact Us For Availability
16
SMG DA97-08442A SMG DA97-08442A Contact Us For Availability
16-4
SMG DA92-00151A SMG DA92-00151A Contact Us For Availability
17
SMG DA92-00215R SMG DA92-00215R Contact Us For Availability
17
SMG DA97-07020C SMG DA97-07020C Contact Us For Availability
17
SMG DA63-06894A SMG DA63-06894A Contact Us For Availability
17
SMG DA63-40294A SMG DA63-40294A Contact Us For Availability
18
SMG DA97-15217D SMG DA97-15217D Contact Us For Availability
18
SMG DA92-00384A SMG DA92-00384A Contact Us For Availability
18
SMG DA97-07189E SMG DA97-07189E Contact Us For Availability
18
SMG DA97-12651A SMG DA97-12651A Contact Us For Availability
18-2
SMG DA31-00071G SMG DA31-00071G Contact Us For Availability
18-3
SMG DA32-00006R SMG DA32-00006R Contact Us For Availability
19
SMG DA96-00660E SMG DA96-00660E Contact Us For Availability
19
SMG DA61-04932A SMG DA61-04932A Contact Us For Availability
19
SMG DA99-01958T SMG DA99-01958T Contact Us For Availability
19-5
SMG DA47-00244W SMG DA47-00244W Contact Us For Availability
19-8
SMG DA61-05160A SMG DA61-05160A Contact Us For Availability
19-9
SMG DA61-05835B SMG DA61-05835B Contact Us For Availability
20
SMG DA97-12609C SMG DA97-12609C Contact Us For Availability
20-2
SMG DA32-10105X SMG DA32-10105X Contact Us For Availability
20-4
SMG DA97-12815B SMG DA97-12815B Contact Us For Availability
21
SMG DA97-12540G SMG DA97-12540G Contact Us For Availability
21
SMG DA97-04049D SMG DA97-04049D Contact Us For Availability
21
SMG DA34-00066B SMG DA34-00066B Contact Us For Availability
21
SMG DA62-00305A SMG DA62-00305A Contact Us For Availability
21-1
SMG DA31-00105M SMG DA31-00105M Contact Us For Availability
21-1
SMG DA62-01266D SMG DA62-01266D Contact Us For Availability
22
SMG DA62-03914A SMG DA62-03914A Contact Us For Availability
22
SMG DA61-05274A SMG DA61-05274A Contact Us For Availability
23
SMG DA74-00070B SMG DA74-00070B Contact Us For Availability
23
SMG DA27-00019H SMG DA27-00019H Contact Us For Availability
23
SMG DA63-04825A SMG DA63-04825A Contact Us For Availability
24
SMG DA32-00034B SMG DA32-00034B Contact Us For Availability
24-1
SMG DA97-13405A SMG DA97-13405A Contact Us For Availability
25
SMG DA81-06007A SMG DA81-06007A Contact Us For Availability
26
SMG DA32-00029U SMG DA32-00029U Contact Us For Availability
27
SMG DA63-05470B SMG DA63-05470B Contact Us For Availability
29
SMG DA97-08413B SMG DA97-08413B Contact Us For Availability
31
SMG DA97-00209Z SMG DA97-00209Z Contact Us For Availability
31-1
SMG DA47-00192E SMG DA47-00192E Contact Us For Availability
31-3
SMG DA73-00134D SMG DA73-00134D Contact Us For Availability
34
SMG DA60-10123E SMG DA60-10123E Contact Us For Availability
37
SMG 6003-001727 SMG 6003-001727 Contact Us For Availability
45
SMG DA61-04712C SMG DA61-04712C Contact Us For Availability
1010
SMG DA96-00106G SMG DA96-00106G Contact Us For Availability
1151
SMG DA61-01914A SMG DA61-01914A Contact Us For Availability
2610
SMG DA31-00146H SMG DA31-00146H Contact Us For Availability
× ![]()
