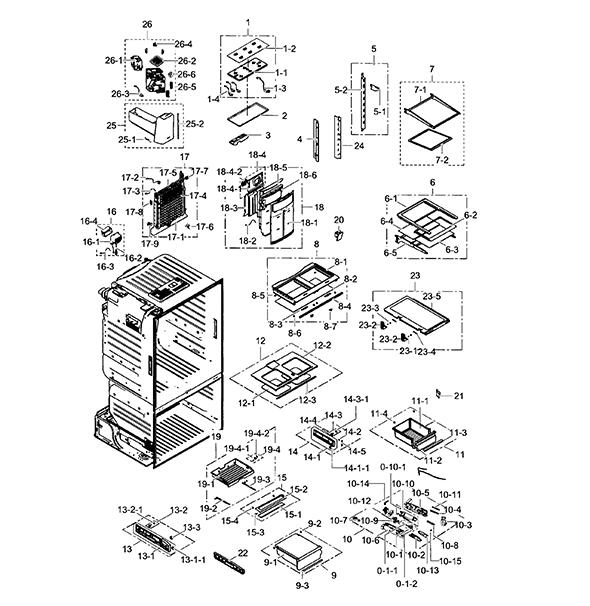

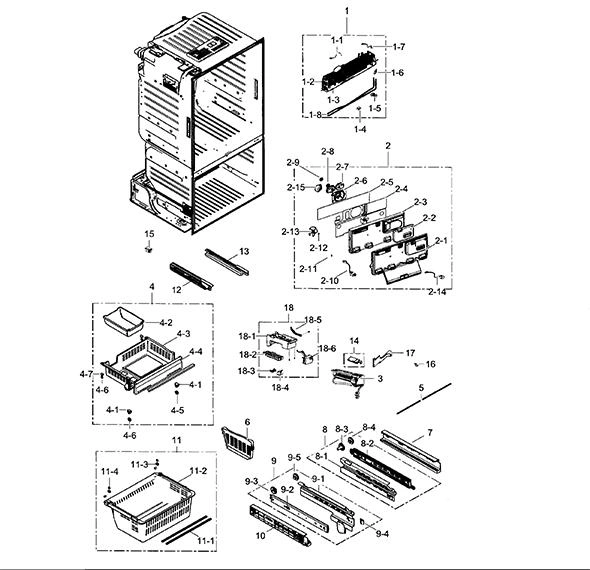

Model Samsung RF263TEAEBC-AA-01 – Common Parts &amp; Diagrams

1

DA91-03908C Samsung Refrigerator Door Assembl Backorder SMG DA91-03908C $319.97

1

DA91-03909C Samsung Refrigerator Door Foam As Backorder SMG DA91-03909C $248.16

1

DA91-03910C Samsung Refrigerator Freezer Door Backorder SMG DA91-03910C $248.16

1

DA96-00460L Samsung Refrigerator Evaporator A In Stock SMG DA96-00460L $204.71

1

DA97-12607A Samsung Refrigerator Lamp Assembl Backorder SMG DA97-12607A $189.73

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $18.59

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $19.49

DA61-04335B Samsung E Assembly Handle Spring Backorder SMG DA61-04335B $2.07

DA61-15273A Samsung Refrigerator Door Close S In Stock SMG DA61-15273A $7.87

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $23.22

DA41-00676G Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00676G $41.72

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $23.22

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $1.67

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $14.51

1-3

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $23.97

1-3

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $2.07

1-3

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.24

1-4

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $7.87

1-4

DA61-06014B Samsung Refrigerator Handle Assem Backorder SMG DA61-06014B $4.98

1-4

DA96-00962A Samsung Refrigerator Reed Switch Backorder SMG DA96-00962A $15.76

1-5

DA61-05689A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05689A $1.99

1-5

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $2.91

1-5

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $42.91

1-6

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $7.87

1-6

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.92

1-6

DA66-00579B Samsung Refrigerator Handle Cap S Backorder SMG DA66-00579B $5.80

1-7

DA47-00243K Samsung Refrigerator Bi-metal Def In Stock SMG DA47-00243K $40.19

1-8

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $56.89

1-8

DA47-00424M Samsung Refrigerator Metal Sheath In Stock SMG DA47-00424M $76.24

1-9

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $2.49

1-10

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $16.58

1-11

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $8.71

1-12

DA34-00066B Samsung Refrigerator Interlock Do In Stock SMG DA34-00066B $18.28

2

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $75.95

2

DA63-07816A Samsung Refrigerator Lamp Cover O Backorder SMG DA63-07816A $27.29

2

DA97-05253A Samsung Refrigerator Door Assembl Backorder SMG DA97-05253A $174.44

2

DA97-12573A Samsung Refrigerator Upper Left H In Stock SMG DA97-12573A $60.53

2

Refrigerator Motor Cover SMG DA97-12617A Contact Us For Availability

2-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $49.61

2-2

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.24

2-3

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $4.56

2-8

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.31

2-10

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $16.58

2-12

DA61-20128C Samsung Refrigerator Fan Spring A Backorder SMG DA61-20128C $0.92

2-13

Refrigerator Evaporator SMG DA31-00124A Contact Us For Availability

2-15

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $117.25

3

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $84.55

3

DA97-12574A Samsung Refrigerator Upper Right In Stock SMG DA97-12574A $55.37

3

DA97-15217D Samsung Refrigerator Ice Maker As In Stock SMG DA97-15217D $99.55

3-3

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $4.15

4

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.67

4

DA97-05557X Samsung Refrigerator Freezer Door Backorder SMG DA97-05557X $174.44

4

DA97-12641D Samsung Refrigerator Assembly Tra Backorder SMG DA97-12641D $217.94

4

DA97-12650A Samsung Refrigerator Door Shelf B In Stock SMG DA97-12650A $118.51

4

DA97-12652A Samsung Refrigerator Door Bin Gua Backorder SMG DA97-12652A $125.85

4-1

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $7.47

4-2

DA61-05300A Samsung Refrigerator Ice Cube Cas Backorder SMG DA61-05300A $56.54

4-5

DA66-00554A Samsung Refrigerator Upper Freeze In Stock SMG DA66-00554A $4.56

4-7

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.24

5

DA66-00437A Samsung Refrigerator Gear Shaft A Backorder SMG DA66-00437A $32.81

5

DA97-12651A Samsung Refrigerator Dispenser Sh In Stock SMG DA97-12651A $117.87

5

DA97-12653A Samsung Refrigerator Door Bin Ass Backorder SMG DA97-12653A $131.03

5

Refrigerator Temperature Sensor SMG DA99-03914B Contact Us For Availability

5-1

DA97-12712B Samsung Refrigerator Bar Handle A Backorder SMG DA97-12712B $130.53

5-2

DA61-08274A Samsung Refrigerator Mid Angle Sh Backorder SMG DA61-08274A $69.36

5-4

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $4.15

5-11

DA61-08229A Samsung Refrigerator Freezer Hand In Stock SMG DA61-08229A $9.53

5-12

DA61-08247A Samsung Refrigerator Freezer Door In Stock SMG DA61-08247A $23.63

5-13

DA64-03945D Samsung Refrigerator Handle Bar Backorder SMG DA64-03945D $119.14

5-21

DA61-08228A Samsung Refrigerator Handle Suppo Backorder SMG DA61-08228A $9.11

5-22

DA61-08246A Samsung Refrigerator Upper Handle Backorder SMG DA61-08246A $22.38

6

DA82-01243A Samsung Refrigerator Right Middle Backorder SMG DA82-01243A $57.52

6

DA97-12683B Samsung Refrigerator Flipper Asse In Stock SMG DA97-12683B $154.39

6

Refrigerator Door Hinge, Left SMG DA97-12730A Contact Us For Availability

6-2

6011-001442 Samsung Refrigerator Socket Bolt Backorder SMG 6011-001442 $1.24

6-10

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.98

6-11

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $4.15

6-12

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.15

6-13

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $6.22

7

DA63-03415A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03415A $42.77

7-1

DA61-00805F Samsung Refrigerator Black Front Backorder SMG DA61-00805F $5.80

7-1

DA92-00368A Samsung Refrigerator Assembly Pri Backorder SMG DA92-00368A $163.53

7-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.31

7-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.05

7-7

3405-001119 Samsung Refrigerator Micro Switch Backorder SMG 3405-001119 $5.03

7-9

DA61-06033B Samsung Refrigerator Ice Dispense Backorder SMG DA61-06033B $3.73

7-11

DA96-00106G Samsung Refrigerator Dispenser Wi Backorder SMG DA96-00106G $42.04

7-12

DA41-00217A Samsung Refrigerator Printed Circ In Stock SMG DA41-00217A $36.14

8

DA97-08680G Samsung Refrigerator Ice Case Ass In Stock SMG DA97-08680G $146.94

8

DA97-08806B Samsung Refrigerator Low Slide Ra Backorder SMG DA97-08806B $157.28

8

DA97-12727A Samsung Refrigerator Crisper Draw Backorder SMG DA97-12727A $188.11

8-1

DA31-00079D Samsung Refrigerator Geared Dispe In Stock SMG DA31-00079D $79.39

8-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.80

8-2

DA61-09088A Samsung Refrigerator Slide Rail L Backorder SMG DA61-09088A $156.02

8-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.56

8-3

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $4.98

8-3

SMG DA66-00750A SMG DA66-00750A Contact Us For Availability

8-4

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.24

8-5

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $0.92

8-5

DA97-05368A Samsung Refrigerator Ice Route Co Backorder SMG DA97-05368A $41.07

9

DA97-08805B Samsung Refrigerator Low Slide Ra Backorder SMG DA97-08805B $156.14

9

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $52.25

9

DA97-12725A Samsung Refrigerator Vegetable Cr Backorder SMG DA97-12725A $188.85

9-1

DA63-06945A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-06945A $57.20

9-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $9.96

9-2

DA97-03145N Samsung Refrigerator Circuit Moto Backorder SMG DA97-03145N $144.68

9-2

SMG DA61-09087A SMG DA61-09087A Contact Us For Availability

9-3

SMG DA66-00751A SMG DA66-00751A Contact Us For Availability

9-4

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $3.33

9-23

DA96-00042A Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042A $11.60

9-24

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $89.38

10

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $14.09

10

DA63-03414A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03414A $34.29

10

DA97-12662A Samsung Refrigerator Filter Tank Backorder SMG DA97-12662A $233.31

10-1

DA97-08006D Samsung Refrigerator White Case F In Stock SMG DA97-08006D $97.70

10-1

DA97-11283F Samsung Refrigerator Water Tank A Backorder SMG DA97-11283F $89.56

10-4

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $49.61

10-6

DA61-07497A Samsung Refrigerator Case Filter Backorder SMG DA61-07497A $33.18

10-7

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $18.65

11

DA97-12726A Samsung Refrigerator Right Vegeta Backorder SMG DA97-12726A $151.69

11-4

DA97-13386A Samsung Refrigerator Roller Assem Backorder SMG DA97-13386A $10.07

12

DA61-07328A Samsung Refrigerator Freezer Rail Backorder SMG DA61-07328A $162.92

12

DA97-05370A Samsung Assembly Refrigerator Cri Backorder SMG DA97-05370A $174.44

12

MKV190CL2J/SM1 Samsung Refrigerator Compresso Backorder SMG MKV190CL2J/SM1 $351.31

12-1

DA64-02235A Samsung Refrigerator Pantry Shelf Backorder SMG DA64-02235A $37.61

13

DA61-07329A Samsung Refrigerator Right Hand U Backorder SMG DA61-07329A $172.38

13

DA97-05371B Samsung Refrigerator Left Pantry Backorder SMG DA97-05371B $50.27

13

DA97-10848M Samsung Refrigerator Compressor A Backorder SMG DA97-10848M $58.41

13-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $26.31

13-2

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $12.44

14

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $11.60

14-4

DA92-00151A Samsung Refrigerator Printed Circ Backorder SMG DA92-00151A $38.72

15

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $28.02

15-1

DA63-03764A Samsung Refrigerator Pantry Drawe Backorder SMG DA63-03764A $30.23

16

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $0.92

16

DA97-04049D Samsung Refrigerator Drain Tube C In Stock SMG DA97-04049D $19.07

16

DA97-06324C Samsung Refrigerator Motor Damper In Stock SMG DA97-06324C $106.23

16-2

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $150.48

16-3

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $19.49

17

DA63-06894A Samsung Refrigerator Ice Maker Wi Backorder SMG DA63-06894A $11.20

17

DA96-00660E Samsung Refrigerator Evaporator A In Stock SMG DA96-00660E $145.62

17-1

DA61-06186B Samsung Refrigerator Drain Plate In Stock SMG DA61-06186B $39.45

17-5

DA47-00244W Samsung Refrigerator Defrost Heat In Stock SMG DA47-00244W $80.26

17-7

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.24

17-8

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $0.99

17-9

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $4.98

18

DA97-07603B Samsung Refrigerator Ice Maker In Stock SMG DA97-07603B $167.62

18

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $38.94

18

DA97-12609C Samsung Refrigerator Evaporator C In Stock SMG DA97-12609C $238.36

18-2

DA32-00011C Samsung Refrigerator Temperature In Stock SMG DA32-00011C $9.97

18-2

DA63-02284B Samsung Refrigerator Ice Cube Tra In Stock SMG DA63-02284B $28.77

18-3

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $2.07

18-4

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $27.65

18-4

DA97-12815B Samsung Refrigerator Evaporator F In Stock SMG DA97-12815B $108.31

18-5

DA61-05435A Samsung Refrigerator Ice Maker Sh In Stock SMG DA61-05435A $4.98

18-6

DA59-00294B Samsung Refrigerator Ice Maker As In Stock SMG DA59-00294B $129.08

19

DA92-00215R Samsung Refrigerator Inverter Boa In Stock SMG DA92-00215R $171.81

19-4

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $11.20

20

DA92-00384A Samsung Refrigerator Main Printed Backorder SMG DA92-00384A $72.40

21

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $9.53

21

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $6.59

22

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $64.47

23

DA71-20207A Samsung Refrigerator Water Valve Backorder SMG DA71-20207A $0.92

23

SMG DA97-12728A SMG DA97-12728A Contact Us For Availability

24-1

DA62-01266D Samsung Refrigerator PVC Tube Backorder SMG DA62-01266D $3.73

26

DA27-00019H Samsung Refrigerator EMI Coil Fil Backorder SMG DA27-00019H $116.45

27

DA81-06007A Samsung Refrigerator Filter Dryer In Stock SMG DA81-06007A $81.40

29

DA32-00029U Samsung Refrigerator Temperature In Stock SMG DA32-00029U $26.55

30

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $3.31

31

DA99-01958T Samsung Refrigerator Packing Asse Backorder SMG DA99-01958T $24.71

31-1

DA60-00143B Samsung Refrigerator Housing Reta In Stock SMG DA60-00143B $0.92

32

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $17.40

33

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.62

35

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $5.38

37

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $42.16

41

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $18.25

42

DA97-00209Z Samsung Refrigerator Water Pipe F In Stock SMG DA97-00209Z $79.68

42-1

DA47-00192E Samsung Refrigerator Ice Maker Fi In Stock SMG DA47-00192E $57.20

42-3

DA73-00134D Samsung Refrigerator Water Pipe A Backorder SMG DA73-00134D $45.68

1101

DA66-00440A Samsung Refrigerator Auto Close R In Stock SMG DA66-00440A $1.24
