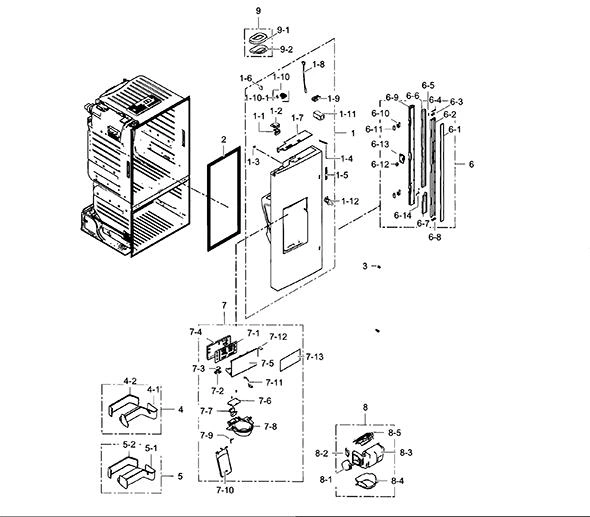

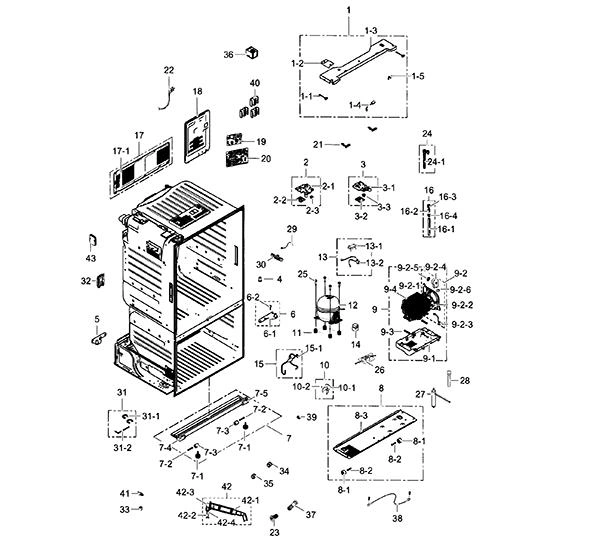

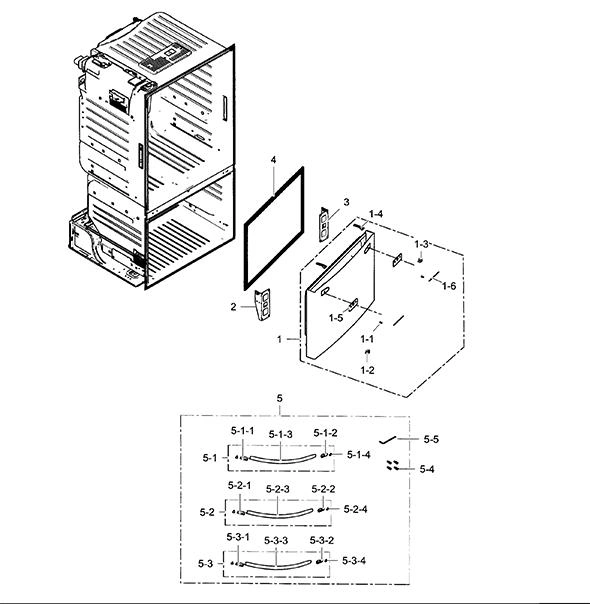

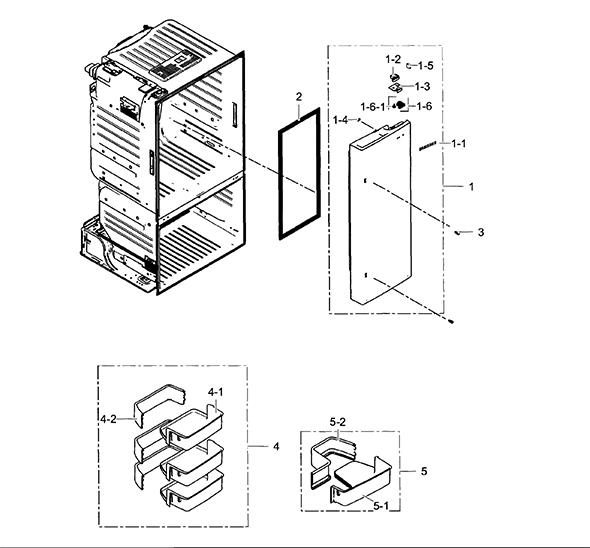

Model Samsung RF263TEAEBC-AA-01 – Common Parts &amp; Diagrams

1

DA91-03908C Samsung Refrigerator Door Assembl Backorder SMG DA91-03908C $319.97

1

DA91-03909C Samsung Refrigerator Door Foam As Backorder SMG DA91-03909C $248.16

1

DA91-03910C Samsung Refrigerator Freezer Door Backorder SMG DA91-03910C $248.16

1

DA96-00460L Samsung Refrigerator Evaporator A In Stock SMG DA96-00460L $191.31

1

DA97-12607A Samsung Refrigerator Lamp Assembl Backorder SMG DA97-12607A $177.32

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $17.37

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $18.21

DA61-04335B Samsung E Assembly Handle Spring Backorder SMG DA61-04335B $1.94

DA61-15273A Samsung Refrigerator Door Close S In Stock SMG DA61-15273A $7.36

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $21.70

DA41-00676G Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00676G $39.00

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $21.70

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $1.56

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $13.56

1-3

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $22.40

1-3

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $1.94

1-3

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.17

1-4

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $7.36

1-4

DA61-06014B Samsung Refrigerator Handle Assem Backorder SMG DA61-06014B $4.65

1-4

DA96-00962A Samsung Refrigerator Reed Switch Backorder SMG DA96-00962A $14.73

1-5

DA61-05689A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05689A $1.99

1-5

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $2.71

1-5

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $42.91

1-6

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $7.36

1-6

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.92

1-6

DA66-00579B Samsung Refrigerator Handle Cap S Backorder SMG DA66-00579B $5.42

1-7

DA47-00243K Samsung Refrigerator Bi-metal Def In Stock SMG DA47-00243K $37.57

1-8

DA32-00034B Samsung Refrigerator Humidity Sen In Stock SMG DA32-00034B $53.75

1-8

DA47-00424M Samsung Refrigerator Metal Sheath In Stock SMG DA47-00424M $71.24

1-9

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $2.32

1-10

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $15.50

1-11

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $8.14

1-12

DA34-00066B Samsung Refrigerator Interlock Do In Stock SMG DA34-00066B $18.28

2

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $70.99

2

DA63-07816A Samsung Refrigerator Lamp Cover O Backorder SMG DA63-07816A $25.49

2

DA97-05253A Samsung Refrigerator Door Assembl Backorder SMG DA97-05253A $174.44

2

DA97-12573A Samsung Refrigerator Upper Left H Backorder SMG DA97-12573A $56.56

2

Refrigerator Motor Cover SMG DA97-12617A Contact Us For Availability

2-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $46.37

2-2

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.17

2-3

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $4.26

2-8

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.09

2-10

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $15.50

2-12

DA61-20128C Samsung Refrigerator Fan Spring A Backorder SMG DA61-20128C $0.92

2-13

Refrigerator Evaporator SMG DA31-00124A Contact Us For Availability

2-15

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $109.58

3

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $79.02

3

DA97-12574A Samsung Refrigerator Upper Right Backorder SMG DA97-12574A $52.30

3

DA97-15217D Samsung Refrigerator Ice Maker As In Stock SMG DA97-15217D $99.55

3-3

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $3.88

4

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.56

4

DA97-05557X Samsung Refrigerator Freezer Door Backorder SMG DA97-05557X $174.44

4

DA97-12641D Samsung Refrigerator Assembly Tra Backorder SMG DA97-12641D $203.68

4

DA97-12650A Samsung Refrigerator Door Shelf B In Stock SMG DA97-12650A $110.75

4

DA97-12652A Samsung Refrigerator Door Bin Gua Backorder SMG DA97-12652A $117.62

4-1

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $6.97

4-2

DA61-05300A Samsung Refrigerator Ice Cube Cas Backorder SMG DA61-05300A $53.44

4-5

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $4.26

4-7

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.17

5

DA66-00437A Samsung Refrigerator Gear Shaft A Backorder SMG DA66-00437A $30.67

5

DA97-12651A Samsung Refrigerator Dispenser Sh Backorder SMG DA97-12651A $110.16

5

DA97-12653A Samsung Refrigerator Door Bin Ass Backorder SMG DA97-12653A $122.46

5

Refrigerator Temperature Sensor SMG DA99-03914B Contact Us For Availability

5-1

DA97-12712B Samsung Refrigerator Bar Handle A Backorder SMG DA97-12712B $121.98

5-2

DA61-08274A Samsung Refrigerator Mid Angle Sh Backorder SMG DA61-08274A $64.82

5-4

DA61-03734A Samsung Refrigerator Door Handle Backorder SMG DA61-03734A $2.65

5-11

DA61-08229A Samsung Refrigerator Freezer Hand In Stock SMG DA61-08229A $8.91

5-12

DA61-08247A Samsung Refrigerator Freezer Door In Stock SMG DA61-08247A $22.09

5-13

DA64-03945D Samsung Refrigerator Handle Bar Backorder SMG DA64-03945D $111.34

5-21

DA61-08228A Samsung Refrigerator Handle Suppo Backorder SMG DA61-08228A $8.53

5-22

DA61-08246A Samsung Refrigerator Upper Handle Backorder SMG DA61-08246A $20.92

6

DA82-01243A Samsung Refrigerator Right Middle Backorder SMG DA82-01243A $54.35

6

DA97-12683B Samsung Refrigerator Flipper Asse In Stock SMG DA97-12683B $138.93

6

Refrigerator Door Hinge, Left SMG DA97-12730A Contact Us For Availability

6-2

6011-001442 Samsung Refrigerator Socket Bolt Backorder SMG 6011-001442 $1.17

6-10

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.65

6-11

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $3.88

6-12

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $3.88

6-13

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $5.82

7

DA63-03415A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03415A $39.97

7-1

DA61-00805F Samsung Refrigerator Black Front Backorder SMG DA61-00805F $5.42

7-1

DA92-00368A Samsung Refrigerator Assembly Pri Backorder SMG DA92-00368A $163.53

7-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.09

7-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $6.59

7-7

3405-001119 Samsung Refrigerator Micro Switch Backorder SMG 3405-001119 $5.03

7-9

DA61-06033B Samsung Refrigerator Ice Dispense Backorder SMG DA61-06033B $3.50

7-11

DA96-00106G Samsung Refrigerator Dispenser Wi Backorder SMG DA96-00106G $39.29

7-12

DA41-00217A Samsung Refrigerator Printed Circ In Stock SMG DA41-00217A $33.76

8

DA97-08680G Samsung Refrigerator Ice Case Ass In Stock SMG DA97-08680G $168.49

8

DA97-08806B Samsung Refrigerator Low Slide Ra Backorder SMG DA97-08806B $146.99

8

DA97-12727A Samsung Refrigerator Crisper Draw Backorder SMG DA97-12727A $177.80

8-1

DA31-00079D Samsung Refrigerator Geared Dispe Backorder SMG DA31-00079D $74.19

8-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.42

8-2

DA61-09088A Samsung Refrigerator Slide Rail L Backorder SMG DA61-09088A $145.80

8-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.26

8-3

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $4.65

8-3

SMG DA66-00750A SMG DA66-00750A Contact Us For Availability

8-4

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.17

8-5

DA61-03166A Samsung Refrigerator Vegetable Co Backorder SMG DA61-03166A $0.92

8-5

DA97-05368A Samsung Refrigerator Ice Route Co Backorder SMG DA97-05368A $38.39

9

DA97-08805B Samsung Refrigerator Low Slide Ra Backorder SMG DA97-08805B $145.92

9

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $48.82

9

DA97-12725A Samsung Refrigerator Vegetable Cr Backorder SMG DA97-12725A $176.49

9-1

DA63-06945A Samsung Refrigerator Ice Chute Ca In Stock SMG DA63-06945A $54.04

9-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $9.30

9-2

DA97-03145N Samsung Refrigerator Circuit Moto Backorder SMG DA97-03145N $135.21

9-2

SMG DA61-09087A SMG DA61-09087A Contact Us For Availability

9-3

SMG DA66-00751A SMG DA66-00751A Contact Us For Availability

9-4

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $3.33

9-23

DA96-00042A Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042A $10.85

9-24

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $109.58

10

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $13.18

10

DA63-03414A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03414A $32.04

10

DA97-12662A Samsung Refrigerator Filter Tank Backorder SMG DA97-12662A $233.31

10-1

DA97-08006D Samsung Refrigerator White Case F Backorder SMG DA97-08006D $91.31

10-1

DA97-11283F Samsung Refrigerator Water Tank A Backorder SMG DA97-11283F $83.69

10-4

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $46.37

10-6

DA61-07497A Samsung Refrigerator Case Filter Backorder SMG DA61-07497A $31.02

10-7

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $17.44

11

DA97-12726A Samsung Refrigerator Right Vegeta Backorder SMG DA97-12726A $141.78

11-4

DA97-13386A Samsung Refrigerator Roller Assem Backorder SMG DA97-13386A $10.07

12

DA61-07328A Samsung Refrigerator Freezer Rail In Stock SMG DA61-07328A $152.26

12

DA97-05370A Samsung Assembly Refrigerator Cri Backorder SMG DA97-05370A $174.44

12

MKV190CL2J/SM1 Samsung Refrigerator Compresso In Stock SMG MKV190CL2J/SM1 $328.33

12-1

DA64-02235A Samsung Refrigerator Pantry Shelf In Stock SMG DA64-02235A $35.15

13

DA61-07329A Samsung Refrigerator Right Hand U In Stock SMG DA61-07329A $161.11

13

DA97-05371B Samsung Refrigerator Left Pantry Backorder SMG DA97-05371B $46.98

13

DA97-10848M Samsung Refrigerator Compressor A Backorder SMG DA97-10848M $54.57

13-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $22.05

13-2

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $11.62

14

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $10.85

14-4

DA92-00151A Samsung Refrigerator Printed Circ Backorder SMG DA92-00151A $36.18

15

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $26.19

15-1

DA63-03764A Samsung Refrigerator Pantry Drawe Backorder SMG DA63-03764A $28.26

16

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $0.92

16

DA97-04049D Samsung Refrigerator Drain Tube C In Stock SMG DA97-04049D $17.82

16

DA97-06324C Samsung Refrigerator Motor Damper Backorder SMG DA97-06324C $99.28

16-2

DA31-00071G Samsung Refrigerator DC Motor Dam In Stock SMG DA31-00071G $140.64

16-3

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $18.21

17

DA63-06894A Samsung Refrigerator Ice Maker Wi Backorder SMG DA63-06894A $10.47

17

DA96-00660E Samsung Refrigerator Evaporator A In Stock SMG DA96-00660E $136.08

17-1

DA61-06186B Samsung Refrigerator Drain Plate Backorder SMG DA61-06186B $36.87

17-5

DA47-00244W Samsung Refrigerator Defrost Heat In Stock SMG DA47-00244W $75.01

17-7

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.17

17-8

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $0.99

17-9

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $4.65

18

DA97-07603B Samsung Refrigerator Ice Maker In Stock SMG DA97-07603B $156.66

18

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $38.94

18

DA97-12609C Samsung Refrigerator Evaporator C Backorder SMG DA97-12609C $222.75

18-2

DA32-00011C Samsung Refrigerator Temperature In Stock SMG DA32-00011C $9.97

18-2

DA63-02284B Samsung Refrigerator Ice Cube Tra In Stock SMG DA63-02284B $26.88

18-3

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $1.94

18-4

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $25.84

18-4

DA97-12815B Samsung Refrigerator Evaporator F In Stock SMG DA97-12815B $102.93

18-5

DA61-05435A Samsung Refrigerator Ice Maker Sh In Stock SMG DA61-05435A $4.65

18-6

DA59-00294B Samsung Refrigerator Ice Maker As In Stock SMG DA59-00294B $165.34

19

DA92-00215R Samsung Refrigerator Inverter Boa In Stock SMG DA92-00215R $171.81

19-4

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $10.47

20

DA92-00384A Samsung Refrigerator Main Printed Backorder SMG DA92-00384A $72.40

21

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $8.91

21

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $6.59

22

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $52.52

23

DA71-20207A Samsung Refrigerator Water Valve Backorder SMG DA71-20207A $0.92

23

SMG DA97-12728A SMG DA97-12728A Contact Us For Availability

24-1

DA62-01266D Samsung Refrigerator PVC Tube Backorder SMG DA62-01266D $3.50

26

DA27-00019H Samsung Refrigerator EMI Coil Fil Backorder SMG DA27-00019H $108.83

27

DA81-06007A Samsung Refrigerator Filter Dryer In Stock SMG DA81-06007A $76.07

29

DA32-00029U Samsung Refrigerator Temperature Backorder SMG DA32-00029U $24.81

30

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $3.09

31

DA99-01958T Samsung Refrigerator Packing Asse Backorder SMG DA99-01958T $23.09

31-1

DA60-00143B Samsung Refrigerator Housing Reta In Stock SMG DA60-00143B $0.92

32

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $16.27

33

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.20

35

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $5.03

37

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $32.04

41

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $17.06

42

DA97-00209Z Samsung Refrigerator Water Pipe F In Stock SMG DA97-00209Z $74.46

42-1

DA47-00192E Samsung Refrigerator Ice Maker Fi In Stock SMG DA47-00192E $54.04

42-3

DA73-00134D Samsung Refrigerator Water Pipe A Backorder SMG DA73-00134D $42.69

1101

DA66-00440A Samsung Refrigerator Auto Close R Backorder SMG DA66-00440A $1.17
