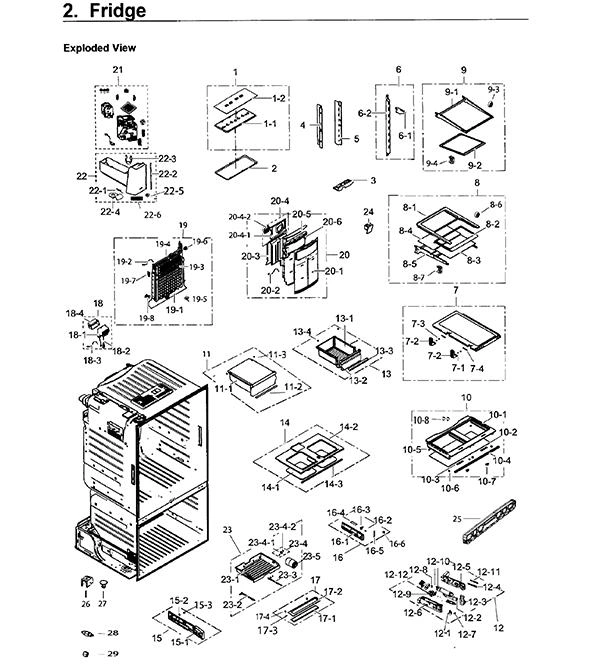

Model Samsung RF263BEAEWW-AA-04 – Common Parts &amp; Diagrams

1

DA91-03909B Samsung Refrigerator Door Assembl Backorder SMG DA91-03909B $259.76

1

DA96-00460L Samsung Refrigerator Evaporator A Backorder SMG DA96-00460L $204.71

1

DA97-12607A Samsung Refrigerator Lamp Assembl Backorder SMG DA97-12607A $189.73

1

Refrigerator Door Handle Assembly SMG DA91-03910B Contact Us For Availability

1-1

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $18.59

1-1

DA34-00043K Samsung Refrigerator Reed Switch In Stock SMG DA34-00043K $53.56

1-2

DA41-00676K Samsung Refrigerator LED Lamp Ass Backorder SMG DA41-00676K $109.26

1-2

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $14.51

1-4

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $7.87

1-5

DA61-05689A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05689A $1.99

1-6

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $7.87

1-7

DA47-00424M Samsung Refrigerator Metal Sheath In Stock SMG DA47-00424M $76.24

1-8

DA47-00243K Samsung Refrigerator Bi-metal Def In Stock SMG DA47-00243K $40.19

2

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $2.07

2

DA63-06541D Samsung Refrigerator Freezer Door In Stock SMG DA63-06541D $99.46

2

DA63-07816A Samsung Refrigerator Lamp Cover O Backorder SMG DA63-07816A $27.29

2

DA97-12573A Samsung Refrigerator Upper Left H In Stock SMG DA97-12573A $60.53

2

Refrigerator Crisper Drawer Cover Trim SMG DA97-12617A Contact Us For Availability

2-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $49.61

2-2

DA66-00950A Samsung Refrigerator Left Auto Cl In Stock SMG DA66-00950A $4.56

2-3

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.24

2-5

DA96-00959D Samsung Refrigerator 12V DC Fan M Backorder SMG DA96-00959D $157.42

2-51

DA61-04850B Samsung Refrigerator Motor Case A Backorder SMG DA61-04850B $10.78

2-53

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.31

2-55

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $16.58

2-57

DA61-20128C Samsung Refrigerator Fan Spring A Backorder SMG DA61-20128C $0.92

2-58

Refrigerator Water Filter Housing SMG DA96-00504A Contact Us For Availability

2-59

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $117.25

3

DA61-04795A Samsung Refrigerator French Door Backorder SMG DA61-04795A $9.11

3

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $4.15

3

DA63-06542A Samsung Refrigerator Door Gasket In Stock SMG DA63-06542A $97.50

3

DA97-12574A Samsung Refrigerator Upper Right In Stock SMG DA97-12574A $55.37

3

DA97-12641D Samsung Refrigerator Assembly Tra Backorder SMG DA97-12641D $217.94

3-1

DA61-04813A Samsung Refrigerator Upper Roller Backorder SMG DA61-04813A $2.98

3-2

DA61-04804A Samsung Refrigerator Roller Wheel Backorder SMG DA61-04804A $18.94

3-2

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $4.15

3-6

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $4.56

4

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.67

4

DA66-00437A Samsung Refrigerator Gear Shaft A Backorder SMG DA66-00437A $32.81

5

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $56.89

5

DA61-04796A Samsung Refrigerator Drawer Guide Backorder SMG DA61-04796A $40.92

5

DA61-04841A Samsung Refrigerator Front Hanger Backorder SMG DA61-04841A $61.74

5

DA97-12650A Samsung Refrigerator Door Shelf B In Stock SMG DA97-12650A $118.51

6

DA63-04605A Samsung Refrigerator Lower Right Backorder SMG DA63-04605A $71.08

6

DA82-01243A Samsung Refrigerator Right Middle Backorder SMG DA82-01243A $57.52

6

DA97-12683C Samsung Refrigerator Flipper Asse In Stock SMG DA97-12683C $154.61

6-2

DA61-06014C Samsung Refrigerator Slider Handl Backorder SMG DA61-06014C $2.07

6-2

DA61-08274A Samsung Refrigerator Mid Angle Sh Backorder SMG DA61-08274A $69.36

6-3

DA61-04335B Samsung E Assembly Handle Spring Backorder SMG DA61-04335B $2.07

6-5

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.24

6-6

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $1.67

6-7

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $2.91

6-8

DA66-00579B Samsung Refrigerator Handle Cap S Backorder SMG DA66-00579B $5.80

6-10

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.98

6-11

DA67-02146A Samsung Refrigerator French Cap C Backorder SMG DA67-02146A $7.47

6-12

DA67-02154A Samsung Refrigerator French Door Backorder SMG DA67-02154A $4.56

6-13

DA63-04645A Samsung Refrigerator Door Heater Backorder SMG DA63-04645A $12.44

7

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $2.49

7

DA97-10595E Samsung Refrigerator Low Right Sl Backorder SMG DA97-10595E $165.90

7

Refrigerator Auger Motor Assembly SMG DA97-12728A Contact Us For Availability

7-1

DA61-04721D Samsung Front Foot Refrigerator Backorder SMG DA61-04721D $111.11

7-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.31

7-2

DA61-09088A Samsung Refrigerator Slide Rail L Backorder SMG DA61-09088A $156.02

7-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.05

7-3

DA66-00767A Samsung Refrigerator Rail Gear Ri Backorder SMG DA66-00767A $5.80

8

DA97-12652A Samsung Refrigerator Door Bin Gua Backorder SMG DA97-12652A $125.85

8

Refrigerator Pantry Drawer Slide Cover Assemb SMG DA97-10594B Contact Us For Availability

8

Refrigerator Grommet Fan SMG DA97-12730A Contact Us For Availability

8-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.80

8-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.56

8-2

Refrigerator Pantry Shelf Glass SMG DA61-09087A Contact Us For Availability

8-3

DA66-00771A Samsung Refrigerator Rail Gear Le Backorder SMG DA66-00771A $4.98

9

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $23.97

9

DA63-04604A Samsung Refrigerator Left Lower R Backorder SMG DA63-04604A $112.64

9

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $52.25

9

Handle Sli SMG DA97-05043L Contact Us For Availability

9-1

DA63-08248A Samsung Gasket Refrigerator Backorder SMG DA63-08248A $31.35

9-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $9.96

9-2

DA97-15765C Samsung Refrigerator Circuit Moto In Stock SMG DA97-15765C $152.80

DA64-04021A Samsung Refrigerator Nameplate Ma Backorder SMG DA64-04021A $32.04

DA97-04049Q Samsung Refrigerator Drain Cap As Backorder SMG DA97-04049Q $5.98

DA97-07024C Samsung Refrigerator Drawer Box T Backorder SMG DA97-07024C $174.44

DA97-12675M Samsung Refrigerator Black Dispen Backorder SMG DA97-12675M $198.07

DA97-12727A Samsung Refrigerator Crisper Draw Backorder SMG DA97-12727A $188.11

10-1

DA62-01266D Samsung Refrigerator PVC Tube Backorder SMG DA62-01266D $3.73

10-1

Refrigerator Water Filter SMG DA92-00368B Contact Us For Availability

10-2

DA63-00951C Samsung Refrigerator Drain Hose G Backorder SMG DA63-00951C $7.87

10-3

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $4.98

10-5

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $0.92

10-5

DA61-04809A Samsung Refrigerator Vegetable Fi In Stock SMG DA61-04809A $0.92

10-6

3405-001119 Samsung Refrigerator Micro Switch Backorder SMG 3405-001119 $5.03

10-8

DA61-06033B Samsung Refrigerator Ice Dispense Backorder SMG DA61-06033B $3.73

DA61-07328A Samsung Refrigerator Freezer Rail Backorder SMG DA61-07328A $162.92

DA97-08680G Samsung Refrigerator Ice Case Ass In Stock SMG DA97-08680G $146.94

DA97-12725A Samsung Refrigerator Vegetable Cr Backorder SMG DA97-12725A $188.85

MKV190CL2J/SM1 Samsung Refrigerator Compresso Backorder SMG MKV190CL2J/SM1 $351.31

11-1

DA31-00079D Samsung Refrigerator Geared Dispe In Stock SMG DA31-00079D $79.39

11-2

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $9.53

11-6

DA61-01914A Samsung Refrigerator Ice Route Co Backorder SMG DA61-01914A $2.91

11-7

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.92

11-8

DA63-04647A Samsung Refrigerator Ice Route Co Backorder SMG DA63-04647A $15.76

DA61-07329A Samsung Refrigerator Right Hand U Backorder SMG DA61-07329A $172.38

DA97-12653A Samsung Refrigerator Door Bin Ass Backorder SMG DA97-12653A $131.03

DA97-12661A Samsung Refrigerator Water Filter Backorder SMG DA97-12661A $214.46

DA99-03914A Samsung Refrigerator Handle Cushi Backorder SMG DA99-03914A $203.58

12-2

DA97-12712A Samsung Refrigerator Door Handle Backorder SMG DA97-12712A $125.51

12-3

DA97-12714A Samsung Refrigerator Handle Bar A Backorder SMG DA97-12714A $114.31

12-4

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $49.61

12-4

DA97-12715A Samsung Refrigerator Handle Bar A Backorder SMG DA97-12715A $117.25

12-6

DA61-07497A Samsung Refrigerator Case Filter Backorder SMG DA61-07497A $33.18

12-7

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $18.65

12-9

DA62-04027A Samsung Refrigerator 2-Way Water In Stock SMG DA62-04027A $147.83

13

DA97-12726A Samsung Refrigerator Right Vegeta Backorder SMG DA97-12726A $151.69

13

DA97-13405A Samsung Refrigerator Ice Room Cas Backorder SMG DA97-13405A $219.72

14

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $23.22

14

DA97-07015A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-07015A $182.44

14

DA97-14471A Samsung Refrigerator Case Lock As Backorder SMG DA97-14471A $42.38

14-1

DA64-02235A Samsung Refrigerator Pantry Shelf Backorder SMG DA64-02235A $37.61

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $28.02

DA61-02383C Samsung Refrigerator Door Support Backorder SMG DA61-02383C $4.56

DA97-07016A Samsung Refrigerator Pantry Rail Backorder SMG DA97-07016A $109.13

DA97-15162B Samsung Refrigerator Compressor C Backorder SMG DA97-15162B $51.28

15-2

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $12.44

16

DA63-06894A Samsung Refrigerator Ice Maker Wi Backorder SMG DA63-06894A $11.20

16

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $38.94

16

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $16.58

16-4

DA92-00151A Samsung Refrigerator Printed Circ Backorder SMG DA92-00151A $38.72

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.92

DA92-00215R Samsung Refrigerator Inverter Boa In Stock SMG DA92-00215R $178.57

DA97-07020C Samsung Refrigerator Pantry Drawe Backorder SMG DA97-07020C $147.38

DA97-15217D Samsung Refrigerator Ice Maker As In Stock SMG DA97-15217D $99.55

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $34.29

DA92-00384L Samsung Refrigerator Main PCB Ass Backorder SMG DA92-00384L $72.40

DA97-07189E Samsung Refrigerator Motor Damper In Stock SMG DA97-07189E $148.45

DA97-12651A Samsung Refrigerator Dispenser Sh In Stock SMG DA97-12651A $117.87

18-2

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $150.48

18-3

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $19.49

19

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $6.59

19

DA96-00660J Samsung Refrigerator Assembly Eva Backorder SMG DA96-00660J $224.19

19-1

DA61-06186B Samsung Refrigerator Drain Plate In Stock SMG DA61-06186B $39.45

19-4

DA47-00244U Samsung Refrigerator Defrost Heat In Stock SMG DA47-00244U $72.41

19-7

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $0.99

19-8

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $4.98

20

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $42.98

20

DA97-12609C Samsung Refrigerator Evaporator C In Stock SMG DA97-12609C $238.36

20-2

DA32-10105X Samsung Refrigerator Temperature In Stock SMG DA32-10105X $18.65

21

DA34-00066A Samsung Refrigerator Door Interlo Backorder SMG DA34-00066A $27.65

21

DA97-04049D Samsung Refrigerator Drain Tube C In Stock SMG DA97-04049D $19.07

21

DA97-12540G Samsung Refrigerator Ice Maker Au In Stock SMG DA97-12540G $186.54

22

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $8.71

22

DA97-14474C Samsung Refrigerator Ice Bucket T Backorder SMG DA97-14474C $173.14

22-1

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $4.98

22-2

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $2.49

23

DA27-00019H Samsung Refrigerator EMI Coil Fil Backorder SMG DA27-00019H $116.45

25

DA81-06007A Samsung Refrigerator Filter Dryer In Stock SMG DA81-06007A $81.40

26

DA32-00029U Samsung Refrigerator Temperature In Stock SMG DA32-00029U $26.55

27

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $3.31

29

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $17.40

31

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $0.92

33

DA60-10123E Samsung Refrigerator Hex Bolt M6 In Stock SMG DA60-10123E $1.24

34

6003-001727 Samsung Refrigerator Television T Backorder SMG 6003-001727 $1.67

38

DA61-04712C Samsung Refrigerator Fixer Hose Backorder SMG DA61-04712C $21.14

1010

DA96-00106G Samsung Refrigerator Dispenser Wi Backorder SMG DA96-00106G $42.04
