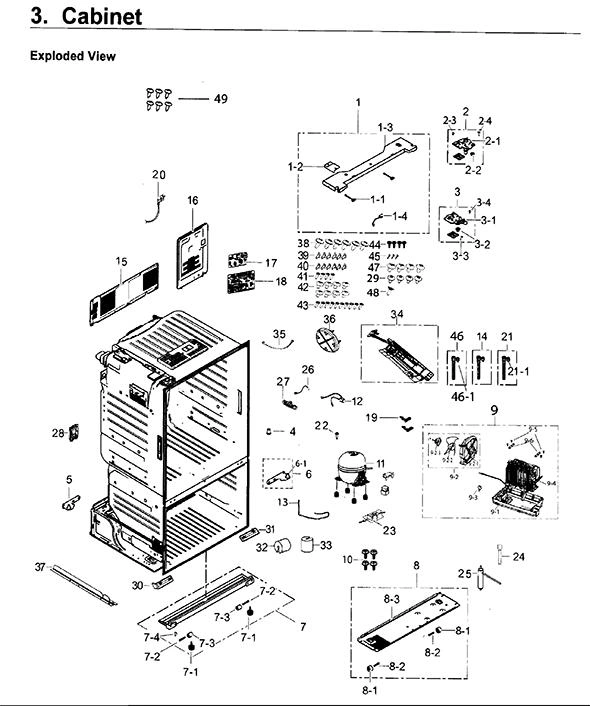

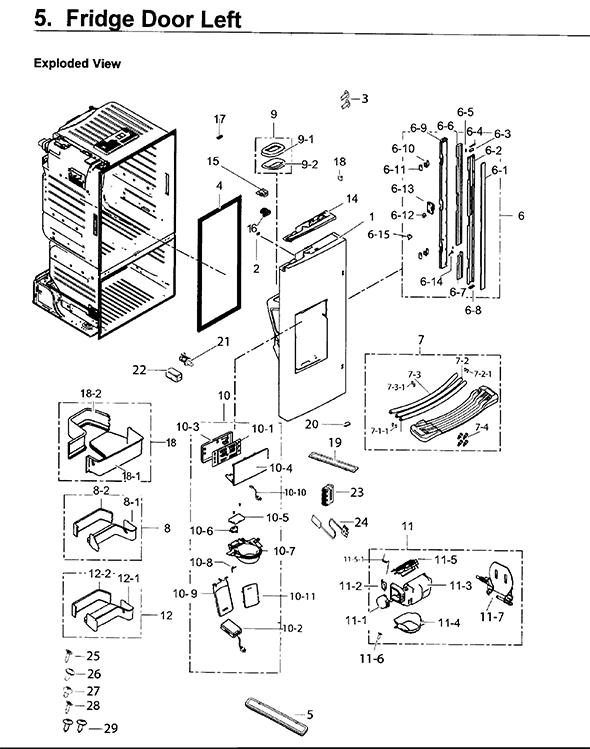

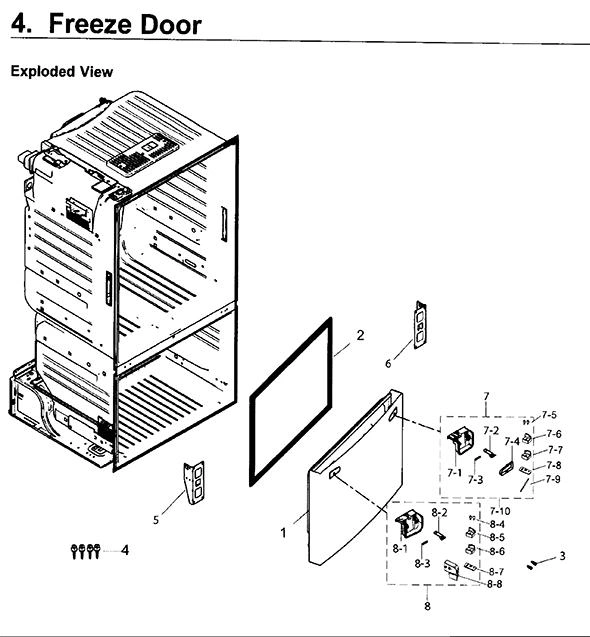

Model Samsung RF263BEAESR-AA-04 – Common Parts &amp; Diagrams

1

DA91-03908A Samsung Refrigerator Door Assembl Backorder SMG DA91-03908A $325.60

1

DA91-03909A Samsung Refrigerator Right Door F Backorder SMG DA91-03909A $248.16

1

DA96-00460L Samsung Refrigerator Evaporator A In Stock SMG DA96-00460L $204.71

1

DA97-12607A Samsung Refrigerator Lamp Assembl Backorder SMG DA97-12607A $189.73

1-1

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $18.59

1-1

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $19.49

1-2

DA41-00676G Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00676G $41.72

1-2

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $14.51

1-4

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $7.87

1-4

DA96-00962A Samsung Refrigerator Reed Switch Backorder SMG DA96-00962A $15.76

1-5

DA61-05689A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05689A $1.99

1-6

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $7.87

1-7

DA47-00424M Samsung Refrigerator Metal Sheath In Stock SMG DA47-00424M $76.24

1-8

DA47-00243K Samsung Refrigerator Bi-metal Def In Stock SMG DA47-00243K $40.19

2

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $2.07

2

DA63-06541D Samsung Refrigerator Freezer Door In Stock SMG DA63-06541D $147.50

2

DA63-07816A Samsung Refrigerator Lamp Cover O Backorder SMG DA63-07816A $27.29

2

DA97-12573A Samsung Refrigerator Upper Left H In Stock SMG DA97-12573A $60.53

2

Refrigerator Drawer Shelf Roller Wheel SMG DA97-12617A Contact Us For Availability

2-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $49.61

2-2

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $4.56

2-6

DA96-00959D Samsung Refrigerator 12V DC Fan M Backorder SMG DA96-00959D $157.42

2-61

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $0.92

2-63

DA61-04850B Samsung Refrigerator Motor Case A Backorder SMG DA61-04850B $10.78

2-64

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.31

2-66

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $16.58

2-68

DA61-20128C Samsung Refrigerator Fan Spring A Backorder SMG DA61-20128C $0.92

2-69

Refrigerator Water Filter Cover, Left SMG DA96-00504A Contact Us For Availability

3

DA61-04795A Samsung Refrigerator French Door Backorder SMG DA61-04795A $9.11

3

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $4.15

3

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.62

3

DA97-12574A Samsung Refrigerator Upper Right In Stock SMG DA97-12574A $55.37

3-2

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $4.15

4

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.67

4

DA63-06542A Samsung Refrigerator Door Gasket In Stock SMG DA63-06542A $144.87

4

DA97-12641D Samsung Refrigerator Assembly Tra Backorder SMG DA97-12641D $217.94

4-1

DA61-04813A Samsung Refrigerator Upper Roller Backorder SMG DA61-04813A $2.98

4-4

DA66-00554A Samsung Refrigerator Upper Freeze In Stock SMG DA66-00554A $4.56

4-5

DA61-04804A Samsung Refrigerator Roller Wheel Backorder SMG DA61-04804A $18.94

5

DA66-00437A Samsung Refrigerator Gear Shaft A Backorder SMG DA66-00437A $32.81

6

DA61-04796A Samsung Refrigerator Drawer Guide Backorder SMG DA61-04796A $40.92

6

DA61-04841A Samsung Refrigerator Front Hanger Backorder SMG DA61-04841A $61.74

6

DA82-01243A Samsung Refrigerator Right Middle Backorder SMG DA82-01243A $57.52

6

DA97-12683A Samsung Refrigerator French Door Backorder SMG DA97-12683A $201.22

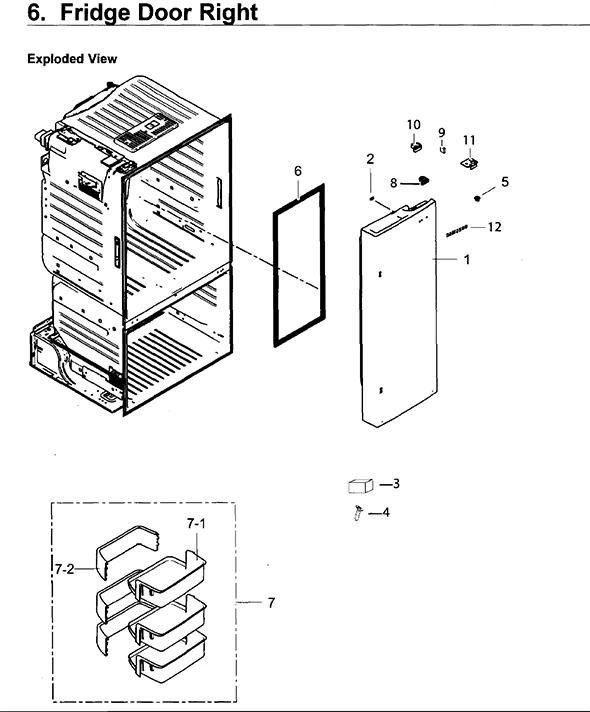

6-2

DA61-08274A Samsung Refrigerator Mid Angle Sh Backorder SMG DA61-08274A $69.36

6-4

DA63-06959A Samsung Refrigerator Upper French Backorder SMG DA63-06959A $4.56

6-10

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.98

6-11

DA67-02146A Samsung Refrigerator French Cap C Backorder SMG DA67-02146A $7.47

6-12

DA67-02154A Samsung Refrigerator French Door Backorder SMG DA67-02154A $4.56

6-13

DA63-04645A Samsung Refrigerator Door Heater Backorder SMG DA63-04645A $12.44

7

DA63-04605A Samsung Refrigerator Lower Right Backorder SMG DA63-04605A $71.08

7

DA97-12650A Samsung Refrigerator Door Shelf B In Stock SMG DA97-12650A $118.51

7

DA99-03914C Samsung Refrigerator Handle Kit A Backorder SMG DA99-03914C $241.44

7

Refrigerator Ice Container Assembly SMG DA97-12728A Contact Us For Availability

7-1

DA61-04721D Samsung Front Foot Refrigerator Backorder SMG DA61-04721D $111.11

7-1

DA97-12712C Samsung Refrigerator Freezer Door In Stock SMG DA97-12712C $133.62

7-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.31

7-2

DA61-06014A Samsung Refrigerator Handle Assem Backorder SMG DA61-06014A $2.49

7-2

Refrigerator Grommet Motor SMG DA97-12714C Contact Us For Availability

7-3

DA61-04335B Samsung E Assembly Handle Spring Backorder SMG DA61-04335B $2.07

7-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.05

7-3

Refrigerator Wire Harness SMG DA97-12715C Contact Us For Availability

7-6

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.24

7-7

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $1.67

7-8

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $2.91

7-9

DA66-00579B Samsung Refrigerator Handle Cap S Backorder SMG DA66-00579B $5.80

8

DA97-10595E Samsung Refrigerator Low Right Sl Backorder SMG DA97-10595E $165.90

8

DA97-12652A Samsung Refrigerator Door Bin Gua Backorder SMG DA97-12652A $125.85

8

Fixer-Leve SMG DA97-12730A Contact Us For Availability

8-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.80

8-2

DA61-09088A Samsung Refrigerator Slide Rail L Backorder SMG DA61-09088A $156.02

8-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.56

8-3

DA66-00767A Samsung Refrigerator Rail Gear Ri Backorder SMG DA66-00767A $5.80

9

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $52.25

9

Refrigerator Pan SMG DA97-10594B Contact Us For Availability

9

Refrigerator Cap Cover SMG DA97-05043L Contact Us For Availability

9-1

DA63-06945A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-06945A $57.20

9-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $9.96

9-2

DA97-15765C Samsung Refrigerator Circuit Moto In Stock SMG DA97-15765C $152.80

9-2

SMG DA61-09087A SMG DA61-09087A Contact Us For Availability

9-3

DA66-00771A Samsung Refrigerator Rail Gear Le Backorder SMG DA66-00771A $4.98

9-22

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $20.31

9-23

DA31-00278C Samsung Refrigerator BLDC Fan Mot Backorder SMG DA31-00278C $146.44

9-41

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $0.92

DA60-10123E Samsung Refrigerator Hex Bolt M6 In Stock SMG DA60-10123E $1.24

DA63-04604A Samsung Refrigerator Left Lower R Backorder SMG DA63-04604A $112.64

DA97-12675R Samsung Refrigerator Dispenser Co Backorder SMG DA97-12675R $302.79

DA97-12727A Samsung Refrigerator Crisper Draw Backorder SMG DA97-12727A $188.11

10-1

Refrigerator Freezer Drawer Slide Rail Cover SMG DA92-00368B Contact Us For Availability

10-3

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $4.98

10-5

DA61-04809A Samsung Refrigerator Vegetable Fi In Stock SMG DA61-04809A $0.92

10-6

3405-001119 Samsung Refrigerator Micro Switch Backorder SMG 3405-001119 $5.03

10-8

DA61-06033B Samsung Refrigerator Ice Dispense Backorder SMG DA61-06033B $3.73

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $23.97

DA97-07024C Samsung Refrigerator Drawer Box T Backorder SMG DA97-07024C $174.44

DA97-08680G Samsung Refrigerator Ice Case Ass In Stock SMG DA97-08680G $146.94

DA97-12725A Samsung Refrigerator Vegetable Cr Backorder SMG DA97-12725A $188.85

MKV190CL2J/SM1 Samsung Refrigerator Compresso In Stock SMG MKV190CL2J/SM1 $351.31

11-1

DA31-00079D Samsung Refrigerator Geared Dispe In Stock SMG DA31-00079D $79.39

11-2

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $9.53

11-7

DA63-04647A Samsung Refrigerator Ice Route Co Backorder SMG DA63-04647A $15.76

DA61-07328A Samsung Refrigerator Freezer Rail Backorder SMG DA61-07328A $162.92

DA64-04021A Samsung Refrigerator Nameplate Ma Backorder SMG DA64-04021A $32.04

DA97-12653A Samsung Refrigerator Door Bin Ass Backorder SMG DA97-12653A $131.03

DA97-12661A Samsung Refrigerator Water Filter Backorder SMG DA97-12661A $214.46

12-1

DA97-08006D Samsung Refrigerator White Case F In Stock SMG DA97-08006D $97.70

12-4

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $49.61

12-6

DA61-07497A Samsung Refrigerator Case Filter Backorder SMG DA61-07497A $33.18

12-7

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $18.65

12-9

DA62-04027A Samsung Refrigerator 2-Way Water In Stock SMG DA62-04027A $147.83

13

DA61-07329A Samsung Refrigerator Right Hand U Backorder SMG DA61-07329A $172.38

13

DA97-12726A Samsung Refrigerator Right Vegeta Backorder SMG DA97-12726A $151.69

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $23.22

DA97-04049D Samsung Refrigerator Drain Tube C In Stock SMG DA97-04049D $19.07

DA97-07015A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-07015A $182.44

DA97-15217D Samsung Refrigerator Ice Maker As In Stock SMG DA97-15217D $99.55

14-1

DA64-02235A Samsung Refrigerator Pantry Shelf Backorder SMG DA64-02235A $37.61

DA61-02383C Samsung Refrigerator Door Support Backorder SMG DA61-02383C $4.56

DA63-06894A Samsung Refrigerator Ice Maker Wi Backorder SMG DA63-06894A $11.20

DA97-07016A Samsung Refrigerator Pantry Rail Backorder SMG DA97-07016A $109.13

DA97-15162B Samsung Refrigerator Compressor C Backorder SMG DA97-15162B $51.28

15-2

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $12.44

16

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $28.02

16

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $38.94

16

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $16.58

16-4

DA92-00151A Samsung Refrigerator Printed Circ Backorder SMG DA92-00151A $38.72

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $42.16

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.92

DA92-00215R Samsung Refrigerator Inverter Boa In Stock SMG DA92-00215R $171.81

DA97-07020C Samsung Refrigerator Pantry Drawe Backorder SMG DA97-07020C $147.38

18

DA92-00384L Samsung Refrigerator Main PCB Ass Backorder SMG DA92-00384L $72.40

18

DA97-07189E Samsung Refrigerator Motor Damper In Stock SMG DA97-07189E $148.45

18

DA97-12651A Samsung Refrigerator Dispenser Sh In Stock SMG DA97-12651A $117.87

18-2

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $150.48

18-3

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $19.49

19

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $6.59

19

DA96-00660J Samsung Refrigerator Assembly Eva Backorder SMG DA96-00660J $224.19

19-2

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $4.98

19-5

DA47-00244U Samsung Refrigerator Defrost Heat In Stock SMG DA47-00244U $108.11

19-8

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $0.99

20

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $64.47

20

DA61-04712C Samsung Refrigerator Fixer Hose Backorder SMG DA61-04712C $21.14

20

DA97-12609C Samsung Refrigerator Evaporator C In Stock SMG DA97-12609C $238.36

20-2

DA32-10105X Samsung Refrigerator Temperature In Stock SMG DA32-10105X $18.65

21

DA34-00066C Samsung Refrigerator Door Interlo In Stock SMG DA34-00066C $18.32

21

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $18.25

21

DA97-12540G Samsung Refrigerator Ice Maker Au In Stock SMG DA97-12540G $222.00

21-1

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $177.25

21-2

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $73.94

21-3

DA96-00682D Samsung Refrigerator Auger Motor In Stock SMG DA96-00682D $100.54

22

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $8.71

23

DA27-00019H Samsung Refrigerator EMI Coil Fil Backorder SMG DA27-00019H $116.45

23

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $2.49

24

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $56.89

25

DA81-06007A Samsung Refrigerator Filter Dryer In Stock SMG DA81-06007A $81.40

26

DA32-00029U Samsung Refrigerator Temperature In Stock SMG DA32-00029U $26.55

27

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $3.31

28

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $17.40

30

DA63-06389E Samsung Refrigerator Front Left C Backorder SMG DA63-06389E $3.31

31

DA63-06405D Samsung Refrigerator Front Right Backorder SMG DA63-06405D $3.31

32

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $0.92

42

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $0.92

44

6003-001727 Samsung Refrigerator Television T Backorder SMG 6003-001727 $1.67

46

DA97-04049Q Samsung Refrigerator Drain Cap As Backorder SMG DA97-04049Q $5.98

46-1

DA63-00951C Samsung Refrigerator Drain Hose G Backorder SMG DA63-00951C $7.87

48

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.92

1010

DA96-00106G Samsung Refrigerator Dispenser Wi Backorder SMG DA96-00106G $42.04

1011

DA61-07362A Samsung Refrigerator Door Plate L Backorder SMG DA61-07362A $33.93

1151

DA61-01914A Samsung Refrigerator Ice Route Co Backorder SMG DA61-01914A $2.91

2610

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $117.25
