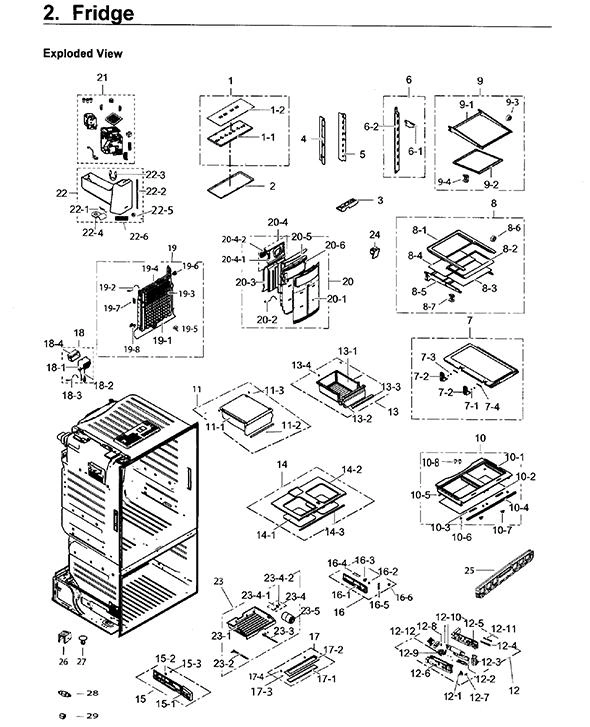

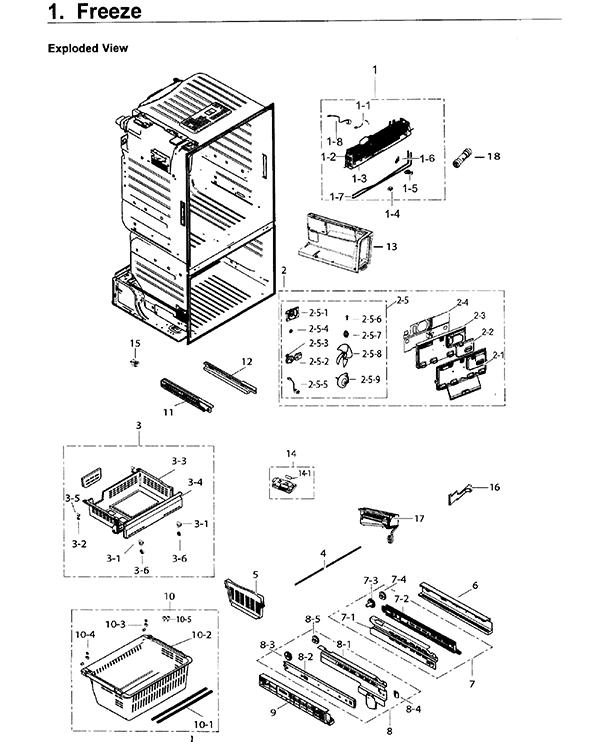

Model Samsung RF263BEAESP-AA-04 – Common Parts &amp; Diagrams

1

DA96-00460L Samsung Refrigerator Evaporator A In Stock SMG DA96-00460L $191.31

1

DA97-12607A Samsung Refrigerator Lamp Assembl Backorder SMG DA97-12607A $177.32

1-1

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $17.37

1-1

DA34-00043K Samsung Refrigerator Reed Switch Backorder SMG DA34-00043K $50.05

1-2

DA41-00676K Samsung Refrigerator LED Lamp Ass Backorder SMG DA41-00676K $103.84

1-2

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $13.56

1-4

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $7.36

1-5

DA61-05689A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05689A $1.99

1-6

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $7.36

1-7

DA47-00424M Samsung Refrigerator Metal Sheath In Stock SMG DA47-00424M $71.24

1-8

DA47-00243K Samsung Refrigerator Bi-metal Def In Stock SMG DA47-00243K $37.57

2

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $1.94

2

DA63-06541D Samsung Refrigerator Freezer Door In Stock SMG DA63-06541D $118.17

2

DA63-07816A Samsung Refrigerator Lamp Cover O Backorder SMG DA63-07816A $25.49

2

DA97-12573A Samsung Refrigerator Upper Left H Backorder SMG DA97-12573A $56.56

2

Refrigerator Crisper Drawer Cover Trim SMG DA97-12617A Contact Us For Availability

2-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $46.37

2-2

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $4.26

2-3

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.17

2-5

DA96-00959D Samsung Refrigerator 12V DC Fan M In Stock SMG DA96-00959D $147.13

2-51

DA61-04850B Samsung Refrigerator Motor Case A Backorder SMG DA61-04850B $10.07

2-53

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.09

2-55

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $15.50

2-57

DA61-20128C Samsung Refrigerator Fan Spring A Backorder SMG DA61-20128C $0.92

2-58

Refrigerator Water Filter Housing SMG DA96-00504A Contact Us For Availability

2-59

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $109.58

3

DA61-04795A Samsung Refrigerator French Door Backorder SMG DA61-04795A $8.53

3

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $3.88

3

DA63-06542A Samsung Refrigerator Door Gasket In Stock SMG DA63-06542A $115.86

3

DA97-12574A Samsung Refrigerator Upper Right Backorder SMG DA97-12574A $52.30

3

DA97-12641D Samsung Refrigerator Assembly Tra Backorder SMG DA97-12641D $203.68

3-1

DA61-04813A Samsung Refrigerator Upper Roller Backorder SMG DA61-04813A $2.98

3-2

DA61-04804A Samsung Refrigerator Roller Wheel Backorder SMG DA61-04804A $18.94

3-2

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $3.88

3-6

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $4.26

4

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.56

4

DA66-00437A Samsung Refrigerator Gear Shaft A Backorder SMG DA66-00437A $30.67

5

DA32-00034B Samsung Refrigerator Humidity Sen In Stock SMG DA32-00034B $53.75

5

DA61-04796A Samsung Refrigerator Drawer Guide Backorder SMG DA61-04796A $38.25

5

DA61-04841A Samsung Refrigerator Front Hanger Backorder SMG DA61-04841A $57.70

5

DA97-12650A Samsung Refrigerator Door Shelf B In Stock SMG DA97-12650A $110.75

6

DA63-04605A Samsung Refrigerator Lower Right Backorder SMG DA63-04605A $66.43

6

DA82-01243A Samsung Refrigerator Right Middle Backorder SMG DA82-01243A $54.35

6

DA97-12683A Samsung Refrigerator French Door Backorder SMG DA97-12683A $172.23

6-2

DA61-06014A Samsung Refrigerator Handle Assem Backorder SMG DA61-06014A $2.32

6-2

DA61-08274A Samsung Refrigerator Mid Angle Sh Backorder SMG DA61-08274A $64.82

6-3

DA61-04335B Samsung E Assembly Handle Spring Backorder SMG DA61-04335B $1.94

6-4

DA63-06959A Samsung Refrigerator Upper French Backorder SMG DA63-06959A $4.26

6-5

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.17

6-6

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $1.56

6-7

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $2.71

6-8

DA66-00579B Samsung Refrigerator Handle Cap S Backorder SMG DA66-00579B $5.42

6-10

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.65

6-11

DA67-02146A Samsung Refrigerator French Cap C Backorder SMG DA67-02146A $6.97

6-12

DA67-02154A Samsung Refrigerator French Door Backorder SMG DA67-02154A $4.26

6-13

DA63-04645A Samsung Refrigerator Door Heater Backorder SMG DA63-04645A $11.62

7

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $2.32

7

DA97-10595E Samsung Refrigerator Low Right Sl Backorder SMG DA97-10595E $155.04

7

Assy Case Motor-Ref SMG DA97-12728A Contact Us For Availability

7-1

DA61-04721D Samsung Front Foot Refrigerator Backorder SMG DA61-04721D $105.58

7-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.09

7-2

DA61-09088A Samsung Refrigerator Slide Rail L Backorder SMG DA61-09088A $145.80

7-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $6.59

7-3

DA66-00767A Samsung Refrigerator Rail Gear Ri Backorder SMG DA66-00767A $5.42

7-4

DA63-06389E Samsung Refrigerator Front Left C Backorder SMG DA63-06389E $3.09

7-5

DA63-06405D Samsung Refrigerator Front Right Backorder SMG DA63-06405D $3.09

8

DA97-12652A Samsung Refrigerator Door Bin Gua Backorder SMG DA97-12652A $117.62

8

Refrigerator Pantry Drawer Slide Cover Assemb SMG DA97-10594B Contact Us For Availability

8

Refrigerator Grommet Fan SMG DA97-12730A Contact Us For Availability

8-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.42

8-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.26

8-2

Refrigerator Pantry Shelf Glass SMG DA61-09087A Contact Us For Availability

8-3

DA66-00771A Samsung Refrigerator Rail Gear Le Backorder SMG DA66-00771A $4.65

9

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $22.40

9

DA63-04604A Samsung Refrigerator Left Lower R Backorder SMG DA63-04604A $107.04

9

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $48.82

9

Refrigerator Freezer Door Assembly SMG DA97-05043L Contact Us For Availability

9-1

DA63-08248A Samsung Gasket Refrigerator Backorder SMG DA63-08248A $29.30

9-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $9.30

9-2

DA97-15765C Samsung Refrigerator Circuit Moto In Stock SMG DA97-15765C $142.79

DA64-04021A Samsung Refrigerator Nameplate Ma Backorder SMG DA64-04021A $32.04

DA97-04049Q Samsung Refrigerator Drain Cap As Backorder SMG DA97-04049Q $5.98

DA97-07024C Samsung Refrigerator Drawer Box T In Stock SMG DA97-07024C $174.44

DA97-12675R Samsung Refrigerator Dispenser Co Backorder SMG DA97-12675R $282.99

DA97-12727A Samsung Refrigerator Crisper Draw Backorder SMG DA97-12727A $177.80

10-1

DA62-01266D Samsung Refrigerator PVC Tube Backorder SMG DA62-01266D $3.50

10-1

Refrigerator Screw SMG DA92-00368B Contact Us For Availability

10-2

DA63-00951C Samsung Refrigerator Drain Hose G Backorder SMG DA63-00951C $7.36

10-3

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $4.65

10-5

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $0.92

10-5

DA61-04809A Samsung Refrigerator Vegetable Fi In Stock SMG DA61-04809A $0.92

10-6

3405-001119 Samsung Refrigerator Micro Switch Backorder SMG 3405-001119 $5.03

10-8

DA61-06033B Samsung Refrigerator Ice Dispense Backorder SMG DA61-06033B $3.50

DA61-07328A Samsung Refrigerator Freezer Rail In Stock SMG DA61-07328A $152.26

DA97-08680G Samsung Refrigerator Ice Case Ass In Stock SMG DA97-08680G $168.49

DA97-12725A Samsung Refrigerator Vegetable Cr Backorder SMG DA97-12725A $176.49

MKV190CL2J/SM1 Samsung Refrigerator Compresso In Stock SMG MKV190CL2J/SM1 $328.33

11-1

DA31-00079D Samsung Refrigerator Geared Dispe Backorder SMG DA31-00079D $74.19

11-2

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $8.91

11-6

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.92

11-7

DA63-04647A Samsung Refrigerator Ice Route Co Backorder SMG DA63-04647A $14.73

DA61-07329A Samsung Refrigerator Right Hand U In Stock SMG DA61-07329A $161.11

DA97-12653A Samsung Refrigerator Door Bin Ass Backorder SMG DA97-12653A $122.46

DA97-12661A Samsung Refrigerator Water Filter Backorder SMG DA97-12661A $200.43

DA99-03914C Samsung Refrigerator Handle Kit A Backorder SMG DA99-03914C $225.63

12-2

DA97-12712C Samsung Refrigerator Freezer Door Backorder SMG DA97-12712C $124.88

12-3

Refrigerator Evaporator Fan Blade Retainer SMG DA97-12714C Contact Us For Availability

12-4

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $46.37

12-4

Refrigerator Condenser Fan Blade SMG DA97-12715C Contact Us For Availability

12-6

DA61-07497A Samsung Refrigerator Case Filter Backorder SMG DA61-07497A $31.02

12-7

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $17.44

12-9

DA62-04027A Samsung Refrigerator 2-Way Water Backorder SMG DA62-04027A $138.16

13

DA97-12726A Samsung Refrigerator Right Vegeta Backorder SMG DA97-12726A $141.78

13

DA97-13405A Samsung Refrigerator Ice Room Cas Backorder SMG DA97-13405A $205.34

14

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $21.70

14

DA97-07015A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-07015A $182.44

14

DA97-14471A Samsung Refrigerator Case Lock As Backorder SMG DA97-14471A $39.62

14-1

DA64-02235A Samsung Refrigerator Pantry Shelf In Stock SMG DA64-02235A $35.15

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $26.19

DA61-02383C Samsung Refrigerator Door Support Backorder SMG DA61-02383C $4.26

DA97-07016A Samsung Refrigerator Pantry Rail Backorder SMG DA97-07016A $103.71

DA97-15162B Samsung Refrigerator Compressor C Backorder SMG DA97-15162B $51.28

15-2

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $11.62

16

DA63-06894A Samsung Refrigerator Ice Maker Wi Backorder SMG DA63-06894A $10.47

16

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $38.94

16

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $15.50

16-4

DA92-00151A Samsung Refrigerator Printed Circ Backorder SMG DA92-00151A $36.18

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.92

DA92-00215R Samsung Refrigerator Inverter Boa In Stock SMG DA92-00215R $171.81

DA97-07020C Samsung Refrigerator Pantry Drawe Backorder SMG DA97-07020C $137.74

DA97-15217D Samsung Refrigerator Ice Maker As In Stock SMG DA97-15217D $99.55

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $32.04

DA97-07189E Samsung Refrigerator Motor Damper In Stock SMG DA97-07189E $138.73

DA97-12651A Samsung Refrigerator Dispenser Sh Backorder SMG DA97-12651A $110.16

Refrigerator Freezer Door Handle Latch SMG DA92-00384L Contact Us For Availability

18-2

DA31-00071G Samsung Refrigerator DC Motor Dam In Stock SMG DA31-00071G $140.64

18-3

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $18.21

19

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $6.59

19

DA96-00660J Samsung Refrigerator Assembly Eva Backorder SMG DA96-00660J $209.51

19-1

DA61-06186B Samsung Refrigerator Drain Plate Backorder SMG DA61-06186B $36.87

19-4

DA47-00244U Samsung Refrigerator Defrost Heat In Stock SMG DA47-00244U $87.48

19-7

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $0.99

19-8

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $4.65

20

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $52.52

20

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $14.29

20

DA97-12609C Samsung Refrigerator Evaporator C Backorder SMG DA97-12609C $222.75

20-2

DA32-10105X Samsung Refrigerator Temperature In Stock SMG DA32-10105X $17.44

21

DA34-00066C Samsung Refrigerator Door Interlo In Stock SMG DA34-00066C $16.29

21

DA97-04049D Samsung Refrigerator Drain Tube C In Stock SMG DA97-04049D $17.82

21

DA97-12540G Samsung Refrigerator Ice Maker Au In Stock SMG DA97-12540G $219.16

22

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $8.14

22

DA97-14474C Samsung Refrigerator Ice Bucket T In Stock SMG DA97-14474C $0.00

22-1

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $4.65

22-2

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $2.32

23

DA27-00019H Samsung Refrigerator EMI Coil Fil Backorder SMG DA27-00019H $108.83

25

DA81-06007A Samsung Refrigerator Filter Dryer In Stock SMG DA81-06007A $76.07

26

DA32-00029U Samsung Refrigerator Temperature Backorder SMG DA32-00029U $24.81

27

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $3.09

29

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $16.27

31

DA61-04712C Samsung Refrigerator Fixer Hose Backorder SMG DA61-04712C $19.76

33

DA60-10123E Samsung Refrigerator Hex Bolt M6 In Stock SMG DA60-10123E $1.17

34

6003-001727 Samsung Refrigerator Television T Backorder SMG 6003-001727 $1.56

1010

DA96-00106G Samsung Refrigerator Dispenser Wi Backorder SMG DA96-00106G $39.29

1011

DA61-07362A Samsung Refrigerator Door Plate L Backorder SMG DA61-07362A $31.70

1151

DA61-01914A Samsung Refrigerator Ice Route Co Backorder SMG DA61-01914A $2.71
