Model Whirlpool RF014PXRW0 – Common Parts & Diagrams
04 - BACKGUARD
06 - COOKTOP AND MANIFOLD

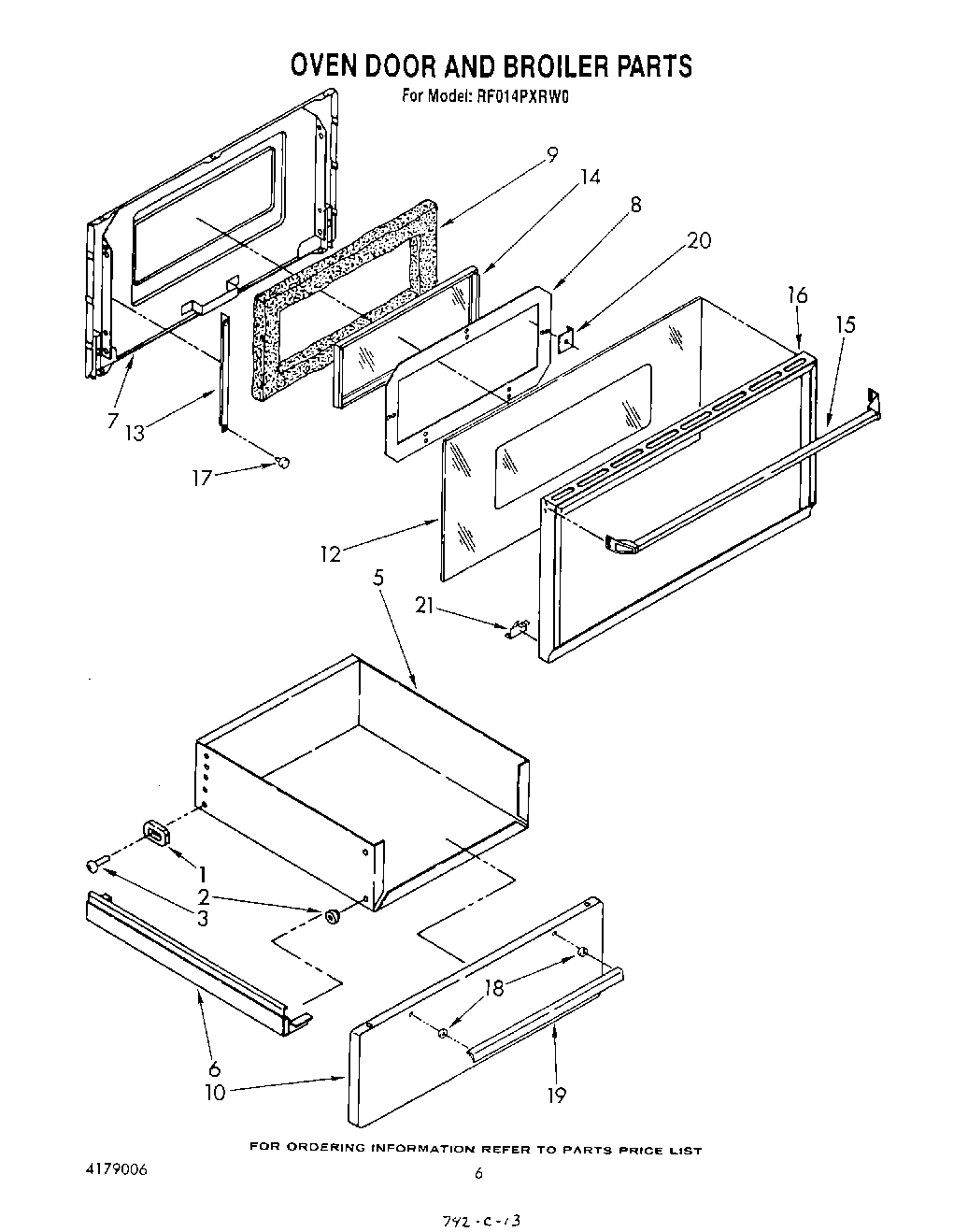

05 - OVEN DOOR AND BROILER

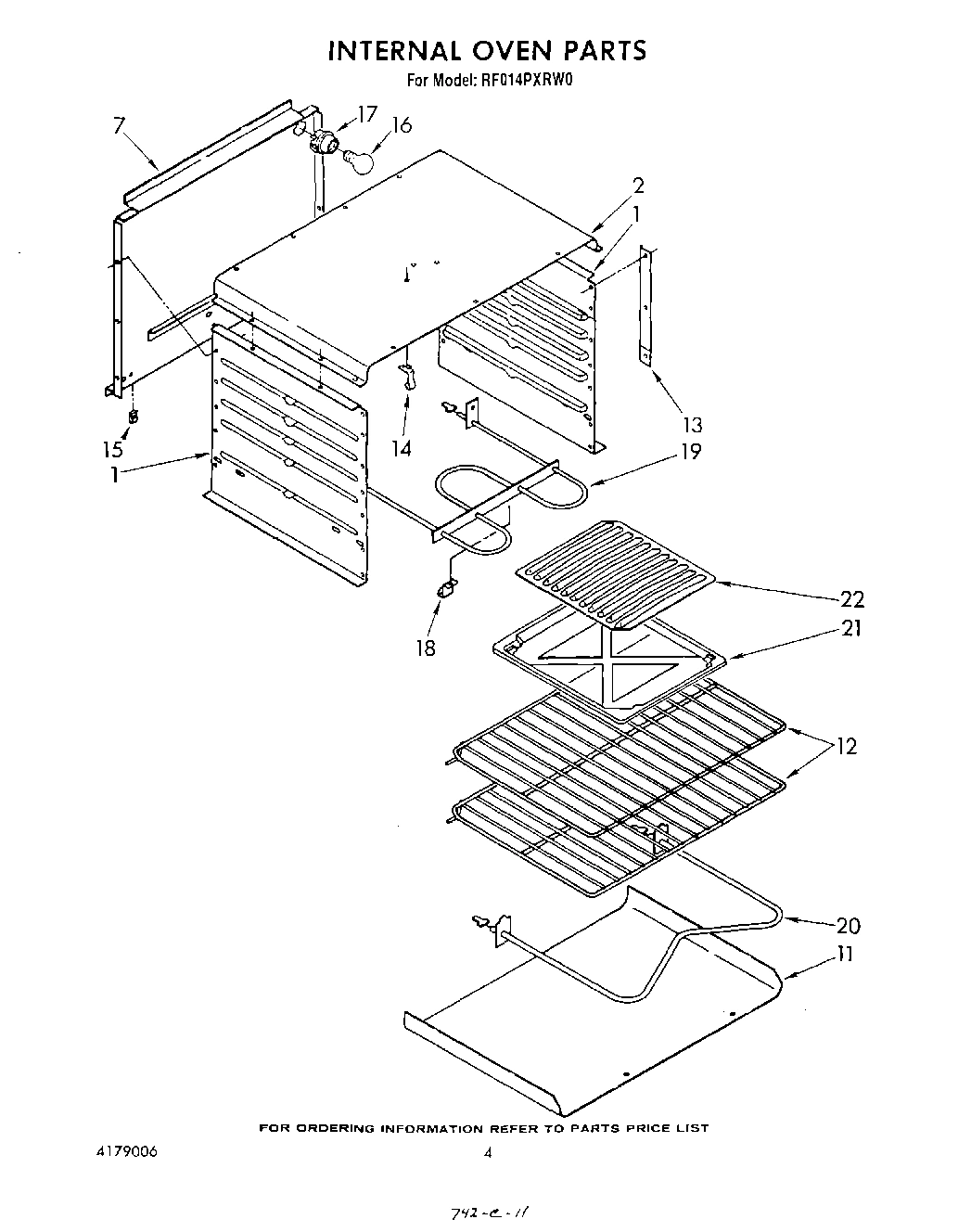

03 - INTERNAL OVEN

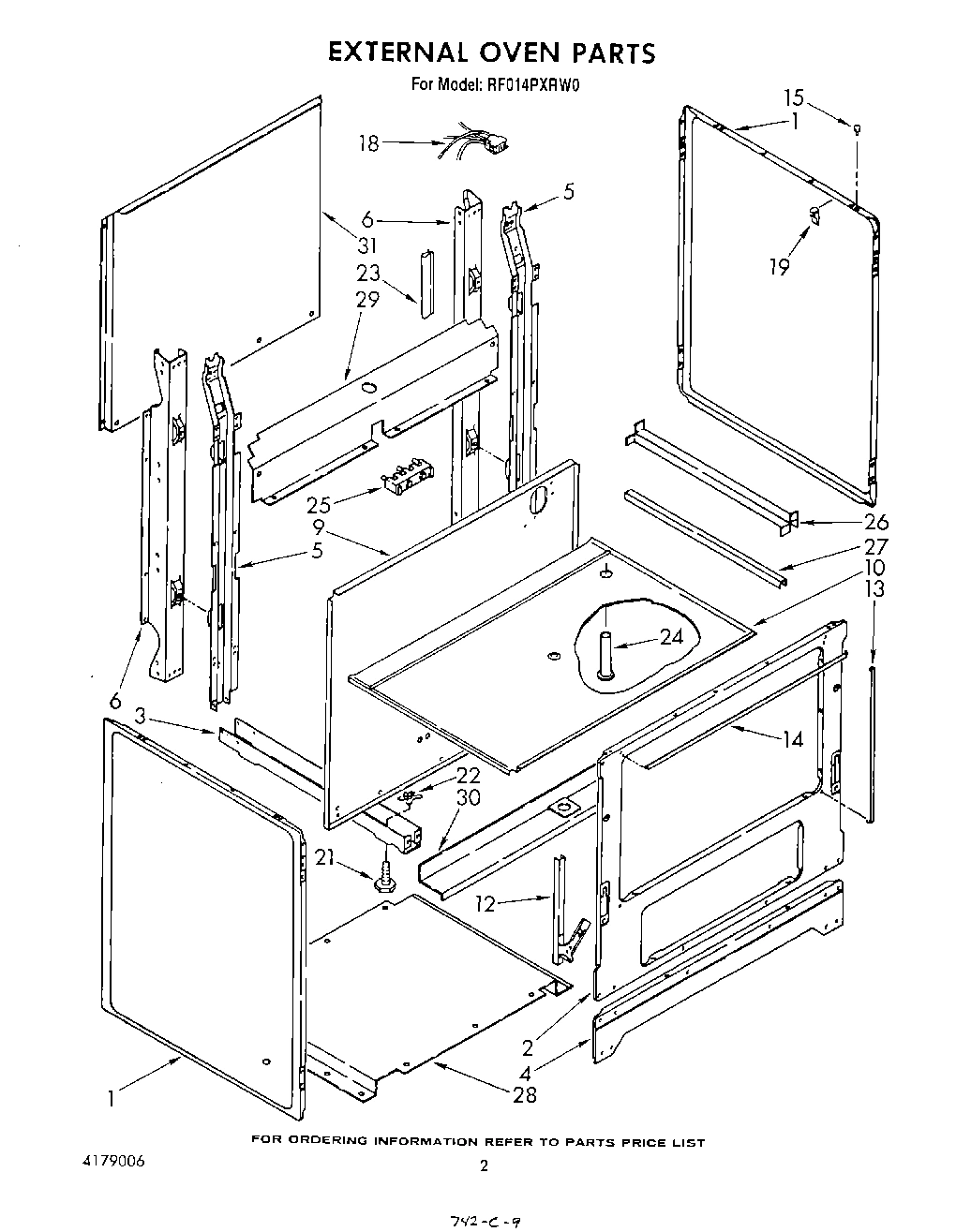

02 - EXTERNAL OVEN , LITERATURE AND OPTIONAL
Common parts from model Whirlpool RF014PXRW0
Guide, Cooking WPL LIT313358 Contact Us For Availability
Guide, Use & Care WPL LIT4157058 Contact Us For Availability
Instuctions, Installation WPL LIT4157059 Contact Us For Availability
List, Repair Parts WPL LIT4179006 Contact Us For Availability
1
Frame WPL 4157848 Contact Us For Availability
1
Cooktop (White) WPL 4179018 Contact Us For Availability
1
Cooktop (Almond) WPL 4179019 Contact Us For Availability
1
Cooktop (Toast) WPL 4179020 Contact Us For Availability
1
Cooktop (Platinum) WPL 4179021 Contact Us For Availability
1
Slide (2) WPL 4157993 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4157962 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4157000 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4157130 Contact Us For Availability
1
Panel, Side (2) (Toast) WPL 4157348 Contact Us For Availability
1
Panel, Side (2) (Platinum) WPL 4157349 Contact Us For Availability
2
Bottom, Backguard WPL 4179007 Contact Us For Availability
2
Roller (2) WPL 4157994 Contact Us For Availability
2
Liner, Oven Top WPL 4157922 Contact Us For Availability
2
Frame, Front WPL 4157987 Contact Us For Availability
3
Glass WPL 4179026 Contact Us For Availability
3
Knob, Burner (4) WPL 4157559 Contact Us For Availability
3
Rivet WPL 4157995 Contact Us For Availability
3
Rail, Base (2) WPL 4157005 Contact Us For Availability
4
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157165 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157166 Contact Us For Availability
4
Hinge, Cooktop (2) WPL 4157083 Contact Us For Availability
4
Speed Clip WPL 4157115 Contact Us For Availability
4
Base, Front WPL 4179023 Contact Us For Availability
5
Screw, 10-32 X 1/2 (1) WPL 4157123 Contact Us For Availability
5
Panel, Manifold WPL 4179028 Contact Us For Availability
5
Liner WPL 4157997 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
6
Strain Relief WPL 4157221 Contact Us For Availability
6
Knob, Thermostat WPL 4157981 Contact Us For Availability
6
Track (Left) WPL 4157998 Contact Us For Availability
6
Track (Right) WPL 4157999 Contact Us For Availability
6
Support, Rear (2) WPL 4157012 Contact Us For Availability
7
Support, Timer WPL 4157209 Contact Us For Availability
7
Thermostat WPL 4157565 Contact Us For Availability
7
Liner, Door WPL 4157911 Contact Us For Availability
7
Liner, Oven Back WPL 4157991 Contact Us For Availability
8
Timer WPL 4157214 Contact Us For Availability
8
Screw WPL 4157018 Contact Us For Availability
8
Ring, Hold Down WPL 4157031 Contact Us For Availability
9
Knob, Timer WPL 4157701 Contact Us For Availability
9
Rod, Support WPL 4157010 Contact Us For Availability
9
Insulation WPL 4157033 Contact Us For Availability
9
Panel, Rear WPL 4157988 Contact Us For Availability
10
Panel, Rear WPL 4179013 Contact Us For Availability
10
Endcap (L.H.) WPL 4157186 Contact Us For Availability
10
Endcap (R.H.) WPL 4157187 Contact Us For Availability
10
Panel, Drawer (White) WPL 4179009 Contact Us For Availability
10
Panel, Drawer (Almond) WPL 4179010 Contact Us For Availability
10
Panel, Drawer (Toast) WPL 4179011 Contact Us For Availability
10
Panel, Drawer (Platinum) WPL 4179012 Contact Us For Availability
10
Burner Box WPL 4157990 Contact Us For Availability
11
Block, Disconnect WPL 4157112 Contact Us For Availability
11
Light, Indicator (Oven) WPL 4157870 Contact Us For Availability
11
Bottom, Oven WPL 4179014 Contact Us For Availability
12
Window WPL 4157038 Contact Us For Availability
12
Rack, Oven (2) WPL 4157810 Contact Us For Availability
12
Hinge, Door (2) WPL 4157022 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
13
Light, Indicator (Surface Unit) WPL 4157976 Contact Us For Availability
13
Support WPL 4157037 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4157024 Contact Us For Availability
14
Unit, Surface (6``) WPL 4157979 Contact Us For Availability
14
Unit, Surface (8``) WPL 4157980 Contact Us For Availability
14
Window WPL 4157032 Contact Us For Availability
14
Seal, Door (Top) WPL 4157789 Contact Us For Availability
15
Switch, Light WPL 4157195 Contact Us For Availability
15
Handle WPL 4179027 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
16
Switch, Infinite WPL 4179025 Contact Us For Availability
16
Frame, Door WPL 4179008 Contact Us For Availability
17
Bumper (4) WPL 4157128 Contact Us For Availability
17
Cover, Switch WPL 4179022 Contact Us For Availability
17
Receptacle WPL 4157020 Contact Us For Availability
18
Spacer (2) WPL 4157041 Contact Us For Availability
18
Support, Broil Element WPL 4157967 Contact Us For Availability
18
Block, Disconnect WPL 4157149 Contact Us For Availability
19
Handle WPL 4157794 Contact Us For Availability
19
Clip, Wire (2) WPL 4157127 Contact Us For Availability
20
Plate (2) WPL 4157131 Contact Us For Availability
20
Element, Bake WPL 4179024 Contact Us For Availability
21
Support, Glass (Left Hand) WPL 4157034 Contact Us For Availability
21
Support, Glass (Right Hand) WPL 4157035 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
22
Grid WPL 4157047 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
23
Safe Edge WPL 4157132 Contact Us For Availability
24
Tube, Vent WPL 4157953 Contact Us For Availability
26
Channel WPL 4157964 Contact Us For Availability
27
Support WPL 4157965 Contact Us For Availability
28
Panel, Bottom WPL 4157989 Contact Us For Availability
29
Cover, Rear WPL 4179015 Contact Us For Availability
30
Cover, Wire WPL 4179016 Contact Us For Availability
31
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
31
Cover, Rear WPL 4179017 Contact Us For Availability
× ![]()
