Model Whirlpool RF010EXRW0 – Common Parts & Diagrams
02 - EXTERNAL OVEN , LITERATURE AND OPTIONAL
04 - BACKGUARD

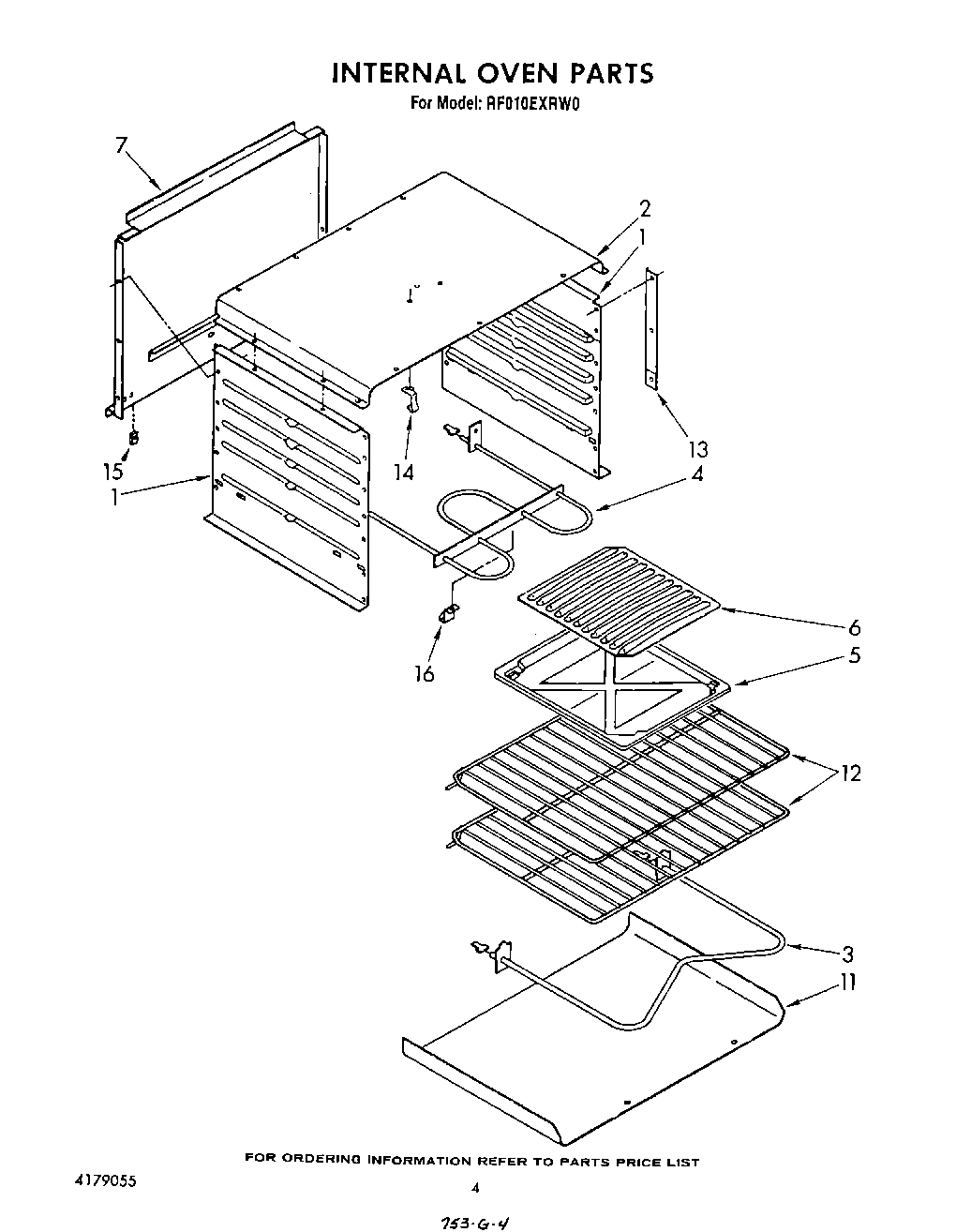

03 - INTERNAL OVEN

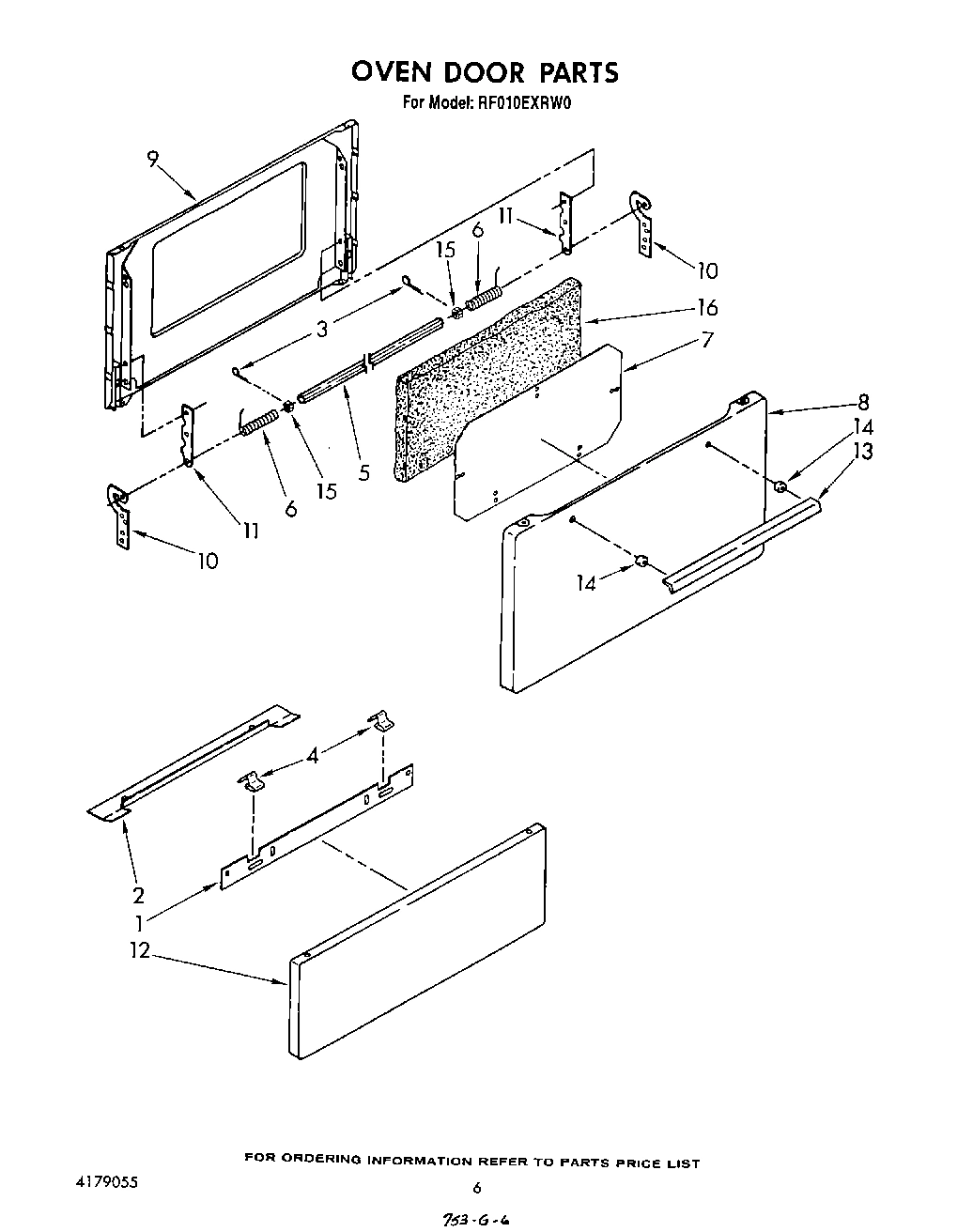

05 - OVEN DOOR

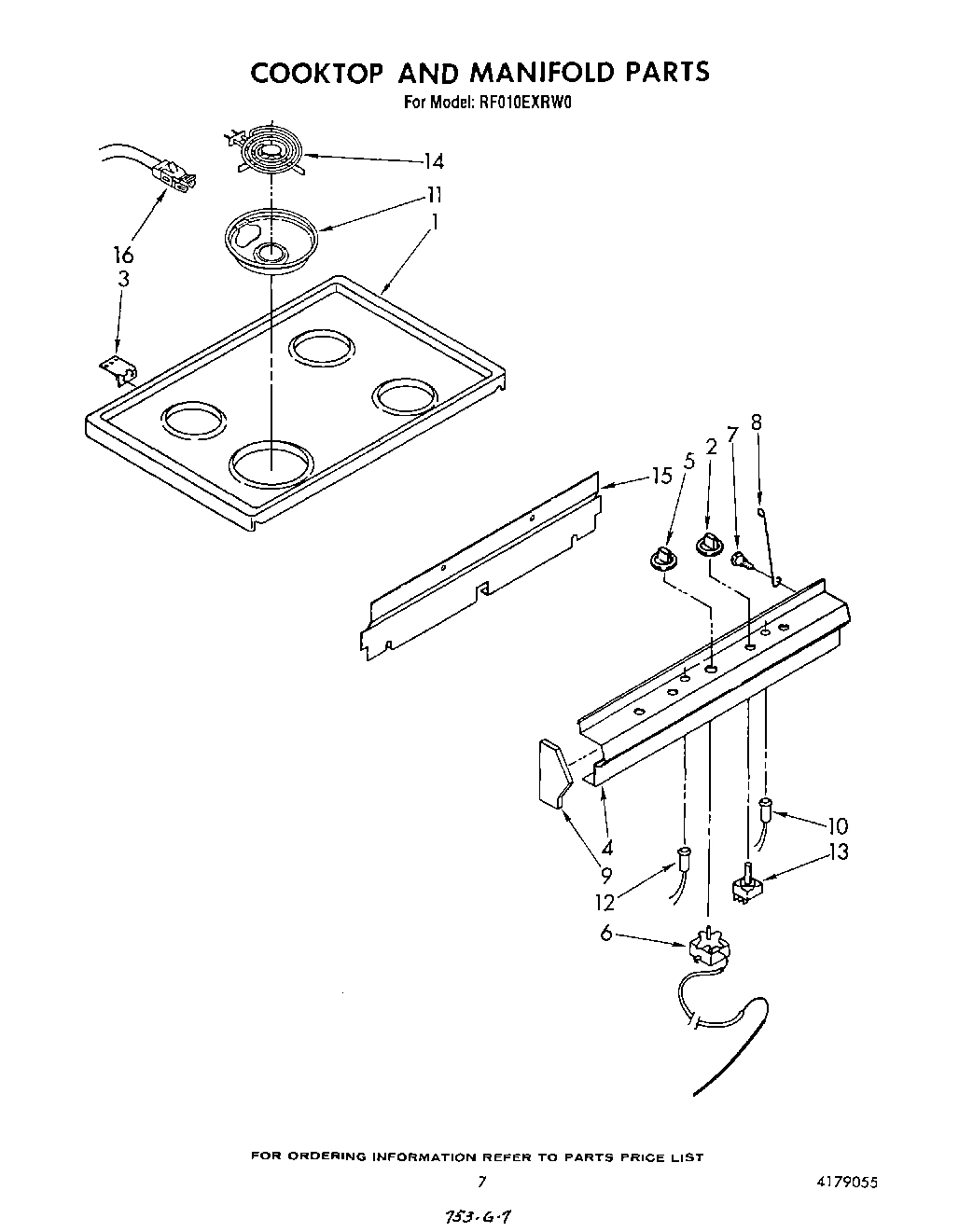

06 - COOKTOP AND MANIFOLD
Common parts from model Whirlpool RF010EXRW0
List, Repair Parts WPL LIT4179055 Contact Us For Availability
Instuctions, Installation WPL LIT786730 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4157000 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4157130 Contact Us For Availability
1
Panel, Side (2) (Toast) WPL 4157348 Contact Us For Availability
1
Panel, Side (2) (Platinum) WPL 4157349 Contact Us For Availability
1
Screw, 10-12 X 3/8 (6) WPL 4157121 Contact Us For Availability
1
Frame WPL 4157853 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4157962 Contact Us For Availability
1
Bracket, Clip WPL 4157957 Contact Us For Availability
1
Cooktop (White) WPL 4157970 Contact Us For Availability
1
Cooktop (Almond) WPL 4157971 Contact Us For Availability
1
Cooktop (Toast) WPL 4157972 Contact Us For Availability
1
Cooktop (Platinum) WPL 4157973 Contact Us For Availability
2
Frame, Front WPL 4179033 Contact Us For Availability
2
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
2
Bottom, Backguard WPL 4157857 Contact Us For Availability
2
Liner, Oven Top WPL 4157954 Contact Us For Availability
2
Bracket WPL 4157958 Contact Us For Availability
2
Knob, Burner (4) WPL 4157559 Contact Us For Availability
3
Rail, Base (2) WPL 4157005 Contact Us For Availability
3
Glass WPL 4179057 Contact Us For Availability
3
Pin WPL 4157956 Contact Us For Availability
3
Hinge, Cooktop (2) WPL 4157083 Contact Us For Availability
3
Speed Clip (4) WPL 4157115 Contact Us For Availability
4
Base, Front WPL 4157945 Contact Us For Availability
4
Support, Backguard (Screw, 10-32 X 1/2 (1)) WPL 4157123 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157159 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157160 Contact Us For Availability
4
Clip WPL 4157959 Contact Us For Availability
4
Panel, Manifold WPL 4157836 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Bumper (4) WPL 4157128 Contact Us For Availability
5
Rod WPL 4157932 Contact Us For Availability
5
Knob, Thermostat WPL 4157981 Contact Us For Availability
6
Support, Rear (2) WPL 4157012 Contact Us For Availability
6
Grid WPL 4157047 Contact Us For Availability
6
Spring (Left) WPL 4157928 Contact Us For Availability
6
Spring (Right) WPL 4157929 Contact Us For Availability
6
Thermostat WPL 4157565 Contact Us For Availability
7
Liner, Oven Back WPL 4157982 Contact Us For Availability
7
Baffle WPL 4157931 Contact Us For Availability
7
Screw WPL 4157018 Contact Us For Availability
8
Panel, Door (White) WPL 4157550 Contact Us For Availability
8
Panel, Door (Almond) WPL 4157551 Contact Us For Availability
8
Panel, Door (Toast) WPL 4157552 Contact Us For Availability
8
Panel, Door (Platinum) WPL 4157553 Contact Us For Availability
8
Rod, Support WPL 4157010 Contact Us For Availability
9
Panel, Rear WPL 4157923 Contact Us For Availability
9
Liner, Door WPL 4157875 Contact Us For Availability
9
Endcap (L.H.) WPL 4157186 Contact Us For Availability
9
Endcap (R.H.) WPL 4157187 Contact Us For Availability
10
Burner Box WPL 4315209 Contact Us For Availability
10
Arm, Hinge (Left) WPL 4157936 Contact Us For Availability
10
Arm, Hinge (Right) WPL 4157937 Contact Us For Availability
10
Light, Indicator (Oven) WPL 4157870 Contact Us For Availability
11
Bottom, Oven WPL 4157963 Contact Us For Availability
11
Hinge (2) WPL 4157938 Contact Us For Availability
12
Rack, Oven (2) WPL 4157927 Contact Us For Availability
12
Panel (White) WPL 4157983 Contact Us For Availability
12
Panel (Almond) WPL 4157984 Contact Us For Availability
12
Panel (Toast) WPL 4157985 Contact Us For Availability
12
Panel (Platinum) WPL 4157986 Contact Us For Availability
12
Light, Indicator (Surface Unit) WPL 4157976 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4157948 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Handle WPL 4157794 Contact Us For Availability
13
Switch, Infinite WPL 4179025 Contact Us For Availability
14
Seal, Door (Top) WPL 4157947 Contact Us For Availability
14
Spacer (2) WPL 4157041 Contact Us For Availability
14
Unit, Surface (6``) WPL 4157979 Contact Us For Availability
14
Unit, Surface (8``) WPL 4157980 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Winder WPL 4157930 Contact Us For Availability
15
Cover, Switch WPL 4157974 Contact Us For Availability
16
Support WPL 4157967 Contact Us For Availability
16
Insulation WPL 4157033 Contact Us For Availability
19
Clip, Wire (2) WPL 4157127 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
23
Safe Edge WPL 4157132 Contact Us For Availability
24
Panel, Bottom WPL 4157952 Contact Us For Availability
25
Tube, Vent WPL 4157953 Contact Us For Availability
27
Channel, Wire WPL 4157964 Contact Us For Availability
28
Support, Channel WPL 4157965 Contact Us For Availability
29
Cover, Wire WPL 4157966 Contact Us For Availability
30
Support WPL 4157968 Contact Us For Availability
31
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
31
Cover, Rear WPL 4157969 Contact Us For Availability
× ![]()
