Model Electrolux RER375GD2 RANGE – Common Parts & Diagrams

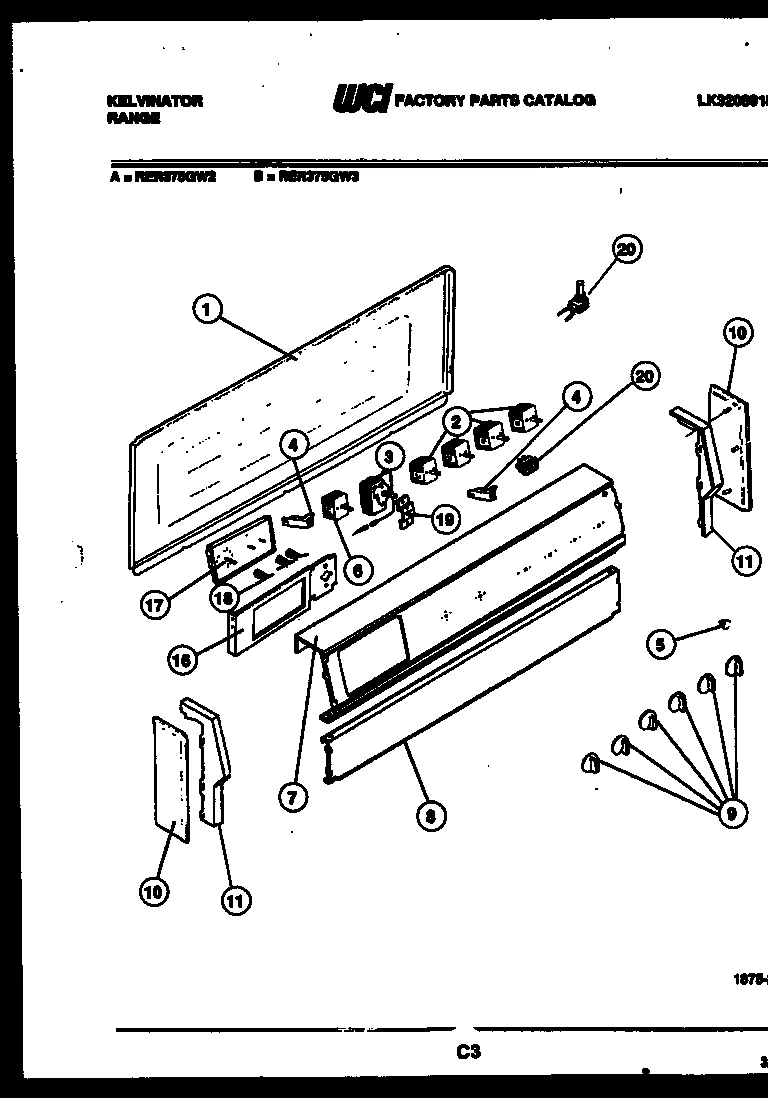

02 - BACKGUARD PARTS

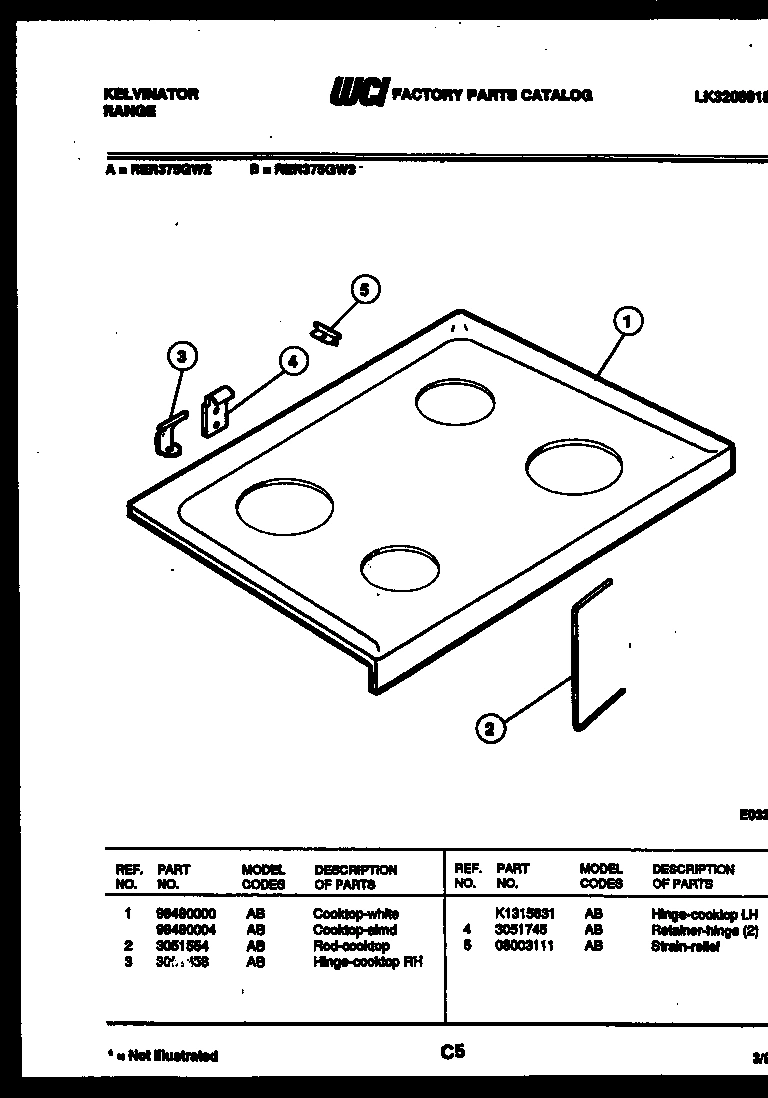

03 - COOKTOP PARTS

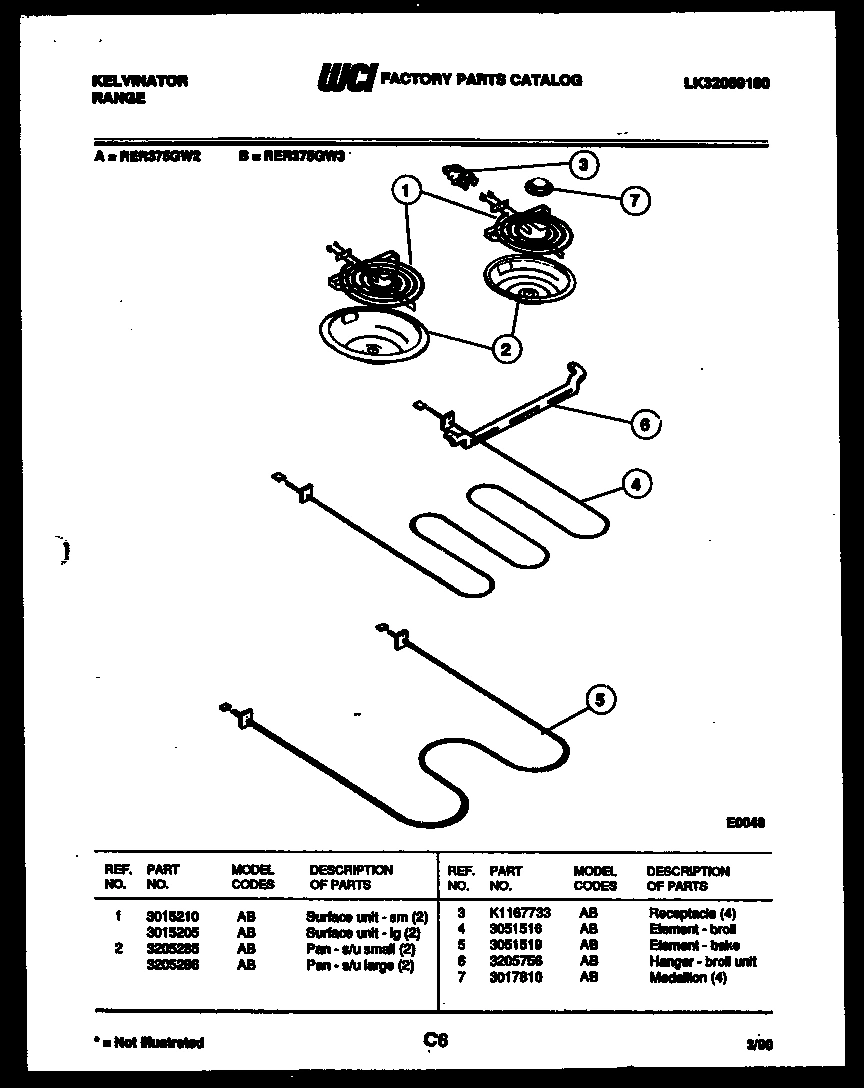

04 - BROILER PARTS

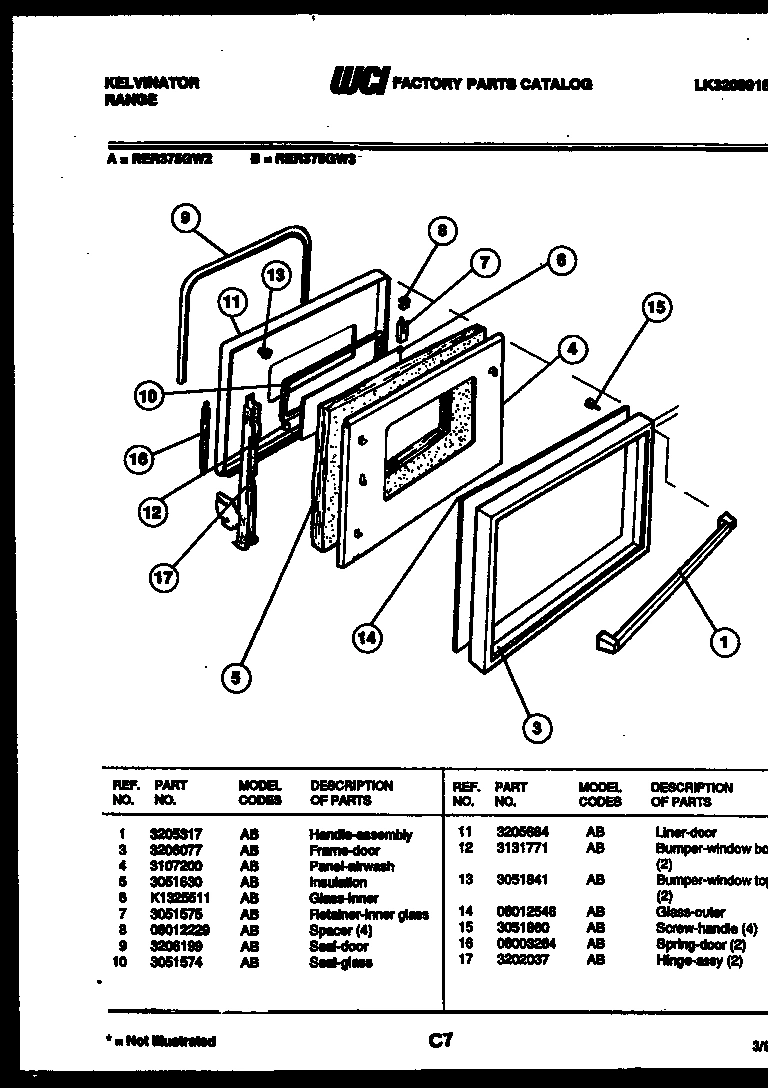

05 - DOOR PARTS

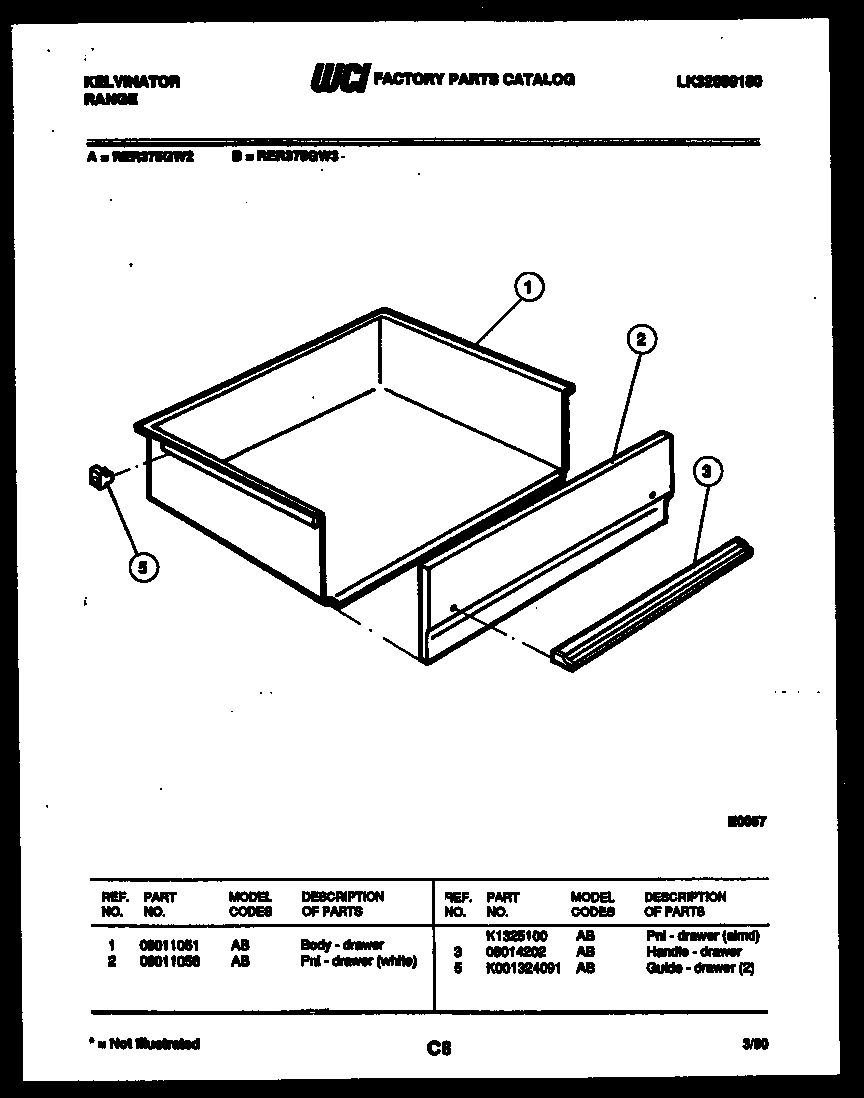

06 - DRAWER PARTS

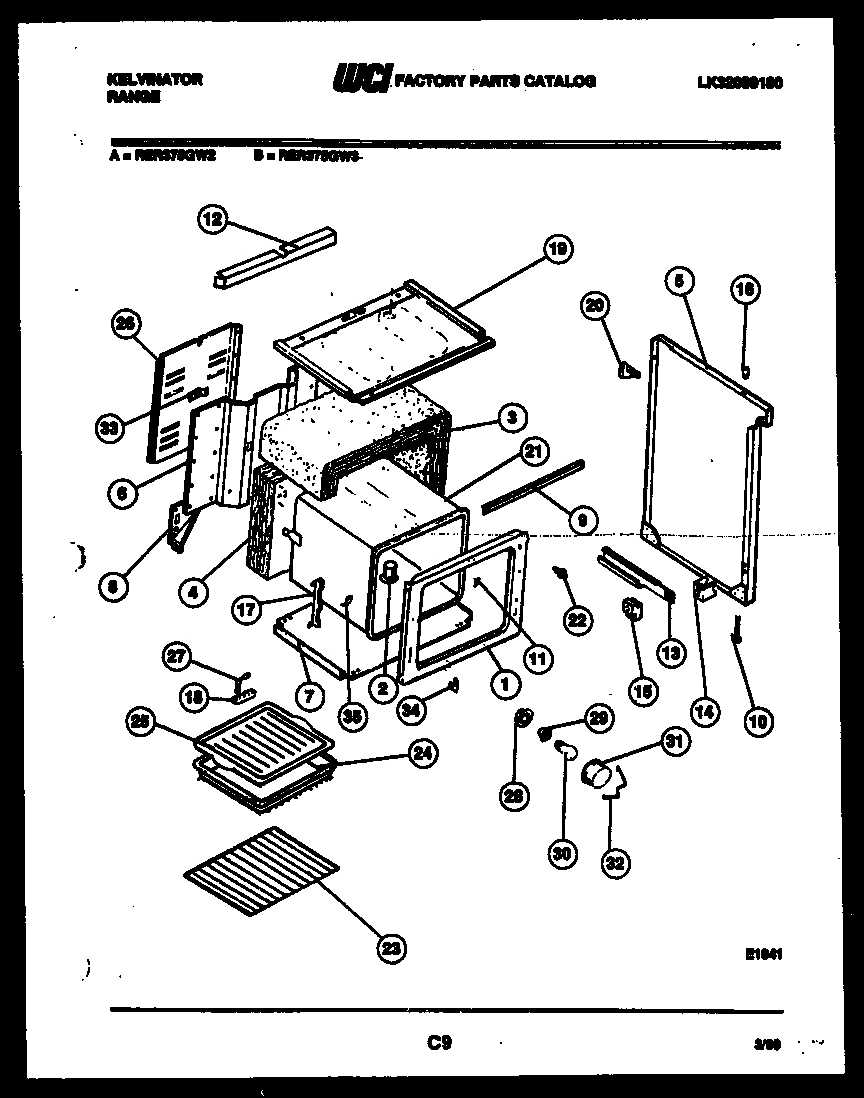

07 - BODY PARTS
Common parts from model Electrolux RER375GD2 RANGE
*11096
WCI 9126 WCI 9126 Contact Us For Availability
1
COOKTOP-ALMD WCI 98480004 Contact Us For Availability
1
HANDLE-ASSEMBLY WCI 3205317 Contact Us For Availability
1
BODY - DRAWER WCI 08011051 Contact Us For Availability
1
FRAME-FRONT WCI 5303207446 Contact Us For Availability
2
ROD COOKTOP WCI 3051554 Contact Us For Availability
2
PNL - DRAWER (ALMD) WCI K1325100 Contact Us For Availability
2
WCI 08012541 WCI 08012541 Contact Us For Availability
3
WCI 08005306 WCI 08005306 Contact Us For Availability
3
HINGE COOKTOP RH WCI 3051658 Contact Us For Availability
3
FRAME, DOOR WCI 3206077 Contact Us For Availability
3
HANDLE - DRAWER WCI 08014202 Contact Us For Availability
3
INSULATION - OVEN WRAP WCI 3051521 Contact Us For Availability
3A
HINGE-COOKTOP LH WCI K1315631 Contact Us For Availability
4
SIGNAL LIGHT - S/U WCI 3051676 Contact Us For Availability
4
RETAINER HINGE (2) WCI 3051745 Contact Us For Availability
4
WCI 3107200 WCI 3107200 Contact Us For Availability
4
INSULATION-OVEN BACK WCI 3051630 Contact Us For Availability
4A
SIGNAL LIGHT-OVEN WCI 3051678 Contact Us For Availability
5
LENS SIGNAL LIGHT (3) WCI K5139002 Contact Us For Availability
5
WCI 08003111 WCI 08003111 Contact Us For Availability
5
GUIDE-DRAWER (2) WCI K001324091 Contact Us For Availability
5
PNL-SIDE RH ALMD WCI 08012529 Contact Us For Availability
5A
PNL-SIDE LH ALMD WCI 08012530 Contact Us For Availability
6
SWITCH-OVEN SEL WCI 8016480 Contact Us For Availability
6
WCI 3205756 WCI 3205756 Contact Us For Availability
6
WCI K1325511 WCI K1325511 Contact Us For Availability
6
WCI 3205757 WCI 3205757 Contact Us For Availability
7
WCI 5303207468 WCI 5303207468 Contact Us For Availability
7
WCI 3017810 WCI 3017810 Contact Us For Availability
7
RETAINER-INNER GLASS WCI 3051575 Contact Us For Availability
7
WCI 3206275 WCI 3206275 Contact Us For Availability
8
PANEL - BACKSPLASH (ALMOND) WCI 3201461 Contact Us For Availability
8
SPACER (4) WCI 08012229 Contact Us For Availability
8
WCI 3017481 WCI 3017481 Contact Us For Availability
8A
WCI 3017482 WCI 3017482 Contact Us For Availability
9
KNOB (6) WCI 3015698 Contact Us For Availability
9
WCI 3206199 WCI 3206199 Contact Us For Availability
9
WCI 5303207391 WCI 5303207391 Contact Us For Availability
10
SEAL-GLASS WCI 3051574 Contact Us For Availability
10
WCI 3051675 WCI 3051675 Contact Us For Availability
10
SCREW-LEVELLING (4) WCI 3205294 Contact Us For Availability
10A
WCI 3051674 WCI 3051674 Contact Us For Availability
11
WCI 3051673 WCI 3051673 Contact Us For Availability
11
LINER-DOOR WCI 3205684 Contact Us For Availability
11
WCI 3202082 WCI 3202082 Contact Us For Availability
11A
WCI 3051672 WCI 3051672 Contact Us For Availability
12
BUMPER-WINDOW BOT (2) WCI 3131771 Contact Us For Availability
12
WCI 3205755 WCI 3205755 Contact Us For Availability
13
BUMPER-WINDOW TOP (2) WCI 3051841 Contact Us For Availability
13
WCI 08015746 WCI 08015746 Contact Us For Availability
13A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
14
GLASS - OUTER WCI 08012546 Contact Us For Availability
14
SPACER, DRWR RAIL (2) WCI 3051653 Contact Us For Availability
15
SCREW HANDLE (4) WCI 3051860 Contact Us For Availability
15
GUIDE - DRWR FR (2) WCI 3051654 Contact Us For Availability
16
BRACKET MOUNTING WCI K5127901 Contact Us For Availability
16
WCI 08003264 WCI 08003264 Contact Us For Availability
16
BUMPER - COOKTOP (4) WCI 08003107 Contact Us For Availability
17
TIMER WCI K5260301 Contact Us For Availability
17
HINGE-ASSY (2) WCI 3202037 Contact Us For Availability
17
HINGE - ASSY (2) WCI 3201631 Contact Us For Availability
18
KNOB-CLOCK (3) WCI K1167946 Contact Us For Availability
19
WCI 08003252 WCI 08003252 Contact Us For Availability
19
WCI 08012542 WCI 08012542 Contact Us For Availability
20
WCI 3205397 WCI 3205397 Contact Us For Availability
20
WCI 3204821 WCI 3204821 Contact Us For Availability
21
WCI 3206079 WCI 3206079 Contact Us For Availability
22
SWITCH, OVEN LIGHT WCI K1314211 Contact Us For Availability
24
WCI 3205232 WCI 3205232 Contact Us For Availability
25
GRILL - BROILER WCI 3205234 Contact Us For Availability
26
WCI 3051856 WCI 3051856 Contact Us For Availability
27
STRAP-GROUND WCI K1145190 Contact Us For Availability
28
WCI 3051511 WCI 3051511 Contact Us For Availability
30A
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
33
SPRING, OVEN WCI 3016281 Contact Us For Availability
34
WCI 3019063 WCI 3019063 Contact Us For Availability
35
WCI 3201632 WCI 3201632 Contact Us For Availability
× ![]()
