Model Electrolux RER355GD0 RANGE – Common Parts & Diagrams
02 - COOKTOP PARTS
03 - DOOR PARTS

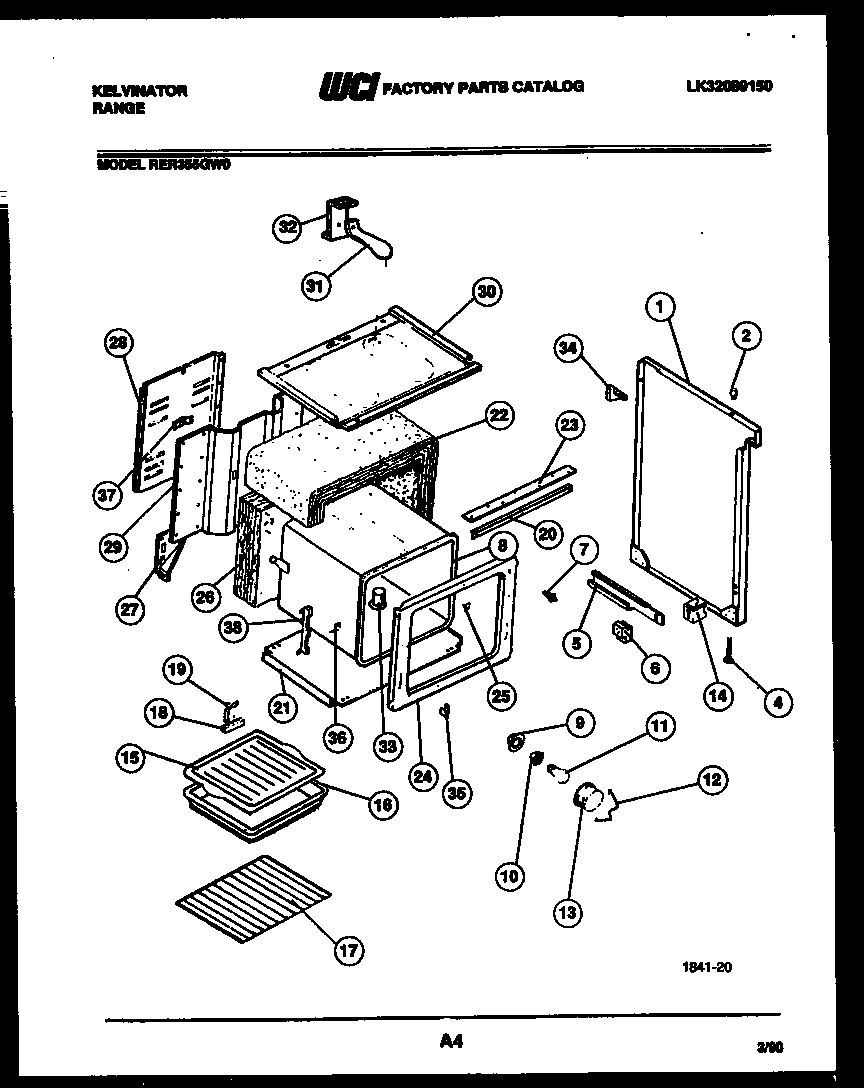

04 - BODY PARTS

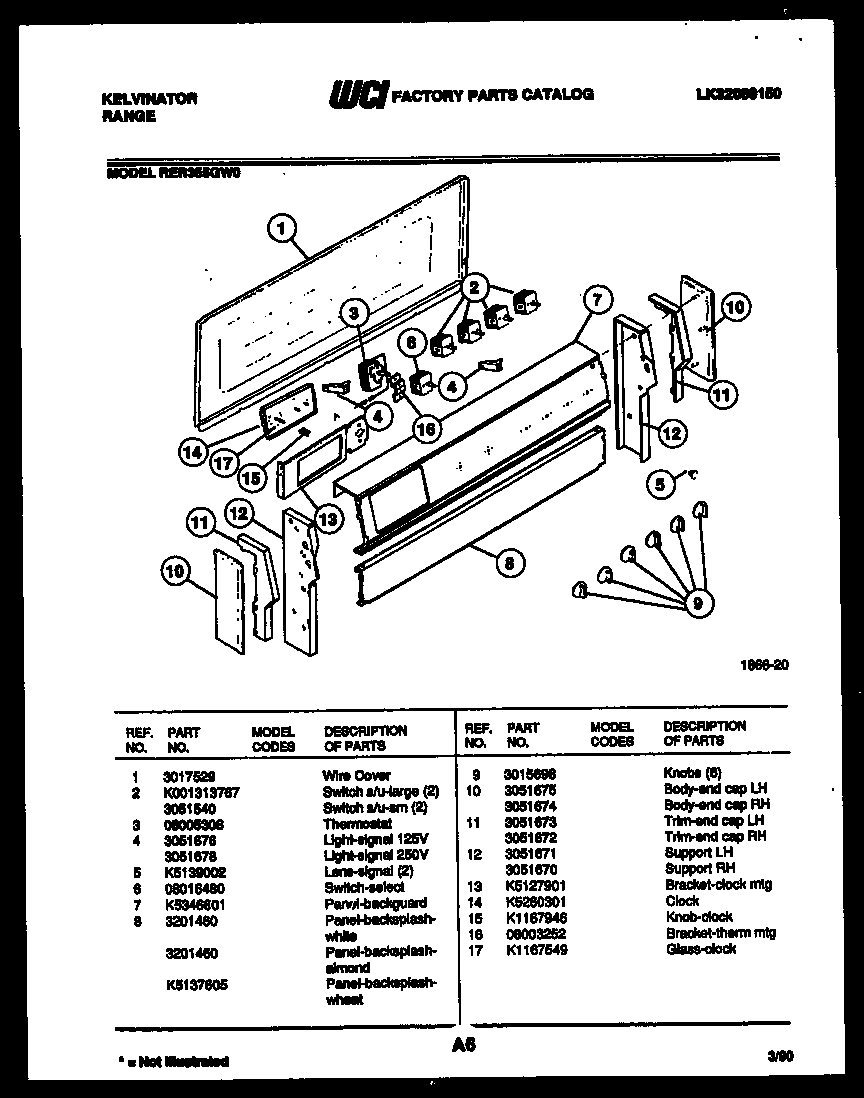

05 - BACKGUARD PARTS

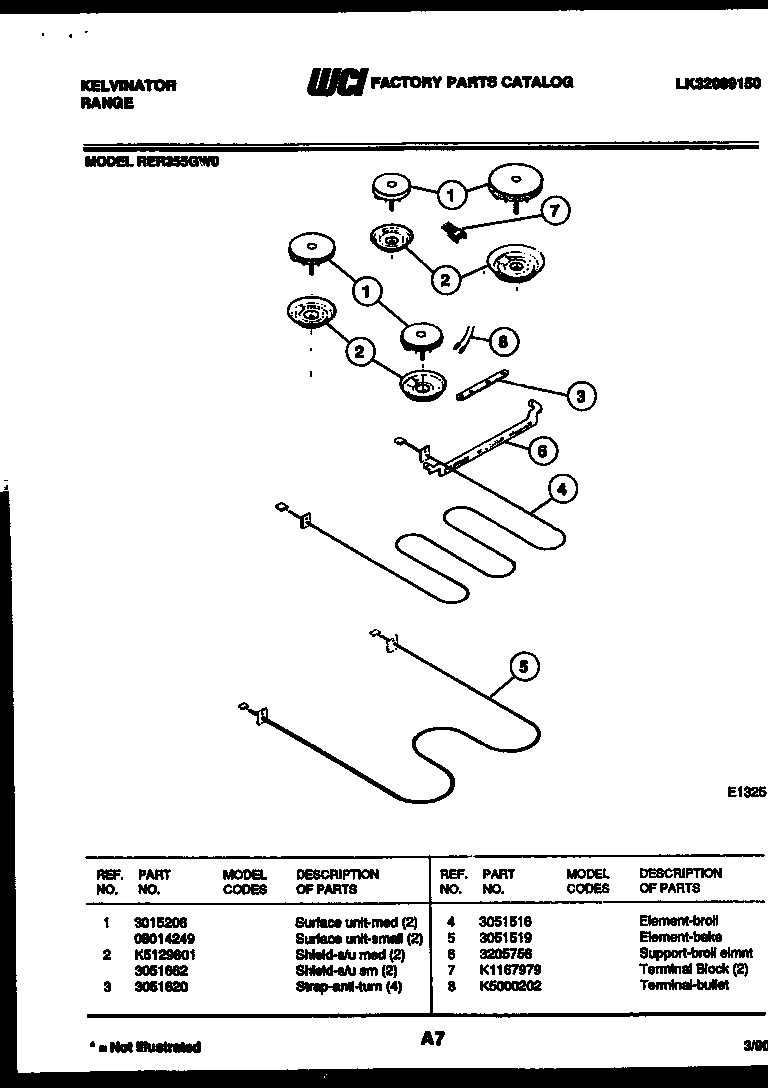

06 - BROILER PARTS

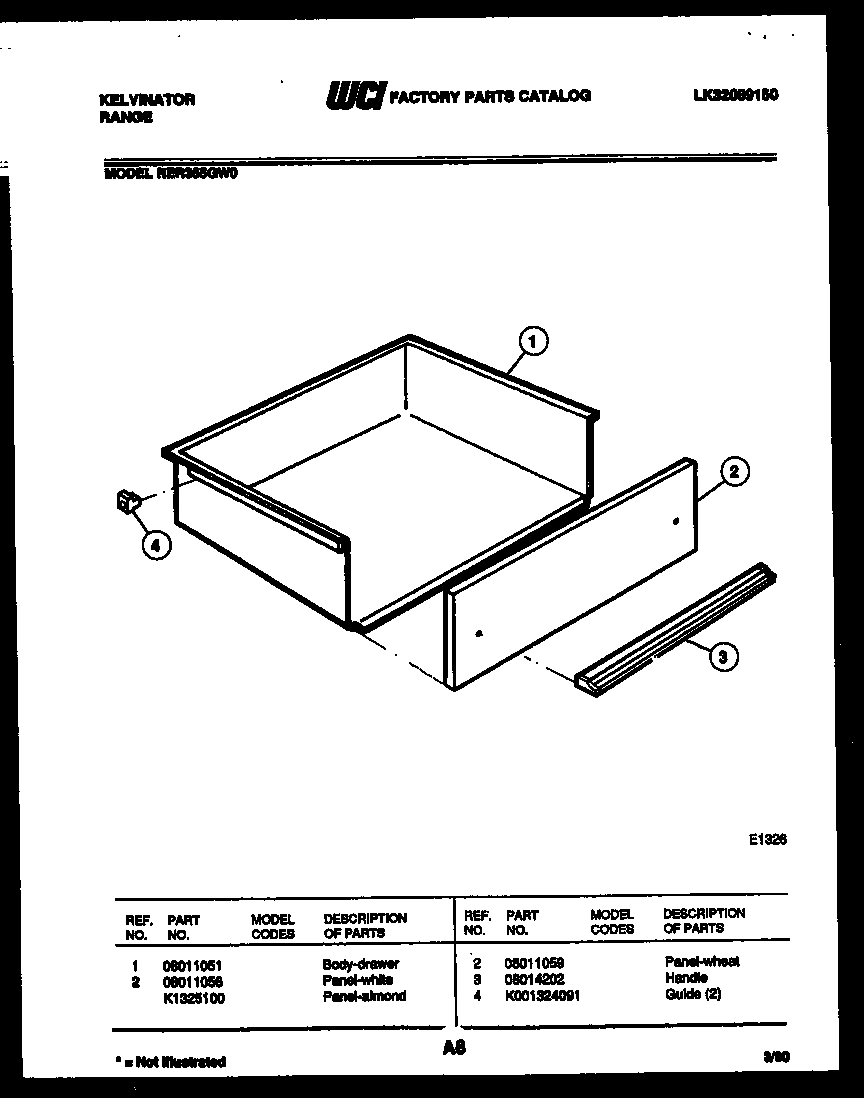

07 - DRAWER PARTS
Common parts from model Electrolux RER355GD0 RANGE
1
WCI 08012547 WCI 08012547 Contact Us For Availability
1
SIDE PANEL RH-ALMD WCI 08012529 Contact Us For Availability
1
WIRE COVER WCI 3017529 Contact Us For Availability
1
SURFACE UNIT MED (2) WCI 3015206 Contact Us For Availability
1
BODY - DRAWER WCI 08011051 Contact Us For Availability
1A
WCI 08012530 WCI 08012530 Contact Us For Availability
1A
SURFACE UNIT-SMALL (2) WCI 08014249 Contact Us For Availability
2
WCI K1315631 WCI K1315631 Contact Us For Availability
2
WCI 3206077 WCI 3206077 Contact Us For Availability
2
BUMPER-COOKTOP (2) WCI 08003107 Contact Us For Availability
2
SHIELD-S/U MED (2) WCI K5129601 Contact Us For Availability
2
WCI K1325100 WCI K1325100 Contact Us For Availability
2A
WCI 3051658 WCI 3051658 Contact Us For Availability
2A
SHIELD-S/U SM (2) WCI 3051662 Contact Us For Availability
3
RETAINER HINGE (2) WCI 3051745 Contact Us For Availability
3
BUMPER-WDO BOT (2) WCI 3131771 Contact Us For Availability
3
WCI 08005306 WCI 08005306 Contact Us For Availability
3
STRAP, ANTI TURN (4) WCI 3051620 Contact Us For Availability
3
WCI 08014202 WCI 08014202 Contact Us For Availability
4
TRIM-VENT WCI 08014262 Contact Us For Availability
4
BUMPER-WDO TOP (2) WCI 3051841 Contact Us For Availability
4
LEG-LEVELLER (2) WCI 3205294 Contact Us For Availability
4
LIGHT-SIGNAL 125V WCI 3051676 Contact Us For Availability
4
GUIDE (2) WCI K001324091 Contact Us For Availability
4A
LIGHT-SIGNAL 250V WCI 3051678 Contact Us For Availability
5
SEAL WCI 3206199 Contact Us For Availability
5
WCI 08015746 WCI 08015746 Contact Us For Availability
5
LENS-SIGNAL (2) WCI K5139002 Contact Us For Availability
5A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
6
GASKET WCI 3051666 Contact Us For Availability
6
HANDLE ASSY WCI 3205317 Contact Us For Availability
6
GUIDE-DRAWER, FRONT WCI 3051654 Contact Us For Availability
6
SWITCH - SELECT WCI 08016480 Contact Us For Availability
6
SUPPORT-BROIL ELMNT WCI 3205756 Contact Us For Availability
7
SWITCH, OVEN LIGHT WCI K1314211 Contact Us For Availability
7
WCI K5346601 WCI K5346601 Contact Us For Availability
7
TERMINAL BLOCK (2) WCI K1167979 Contact Us For Availability
8
WCI 3206079 WCI 3206079 Contact Us For Availability
8
PANEL-BACKSPLASH-ALMOND WCI 3201460 Contact Us For Availability
8
WCI K5000202 WCI K5000202 Contact Us For Availability
9
WCI 3051511 WCI 3051511 Contact Us For Availability
9
WCI 3017393 WCI 3017393 Contact Us For Availability
9
KNOBS (6) WCI 3015698 Contact Us For Availability
10
WCI 5303207447 WCI 5303207447 Contact Us For Availability
10
WCI 3051675 WCI 3051675 Contact Us For Availability
10A
WCI 3051674 WCI 3051674 Contact Us For Availability
11
WCI 08003264 WCI 08003264 Contact Us For Availability
11
WCI 3051673 WCI 3051673 Contact Us For Availability
11A
WCI 3051672 WCI 3051672 Contact Us For Availability
12
SCREW-HANDLE WCI 3051860 Contact Us For Availability
12
RETAINER - LENS WCI 3205904 Contact Us For Availability
12
SUPPORT LH WCI 3051671 Contact Us For Availability
12A
SUPPORT RH WCI 3051670 Contact Us For Availability
13
WCI 08012229 WCI 08012229 Contact Us For Availability
13
BRACKET-CLOCK MTG WCI K5127901 Contact Us For Availability
14
SPACER, DRWR RAIL (2) WCI 3051653 Contact Us For Availability
14
WCI K5260301 WCI K5260301 Contact Us For Availability
15
WCI 3205234 WCI 3205234 Contact Us For Availability
15
KNOB-CLOCK WCI K1167946 Contact Us For Availability
16
WCI 3205232 WCI 3205232 Contact Us For Availability
16
WCI 08003252 WCI 08003252 Contact Us For Availability
17
GLASS CLOCK WCI K1167549 Contact Us For Availability
19
STRAP-GROUND WCI K1145190 Contact Us For Availability
20
WCI 5303207391 WCI 5303207391 Contact Us For Availability
21
WCI 3206275 WCI 3206275 Contact Us For Availability
22
INSULATION WRAP WCI 3051521 Contact Us For Availability
23
WCI 5303207389 WCI 5303207389 Contact Us For Availability
24
FRAME-FRONT WCI 5303207446 Contact Us For Availability
25
WCI 3202082 WCI 3202082 Contact Us For Availability
26
INSULATION-BACK WCI 3051630 Contact Us For Availability
27
WCI 3017481 WCI 3017481 Contact Us For Availability
27A
WCI 3017482 WCI 3017482 Contact Us For Availability
28
WCI 3051856 WCI 3051856 Contact Us For Availability
29
WCI 3205757 WCI 3205757 Contact Us For Availability
30
WCI K005025704 WCI K005025704 Contact Us For Availability
31
WCI 3051655 WCI 3051655 Contact Us For Availability
32
BRACKET-VENT WCI 3051656 Contact Us For Availability
33
VENT TUBE WCI 3051742 Contact Us For Availability
34
WCI 3204821 WCI 3204821 Contact Us For Availability
35
WCI 3019063 WCI 3019063 Contact Us For Availability
35A
CLIP-CAPILLARY (2) (NON-ILLUSTRATED) WCI 9126 Contact Us For Availability
35B
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
36
WCI 3201632 WCI 3201632 Contact Us For Availability
37
WCI 3016281 WCI 3016281 Contact Us For Availability
38
HINGE - ASSY (2) WCI 3201631 Contact Us For Availability
× ![]()
