Model Electrolux RER355DW2 RANGE – Common Parts & Diagrams
02 - COOKTOP PARTS
03 - DOOR PARTS

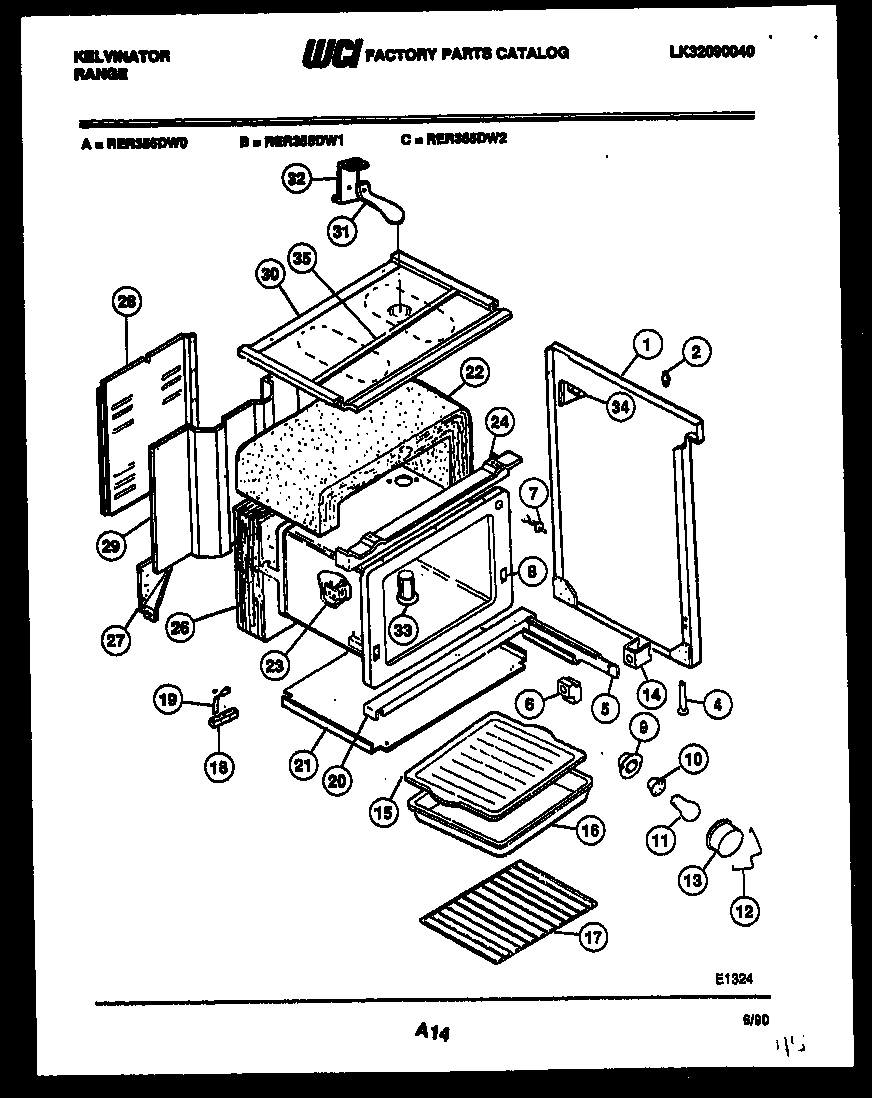

04 - BODY PARTS

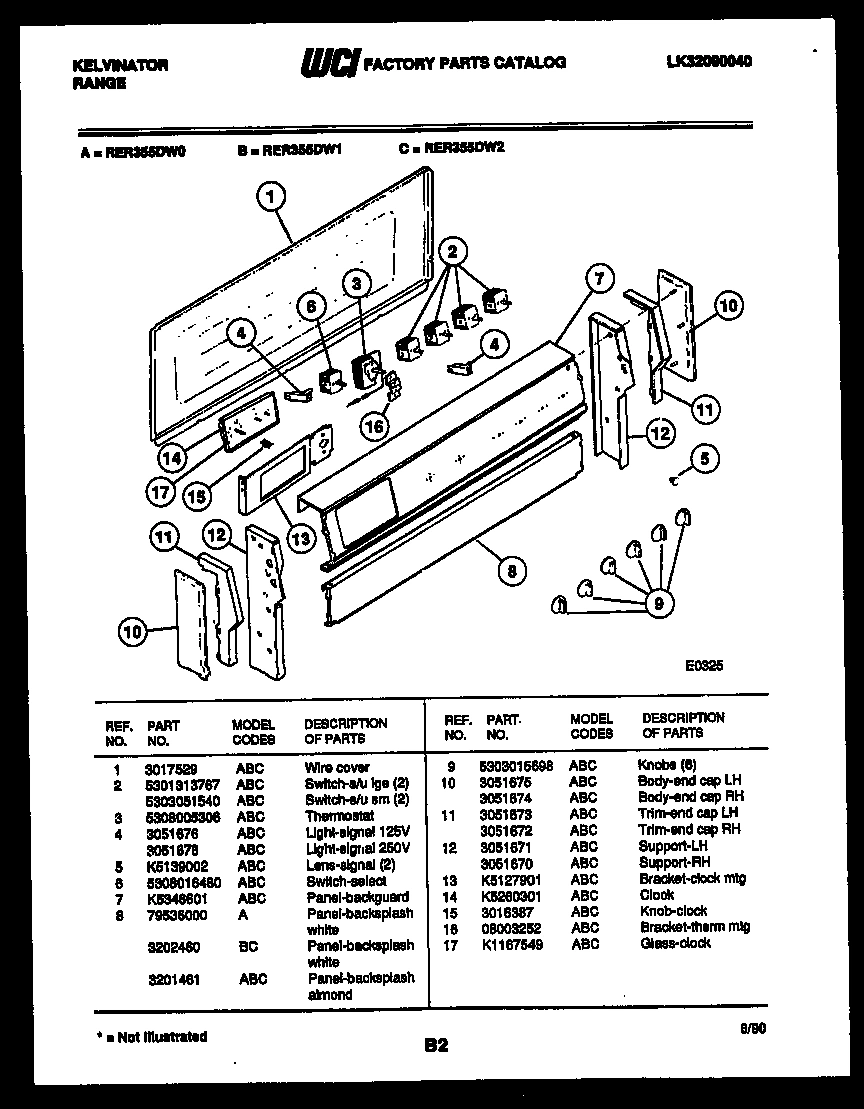

05 - BACKGUARD PARTS

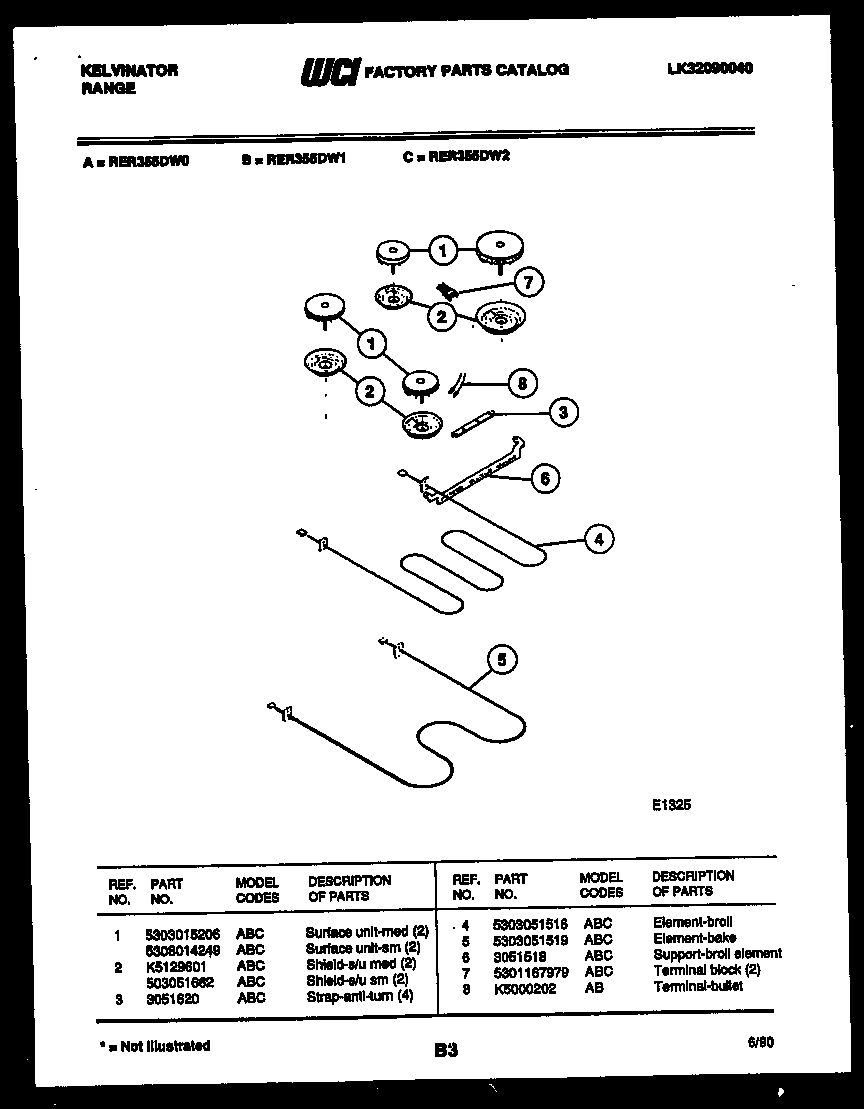

06 - BROILER PARTS

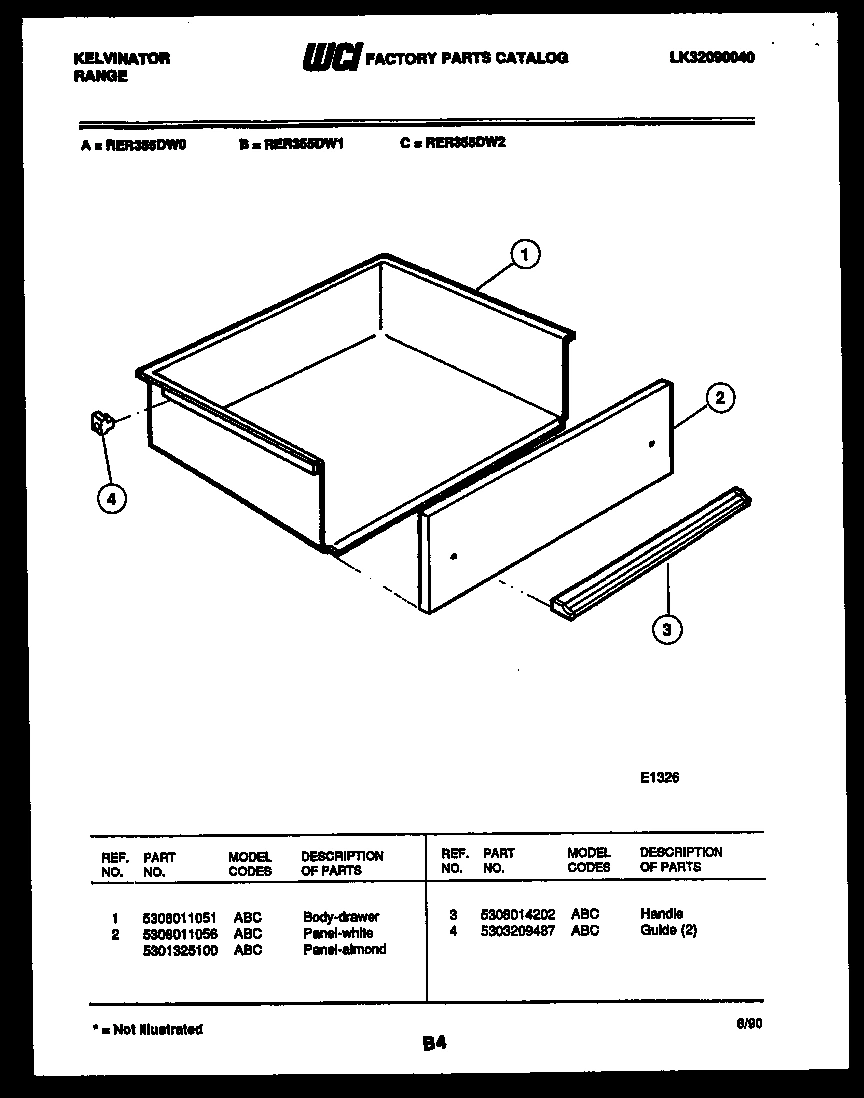

07 - DRAWER PARTS
Common parts from model Electrolux RER355DW2 RANGE
1
SIDE PANEL, RH WHITE WCI 5308012527 Contact Us For Availability
1
SIDE PANEL, LH WHITE WCI 5308012528 Contact Us For Availability
1
WIRE COVER WCI 3017529 Contact Us For Availability
1
SURFACE UNIT MED (2) WCI 5303015206 Contact Us For Availability
1
WCI 5308011051 WCI 5308011051 Contact Us For Availability
1A
SURFACE UNIT SM (2) WCI 5308014249 Contact Us For Availability
2
BUMPER, COOKTOP (2) WCI 5308003107 Contact Us For Availability
2
SHIELD-S/U MED (2) WCI K5129601 Contact Us For Availability
2
PANEL, WHITE WCI 5308011056 Contact Us For Availability
2A
WCI 503051662 WCI 503051662 Contact Us For Availability
3
THERMOSTAT WCI 5308005306 Contact Us For Availability
3
STRAP, ANTI TURN (4) WCI 3051620 Contact Us For Availability
3
WCI 5308014202 WCI 5308014202 Contact Us For Availability
4
GUIDE (2) WCI 5303209487 Contact Us For Availability
4
LEG, LEVELLER (4) WCI 3205294 Contact Us For Availability
4
LIGHT-SIGNAL 125V WCI 3051676 Contact Us For Availability
4A
LIGHT-SIGNAL 250V WCI 3051678 Contact Us For Availability
5
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
5
WCI 5308015746 WCI 5308015746 Contact Us For Availability
5
LENS-SIGNAL (2) WCI K5139002 Contact Us For Availability
6
SWITCH - SELECT WCI 5308016480 Contact Us For Availability
6
HANDLE ASSY WCI 5303207187 Contact Us For Availability
6
GUIDE-DRAWER, FRONT WCI 3051654 Contact Us For Availability
6
SUPPORT BROIL ELEMENT WCI 3051518 Contact Us For Availability
7
WCI 5301314211 WCI 5301314211 Contact Us For Availability
7
STANCHION-HANDLE (2) WCI K5132701 Contact Us For Availability
7
WCI K5346601 WCI K5346601 Contact Us For Availability
7
WCI 5301167979 WCI 5301167979 Contact Us For Availability
8
GRIP-HANDLE WCI 08015924 Contact Us For Availability
8
LINER, OVEN WCI 3205131 Contact Us For Availability
8
PANEL-BACKSPLASH WHITE WCI 3202460 Contact Us For Availability
9
WCI 3051511 WCI 3051511 Contact Us For Availability
9
KNOBS (6) WCI 5303015698 Contact Us For Availability
9
LINER, DOOR WCI 5303017393 Contact Us For Availability
10
CHANNEL ASSY (2) WCI 5303051822 Contact Us For Availability
10
WCI 3051675 WCI 3051675 Contact Us For Availability
10A
WCI 3051674 WCI 3051674 Contact Us For Availability
11
WCI 08003264 WCI 08003264 Contact Us For Availability
11
WCI 3051673 WCI 3051673 Contact Us For Availability
11A
WCI 3051672 WCI 3051672 Contact Us For Availability
12
SCREW-HANDLE WCI 5303051860 Contact Us For Availability
12
RETAINER-LENS WCI 5303205904 Contact Us For Availability
12
SUPPORT LH WCI 3051671 Contact Us For Availability
12A
SUPPORT RH WCI 3051670 Contact Us For Availability
13
HINGE ARM ASSY (2) WCI 5308003183 Contact Us For Availability
13
BRACKET-CLOCK MTG WCI K5127901 Contact Us For Availability
14
SPACER, DRAWER RAIL (2) WCI 3051653 Contact Us For Availability
14
WCI K5260301 WCI K5260301 Contact Us For Availability
15
RIVET-SQUARE HEAD WCI 5303051567 Contact Us For Availability
15
WCI 3205234 WCI 3205234 Contact Us For Availability
15
KNOB - CLOCK WCI 3016387 Contact Us For Availability
16
PIN-HINGE WCI 5308012004 Contact Us For Availability
16
WCI 3205539 WCI 3205539 Contact Us For Availability
16
WCI 08003252 WCI 08003252 Contact Us For Availability
17
ROLLER PKG (2) WCI 5301167752 Contact Us For Availability
17
GLASS CLOCK WCI K1167549 Contact Us For Availability
18
SPACER-DOOR WCI 5301324812 Contact Us For Availability
19
WCI 5301145190 WCI 5301145190 Contact Us For Availability
20
CHANNEL-OV SUPPORT WCI 3200927 Contact Us For Availability
21
WCI 3206275 WCI 3206275 Contact Us For Availability
22
INSULATION WRAP WCI 3051521 Contact Us For Availability
23
BRACKET - THERMO BULB WCI 3051552 Contact Us For Availability
24
CHANNEL-OV SUPPORT WCI 3203209 Contact Us For Availability
26
WCI 5303051630 WCI 5303051630 Contact Us For Availability
27
WCI 3017481 WCI 3017481 Contact Us For Availability
27
WCI 3017482 WCI 3017482 Contact Us For Availability
28
WIRE, COVER WCI 5303051856 Contact Us For Availability
29
WCI 5303017535 WCI 5303017535 Contact Us For Availability
30
WCI K005025704 WCI K005025704 Contact Us For Availability
31
WCI 3051655 WCI 3051655 Contact Us For Availability
32
BRACKET-VENT WCI 3051656 Contact Us For Availability
33
VENT TUBE WCI 3051742 Contact Us For Availability
34
GUSSET-BACKGUARD (2) WCI 3051657 Contact Us For Availability
35
WCI 08014243 WCI 08014243 Contact Us For Availability
× ![]()
