Model Electrolux RER306CV0 RANGE – Common Parts & Diagrams

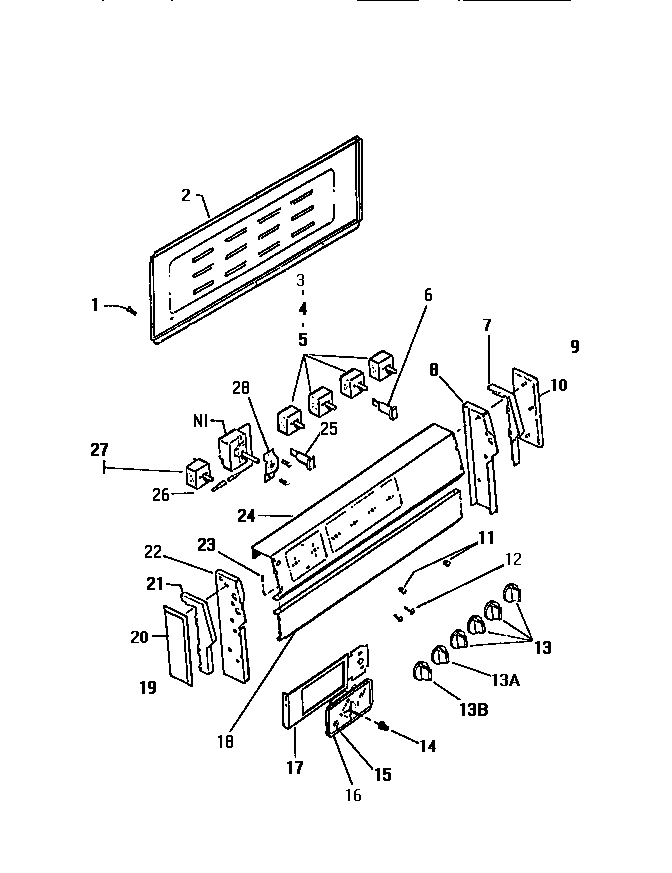

02 - BACKGUARD

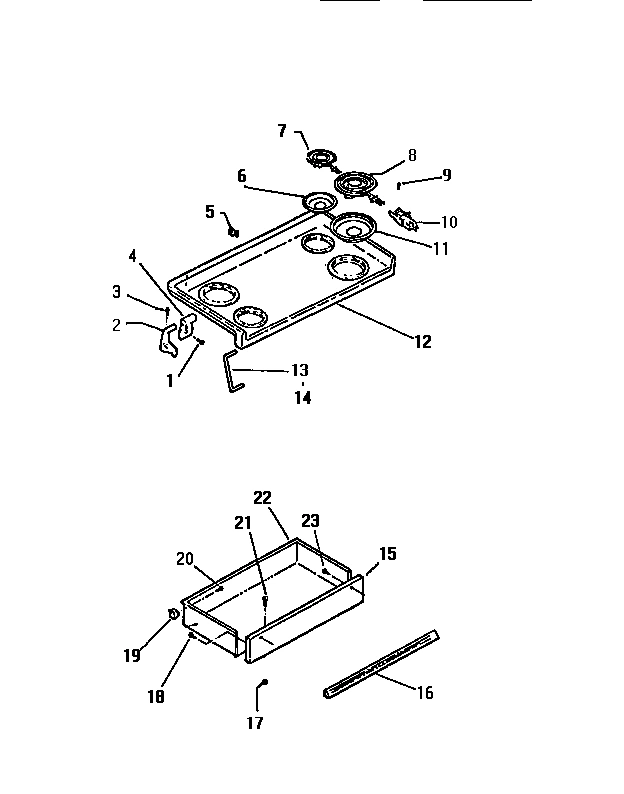

03 - TOP DRAWER

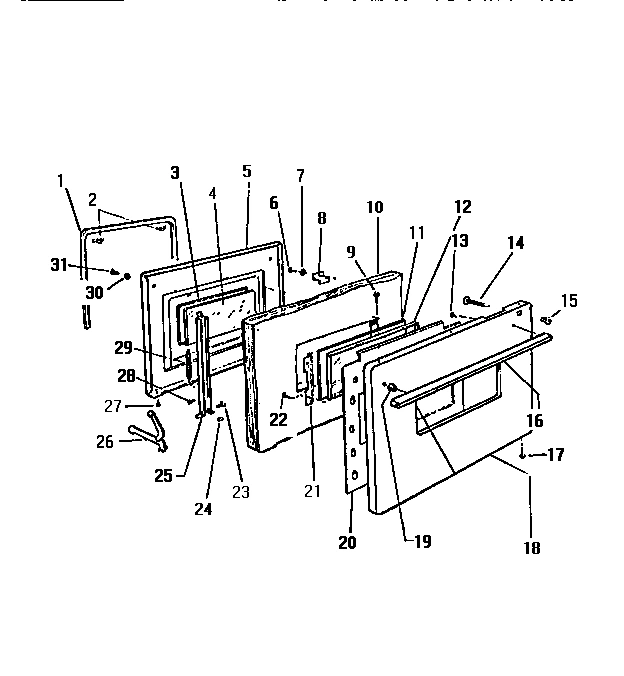

04 - DOOR

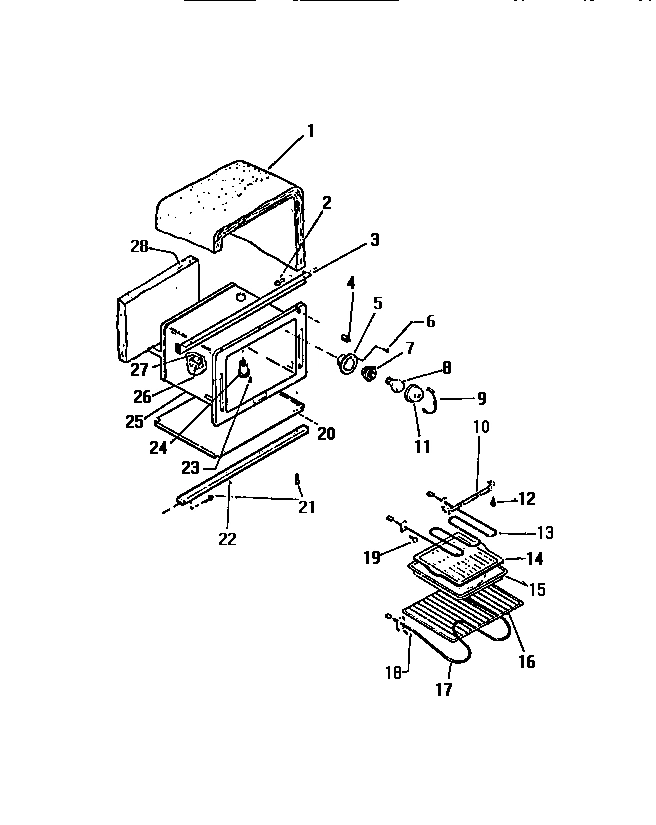

05 - OVEN CAVITY

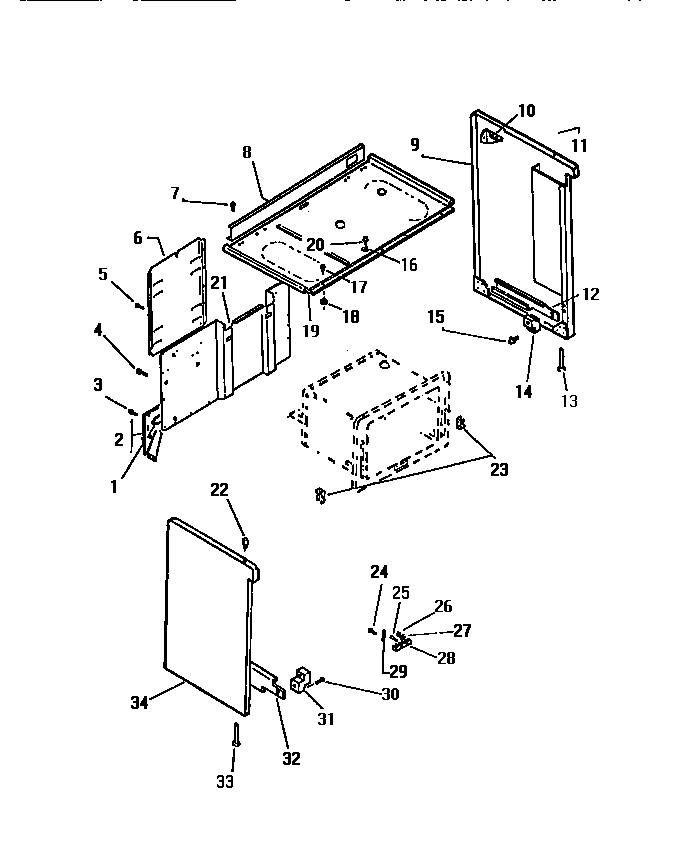

06 - CABINET
Common parts from model Electrolux RER306CV0 RANGE
*05160
SCREW (2) THERMO MTG AND CLOCK MTG BRKT TO BA WCI K1313060 Contact Us For Availability
1
GASKET (COMPLETE WITH CLIPS) WCI K1312480 Contact Us For Availability
1
WCI K1311329 WCI K1311329 Contact Us For Availability
1
WCI K1307086 WCI K1307086 Contact Us For Availability
2
WCI K1315111 WCI K1315111 Contact Us For Availability
2
WCI K1315631 WCI K1315631 Contact Us For Availability
2
CLIP, DOOR GASKET WCI K1309666 Contact Us For Availability
2
WCI K1325113 WCI K1325113 Contact Us For Availability
2A
WCI K1325114 WCI K1325114 Contact Us For Availability
3
WCI K1325686 WCI K1325686 Contact Us For Availability
3
CHANNEL-OVEN SUPT WCI K1325635 Contact Us For Availability
4
WCI K1315632 WCI K1315632 Contact Us For Availability
4
WCI K1325511 WCI K1325511 Contact Us For Availability
4
SWITCH, OVEN LIGHT WCI K5294301 Contact Us For Availability
4A
WASHER - FLAT WCI K1099962 Contact Us For Availability
5
WCI K1315541 WCI K1315541 Contact Us For Availability
5
PANEL ID (BRZTN) WCI K1325501 Contact Us For Availability
5
CUP, OVEN LT WCI K1325530 Contact Us For Availability
6
SIG LIGHT PKG, 125V SU WITH LENS WCI K5138903 Contact Us For Availability
6
WCI K5276202 WCI K5276202 Contact Us For Availability
7
TRIM, END CAP, R.H. WCI G5128105 Contact Us For Availability
8
SUPPORT RH WCI K5127701 Contact Us For Availability
8
RETAINER, INNER GLASS, ( 4 REQ ) WCI K1325510 Contact Us For Availability
8
SHIELD, WIRING WCI K5287902 Contact Us For Availability
9
NUT HEXT (6) END CAP BODY TO BACKGUARD SUPT WCI K5036602 Contact Us For Availability
9
RETAINING WIRE, RETAINER-LENS WCI K1325529 Contact Us For Availability
9D
WCI K5024807 WCI K5024807 Contact Us For Availability
10
WCI K5128001 WCI K5128001 Contact Us For Availability
10
INSULATION WCI K1325629 Contact Us For Availability
10
HANGER BROIL UNIT WCI K1314456 Contact Us For Availability
10
WCI K1315230 WCI K1315230 Contact Us For Availability
11
WCI K1325512 WCI K1325512 Contact Us For Availability
11
WCI K5106901 WCI K5106901 Contact Us For Availability
12
WCI K5139002 WCI K5139002 Contact Us For Availability
12
COOKTOP, AVOCADO WCI K5270110 Contact Us For Availability
12
J MOULDING WCI K1313568 Contact Us For Availability
12
WCI K5269901 WCI K5269901 Contact Us For Availability
13
WCI K1315232 WCI K1315232 Contact Us For Availability
13
SCREW, LEVELING WCI K1322905 Contact Us For Availability
14
KNOB OVEN SELECTOR WCI K5158301 Contact Us For Availability
14
RETAINER SUPT. ROD WCI K1310049 Contact Us For Availability
14
PLUNGER, LIGHT SWITCH WCI K1313983 Contact Us For Availability
14
GRILLE BROILER (PORCELAIN GRAY) WCI K1313049 Contact Us For Availability
15
GLASS CLOCK WCI K1167549 Contact Us For Availability
15
COLLAR WCI K1310071 Contact Us For Availability
15C
COOKTOP, AVOCADO WCI K1325098 Contact Us For Availability
16
WCI K5260301 WCI K5260301 Contact Us For Availability
16
HANDLE, OVEN DOOR WCI K1325038 Contact Us For Availability
16
WASHER ASBESTOS PAD WCI K1313226 Contact Us For Availability
16
WCI K1311570 WCI K1311570 Contact Us For Availability
17
BRKT MOUNTING WCI K5127901 Contact Us For Availability
17
WCI KGM159909 WCI KGM159909 Contact Us For Availability
18B
PANEL EXT.-OVEN DOOR, AVOCADO WCI K1325496 Contact Us For Availability
18C
WCI K5137604 WCI K5137604 Contact Us For Availability
19
WCI K1309062 WCI K1309062 Contact Us For Availability
19
PANAL SUB TOP WCI K5025802 Contact Us For Availability
20
PANEL, AIRWASH WCI K1325509 Contact Us For Availability
20
WCI K1315107 WCI K1315107 Contact Us For Availability
21
RETAINER, OUTER GLASS (2 REQ) WCI K1325270 Contact Us For Availability
21
WCI K5275802 WCI K5275802 Contact Us For Availability
22
BODY DRAWER ASSEMBLY LESS PANEL WCI K1324096 Contact Us For Availability
22
CHANNEL, OVEN SUPPORT WCI K1315108 Contact Us For Availability
22
BUMPER COOKTOP WCI K1307110 Contact Us For Availability
23
SCREW WCI K5022201 Contact Us For Availability
23
PIN HINGE SQ HEAD (2) WCI K5038501 Contact Us For Availability
23
SCREW VENT MTG (2) WCI K1164309 Contact Us For Availability
23
SPACER DRAWER RAIL WCI K1324860 Contact Us For Availability
24
ROLLER KIT COMPLETE (PKG OF TWO) WCI K1309794 Contact Us For Availability
24
VENT TUBE WCI K5025501 Contact Us For Availability
25
CHANNEL ASSEMBLY (2 REQ) WCI K1311514 Contact Us For Availability
25
SCREW WCI K1164479 Contact Us For Availability
25
OVEN LINER ASSEMBLY (GRAY) WCI K1325538 Contact Us For Availability
26
HINGE ARM ASSEMBLY (2 REQ) WCI K1310065 Contact Us For Availability
26
BRKT, THERMOBULB WCI K1311369 Contact Us For Availability
26
NUT WCI K1266 Contact Us For Availability
27
WCI K1312074 WCI K1312074 Contact Us For Availability
28
RIVET (2 REQ) WCI K1100773 Contact Us For Availability
28
WCI K1325625 WCI K1325625 Contact Us For Availability
29
SPRING (2 REQ) WCI K1302505 Contact Us For Availability
29
STRAP-GROUND WCI K1145190 Contact Us For Availability
30
SCREW GUIDE MTG WCI K1164569 Contact Us For Availability
31
WCI K1315216 WCI K1315216 Contact Us For Availability
31
WCI K1164550 WCI K1164550 Contact Us For Availability
32
WCI K5269902 WCI K5269902 Contact Us For Availability
33
SCREW LEVELING WCI K1322906 Contact Us For Availability
× ![]()
