Model Electrolux RER305CA2 RANGE – Common Parts & Diagrams

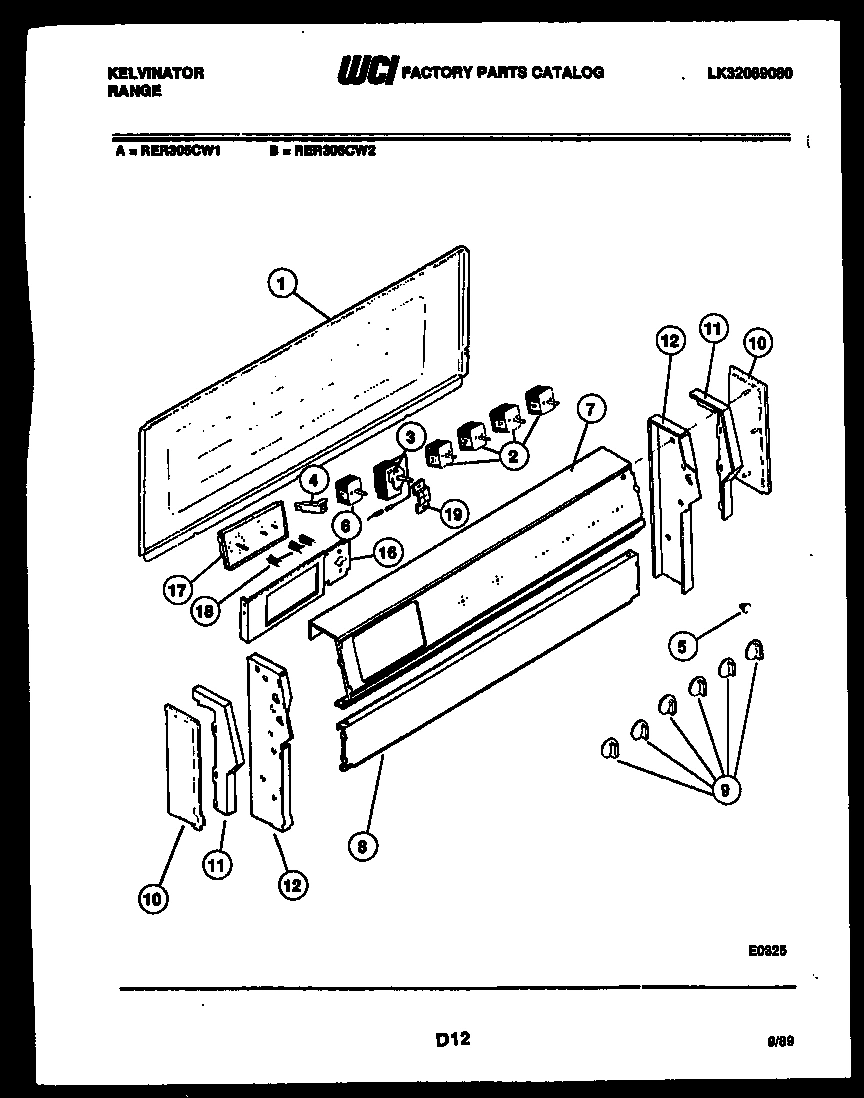

02 - BACKGUARD PARTS

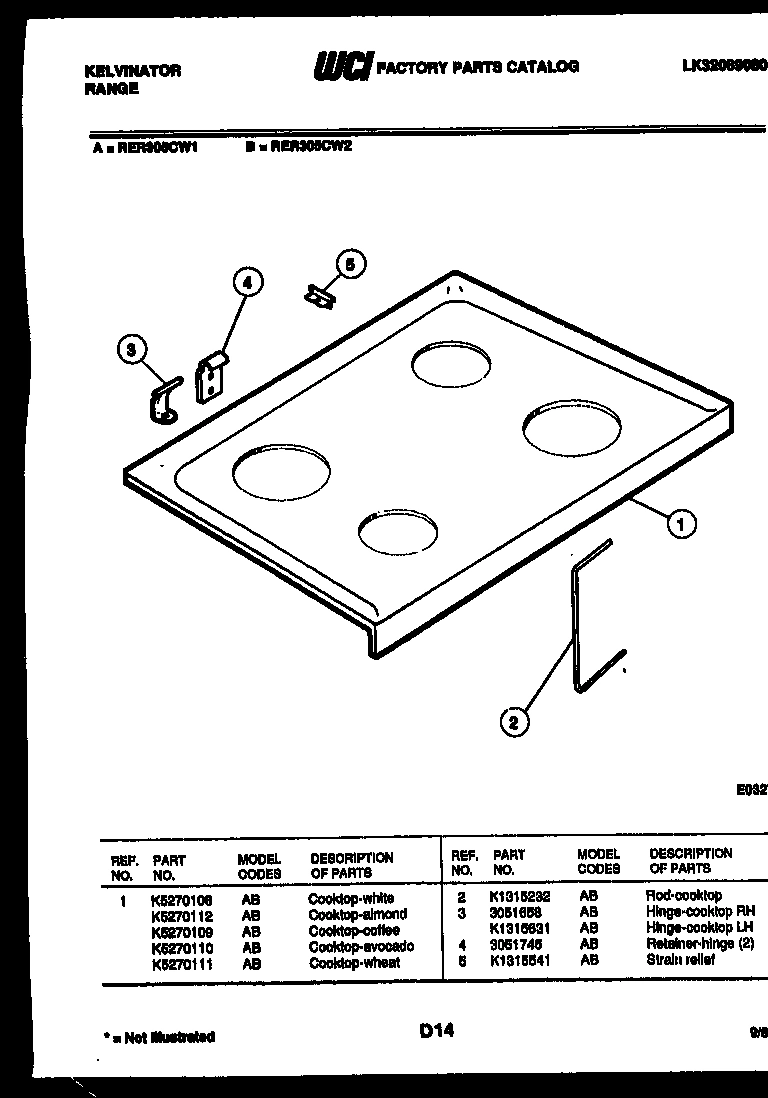

03 - COOKTOP PARTS

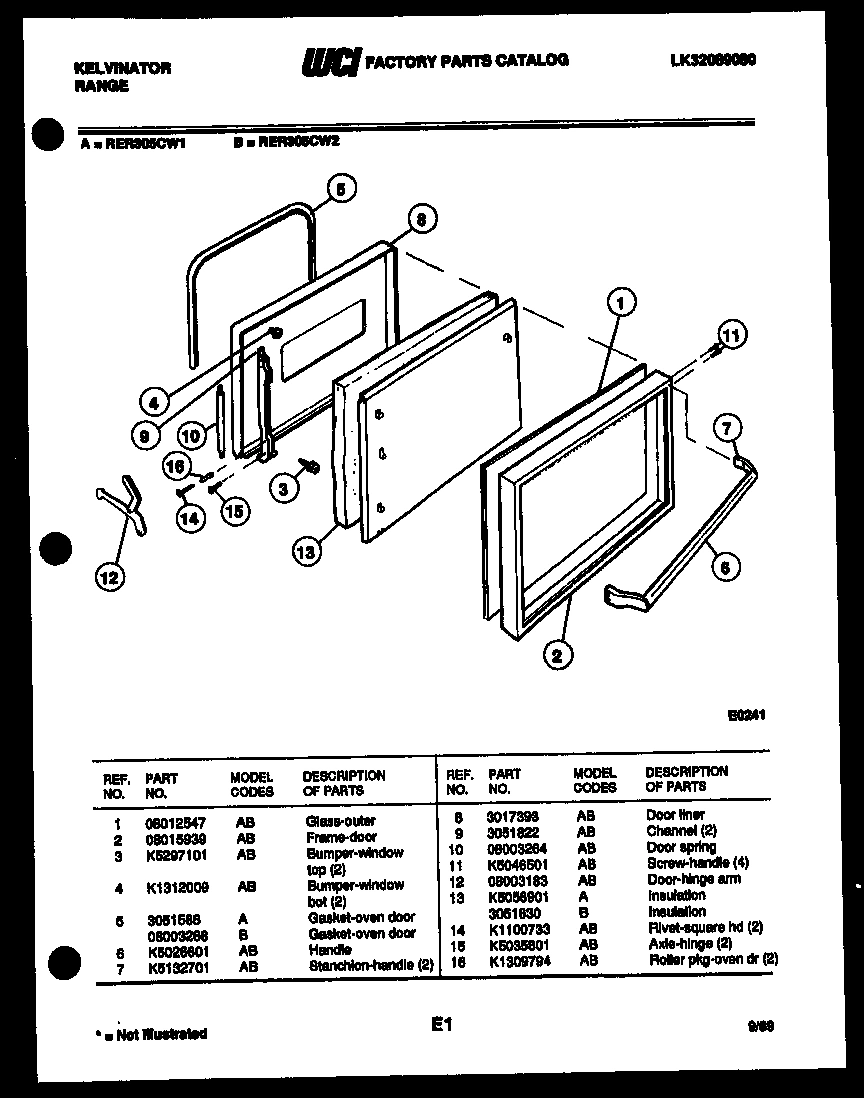

04 - DOOR PARTS

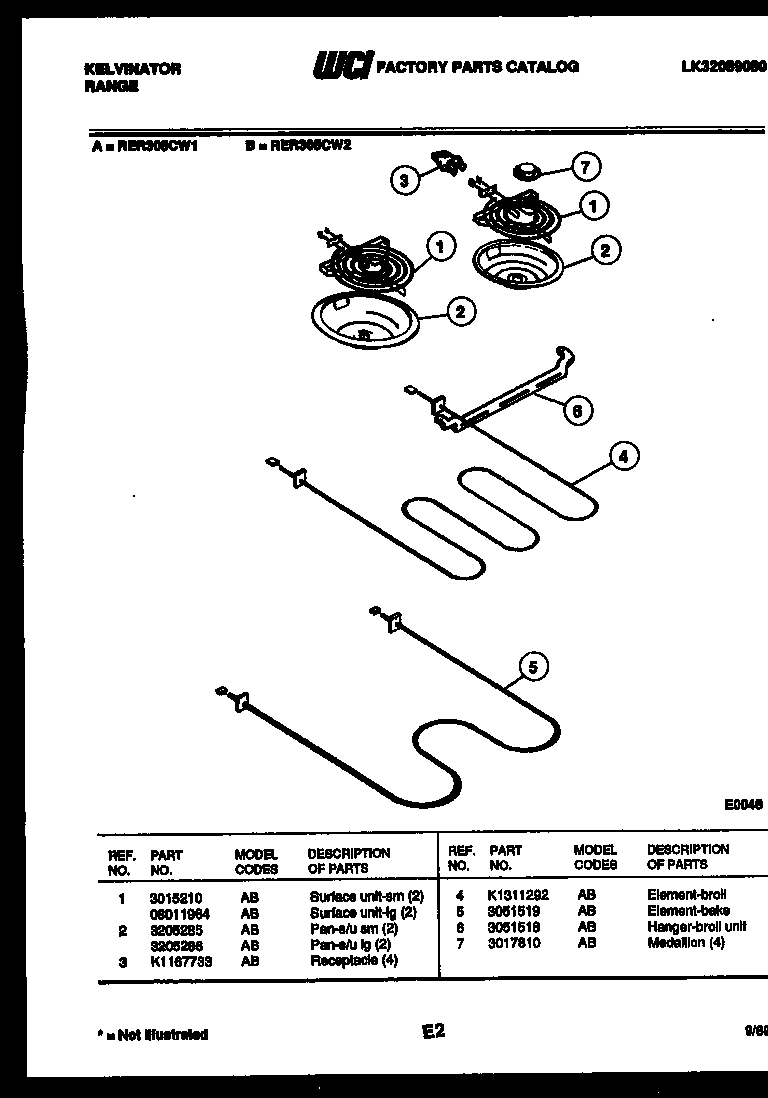

05 - BROILER PARTS

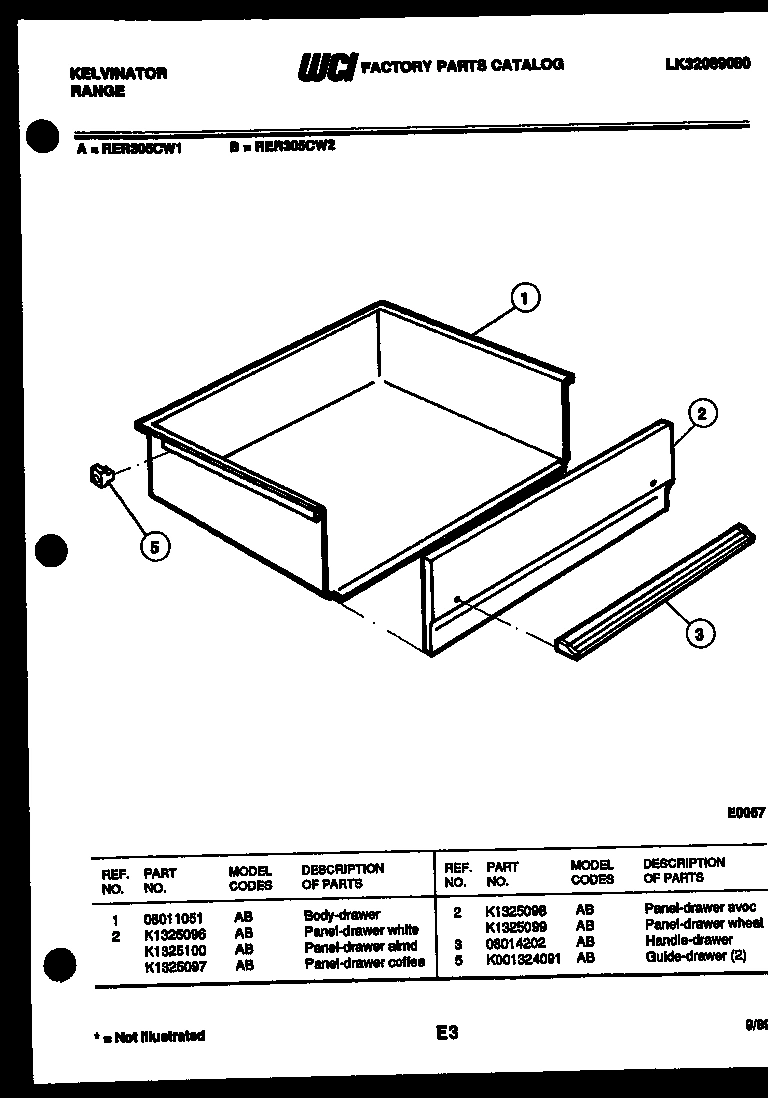

06 - DRAWER PARTS

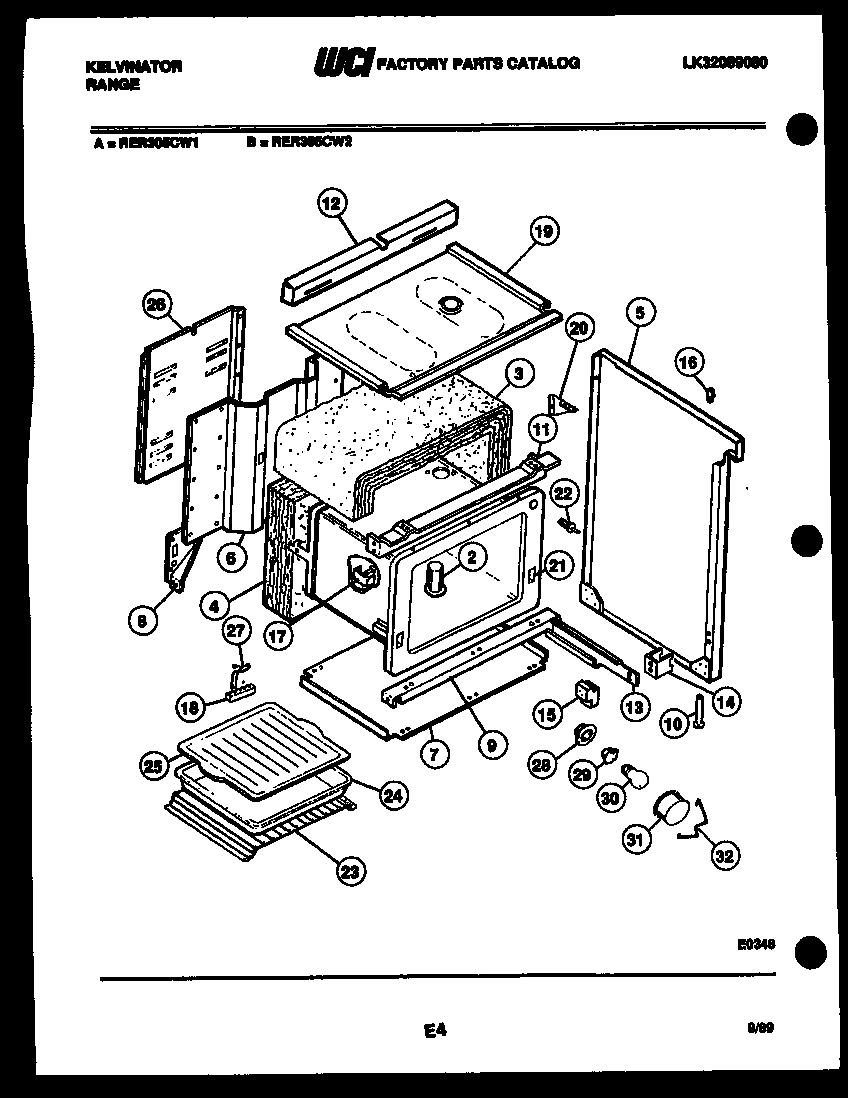

07 - BODY PARTS
Common parts from model Electrolux RER305CA2 RANGE
*18001
WCI 3934063 WCI 3934063 Contact Us For Availability
1
WCI 3017529 WCI 3017529 Contact Us For Availability
1
COOKTOP, AVOCADO WCI K5270110 Contact Us For Availability
1
WCI 08012547 WCI 08012547 Contact Us For Availability
1
BODY - DRAWER WCI 08011051 Contact Us For Availability
2
ROD, COOKTOP WCI K1315232 Contact Us For Availability
2
WCI 08015939 WCI 08015939 Contact Us For Availability
2
WCI K1325098 WCI K1325098 Contact Us For Availability
2
WCI 08012541 WCI 08012541 Contact Us For Availability
3
THERMOSTAT WCI K1322361 Contact Us For Availability
3
HINGE COOKTOP RH WCI 3051658 Contact Us For Availability
3
BUMPER-WINDOW TOP (2) WCI K5297101 Contact Us For Availability
3
HANDLE - DRAWER WCI 08014202 Contact Us For Availability
3
INSULATION - OVEN WRAP WCI 3051521 Contact Us For Availability
3A
HINGE-COOKTOP LH WCI K1315631 Contact Us For Availability
4
SIGNAL LIGHT - OVEN WCI K5138901 Contact Us For Availability
4
SIGNAL LIGHT - S/U WCI K5138903 Contact Us For Availability
4
RETAINER HINGE (2) WCI 3051745 Contact Us For Availability
4
BUMPER-WINDOW BOT. (2) WCI K1312009 Contact Us For Availability
4
INSULATION-OVEN BACK WCI 3051630 Contact Us For Availability
5
LENS - SIGNAL LIGHT (2) WCI K5139002 Contact Us For Availability
5
WCI K1315541 WCI K1315541 Contact Us For Availability
5
GASKET-OVEN DOOR WCI 08003268 Contact Us For Availability
5
GUIDE-DRAWER (2) WCI K001324091 Contact Us For Availability
5
PANEL-SIDE RH AVOC WCI K5024607 Contact Us For Availability
5A
PANEL-SIDE LH AVOC WCI K5024608 Contact Us For Availability
6
SWITCH - OVEN SELECT WCI 08016480 Contact Us For Availability
6
HANDLE WCI K5026601 Contact Us For Availability
6
HANGER - BROIL UNIT WCI 3051518 Contact Us For Availability
6
WCI 3017575 WCI 3017575 Contact Us For Availability
7
WCI K5265801 WCI K5265801 Contact Us For Availability
7
STANCHION-HANDLE (2) WCI K5132701 Contact Us For Availability
7
WCI 3017810 WCI 3017810 Contact Us For Availability
7
PANEL - BOTTOM WCI 3203574 Contact Us For Availability
8
WCI K5137604 WCI K5137604 Contact Us For Availability
8
DOOR LINER WCI 3017393 Contact Us For Availability
8
WCI 3017481 WCI 3017481 Contact Us For Availability
8A
WCI 3017482 WCI 3017482 Contact Us For Availability
9
KNOBS (6) WCI 3015698 Contact Us For Availability
9
WCI 3051822 WCI 3051822 Contact Us For Availability
9
CHANNEL - OVEN SPRT WCI 3200927 Contact Us For Availability
10
WCI 3051675 WCI 3051675 Contact Us For Availability
10
WCI 08003264 WCI 08003264 Contact Us For Availability
10
WCI 3205294 WCI 3205294 Contact Us For Availability
10A
WCI 3051674 WCI 3051674 Contact Us For Availability
11
WCI 3051673 WCI 3051673 Contact Us For Availability
11
SCREW-HANDLE (4) WCI K5046501 Contact Us For Availability
11
CHANNEL-OVEN SPRT. WCI 3200926 Contact Us For Availability
11A
WCI 3051672 WCI 3051672 Contact Us For Availability
12
SUPPORT-BACKGRD RH WCI 3051670 Contact Us For Availability
12
WCI 08003183 WCI 08003183 Contact Us For Availability
12
WCI 3017633 WCI 3017633 Contact Us For Availability
12A
SUPPORT-BACKGRD LH WCI 3051671 Contact Us For Availability
13
WCI 08015746 WCI 08015746 Contact Us For Availability
13A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
14
WCI K1100733 WCI K1100733 Contact Us For Availability
14
SPACER-DRWR RAIL (2) WCI K1324860 Contact Us For Availability
15
WCI K5035801 WCI K5035801 Contact Us For Availability
15
GUIDE - DRWR FR (2) WCI K1315216 Contact Us For Availability
16
BRACKET MOUNTING WCI K5127901 Contact Us For Availability
16
ROLLER PKG-OVEN DR (2) WCI K1309794 Contact Us For Availability
16
BUMPER-COOKTOP (4) WCI K5106901 Contact Us For Availability
17
TIMER WCI K5260301 Contact Us For Availability
17
BRACKET-THERMO BULB (2) WCI K1311369 Contact Us For Availability
18
WCI 3016387 WCI 3016387 Contact Us For Availability
19
WCI 08003252 WCI 08003252 Contact Us For Availability
19
WCI 08012542 WCI 08012542 Contact Us For Availability
20
GUSSET, BACKGRD (2) WCI K1315230 Contact Us For Availability
21
WCI 3204603 WCI 3204603 Contact Us For Availability
22
SWITCH, OVEN LIGHT WCI K5294301 Contact Us For Availability
24
WCI 3205232 WCI 3205232 Contact Us For Availability
25
GRILL - BROILER WCI 3205234 Contact Us For Availability
26
WCI 3051856 WCI 3051856 Contact Us For Availability
27
STRAP-GROUND WCI K1145190 Contact Us For Availability
28
WCI K1325530 WCI K1325530 Contact Us For Availability
32
WCI K1325529 WCI K1325529 Contact Us For Availability
× ![]()
